AV over IP — VuMATRIX 4K HDMI-over-IP Matrix & Video Walls

VuMATRIX is PVI’s AV-over-IP platform — the professional way to send any HDMI source to any display, anywhere on your network, at full 4K HDR Dolby Vision quality. Add one VuMATRIX FX Transmitter per source and one FX Receiver behind each display; they discover each other over your 1-Gigabit Ethernet or fiber-optic network, and you control the whole matrix — switching, presets, naming — from the free iOS/Android app on any phone or tablet.

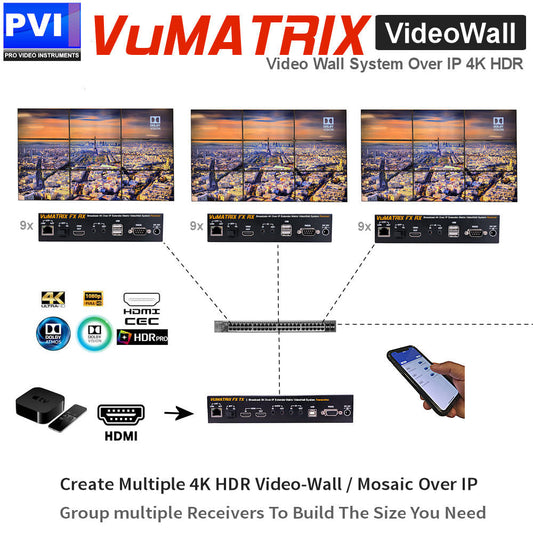

Group multiple receivers to build a seamless 4K video wall of any size, with PiP, mosaic, zoom, and 360° rotation modes. Start with a turnkey wall kit (3×1 through 6×6) or design a custom matrix with individual TX/RX units. Every unit supports PoE, IR/USB/RS-232 pass-through, and both Cat6 and SFP fiber (up to 60 km).

Designed and built in the USA, backed by a 5-year warranty and free unlimited lifetime support.

🏆 NAB & InfoComm Best of Show🇺🇸 Designed & Made in USA📺 4K HDR Dolby Vision🔌 PoE Powered📱 Free App Control🛡️ 5-Year Warranty
Compare the range

The complete VuMATRIX AV-over-IP lineup

Individual extenders for custom matrices, or turnkey kits for instant video walls — all 4K HDR, all PoE, all app-controlled.

ProductTypeDisplaysMax ResolutionNetworkPrice From
VuMATRIX FX TXHDMI-over-IP transmitter—4K@30 HDRCat6 / Fiber (60 km)$495
VuMATRIX FX RXHDMI-over-IP receiver1 per unit4K@30 HDRCat6 / Fiber (60 km)$495
3x1 Video Wall KitWall bundle34K HDRCat6 / Fiber$1,980
2x2 Video Wall KitWall bundle44K HDRCat6 / Fiber$2,475
4x2 Video Wall KitWall bundle84K HDRCat6 / Fiber$4,455
3x3 Video Wall KitWall bundle94K HDRCat6 / Fiber$4,950
5x2 Video Wall KitWall bundle104K HDRCat6 / Fiber$5,445
4x4 Video Wall KitWall bundle164K HDRCat6 / Fiber$8,415
5x5 Video Wall KitWall bundle254K HDRCat6 / Fiber$12,870
6x6 Video Wall KitWall bundle364K HDRCat6 / Fiber$18,315

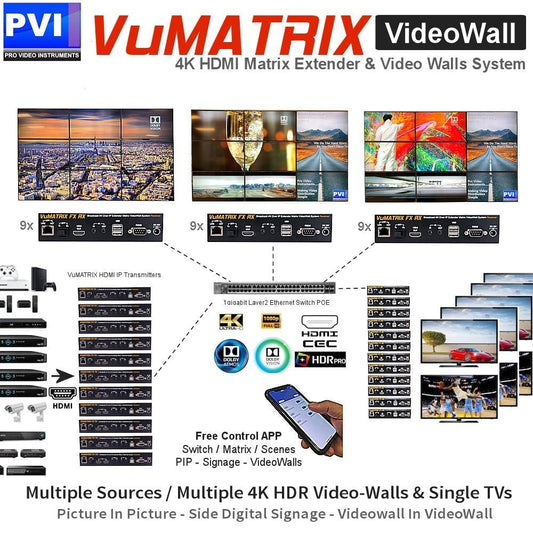

HDMI / SDI / AV Sources cameras · players VuMATRIX FX TX HDMI-over-IP PoE Ethernet Cat6 · Fiber VuMATRIX RX → TV Video Wall Displays · ∞

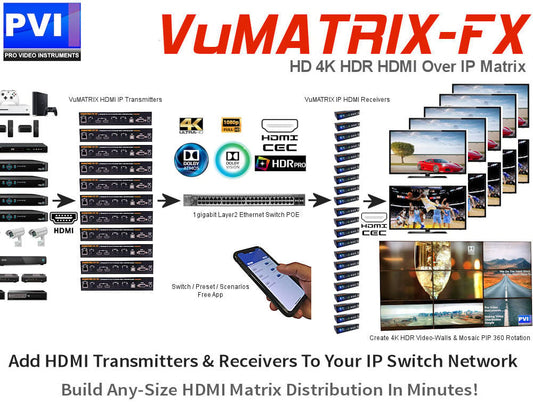

How it works: HDMI sources connect to VuMATRIX FX Transmitters, which send 4K HDR video over your PoE Ethernet or fiber network to VuMATRIX FX Receivers behind each display — or grouped into a seamless video wall — controlled from the free app.
How it works

Build any matrix or video wall in three steps

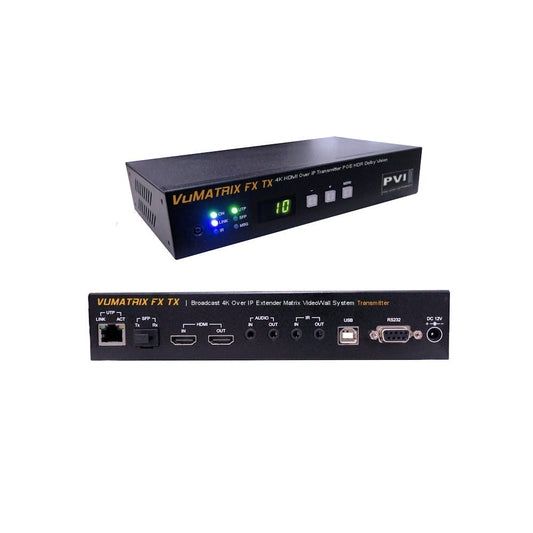

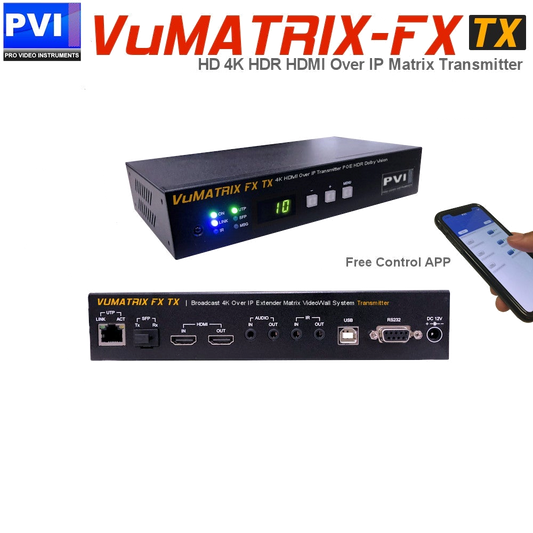

1. Add a transmitter per source

Connect one VuMATRIX FX TX to each HDMI source — a media player, camera, computer, signage player, or cable box. The TX sends video at up to 4K@30 HDR Dolby Vision, plus 7.1 surround audio, over Cat6 or fiber to the network.

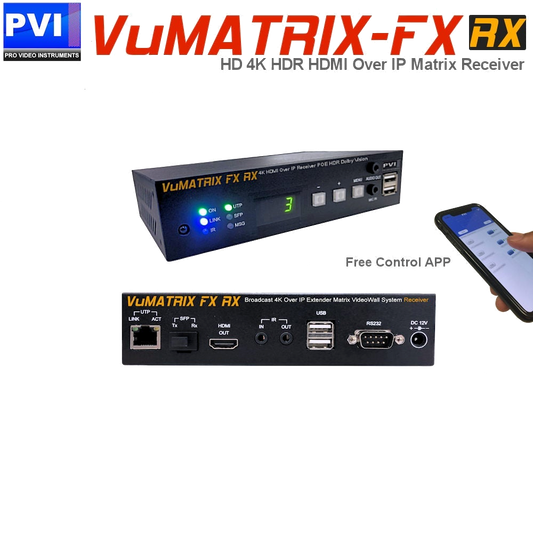

2. Add a receiver per display

Place a VuMATRIX FX RX behind each TV, projector, or monitor. Each receiver outputs HDMI at 4K HDR and passes IR, USB, and RS-232 back to the source, so viewers can control the source from the display room with the original remote.

3. Control from the app

Open the free iOS or Android app on any phone or tablet. Switch any display to any source in one tap, create presets for instant room-by-room control, and group receivers into a seamless video wall — with PiP, mosaic, zoom, and rotation modes — all from your pocket.

Explore AV over IP

Ready to build your AV-over-IP system?

Call 407-720-6101

Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
