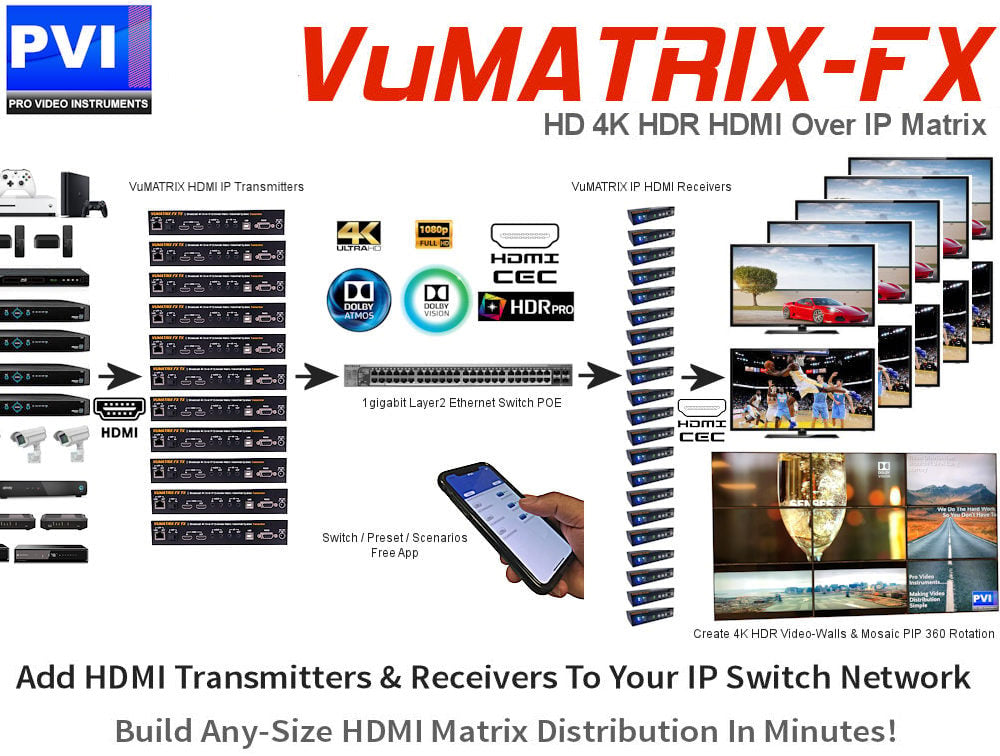

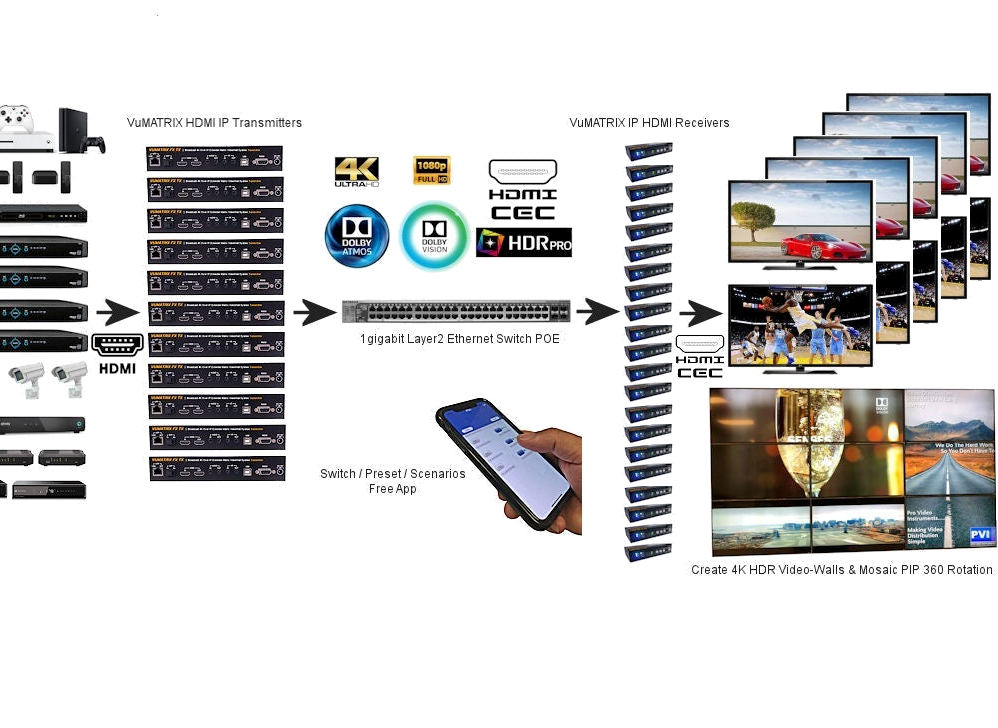

The VuMATRIX FX Receiver completes the AV-over-IP chain. Place one behind each display — whether it’s a single screen in a conference room, a panel in a 3×3 video wall, or a lobby monitor showing a mosaic of every source. Power it over the same Cat6 cable that carries the video, and control it all from a free mobile app.

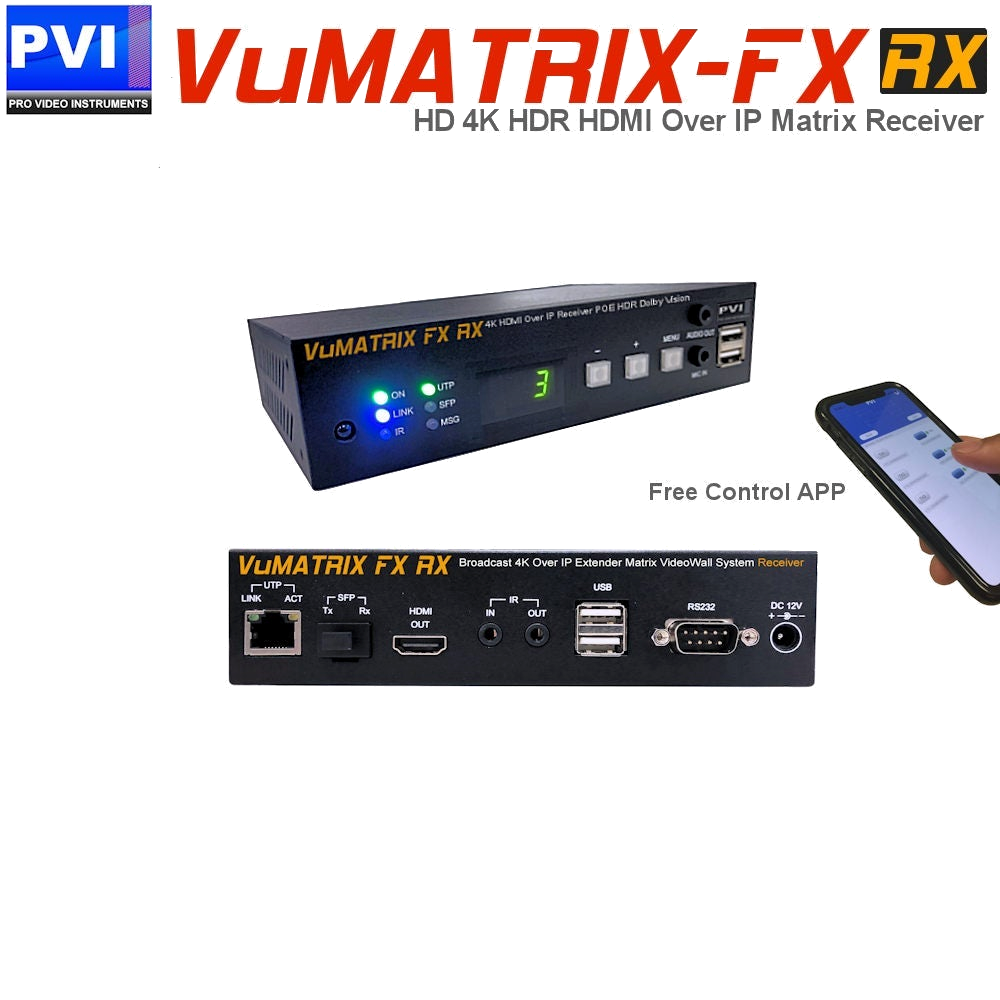

4K HDMI-over-IP Receiver
Every Display, Any Room, One Network
Receive any source from any VuMATRIX transmitter on the network and display it in stunning 4K HDR — individually, as part of a video wall, or in mosaic mode.
Capabilities
Display, Wall, Mosaic — Your Choice
One receiver, three display modes. Show a single source full-screen, join multiple units into a seamless video wall, or display a mosaic of every source at once.
- Receives 4K HDR Dolby Vision from any VuMATRIX TX on the network — switch sources instantly via app or API
- Group receivers into video walls of any size with PiP, mosaic, 360° rotation, and custom zone layouts
- PoE powered — a single Cat6 cable delivers video, control, and power to each display location
- IR, USB & RS-232 pass-through lets you control the source device from the display room
- 7.1 surround audio with dedicated SPDIF optical and analog stereo breakout for independent audio zones
Scales Endlessly
Add Receivers, Add Displays
Your AV system grows with your building. Every new display is just one more receiver on the network — no re-engineering, no matrix switcher upgrades, no distance limits.
Pair each receiver with a VuMATRIX FX Transmitter at the source. One TX can feed unlimited RX units simultaneously, and every RX can switch between any TX on the network. Run Cat6 up to 100 meters per hop, or plug in an SFP fiber module to reach 60 km between buildings. The system scales from 2 screens to 2,000 with zero performance loss.
Features
One Receiver, Unlimited Possibilities
Every feature you need to put any source on any screen, anywhere in the building.
4K HDR
4K@30 4:4:4 output with HDR and Dolby Vision pass-through to every display.
Video Wall
Group receivers into any-size walls with PiP, mosaic, and 360° rotation.
PoE
Power over Ethernet — no AC adapter needed at the display location.
Audio
7.1 surround with dedicated SPDIF optical and analog stereo breakout.
App Control
Free iOS/Android app for matrix switching, presets, and display naming.
IR/USB Pass
Control the source device from the display room via IR, USB, or RS-232.
Specifications
VuMATRIX FX Receiver Specifications
| Device Type | AV-over-IP HDMI receiver (decoder/endpoint) |
| Video Output | 1× HDMI Type A · up to 4K@30 4:4:4 |
| Audio | 7.1 LPCM, Dolby TrueHD, DTS-HD, Atmos, DTS:X · SPDIF optical + analog stereo breakout |
| Link | Cat6 up to 100 m + SFP fiber up to 60 km |
| Power | PoE (802.3af, 15 W) or included AC adapter |
| HDCP | 2.2 |
| Video Wall | Any-size grouping · PiP · mosaic · zoom · 360° rotation |
| Control | IR, USB, RS-232, CEC, API |
| App | Free iOS/Android · matrix switching, presets, display naming |
| USB | 2× Type-A USB 2.0 (KVM / peripheral pass-through) |
| SKU | VUMATRIX-FIBER-RX-POE |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
FAQ
VuMATRIX FX Receiver — FAQ
What does the VuMATRIX FX Receiver do?
It receives a 4K HDMI signal sent over your IP network from any VuMATRIX FX Transmitter and outputs it to a local display via HDMI. Place one behind each TV or projector to create a fully switched AV-over-IP system.
How do I build a video wall with the VuMATRIX receivers?
Connect one receiver to each panel in your wall array. Using the free app, group those receivers into a wall of any size (2×2, 3×3, 1×4, etc.) with options for PiP, mosaic, zoom, and 360° rotation — no external processor required.
Can one receiver switch between multiple transmitters?
Yes. Any receiver can tune to any transmitter on the same network. Switching is instant and controlled via the app, API, RS-232, or IR.
What is the maximum distance between transmitter and receiver?
Up to 100 meters over Cat6 cable. For longer runs or between buildings, install an SFP fiber module and reach up to 60 km.
Does it really need no power adapter?
Correct — when connected to a PoE switch or injector (802.3af), the receiver draws only 15 W through the Ethernet cable. An AC adapter is included as a fallback if PoE is not available.
What audio formats does the receiver support?
Full 7.1 surround including LPCM, Dolby TrueHD, Atmos, DTS-HD, and DTS:X. A dedicated SPDIF optical output and analog stereo breakout let you feed independent audio zones.
When should I buy the pre-configured Video Wall Kit instead of individual units?
The 3×3 and 4×4 Video Wall Kits include matched TX/RX pairs, cables, and a pre-configured PoE switch — ideal when you want a turnkey solution. Buy individual receivers when expanding an existing system or building a custom matrix layout.
