The VuMATRIX FX Transmitter converts any HDMI source into an IP stream that travels over your existing network infrastructure. Connect a cable box, Blu-ray player, camera, signage PC, or gaming console — every receiver on the network can tune in instantly. Add transmitters and receivers at any time to build a matrix of any size without ripping out cables.
4K HDMI-over-IP Transmitter
Put Any HDMI Source on Your Network
Send any 4K HDR Dolby Vision source to unlimited VuMATRIX receivers over standard Cat6 or fiber optic — up to 60 km with zero compression artifacts.
Capabilities
One TX Per Source, Unlimited Receivers
Each transmitter handles one HDMI source and distributes it to every VuMATRIX receiver on the network simultaneously.
- Sends 4K HDR Dolby Vision over standard Cat6 (100 m) or SFP fiber (60 km) with visually lossless quality
- PoE powered — no AC adapter needed, single Ethernet cable carries power + video + control
- HDMI loop-out for a local monitor at the source location without splitting signal quality
- IR, USB, RS-232, and CEC pass-through — control the source device from any receiver room
- Free iOS/Android app for instant matrix switching, video wall configuration, and system management
System Design
Any Size Matrix, Any Distance
Start with one TX and one RX. Scale to hundreds of endpoints across buildings, campuses, or stadiums — no proprietary matrix switcher hardware required.

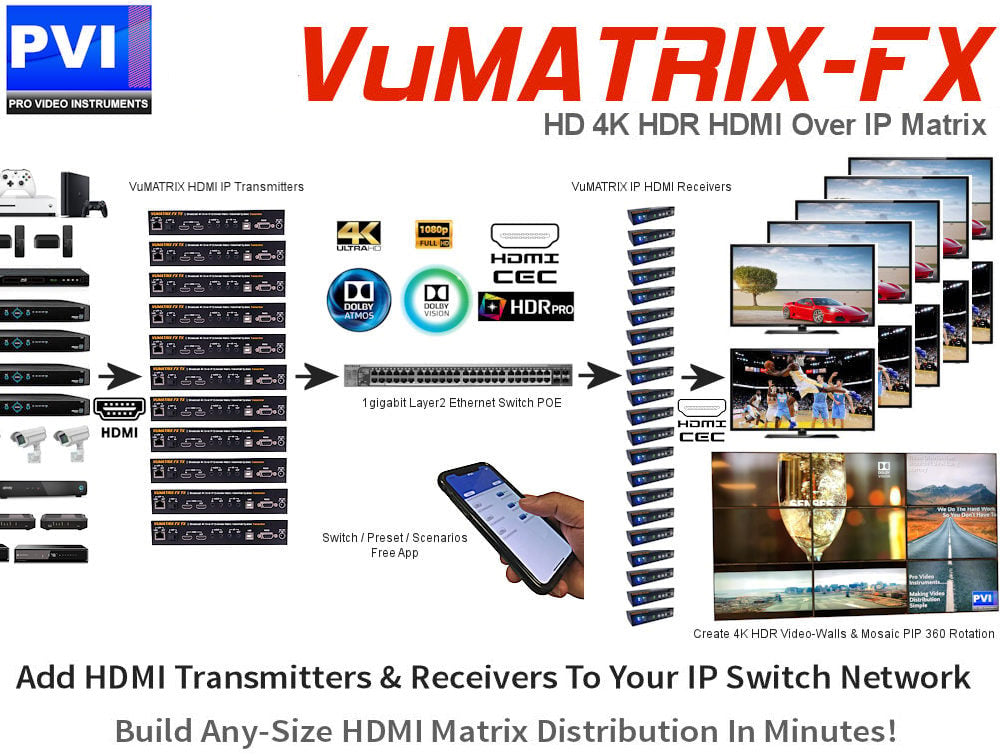

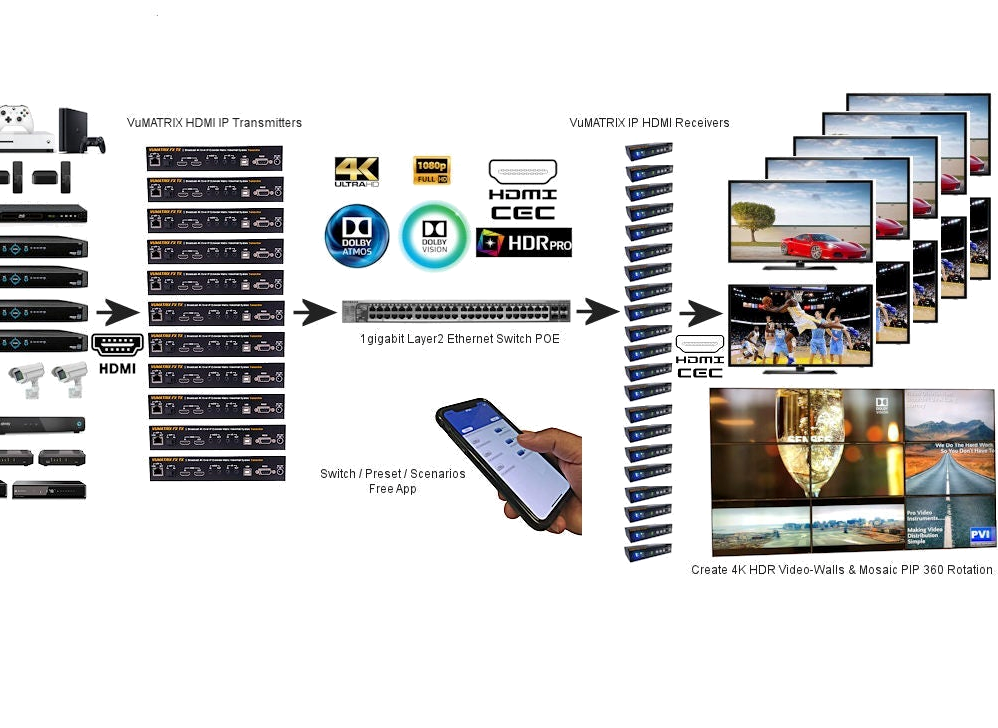

Every VuMATRIX transmitter and receiver is a node on your IP network. Add a TX for each new source, add an RX for each new display. A managed network switch is your matrix — no expensive proprietary chassis, no port limits. Extend to remote buildings with fiber SFP modules covering up to 60 km between endpoints.
Features
Enterprise AV Distribution, Simplified
Professional HDMI-over-IP with zero-configuration deployment and unlimited scalability.
4K HDR
4K@30 4:4:4 with HDR10 and Dolby Vision pass-through for stunning picture quality.
PoE
Power over Ethernet — no AC adapter required. One cable for power, video, and control.
Fiber + Cat6
60 km over single-mode fiber or 100 m over Cat6 — choose per endpoint.
App Control
Free iOS and Android app for instant matrix switching and system management.
Video Wall
Group receivers into video walls with PiP, mosaic, and rotation — no extra hardware.
IR/USB Pass
Control the source from any receiver room via IR, USB, RS-232, or CEC pass-through.
Specifications
VuMATRIX FX Transmitter Specifications
| Device Type | 4K HDMI-over-IP Transmitter (encoder/sender) |

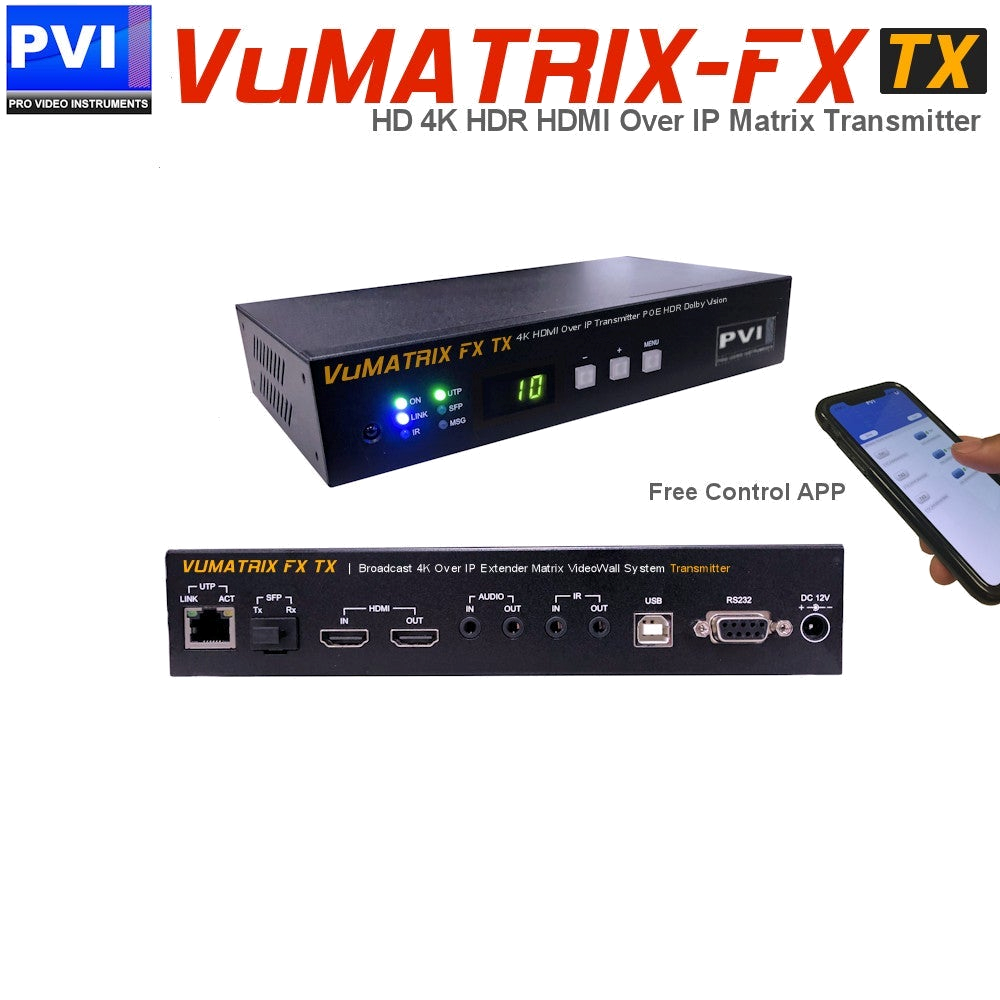

| Video Input | 1× HDMI 2.0 (gold-plated) + 1× HDMI loop-out for local monitor |
| Max Resolution | 4K@30 4:4:4, HDR10, Dolby Vision · 1080p@60 full color |
| Audio | HDMI embedded up to 7.1ch · Dolby Digital, DTS, LPCM pass-through |
| Link | Cat5e/6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af, 15 W max) or included 12 V DC adapter |
| HDCP | HDCP 2.2 / 1.4 compliant |
| Loop-out | 1× HDMI loop-out, mirrors input for local display |
| Control | IR, USB, RS-232, CEC pass-through · TCP/IP API · Web GUI |
| App | Free VuMATRIX app for iOS & Android — matrix switching, video wall, firmware updates |
| SKU | VUMATRIX-FX-TX |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX FX Transmitter — FAQ
What does the VuMATRIX FX Transmitter do?
It takes any HDMI source (cable box, Blu-ray, camera, PC) and sends the video over your IP network to one or many VuMATRIX receivers, allowing any display in the building to show any source on demand.
What receiver do I need?
Pair it with the VuMATRIX FX Receiver. Each receiver decodes the stream back to HDMI for a single display. You can use as many receivers as you need — there is no limit.
What is the maximum distance?
100 meters over Cat5e/Cat6 cable, or up to 60 kilometers over single-mode fiber using an SFP module. Both options are supported on the same unit.
Does it support Power over Ethernet (PoE)?
Yes. The TX draws only 15 W and can be fully powered by a PoE switch (802.3af), eliminating the need for a local AC outlet. A 12 V DC adapter is also included as a fallback.
Can it create a video wall?
Yes. Group multiple VuMATRIX receivers together in the free app to build video walls of any size with picture-in-picture, mosaic layouts, and 90°/180°/270° rotation — no additional hardware needed.
How many sources can I put on one network switch?
As many as you have ports. Each TX occupies roughly 20–30 Mbps of bandwidth. A standard 24-port gigabit managed switch can handle dozens of sources and receivers simultaneously.
How does this compare to an HDMI splitter or matrix switcher?
Traditional HDMI splitters and matrix switchers are limited to short cable runs (15 m) and fixed port counts. VuMATRIX uses your network — unlimited distance, unlimited endpoints, no proprietary chassis, and you can add sources or displays at any time.
