The 3×3 is the sweet spot between impact and practicality. Nine displays arranged in a three-by-three grid produce an immersive canvas that fills peripheral vision and makes every viewer stop and look. It is the most requested format for corporate headquarters, megachurch stages, museum exhibits, and broadcast studios. Every receiver syncs frame-perfectly with zero visible seams between tiles, and the free mobile app lets you reconfigure layouts, switch sources, or create mosaic views without touching a single cable.
3×3 Premium Video Wall
Nine Screens, One Immersive Experience
The complete 9-display kit with 1 VuMATRIX FX Transmitter and 9 Receivers — a perfectly square video wall that delivers jaw-dropping 4K HDR imagery for lobbies, houses of worship, and command centers.
What's in the Kit
Everything You Need
Ten devices, one PoE switch, one app — your 3×3 immersive wall is ready in under an hour.

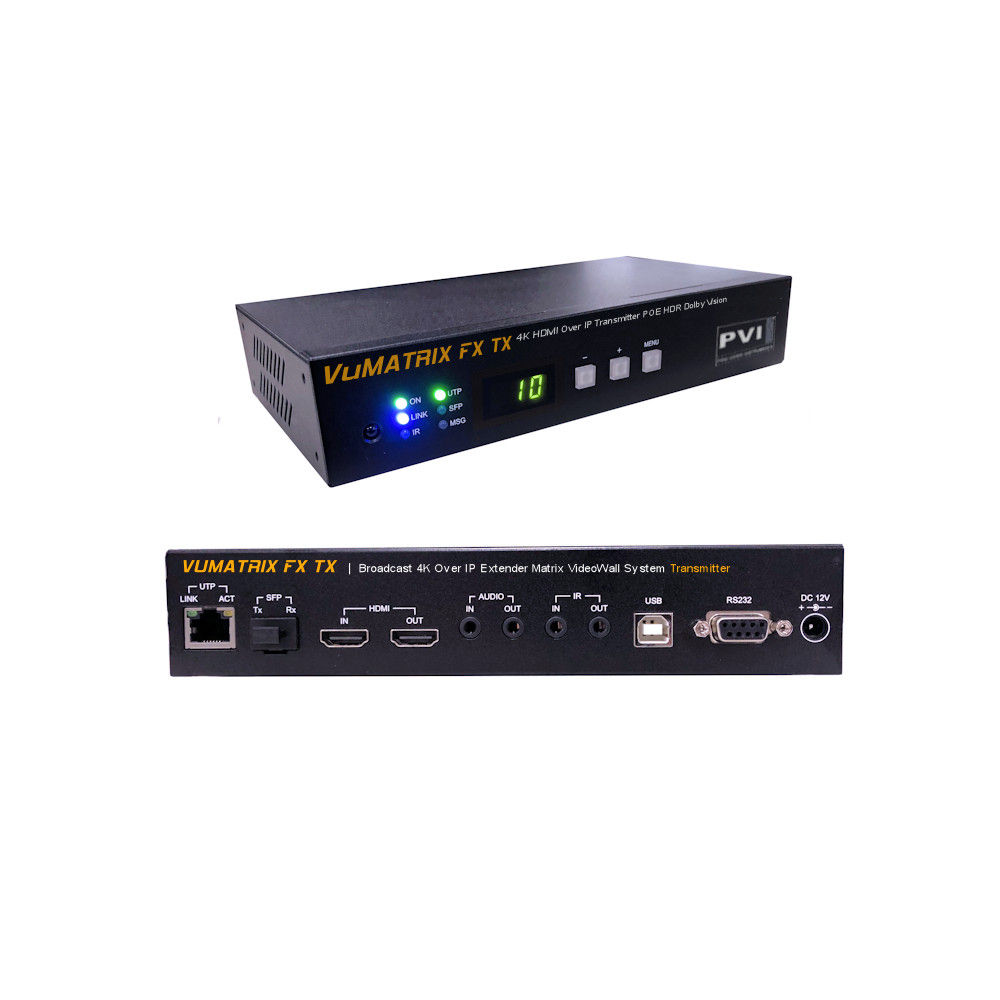

- 1 VuMATRIX FX Transmitter — encodes any HDMI source and streams it to all nine receivers
- 9 VuMATRIX FX Receivers — one per panel, frame-locked for a seamless 3×3 canvas

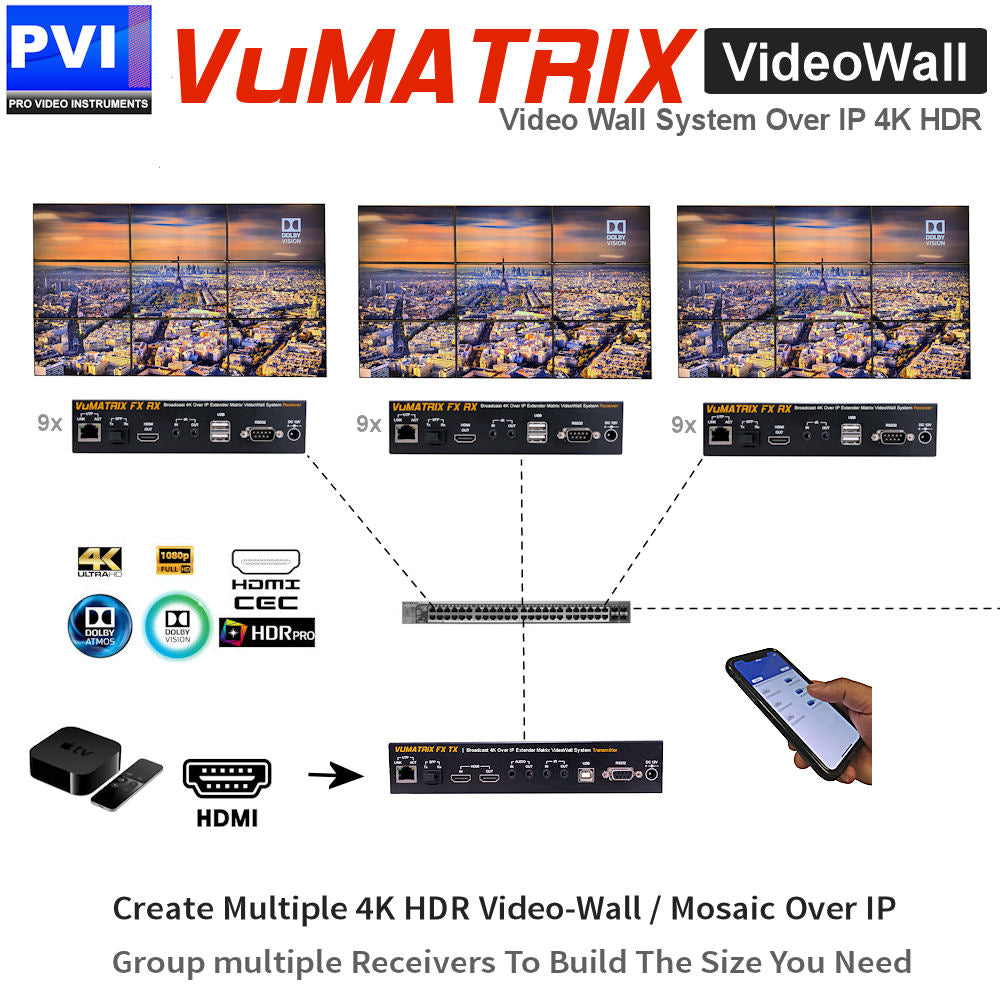

- Free iOS & Android control app — configure the 3×3 grid, switch sources, set up PiP and mosaic presets
- PoE on all 10 units — one Ethernet cable per device carries power, video, and control
- Cat6 (100 m) or single-mode fiber (60 km) per link — no distance limitations
Features
Immersive Impact, Effortless Setup
Nine synchronized displays delivering one breathtaking image — no video-wall controller required.
Turnkey Kit
1 TX + 9 RX pre-matched — unbox, connect, configure in the app, and go live.
4K HDR
4K@30 HDR Dolby Vision with 7.1 surround audio across all nine panels.
Video Wall
PiP, mosaic, zoom, and 360° rotation — built into every receiver, no external processor.
App Control
Free iOS & Android app for instant source switching, wall presets, naming, and firmware.
PoE
No AC adapters — a single PoE switch powers all ten units through their network cables.
Scalable
Add TX/RX to grow beyond 3×3 — expand to 4×3, 3×4, or a mixed matrix at any time.
Specifications
VuMATRIX 3×3 Video Wall Kit Specifications
| Kit Contents | 1× VuMATRIX FX Transmitter + 9× VuMATRIX FX Receivers |
| Layout | 3×3 (three columns, three rows) |
| Total Displays | 9 |
| Resolution | 4K@30 4:4:4 · HDR10 · Dolby Vision |
| Audio | 7.1 surround · Dolby Digital, DTS, LPCM pass-through · SPDIF + analog breakout |
| Network | Cat5e/Cat6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af) on all units — 10 PoE ports required on switch |
| Control | Free iOS/Android app · Web GUI · RS-232 · TCP/IP API |
| SKU | VUMATRIX-WALL-3X3 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX 3×3 Video Wall Kit — FAQ
What ships with the 3×3 Video Wall Kit?
You receive 1 VuMATRIX FX Transmitter and 9 VuMATRIX FX Receivers. Add your own nine displays and a managed PoE switch with at least 10 ports, then configure the wall through the free VuMATRIX app.
Can I expand beyond 3×3 in the future?
Yes. Simply buy additional receivers to grow to 4×3, 3×4, or any other shape. Add more transmitters to put additional sources on the same network. Every new device plugs into the same switch — no controller upgrade needed.
What network switch is recommended for 10 devices?
A managed gigabit PoE switch with IGMP snooping and at least 10 PoE ports. We recommend a 16-port or 24-port model to leave headroom for additional sources or displays.
Do I need a dedicated video-wall processor for 9 screens?
No. Each VuMATRIX receiver contains built-in video-wall processing. The free app groups all nine into a wall with PiP, mosaic, zoom, and rotation — no external processor or license required.
How far can displays be from the source?
Up to 100 meters per link over Cat6, or up to 60 kilometers over single-mode fiber. Each receiver connects independently, so individual panels can be on different floors or even in different buildings.
Build Your System
Expand or Customize
Add individual units or step up to a wider, taller, or larger wall configuration.
VuMATRIX FX Transmitter
Add more HDMI sources to the network — one TX per input.
$695.00$495.00You save $200.00
VuMATRIX FX Receiver
Extend beyond the wall with individual receivers for standalone displays.
$695.00$495.00You save $200.00
VuMATRIX 5×2 Video Wall Kit
Go wider with a 10-screen panoramic wall for sports bars and stadiums.
$5,790.00$5,445.00You save $345.00
Build a 3×3 Video Wall Today
$4,950.00$5,490.00
Save $540.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
