Five across and two high, the 5×2 layout delivers an ultra-widescreen canvas that fills peripheral vision and pulls audiences into the content. It is the go-to format for sports bars showing live games across the entire back wall, convention-center signage, and house-of-worship stage backdrops. Ten VuMATRIX receivers lock together frame-perfectly while the free mobile app lets you switch sources, create mosaic views, or display ten independent feeds — all without a single external processor or controller box.
5×2 Ultra-Wide Video Wall
Ten Screens, One Panoramic Statement
The ultimate wide-format kit with 1 VuMATRIX FX Transmitter and 10 Receivers — a massive 5-wide, 2-high panoramic wall engineered for sports arenas, convention halls, and entertainment venues where nothing less than breathtaking will do.
What's in the Kit
Everything You Need
Eleven networked units, one PoE switch, one app — your 5×2 panoramic wall goes live the same day.

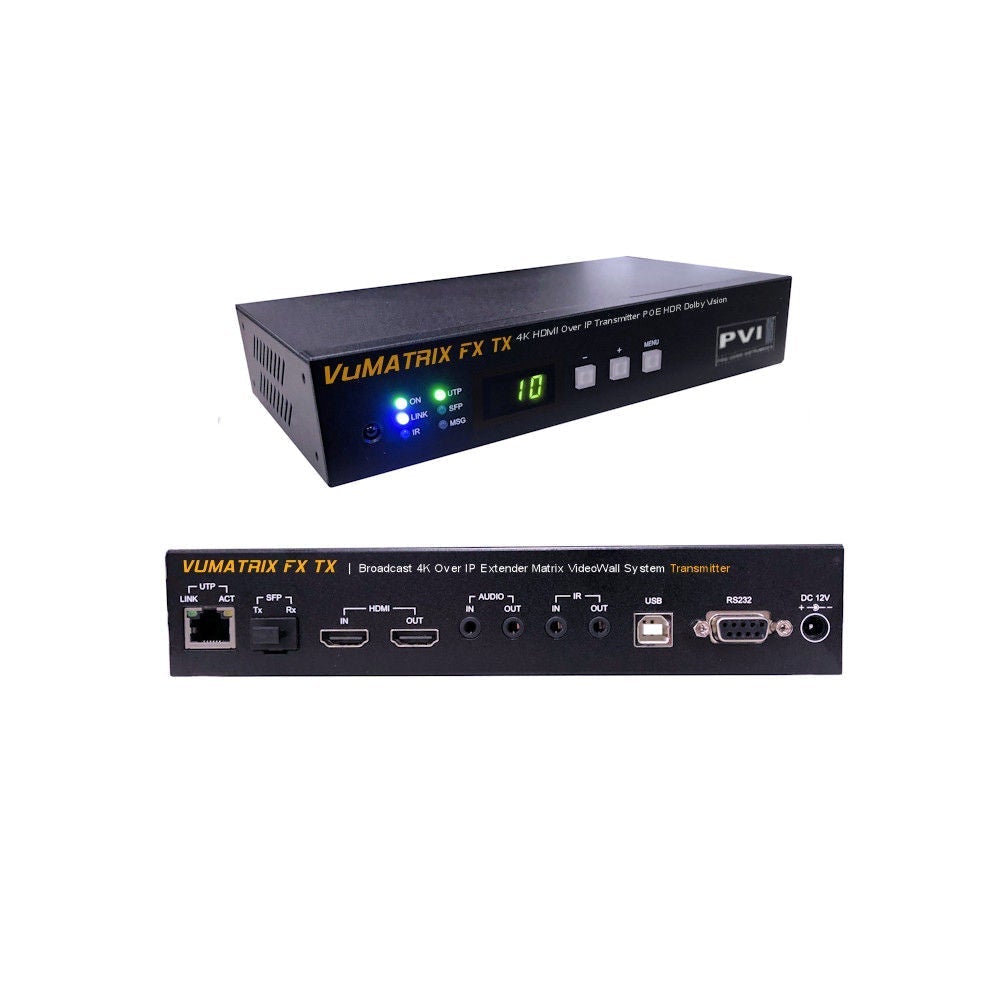

- 1 VuMATRIX FX Transmitter — encodes any HDMI source for network distribution to all ten receivers
- 10 VuMATRIX FX Receivers — one behind each panel, frame-synchronized across the entire 5×2 canvas
- Free iOS & Android control app — configure the 5×2 grid, create mosaic presets, and name every display
- PoE on all 11 units — no AC adapters at any location when using a PoE switch
- Cat6 (100 m) or single-mode fiber (60 km) per link — mix copper and fiber as your building requires
Features
Ultra-Wide Impact, Network Simplicity
Ten displays spanning an entire wall — powered, synchronized, and managed over standard IP.
Turnkey Kit
1 TX + 10 RX shipped together — everything pre-matched for immediate wide-format deployment.
4K HDR
4K@30 HDR Dolby Vision with 7.1 surround audio synchronized across all ten panels.
Video Wall
PiP, mosaic, zoom, and 360° rotation built into every receiver — no external processor needed.
App Control
Free iOS & Android app for source switching, wall presets, display naming, and OTA firmware.
PoE
No AC adapters — a PoE switch powers all eleven units through standard Ethernet cables.
Scalable
Add more TX/RX to grow beyond 5×2 — extend to 5×3, 6×2, or a full AV matrix network.
Specifications
VuMATRIX 5×2 Video Wall Kit Specifications
| Kit Contents | 1× VuMATRIX FX Transmitter + 10× VuMATRIX FX Receivers |
| Layout | 5×2 (five columns, two rows) |
| Total Displays | 10 |
| Resolution | 4K@30 4:4:4 · HDR10 · Dolby Vision |
| Audio | 7.1 surround · Dolby Digital, DTS, LPCM pass-through · SPDIF + analog breakout |
| Network | Cat5e/Cat6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af) on all units — 11 PoE ports required on switch |
| Control | Free iOS/Android app · Web GUI · RS-232 · TCP/IP API |
| SKU | VUMATRIX-WALL-5X2 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX 5×2 Video Wall Kit — FAQ
What is included in the 5×2 Video Wall Kit?
The kit ships with 1 VuMATRIX FX Transmitter and 10 VuMATRIX FX Receivers. Provide ten displays and a managed PoE switch with at least 11 ports, and the free VuMATRIX app handles all wall configuration.
Can I reconfigure the 5×2 layout or expand it later?
Yes. Rearrange the ten receivers into a 2×5, 10×1, or any other shape through the app. Add more receivers to grow to 5×3, 6×2, or beyond. Add more transmitters to put additional sources on the network.
What switch do I need for 11 PoE devices?
A managed gigabit PoE switch with IGMP snooping and at least 11 PoE ports. A 16-port or 24-port managed PoE switch gives you room for future expansion and additional sources.
Is an external video-wall controller needed for 10 screens?
No. Every VuMATRIX receiver has built-in wall processing. The free app groups all ten receivers into the 5×2 grid with PiP, mosaic, zoom, and rotation. There is no external processor, no license fee, and no subscription.
How far can the ten displays be from my HDMI source?
Each link runs up to 100 meters over Cat6 or up to 60 kilometers over single-mode fiber. Displays can be in different rooms, on different floors, or even in separate buildings and still form one seamless panoramic wall.
Build Your System
Expand or Customize
Add individual units, change the layout, or upgrade to an even larger wall.
VuMATRIX FX Transmitter
Feed additional HDMI sources into the network — one TX per input.
$695.00$495.00You save $200.00
VuMATRIX FX Receiver
Add standalone displays or extend the wall with additional receivers.
$695.00$495.00You save $200.00
VuMATRIX 4×4 Video Wall Kit
Move to a 16-screen square grid for maximum visual density and impact.
$8,790.00$8,415.00You save $375.00
Build a 5×2 Video Wall Today
$5,445.00$5,790.00
Save $345.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
