The 4×4 is where video walls go from impressive to unforgettable. Sixteen displays arranged in a perfect four-by-four grid create a surface large enough to dominate airport terminals, casino floors, broadcast control rooms, and flagship retail spaces. Despite its scale, the system remains remarkably simple: every receiver draws power from a single PoE cable, the free VuMATRIX app configures the entire wall in minutes, and there is no external video-wall processor to buy, license, or maintain. Add more transmitters to switch between multiple sources on the fly.
4×4 Large-Format Video Wall
Sixteen Screens, One Massive Impact
A turnkey 16-display kit with 1 VuMATRIX FX Transmitter and 16 Receivers — fill an entire wall from floor to ceiling with seamless 4K HDR content that stops audiences in their tracks.
What's in the Kit
Everything You Need
Seventeen devices, one managed PoE switch, one app — a 16-screen wall with no controller box in sight.

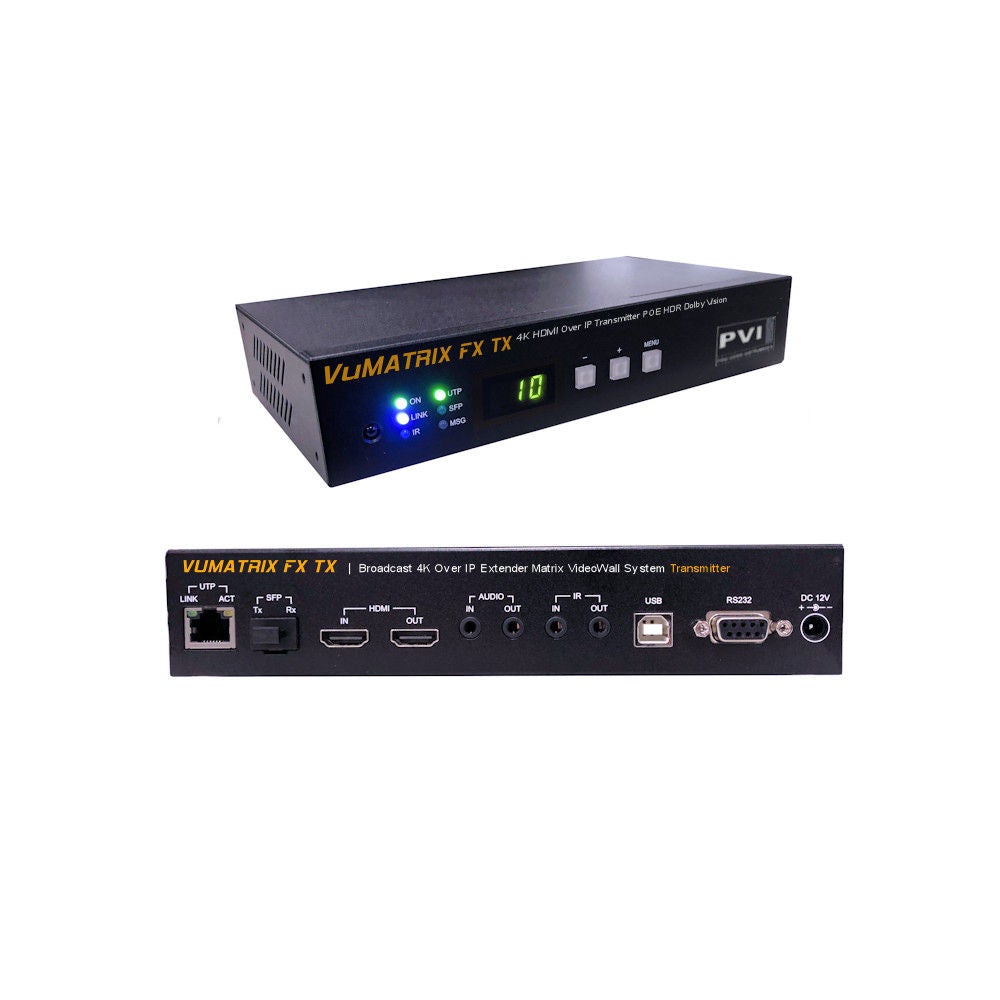

- 1 VuMATRIX FX Transmitter — encodes any HDMI source and distributes it to all sixteen receivers
- 16 VuMATRIX FX Receivers — one behind each panel, frame-locked for a perfectly seamless 4×4 canvas
- Free iOS & Android control app — set up the 4×4 grid, switch sources, create PiP and mosaic presets
- PoE on all 17 units — no power bricks, no outlet hunting at each display location
- Cat6 (100 m) or single-mode fiber (60 km) per link — mix media types as your infrastructure requires
Features
Large-Format Power, Zero Complexity
Sixteen displays acting as one seamless surface — no controller box, no license fees, no limits.
Turnkey Kit
1 TX + 16 RX shipped pre-matched — deploy a floor-to-ceiling wall without sourcing individual units.
4K HDR
4K@30 HDR Dolby Vision with 7.1 surround audio across all sixteen synchronized panels.
Video Wall
PiP, mosaic, zoom, and 360° rotation — built into every receiver, no external processor.
App Control
Free iOS & Android app manages source switching, wall layout, presets, naming, and firmware.
PoE
No AC adapters anywhere — a PoE switch powers all seventeen units via standard Ethernet cables.
Scalable
Add TX/RX to grow beyond 4×4 — expand to 5×4, 4×5, or a massive mixed-layout installation.
Specifications
VuMATRIX 4×4 Video Wall Kit Specifications
| Kit Contents | 1× VuMATRIX FX Transmitter + 16× VuMATRIX FX Receivers |
| Layout | 4×4 (four columns, four rows) |
| Total Displays | 16 |
| Resolution | 4K@30 4:4:4 · HDR10 · Dolby Vision |
| Audio | 7.1 surround · Dolby Digital, DTS, LPCM pass-through · SPDIF + analog breakout |
| Network | Cat5e/Cat6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af) on all units — 17 PoE ports required (24-port switch recommended) |
| Control | Free iOS/Android app · Web GUI · RS-232 · TCP/IP API |
| SKU | VUMATRIX-WALL-4X4 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX 4×4 Video Wall Kit — FAQ
What comes in the 4×4 Video Wall Kit?
The kit includes 1 VuMATRIX FX Transmitter and 16 VuMATRIX FX Receivers. Supply sixteen displays and a managed PoE switch with at least 17 ports (a 24-port switch is ideal), then configure everything through the free VuMATRIX app.
Can the 4×4 wall be expanded or reconfigured?
Yes. Rearrange the sixteen receivers into a 2×8, 8×2, 16×1, or any custom shape through the app. Add more receivers to grow to 5×4, 4×5, or any larger layout — no controller upgrade needed.
What type of network switch does a 17-unit system need?
A 24-port managed gigabit PoE switch with IGMP snooping is recommended. This provides 17 PoE ports for the kit plus spare ports for additional transmitters, receivers, or uplinks.
Do I need an external video-wall controller for 16 screens?
No. Every VuMATRIX receiver has built-in video-wall processing. The free app groups all sixteen into a wall with PiP, mosaic, zoom, and rotation — no external processor, no license, no subscription.
How far can the displays be spread across a venue?
Up to 100 meters per link over Cat6, or 60 kilometers over single-mode fiber. You can distribute the sixteen displays across multiple floors, wings, or buildings and they will still form one synchronized wall.
Build Your System
Expand or Customize

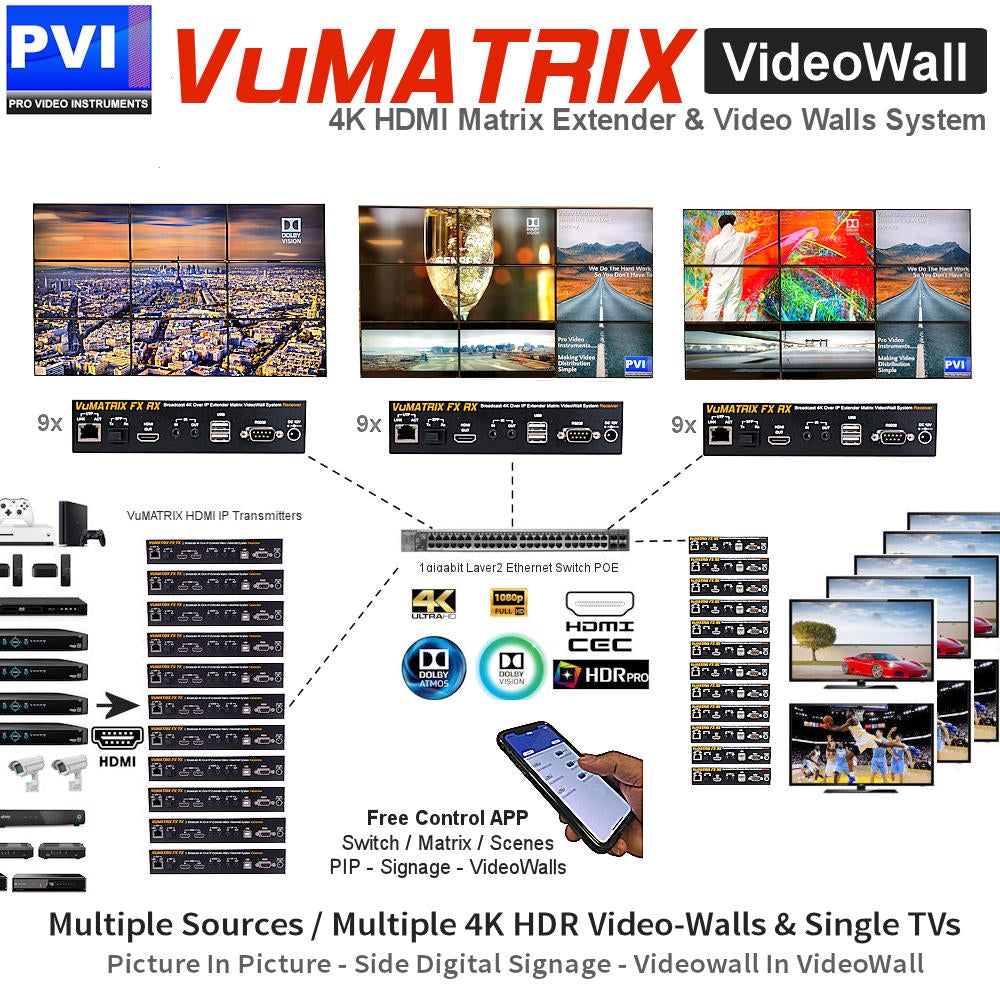

Add sources, extend the wall, or upgrade to an even larger configuration.
VuMATRIX FX Transmitter
Add more HDMI sources for multi-content switching on the wall.
$695.00$495.00You save $200.00
VuMATRIX FX Receiver
Extend the wall or add standalone displays elsewhere in the venue.
$695.00$495.00You save $200.00
VuMATRIX 5×5 Video Wall Kit
Scale up to a 25-screen spectacle for arenas, casinos, and flagship installations.
$13,149.00$12,870.00You save $279.00
Build a 4×4 Video Wall Today
$8,415.00$8,790.00
Save $375.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
