HDMI RF Modulators

An HDMI RF modulator turns any HDMI source — a cable box, Apple TV, Fire Stick, media player, camera or computer — into a real digital TV channel that travels over the coaxial cables already in your building, so every TV can tune it like a normal channel with its own remote. No streaming apps, no smart-TV logins, no new wiring, and no computer required to set it up.

This is the complete VeCOAX line of HDMI to coax modulators from Pro Video Instruments, the #1 best-selling modulator brand in the USA since 2017, with more than 50,000 installations worldwide. Every model encodes broadcast-grade Full HD 1080p with Dolby Digital audio, drives a +45 dBmV output up to roughly 3,000 ft over standard RG6/RG59 coax, and is configured from a built-in color LCD or a web browser — never a PC.

Choose by channel count and budget. The VeCOAX MINIMOD-2+ is the single-channel workhorse at $445. The MINI BLADE scales modularly from 1 to 10 channels. The RACK-2 and RACK-4 deliver 2 and 4 rack-mounted channels, and the VeCOAX ULTRA+ packs 4 or 8 hot-serviceable channels for large headends. Need 4K? The MINIMOD 4K sends a true Ultra-HD channel. Working with broadcast cameras? The MICROMOD-3 SDI accepts 3G-SDI, HDMI and AV. Bundles cover 3 and 4 channels at the best per-unit price.

Every unit works with QAM (US cable), ATSC (US antenna), DVB-T, DVB-C and ISDB-T standards — selectable on the display — so the same hardware ships anywhere in the world. All are backed by a 5-year warranty, free unlimited lifetime tech support, same-day shipping, and are designed and made in the USA.

🏆 #1 Modulator in USA Since 2017🇺🇸 Designed & Made in USA🛡️ 5-Year Warranty📞 Free Lifetime Tech Support⚡ Same-Day Shipping📺 Works With Any TV
Compare the range

Compare every VeCOAX HDMI RF modulator

From a single channel to an 8-channel headend — pick the model that matches your channel count, inputs and resolution.

ModelChannelsInputsTV StandardsMax ResolutionPrice From

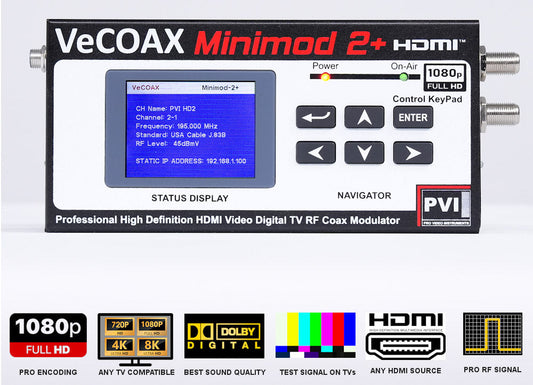

VeCOAX MINIMOD 2+1HDMIQAM · ATSC · DVB-T/C · ISDB-T1080p60$445
VeCOAX MINI BLADE1–10 (modular)HDMIQAM · ATSC · DVB-T/C · ISDB-T1080p60$599
VeCOAX MICROMOD-3 SDI13G-SDI · HDMI · AVQAM · ATSC · DVB-T/C · ISDB-T · DTMB1080p60$995
VeCOAX RACK-22HDMIQAM · ATSC · DVB-T/C · ISDB-T1080p60$995
VeCOAX MINIMOD 4K1HDMI 2.1QAM · ATSC · DVB-T2/C · ISDB-T2160p (4K UHD)$1,495
VeCOAX RACK-44HDMIQAM · ATSC · DVB-T/C · ISDB-T1080p60$1,830
VeCOAX ULTRA+4 or 8HDMIQAM · ATSC · DVB-T/C · ISDB-T1080p60$2,449
HDMI / SDI / AV Sources cameras · players VeCOAX RF Modulator Coax Splitter existing cables TV TV TV · unlimited
How it works: HDMI, SDI or AV sources connect to the VeCOAX modulator, which broadcasts crisp digital TV channels across your existing coax to unlimited TVs — no new cabling, no computer.
Buyer's guide

How to choose the right HDMI RF modulator

How many channels do I need?

Count the number of separate HDMI sources you want on their own TV channel. One source (a single camera, one cable box, one menu board) needs one channel — the MINIMOD 2+. Several sources need several channels: the modular MINI BLADE (1–10), the rack RACK-2/RACK-4, or the high-density ULTRA+ (4 or 8). Unlimited TVs can then watch any of those channels at once — you only pay per source, never per TV.

QAM, ATSC, DVB-T or ISDB-T — which standard?

In the United States, use QAM for cable-style coax systems and ATSC for TVs scanning an antenna input. Internationally, choose DVB-T/DVB-C (Europe and much of Asia/Africa) or ISDB-T (Japan and South America). Every VeCOAX modulator supports all of these and you simply select the standard on the color display, so one box works on any TV on earth.

Do I need a computer to set it up?

No. Unlike many competing modulators, every VeCOAX unit has a built-in color LCD for channel, frequency and standard selection, plus an optional web-browser remote. Connect HDMI in, connect coax out, pick a channel, and scan on your TVs.

Will it work over my existing coax?

Yes. The +45 dBmV output drives clean HD up to roughly 3,000 ft over the RG6/RG59 already in your walls. Combine multiple modulators onto one cable with a coax combiner to build a full multi-channel headend.
