The VeCOAX MINIMOD 2+ has been independently recognized by the top industry publications and trade shows year after year. This 3-Pack gives you three identical award-winning modulators — three independent HD channels — at a bundle price below buying them separately. When installers, integrators, and broadcast professionals need to distribute multiple HD sources over coax, the MINIMOD 2+ is the product they trust.
Recognition
#1 Best HDMI Modulator in USA Since 2017
Three award-winning MINIMOD 2+ modulators in one money-saving bundle. NAB Product of the Year, CE Pro Best, Best of Show winner — the most trusted name in HDMI to coax distribution.
How It Works

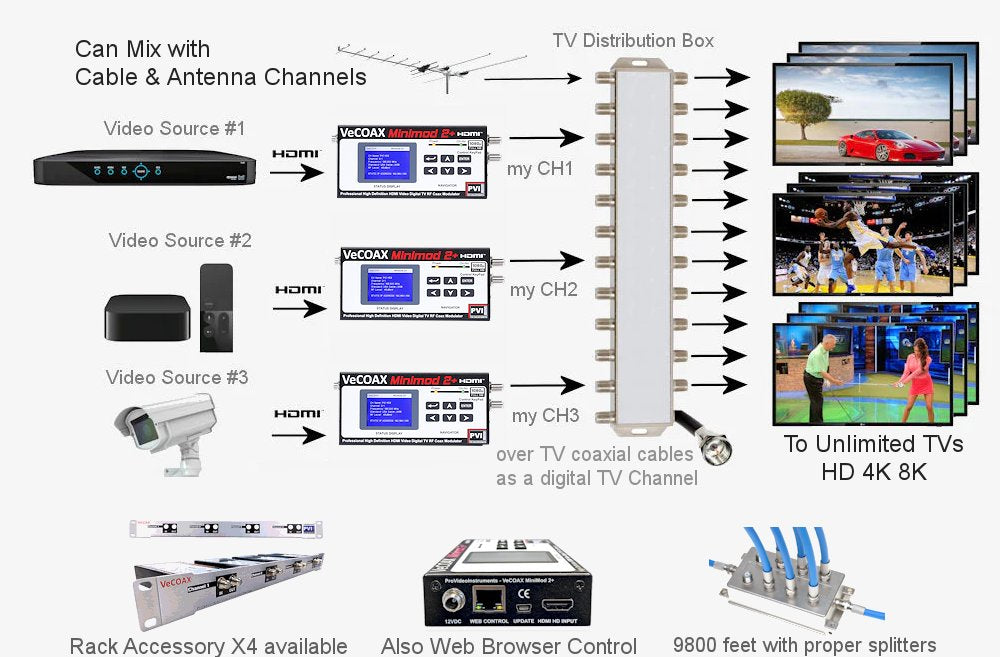

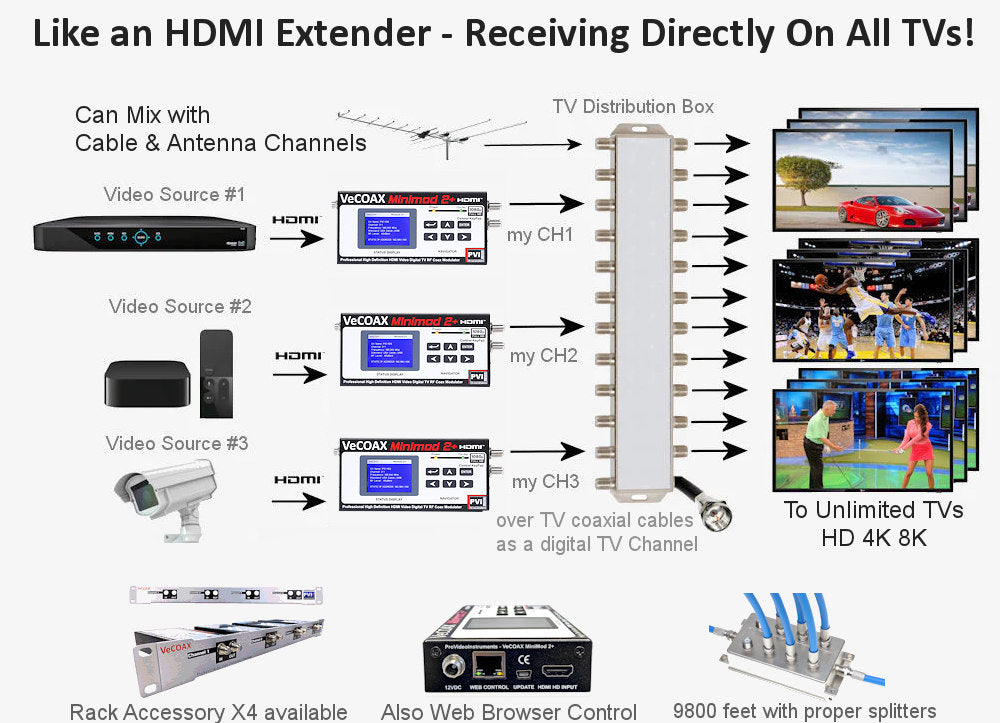

Three HDMI Sources. Every TV in Your Building.
The MINIMOD 2+ 3-Pack converts three HDMI signals into three real digital TV channels distributed over your existing coaxial cables. No new wiring. No adapters behind every TV. No complicated setup.
- Three modulators = three independent HD channels on the same coax
- Connect any HDMI source to each unit — cable box, streaming device, camera, computer
- Set each channel number and name directly on the device
- Scan your TVs — done. Full HD 1080p with Dolby audio on every screen
- 5 TVs or 5,000 — same coax, no per-TV cost, no limits
- Expand any time — add more VeCOAX modulators on the same coax
Setup

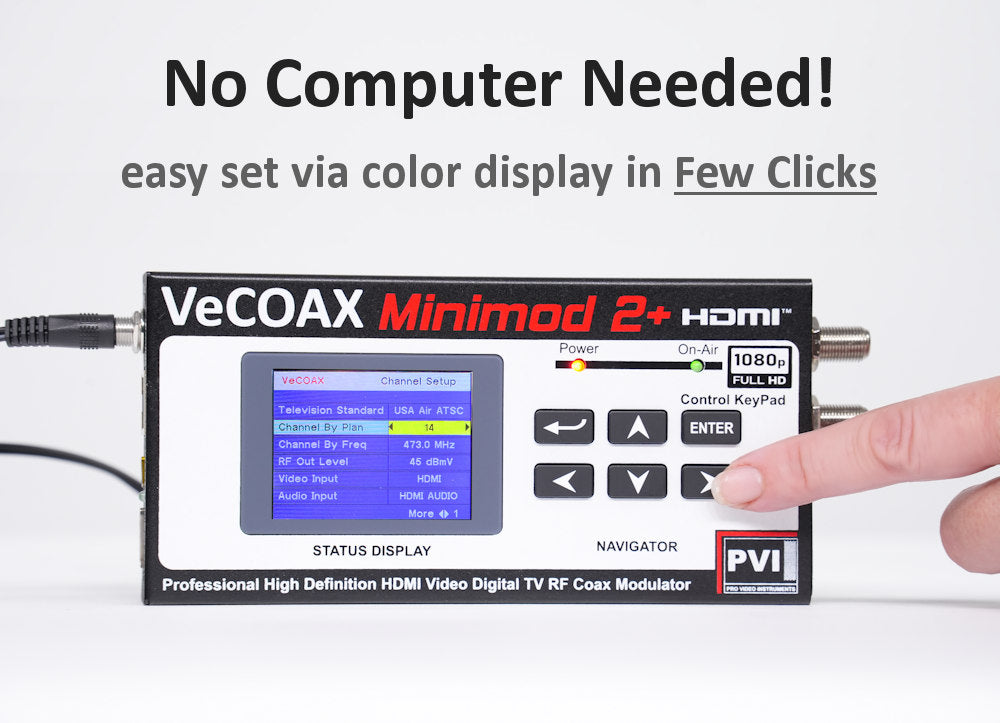

No Computer Needed. Set Up Each Unit in 60 Seconds.

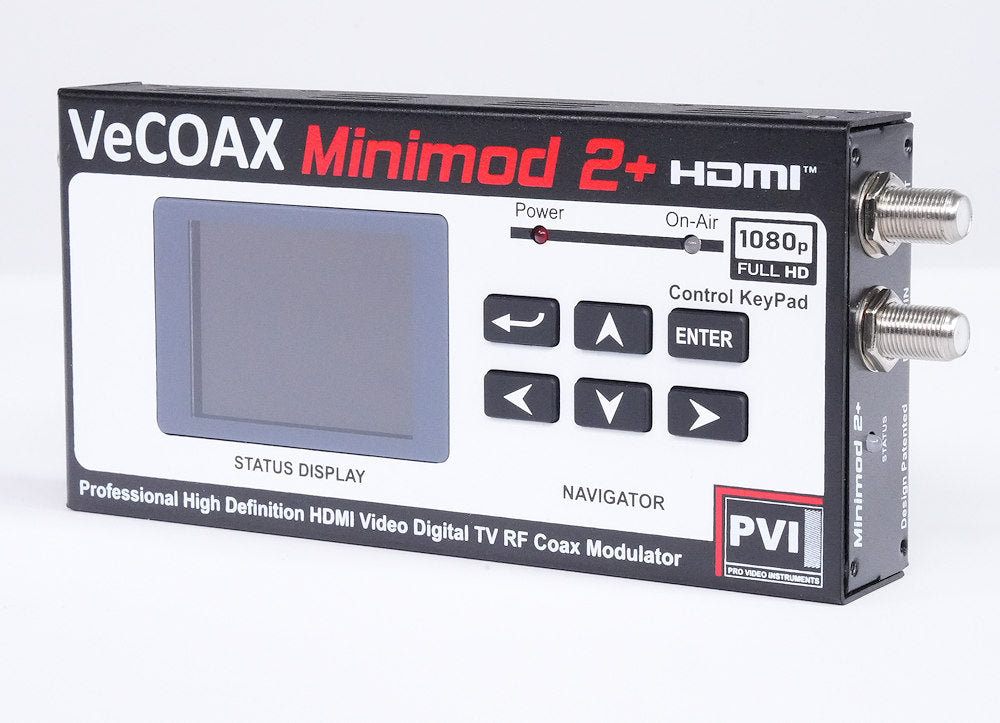

The only professional HDMI modulator with a built-in high-resolution color LCD display. Configure every setting — channel name, number, format — right on each device.
- Built-in color LCD with front-panel navigation on every unit
- Set channel number, name, and modulation type on screen
- No computer, no software, no app required
- Power on → Configure → Scan TVs → Watch
Universal Compatibility
Works with Every TV in Cable or Antenna Mode
Your three custom channels blend seamlessly with your existing cable (QAM) or antenna (ATSC) lineup. Every TV in the building tunes them in — no mode changes, no adapters, no confusion.
Each MINIMOD 2+ creates a real digital TV channel that coexists with whatever your TVs already receive. If your building uses cable mode (CATV/QAM), the channels appear alongside your cable lineup. If you use antenna mode (ATSC), they appear alongside your over-the-air channels. Switch between modes directly from the front panel — no computer needed.

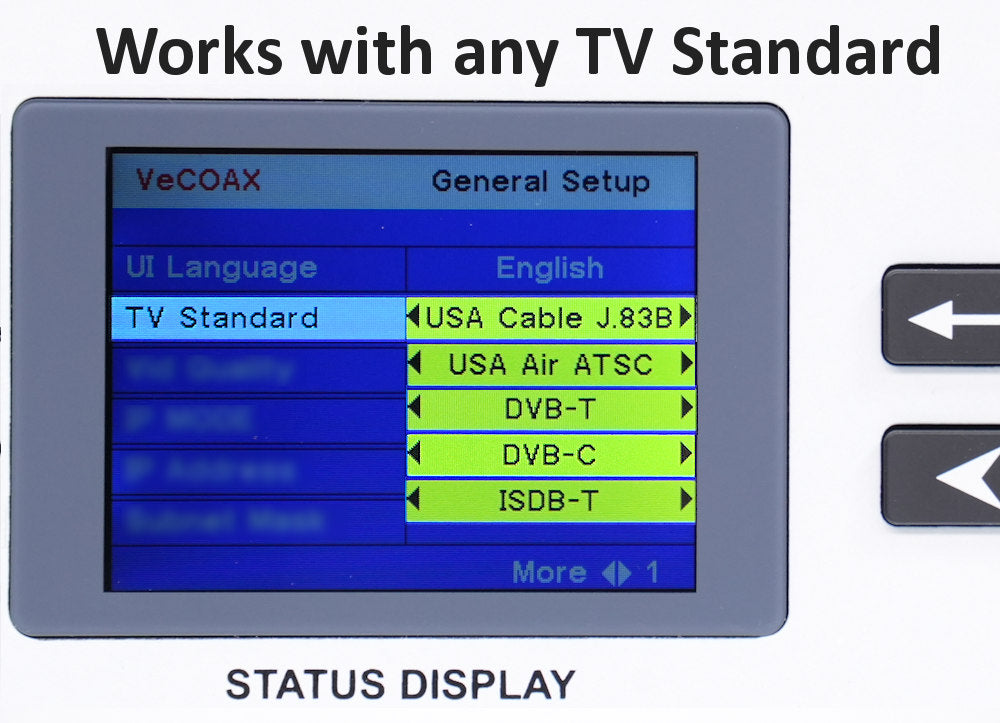

The modulators also cover international standards for cable and terrestrial TV distribution including DVB-T/T2, DVB-C/C2, and ISDB-T — compatible with worldwide PAL and NTSC systems on any HD, 4K, or 8K television.
Remote Control

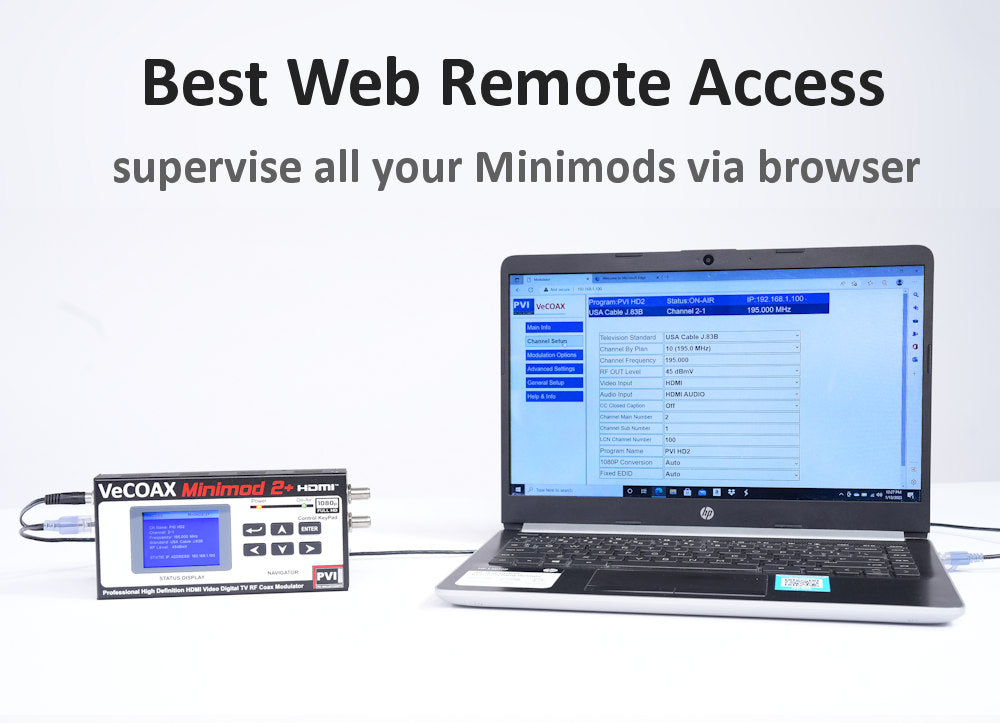

Control All Three Units Via Web Browser
Manage every MINIMOD 2+ unit remotely from any web browser — PC, tablet, or phone. Monitor status, change channels, adjust settings.
- Full web interface accessible over your local network
- Monitor and configure all three units from one screen
- Works from PC, Mac, tablet, or smartphone
- Real-time status monitoring and alerting
Audio

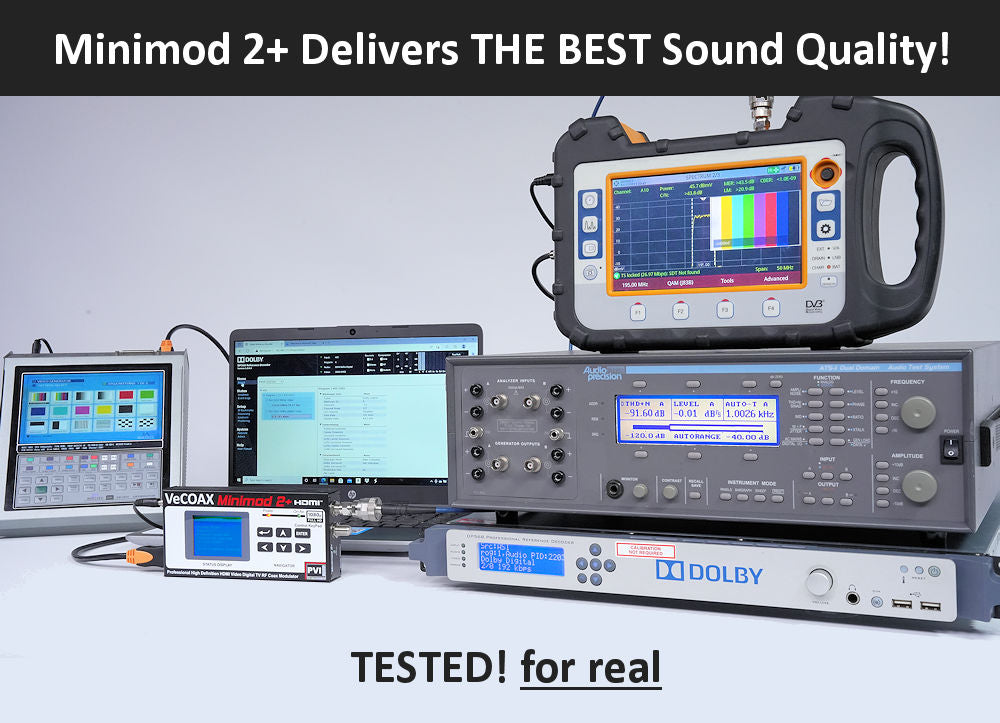

Broadcast-Grade Dolby Digital Audio
Studio-quality Dolby Digital audio encoding delivers immersive sound across every TV in your distribution system.
- Dolby Digital Stereo LPCM encoding
- Passes through 5.1 surround from compatible sources
- Independently tested — best audio quality in its class
- Crystal-clear voice, music, and effects on every screen
Installation

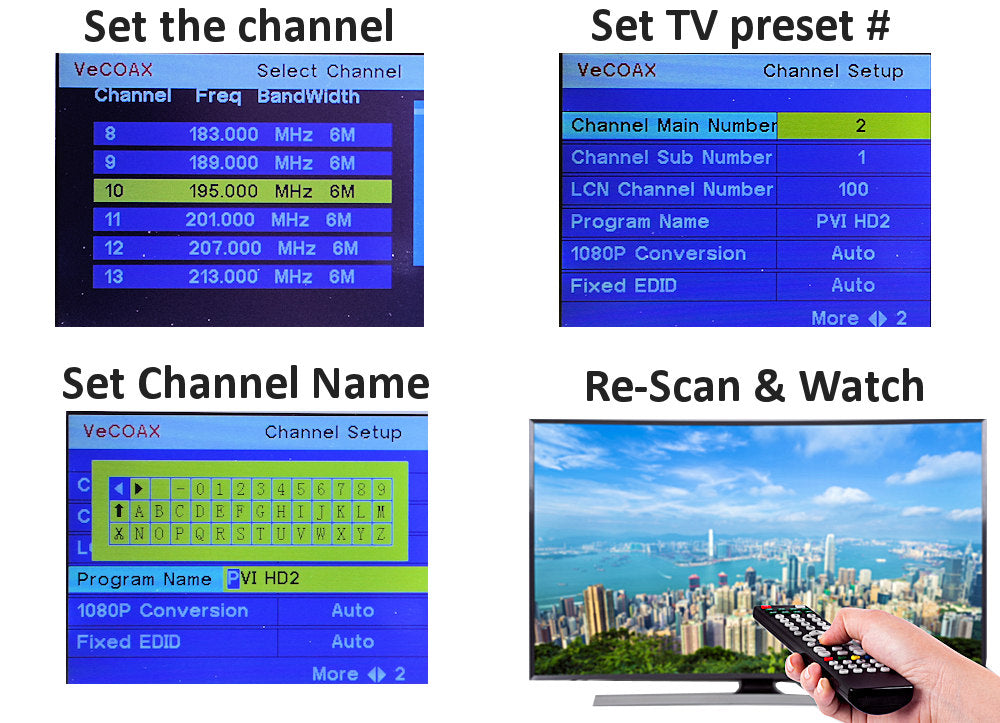

Three Steps. Three Channels.
Connect HDMI. Set your channel. Scan your TVs. Every screen in the building shows your three channels in Full HD.
Installation takes under 60 seconds per unit: plug your HDMI source into the MINIMOD 2+, choose a channel number on the built-in LCD display, then run a channel scan on your TVs. Repeat for all three modulators and you have a three-channel headend — every TV in the building now shows your content in crystal-clear 1080p Full HD with Dolby Digital audio. No computer required, no IT department needed.

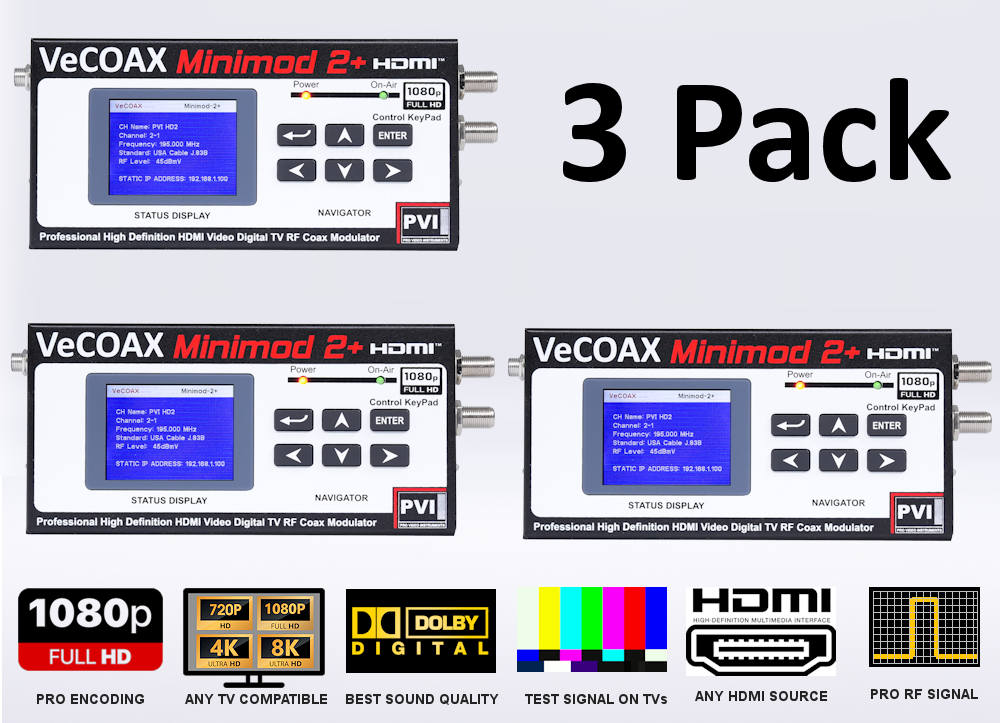

The MINIMOD 2+ 3-Pack
Three Channels. One Money-Saving Bundle.
Three award-winning broadcast-grade modulators in a single bundle — the most cost-effective way to launch a multi-channel HDMI-over-coax system. Designed and manufactured in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ 3-Pack includes three of the most trusted HDMI modulators in America. Each delivers Full HD 1080p at 60fps MPEG-2 encoding, Dolby Digital AC-3 audio, +45 dBmV RF output power, a built-in color LCD display for computer-free setup, secure web remote control, and compatibility with all worldwide TV standards. Three units, three independent HD channels, distributed to unlimited TVs over your existing coaxial cables — at a bundle price below buying them individually.
Rack Solutions

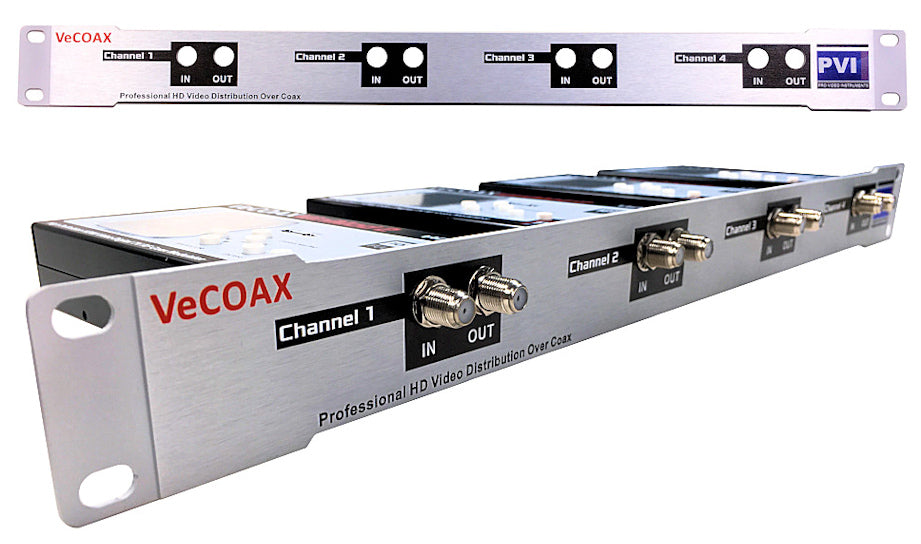

All Three Channels in a Single 1RU Space
Mount all three MINIMOD 2+ units from this bundle in a standard 19-inch rack using our professional 1RU panel. Clean, organized, commercial-grade installations.
The optional 1RU rack mount panel transforms your three MINIMOD 2+ modulators into a clean, professional headend. The panel holds up to 4 units in a single rack space — leaving room to expand — with proper ventilation and easy front-panel access to all controls. Perfect for server rooms, AV closets, and broadcast facilities where space and organization matter.
High Density

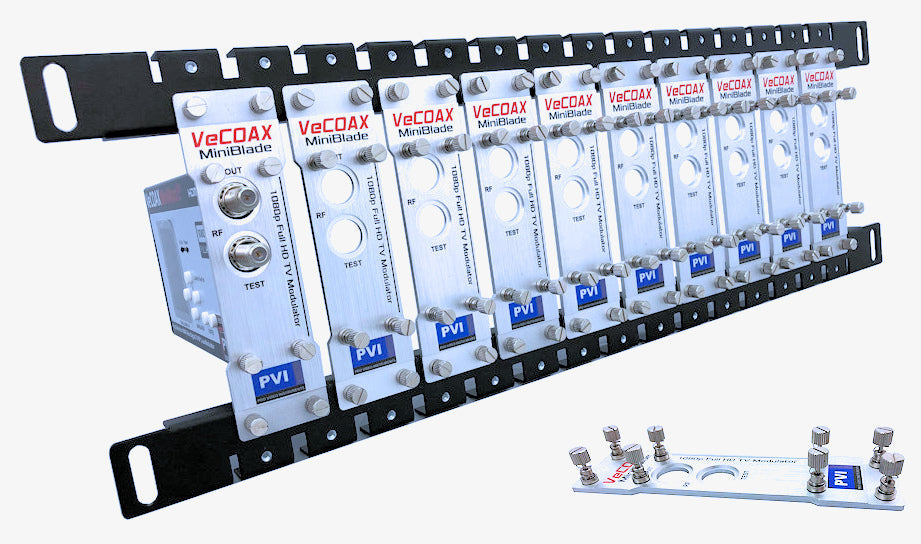

Scale Up with the MiniBlade Rack Kit
Need more than three channels? The VeCOAX MiniBlade system packs 10 or more MINIMOD units into a single rack space — maximum channel density with independent redundancy.
When you outgrow three channels, the MiniBlade rack mounting system is the answer. Each unit runs independently with its own power supply, so if one channel goes down, all the others keep broadcasting. This architecture eliminates the single point of failure that plagues centralized solutions, delivering true commercial-grade reliability for 24/7 operations.
Compatibility
Designed for Every TV — HD, 4K, and 8K
Works flawlessly on any legacy HD television as well as the latest 4K and 8K UHD displays, delivering stunning video and motion quality on sports, cinema, and any content.
Each MINIMOD 2+ outputs a broadcast-standard digital TV channel that every television can decode — from decade-old HD sets to the newest 8K displays. The output signal is optimized for maximum compatibility and picture quality, with proper color space, frame rate, and audio synchronization that ensures every screen looks perfect regardless of brand or resolution.
Features
Engineered for Excellence

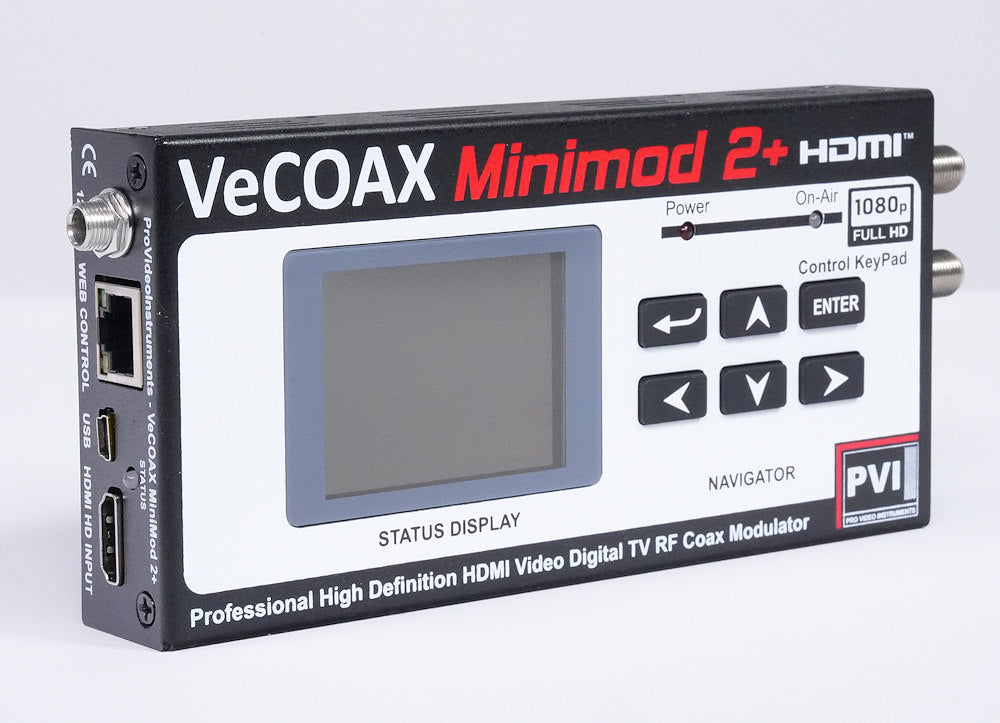

Every detail of the MINIMOD 2+ is designed for professional-grade performance and effortless operation — across all three units in your bundle.

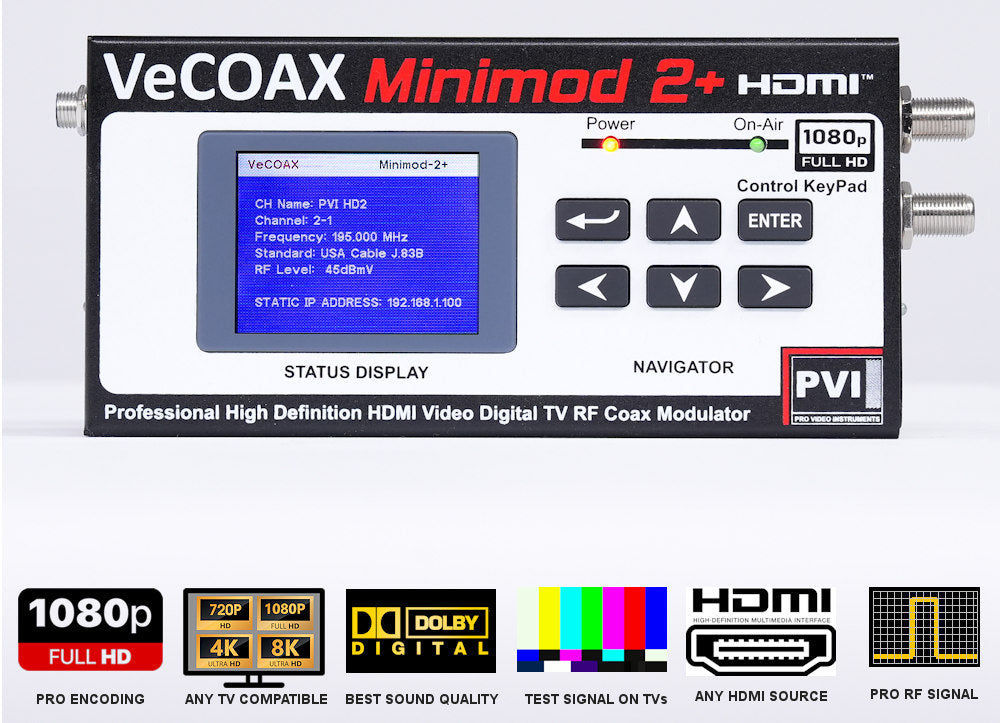

System Management — Large Hi-Res Color Display
All parameters are programmable directly on the built-in high-resolution color LCD — without connecting a computer.
Quick Setup — One-Click Recall
On-click setup recalls all parameters instantly. True plug-and-play to any channel.
Full Channel & Parameter Customization
Complete customization of every channel parameter for each injection and application.
Advanced 1080p@60 Motion Estimation Encoding
Multi-layer motion estimation encoding delivers crystal-clear image quality even on the largest screens.
MPEG-2 Broadcast Encoding
Industry-standard MPEG-2 video encoding — the same format used by cable operators worldwide.
+45 dBmV Output Power
Professional-grade +45 dBmV RF output power — drives large systems without external amplifiers.
MER >45 dB — Broadcast Quality
Modulation Error Ratio exceeding 45 dB — crystal-clear picture with zero artifacts.
Full Digital DDS Synthesizer
Digital Direct Synthesis for perfect adjacent channel operation with zero spurious emissions.
Secure Web Remote Control
Password-protected web browser interface for secure remote management from any device.
Unlimited TVs — No Per-TV Cost
Distribute to 5 TVs or 5,000+. No per-TV licensing, no per-screen cost.
Built-In Color Bars Test Pattern
Automatically displays color bars test pattern when no signal is connected — verify signal distribution quality on every TV without special tools.
HDMI Licensed + Exclusive Full EDID Control
Fully HDMI licensed with exclusive full EDID control for guaranteed compatibility with any HDMI source — including the latest devices.
Watch the Demo
See It In Action
Watch the complete overview — from unboxing to distributing HD to every TV in under 5 minutes.
Complete product overview covering connection, LCD setup, web remote access, TV standards, and real-world applications. Duration: 4 min 30 sec.
Applications
Built for Every Environment
🏨
Hotels & Resorts
Welcome channels, event info, and premium content to every guest room.
🍺
Sports Bars
Multiple game feeds to every screen — one bundle, every TV.
⛪
Churches
Live services and announcements to overflow rooms and lobbies.
🏥
Hospitals
Patient education, wayfinding, and feeds to any department.
🎓
Schools
Campus-wide announcements and content over existing infrastructure.
🏢
Corporate
Town halls, KPI dashboards, and signage to every conference room.
🏠
Residential
Share multiple subscriptions to every TV in your home — no extra boxes.
🛡️
Government
Secure, reliable video distribution for facilities and operations.
Why PVI
Why the MINIMOD 2+ 3-Pack Is the Best Value
There's a reason MINIMOD 2+ has been the #1 award-winning HDMI modulator in the USA since 2017. The 3-Pack gives you three of them at a bundle price — better video, better sound, better build, zero compromises.
VeCOAX MINIMOD 2+
Competitors
✓$1,299 — 3-Pack Bundle, Save $186
✕$1,400+ for 3 units
✓HDMI 2.0b — Top Quality
✕HDMI 1.4 — outdated HDMI/HDCP; may limit video quality with newer HDR10+ sources
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD — No Computer Needed
✕Requires PC for Full Setup
✓DOT-LESS Channel Numbering Mode
✕Not Available
✓+45 dBmV RF Output Power
✕+24dB Average Low Power — May Require External Amplifiers Costs
✓Fits 4 Modulators in a Single 1RU Rack
✕Not Possible
✓5-Year Manufacturer Warranty
✕1-Year Warranty
✓Made in USA
✕Typical rebranded import — warranty may disappear when the model changes
✓All 5 Worldwide TV Standards
✕Limited Standards
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB — Runs Long Distances on Coax
✕≤35 dB Low MER — Cuts Transmission Distance, Severe Pixelation & Signal Drops
Specifications
Technical Specifications
| Bundle Contents | 3× VeCOAX MINIMOD 2+ HDMI RF Modulators (3 independent HD channels) |
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources — also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input — up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54–990 MHz — selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2–83 ATSC mode | 2–158 J83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB — Broadcast Quality |
| Frequency Synthesis | Full Digital DDS — zero spurious & harmonics |

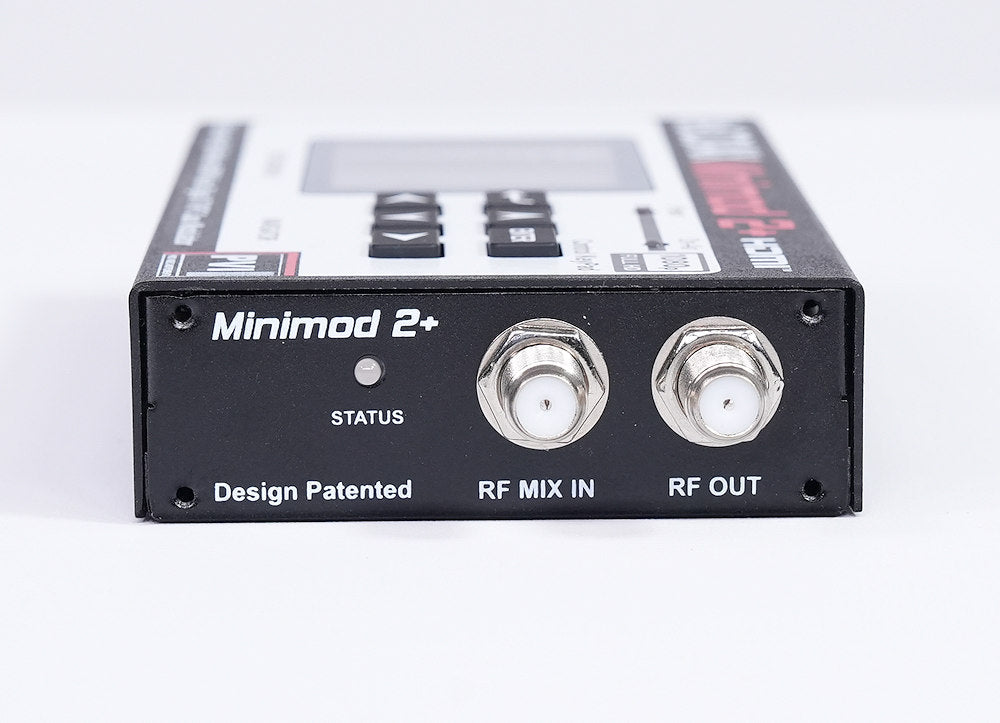

| RF Connector | F-Type Dual, 75Ω |
| Coaxial Cable Support | RG59 | RG6 (75Ω characteristic impedance) |
| RF Transmission Distance | ≤3,000 m (~9,800 ft) — extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD (each unit) |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |

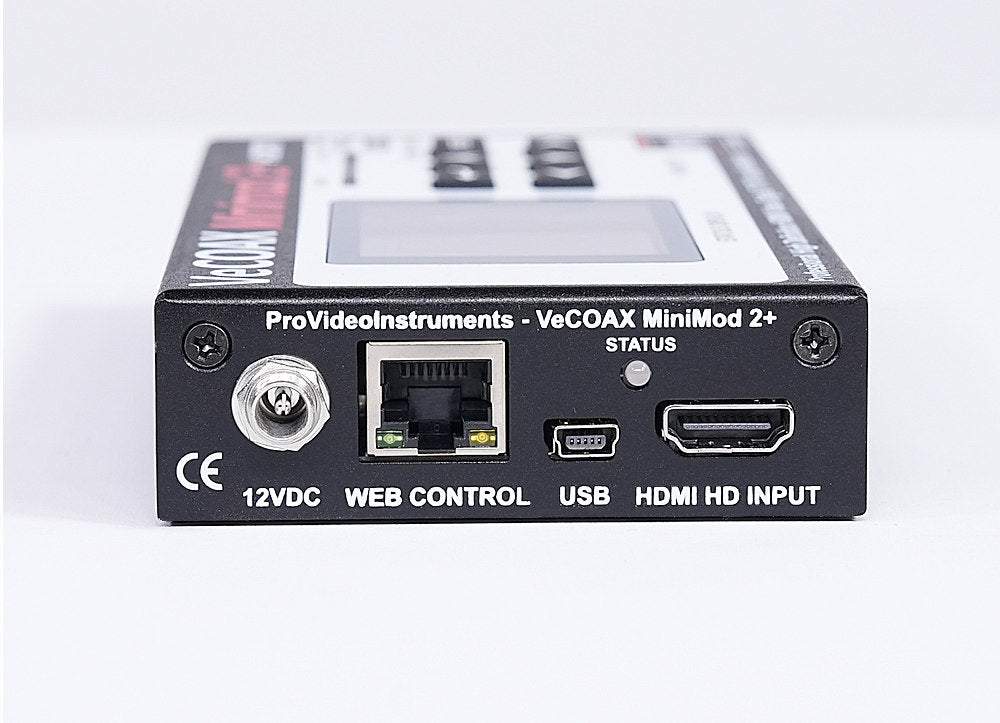

| Network | 10/100/1000 Gigabit Ethernet RJ-45 — network compatible |
| Power Input | AC 100V–240V 50/60Hz, DC 12V/1A (adapter included per unit) |
| Max Working Current | 850 mA @ 12V (per unit) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10–90% RH (no condensation) |
| Storage Humidity | 5–95% RH (no condensation) |

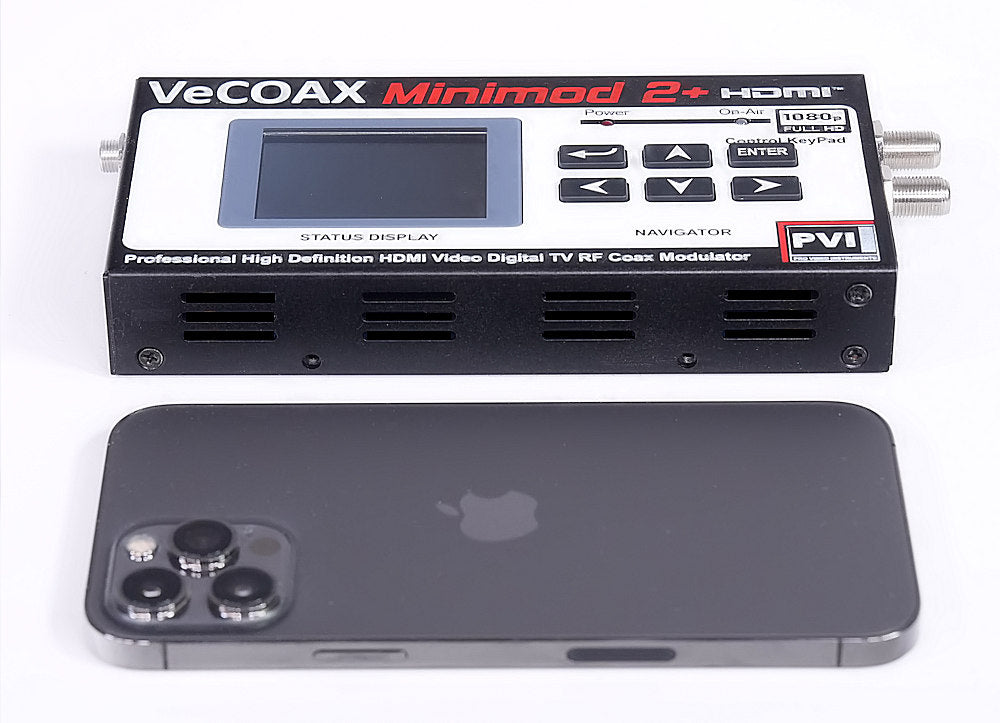

| Unit Dimensions (L×W×H) | 6″ × 3″ (4.5″ with wall mount ears) × 1″ (each) |
| Unit Weight | 1 lb (0.45 kg) each |
| Patent | Hardware, software, and display UI are PVI’s patent |
| Warranty | 5-Year Manufacturer Warranty (each unit) |
| Origin | Designed & Made in USA |
FAQ
MINIMOD 2+ 3-Pack — Frequently Asked Questions
What is included in the MINIMOD 2+ 3-Pack?
The 3-Pack includes three identical VeCOAX MINIMOD 2+ HDMI RF modulators — each creates one independent Full HD digital TV channel. Together they let you distribute three different HDMI sources to unlimited TVs over your existing coax, at a bundle price below buying three single units.
Why buy the 3-Pack instead of three single modulators?
The 3-Pack is priced below the cost of three individual MINIMOD 2+ units, so you save money while getting exactly the same award-winning hardware, 5-year warranty, and free unlimited tech support on every unit.
How many TVs can the 3-Pack support?
Unlimited. Each modulator distributes its channel to 5 TVs or 5,000+ over your existing coaxial cable. There is no per-TV cost and no practical limit — the built-in +45 dBmV output drives long cable runs and multiple splitters without external equipment.
Do I need a computer to set up the modulators?
No. Every MINIMOD 2+ has a built-in high-resolution color LCD display. Configure channel name, number, modulation type, and all settings directly on each device in under 60 seconds — no computer, no software, no app required.
Can I combine all three channels onto one coax?
Yes. Each modulator outputs its channel on its own frequency. Combine all three RF outputs with a passive coax combiner onto a single coaxial cable that carries your entire three-channel lineup to every TV.
Will the modulators work with Apple TV, Fire Stick, or Roku?
Yes. Each MINIMOD 2+ works with any device that has an HDMI output — Apple TV, Fire Stick, Roku, cable boxes, satellite receivers, Blu-ray players, gaming consoles, cameras, computers, and digital signage players.
QAM or ATSC — which mode should I use?
If your TVs are set to Cable mode (CATV), use QAM — the most common setup for buildings with coax. If your TVs use Antenna mode, use ATSC. Each MINIMOD 2+ supports both and you can switch from the front-panel LCD.
What warranty comes with the 3-Pack?
Each of the three modulators carries a full 5-year manufacturer warranty plus free unlimited technical support for the life of the product. Made in USA by ProVideoInstruments with direct manufacturer support.
Accessories
Complete Your Multi-Channel Setup
Everything you need to combine and rack-mount your three-channel distribution system.

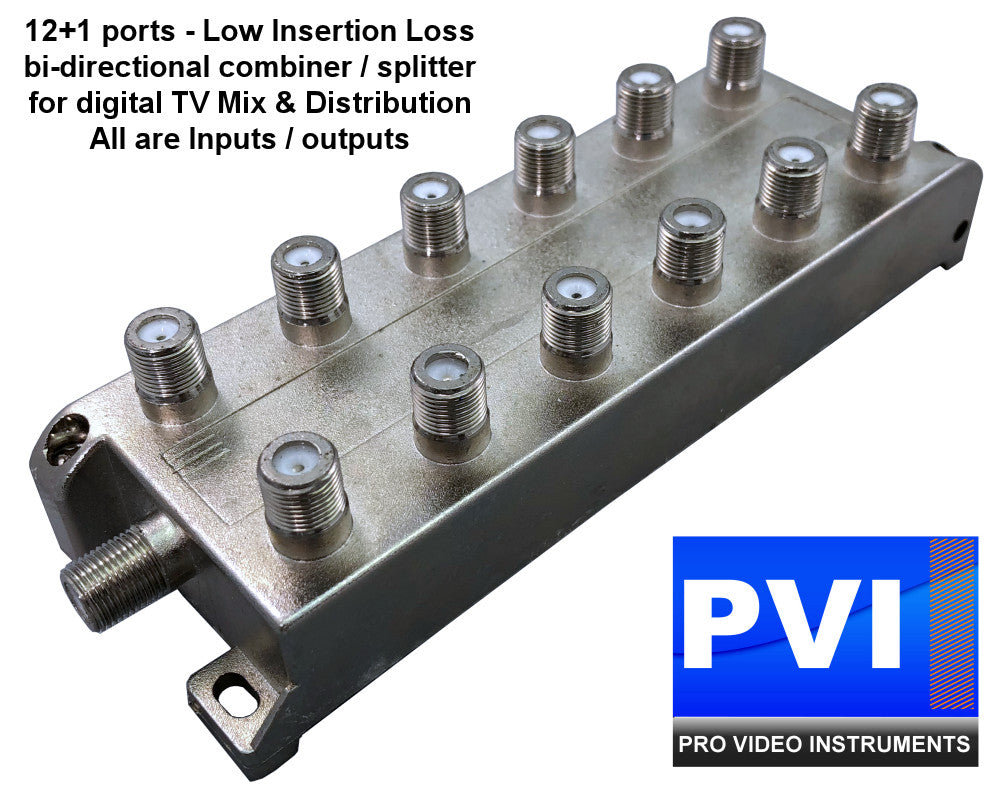

Coax Combiner / Splitter (13-Port)
Combine all three modulator outputs onto one coax. Bidirectional — use as combiner or splitter.
$105.00$95.00You save $10.00
1RU Rack Panel (4-Slot)
Mount all three MINIMOD 2+ units in a single 1RU rack space — with room to add a fourth.
$105.00$99.00You save $6.00

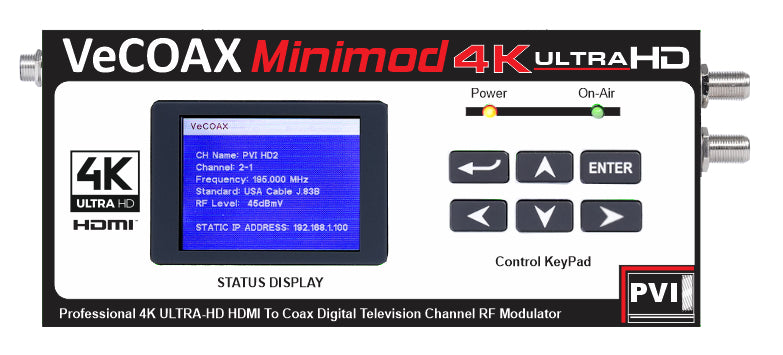

VeCOAX MINIMOD-4K Ultra HD
Add full 4K HDR over coax. Mix and match with your MINIMOD 2+ units on the same system.
$1,950.00$1,495.00You save $455.00
Bundles & Upgrades
You Might Also Like
Need just one? Or scaling up? Choose the option that fits your install.
MINIMOD 2+ — Single Unit
Save $50
$445
MINIMOD 2+ — 4-Pack Bundle
Best Value
$1,732
1RU Rack Panel (4-Slot)
$99
MINIMOD-4K Ultra HD Modulator
4K HDR
From $695
Ready to Deliver Three HD Channels to Every Screen?
$1,299.00$1,485.00
Save $186.00
Free shipping over $500 · 5-year warranty on all 3 units · Free unlimited tech support · Made in USA
