Twenty-five screens fused into a single colossal canvas. The 5×5 is built for venues where the video wall IS the architecture — arena concourses, casino floors, mega-church stages, national broadcast studios, and corporate experience centers. Despite its enormous scale, the system requires no dedicated video-wall processor: every VuMATRIX receiver handles its own slice of the image, synchronizing frame-perfectly with its neighbors. Power everything over PoE, manage the entire wall from a mobile app, and switch between sources or reconfigure layouts without touching a single cable.
5×5 Flagship Video Wall
Twenty-Five Screens, One Spectacular Stage
The flagship 25-display kit with 1 VuMATRIX FX Transmitter and 25 Receivers — a monumental five-by-five wall designed for arenas, convention centers, and landmark installations where ordinary displays are simply not enough.
What's in the Kit
Everything You Need

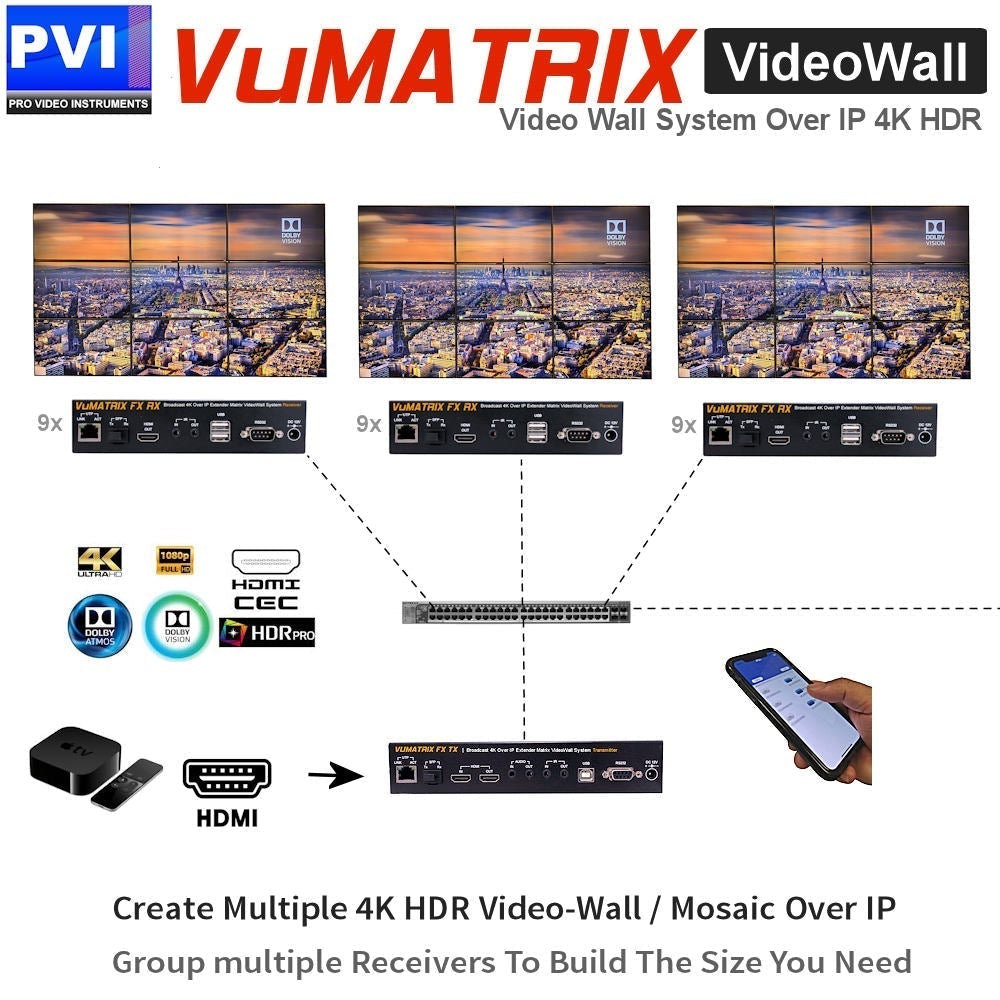

Twenty-six devices, a PoE switch, and one app — a spectacular 25-screen wall with no external processor.

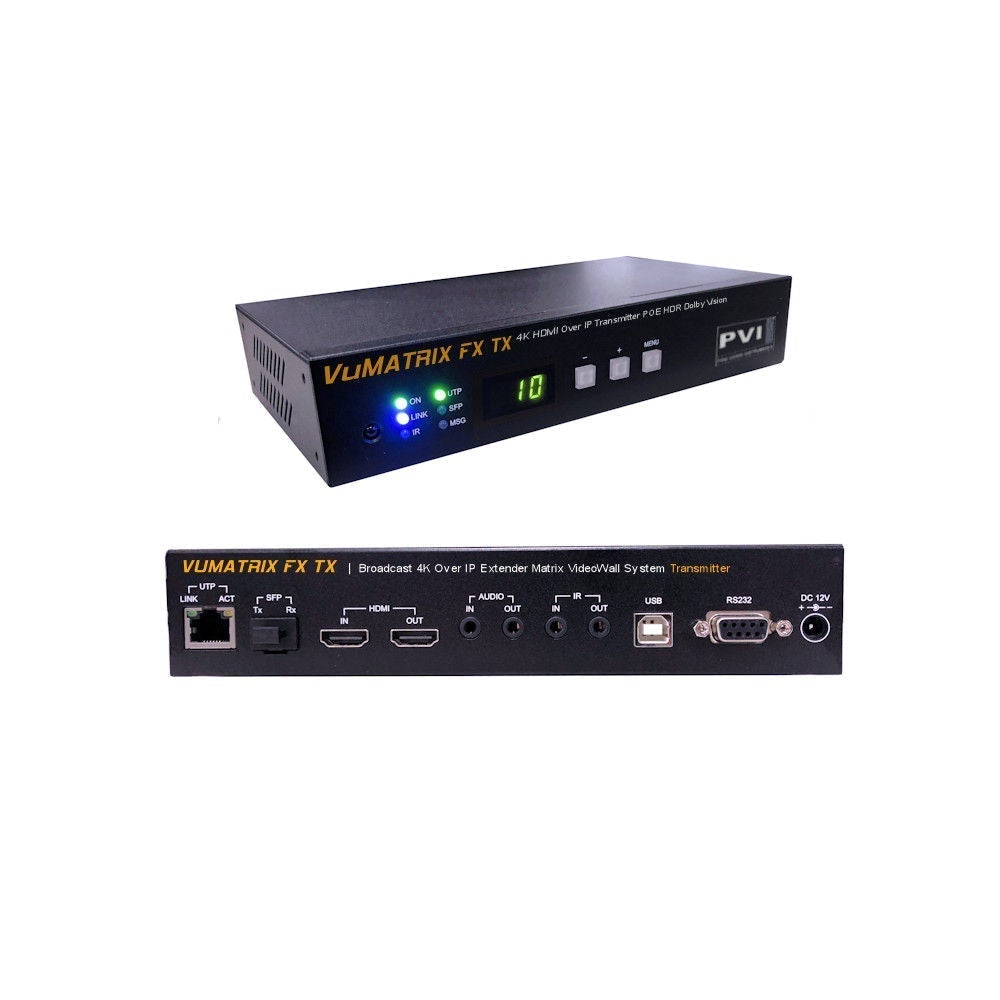

- 1 VuMATRIX FX Transmitter — encodes any 4K HDMI source for distribution to all twenty-five receivers
- 25 VuMATRIX FX Receivers — one per display, frame-locked across the entire 5×5 canvas

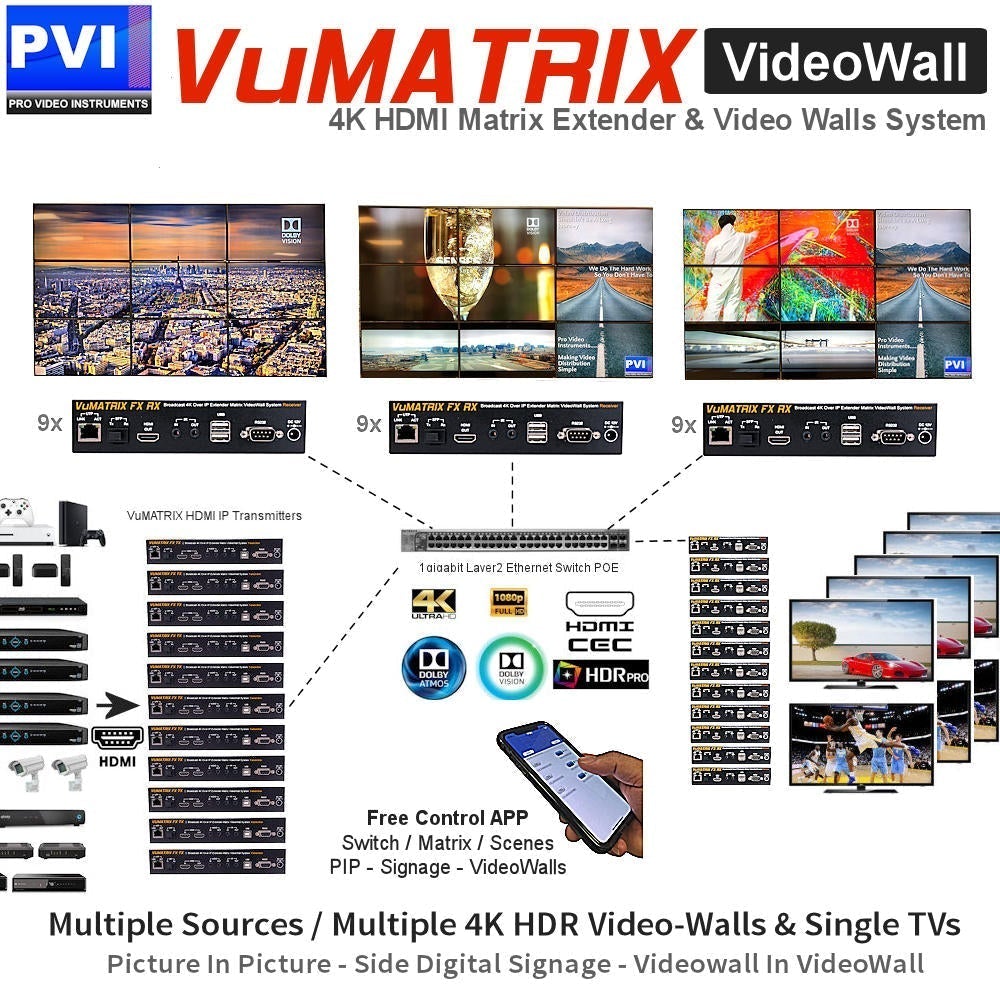

- Free iOS & Android control app — configure the 5×5 grid, switch sources, build mosaic and PiP presets
- PoE on all 26 units — no AC adapters needed at any display position
- Cat6 (100 m) or single-mode fiber (60 km) per link — span entire campuses with zero signal loss
Features
Arena-Scale Spectacle, App-Level Simplicity
Twenty-five screens forming one breathtaking canvas — managed from a single mobile app.
Turnkey Kit
1 TX + 25 RX shipped as one order — deploy a landmark video wall without juggling vendors.
4K HDR
4K@30 HDR Dolby Vision with 7.1 surround audio across all twenty-five synchronized panels.
Video Wall
PiP, mosaic, zoom, and 360° rotation built into every receiver — no external processor at any scale.
App Control
Free iOS & Android app for source switching, layout presets, display naming, and OTA firmware updates.
PoE
No AC adapters — a PoE switch (or stacked switches) powers all twenty-six units over Ethernet.
Scalable
Add more TX/RX to push beyond 5×5 — scale to 6×5, 5×6, or a venue-wide AV matrix.
Specifications
VuMATRIX 5×5 Video Wall Kit Specifications
| Kit Contents | 1× VuMATRIX FX Transmitter + 25× VuMATRIX FX Receivers |
| Layout | 5×5 (five columns, five rows) |
| Total Displays | 25 |
| Resolution | 4K@30 4:4:4 · HDR10 · Dolby Vision |
| Audio | 7.1 surround · Dolby Digital, DTS, LPCM pass-through · SPDIF + analog breakout |
| Network | Cat5e/Cat6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af) on all units — 26 PoE ports required (stackable 24-port switches or 48-port switch) |
| Control | Free iOS/Android app · Web GUI · RS-232 · TCP/IP API |
| SKU | VUMATRIX-WALL-5X5 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX 5×5 Video Wall Kit — FAQ
What is included in the 5×5 Video Wall Kit?
You receive 1 VuMATRIX FX Transmitter and 25 VuMATRIX FX Receivers. Provide twenty-five displays and a managed PoE switching infrastructure with at least 26 PoE ports (two stacked 24-port switches or a single 48-port switch work well).
Can I expand or reconfigure the 5×5 layout?
Yes. The 25 receivers can be rearranged into any shape — 5×5, 25×1, 1×25, or asymmetric layouts. Add more receivers to grow to 6×5, 5×6, or beyond. Add more transmitters to put additional HDMI sources on the network.
What networking gear is needed for 26 PoE devices?
Two stacked 24-port managed gigabit PoE switches with IGMP snooping, or a single 48-port managed PoE switch. The switches handle power delivery and multicast traffic for all 26 units seamlessly.
Do I need a dedicated video-wall controller at this scale?
No. Every VuMATRIX receiver contains built-in video-wall processing regardless of array size. The free app manages all 25 panels — no external controller, no license, no recurring fees even at arena scale.
Can the 25 displays span multiple buildings?
Absolutely. Each link supports 100 meters over Cat6 or 60 kilometers over single-mode fiber. Receivers can be distributed across multiple rooms, floors, or separate buildings and still synchronize as one seamless wall.
Build Your System
Expand or Customize
Add individual units or scale to the ultimate 6×6 installation.
VuMATRIX FX Transmitter
Feed additional HDMI sources for multi-content switching on the wall.
$695.00$495.00You save $200.00
VuMATRIX FX Receiver
Add standalone displays or extend the wall beyond 25 panels.
$695.00$495.00You save $200.00
VuMATRIX 6×6 Video Wall Kit
Go even bigger with a 36-screen installation for the most demanding venues.
$18,679.00$18,315.00You save $364.00
Build a 5×5 Video Wall Today
$12,870.00$13,149.00
Save $279.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
