The 2×2 is the classic video-wall format: compact enough for a conference room or retail storefront, yet large enough to stop people in their tracks. Four displays arranged in a square create a canvas four times the size of a single screen while maintaining full 4K clarity across every panel. Power each unit over the same Ethernet cable that carries the video, configure the wall from the free mobile app, and start impressing audiences within minutes of unboxing.
2×2 Quad Video Wall
Four Screens, One Seamless Canvas
A turnkey 4-display kit with 1 VuMATRIX FX Transmitter and 4 Receivers — plug in a single HDMI source and watch it fill a perfectly synchronized 2×2 grid with razor-sharp 4K HDR imagery.
What's in the Kit
Everything You Need
Connect five units to a PoE switch, open the app, and your 2×2 wall is live.

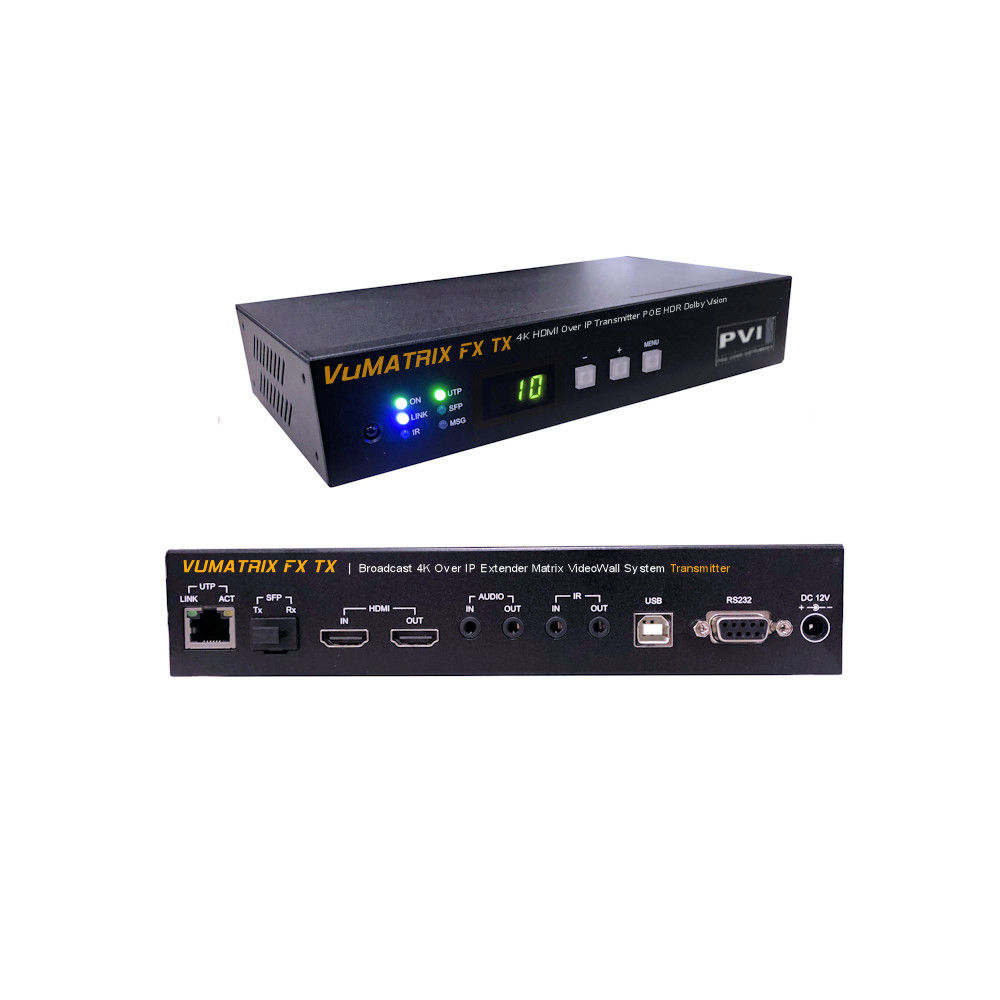

- 1 VuMATRIX FX Transmitter — takes any HDMI source and streams it across the network
- 4 VuMATRIX FX Receivers — one per display, perfectly synchronized for seamless wall output
- Free iOS & Android control app — set up the 2×2 grid, switch sources, and save presets in seconds
- PoE on all units — a single Ethernet cable per device delivers power, video, and control
- Cat6 (100 m) or single-mode fiber (60 km) — choose the right link for each run
Features
The Classic Quad Wall, Reinvented
Four-screen impact with enterprise-grade AV-over-IP simplicity.
Turnkey Kit
1 TX + 4 RX pre-matched and ready to deploy — no separate controller to buy.
4K HDR
4K@30 HDR with Dolby Vision and 7.1 surround audio across all four panels.
Video Wall
PiP, mosaic, zoom, and 360° rotation built into every receiver — zero extra hardware.
App Control
Free iOS & Android app handles matrix switching, wall setup, presets, and display naming.
PoE
No AC adapters anywhere — a PoE switch powers all five units through their Ethernet cables.
Scalable
Add TX or RX units any time to grow from 2×2 to any size — no hardware swap required.
Specifications
VuMATRIX 2×2 Video Wall Kit Specifications
| Kit Contents | 1× VuMATRIX FX Transmitter + 4× VuMATRIX FX Receivers |
| Layout | 2×2 (two columns, two rows) |
| Total Displays | 4 |
| Resolution | 4K@30 4:4:4 · HDR10 · Dolby Vision |
| Audio | 7.1 surround · Dolby Digital, DTS, LPCM pass-through · SPDIF + analog breakout |
| Network | Cat5e/Cat6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af) on all units — 5 PoE ports required on switch |
| Control | Free iOS/Android app · Web GUI · RS-232 · TCP/IP API |
| SKU | VUMATRIX-WALL-2X2 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX 2×2 Video Wall Kit — FAQ
What exactly is included in the 2×2 Video Wall Kit?
The kit ships with 1 VuMATRIX FX Transmitter and 4 VuMATRIX FX Receivers. Supply your own four displays and a 5-port PoE managed switch, and the wall is ready to configure through the free app.
Can I expand the 2×2 wall to a larger size later?
Yes. Simply add more receivers to grow to 3×2, 2×3, 3×3, or any other layout. Each additional receiver is a standard network node — no controller upgrade or chassis swap needed.
What network switch should I use for the 2×2 kit?
Any managed gigabit switch with IGMP snooping and at least 5 PoE ports (1 TX + 4 RX). Popular choices include TP-Link, Netgear, and Cisco managed switches available from any IT supplier.
Do I need a separate video-wall controller or processor?
No. Every VuMATRIX receiver contains built-in video-wall processing. The free app groups them into a wall with PiP, mosaic, zoom, and rotation — no external processor required.
How far apart can the four displays be from the source?
Each link supports up to 100 meters over Cat6. For longer distances, insert an SFP fiber module into any unit to reach up to 60 km — perfect for walls in a different building from the source.
Build Your System
Expand or Customize
Add sources, displays, or jump to a larger wall configuration.
VuMATRIX FX Transmitter
Add more HDMI sources to the network — one TX per input.
$695.00$495.00You save $200.00
VuMATRIX FX Receiver
Extend displays beyond the wall — one RX per additional screen.
$695.00$495.00You save $200.00
VuMATRIX 3×3 Video Wall Kit
Upgrade to a 9-screen wall for lobbies, stadiums, and command centers.
$5,490.00$4,950.00You save $540.00
Build a 2×2 Video Wall Today
$2,475.00$2,549.00
Save $74.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
