The PVI INFINIUM 4K is our flagship video-distribution platform — the same engine recognized with NAB 2020 and InfoComm 2020 Best of Show awards. It replaces racks of single-purpose appliances with one 4RU chassis that you populate to fit the job: load up to 14 hot-swappable encoder cards, add the optional 4K-over-coax RF module, and broadcast everywhere your audience watches. Start with a few channels and grow to a full headend without ever changing platforms.
Flagship Platform
4K Over Everything — One Modular Headend
Distribute any HD or 4K source to smart TVs, phones, browsers, IPTV boxes, and ordinary coax televisions at the same time — from a single expandable chassis.
One Platform
One Chassis. Every Format. Anywhere.
The INFINIUM 4K converts your sources once and delivers them everywhere — over the internet, across your network, and over the coaxial cables already in your building. No separate encoders, gateways, and modulators to buy and wire together.
- Live IP streaming — SRT, RTMP, HLS, M3U8, UDP, RTP, RTSP, HTTP
- IPTV to smart TVs, set-top boxes, phones, tablets, and HTML5 browsers
- Optional 4K-over-coax RF module — real 4K channels to existing TVs
- Multiple compression formats and bitrates out per input — reach any device
- Mix HDMI and SDI sources, HD and 4K, in the same chassis

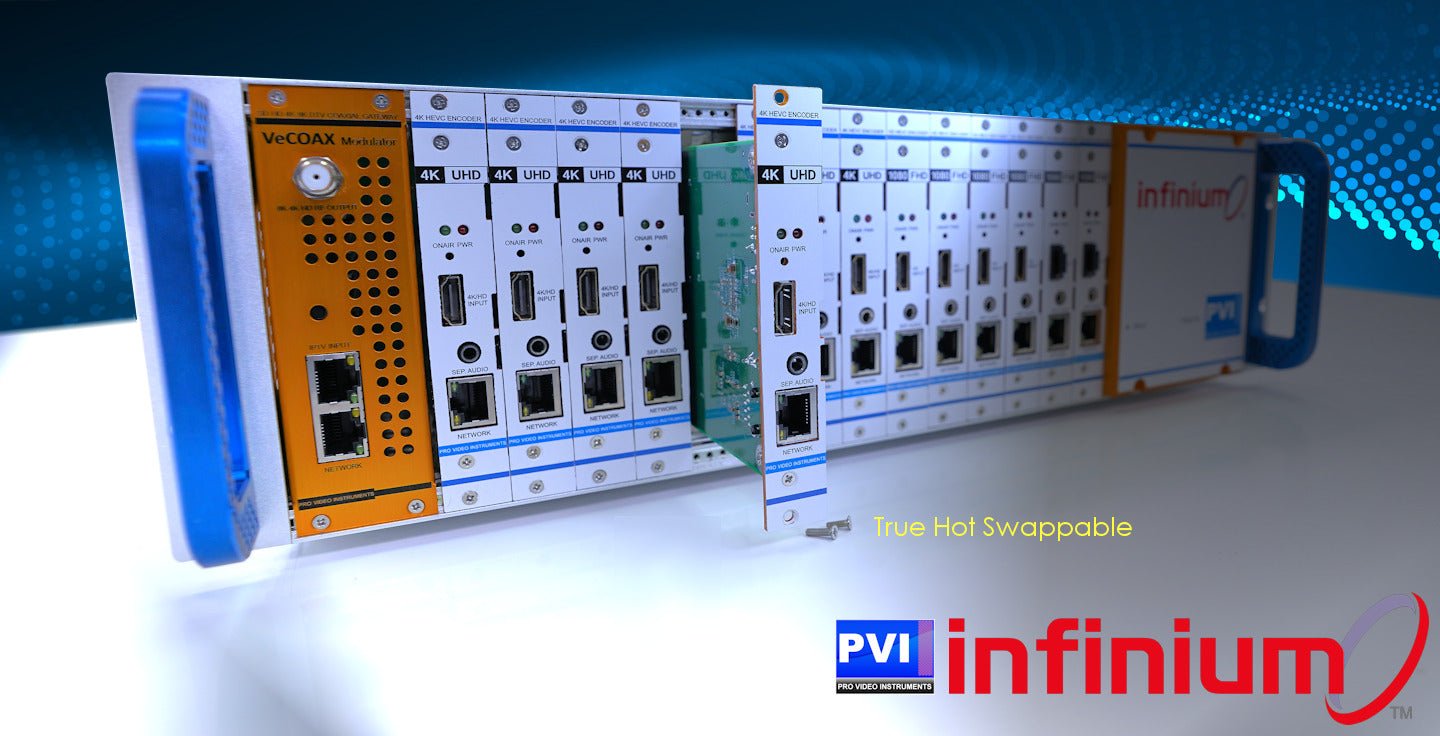

Always On Air
Hot-Swappable Cards, Power, and Fans
Service, replace, or expand any card while the rest of the system keeps broadcasting. With dual redundant power supplies and dual redundant fans, the INFINIUM never has to be powered down.
Every encoder card, both power supplies, and both cooling fans are independently hot-swappable from the front and rear panels. You can add a channel, swap a module, or replace a power supply on a live system without taking a single channel off the air. This fully redundant architecture is what makes the INFINIUM suitable for 24/7 broadcast, hospitality, and command-and-control environments where downtime is not an option.

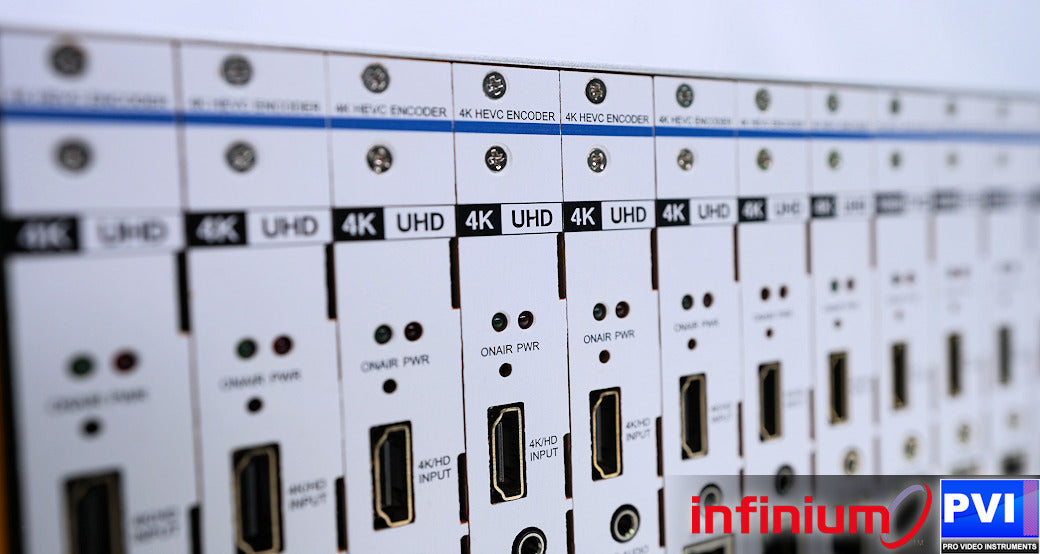

Up to 4K@60 HDR+
Handles the Newest 4K Formats
INFINIUM 4K encoder cards accept the latest HDMI 2.0b 18 Gbps HDR+ and Dolby Vision sources and deliver full-quality 4K over IP and coax using our advanced HEVC and H.264 compression — so the picture on every display exceeds expectations.
- HDMI 2.0b 18 Gbps inputs — HDR+ and Dolby Vision ready
- Real 4K@60 encoding with HEVC (H.265) or H.264
- Full EDID control locks sources into maximum-quality mode
- 12G-SDI input option for broadcast 4K workflows

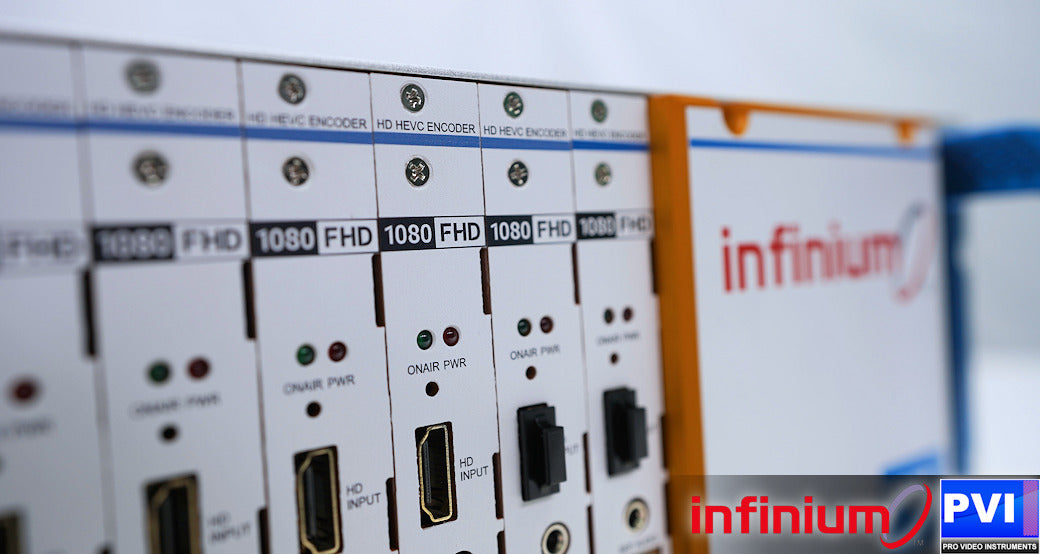

Still Need HD?
Every HD Format, Beautifully Compressed
Not everything is 4K. INFINIUM HD-only encoder cards — HDMI or 3G-SDI — deliver gorgeous HD at remarkably low bitrates, so you can pack more channels onto the same network or internet connection without sacrificing quality.
- HDMI and 3G-SDI HD encoder cards available
- Encodes 480p, 576p, 720p, 1080i, 1080p, and non-standard sources
- HDR-optimized HD motion estimation at the lowest bitrates
- Choose H.264 for compatibility or HEVC for maximum efficiency

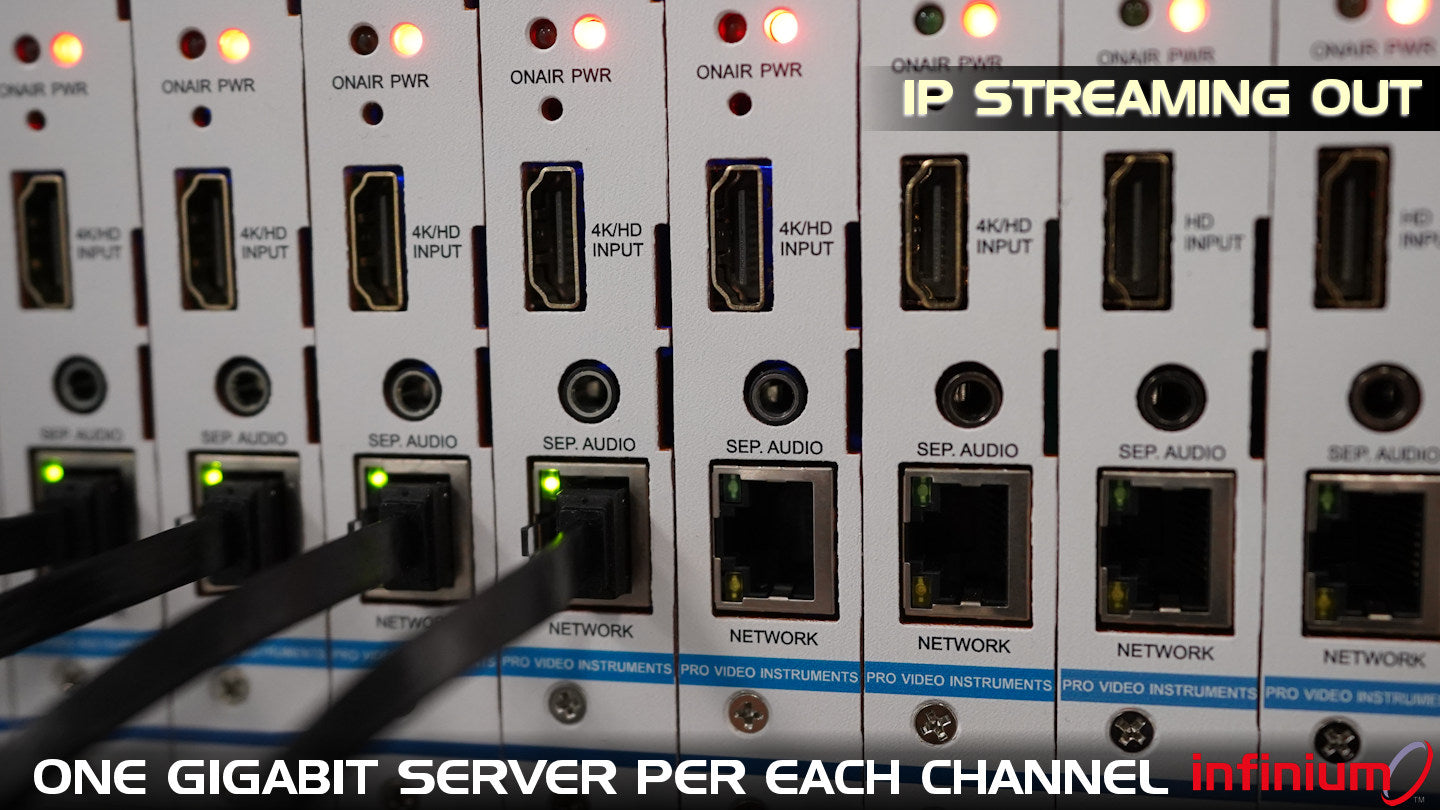

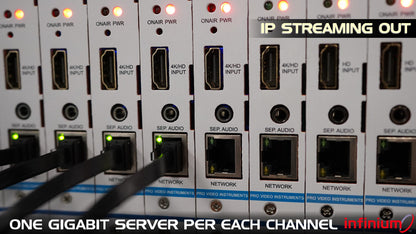

Built-In Streaming Server
A Multi-Gigabit Unicast Server on Every Channel
Stream directly to thousands of viewers without a separate media server. Each channel has its own gigabit-class unicast server, and SRT keeps internet latency as low as 50 ms plus network travel time.
Streaming to smart TVs, phones, tablets, and HTML5 browsers requires a unicast server because every viewer is a unique on-demand connection. The INFINIUM builds one in for every channel, so a single chassis can serve thousands of simultaneous viewers across a gigabit network. Need a bigger audience? Send one stream per channel to YouTube, AWS, or any CDN to reach millions live. For SRT-capable players such as VLC and our VePlayer hardware decoders, the INFINIUM delivers ultra-low-latency performance ideal for live events, worship, corporate town halls, and remote learning.

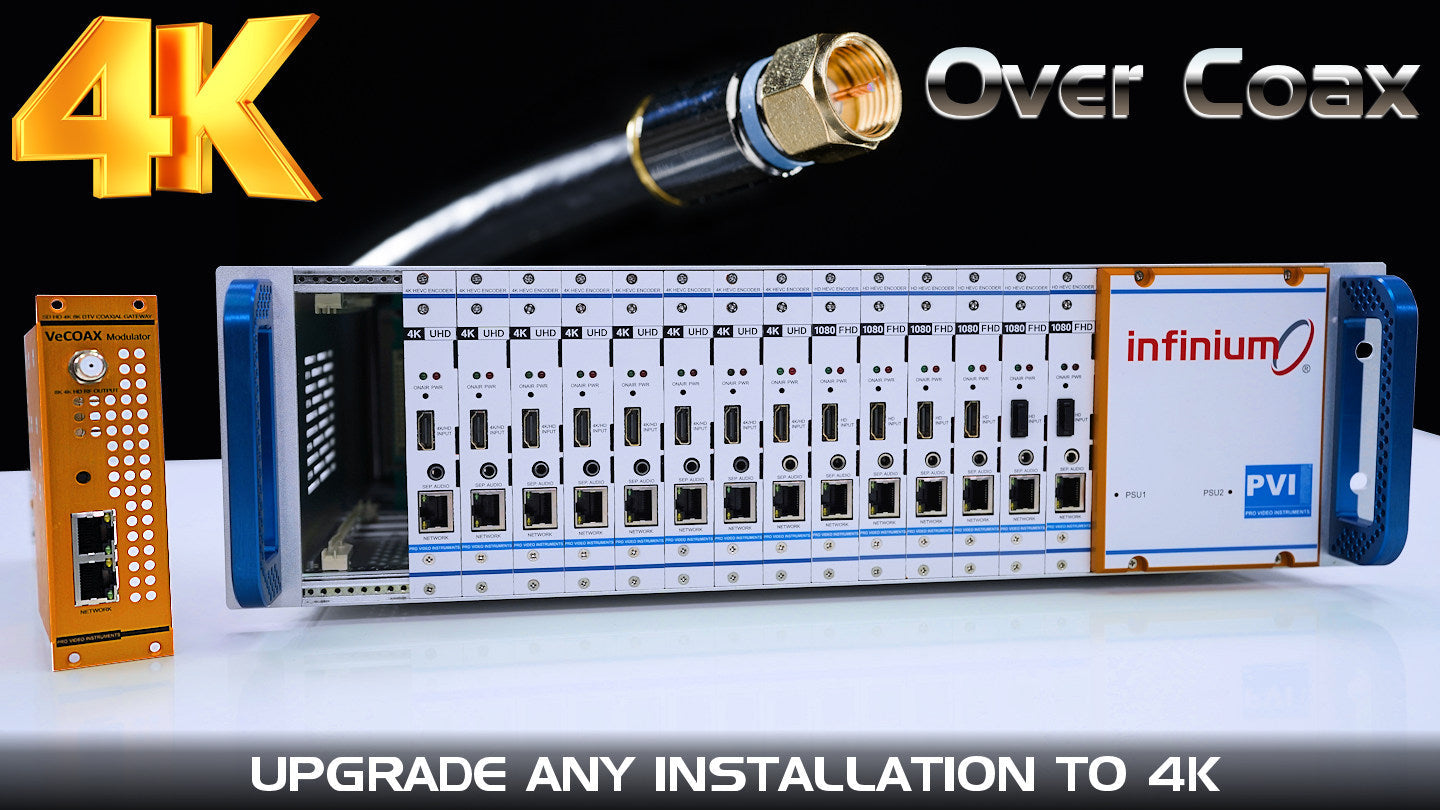

Add 4K Over Coax
Upgrade Existing Coax to 4K@60 HDR+
Add the optional 4K RF modulator module — built on our award-winning VeCOAX technology — and deliver real 4K channels to an unlimited number of TVs over the coax already in your walls. No new cabling, splitters, or amplifiers required.
Where coaxial TV distribution is needed, the INFINIUM accepts a dedicated 4K-over-coax modulator module in its special slot. It delivers HD and full 4K@60 HDR+ channels over your existing coaxial infrastructure to any ordinary 4K television — no adapters or set-top boxes at each screen. IP streaming and coaxial distribution run at the same time from one modular unit, so you can serve online viewers and on-site TVs simultaneously. One platform, no limits.
Encoder Cards
Build It Your Way — Mix Any Cards
Populate the chassis with any combination of these hot-swappable cards. HD or 4K, HDMI or SDI, H.264 or HEVC — every slot is yours to configure.

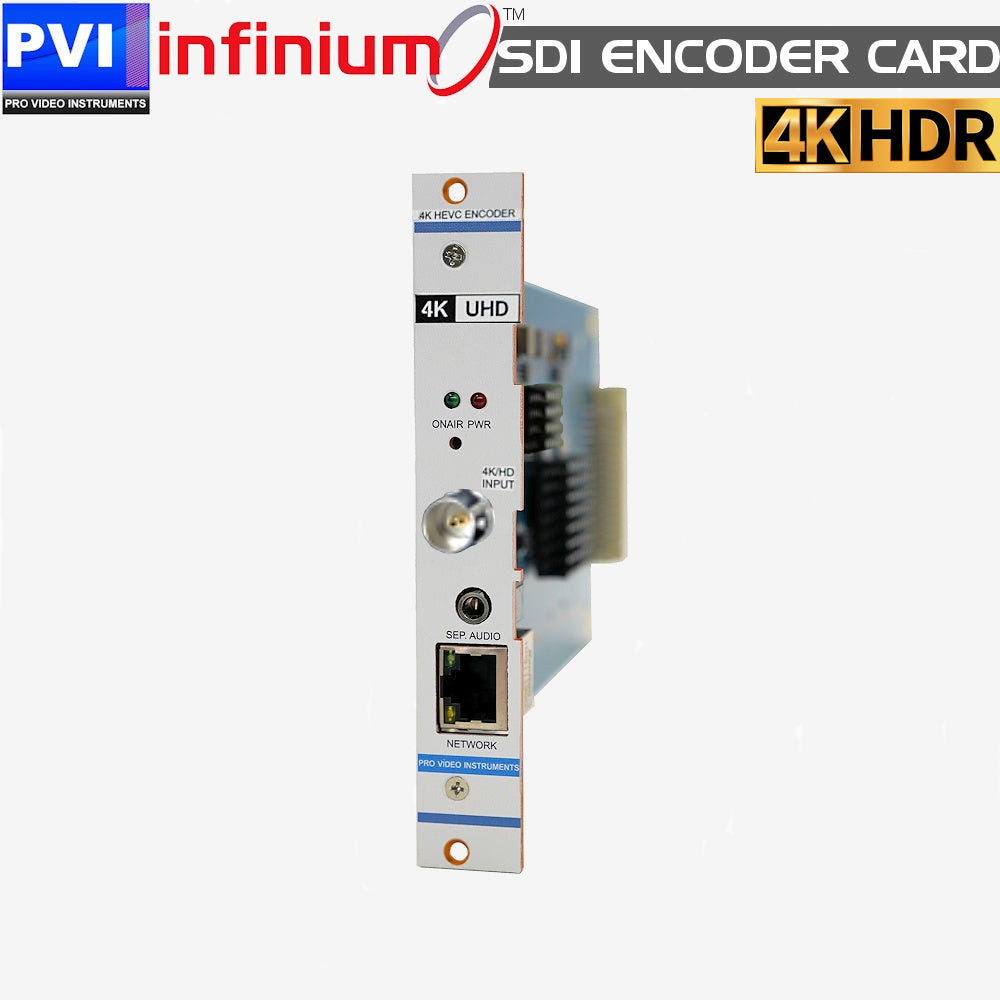

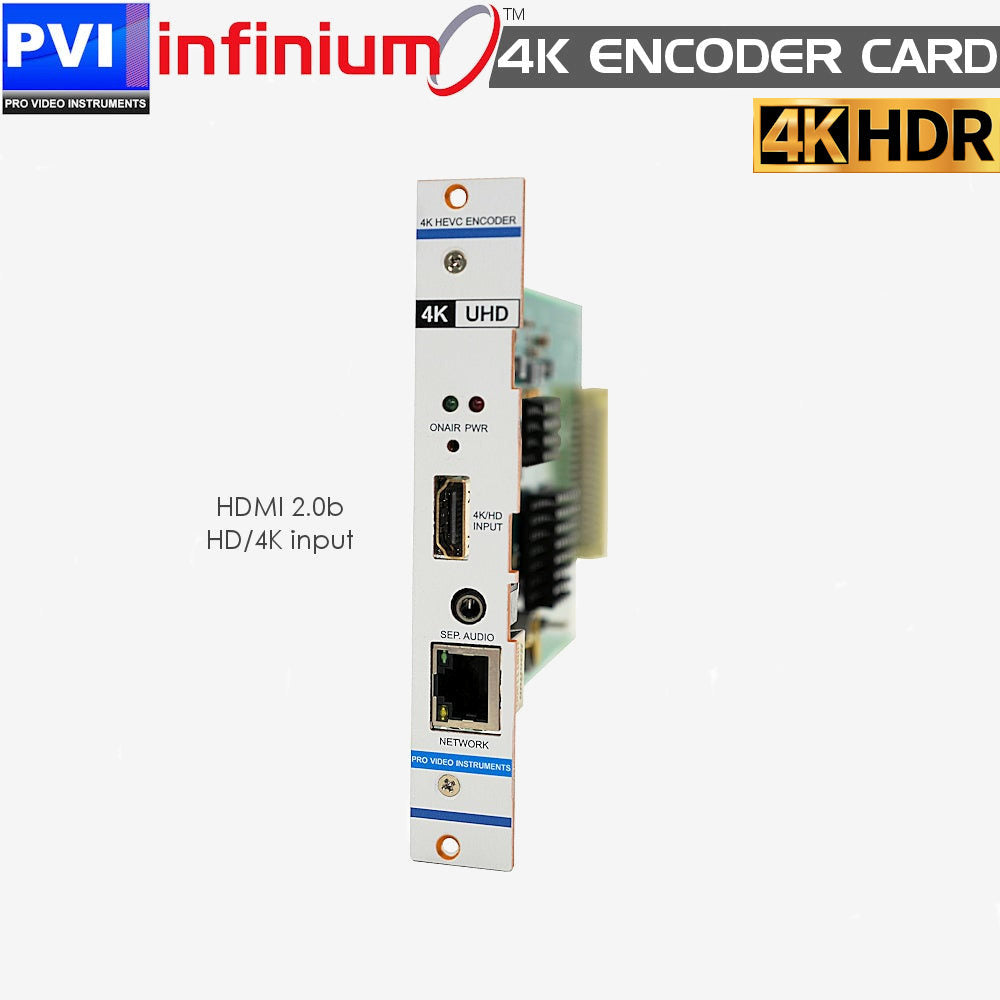

4K60 HEVC HDMI / 12G-SDI Card
Flagship broadcast encoder — HDMI 2.0b + 12G-SDI input, real 4K@60 HEVC, and up to 4 stereo language pairs.
4K30 HEVC HDMI Card
True 4K@30 HEVC encoding from HDMI 2.0b sources for IP streaming and 4K-over-coax distribution.
1080p HEVC HDMI Card
Efficient HD HEVC (H.265) encoding from HDMI — maximum quality at the lowest bitrate.

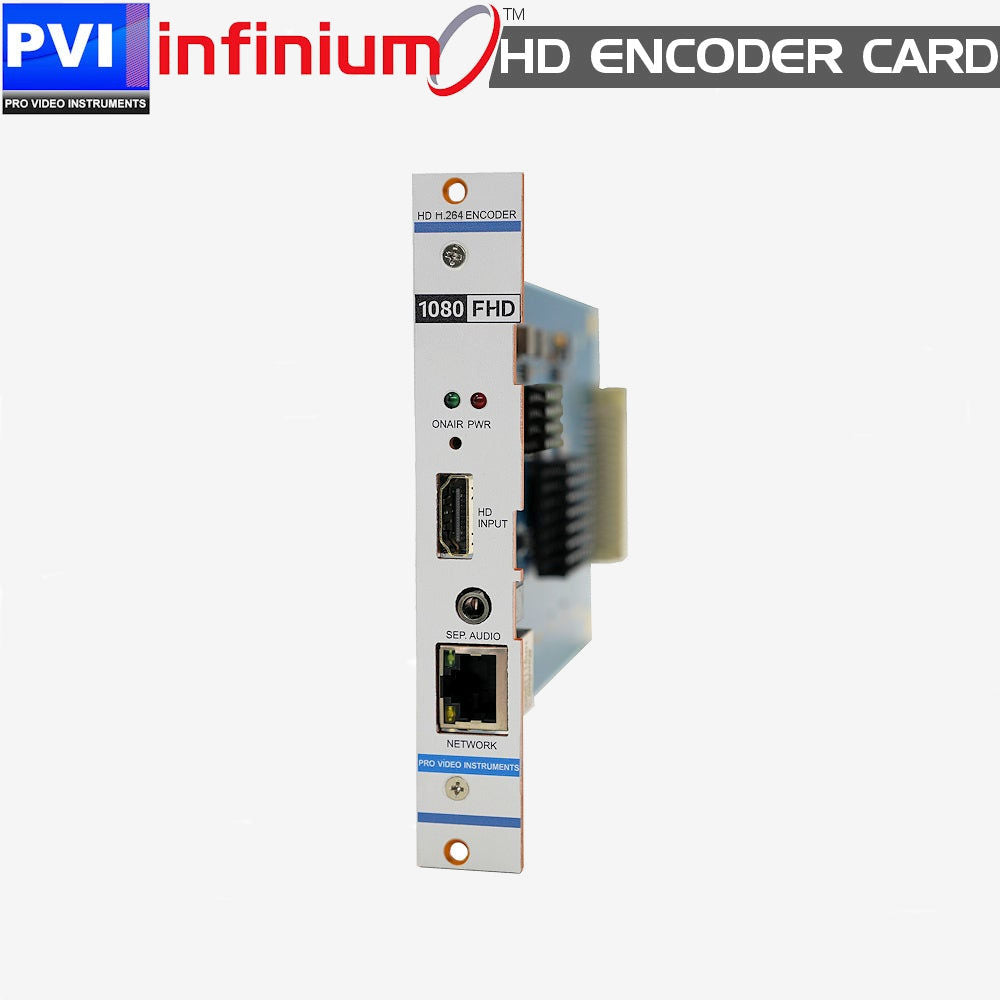

1080p H.264 HDMI Card
Universal HD H.264 encoding from HDMI — the most compatible format for any player or platform.

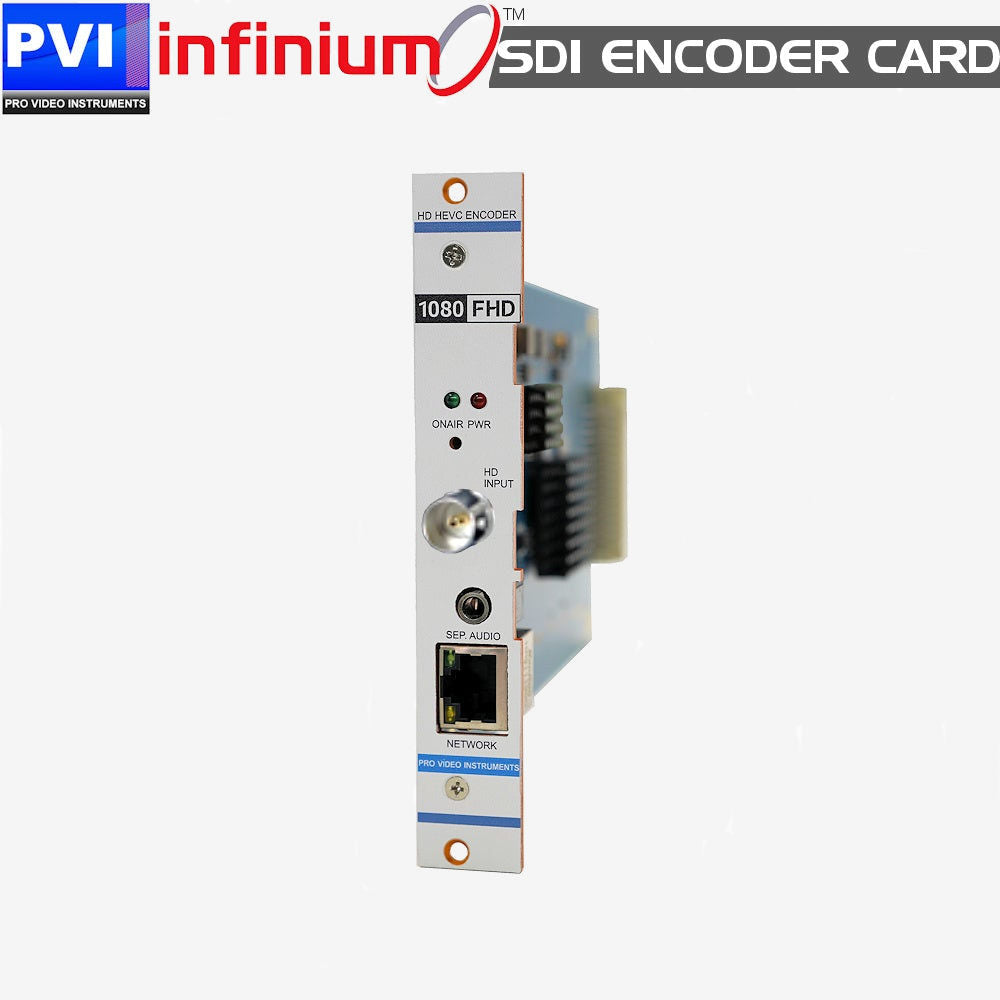

3G-SDI HEVC Card
Broadcast 3G-SDI HD encoder with HEVC or H.264 — for professional SDI camera and switcher feeds.

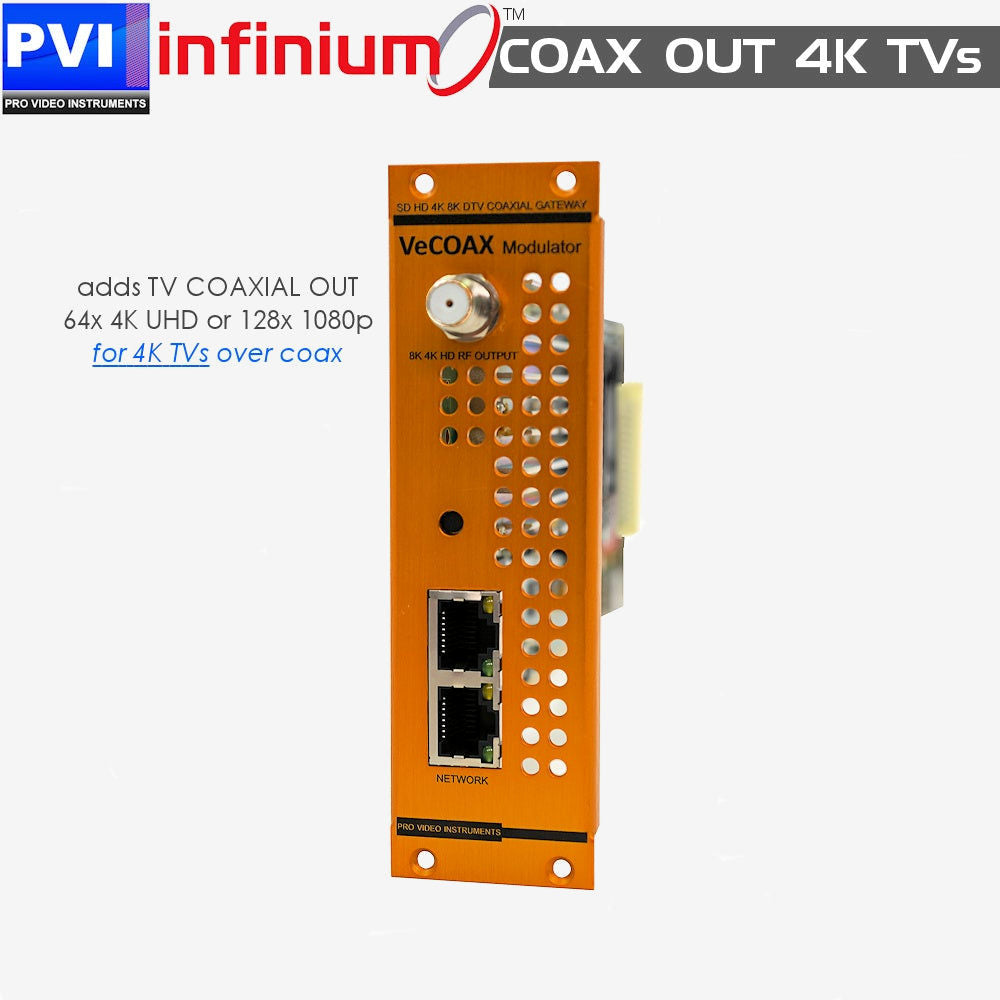

4K-Over-Coax RF Module
Optional rear-slot module delivering real 4K channels over existing coax — QAM, ATSC, DVB-T/C, ISDB-T.
Features
Engineered for Broadcast
Every detail of the INFINIUM 4K is built for round-the-clock professional operation.

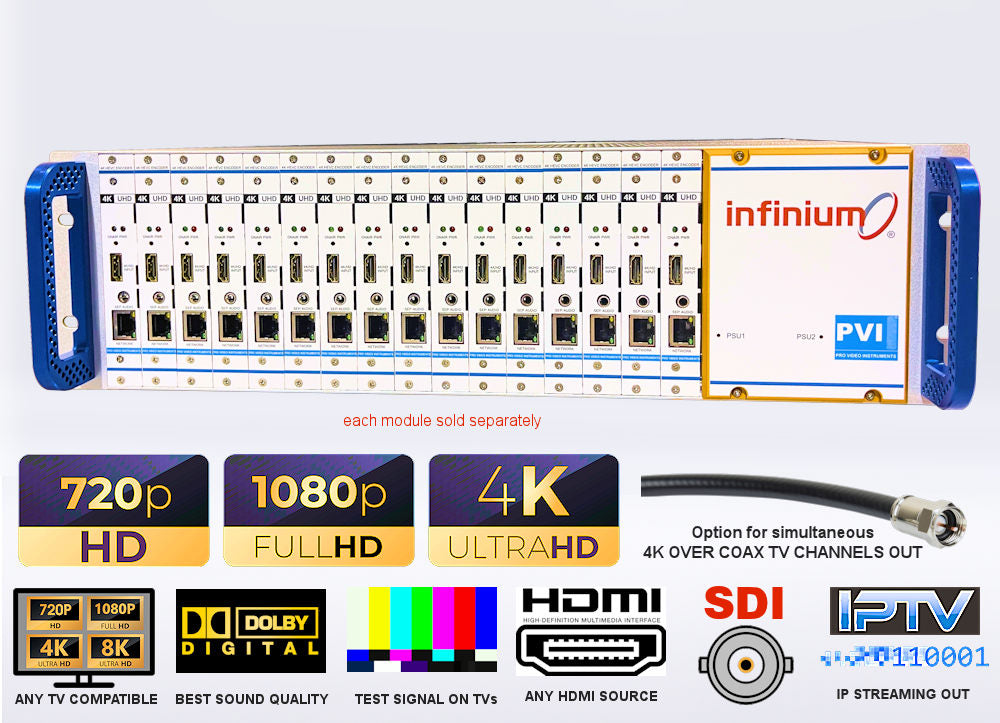

Up to 14 Hot-Swappable Slots
Populate one 4RU chassis with up to 14 encoder cards plus a dedicated slot for the 4K-over-coax module.
Dual Redundant Power Supplies
Two hot-swappable power supplies keep the system running if one ever fails — swap it live.
Dual Hot-Swappable Silent Fans
Front-to-rear airflow with two redundant ultra-quiet fans, replaceable without downtime.
SRT Ultra-Low Latency
Auto error-corrected SRT streaming as fast as 50 ms plus network travel time — ideal for live.
Every Modern Protocol
SRT, RTMP, HLS, M3U8, UDP, RTP, RTSP, HTTP, and IPTV — reach any player or platform.
Thousands of Concurrent Viewers
A built-in gigabit-class unicast server on every channel serves thousands of on-demand connections.
HDMI 2.0b HDR+ / Dolby Vision
18 Gbps inputs with full EDID control deliver maximum color depth and picture quality.
Secure Web Control + SNMP
Manage everything from a secure browser on any OS, with a generated MIB file for SNMP monitoring.
Designed & Built in USA
Engineered, assembled, and supported in the USA with a 5-year warranty and free lifetime support.
Applications
Distribute Anything, Anywhere
🏨
Hotels & Resorts
In-room TV, welcome and info channels, common areas, and digital signage over IP and coax.
🎓
Schools & Campuses
Campus-wide announcements, live lessons, and remote learning streamed securely to any device.
🏥
Hospitals & Healthcare
Patient entertainment and education, plus telemedicine and feeds to waiting and patient rooms.
🏟️
Stadiums & Arenas
Feed unlimited screens, projectors, scoreboards, and video walls over coax and IP at once.
⛪
Worship & Events
Stream services to overflow rooms, the web, and mobile with ultra-low-latency SRT.
🏢
Corporate & Broadcast
Town halls, training, confidence monitoring, and headend distribution across the facility.
🍺
Sports Bars & Retail
One feed to every screen and video wall — games, menus, promotions, and advertising.
🛡️
Security & Government
Distribute camera, DVR, and control-room feeds securely over coax and IP, with recording.
Why INFINIUM
Why INFINIUM 4K Is Different
One award-winning platform replaces a rack of single-purpose boxes — with the redundancy, scalability, and quality that broadcast-grade installations demand.
INFINIUM 4K
Competitors
✓One modular 4RU chassis — up to 14 channels
✕A separate appliance for every channel
✓IP + IPTV + 4K-over-coax from one unit
✕Separate encoders, gateways, and modulators
✓Hot-swap cards, power, and fans — never go off air
✕Power down the whole unit to service it
✓Real 4K@60 HDR+ with HEVC
✕1080p or limited 4K only
✓Built-in unicast server per channel
✕Requires a separate streaming server
✓SRT ultra-low latency as low as 50 ms
✕High-latency RTMP/HLS only
✓Dual redundant power supplies and fans
✕Single power supply, single point of failure
✓5-Year Warranty + Free Lifetime Support
✕1-Year Warranty
✓Designed & Made in USA
✕Imported rebranded hardware

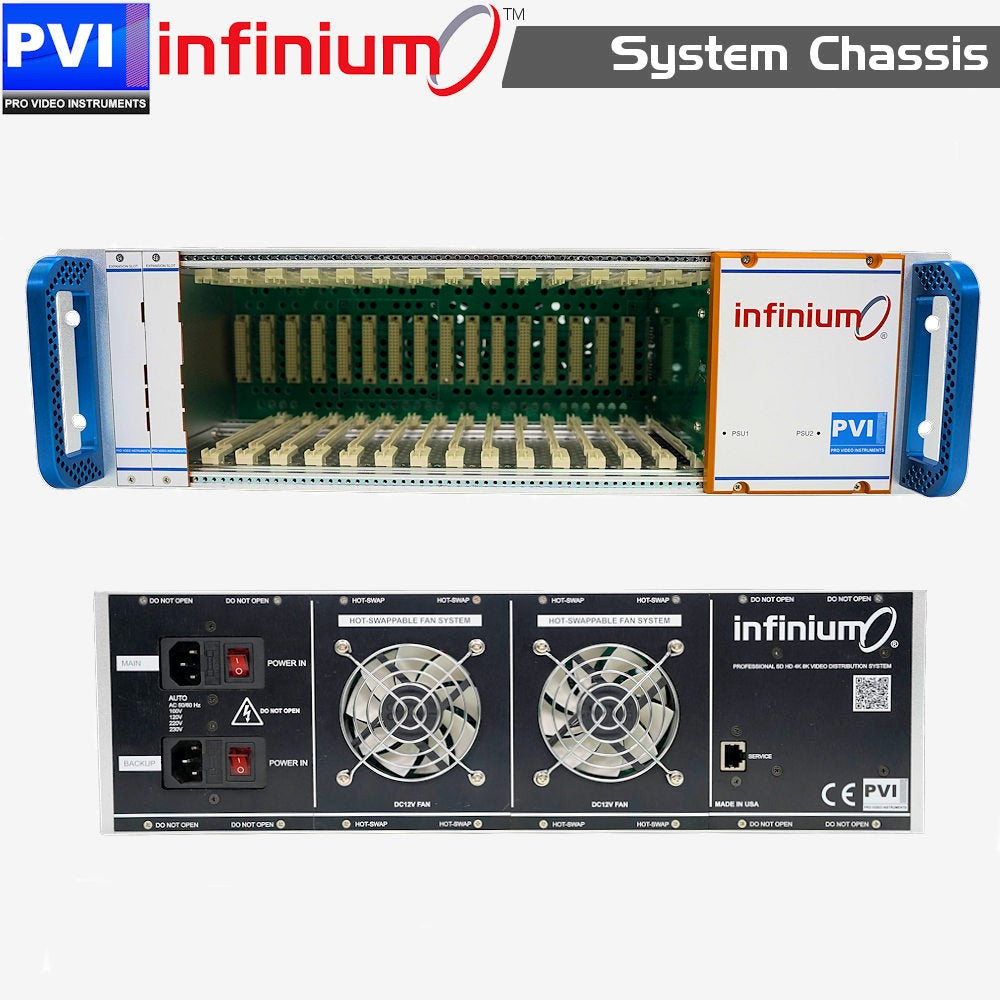

Specifications
Chassis Technical Specifications
| Form Factor | 4RU rack-mount modular chassis |
| Modular Slots | Up to 14 hot-swappable encoder/processing cards, plus 1 special slot for the 4K-over-coax RF module |
| On-Site Service | Cards installed or replaced without powering down the system or interrupting active channels |
| Video Inputs (per card) | HDMI 2.0b 18 Gbps HDR+ / Dolby Vision, 3G-SDI, and 12G-SDI (4K60 card) |
| Resolutions | Up to 4K@60 HDR+ · 480p / 576p / 720p / 1080i / 1080p and non-standard sources |
| Compression | HEVC (H.265) and H.264, multi-rate / multi-format per input |
| Streaming Protocols | SRT (ultra-low latency), RTMP, HLS, M3U8, UDP, RTP, RTSP, HTTP, IPTV |
| Streaming Server | Built-in gigabit-class unicast server on every channel — thousands of concurrent viewers |
| RF Coax Option | 4K-over-coax modulator module — QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| Audio | Up to 4 stereo language pairs (4K60 card); broadcast-grade encoding |
| Redundancy | Dual hot-swappable power supplies + dual hot-swappable ultra-quiet fans |
| Cooling | Front-panel fresh-air intake, rear exhaust via two redundant fans |
| Control | Secure web browser login (any OS) + generated MIB file for SNMP monitoring |
| Licensing | All feature licenses included — capabilities configured by the cards installed |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Input Power | 50 W (chassis only) up to 100 W (fully populated) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Compliance | CE · EN55022, EN55024, AS/NZS3548, EN61000-3-2, FCC CFR47 Part 15B Class A · EN60950 / IEC 60950 safety |
| What’s Included | INFINIUM 4RU chassis, 14 open slots, 1 special slot with two blank panels, two power cords, product registration card |
| Weight | 20 lb (9.07 kg) |
| SKU | INF-RACK-4U-14S-1M |
| Warranty | 5-Year (60-month) Limited Manufacturer Warranty + free lifetime support |
| Origin | Designed & Assembled in USA |
FAQ
Frequently Asked Questions About the INFINIUM 4K
What is the INFINIUM 4K and what does it do?
The INFINIUM 4K is a modular 4RU video-distribution headend. You populate it with hot-swappable encoder cards and an optional 4K-over-coax RF module to distribute any HD or 4K source over live IP streaming, IPTV, and coaxial cable at the same time — to smart TVs, phones, browsers, IPTV boxes, and ordinary coax televisions.
How many channels can one INFINIUM chassis handle?
Up to 14 hot-swappable encoder cards fit in a single 4RU chassis, giving you up to 14 independent channels. A dedicated rear slot also accepts the 4K-over-coax RF modulator module when coax distribution is required.
What streaming protocols does the INFINIUM support?
Every modern protocol: SRT for ultra-low latency, plus RTMP, HLS, M3U8, UDP, RTP, RTSP, HTTP, and IPTV. Each channel can output multiple formats and bitrates at once so you can reach any player, set-top box, smart TV, or platform such as YouTube and AWS.
Can the INFINIUM send 4K over my existing coax to regular TVs?
Yes. Add the optional 4K-over-coax RF module — built on our award-winning VeCOAX technology — and the INFINIUM delivers real 4K@60 HDR+ channels over the coaxial cables already in your building to an unlimited number of 4K TVs. No new cabling, splitters, amplifiers, or set-top boxes are required.
What encoder cards are available?
A 4K60 HEVC card with HDMI 2.0b and 12G-SDI inputs, a 4K30 HEVC HDMI card, a 1080p HEVC HDMI card, a 1080p H.264 HDMI card, and a 3G-SDI HEVC HD card. You can mix any combination of HD and 4K, HDMI and SDI, H.264 and HEVC cards in the same chassis.
What does hot-swappable operation mean and why does it matter?
Every encoder card, both power supplies, and both fans can be removed and replaced while the system is running. You can service, replace, or add a channel without taking any other channel off the air — essential for 24/7 broadcast, hospitality, and command-and-control operations where downtime is unacceptable.
How many simultaneous viewers can the INFINIUM serve?
Each channel has its own built-in gigabit-class unicast server, so a single chassis can serve thousands of concurrent viewers over a gigabit network. For unlimited audiences, send one stream per channel to a platform such as YouTube Live or AWS to reach millions of people at once.
Does the INFINIUM support SRT ultra-low latency?
Yes. SRT is built in, delivering auto-error-corrected streaming as fast as 50 milliseconds plus the internet travel time. SRT-capable players such as VLC and our VePlayer hardware decoders receive the lowest-latency feed for live events, worship, sports, and corporate town halls.
What is the difference between the HD and 4K encoder cards?
4K cards accept HDMI 2.0b 18 Gbps HDR+ / Dolby Vision sources and encode real 4K (up to 4K@60 on the flagship card). HD cards encode 480p through 1080p from HDMI or 3G-SDI sources at very low bitrates. Use 4K cards for Ultra-HD content and HD cards to pack more standard-definition and HD channels onto the same network.
Can I mix HDMI and SDI sources in one chassis?
Yes. The INFINIUM is source-agnostic. Install HDMI encoder cards and 3G-SDI / 12G-SDI encoder cards side by side in the same chassis, mixing HD and 4K channels however your installation requires.
Do I need a computer to operate the INFINIUM?
No dedicated computer is required to run it. The INFINIUM is configured and monitored from a secure web browser on any operating system, and it generates an SNMP MIB file for integration with network monitoring systems.
What warranty and support does the INFINIUM include?
A 5-year (60-month) limited manufacturer warranty plus free unlimited technical support for the life of the product. The INFINIUM is designed, assembled, and supported in the USA by Pro Video Instruments.
Build Your System
Add Encoder Cards & the 4K-Over-Coax Module
The INFINIUM 4K chassis is the foundation. Choose the hot-swappable cards your installation needs — mix HD and 4K, HDMI and SDI — and add the 4K-over-coax module when you need real 4K channels on existing TVs.
4K60 HEVC HDMI / 12G-SDI Encoder Card
Flagship broadcast 4K@60 card — HDMI 2.0b + 12G-SDI input, up to 4 language pairs.
$4,950.00$3,995.00You save $955.00
4K30 HEVC HDMI Encoder Card
True 4K@30 HEVC from HDMI 2.0b for IP streaming and 4K-over-coax distribution.
$1,695.00$1,495.00You save $200.00
1080p HEVC HDMI Encoder Card
Efficient HD HEVC (H.265) encoding from HDMI — best quality at the lowest bitrate.
$1,195.00$995.00You save $200.00
1080p H.264 HDMI Encoder Card
Universal HD H.264 encoding from HDMI — the most compatible format for any player.
$549.00$495.00You save $54.00
3G-SDI HEVC Encoder Card
Broadcast 3G-SDI HD encoder with HEVC or H.264 for SDI cameras and switchers.
$1,195.00$995.00You save $200.00
4K-Over-Coax RF Modulator Module
Add real 4K channels over existing coax — QAM, ATSC, DVB-T/C, ISDB-T.
$1,995.00$1,695.00You save $300.00
Complete the Ecosystem
Decoders & Receivers
Receive INFINIUM streams anywhere with VePlayer hardware decoders — single screen, quad mosaic video walls, or broadcast SDI.
VePlayer Pro — HD/4K IPTV Decoder
HEVC
From $495
VePlayer HDMI-QUAD — 4-Stream Decoder
Video Wall
From $625
VePlayer-SDI — 3G-SDI Broadcast Decoder
3G-SDI
From $995
4K-Over-Coax RF Module
4K Coax
From $1,345
