The INFINIUM 4K-Over-Coax RF Modulator Module delivers up to 30 4K channels (or 60 HD channels) to an unlimited number of ordinary 4K/8K televisions over existing coax — with no new cabling, splitters, amplifiers, or set-top boxes. Where the encoder cards stream over IP, this module adds the coaxial output your building's TVs already understand, so you get IP streaming and coax TV at the same time from one modular unit.

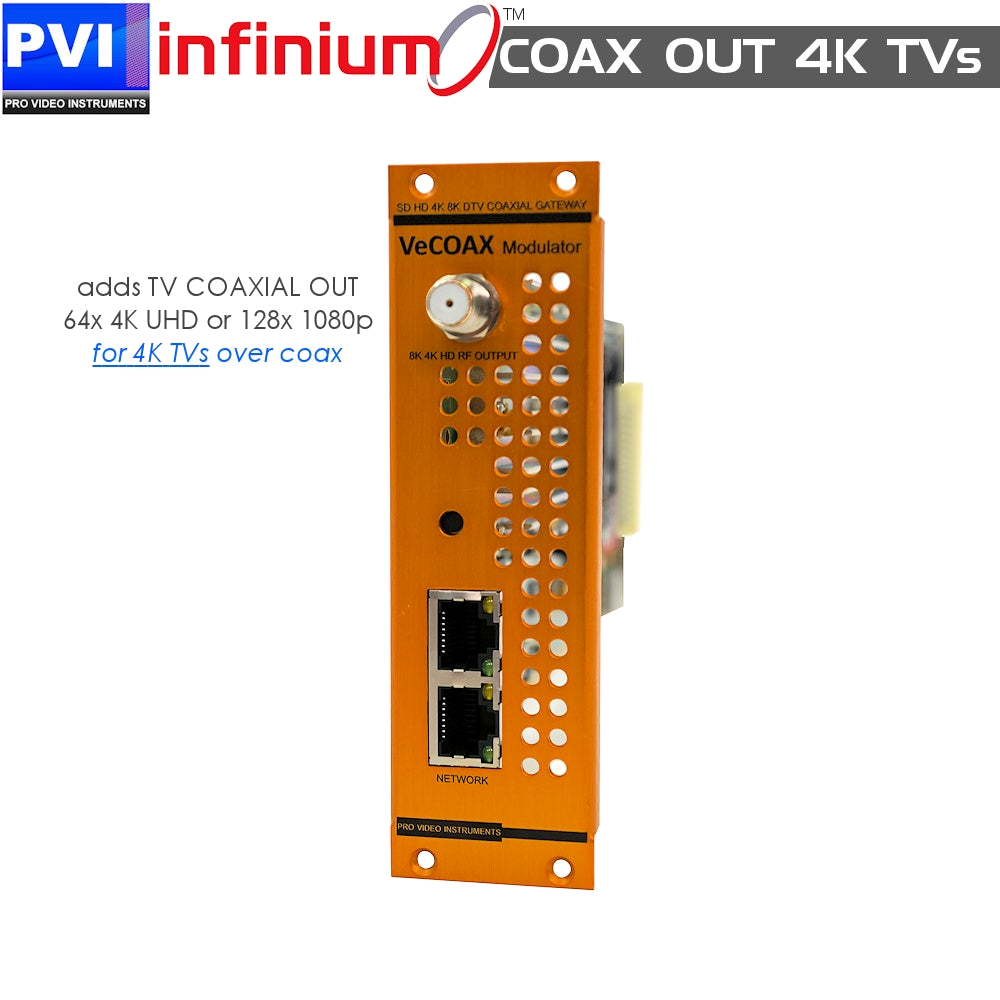

4K-Over-Coax RF Module
Add 4K Over Coax With One Swap
Turn your INFINIUM chassis into a coax TV headend. Built on award-winning VeCOAX technology, this module converts IP channels into real digital TV channels on the coaxial cables already in your building.
Capabilities
Every TV Standard, Every Television
One software setting selects the right digital TV standard for your region, so the same module works anywhere in the world — delivering 4K, 1080p, 720p, and SD over coax.
- Up to 30× 4K channels (@5 Mbps HEVC) or 60× HD channels (@2.5 Mbps H.264) per module
- Software-selectable standard: QAM (J83B), ATSC 8-VSB, DVB-T, DVB-C (J83A), ISDB-T
- 4 agile RF carriers, adjacent or non-adjacent, anywhere 30–1000 MHz
- Adjustable RF level +10 to +50 dBmV · MER ≥ 44 dB · set channel names & numbers
- Up to 64 multicast IP streams in over gigabit Ethernet · up to 155 Mbps per module
No Rewiring

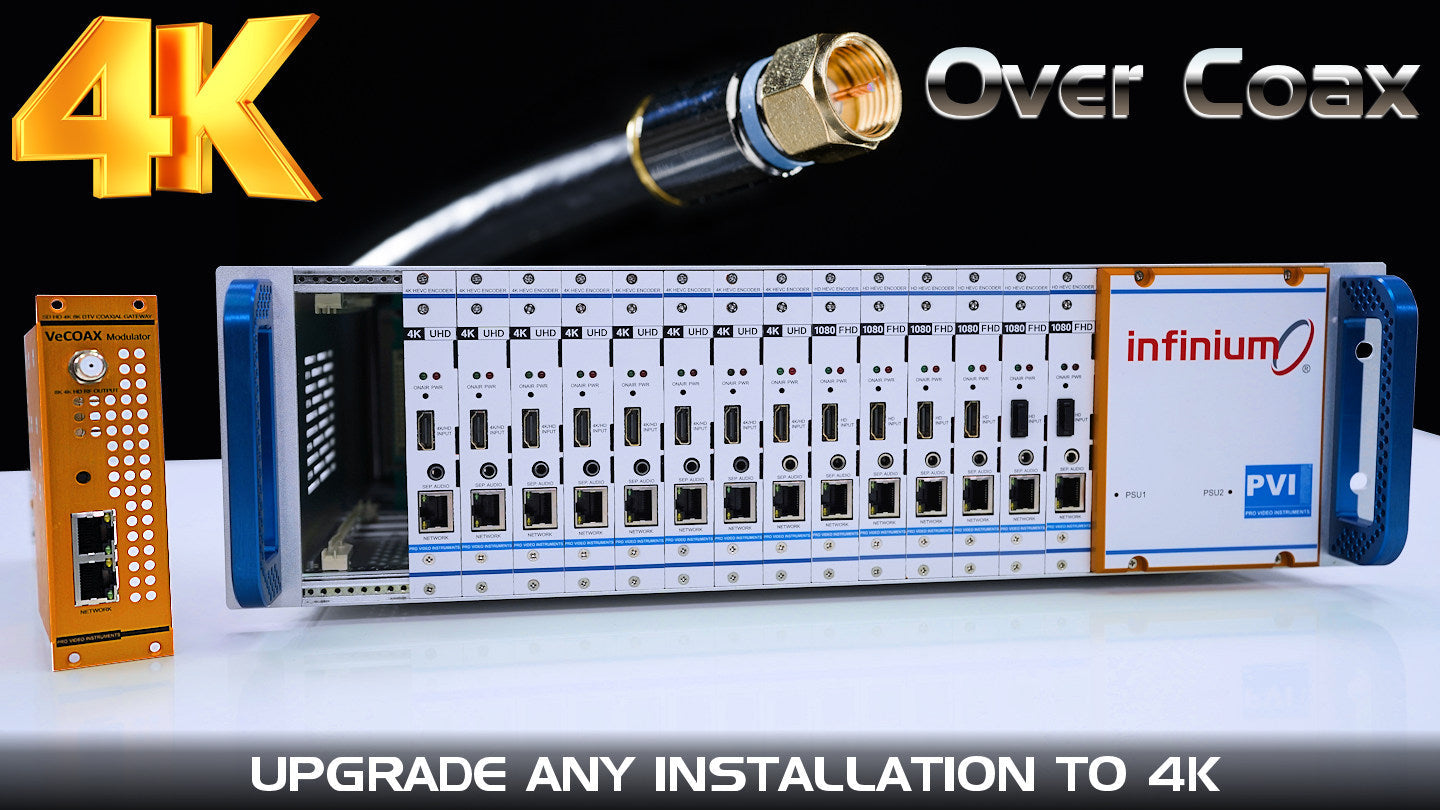

Upgrade Coax to 4K — Keep the Cables
Deliver up to full 4K@60 HDR+ to an unlimited number of 4K TVs without changing the existing coax installation, including amplifiers and splitters. All stays the same — simply add the module.

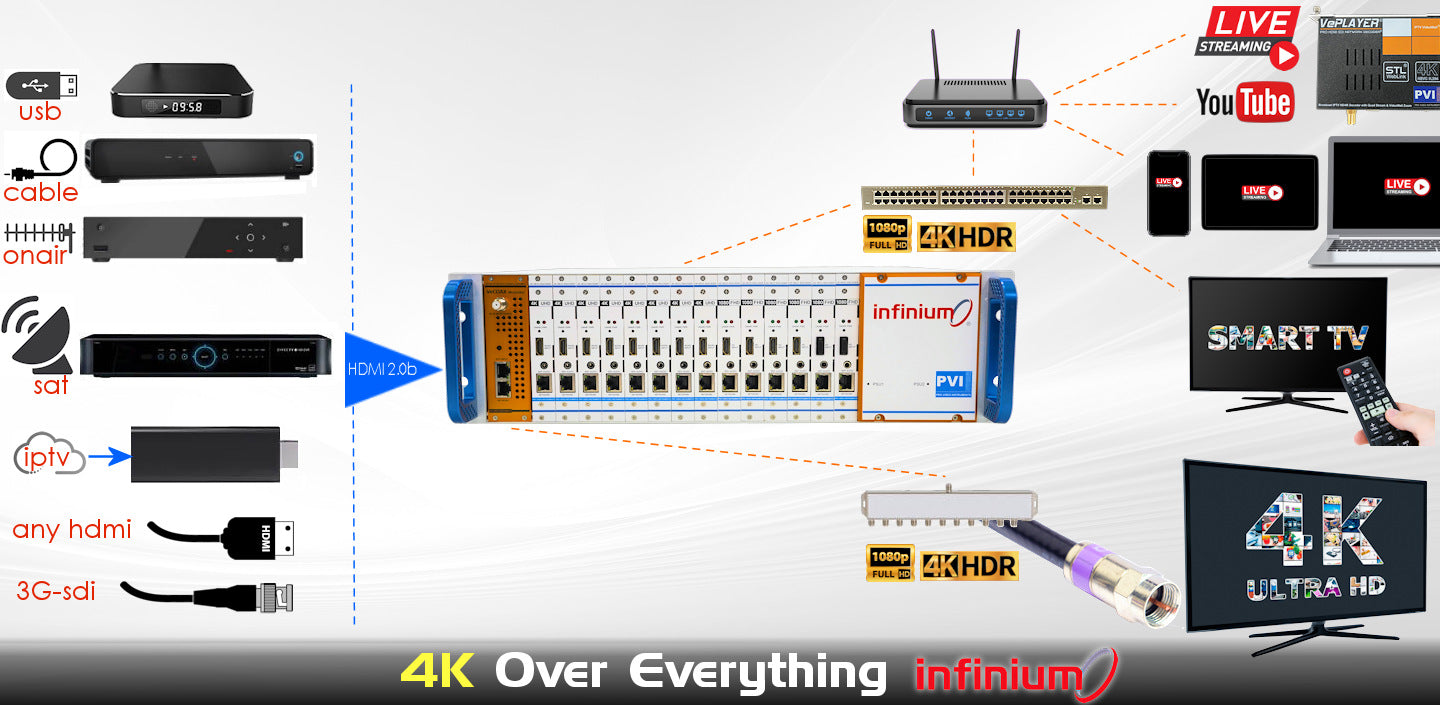

Where needed, the INFINIUM 4K coaxial output drives an unlimited number of 4K televisions over the existing coaxial cables, because the signal is fully compatible with any 4K/8K-class TV tuner. IP streaming and coaxial networks run together, at the same time, from one modular, expandable, future-proof unit. No limits.
Features
Coax Output for the INFINIUM
Award-winning modulation that turns IP into real TV channels.
IP → RF Conversion
Takes up to 64 multicast IP streams and outputs them as digital TV channels over coax.
World TV Standards
QAM J83B, ATSC, DVB-T, DVB-C J83A, and ISDB-T — switchable on-site via software.
Up to 30 4K Channels
Or up to 60 HD channels per module — to unlimited TVs over one coax network.
4 Agile Carriers
Adjacent or non-adjacent, 30–1000 MHz, +10 to +50 dBmV, MER ≥ 44 dB.
VeCOAX Technology
Built on PVI's award-winning, field-proven 4K modulation engine.

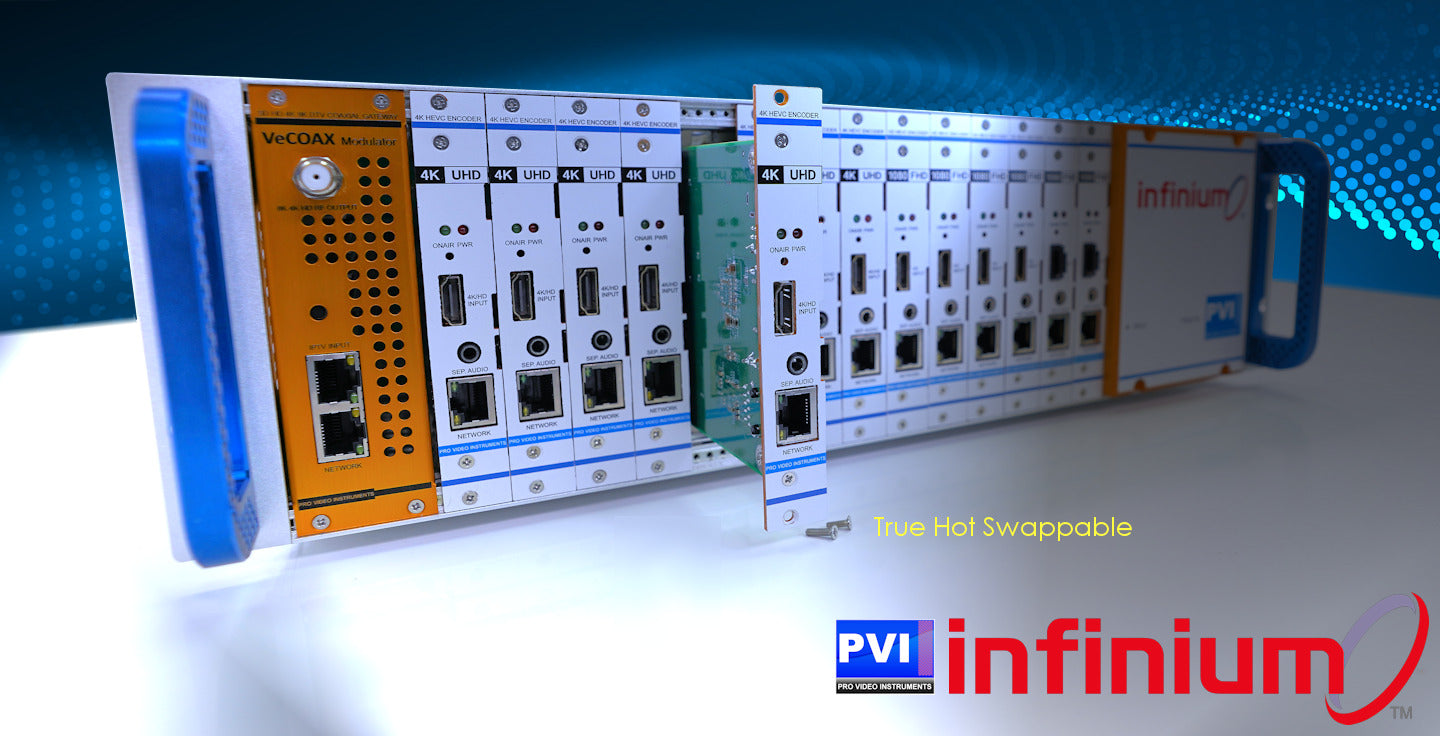

Hot-Swappable
Add to the chassis special slot live — no downtime for other channels.
Specifications
4K-Over-Coax Module Specifications
| Module Type | Hot-swappable IP-to-RF modulator module for the INFINIUM 4K chassis |
| IP Input | Up to 64 multicast IP streams over gigabit Ethernet |
| Channel Capacity | Up to 30× 4K (@5 Mbps HEVC) or 60× HD (@2.5 Mbps H.264) per module |
| RF Standards | QAM J83B, ATSC 8-VSB, DVB-T, DVB-C J83A, ISDB-T — software-selectable on-site |
| RF Carriers | 4 agile carriers, adjacent or non-adjacent, within a 192 MHz window |
| Frequency Range | 50–960 MHz @ 1 kHz steps (30–1000 MHz operating) |
| RF Output Level | Adjustable -20 to +10 dBm (up to +50 dBmV) @ 0.1 dB steps |
| MER | ≥ 44 dB |
| Max Bitrate / Carrier | QAM 38.8 · ATSC 19.3 · DVB-T 31 · DVB-C 56 · ISDB-T 26 Mbps |
| Throughput | Up to 155 Mbps per module (J83B mode) |
| TV Compatibility | Any 4K/8K-class television with a built-in digital tuner — 4K, 1080p, 720p, SD |
| Hot-Swap | Gold-plated, dust/humidity/vibration-proof bus connector — 100% hot-swappable |
| SKU | INF-MOD-4K-IP-16QAM |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
INFINIUM 4K-Over-Coax Module — FAQ
What does the 4K-over-coax module do?
It converts the INFINIUM chassis IP channels into real digital TV channels delivered over your existing coaxial cabling, so ordinary 4K/8K televisions tune them like any other channel — no set-top boxes and no new wiring.
How many channels can one module deliver?
Up to 30 4K channels at ~5 Mbps HEVC, or up to 60 HD channels at ~2.5 Mbps H.264, across 4 agile RF carriers, to an unlimited number of televisions.
Which TV standards does it support?
QAM (J83B American cable), ATSC 8-VSB (American off-air), DVB-T (worldwide off-air), DVB-C (European cable, J83A), and ISDB-T (Latin America/Japan). You select the standard on-site with a software setting.
Do I need to change my existing coax cabling?
No. The signal is fully compatible with your existing coax, including amplifiers and splitters. Simply add the module to the chassis and the channels appear on every connected TV.
Can it run alongside IP streaming?
Yes. The INFINIUM delivers IP streaming and coaxial TV at the same time from one modular unit — the encoder cards stream over IP while this module outputs the same content over coax.
What technology is it based on?
It is built on PVI's award-winning VeCOAX modulation engine, the same field-proven technology used in over 50,000 installations worldwide.
Does it require the INFINIUM chassis?
Yes. The module installs in the INFINIUM 4K Video Distribution Chassis special slot, which supplies power, cooling, redundancy, and the IP backplane it modulates to coax.
