The VePLAYER-HDMI-QUAD is built for monitoring and signage. It pulls up to four simultaneous IP streams and shows them single, in quad split, or zoomed and rotated as part of a larger video wall. Ideal for control rooms, lobbies, sports bars, command centers, and any place where seeing many sources at a glance matters. HEVC and H.264 decoding up to 4K, SRT low latency, and API/Telnet control come standard.

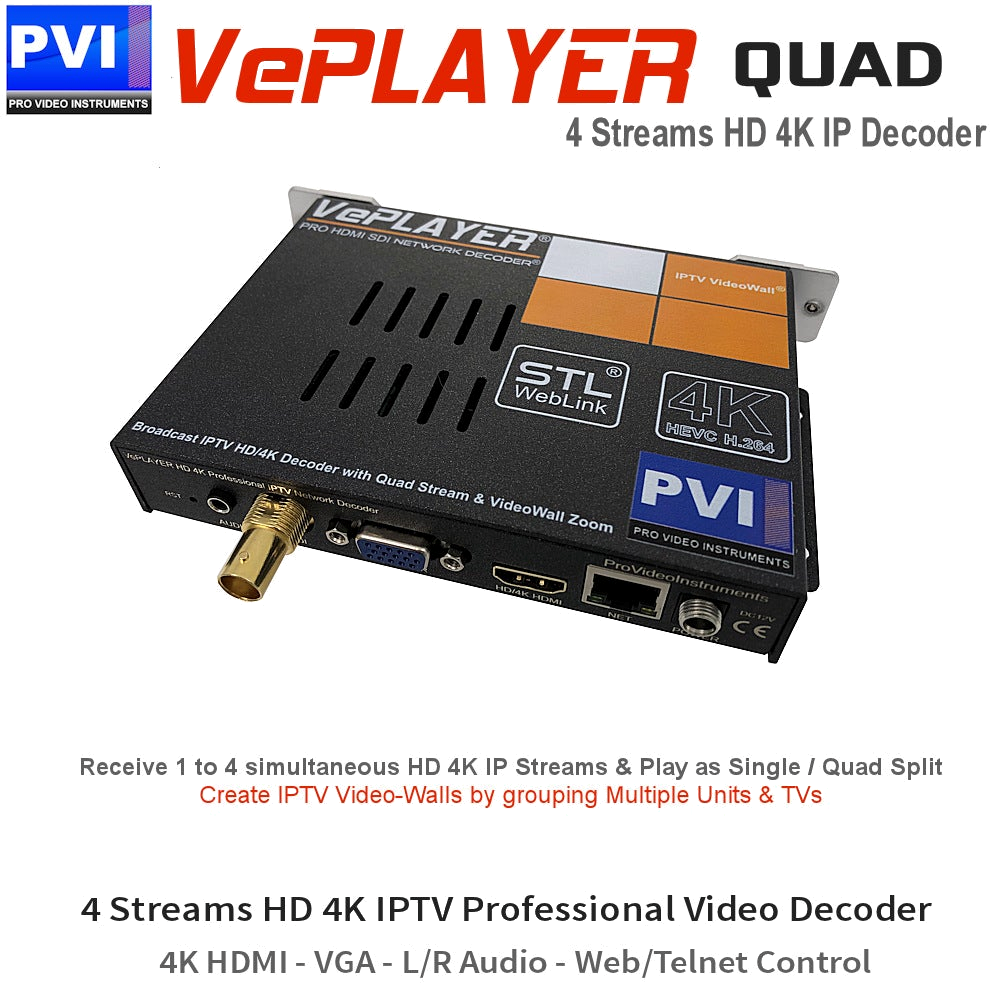

VePLAYER-HDMI-QUAD
Four Streams. One Screen. Endless Walls.
Receive up to four IP streams at once and display the selected one full-screen — or all four in a crisp quad mosaic. Then scale across units to build IP video walls of any size.
Capabilities
See Everything, All at Once
Monitor four feeds on a single display, or compose them into a wall — the QUAD is your eyes on the whole operation.
- Decode up to 4 simultaneous IP streams — single, quad-mosaic, zoom, rotation, logo
- Receives SRT, UDP, HTTP, HLS, RTP, RTSP, ONVIF, RTMP(S) — unicast & multicast
- Decodes HEVC / H.264 / MPEG-2 / MPEG-4 up to 4K (3840×2160@30 / 1080p@60)
- Outputs HDMI (up to 4K), VGA/RGB, analog CVBS SD, and L/R stereo audio
- Build IP video walls across multiple units · control via web or API/Telnet
Mosaic & Video Walls
From a Quad Split to a Command Wall

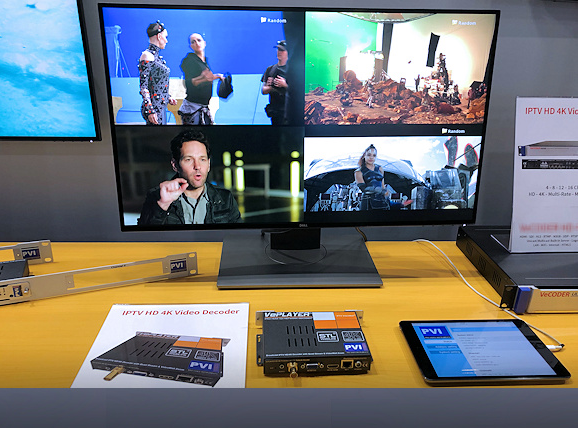

Show four sources in a perfect mosaic on one screen, or group multiple QUAD units from a multicast source to build large, synchronized IP video walls.
The quad-mosaic mode is perfect for 24/7 monitoring where operators must watch many feeds at once. When you need to go bigger, multiple QUAD units pull the same multicast streams to build seamless command walls — each screen independently zoomable and rotatable, all controlled remotely.
Features
Monitoring & Signage Powerhouse
Multi-stream decoding for the INFINIUM ecosystem.
4 Streams
Decode and display up to four IP sources simultaneously.
Quad Mosaic
All four feeds in a clean split, or any one full-screen on demand.
Video Walls
Group units from multicast to build large synchronized arrays.
Up to 4K
HEVC/H.264 decoding to HDMI up to 3840×2160.
SRT Low Latency
Ultra-low-latency SRT down to 50 ms plus network travel time.
API / Telnet
Full remote control for any automation controller.
Specifications
VePLAYER-HDMI-QUAD Specifications
| Device Type | Standalone 4-stream IPTV decoder with quad-mosaic & video-wall modes |
| Simultaneous Streams | Up to 4 — single, quad-mosaic, zoom, rotation, logo |
| Input Protocols | SRT, RTMP(S), HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP unicast & multicast |
| Video Decoding | HEVC (H.265), H.264, MPEG-2, MPEG-4 · SD/HD/4K HDR |
| Max Resolution | 3840×2160@30 fps / 1080p@60 fps (interlace input not supported) |
| Video Output | HDMI / VGA up to 2160p@30, 1080p@60 · CVBS PAL/NTSC |
| Audio Decoding | G.711A/U, AAC/AAC+/AAC++, AC3, MP2, MP3 · L/R stereo · 8–48 kHz |
| Audio Output | HDMI 48 kHz L/R + 3.5 mm analog L/R |
| Video Wall | Multi-unit arrays from UDP multicast · zoom, rotation, logo |
| Control | HTTP web interface + API/Telnet remote commands |
| Network | 1000 Mbps full-duplex Ethernet |
| Power | 12 V 1 A, < 5 W |
| Environment | -20 to +80 °C · 5–90% RH non-condensing |
| SKU | VePLAYER-HDMI-QUAD |
| Warranty / Origin | 5-Year Warranty + free lifetime support · Made in USA |
FAQ
VePLAYER-HDMI-QUAD — FAQ
How is the QUAD different from the standard VePLAYER?
The standard VePLAYER decodes one stream at a time. The QUAD receives up to four streams at once and can display the selected one full-screen or all four in a quad mosaic — ideal for monitoring and signage.
What is quad-mosaic mode?
It splits a single HDMI output into four tiles, each showing a different IP stream, so one display and one decoder can monitor four sources simultaneously.
Can I build a video wall with it?
Yes. Group multiple QUAD units pulling the same UDP multicast streams to build large synchronized video walls, with per-screen zoom, rotation, and logo.
Which formats does it decode?
HEVC (H.265), H.264, MPEG-2, and MPEG-4 up to 4K, received over SRT, UDP, HTTP, HLS, RTP, RTSP, ONVIF, and RTMP(S), unicast or multicast.

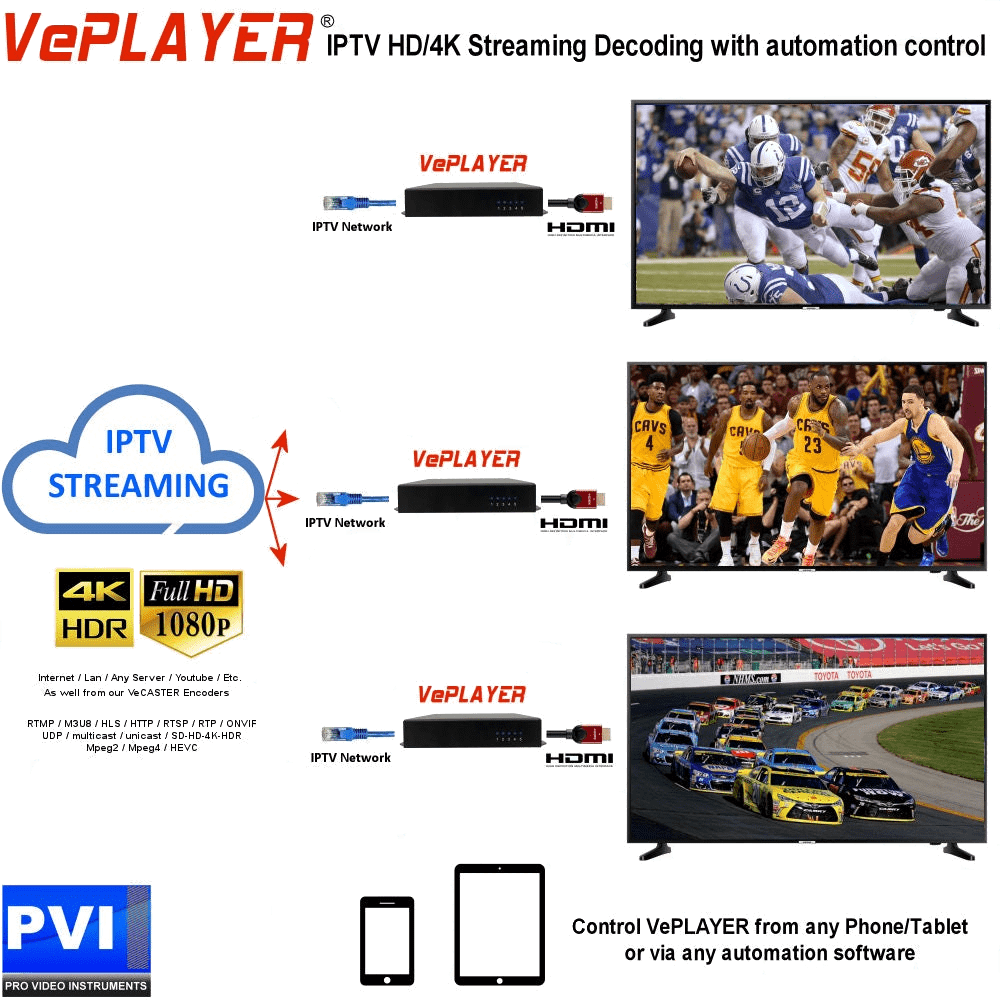

Does it integrate with control systems?
Yes — via a web interface and API/Telnet commands, so it works cleanly with Crestron, AMX, and other automation controllers.
Does it work with INFINIUM encoders?
Absolutely. It pairs with PVI encoders including the INFINIUM cards and supports SAT auto-pairing to connect to your sources automatically.
What is the latency?
With SRT, as low as 50 ms plus network travel time, with auto-reconnect after any network interruption.
