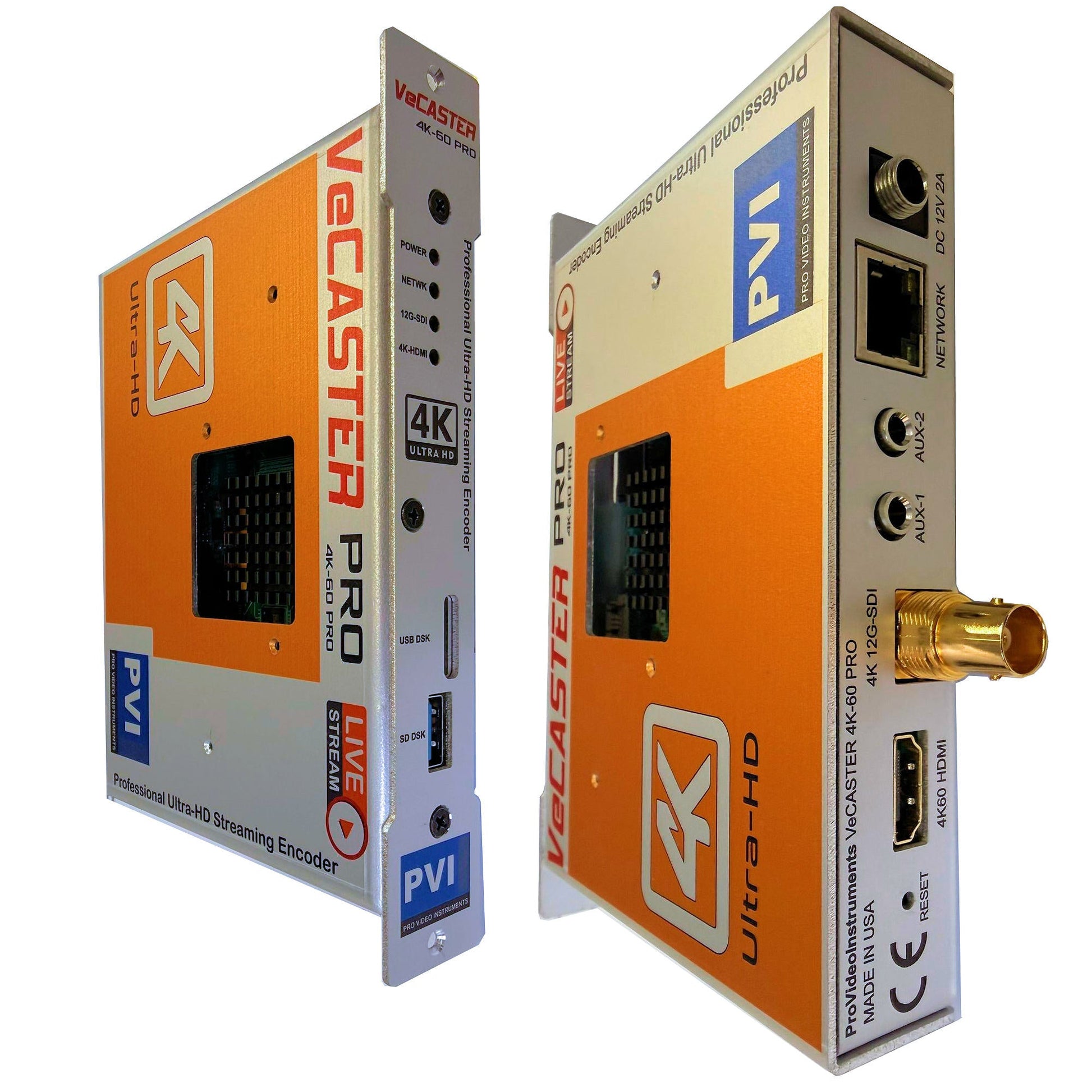

The VeCASTER 4K-PRO is our top-tier streaming encoder for broadcasters and high-end integrators. It ingests 12G-SDI or HDMI 2.1 up to 4096×2160@60, encodes pristine 4:2:2 HEVC/H.264 with high-dynamic-range color, and carries up to four stereo language pairs. A dual-program mode publishes two independent 4K60 streams from one chassis.
Broadcast 4K IPTV Encoder
Mastering-Grade 4K@60, Encoded Over IP
12G-SDI and HDMI 2.1 inputs, true 4K@60 at 4:2:2 with HDR10+ / BT.2020 — the quality tier required for distribution, contribution, and mastering.
Capabilities

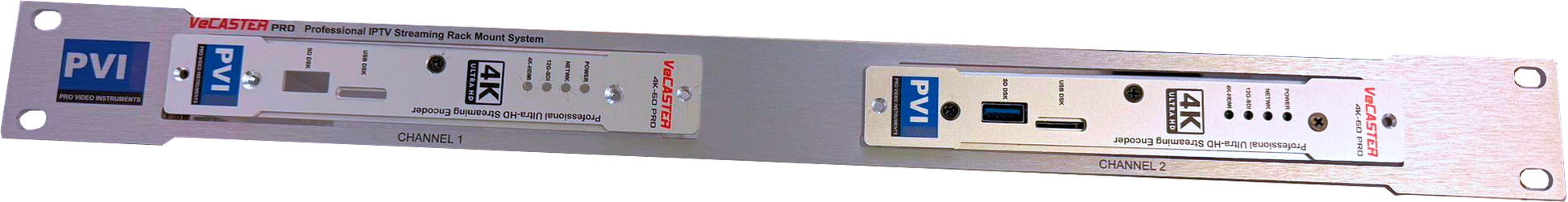

Two 4K Programs From One Box
Take one HDMI and one SDI source and publish two independent broadcast-grade 4K60 streams — ideal for multi-feed venues and contribution links.
- Inputs: 12G-SDI + HDMI 2.1 · up to 4096×2160@60 / 3840×2160@60 / 2560×1440@144
- 4:2:0 / 4:2:2 encoding · HDR10+ / BT.2020 · full broadcast 60fps
- 4 stereo pairs / 4 audio languages from SDI, HDMI & AUX, freely selectable
- Dual-stream & dual-program encode · H.265/H.264/MJPEG up to 60 Mbps per stream
- SRT, HLS, RTMP(S), RTSP, FLV, UDP/RTP (uni/multicast), ONVIF · NDI optional
Reaches Everything
From the Truck to the Cloud

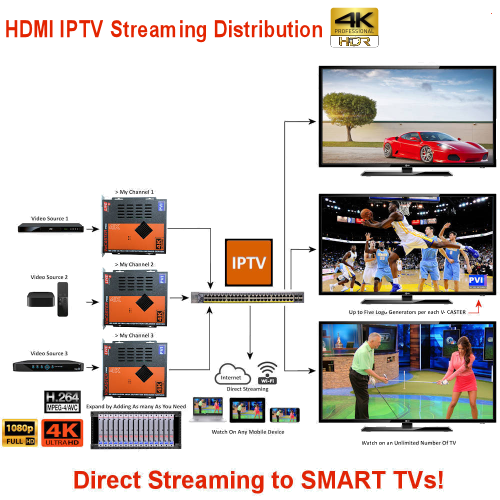

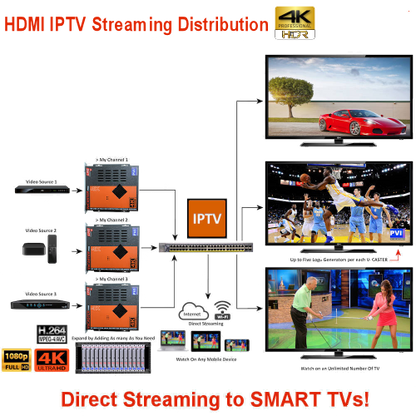

SRT carries error-corrected, encrypted 4K across the public internet for remote contribution, while HLS/RTMP and multicast feed your local IPTV and CDN at the same time.

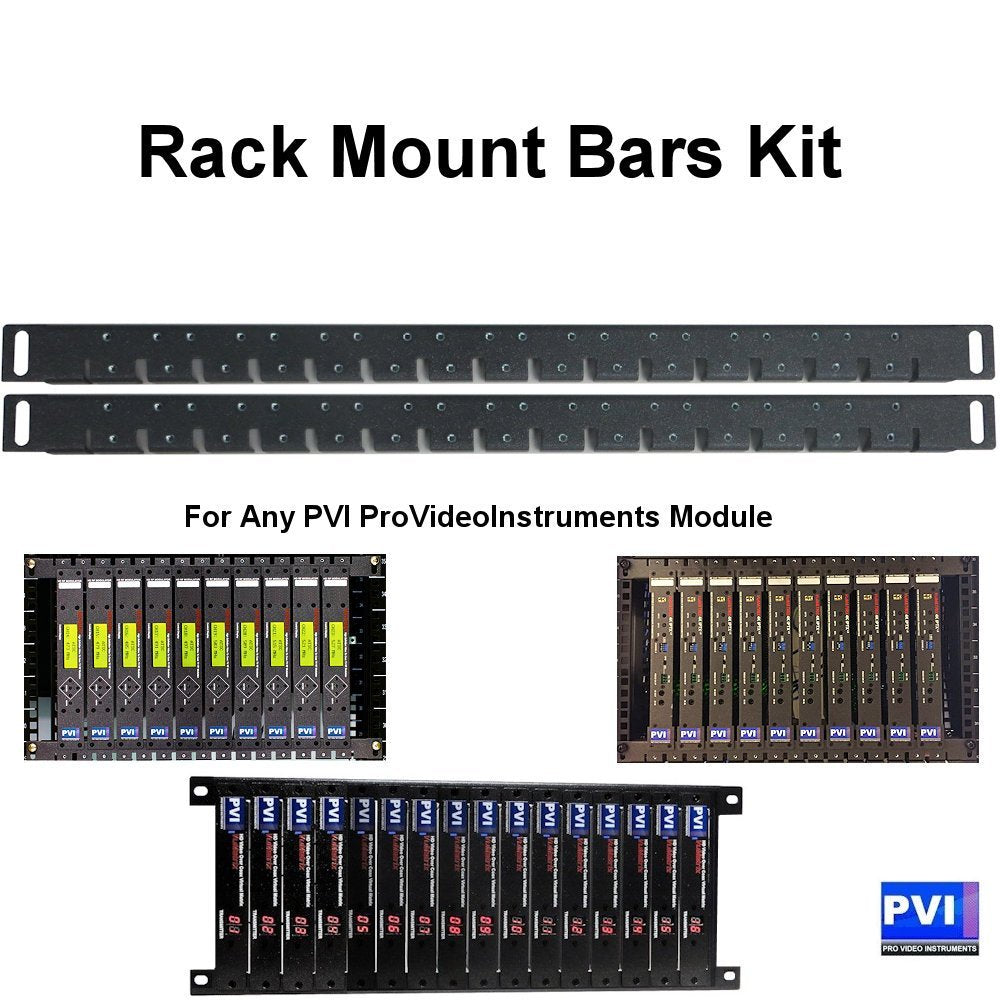

Rack up to 15 units (30 UHD channels) in 5RU with the rack-bars accessory. Land 4K on screens with the VePLAYER decoder, or distribute over coax with the INFINIUM 4K headend.
Features
The Broadcaster's Streaming Encoder
When the picture has to be perfect, the VeCASTER 4K-PRO delivers.
4K@60 4:2:2
Mastering-grade chroma and frame rate for distribution and contribution.
HDR10+ / BT.2020
Full high-dynamic-range, wide-gamut color pipeline.
12G-SDI + HDMI 2.1
Dual professional inputs for cameras, switchers, and players.
4 Languages
Four stereo pairs from SDI, HDMI, and AUX — freely mapped.
Dual-Program
Two independent 4K60 programs encoded from one unit.
Made in USA
Built for 24/7 broadcast duty. 5-year warranty, free lifetime support.
Specifications
VeCASTER 4K-PRO Specifications
| Encoder Type | Broadcast 4K IPTV encoder · dual-program capable |
| Video Inputs | 12G-SDI + HDMI 2.1 · up to 4096×2160@60 / 3840×2160@60 / 2560×1440@144 |
| Color / HDR | 4:2:0 / 4:2:2 · HDR10+ / BT.2020 · 10-bit |
| Video Compression | HEVC (H.265) & H.264, MJPEG · up to 60 Mbps per stream |
| Audio | 4 stereo pairs / 4 languages · SDI + HDMI + AUX · AAC / AC3 / MP2 / MP3 / PCM |
| Streaming Protocols | SRT, HLS, RTMP(S), RTSP, FLV, ONVIF, UDP/RTP uni/multicast · NDI optional |
| Programs | Dual independent encode programs / dual stream per program |
| Network | RJ-45 gigabit; Layer-2 video switch recommended |
| Rack | Up to 15 units / 30 UHD channels in 5RU (rack-bars accessory) |
| SKU | VECASTER-4K-PRO |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCASTER 4K-PRO — FAQ
What makes the 4K-PRO 'broadcast grade'?
It encodes true 4K@60 at 4:2:2 chroma with HDR10+ / BT.2020 color — the quality required for distribution, contribution, and mastering — from 12G-SDI and HDMI 2.1 inputs. Lower tiers typically cap at 4K@30 4:2:0.
Can it encode two programs at once?
Yes. A dual-program mode encodes two independent 4K60 sources (for example one HDMI and one SDI) at the same time, each with its own streaming output.
How many audio languages does it carry?
Up to four stereo pairs / four languages, freely selectable from the SDI, HDMI, and AUX audio inputs.
Does it support NDI?
NDI is available as an option for live-production workflows, alongside SRT for secure internet contribution and the full set of HLS/RTMP/RTSP/UDP protocols.
Can I rack-mount several units?
Yes. Using the rack-bars accessory you can mount up to 15 units — 30 UHD channels — in 5RU.
How do I receive the 4K stream?
Use a 4K IP set-top box, smart-TV app, or our VePLAYER decoder. To distribute over existing coax, pair with the INFINIUM 4K headend.
Is rack mounting included?
Rack mounting is an optional accessory (rack-bars kit). The unit ships ready for desktop or shelf use out of the box.
Build Your System
Build a Broadcast-Grade Headend
Rack multiple encoders, add decoders, and scale into a multichannel platform.
Rack-Bars Kit
Mount up to 15 VeCASTER units (30 UHD channels) in 5RU.
$169.00$149.00You save $20.00
VePLAYER 4K IP Decoder
Decode broadcast 4K back to HDMI for monitors and video walls.
$549.00$495.00You save $54.00
VeCODER 4K Multichannel
Many UHD channels in one rack streaming server.
From
$3,590.00
INFINIUM 4K Headend
Distribute 4K over IP and existing coax with hot-swappable cards.
$1,195.00$995.00You save $200.00
Encode Broadcast 4K Over IP
$3,995.00$4,590.00
Save $595.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
