The 4×2 layout delivers cinematic widescreen impact across eight perfectly synchronized displays. Four screens wide and two high, it fills expansive wall spaces that smaller configurations cannot cover. Ideal for sports venues showing panoramic game footage, corporate lobbies displaying branded content, and control rooms monitoring wide-angle camera feeds. Every unit runs on PoE — a single Ethernet cable per display handles power, video, and remote control, keeping installation clean and fast.
4×2 Widescreen Video Wall
Eight Screens, One Commanding Presence
A turnkey 8-display kit with 1 VuMATRIX FX Transmitter and 8 Receivers — create a dramatic wide-format wall that dominates lobbies, sports bars, and trade-show booths with edge-to-edge 4K HDR content.
What's in the Kit
Everything You Need
Nine networked units, one app, one PoE switch — your 4×2 wall goes live in under an hour.

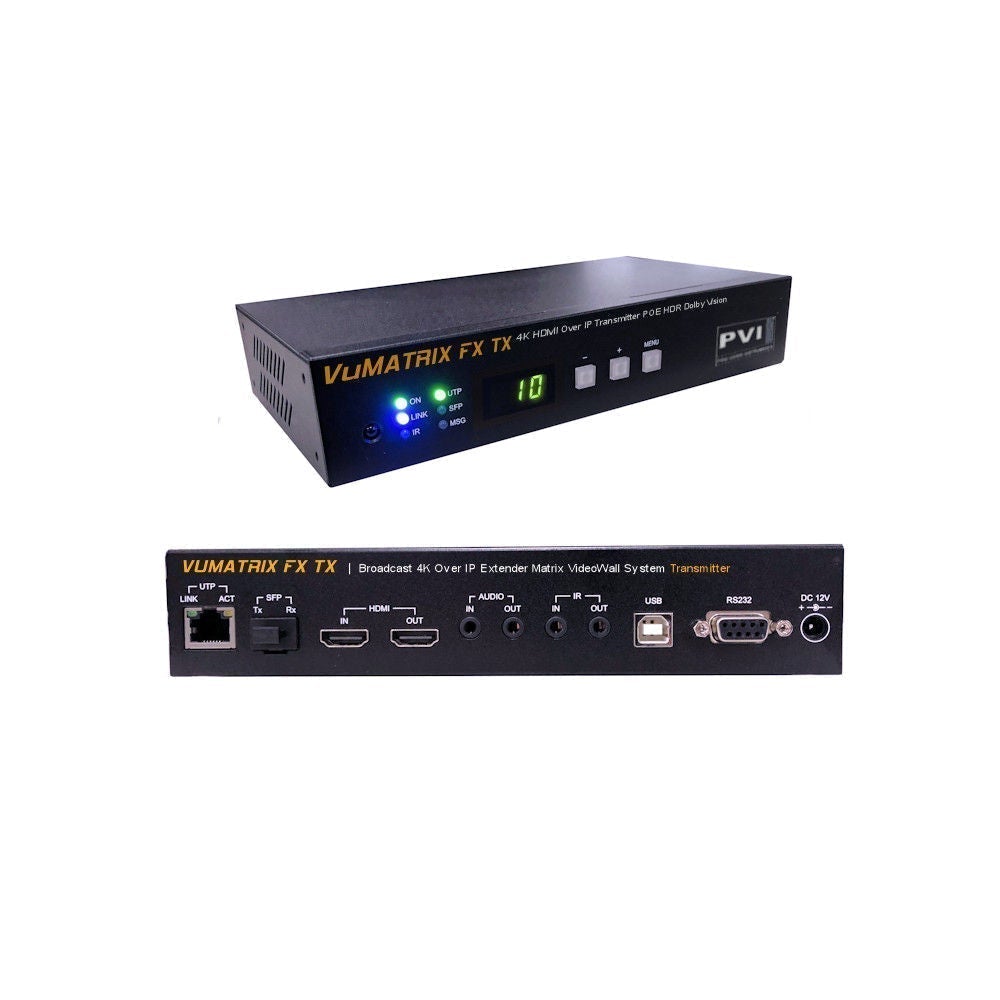

- 1 VuMATRIX FX Transmitter — encodes your 4K HDMI source and distributes it network-wide
- 8 VuMATRIX FX Receivers — one behind each display, frame-synchronized for a seamless 4×2 canvas

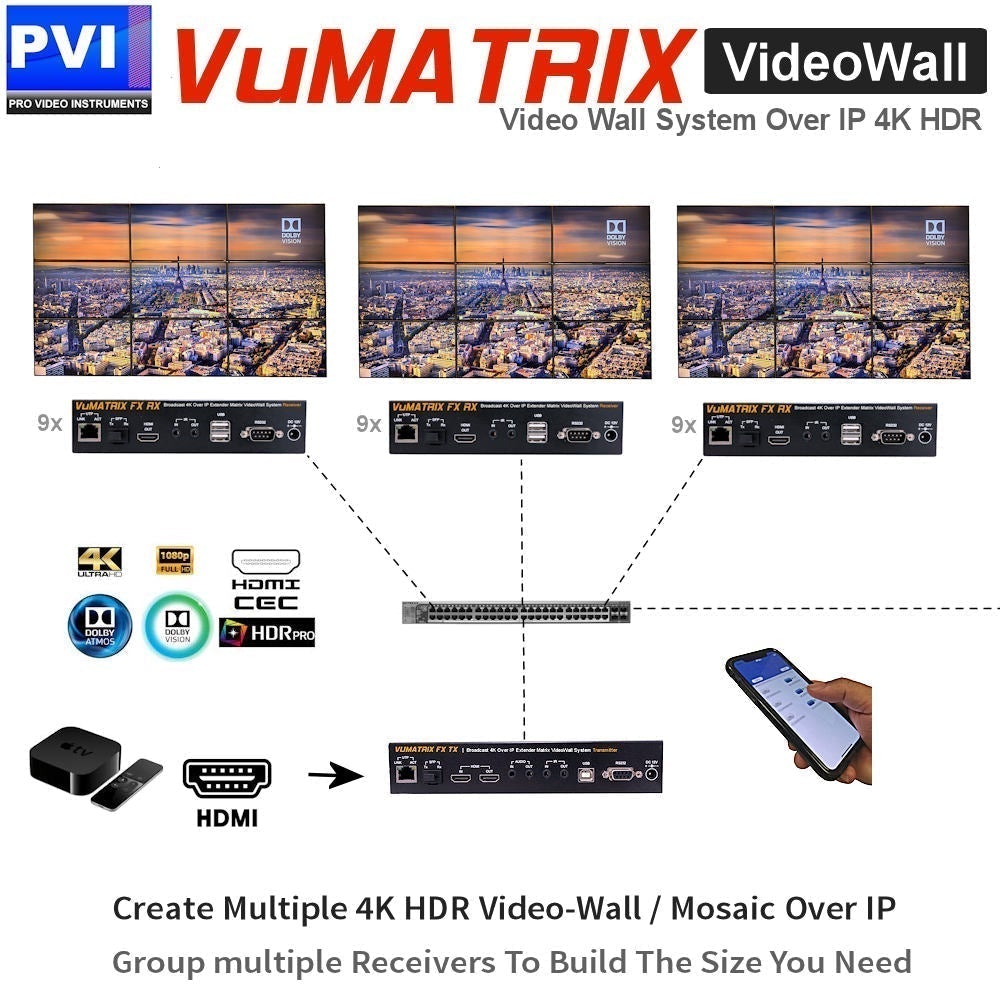

- Free iOS & Android control app — define the 4×2 grid, switch inputs, save layouts instantly
- PoE on all 9 units — zero AC adapters when connected to a PoE-capable switch
- Cat6 (100 m) or fiber (60 km) per link — mix and match as your cabling requires
Features
Widescreen Dominance, Plug-and-Play Simplicity
Eight displays working as one — powered, controlled, and managed over a single network.
Turnkey Kit
1 TX + 8 RX pre-matched — everything ships together, ready for immediate deployment.
4K HDR
4K@30 HDR Dolby Vision with 7.1 surround across all eight synchronized panels.
Video Wall
PiP, mosaic, zoom, and 360° rotation — built into every receiver, no external processor.
App Control
Free iOS & Android app for source switching, wall presets, display naming, and firmware updates.
PoE
No AC adapters at any display — a PoE switch powers all nine units through Ethernet cables.
Scalable
Add more TX/RX to grow beyond 4×2 — expand to 5×2, 4×3, or a full matrix at any time.
Specifications
VuMATRIX 4×2 Video Wall Kit Specifications
| Kit Contents | 1× VuMATRIX FX Transmitter + 8× VuMATRIX FX Receivers |
| Layout | 4×2 (four columns, two rows) |
| Total Displays | 8 |
| Resolution | 4K@30 4:4:4 · HDR10 · Dolby Vision |
| Audio | 7.1 surround · Dolby Digital, DTS, LPCM pass-through · SPDIF + analog breakout |
| Network | Cat5e/Cat6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af) on all units — 9 PoE ports required on switch |
| Control | Free iOS/Android app · Web GUI · RS-232 · TCP/IP API |
| SKU | VUMATRIX-WALL-4X2 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX 4×2 Video Wall Kit — FAQ
What is included in the 4×2 Video Wall Kit?
The kit contains 1 VuMATRIX FX Transmitter and 8 VuMATRIX FX Receivers. You supply eight displays and a managed PoE switch with at least 9 ports, then configure the wall in the free VuMATRIX app.
Can I reconfigure the 4×2 layout or expand it?
Yes. You can rearrange the eight receivers into a 2×4, 8×1, or any other geometry through the app. Add more receivers to grow to 4×3, 5×2, or beyond — no hardware swap required.
What kind of network switch do I need for 9 units?
A managed gigabit PoE switch with IGMP snooping and at least 9 PoE ports. A 16-port or 24-port managed PoE switch is recommended to leave room for future expansion.
Do I need an external video-wall processor for 8 screens?
No. Every VuMATRIX receiver has built-in wall processing. The free app groups all eight receivers into the 4×2 grid with PiP, mosaic, and rotation — no external controller box or license fees.
Can displays be in different rooms or different floors?
Yes. Each receiver connects independently over Cat6 (up to 100 m) or fiber (up to 60 km). Displays can be spread across rooms, floors, or even separate buildings and still form one synchronized wall.
Build Your System
Expand or Customize
Add individual units, swap layouts, or upgrade to a larger wall kit.
VuMATRIX FX Transmitter
Add HDMI sources to the network — one TX per input device.
$695.00$495.00You save $200.00
VuMATRIX FX Receiver
Extend individual displays beyond the wall — one RX per screen.
$695.00$495.00You save $200.00
VuMATRIX 3×3 Video Wall Kit
Move to a square 9-screen wall for higher visual density and impact.
$5,490.00$4,950.00You save $540.00
Build a 4×2 Video Wall Today
$4,455.00$4,555.00
Save $100.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
