The 3×1 layout is the most popular entry point for retail signage, church lobbies, and sports-bar feature walls. Three synchronized displays create an ultra-wide canvas that commands attention without requiring complex infrastructure. Connect a single HDMI source, power everything over PoE, and manage it all from the free VuMATRIX mobile app. No separate video-wall controller needed — the intelligence is built into every receiver.
3×1 Panoramic Video Wall
Three Screens, One Stunning Image
A complete turnkey kit with 1 VuMATRIX FX Transmitter and 3 Receivers — everything you need to stretch a single 4K source across three side-by-side displays for a dramatic widescreen panorama.
What's in the Kit
Everything You Need

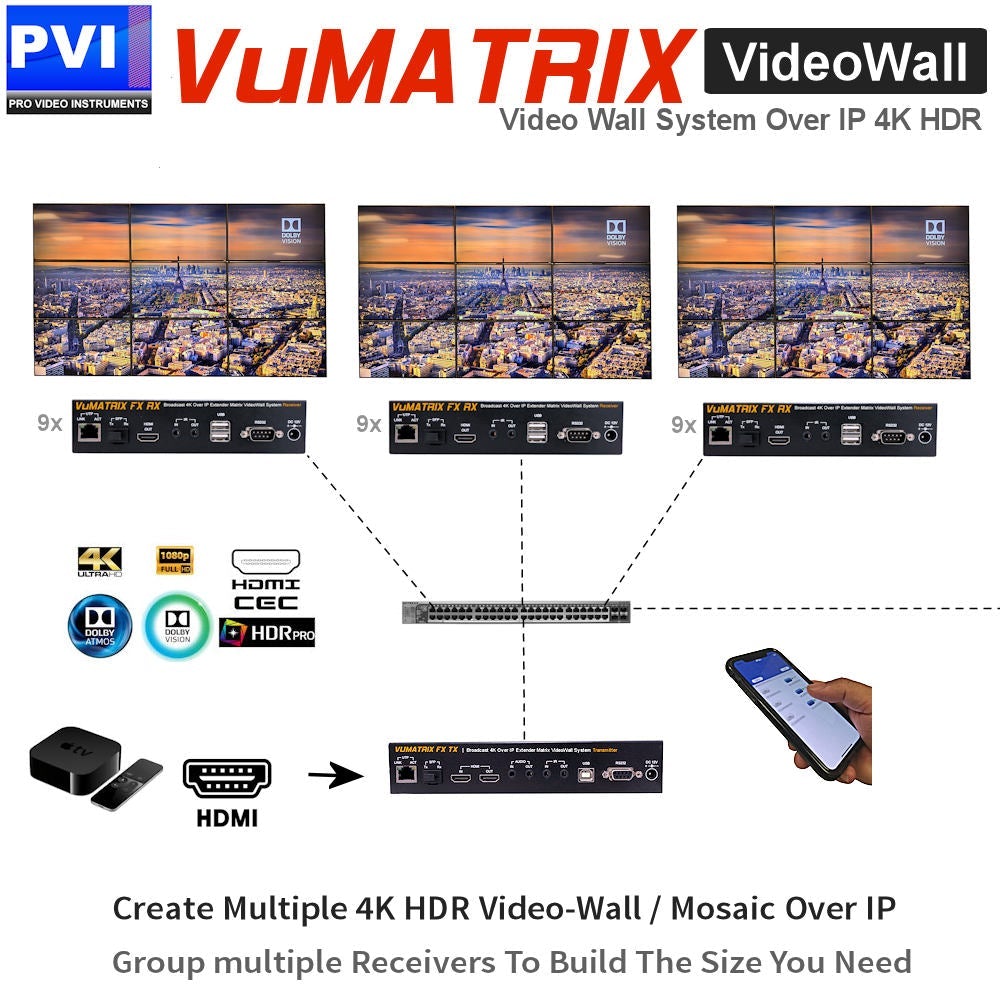

Unbox, connect to a PoE switch, and your 3×1 panoramic wall is live in minutes.

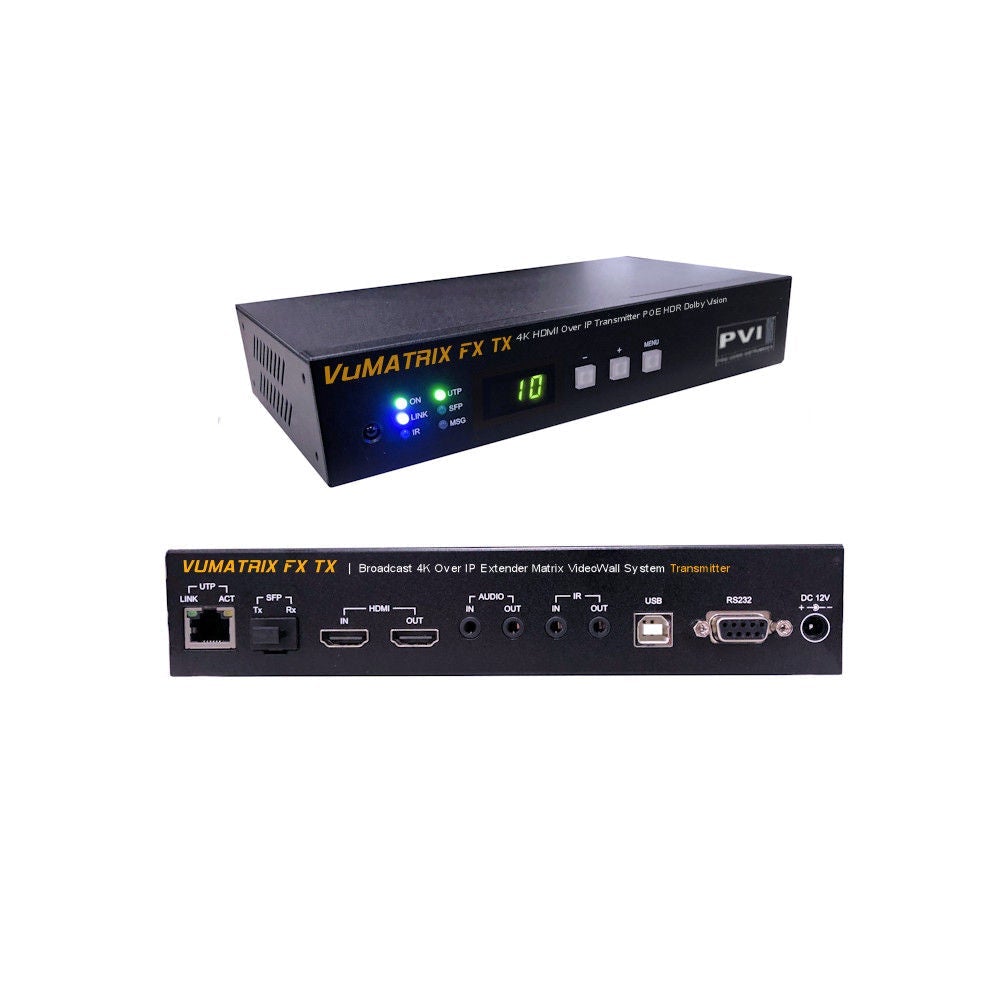

- 1 VuMATRIX FX Transmitter — encodes your HDMI source and sends it over the network
- 3 VuMATRIX FX Receivers — one behind each display, decodes 4K HDR in perfect sync
- Free iOS & Android control app — configure the wall, switch sources, name displays, save presets
- PoE on all units — no AC adapters required when using a PoE network switch
- Cat6 (100 m) or single-mode fiber (60 km) between every unit — your choice per link
Features
Panoramic Impact, Zero Complexity
A turnkey 3-screen wall with enterprise-grade AV-over-IP technology inside.
Turnkey Kit
Everything included and pre-configured — 1 TX + 3 RX ready to wall-mount and power on.
4K HDR
4K@30 HDR with Dolby Vision pass-through and 7.1 surround audio on every display.
Video Wall
PiP, mosaic, zoom, and 360° rotation — built into every receiver, no external processor.
App Control
Free iOS & Android app for instant source switching, display presets, and custom naming.
PoE
No AC adapters — power every unit through the Ethernet cable with any PoE switch.
Scalable
Add more TX or RX units at any time to grow beyond 3×1 — no forklift upgrade needed.
Specifications
VuMATRIX 3×1 Video Wall Kit Specifications
| Kit Contents | 1× VuMATRIX FX Transmitter + 3× VuMATRIX FX Receivers |
| Layout | 3×1 (three displays side by side) |
| Total Displays | 3 |
| Resolution | 4K@30 4:4:4 · HDR10 · Dolby Vision |
| Audio | 7.1 surround · Dolby Digital, DTS, LPCM pass-through · SPDIF + analog breakout |
| Network | Cat5e/Cat6 up to 100 m · SFP single-mode fiber up to 60 km |
| Power | PoE (802.3af) on all units — 4 PoE ports required on switch |
| Control | Free iOS/Android app · Web GUI · RS-232 · TCP/IP API |
| SKU | VUMATRIX-WALL-3X1 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime tech support |
FAQ
VuMATRIX 3×1 Video Wall Kit — FAQ
What exactly is included in the 3×1 Video Wall Kit?
You receive 1 VuMATRIX FX Transmitter and 3 VuMATRIX FX Receivers. Add a PoE network switch and three displays of your choice, and the wall is ready to go. The free VuMATRIX app handles all configuration.
Can I expand the 3×1 wall later?
Absolutely. Add more receivers to grow to a 4×1, 3×2, or any other layout. Add more transmitters to put additional sources on the network. Every unit is a simple network node — no proprietary chassis or controller to replace.
What kind of network switch do I need?
A managed gigabit PoE switch with IGMP snooping enabled and at least 4 PoE ports (1 TX + 3 RX). Any enterprise-grade managed switch will work — no proprietary hardware required.
Do I need a separate video-wall controller or processor?
No. The video-wall intelligence is built into every VuMATRIX receiver. The free app groups them into a wall with PiP, mosaic, and rotation — no external controller box needed.
How far apart can the displays be from the source?
Up to 100 meters per link over Cat6 cable. For longer runs, each unit has an SFP slot for single-mode fiber reaching up to 60 km — ideal for separate buildings or floors.
Build Your System
Expand or Customize
Add individual transmitters, receivers, or upgrade to a larger wall kit.
VuMATRIX FX Transmitter
Add sources to the network — one TX per HDMI input.
$695.00$495.00You save $200.00
VuMATRIX FX Receiver
Add displays anywhere on the network — one RX per screen.
$695.00$495.00You save $200.00
VuMATRIX 2×2 Video Wall Kit
Step up to a 4-screen wall for higher-impact lobbies and retail displays.
$2,549.00$2,475.00You save $74.00
Build a 3×1 Video Wall Today
$1,980.00$2,149.00
Save $169.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
