VuMATRIX — 4K Video Wall Kits (HDMI-over-IP)

VuMATRIX 4K Video Wall Kits are turnkey bundles — each one includes the VuMATRIX FX Transmitter(s) and Receivers you need for a specific wall layout, pre-configured and ready to deploy. Plug in, open the app, and your wall is live.

Every kit supports 4K@30 HDR Dolby Vision, PoE, PiP, mosaic, selective zoom, and 360° rotation modes. The free iOS/Android app lets you switch sources, save presets, and manage the entire wall from any phone or tablet.

Choose a kit from 3×1 (3 displays) up to 6×6 (36 displays). Need a different size? Every kit uses the same TX and RX units — add more receivers to expand any time.

🏆 NAB & InfoComm Best of Show🇺🇸 Designed & Made in USA📺 4K HDR Dolby Vision🔌 PoE Powered📱 Free App Control🛡️ 5-Year Warranty
Compare the range

Choose your video wall size

Turnkey kits from 3 to 36 displays — all 4K HDR, all app-controlled, all expandable.

KitLayoutDisplaysTX + RXResolutionPrice
3x1 Video Wall3 wide × 1 tall31 TX + 3 RX4K HDR$1,980
2x2 Video Wall2 wide × 2 tall41 TX + 4 RX4K HDR$2,475
4x2 Video Wall4 wide × 2 tall81 TX + 8 RX4K HDR$4,455
3x3 Video Wall3 wide × 3 tall91 TX + 9 RX4K HDR$4,950
5x2 Video Wall5 wide × 2 tall101 TX + 10 RX4K HDR$5,445
4x4 Video Wall4 wide × 4 tall161 TX + 16 RX4K HDR$8,415
5x5 Video Wall5 wide × 5 tall251 TX + 25 RX4K HDR$12,870
6x6 Video Wall6 wide × 6 tall361 TX + 36 RX4K HDR$18,315

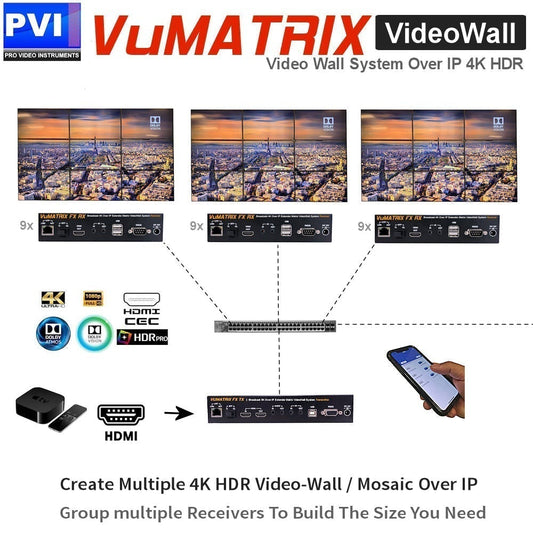

HDMI / SDI / AV Sources cameras · players VuMATRIX FX TX HDMI-over-IP PoE Ethernet Cat6 · Fiber VuMATRIX RX → TV Video Wall Displays · ∞
How it works: HDMI sources connect to VuMATRIX FX Transmitters, which send 4K HDR video over your PoE Ethernet or fiber network to VuMATRIX FX Receivers behind each display — or grouped into a seamless video wall — controlled from the free app.
Video wall guide

How to choose a video wall kit

Pick your layout

Decide how many screens wide and tall your wall should be. The most popular layouts are 2×2 (4 displays, ideal for lobbies and conference rooms), 3×3 (9 displays, the classic retail and control-room wall), and 4×2 (8 displays, wide-format for sports bars and concourses).

Plug in and go

Each kit comes with the TX and RX units pre-configured. Connect the TX to your source, the RXs behind each display, and plug everything into a PoE-capable Gigabit managed switch. Open the app and your wall is live.

Expand any time

Every kit uses the same VuMATRIX FX TX and RX. Add individual receivers to make the wall bigger, or add more transmitters to switch additional sources onto the wall — there is no fixed limit.
