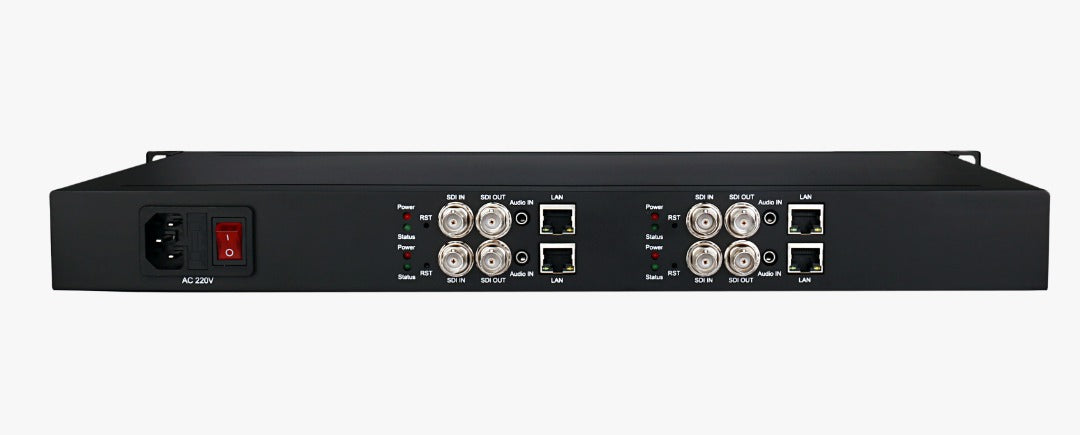

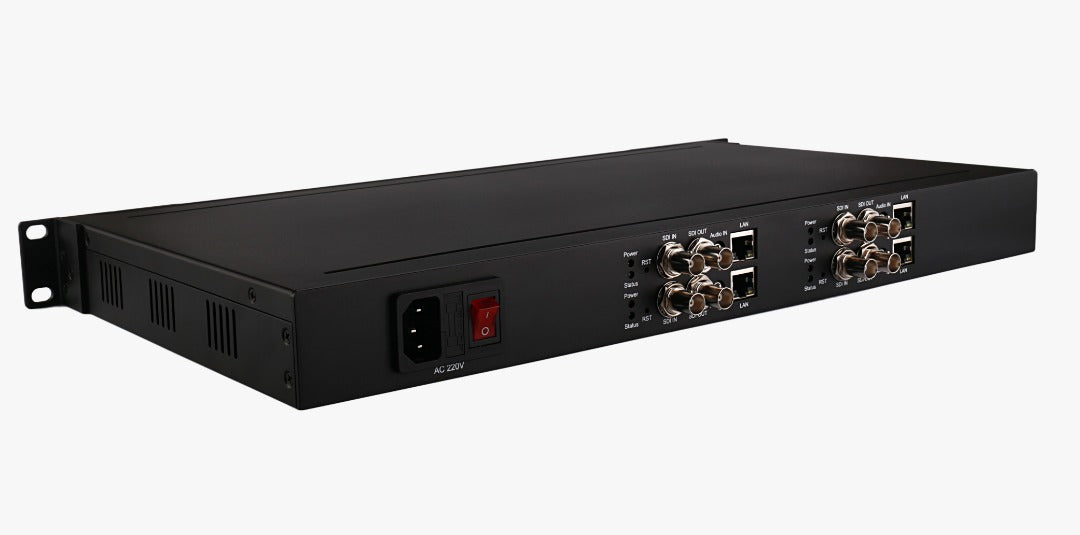

The VeCODER ULTRA-4 SDI is the SDI-native multichannel encoder for broadcast infrastructure. Four embedded 3G-HD-SDI inputs each get a dedicated hardware encoder and multi-stream output, managed from one web interface. It is the clean way to bring a wall of SDI feeds onto IP.
Multichannel SDI IPTV Encoder
Four SDI Feeds, One Streaming Server
Ingest four independent 3G-HD-SDI sources — cameras, switchers, routers — and encode each to its own IP streams from a single rack unit.
Capabilities
Bring Your SDI Wall Onto IP
Four broadcast SDI feeds become four independent IP channels — no capture cards, no PCs, one chassis.
- 4× 3G-HD-SDI embedded inputs — each an independent channel up to 1080p60
- Per-channel HEVC H.265 / H.264 encoding · multi-stream output
- M3U8/HLS, RTMP(S), RTSP, HTTP, UDP/RTP, SRT · unicast & multicast
- Built-in gigabit streaming server — no external server, no per-seat fees
- Unified web management · 24/7 broadcast-grade operation
Reaches Everything
From the SDI Router to the Whole Network
Serve your in-house IPTV and smart TVs over multicast while pushing select channels to remote sites with SRT — all from one rack unit.
Return IP to SDI with our VePLAYER SDI decoder, or distribute over existing coax with the INFINIUM 4K headend. For HDMI sources, see the VeCODER ULTRA HD.
Features
The Multichannel SDI Headend
Broadcast SDI infrastructure, online from one rack unit.
4× 3G-HD-SDI
Four embedded SDI inputs, each up to 1080p60.
HEVC + H.264
Per-channel codec choice for efficiency or compatibility.
Built-In Server
Streams directly to many viewers — no PC, no cloud fees.
Unicast + Multicast
IGMP multicast to unlimited devices across the building.
One Interface
Configure and monitor all four channels from a single web UI.
Made in USA
Built for 24/7 broadcast duty. 5-year warranty, free lifetime support.
Specifications
VeCODER ULTRA-4 SDI Specifications
| Encoder Type | 4-channel 3G-SDI IPTV encoder · rack streaming server |
| Channels | 4 independent 3G-HD-SDI embedded inputs |
| Max Resolution | 1080p60 per channel |
| Video Compression | HEVC (H.265) & H.264 (AVC) per channel · MJPEG |
| Streams | Multiple independent streams per channel, each its own format/protocol |
| Audio | Embedded SDI audio per channel · AAC / MP3 / MP2 / AC3 / PCM |
| Streaming Protocols | SRT, RTMP(S), M3U8/HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP uni/multicast |
| Built-In Server | Hardware secure server, gigabit connections |
| Management | Unified web interface for all channels |
| Form Factor | Rack chassis · redundant-grade cooling |
| SKU | VECODER-ULTRA-4-SDI |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCODER ULTRA-4 SDI — FAQ
What sources does it accept?
Four independent 3G-HD-SDI embedded feeds — professional cameras, switchers, routers, and converters — up to 1080p60 each, with embedded audio.
Can each channel use HEVC or H.264?
Yes. Codec is selectable per channel, so you can run efficient HEVC where bandwidth matters and universal H.264 where compatibility matters.
Do I need capture cards or a PC?
No. The VeCODER is standalone hardware with a built-in streaming server — connect SDI and ethernet and all four channels stream directly.
How do viewers watch?
Via IP set-top boxes, smart-TV apps, VLC, or our VePLAYER decoders. Multicast serves unlimited in-house devices; SRT delivers reliably to remote sites.
Can I return IP back to SDI?
Yes — pair with the VePLAYER SDI decoder to decode IP streams back to 3G-HD-SDI embedded for monitors and routers.
Can I distribute over coax?
Yes — pair with the INFINIUM 4K headend to deliver the channels over existing coax as digital TV channels.
What if my sources are HDMI?
Use the VeCODER ULTRA HD (HDMI) for HDMI inputs; both share the same streaming architecture.
