The VeCASTER PRO SDI gives broadcast SDI infrastructure the two protocols modern production depends on. NDI exposes the SDI feed as a discoverable source for vMix, OBS, and TriCaster, while SRT delivers encrypted, error-corrected, low-latency video across the open internet. Selectable HEVC and H.264 plus dual streams complete the package.
SDI IPTV Encoder · NDI + SRT
Broadcast SDI, Production-Ready Over IP
Bring 3G-HD-SDI cameras and switchers into NDI production workflows and push secure SRT contribution over the internet — from one rugged hardware encoder.
Capabilities
SDI In — NDI, SRT and IPTV Out
Feed the studio switcher over NDI, send a secure SRT backhaul, and serve HLS/RTMP to your audience, all from one SDI source.
- 3G-HD-SDI embedded input · up to 1080p60 · embedded SDI audio
- NDI output — native production source for vMix, OBS, TriCaster, NDI monitors
- SRT caller/listener/rendezvous — secure error-corrected internet contribution
- Simultaneous HEVC H.265 + H.264 · dual encoders/scalers · 5 logo generators
- M3U8/HLS, RTMP(S), RTSP, HTTP, UDP/RTP, SAP · unicast & multicast

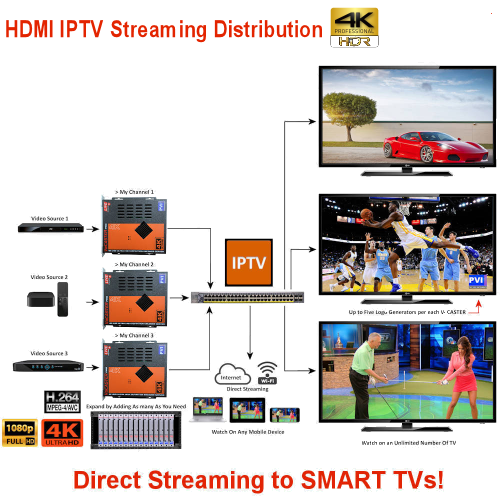

Reaches Everything
From Camera to Cloud, Securely
Production NDI on the LAN, encrypted SRT across the WAN, and standard IPTV protocols for the audience — simultaneously.
Land the stream on SDI or HDMI with our VePLAYER decoders, or scale to a multichannel SDI headend with the VeCODER SDI. Working from HDMI? Choose the VeCASTER PRO HDMI.
Features
SDI Production, Done Over IP
The protocols pros use, from your existing SDI gear.
NDI Native
Discoverable production source for vMix, OBS, TriCaster, NDI monitors.
SRT Secure
Encrypted, error-corrected, low-latency internet contribution.
3G-HD-SDI
Embedded SDI input up to 1080p60 with embedded audio.
HEVC + H.264
Efficient HEVC and universal H.264, selectable and simultaneous.
Every Protocol
HLS, RTMP, RTSP, UDP/RTP, multicast — plus the built-in server.
Made in USA
Fan-less, EMI-shielded metal. 5-year warranty, free lifetime support.
Specifications
VeCASTER PRO SDI Specifications
| Encoder Type | Single-channel 3G-HD-SDI IPTV encoder · NDI + SRT |
| Video Input | 1× 3G-HD-SDI (embedded) · up to 1080p60 |
| Production Output | NDI (network device interface) for live-production tools |
| Video Compression | HEVC (H.265) & H.264 (AVC), simultaneous · MJPEG |
| Simultaneous Streams | 2 independent encoders/scalers, each its own format/protocol |
| Audio | Embedded SDI audio or analog stereo · AAC / MP3 / MP2 / AC3 / PCM |
| Streaming Protocols | NDI, SRT, RTMP(S), M3U8/HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP uni/multicast, SAP |
| Built-In Server | Hardware secure server, gigabit connections |
| Network | RJ-45 gigabit; Layer-2 video switch recommended |
| Enclosure | Fan-less EMI-shielded metal · desktop or rack (VeCASTER rack plate) |
| SKU | VECASTER-PRO-SDI-NDI |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCASTER PRO SDI — FAQ
Why use NDI from an SDI source?
NDI turns your SDI camera or switcher feed into a discoverable network source for vMix, OBS, and TriCaster — so production tools see it instantly over ethernet, with no capture cards.
What does SRT add for remote work?
SRT encrypts and error-corrects the stream, keeping it broadcast-quality and low-latency across the public internet for remote contribution and backhaul.
Can it do production and IPTV at once?
Yes. Output NDI to the studio LAN, SRT to a remote site, and HLS/RTMP/multicast to your IPTV system and CDN simultaneously.
HEVC or H.264?
Both run at once — efficient HEVC for bandwidth and universal H.264 for compatibility, from the same SDI feed.
How do I receive it for broadcast?
Use our VePLAYER SDI decoder to return IP to 3G-HD-SDI embedded, or the standard VePLAYER for HDMI.
Is there an HDMI version?
Yes — the VeCASTER PRO HDMI offers the same NDI + SRT feature set from an HDMI input.
Can I build a multichannel SDI system?
Yes — the VeCODER SDI provides four SDI encoders in one rack streaming server.
Build Your System
Complete Your SDI Production Chain
Add an SDI decoder, choose your input, or scale into a multichannel platform.
VePLAYER SDI Decoder
Decode IP/NDI back to 3G-HD-SDI embedded for broadcast monitors and routers.
$1,049.00$995.00You save $54.00
VeCASTER PRO HDMI
Same NDI + SRT feature set from an HDMI input.
$1,095.00$997.00You save $98.00
VeCODER SDI Multichannel
Four SDI encoders in one rack streaming server.
$6,590.00$5,990.00You save $600.00
INFINIUM 4K Headend
Scale to a full IP + coax headend with hot-swappable SDI cards.
$1,195.00$995.00You save $200.00
Bring SDI Into NDI + SRT Workflows
$1,495.00$1,795.00
Save $300.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
