The VeCASTER PRO HDMI is built for live production and contribution. It exposes any HDMI source as a discoverable NDI source on your LAN, while SRT delivers encrypted, error-corrected video over the public internet with low latency. Two encoder engines and the full protocol stack make it a true do-everything streaming bridge.
HDMI IPTV Encoder · NDI + SRT
The Production-Ready HDMI Encoder
NDI puts your HDMI source on the network for vMix, OBS, and TriCaster. SRT carries it securely across the internet. HEVC and H.264 cover everything in between.
Capabilities
Production on the LAN, Contribution on the WAN
Feed your switcher over NDI and send a backup over SRT — plus standard HLS/RTMP for your IPTV and CDN, all at once.
- NDI output — native source for vMix, OBS, TriCaster & NDI monitors
- SRT caller/listener/rendezvous — secure, error-corrected internet contribution
- Selectable HEVC H.265 / H.264 · dual encoders/scalers · 5 logo generators
- M3U8/HLS, RTMP(S), RTSP, HTTP, UDP/RTP, SAP · unicast & multicast
- Built-in gigabit server · direct to players, YouTube, Wowza, Akamai
Reaches Everything
One Encoder, Every Workflow

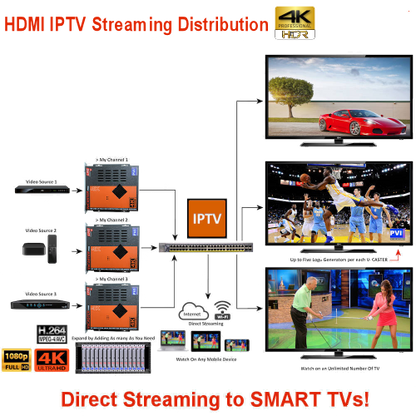

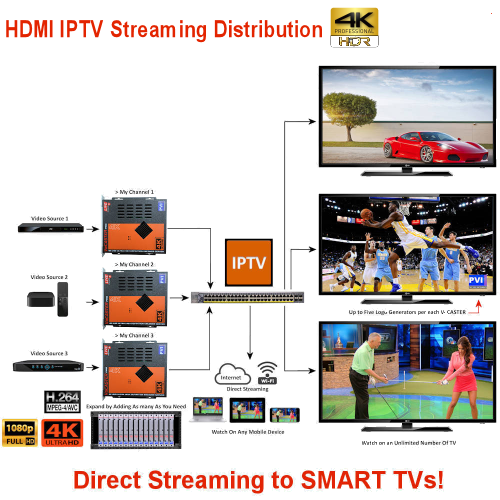

NDI for the studio, SRT for the remote link, HLS/RTMP for the audience — the VeCASTER PRO speaks them all simultaneously.
Land the stream on TVs with our VePLAYER decoder, or scale to many channels with the VeCODER and the INFINIUM 4K headend. Working from SDI? Choose the VeCASTER PRO SDI.
Features
Built for Modern Production
The protocols pros actually use — in one reliable hardware encoder.
NDI Native
Discoverable production source for vMix, OBS, TriCaster, NDI monitors.
SRT Secure
Encrypted, error-corrected, low-latency video over the public internet.
HEVC + H.264
Efficient HEVC and universal H.264, selectable and simultaneous.
Dual Streams
Two independent encoders/scalers from one HDMI input.
Every Protocol
HLS, RTMP, RTSP, UDP/RTP, multicast — plus the built-in server.
Made in USA
Fan-less, EMI-shielded metal. 5-year warranty, free lifetime support.
Specifications
VeCASTER PRO HDMI Specifications
| Encoder Type | Single-channel HDMI IPTV encoder · NDI + SRT |

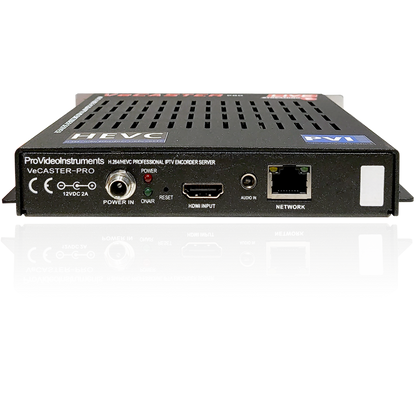

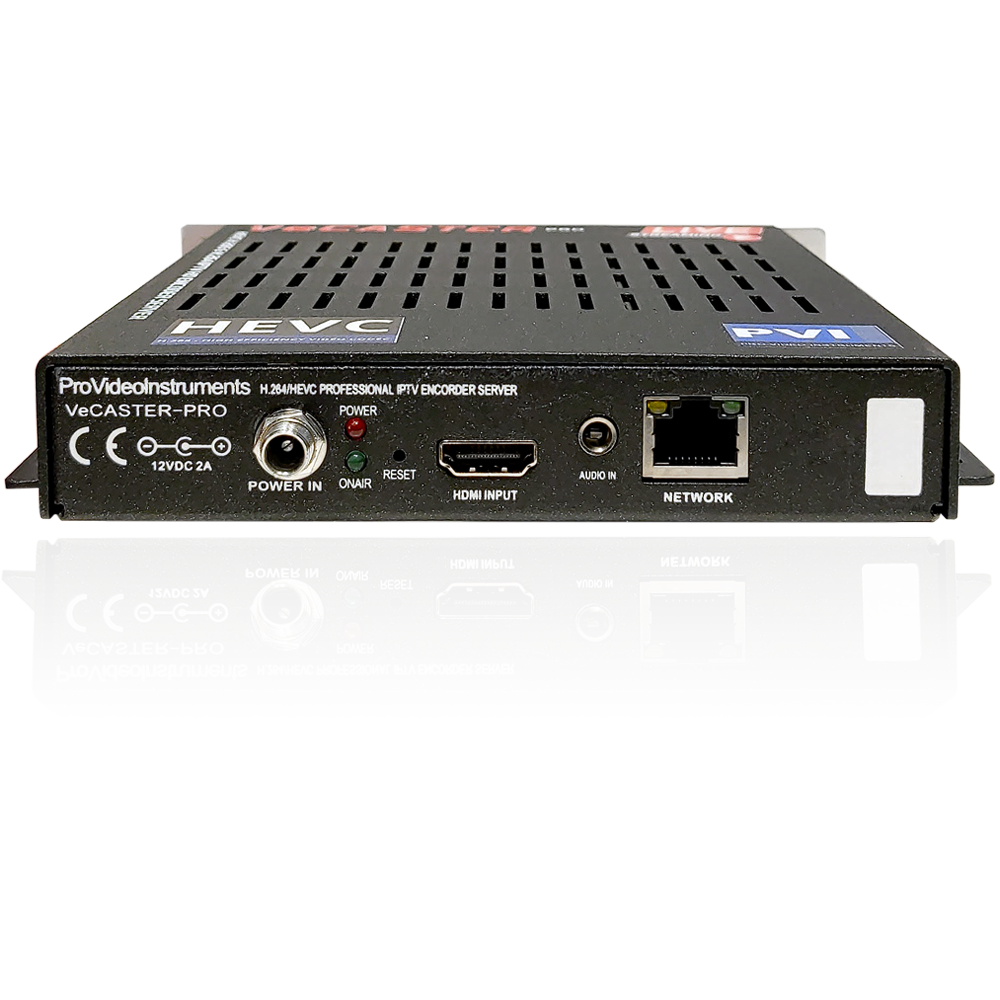

| Video Input | 1× HDMI, gold-plated · up to 1080p60 |
| Production Output | NDI (network device interface) for live-production tools |
| Video Compression | HEVC (H.265) & H.264 (AVC), selectable · MJPEG |
| Simultaneous Streams | 2 independent encoders/scalers, each its own format/protocol |
| Audio | HDMI embedded or analog stereo · AAC / MP3 / MP2 / AC3 / PCM |
| Streaming Protocols | NDI, SRT, RTMP(S), M3U8/HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP uni/multicast, SAP |
| Built-In Server | Hardware secure server, gigabit connections |
| Network | RJ-45 gigabit; Layer-2 video switch recommended |
| Enclosure | Fan-less EMI-shielded metal · desktop or rack (VeCASTER rack plate) |
| SKU | VECASTER-PRO-HDMI-NDI |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCASTER PRO HDMI — FAQ
What is NDI and why do I want it?
NDI (Network Device Interface) sends low-latency, high-quality video over a standard LAN. The VeCASTER PRO appears automatically as a source inside vMix, OBS, TriCaster, and NDI monitors — no capture cards, no cabling beyond ethernet.
What does SRT add over RTMP?
SRT recovers lost packets and encrypts the stream, so it stays broadcast-quality and low-latency across the unpredictable public internet — where RTMP would stutter or drop.
Can I use NDI and stream to the internet at the same time?
Yes. Output NDI to your production switcher on the LAN while simultaneously sending SRT or RTMP/HLS to a remote site, CDN, or your IPTV system.
Does it also do plain IPTV?
Absolutely. Alongside NDI and SRT it serves HLS, RTMP, RTSP, UDP/RTP and multicast from its built-in server to any player.
HEVC or H.264?
Both. Choose HEVC for bandwidth efficiency or H.264 for maximum compatibility — or run both simultaneously on the dual encoders.
How do I watch on a TV?
Use an IP set-top box, smart-TV app, VLC, or our VePLAYER decoder to convert the stream back to HDMI.
Is there an SDI version?
Yes — the VeCASTER PRO SDI offers the same NDI + SRT feature set from a 3G-HD-SDI input.
Build Your System
Complete Your Production Chain
Add a decoder, choose your input, and scale into a multichannel platform.
VePLAYER PRO (NDI) Decoder
Decode NDI/IP streams back to HDMI for monitors and displays.
$695.00$595.00You save $100.00
VeCASTER PRO SDI
Same NDI + SRT feature set from a 3G-HD-SDI input.
$1,795.00$1,495.00You save $300.00
VeCASTER Rack-Plate Kit
Mount one or two VeCASTER units in a clean 1U rack space.
$149.00
INFINIUM 4K Headend
Scale to a full IP + coax headend with hot-swappable cards.
$1,195.00$995.00You save $200.00
Add NDI + SRT to Your Workflow
$997.00$1,095.00
Save $98.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
