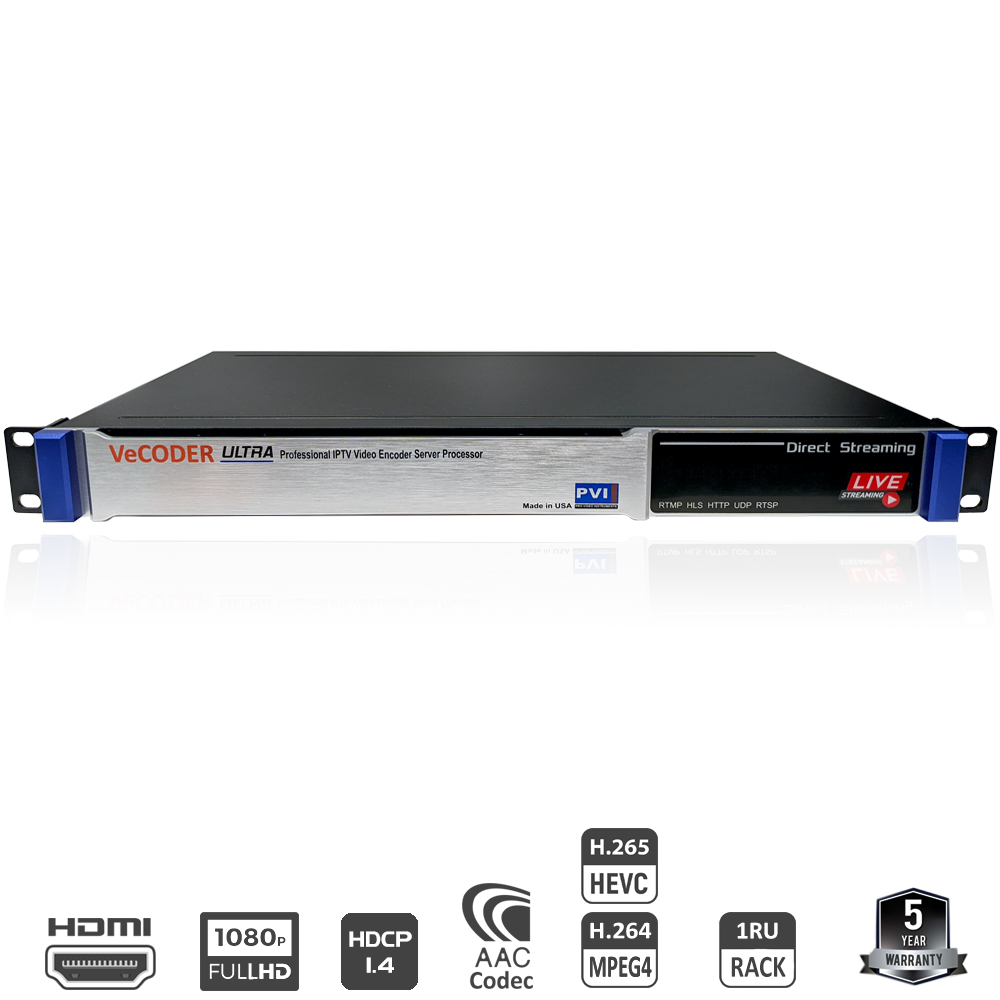

The VeCODER ULTRA HD H.264/H.265 is the bandwidth-smart multichannel encoder. Each of its 4–16 channels can run efficient HEVC or universal H.264, all managed from one web interface in a single 1RU chassis. HEVC is what lets you put many simultaneous channels on networks that H.264 alone would overwhelm.
Multichannel HDMI IPTV Encoder · HEVC
More Channels, Less Bandwidth
4 to 16 HDMI channels with selectable HEVC H.265 — the same Full HD picture at up to a quarter of the bitrate, so a big headend fits on a real network.
Capabilities
HEVC Density, H.264 Compatibility
Run efficient HEVC where bandwidth is tight and universal H.264 where reach matters — channel by channel, from one box.
- 4 / 8 / 12 / 16 HDMI channels — each fully independent
- Selectable HEVC H.265 or H.264 per channel · per-channel multi-stream output
- M3U8/HLS, RTMP(S), RTSP, HTTP, UDP/RTP, SRT · unicast & multicast
- Built-in gigabit streaming server — no external server, no per-seat fees
- Unified web management · 24/7 redundant-grade cooling
Reaches Everything
A Big Lineup on a Lean Network
HEVC efficiency means more channels and more concurrent viewers on the same infrastructure — ideal for hotels, campuses, ships, and multi-site operators.
Land channels on TVs with our VePLAYER decoders, or distribute the lineup over coax with the INFINIUM 4K headend. Don't need HEVC? The VeCODER ULTRA HD H.264 is the value option.
Features
The Bandwidth-Smart Headend
Maximum channel density on real-world networks.
Up to 16 Channels
A complete multichannel headend in a single 1RU chassis.
HEVC Efficiency
Same Full HD quality at up to 4x lower bitrate than H.264.
Per-Channel Codec
Pick HEVC or H.264 independently for each channel.
Unicast + Multicast
IGMP multicast to unlimited devices across the building.
One Interface
Configure and monitor every channel from a single web UI.
Made in USA
Built for 24/7 duty. 5-year warranty, free lifetime support.
Specifications
VeCODER ULTRA HD H.264/H.265 Specifications
| Encoder Type | Multichannel HDMI IPTV encoder · rack streaming server |

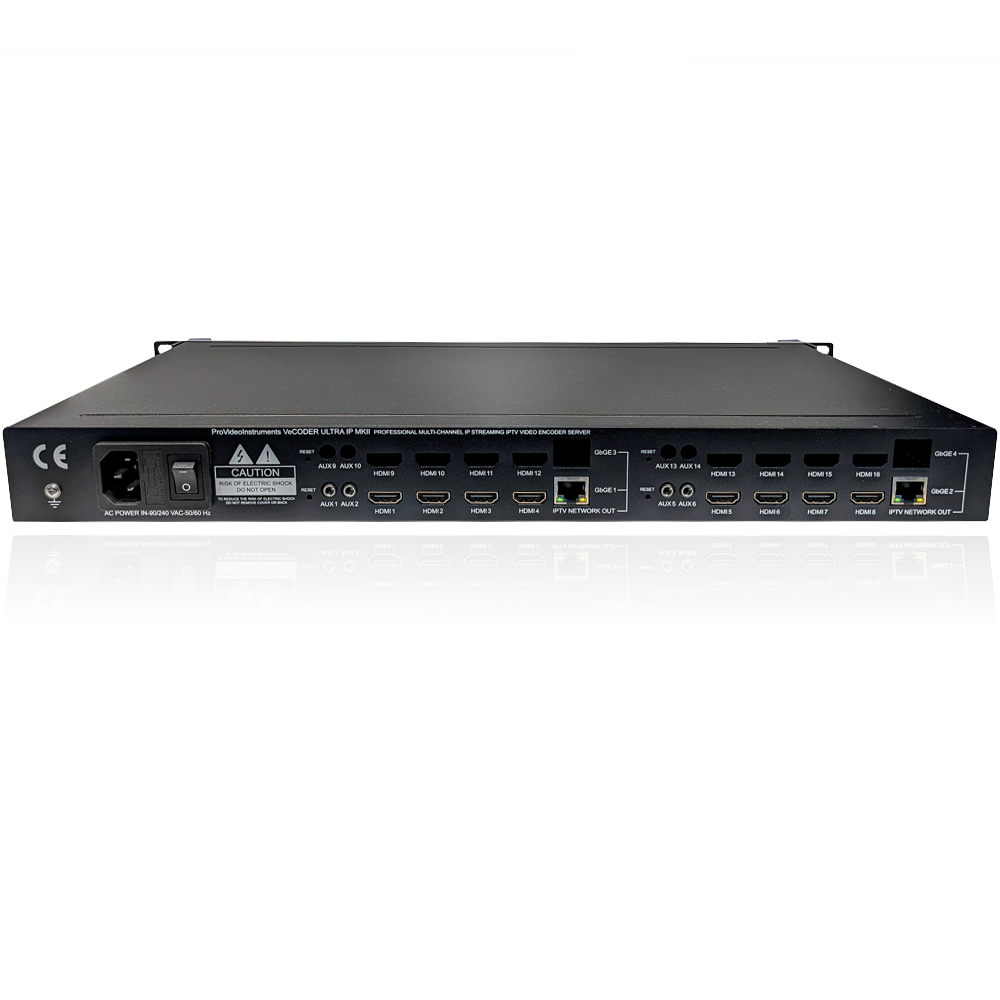

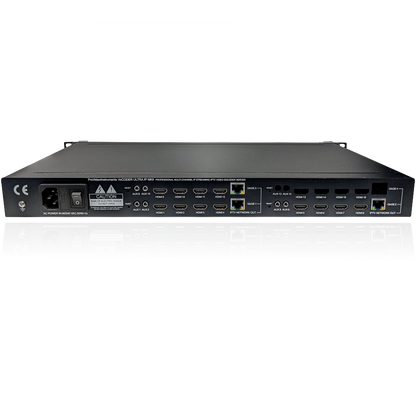

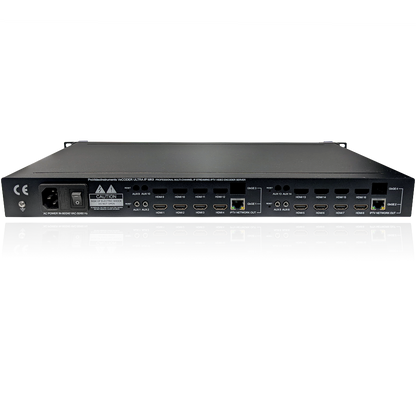

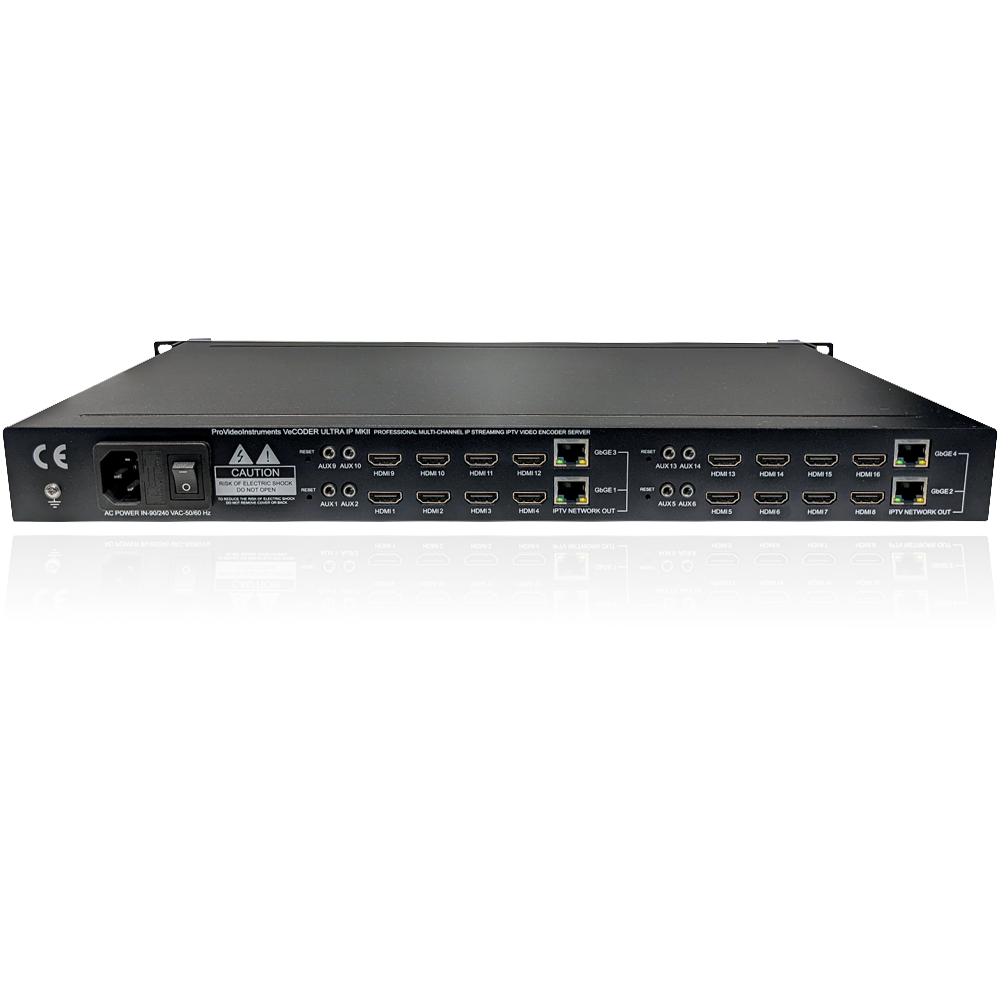

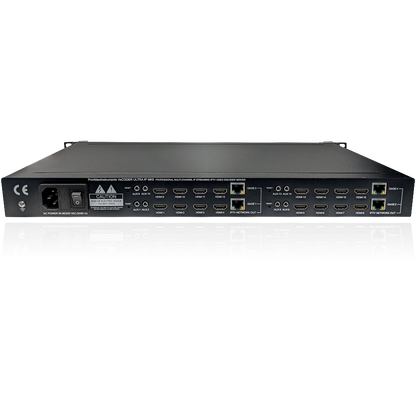

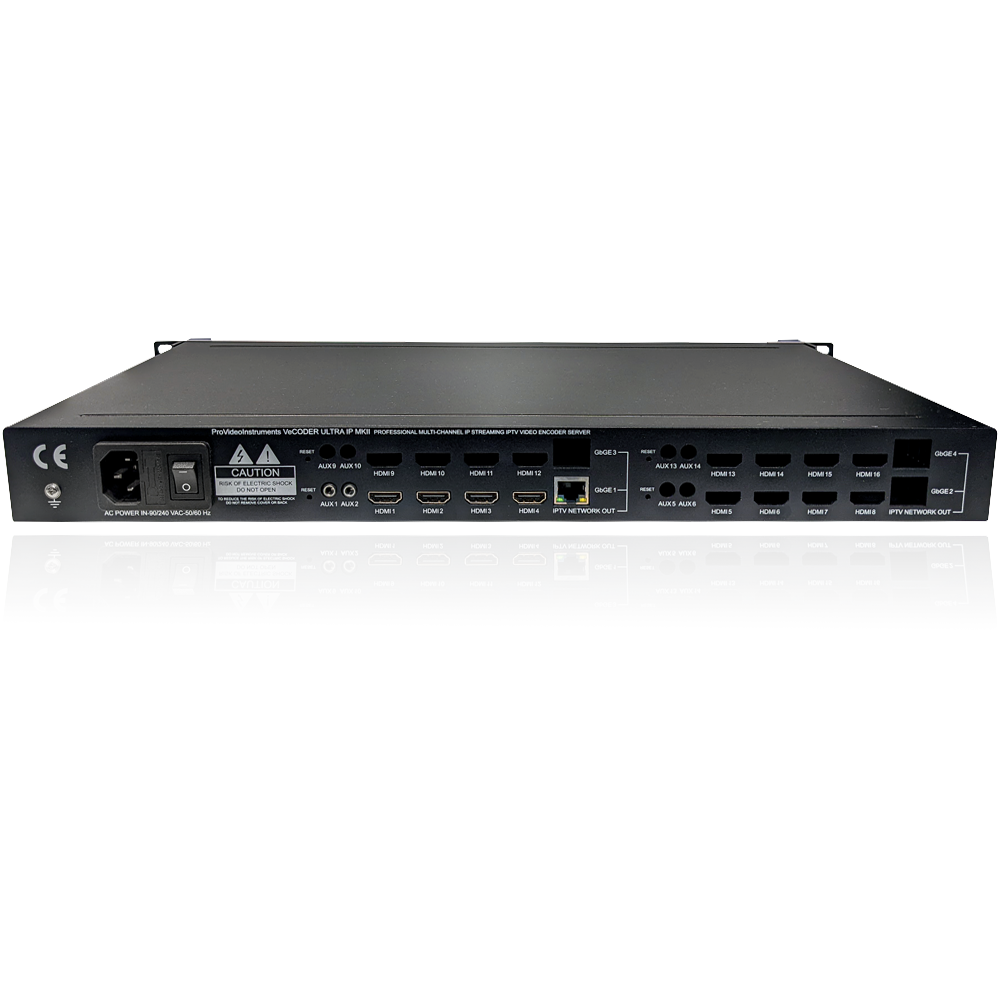

| Channels | 4 / 8 / 12 / 16 independent HDMI inputs |
| Max Resolution | 1080p60 per channel |
| Video Compression | HEVC (H.265) & H.264 (AVC), selectable per channel · MJPEG |
| Streams | Multiple independent streams per channel, each its own format/protocol |
| Audio | HDMI embedded per channel · AAC / MP3 / MP2 / AC3 / PCM |
| Streaming Protocols | SRT, RTMP(S), M3U8/HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP uni/multicast |
| Built-In Server | Hardware secure server, gigabit connections |
| Management | Unified web interface for all channels |

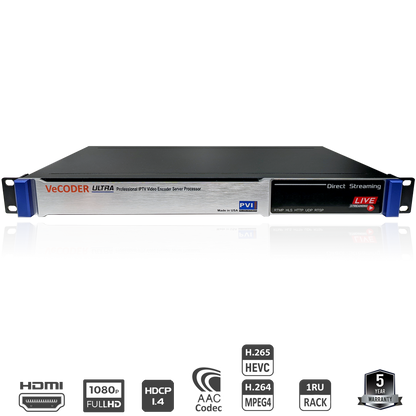

| Form Factor | 1RU rack chassis · redundant-grade cooling |
| SKU | VECODER-HD-HEVC (4/8/12/16) |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCODER ULTRA HD H.264/H.265 — FAQ
When should I pick this over the H.264-only VeCODER?
Choose the H.264/H.265 model whenever bandwidth or channel count is the constraint — HEVC roughly halves the bitrate per channel, letting you run more channels and serve more viewers on the same network.
Can each channel use a different codec?
Yes. HEVC or H.264 is selectable independently per channel, so you can optimize each channel for its audience and devices.
Will older devices still play the channels?
Set those channels to H.264 for universal compatibility, or run HEVC where your players support it. Most modern smart TVs and boxes handle HEVC natively.
Is an external server required?
No. The built-in gigabit hardware server streams directly on your LAN or the internet with no monthly fees.

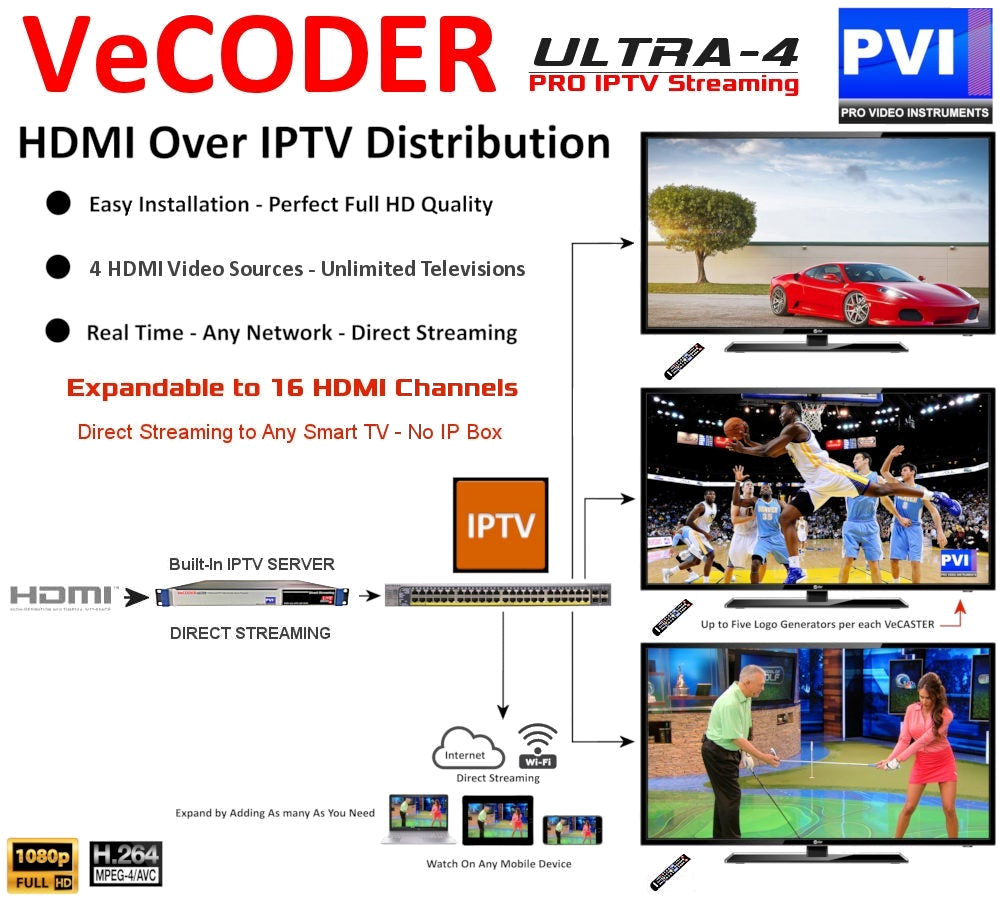

How do viewers watch?
Via IP set-top boxes, smart-TV apps, VLC, or our VePLAYER decoders for any HDMI TV. Multicast serves unlimited in-house devices.
Can I distribute over coax?
Yes — pair with the INFINIUM 4K headend to send the channels over existing coax as digital TV channels.
What about 4K channels?
Choose the VeCODER ULTRA 4K H.264/H.265 for multichannel Ultra-HD encoding.
