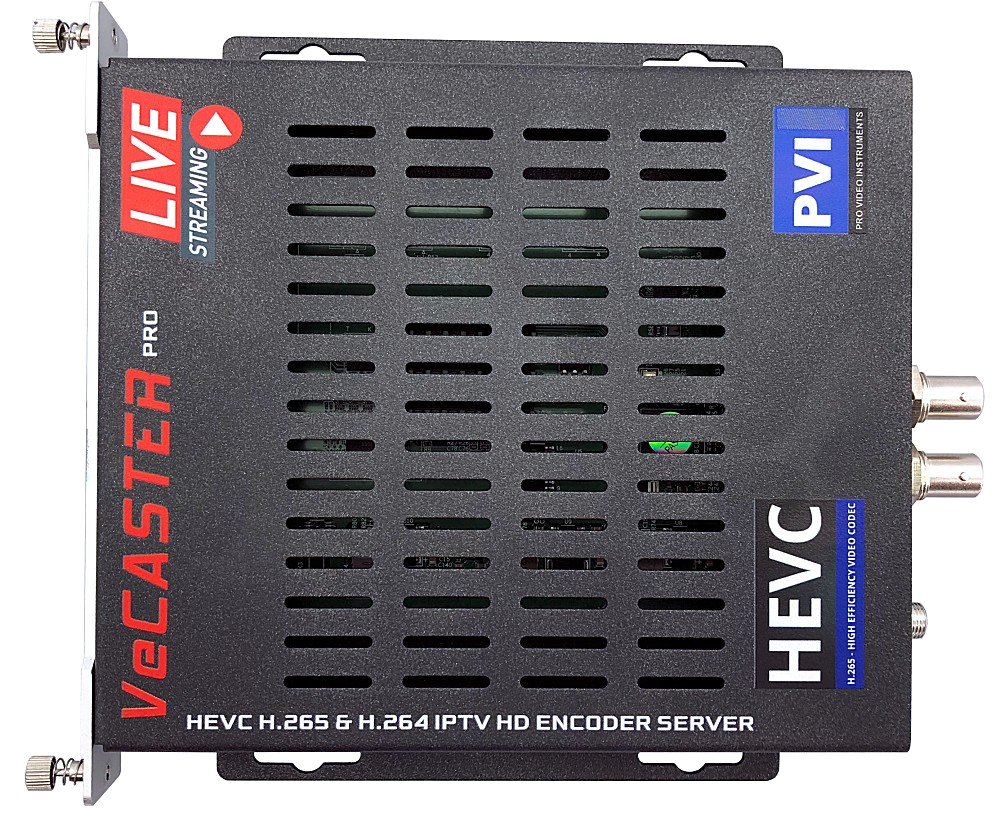

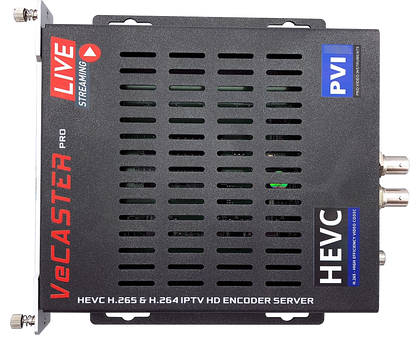

The VeCASTER HD SDI is the SDI-native member of the VeCASTER family. It accepts embedded 3G-HD-SDI up to 1080p60, runs two encoder engines at once, and publishes to every common streaming protocol. It is the simplest way to bridge professional SDI infrastructure to phones, browsers, smart TVs, and IPTV boxes.
SDI IPTV Encoder
Stream From Your Broadcast SDI Gear
Turn any 3G-HD-SDI camera, switcher, or router output into a live IP stream — selectable HEVC H.265 and H.264, served straight from a built-in gigabit server.
Capabilities
SDI In, Every Protocol Out
One SDI feed becomes an efficient HEVC stream for the internet and a universal H.264 stream for in-house players — at the same time.
- 3G-HD-SDI embedded input · up to 1080p60 · embedded SDI audio
- Simultaneous HEVC H.265 + H.264 broadcast-grade hardware encoding
- Dual encoders/scalers · 5 logo generators · closed-caption pass
- M3U8/HLS, RTMP(S), RTSP, HTTP, UDP/RTP, SRT, SAP · unicast & multicast
- HEVC streams Full HD from ~250 kbps — up to 4x bitrate savings vs H.264

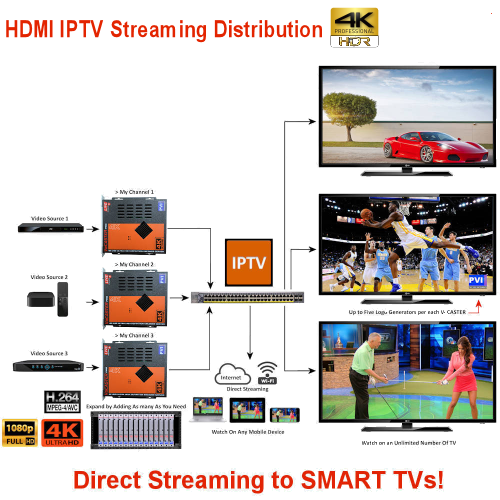

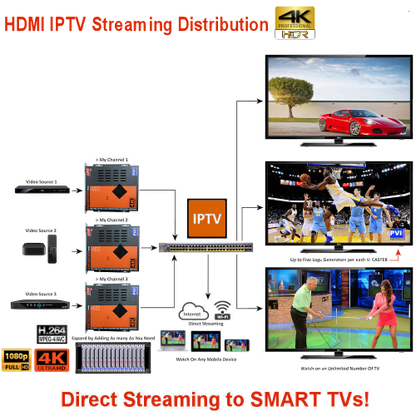

Reaches Everything
From the Production Rack to Every Screen
Bridge SDI cameras and switchers to your LAN, your IPTV boxes, and the open internet — no capture card, no PC.
Land the stream on any TV with our VePLAYER decoder, or scale to a multichannel SDI headend with the VeCODER SDI. Need NDI for production? See the VeCASTER PRO SDI.
Features
The SDI-to-IP Bridge
Professional SDI infrastructure, online in minutes.
3G-HD-SDI
Embedded SDI input up to 1080p60 with embedded audio.
HEVC + H.264
Two codecs at once — efficient HEVC plus universal H.264.
Dual Streams
Two independent encoders/scalers from one SDI feed.
SRT Reliable
Secure, error-corrected, low-latency internet contribution.
Built-In Server
Hardware server streams direct to players — no PC, no cloud fees.
Made in USA
Fan-less, EMI-shielded metal. 5-year warranty, free lifetime support.
Specifications
VeCASTER HD SDI Specifications
| Encoder Type | Single-channel 3G-HD-SDI hardware IPTV encoder |
| Video Input | 1× 3G-HD-SDI (embedded) · up to 1080p60 |
| Video Compression | HEVC (H.265) & H.264 (AVC), simultaneous · MJPEG |
| Simultaneous Streams | 2 independent encoders/scalers, each its own format/protocol |
| Audio | Embedded SDI audio or analog stereo · AAC / MP3 / MP2 / AC3 / PCM |
| Streaming Protocols | SRT, RTMP(S), M3U8/HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP uni/multicast, SAP |
| Built-In Server | Hardware secure server, gigabit connections |
| Multicast | IGMP v1/v2/v3 — unlimited devices over a multicast-capable network |
| Network | RJ-45 gigabit; Layer-2 video switch recommended |
| Enclosure | Fan-less EMI-shielded metal · desktop or rack (VeCASTER rack plate) |
| SKU | VECASTER-HD-SDI |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCASTER HD SDI — FAQ
What sources work with this encoder?
Any device with a 3G-HD-SDI output — professional cameras, production switchers, routers, and converters — up to 1080p60 with embedded audio.
Does it encode HEVC and H.264 together?
Yes. Two encoder engines run simultaneously, so you can publish an efficient HEVC stream and a universal H.264 stream from the same SDI feed at once.
Do I need a capture card or computer?
No. The VeCASTER is standalone hardware with a built-in streaming server — connect SDI and ethernet and it streams directly.
Can I stream over the internet reliably?
Yes. SRT recovers lost packets and encrypts the stream for broadcast-quality, low-latency delivery across the public internet.
How do I watch on a TV?
Use an IP set-top box, a smart-TV app, VLC, or our VePLAYER decoder to convert the stream back to SDI or HDMI.
What if I need NDI for production?
Choose the VeCASTER PRO SDI, which adds NDI output for vMix, OBS, and TriCaster alongside SRT and the standard protocols.
Can I build a multichannel SDI headend?
Yes — the VeCODER SDI puts four SDI encoders in one rack streaming server for multichannel deployments.
