The VeCASTER HD HEVC is the efficiency upgrade to our universal H.264 encoder. HEVC (High Efficiency Video Coding) halves the bitrate for the same quality, which means lower bandwidth bills, smoother playback over the open internet, and room for more channels on a fixed pipe. Switch back to H.264 any time you need maximum device compatibility — both codecs are built in.
HDMI IPTV Encoder · HEVC
Full HD Quality at a Quarter of the Bandwidth
Selectable HEVC H.265 encoding streams the same crisp 1080p picture from as little as 250 kbps — reach more viewers over thin internet links and fit more channels on the same network.
Capabilities
Two Codecs, Two Streams, One Box
Publish an efficient HEVC stream for the internet and a universal H.264 stream for older players — simultaneously, from the same HDMI source.
- Selectable HEVC H.265 or H.264 hardware encoding, up to 1080p60
- Dual simultaneous encoders — a TV-quality stream and a light mobile stream at once
- 5 logo generators · closed-caption pass · broadcast-grade pre-processing
- M3U8/HLS, RTMP(S), RTSP, HTTP, UDP/RTP, SRT, SAP · unicast & multicast
- Built-in gigabit server — direct to players, smart-TV apps, YouTube, Wowza, Akamai

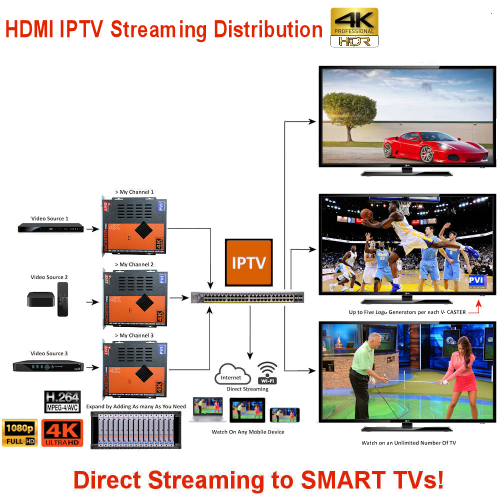

Reaches Everything
Stream Farther on Less Bandwidth
Lower bitrate means your stream survives weak Wi-Fi, busy networks, and remote internet links — and reaches more concurrent viewers for the same cost.
HEVC is ideal when bandwidth is precious: hotels, ships, campuses, and multi-site internet contribution. Land the stream on any TV with our VePLAYER decoder, or scale to many channels with the VeCODER and INFINIUM 4K headend.
Features
Maximum Reach, Minimum Bandwidth
The smart choice when bandwidth or viewer count matters.
HEVC Efficiency
Same Full HD quality at up to 4x lower bitrate than H.264.
Dual Streams
Two simultaneous encoders/scalers — different resolution and bitrate each.
SRT Reliable
Secure Reliable Transport for clean, low-latency video over the public internet.
5 Logo Generators
Brand every stream with logos and watermarks on the fly.
Unicast + Multicast
Built-in server plus IGMP multicast to unlimited devices.
Made in USA
Fan-less, EMI-shielded metal. 5-year warranty, free lifetime support.
Specifications
VeCASTER HD HEVC Specifications
| Encoder Type | Single-channel HDMI hardware IPTV encoder |

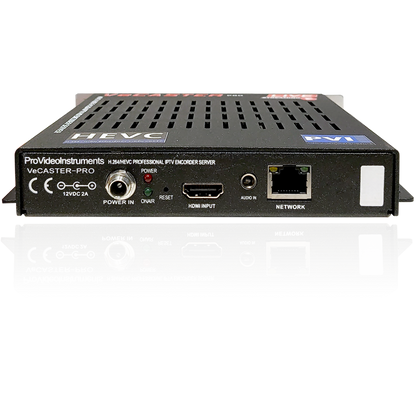

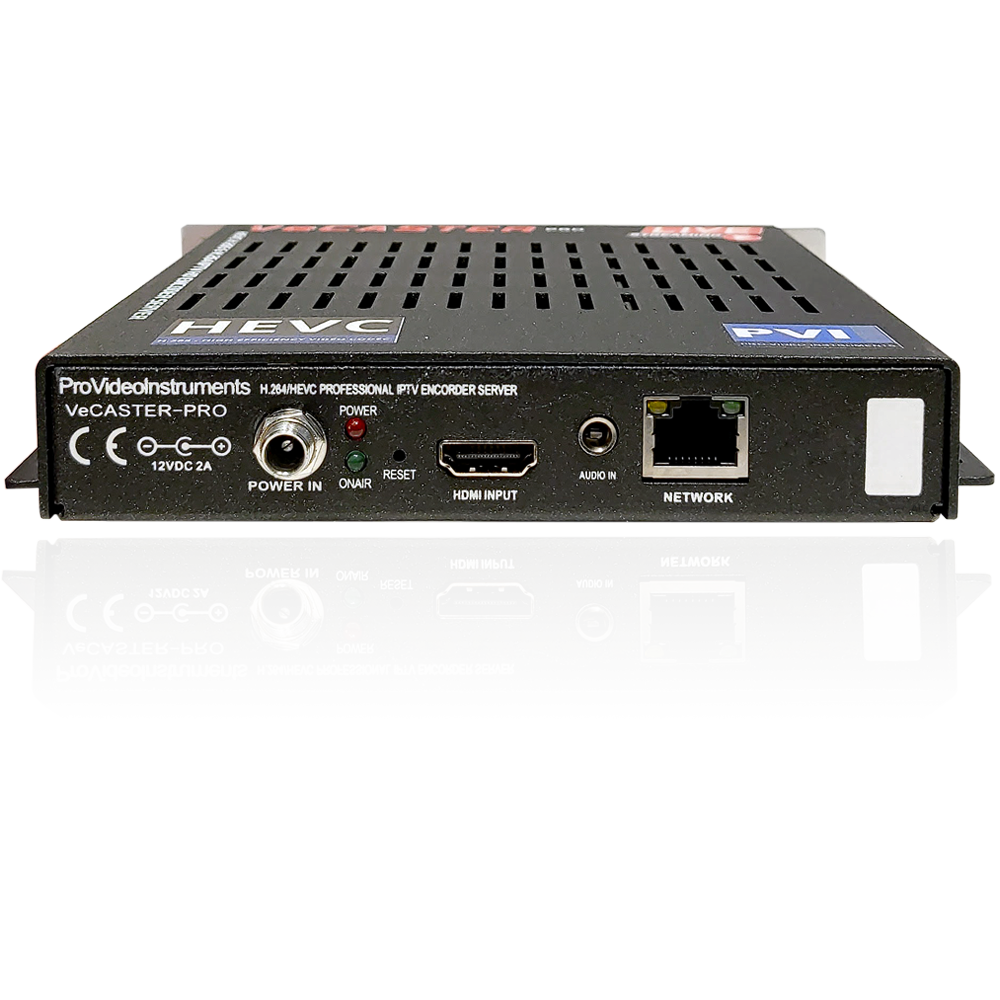

| Video Input | 1× HDMI, gold-plated · SD/HD up to 1080p60 |
| Video Compression | HEVC (H.265) & H.264 (AVC), selectable · MJPEG |
| Bitrate | Full HD from ~250 kbps (HEVC) up to 20 Mbps |
| Simultaneous Streams | 2 independent encoders/scalers, each its own format/protocol |
| Audio | HDMI embedded or analog stereo · AAC / MP3 / MP2 / AC3 / PCM |
| Streaming Protocols | SRT, RTMP(S), M3U8/HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP uni/multicast, SAP |
| Built-In Server | Hardware secure server, gigabit connections |
| Multicast | IGMP v1/v2/v3 — unlimited devices over a multicast-capable network |
| Network | RJ-45 gigabit; Layer-2 video switch recommended; direct-to-router capable |
| Enclosure | Fan-less EMI-shielded metal · desktop or rack (VeCASTER rack plate) |
| SKU | VECASTER-HD-H265 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCASTER HD HEVC — FAQ
What is the difference between HEVC and H.264?
HEVC (H.265) is a newer codec that delivers the same picture quality at roughly half to a quarter of the bitrate of H.264. That means lower bandwidth use and more concurrent viewers. H.264 is older but plays on virtually every device. This VeCASTER does both, switchable in software.
When should I choose HEVC?
Choose HEVC when bandwidth is limited or expensive — hotels, ships, campuses, remote sites, or high viewer counts — because it streams Full HD from as little as 250 kbps.
Can it stream two different versions at once?
Yes. Two simultaneous encoders let you publish a high-quality TV stream and a lightweight mobile stream from the same HDMI input at the same time.
What is SRT and why does it matter?
SRT (Secure Reliable Transport) recovers lost packets and encrypts video, so it delivers broadcast-quality, low-latency streams across the unpredictable public internet — ideal for remote contribution.
Will older devices still play HEVC?
Most modern smart TVs, phones, and players support HEVC. For older equipment, simply switch the VeCASTER to H.264 — or run both streams together.
How do I watch on a regular TV?
Use an IP set-top box, a smart-TV app, VLC, or our VePLAYER decoder to convert the stream back to HDMI for any television.
Can I scale to many channels later?
Yes. Add more VeCASTER units, or move up to the VeCODER multichannel encoder or the INFINIUM 4K headend for many channels in one chassis.
Build Your System
Complete Your Streaming Chain
Pair the encoder with a decoder, add rack accessories, or scale to a multichannel headend.
VePLAYER IP Video Decoder
Decode any HEVC/H.264 stream back to HDMI for any TV, monitor, or projector.
$549.00$495.00You save $54.00
VeCASTER HD H.264
Need the lowest-cost universal option? The H.264 model streams to everything.
$549.00$495.00You save $54.00
VeCASTER Rack-Plate Kit
Mount one or two VeCASTER units in a clean 1U rack space.
$149.00
INFINIUM 4K Headend
Scale to a full IP + coax headend with hot-swappable HEVC encoder cards.
$1,195.00$995.00You save $200.00
Stream Full HD on a Fraction of the Bandwidth
$895.00$995.00
Save $100.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
