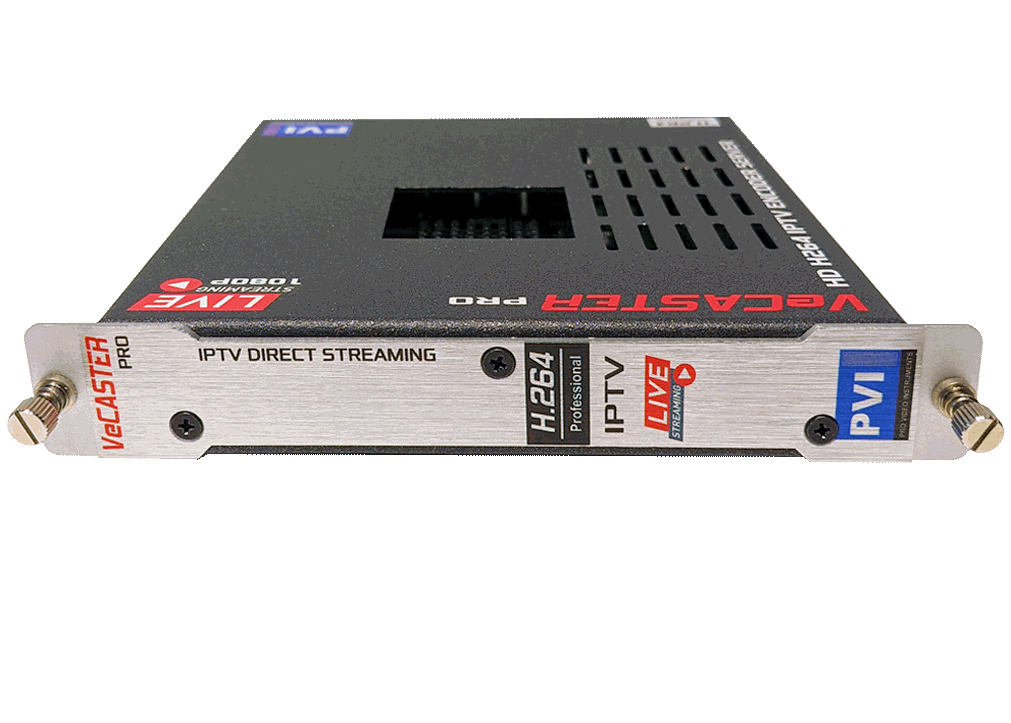

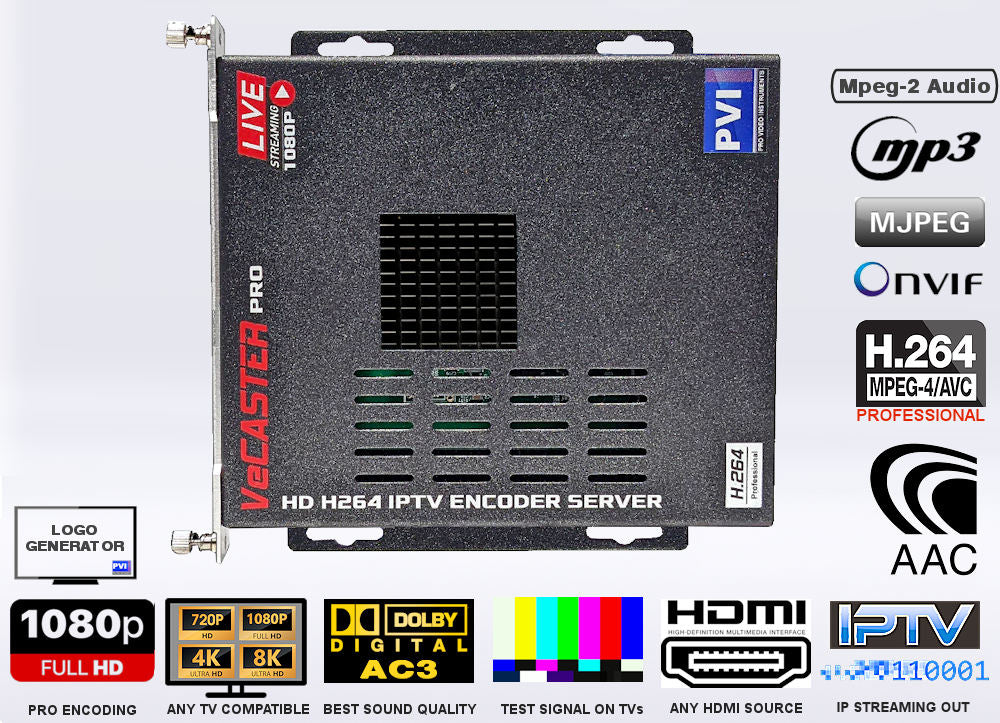

The VeCASTER HD H.264 is a single-channel HDMI live streaming encoder built for 24/7 professional use. It encodes in real hardware — not a PC — so the stream never stutters, never crashes, and starts the moment you power it on. H.264 is the universal video language, so the result plays on phones, tablets, computers, smart TVs, set-top boxes, and every major platform with zero configuration.
HDMI IPTV Encoder
Put Any HDMI Source Live on Your Network
The most affordable, most compatible professional IPTV encoder. Connect a camera, player, or computer and stream broadcast-grade 1080p H.264 to every screen in the building — and across the internet.
Capabilities
One Box, Every Destination
From a single HDMI input the VeCASTER feeds your LAN, your IPTV boxes, and the open internet at the same time — no servers, no subscriptions, no per-seat fees.
- 4 simultaneous streams from one HDMI input — each its own resolution, bitrate, logo & protocol
- M3U8/HLS, RTMP(S), RTSP, HTTP, UDP/RTP, SRT · unicast & multicast
- Built-in 100 Mb hardware server — streams direct to hundreds of players, no PC needed
- Stream straight to YouTube, Wowza, Akamai, Facebook — several destinations at once
- Auto-reconnect, watchdog, and broad decoder compatibility (VLC and our VePLAYER)
Reaches Everything
Smart TVs, Phones, Browsers, IPTV Boxes

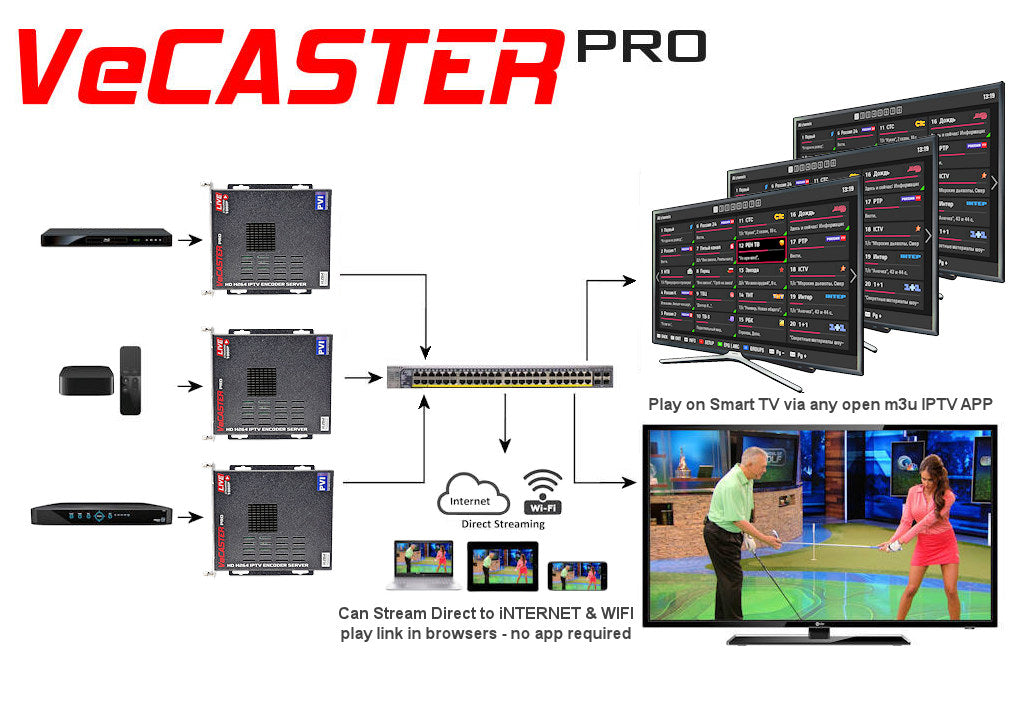

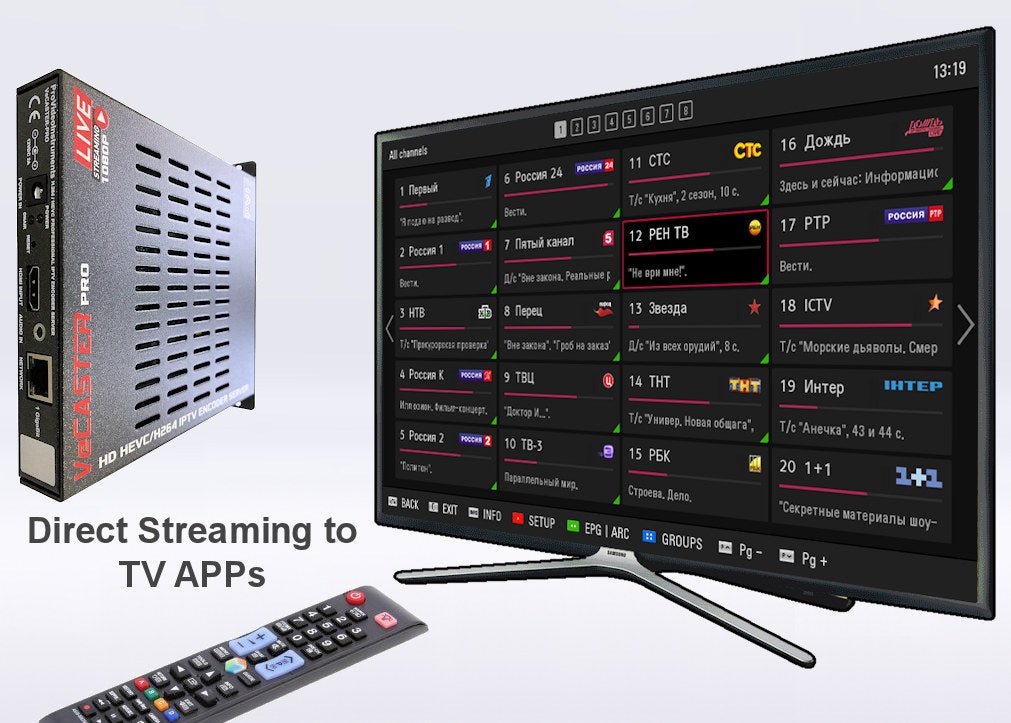

Deliver the same live channel to a phone on Wi-Fi, a browser across the world, and an IP set-top box on the TV wall — all from one VeCASTER.
Because the VeCASTER speaks every common streaming protocol, your audience watches on whatever they already own. Pair it with our VePLAYER decoder to land the stream on any HDMI TV, or scale to dozens of channels with the VeCODER and the INFINIUM 4K headend.
Features
Dependable, Affordable Live Streaming
Broad compatibility and outstanding value for any professional IPTV deployment.
Real 1080p
HDMI input up to 1080p60 with hardware H.264 encoding and closed-caption support.
Universal H.264
The most widely supported codec — plays on virtually any device, browser, or platform.
4 Streams
Up to four independent outputs at once, each its own resolution and protocol.

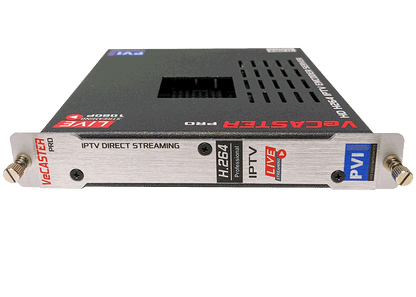

Built-In Server
Hardware streaming server delivers direct to hundreds of viewers — no PC, no cloud fees.
Unicast + Multicast
IGMP v1/v2/v3 multicast to unlimited devices on a capable network.
Made in USA
Fan-less, EMI-shielded metal built for 24/7 duty. 5-year warranty, free lifetime support.
Specifications
VeCASTER HD H.264 Specifications
| Encoder Type | Single-channel HDMI hardware IPTV encoder |

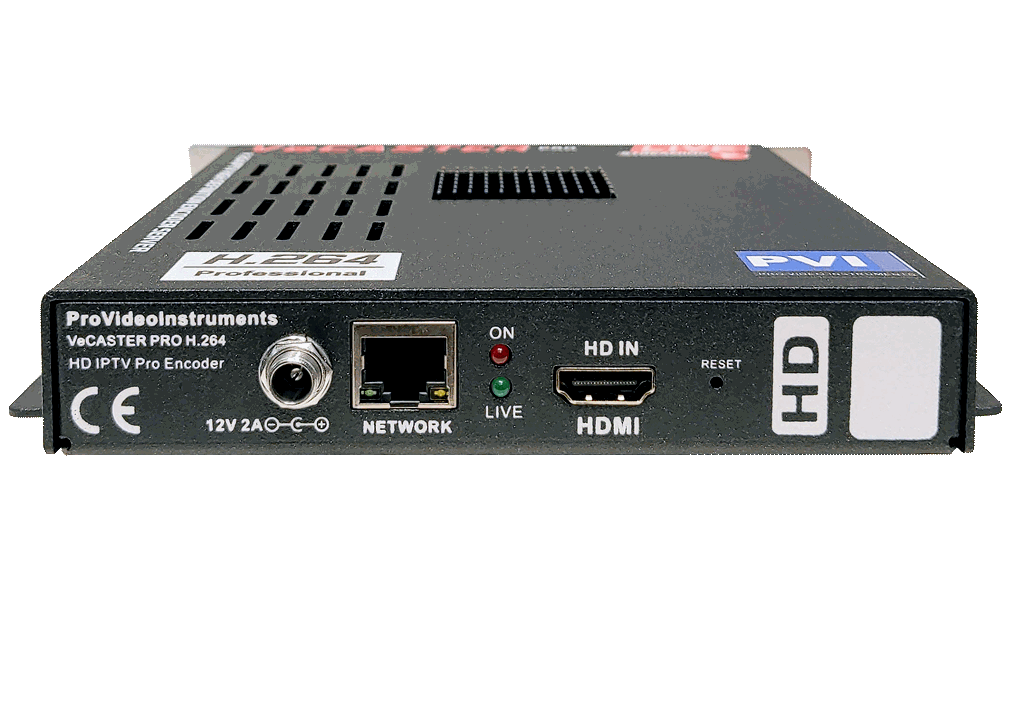

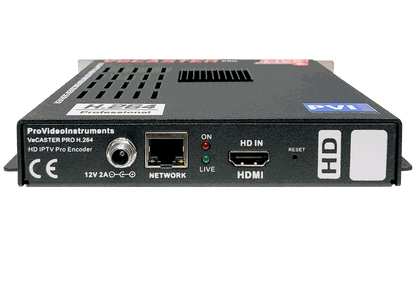

| Video Input | 1× HDMI, gold-plated · SD/HD up to 1080p60 |
| Video Compression | H.264 (AVC), MJPEG · logos & watermarks |
| Simultaneous Streams | Up to 4 independent streams, each its own format/protocol |
| Audio | HDMI embedded or 3.5 mm analog stereo · AAC / MP3 / MP2 / AC3 / PCM |
| Streaming Protocols | RTMP(S), M3U8/HLS, HTTP, RTSP, RTP, FLV, ONVIF, UDP/RTP unicast & multicast |
| Error Correction | SRT Secure Reliable Transport supported |
| Built-In Server | Hardware secure server, up to 100 Mbps connections |
| Multicast | IGMP v1/v2/v3 — unlimited devices over a multicast-capable network |
| Network | RJ-45 10/100; Layer-2 video switch recommended; direct-to-router capable |
| Latency | As low as ~50 ms glass-to-glass on LAN |
| Enclosure | Fan-less EMI-shielded metal · desktop or rack (with VeCASTER rack plate) |
| SKU | VECASTER-HD-H264 |
| Warranty | 5-Year Manufacturer Warranty + free lifetime support |
| Origin | Designed & Built in USA |
FAQ
VeCASTER HD H.264 — FAQ
What is an HDMI IPTV encoder?
An IPTV encoder is a hardware device that converts an HDMI video source into a compressed IP stream (H.264) that any device on a network or the internet can play. The VeCASTER does this in real time and serves the stream from a built-in server — no computer required.
Will the stream play on all my devices?
Yes. H.264 is the most universally supported codec, so streams play on phones, tablets, computers, smart TVs, IP set-top boxes, signage players, and every major platform out of the box.
Do I need a subscription or cloud service?
No. The VeCASTER includes its own hardware streaming server, so it streams directly on your LAN or to the internet with no monthly fees and no per-viewer charges.

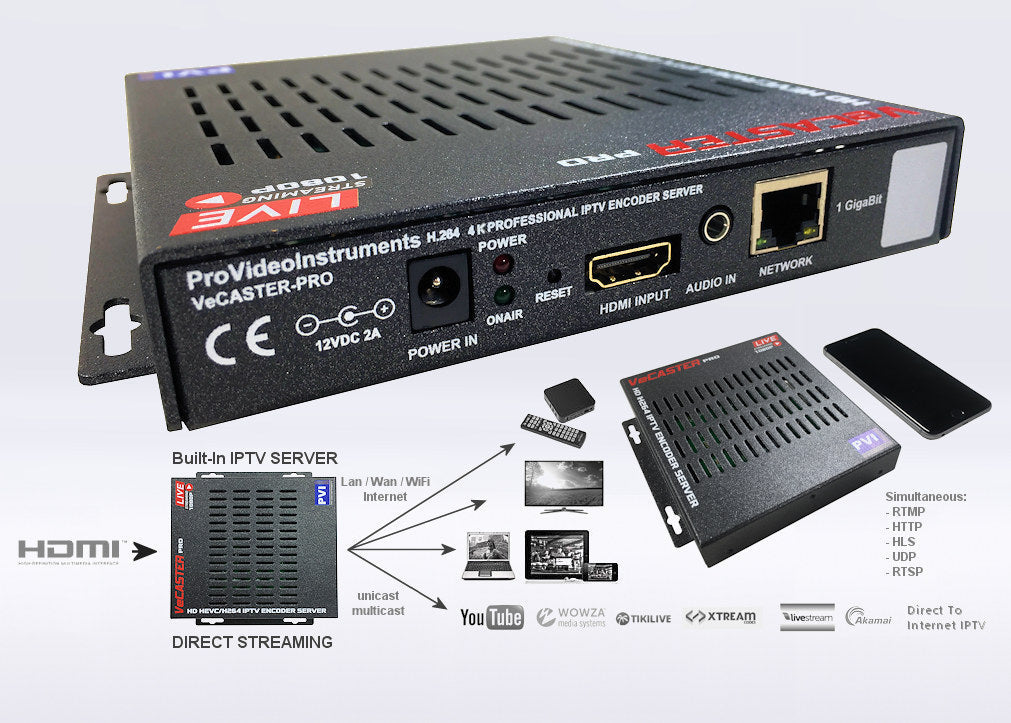

Can it stream to YouTube and a local IPTV system at the same time?
Yes. With up to 4 simultaneous streams you can push RTMP to YouTube while serving HLS/UDP to your in-house IPTV boxes and smart TVs at the same time.

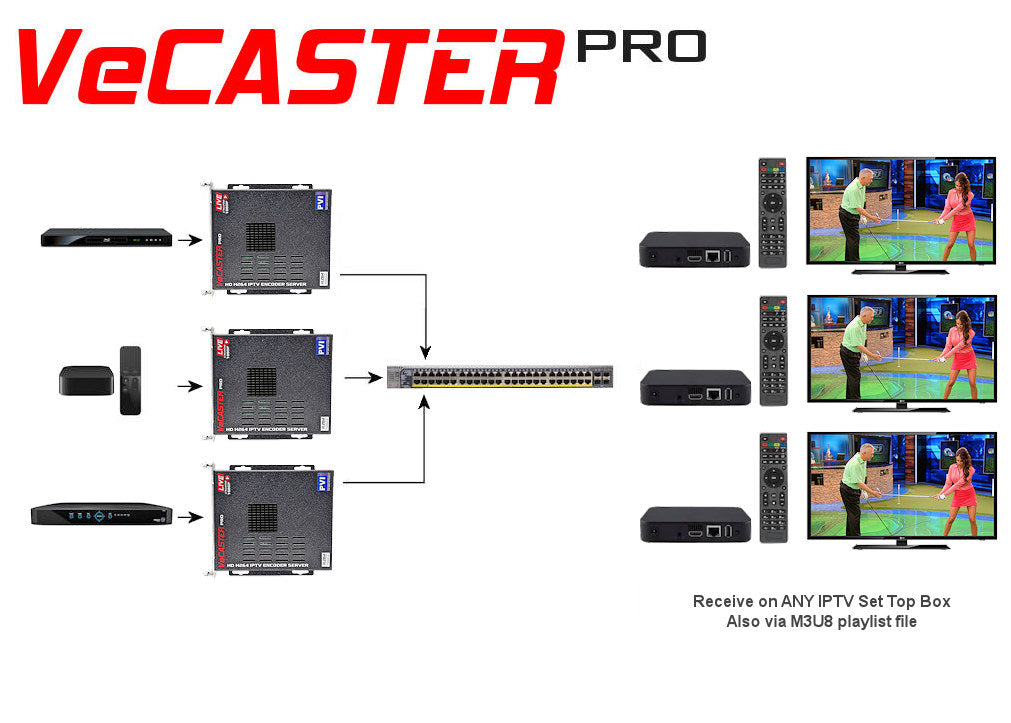

How do I watch the stream on a regular TV?
Use any IP set-top box, a smart-TV IPTV app, VLC, or our VePLAYER decoder to convert the stream back to HDMI for any television.
How many encoders do I need?

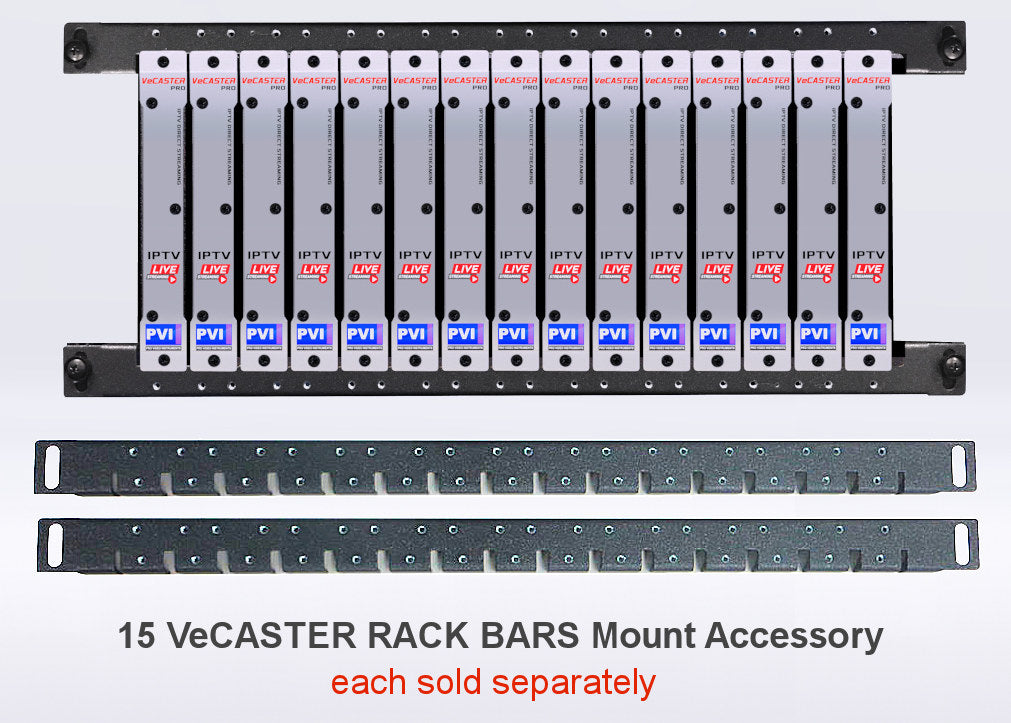

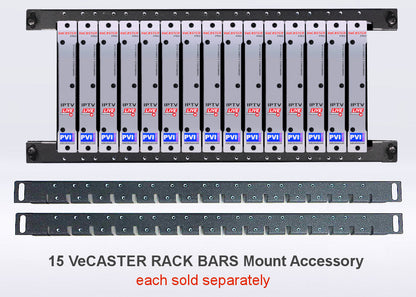

One VeCASTER streams one source channel. For several channels, add more units (rack them with the VeCASTER rack plate), or move to the VeCODER multichannel encoder or the INFINIUM 4K headend.
What is the latency?
On a local network the VeCASTER achieves glass-to-glass latency as low as about 50 ms. Internet latency depends on the protocol and network; SRT keeps it low and reliable over the public internet.
Build Your System
Complete Your Streaming Chain
The VeCASTER is the encoder. Add a decoder to watch on TVs, rack accessories to scale, or move up to a multichannel headend.
VePLAYER IP Video Decoder
Land any VeCASTER stream back on an HDMI TV, monitor, or projector — the receiving end of your system.
$549.00$495.00You save $54.00

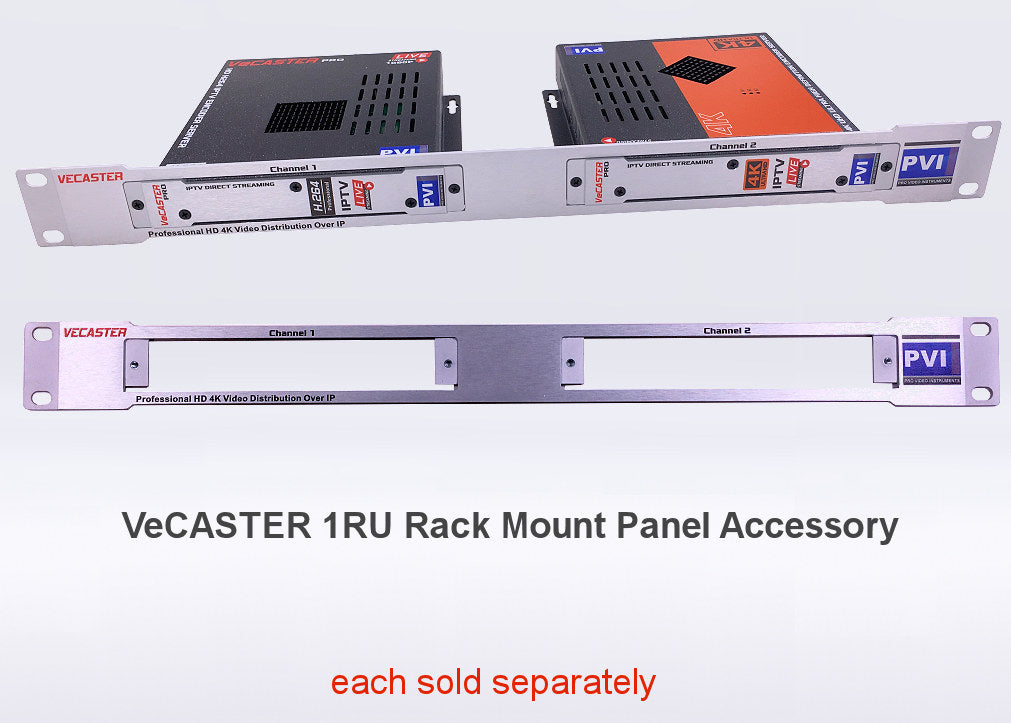

VeCASTER Rack-Plate Kit
Mount one or two VeCASTER units in a clean 1U rack space.
$149.00
Step Up: VeCODER Multichannel
Need many channels? The VeCODER puts 4–16 encoders in one rack server.
From
$2,990.00
INFINIUM 4K Headend
Scale to a full IP + coax headend with hot-swappable encoder cards.
$1,195.00$995.00You save $200.00
Start Streaming HDMI Over IP Today
$495.00$549.00
Save $54.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
