A reliable TV modulator must hold a stable channel, keep the picture clean, and never disturb the channels already on the line. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it produces a digital TV channel at broadcast quality β +45 dBmV output and MER above 45 dB β so it looks perfect from the headend to the farthest TV.
Recognition
The TV Modulator Professionals Have Trusted Since 2017
When a project needs a TV modulator that turns one source into a channel on every set, the VeCOAX MINIMOD 2+ is the unit integrators specify β award-winning, US-built, proven on 50,000+ installations.

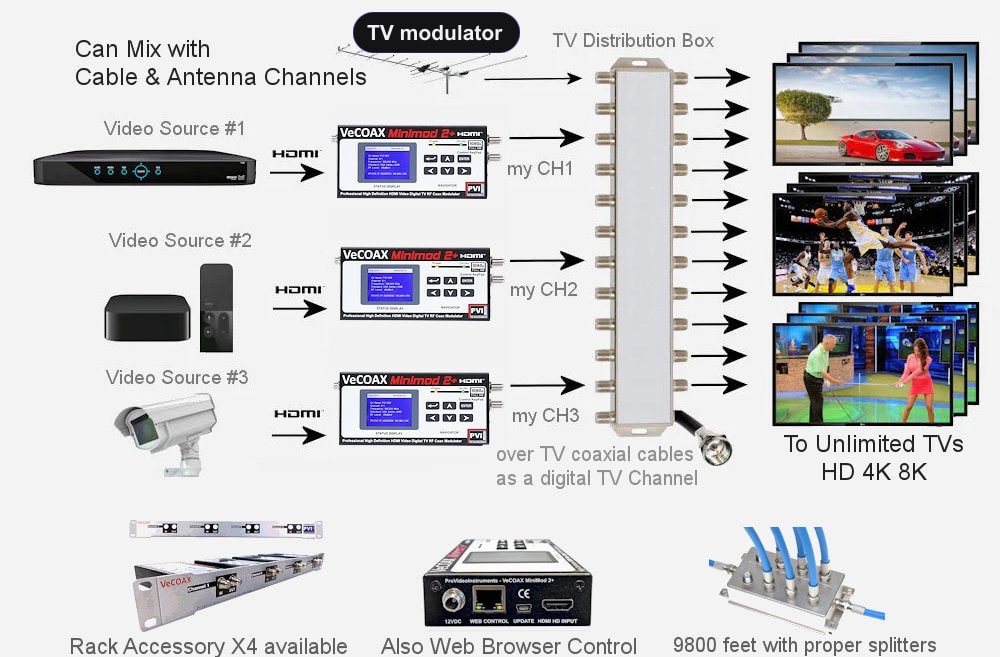

How a TV Modulator Works
HDMI In β A Real TV Channel on Every Set
A digital TV modulator creates a brand-new digital television channel from any HDMI source and places it on coax, so every digital tuner in the building receives it like a real broadcaster.

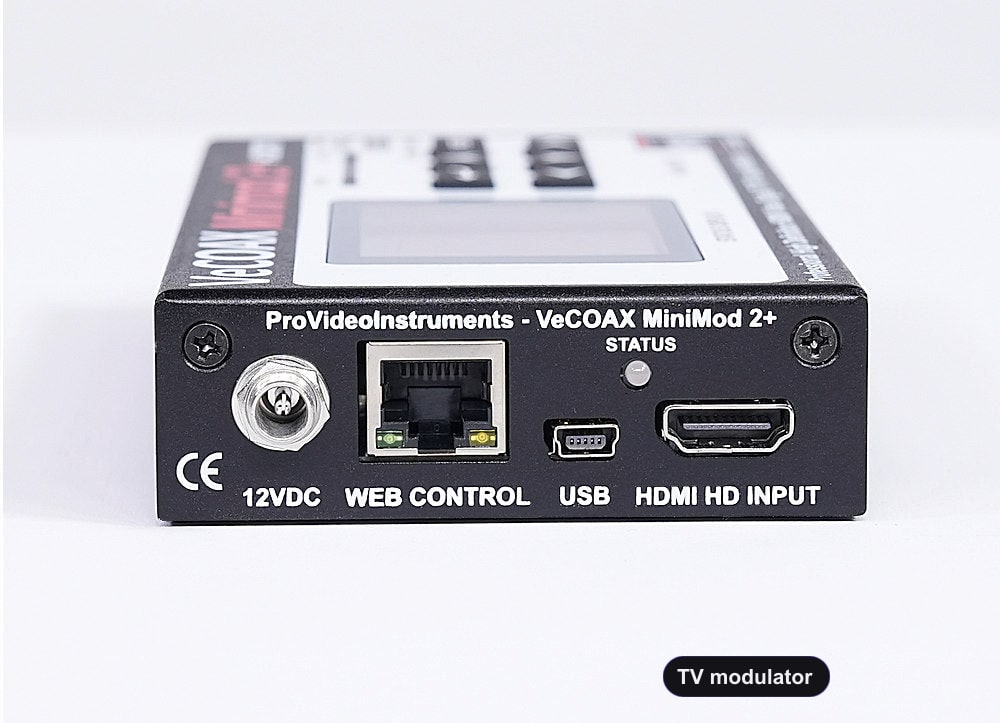

- Connect any HDMI source β receiver, media player, camera, or laptop Built for tv modulator installations.
- Define the digital TV channel on the LCD; the source becomes a station
- Feed the digital channel into the coax distribution or a combiner
- Scan each digital TV once and the new channel locks at 1080p
- No analog conversion, no per-TV box, no streaming subscription
- Add modulators to publish more digital TV channels on one coax

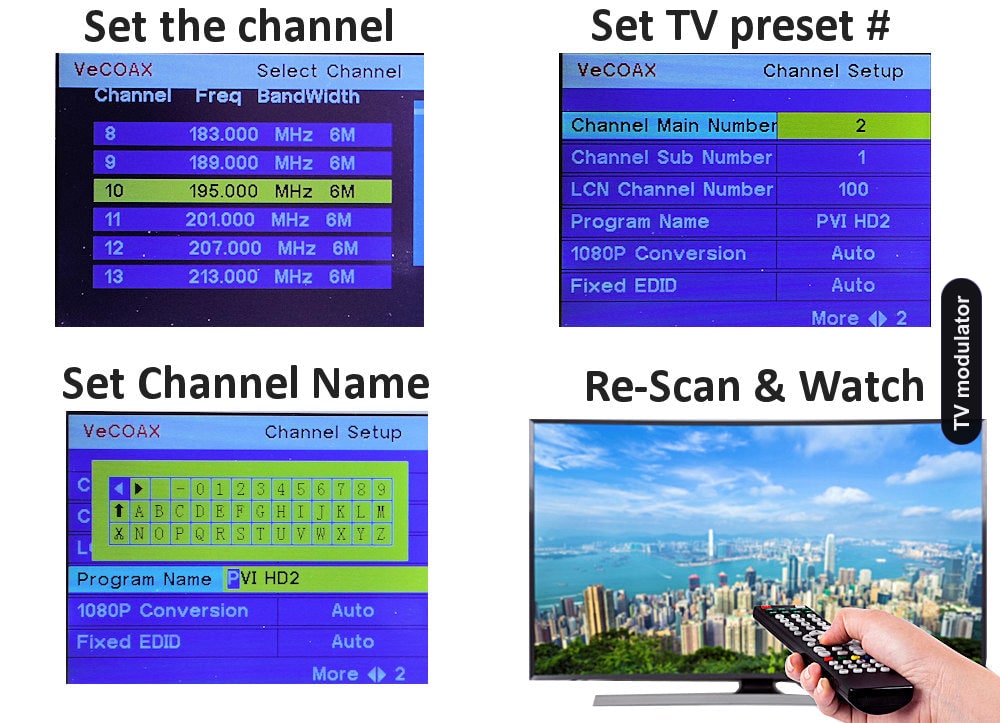

Setup

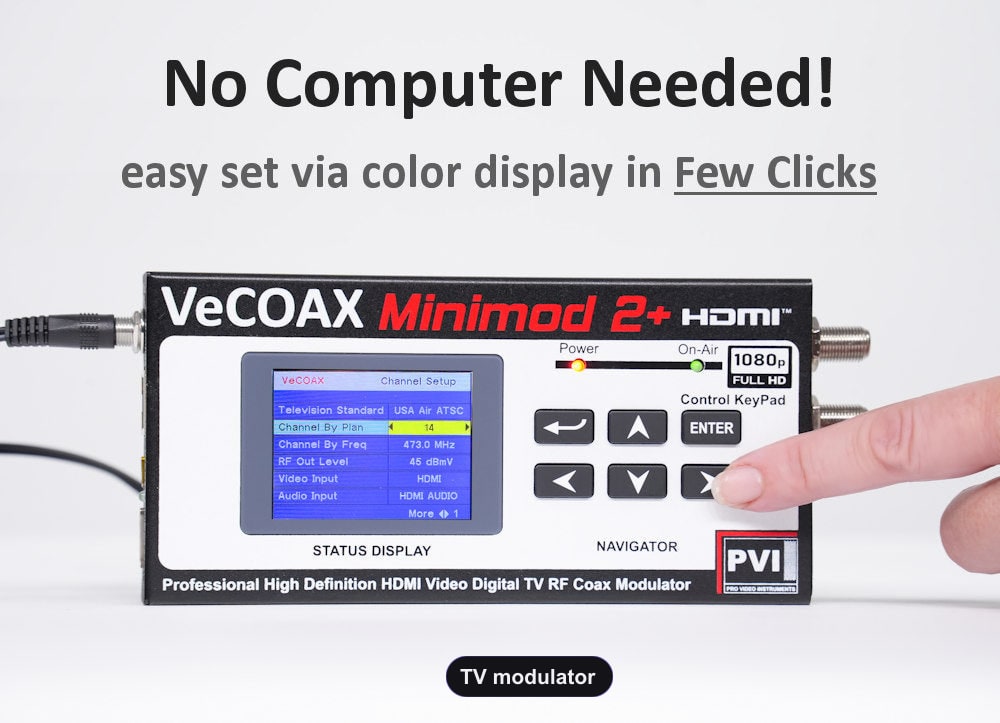

Create a TV Channel in Under a Minute. No Computer Required.
Other digital TV modulators require a PC to define a channel. The MINIMOD 2+ keeps channel, standard, and level on a color LCD so you publish a digital channel without a computer.
- The display reports the digital channel, frequency, and lock state at all times
- Choose the digital standard and channel directly on the front buttons
- Self-contained β no console software, serial cable, or driver needed
- Power on β define the channel β land coax β scan β publishing digitally

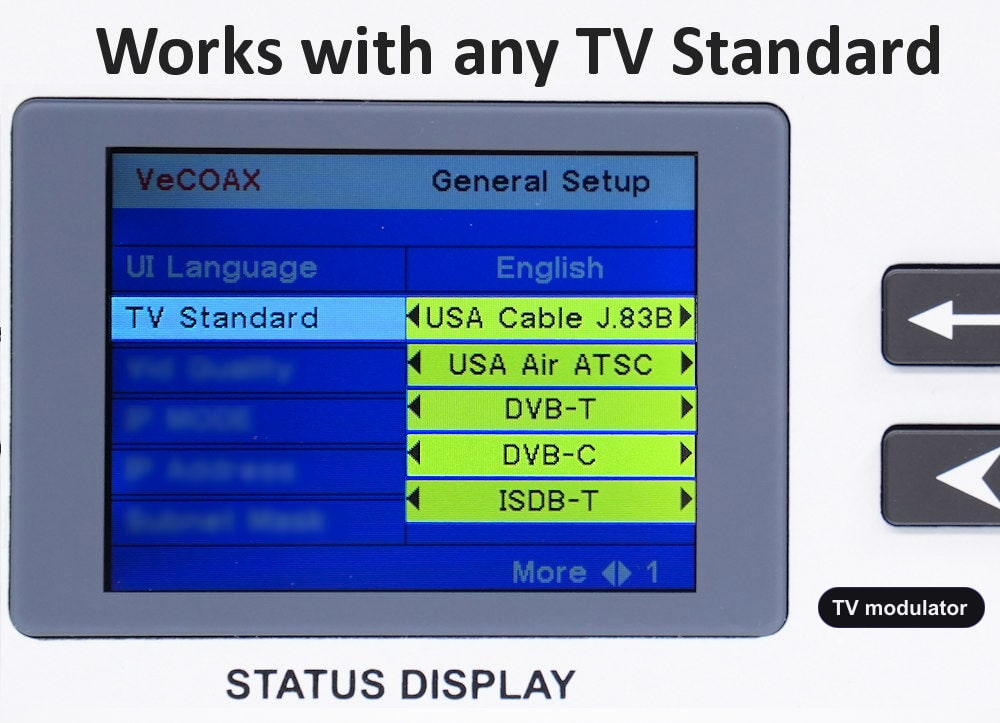

Works on Your Existing Line
Your TV Channel Sits Right Beside Your Current Channels
Publish the digital channel as QAM for cable or ATSC for antenna β it joins the digital lineup the building already tunes.
The modulator emits a fully digital broadcast channel, so the source tunes like a real station. Cable (QAM) digital TVs list it among the cable channels; antenna (ATSC) sets add it to the digital grid β switch on the panel.
DVB-T/C and ISDB-T digital carriers are supported too, so this digital TV modulator fits any plant worldwide β HD, 4K, or 8K receivers.
Remote Control

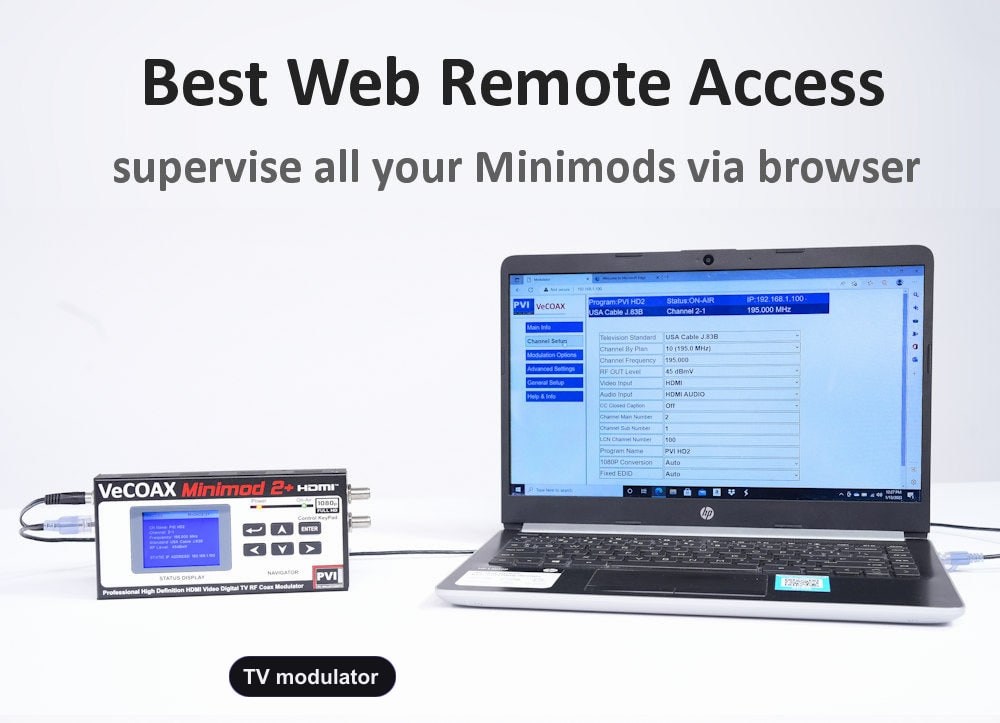

Manage Your TV Modulators From Any Browser
The panel publishes the channel; the optional LAN page lets you redefine digital channels and verify lock from the bench when units live in a rack.
- Redefine the digital channel and trim level remotely over the LAN
- Manage a row of digital TV modulators from one browser console
- Works in any computer or phone browser β no client to install Built for tv modulator installations.
- Lock readouts confirm each digital channel is on-air and clean

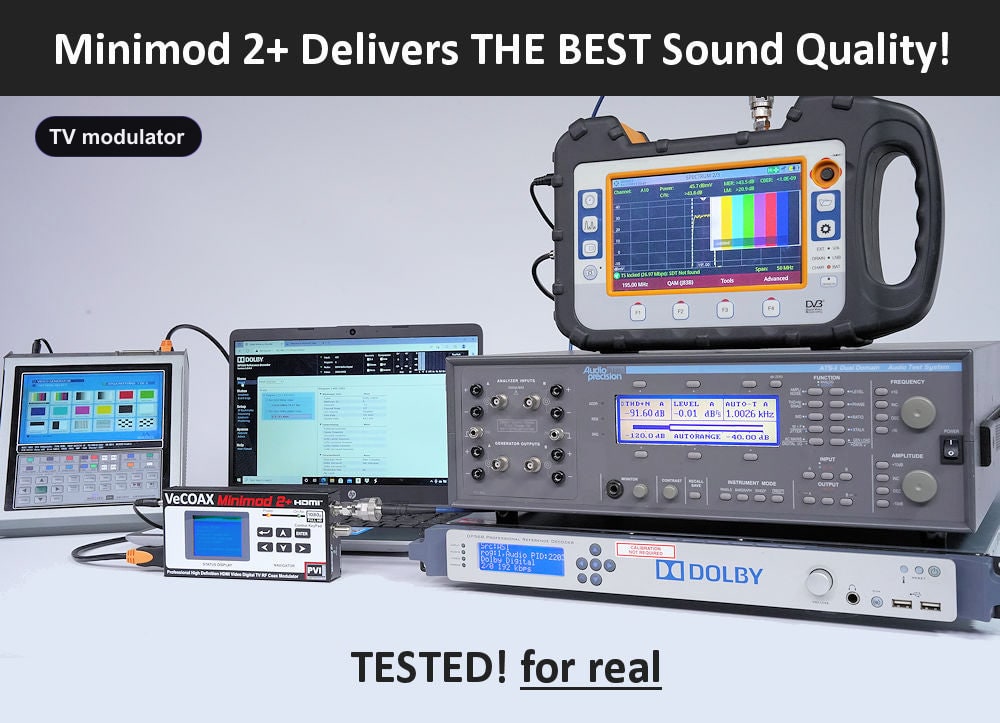

Audio
Your TV Channel Carries Broadcast-Grade Audio
A digital channel carries digital audio. The modulator embeds broadcast Dolby Digital so sound reaches every digital tuner locked to the picture.
- Dolby Digital / LPCM is carried within the digital channel transport
- Audio holds sync with the digital picture across long coax β no drift Built for tv modulator installations.
- Passes 5.1 surround intact from compatible HDMI sources Built for tv modulator installations.
- Clean dialogue, music, and effects on every digital set

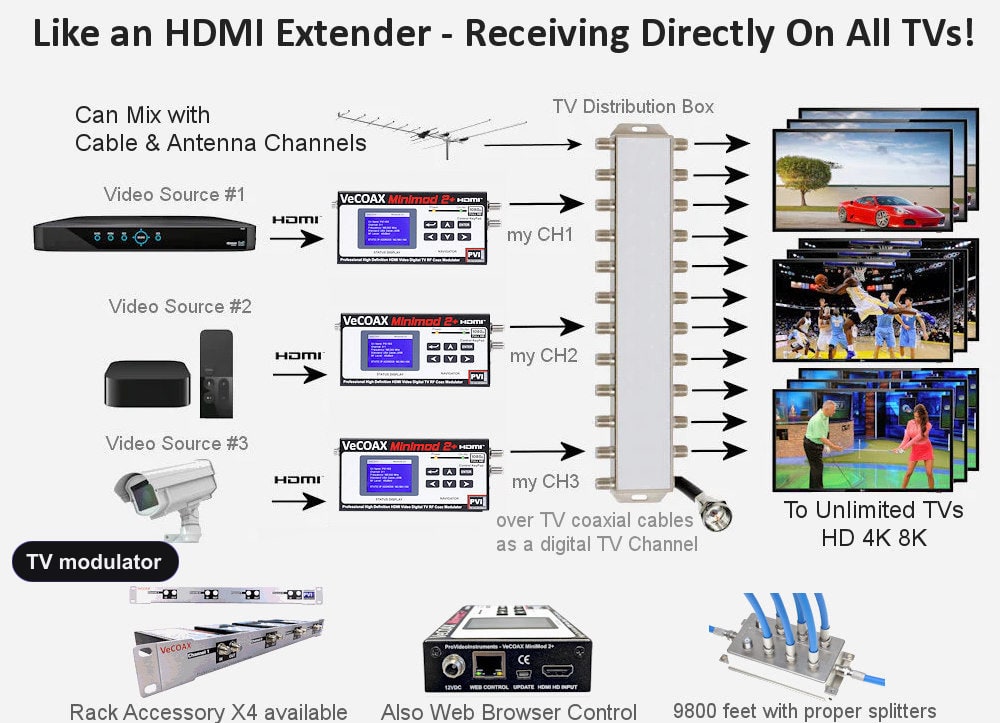

Installation
Three Connections. Done.
HDMI in. Digital channel out. One scan. The source is live on every digital TV in Full HD with synced audio.
A digital TV modulator install is fast: connect the HDMI source, feed the F-type coax output into the distribution (or a passive combiner), define a channel on the LCD, and rescan digital TVs. No analog gear, no per-TV boxes, no IT ticket β the in-wall coax carries the digital channel.

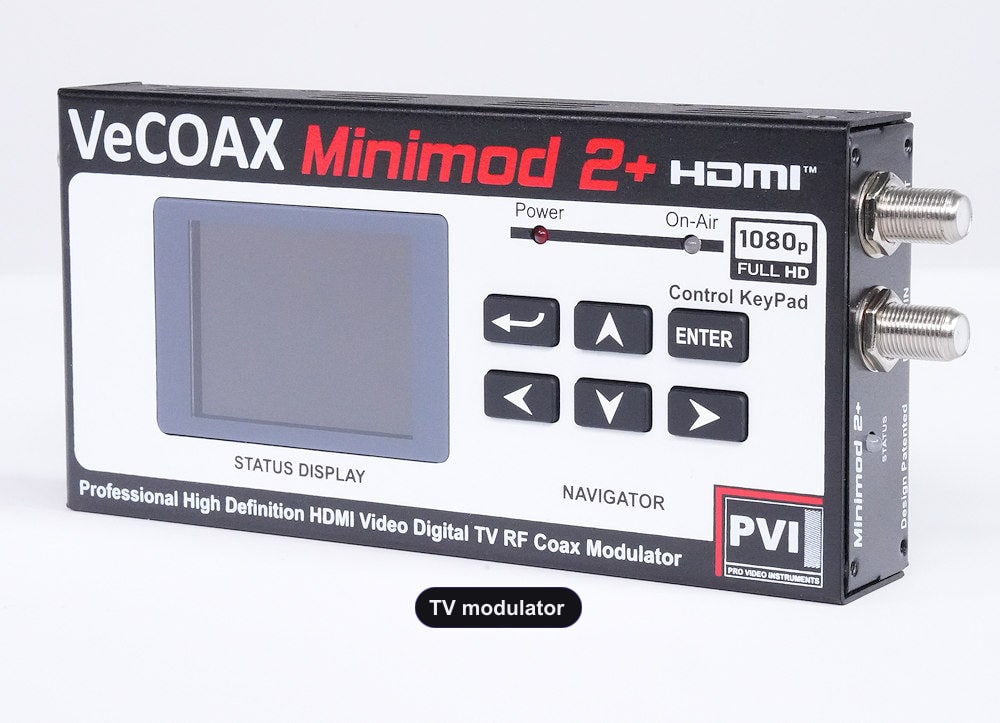

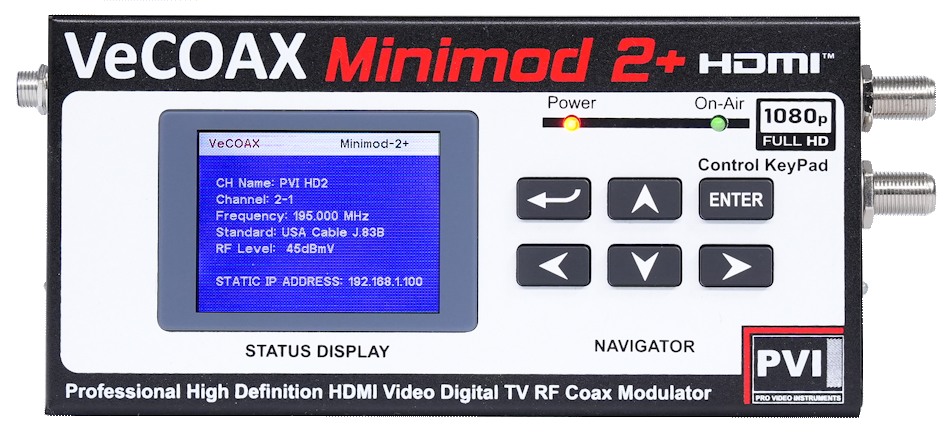

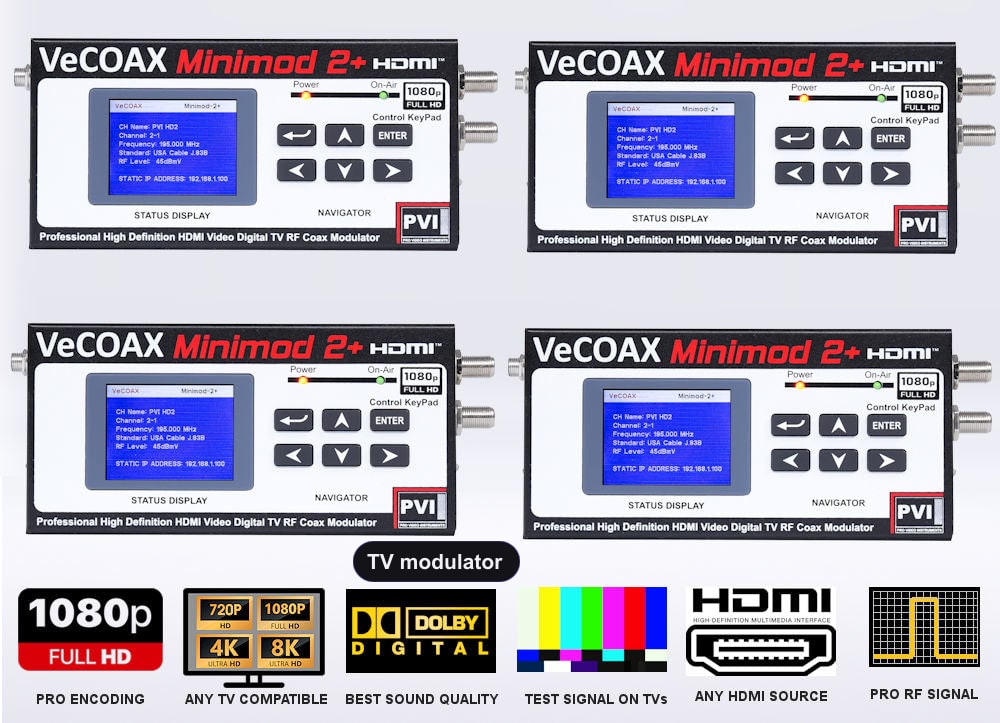

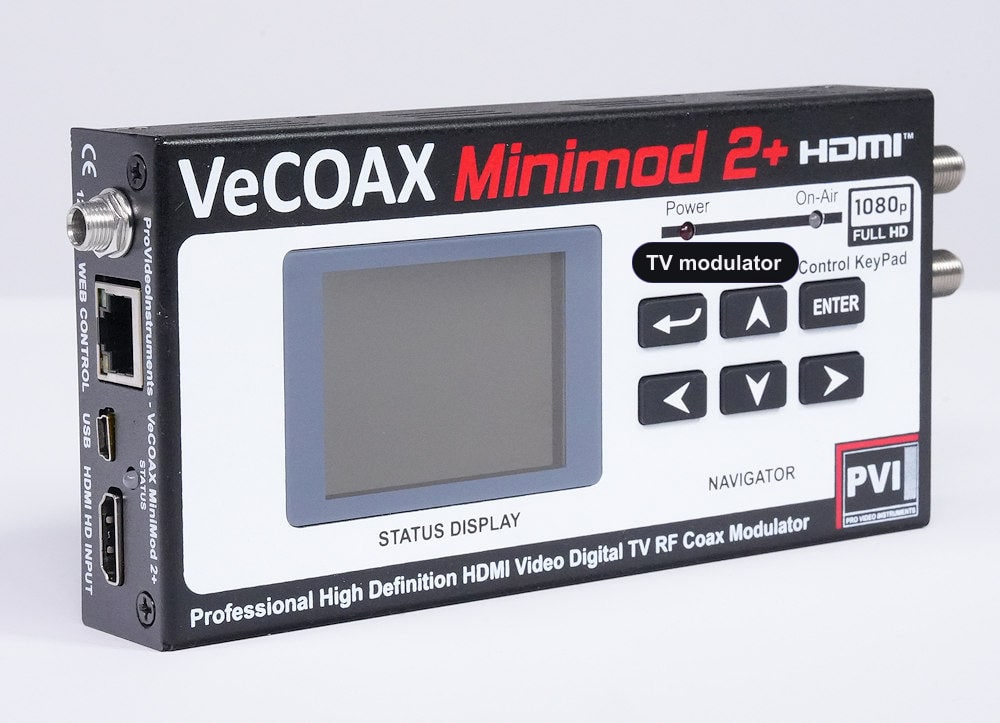

The MINIMOD 2+
A TV Modulator With Broadcast-Headend Quality
Palm-sized aluminum build, broadcast-grade modulation, and a front-panel LCD β the professional way to create a TV channel from any source. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ creates TV channels the way cable operators do it: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to drive long runs, a built-in color LCD for computer-free setup, and support for every worldwide TV standard. One small box turns any HDMI device into a channel that reaches unlimited TVs over existing coax.

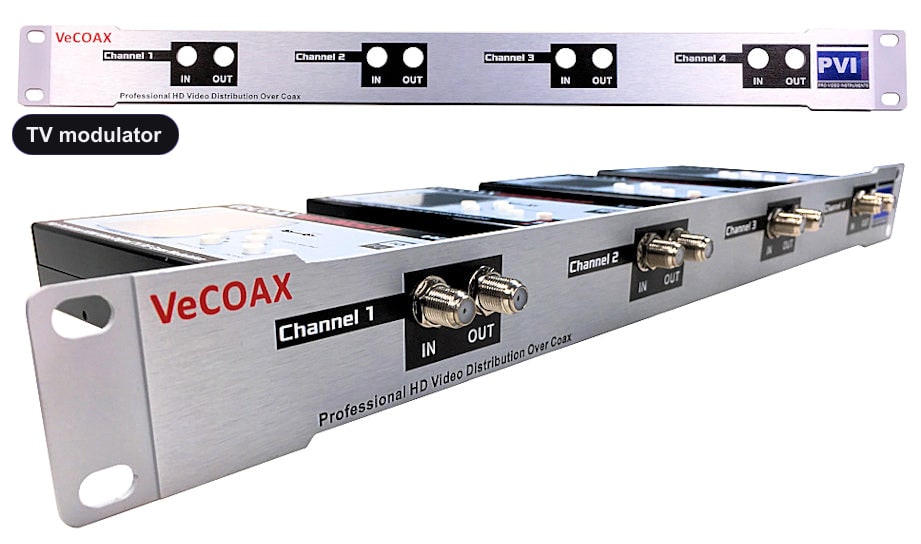

Rack Solutions
Stack Multiple TV Channels in 1RU
Need several TV channels? Mount up to four MINIMOD 2+ TV modulators in a single 1RU rack panel for a tidy, professional multi-channel headend.
The optional 1RU rack panel holds up to four TV modulators in one rack space, with front-panel access and proper airflow. Combine their outputs with a passive combiner and you have a clean multi-channel TV lineup riding a single coax β ideal for AV closets, server rooms, and broadcast facilities.
$105.00$99.00Save $6.00

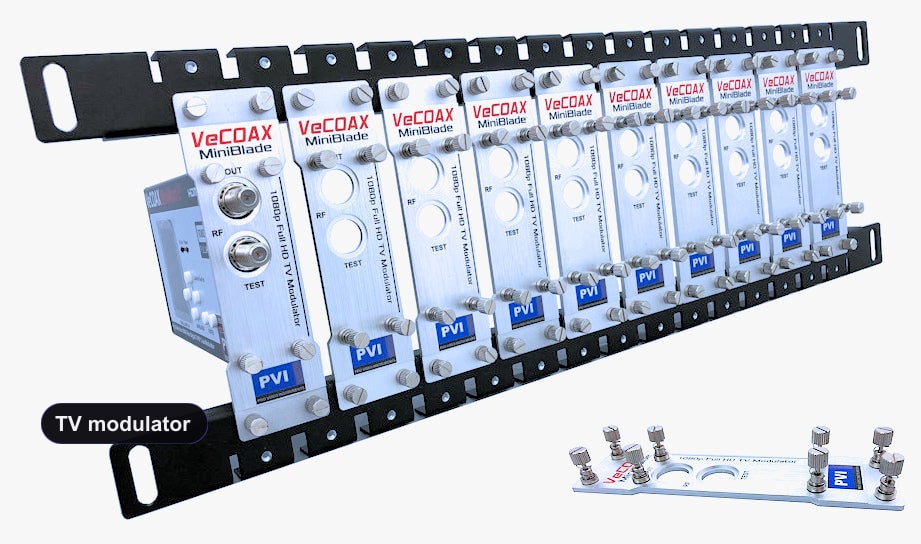

High Density
10+ TV Channels with the MiniBlade Kit
For large TV lineups, the VeCOAX MiniBlade system packs 10 or more modulator units into a single rack β each fully independent so one channel can never take down the rest.
When you need many TV channels at once, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every TV channel runs on its own, which is exactly what 24/7 commercial systems demand.
Compatibility
Every Digital TV Tunes the Channel β HD, 4K, and 8K
The digital channel is a standard broadcast, so any digital tuner decodes it β from an older HD set to a new 8K display.
Because the digital channel follows broadcast spec, compatibility is automatic. The modulator resolves color, frame rate, and audio sync internally, so the channel renders correctly on every digital brand and resolution with no per-set setup.
Features
Built to Create TV Channels Flawlessly
Every detail exists to turn your HDMI source into a digital TV channel with broadcast stability and effortless setup.

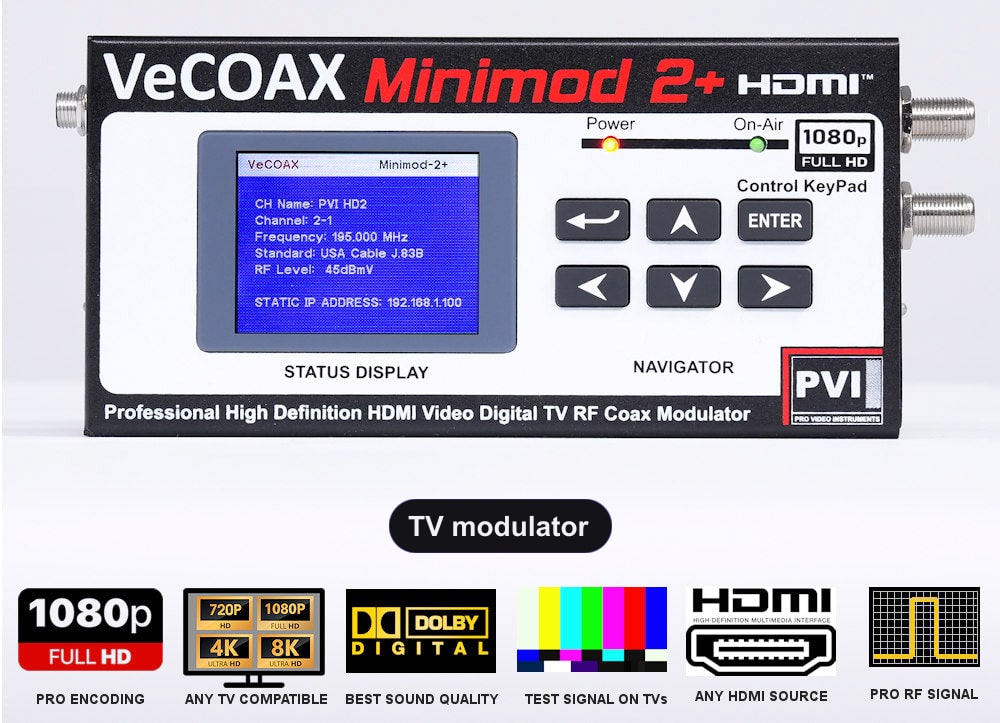

Front-Panel Color LCD
Set your TV channel, modulation, and output level on the built-in display β no laptop, no web hunting.
One-Click Channel Recall
Save and reload the full digital channel plan in one tap on a re-rack.
Full Channel Customization
Place the digital carrier to the hertz and name each channel per lineup.
1080p@60 Motion Encoding
1080p60 motion encoding keeps fast digital content crisp on big screens.
MPEG-2 Broadcast Standard
MPEG-2 digital carriage is what every TV tuner expects for universal decode.
+45 dBmV Output
A +45 dBmV carrier delivers the digital channel down long coax with no amp.
MER >45 dB
High MER keeps the digital channel artifact-free at the farthest tuner.
Full Digital DDS
DDS synthesis stacks digital channels tightly with no spurious between carriers.
Secure Web Remote
Secured browser control for digital TV modulators in racks and closets.
Unlimited TVs
One digital channel serves five sets or five thousand at no per-screen cost.
Built-In Test Pattern
A digital color-bar carrier appears with no HDMI present to verify the run. Built for tv modulator installations.
HDMI Licensed + Full EDID
HDMI-licensed input with full EDID control for a reliable source handshake. Built for tv modulator installations.
Watch the Demo
See a TV Channel Created in Real Time
From wiring an HDMI source to tuning the new digital channel on every TV β the whole process in under five minutes.
Full walkthrough: HDMI hookup, digital channel definition on the LCD, distribution over coax, digital TV scan, and stacking multiple channels. Duration: 4 min 30 sec.
Applications
Where a TV Modulator Shines
π¨
Hotels & Resorts
Publish an amenity digital channel to every guest-room TV.
πΊ
Sports Bars
Put one game feed on a digital channel every bar screen tunes.
βͺ
Churches
Carry the worship camera as a digital channel to overflow and lobby sets.
π₯
Hospitals
Publish education digital channels throughout the hospital.
π
Schools
Publish a campus-announcement digital channel over coax.
π’
Corporate
Put dashboards on a digital channel for every meeting room.
π
Residential
Publish one home digital channel every TV in the house tunes.
π‘οΈ
Government
Deliver secure digital channels over coax for facilities.
Why PVI
Why This Is the Best Digital TV Modulator for TV Modulator
Low-end digital modulators wander and pixelate at the edges of the plant. The MINIMOD 2+ publishes a locked, broadcast-clean digital channel building-wide.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓HDMI 2.0b Input β Top Quality
✕HDMI 1.4 β outdated handshake; may limit newer HDR sources
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Setup Without a Computer
✕Requires PC for Full Setup
✓Dot-less Channel Numbering Mode
✕Not Available
✓+45 dBmV Output β Long Coax Runs
✕Low Output β May Need External Amplifiers
✓4 TV Modulators in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓Digital QAM/ATSC/DVB/ISDB Output
✕Old Analog NTSC β Grainy, One Channel
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Clean at the Far End
✕Low MER β Pixelation & Drops on Long Coax
Specifications
TV Modulator β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2β83 ATSC mode | 2β158 J83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |

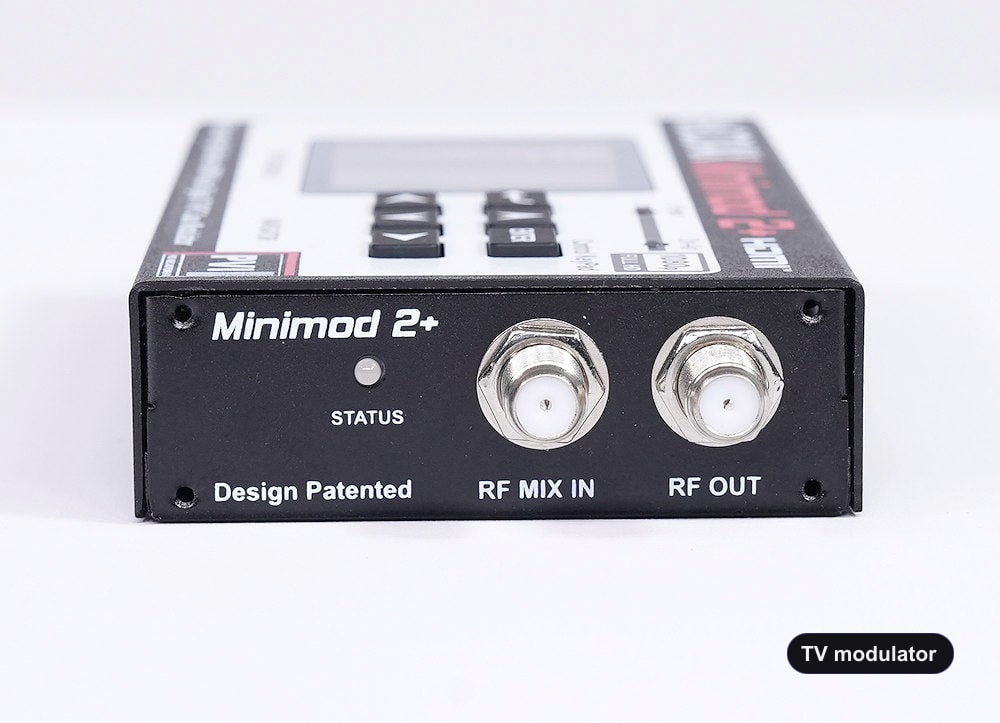

| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |

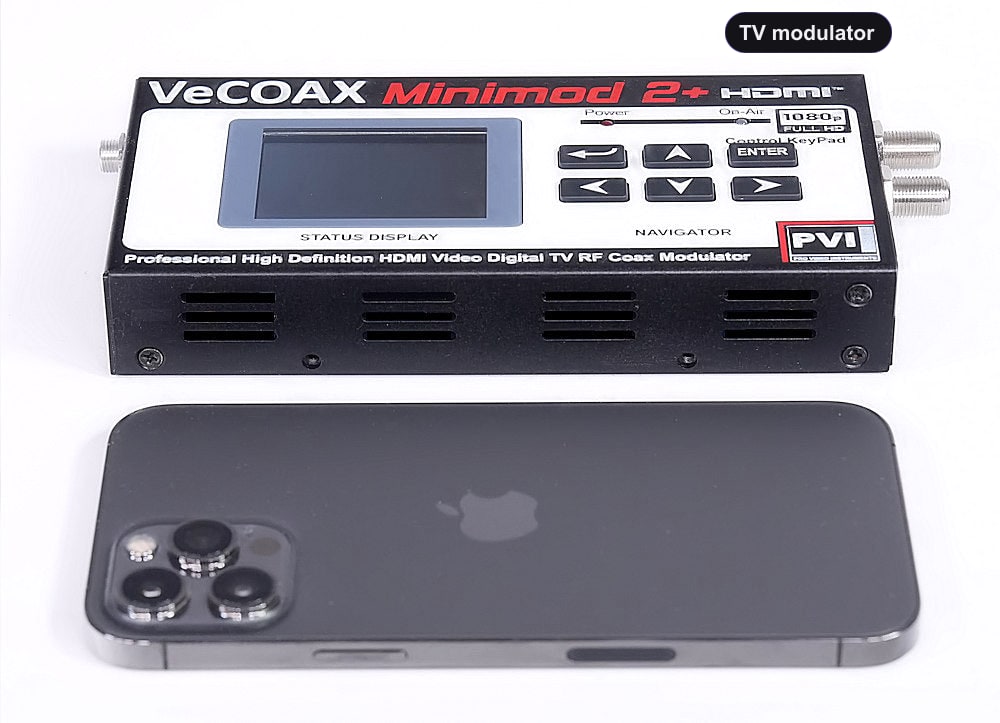

| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
TV Modulator For Digital Channels - Frequently Asked Questions
What is a TV modulator for digital channels?
A TV modulator for digital channels is a device that turns an HDMI source into a real digital TV channel over coax. For the tv modulator keyword family, the VeCOAX MINIMOD 2+ handles creating a private digital TV channel from an HDMI source and lets every connected TV scan the result like normal television.
How does a TV modulator for digital channels work over coax?
For tv modulator, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use a TV modulator for digital channels instead of HDMI cables?
TV Modulator For Digital Channels distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why tv modulator is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this TV modulator for digital channels?
Use HDMI sources such as receivers, cameras, computers, and signage players. For tv modulator installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the tv modulator channel?
Any TV with a compatible digital tuner can receive the tv modulator channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this TV modulator for digital channels support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for tv modulator in hotels, CATV plants, commercial buildings, and private coax systems.
Does this TV modulator for digital channels support ATSC antenna mode?
Yes. In ATSC mode, the same TV modulator for digital channels creates an antenna-style digital TV channel. This helps tv modulator projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this TV modulator for digital channels coexist with existing TV channels?
Yes. Assign the tv modulator output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one TV modulator for digital channels feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For tv modulator, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can tv modulator travel over coax?
TV Modulator For Digital Channels output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this TV modulator for digital channels?
Yes. This is the main advantage of tv modulator: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this TV modulator for digital channels?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes tv modulator setup fast even without a laptop.
Why is the color LCD important for tv modulator?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes TV modulator distribution faster to commission than units that require software for basic setup.
Can I manage this TV modulator for digital channels remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for tv modulator systems in equipment rooms.
What picture quality does this TV modulator for digital channels deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the tv modulator channel stay sharp on every TV.
Does this TV modulator for digital channels work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p tv modulator channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more tv modulator channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger tv modulator lineup.
Where is this TV modulator for digital channels used most often?
This TV modulator for digital channels is used in buildings with TVs that scan cable or antenna channels. Typical tv modulator applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this TV modulator for digital channels different from a analog TV modulator?
A analog TV modulator usually depends on short point-to-point wiring or limited outputs. A TV modulator for digital channels creates a real tunable TV channel, so the existing coax system distributes the tv modulator source to every TV at building scale.
Is the MINIMOD 2+ good for professional tv modulator?
Yes. It is designed for 24/7 professional tv modulator with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this TV modulator for digital channels HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional tv modulator system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this TV modulator for digital channels?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable TV modulator distribution and strong tv modulator performance.
Accessories
Complete Your TV Channel System
Everything you need to combine, rack, and scale multiple TV channels.

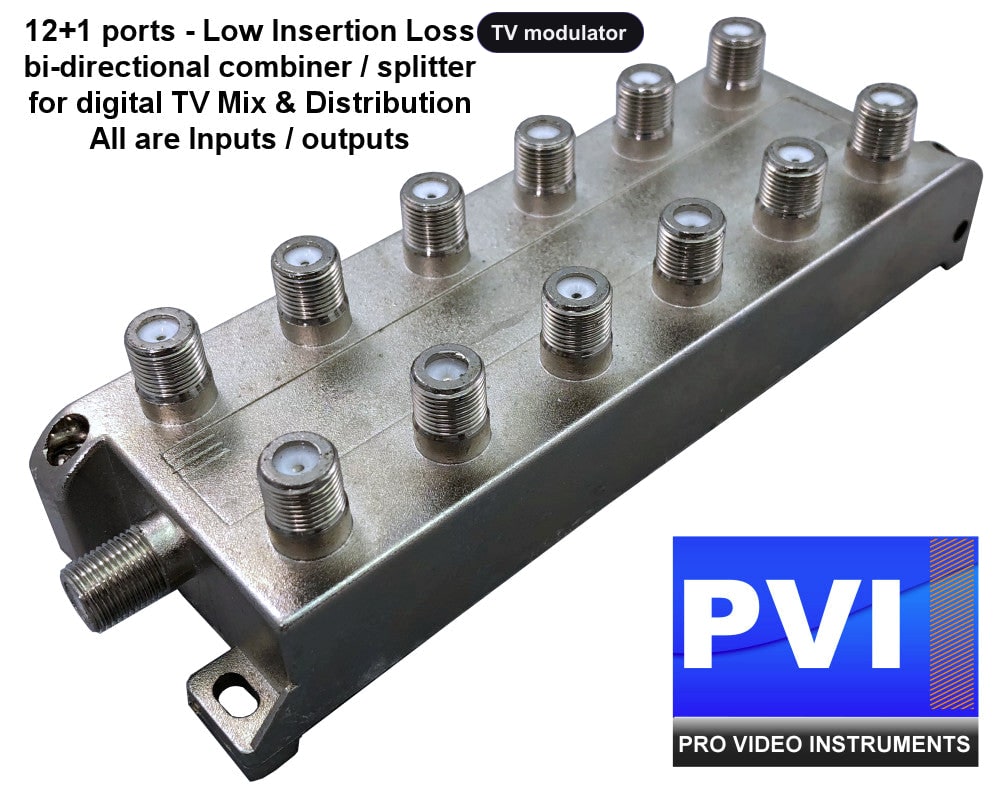

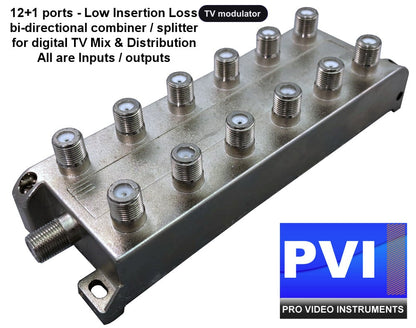

Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

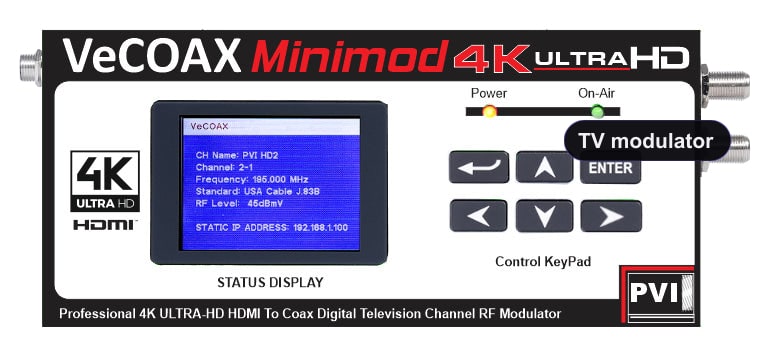

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

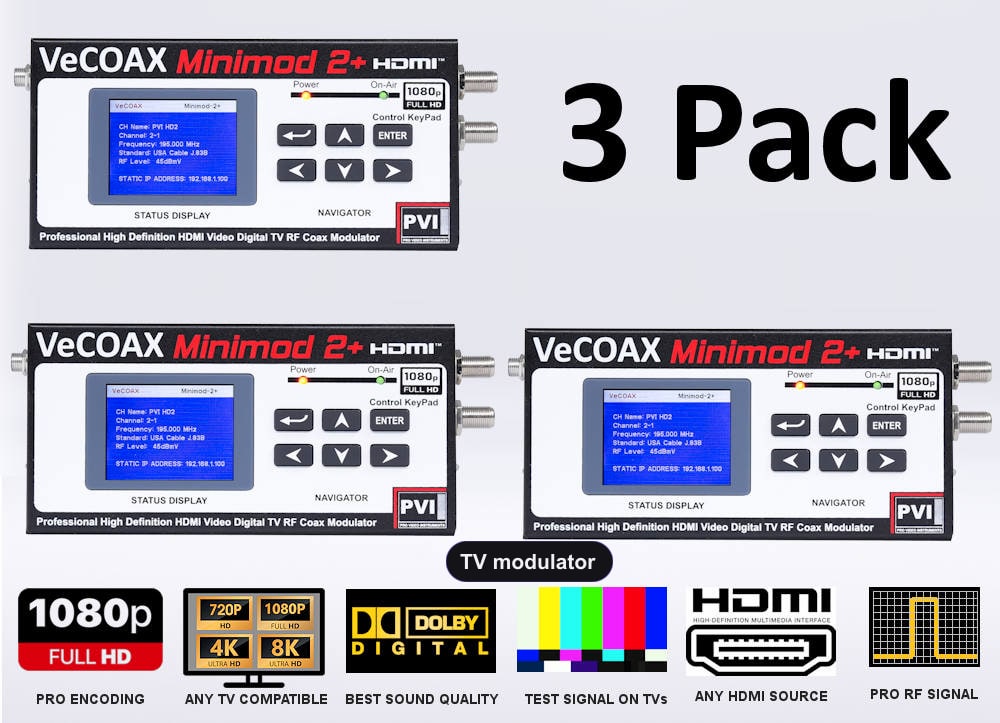

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00
MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Create more TV channels with multi-unit bundles, or step up to 4K over coax.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Turn Your Source into a TV Channel?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
