During the big game, a single pixelated screen costs you the room. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it delivers a broadcast-grade channel: +45 dBmV output and MER above 45 dB, so every TV from the bar to the patio locks instantly and the game stays perfect all night.
Recognition
The Sports Bar TV Modulator Owners Have Trusted Since 2017
When the big game has to be on every screen at once, the VeCOAX MINIMOD 2+ is the sports bar TV modulator pros install β award-winning, US-built, proven on 50,000+ installations.

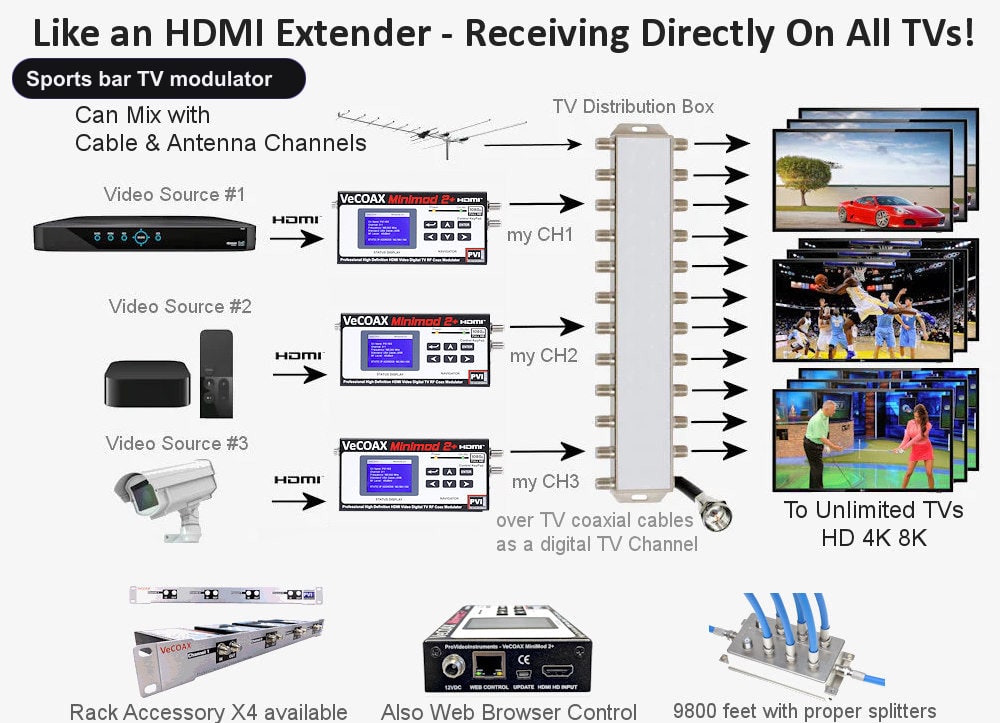

How a Sports Bar TV Modulator Works
One Game Feed β Every Screen in the House
A sports bar TV modulator turns one game source into a channel on your coax. Every TV tunes it on a normal scan β buy the game once and show it on all of them, with no box behind any screen.
- Plug the game source into the modulator β cable/satellite box, PPV receiver, streaming stick, league app
- Assign a channel number on the front-panel LCD β the game becomes a TV channel
- Combine the coax output into the bar's existing TV cabling
- Every screen tunes the game channel on a normal scan, in full 1080p
- No box behind every TV, no HDMI runs across the ceiling, no rewiring
- Show several games at once β add a modulator per feed on the same coax

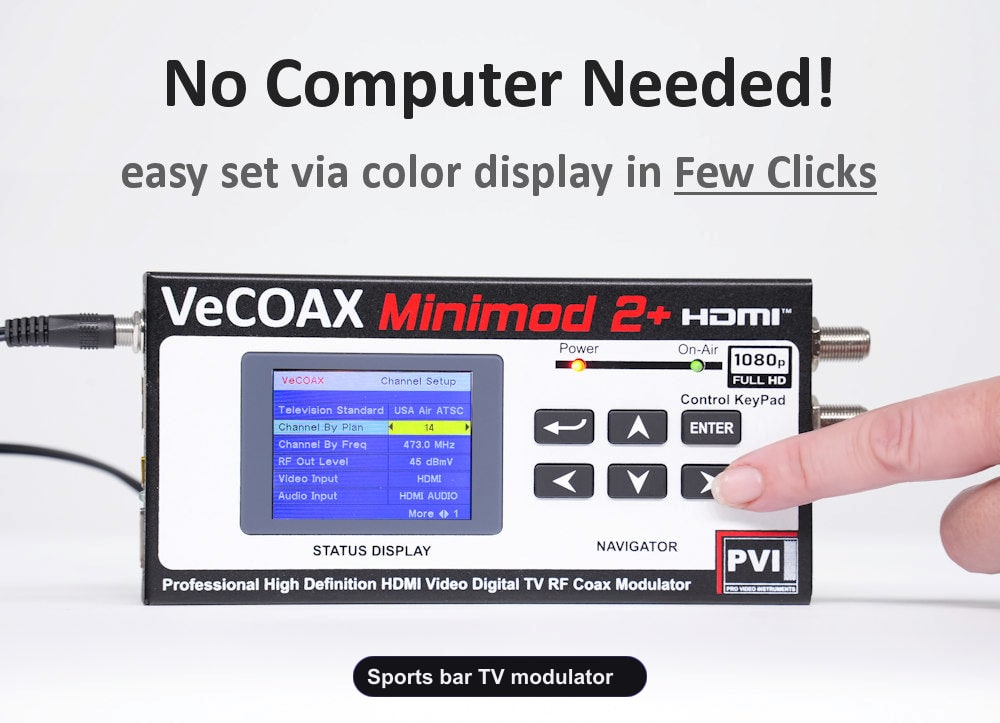

Setup
Put the Game on Every Screen in Under a Minute. No Computer Required.
Bartenders aren't AV techs. The MINIMOD 2+ puts every setting β channel, modulation, output level β on a color LCD right on the box, so changing the feed between games takes seconds.
- Built-in color LCD shows the channel, frequency, and signal status at a glance Built for sports bar tv modulator installations.
- Match your bar's TV standard β QAM or ATSC β right on the front panel
- No PC, no software, no app β staff can change the feed in seconds
- Power on β pick a channel β combine onto coax β scan TVs β done Built for sports bar tv modulator installations.
Matches Your Bar

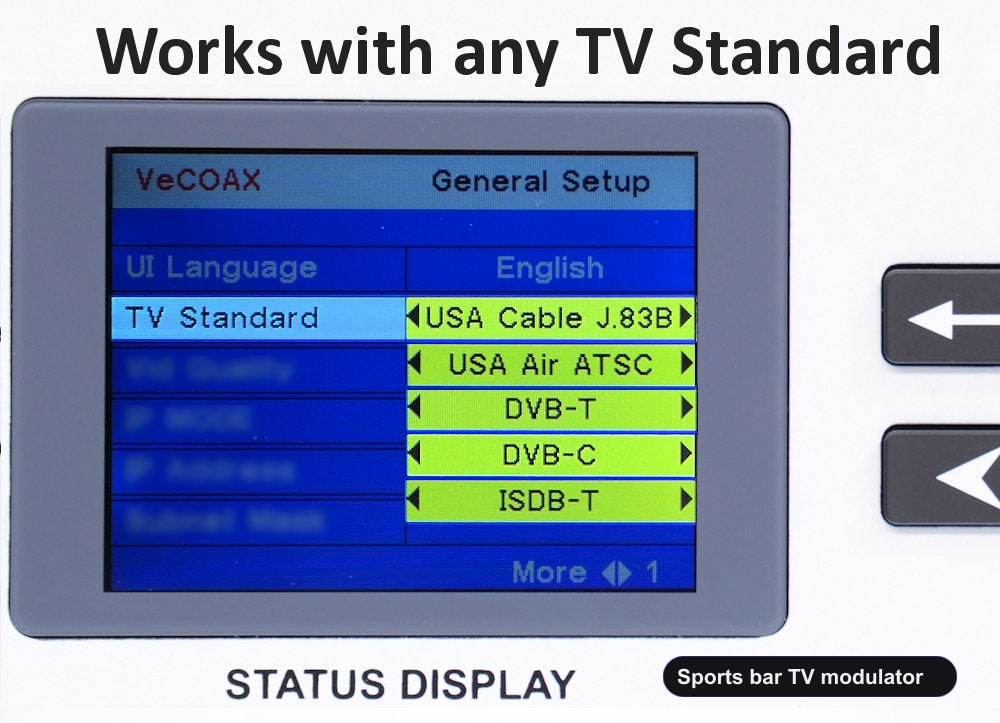

Works With Whatever Standard Your TVs Tune
QAM for cable-mode TVs, ATSC for antenna-mode, plus DVB-T, DVB-C, and ISDB-T β selectable on the LCD. One modulator fits any sports bar TV system.
Bars run different TV setups β some on cable QAM, some on antenna ATSC. The MINIMOD 2+ outputs all of them, so your game channel joins the existing lineup cleanly no matter how the place is wired.
Because it produces a true broadcast-standard channel, the game behaves exactly like any pro sports network on every screen in the building.

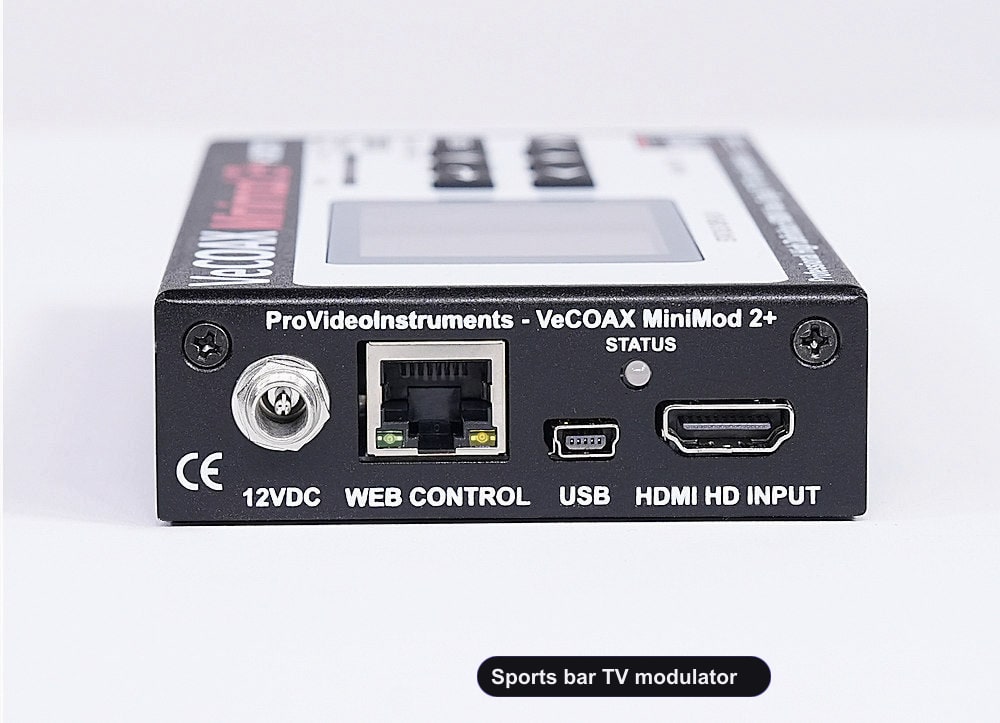

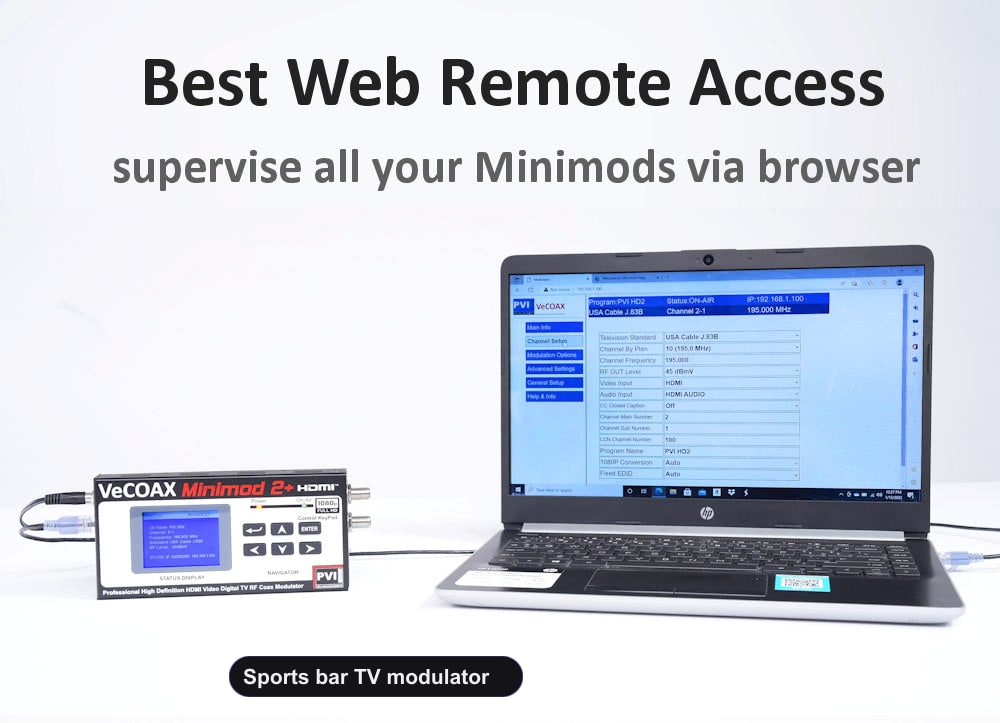

Remote Control
Switch Feeds From Behind the Bar
The front-panel LCD handles setup, but when modulators live in the back you can also monitor and retune them remotely through the secure web interface β change the big game without leaving the bar.
- Optional web interface to change the channel or feed from behind the bar
- Manage a rack of game-feed modulators from one browser tab
- Works from PC, Mac, tablet, or phone β no app to install Built for sports bar tv modulator installations.
- Live status so you know every game channel is on-air before kickoff

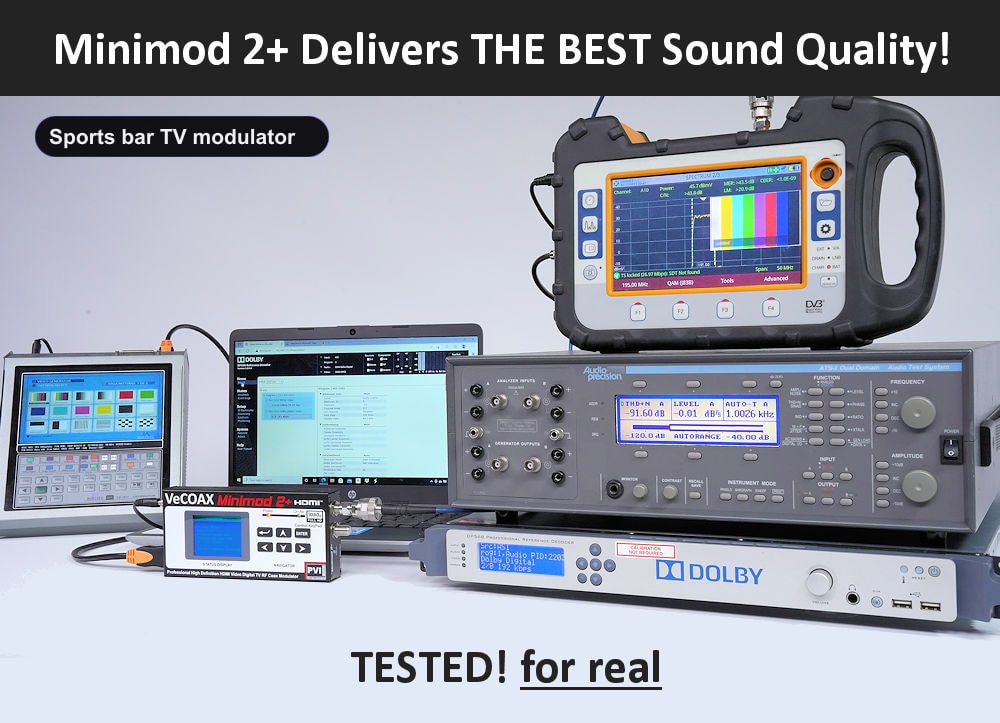

Audio
Every Screen, Same Play β Perfectly in Sync
Nothing kills the vibe like one TV a half-second behind. The MINIMOD 2+ encodes broadcast-grade Dolby Digital so audio arrives locked to picture on every screen in the bar.
- Dolby Digital / LPCM audio on the game channel
- Tight lip-sync from feed to every TV β no echo or drift across the room
- Passes 5.1 surround from compatible HDMI sources Built for sports bar tv modulator installations.
- Crowd-roar clarity on every screen and speaker zone

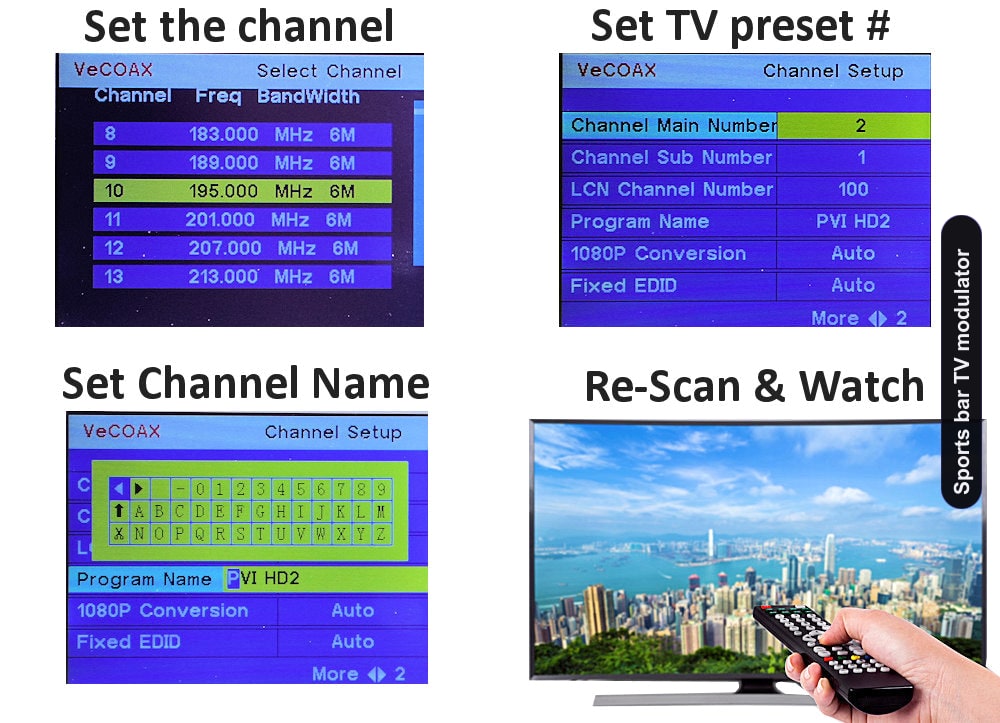

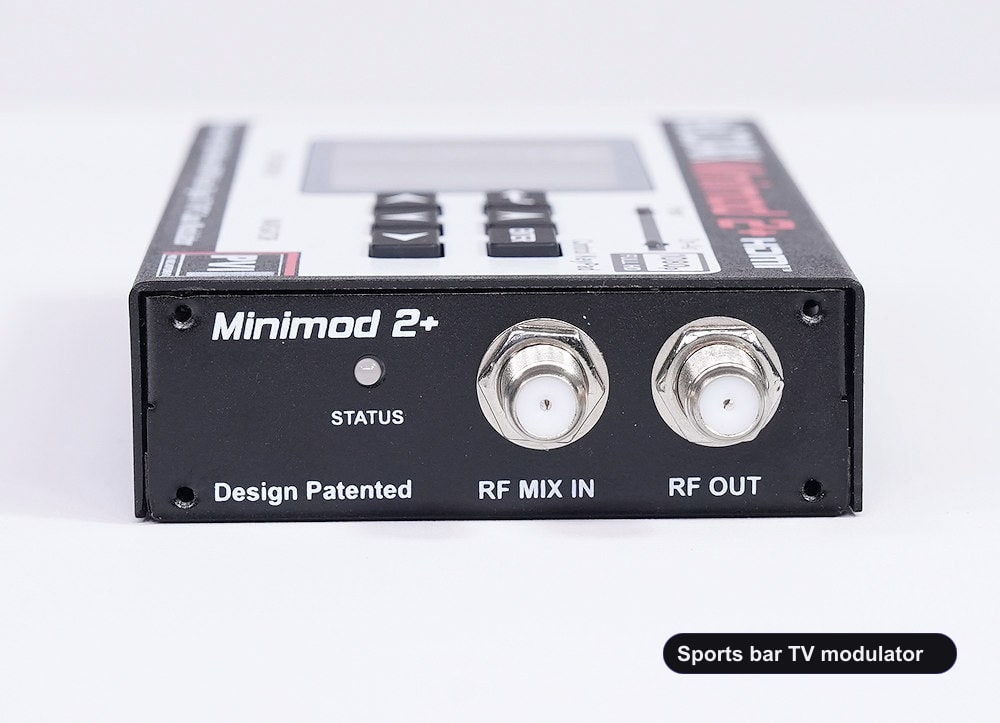

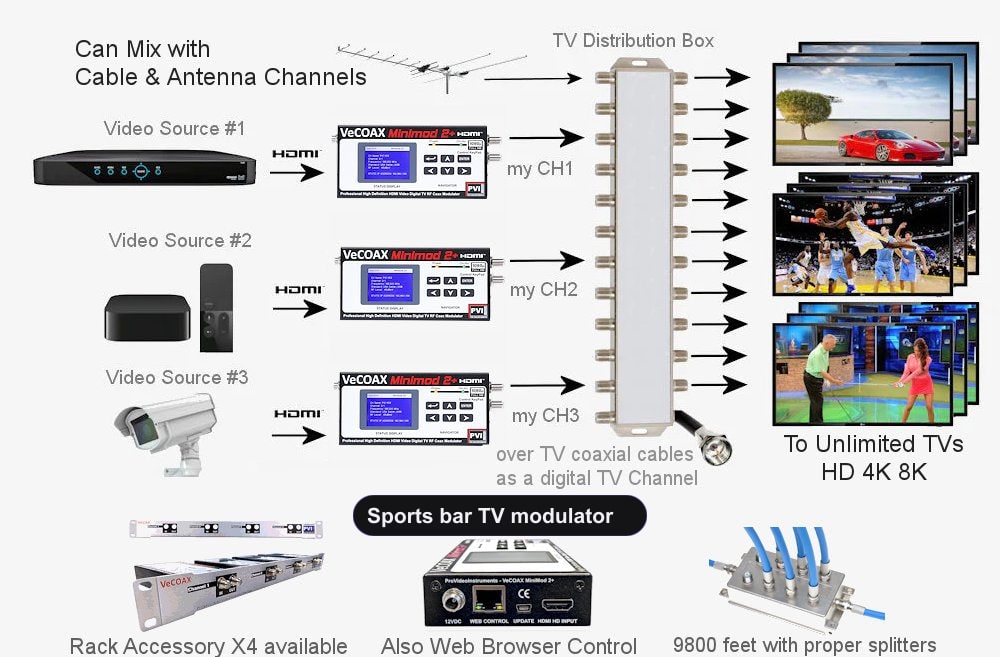

Installation
Three Connections. Done.
Game source in. Combine onto coax. Channel scan. The game is on every screen β in Full HD with synced audio.
A sports bar TV modulator install with the MINIMOD 2+ takes minutes, not days. Connect the game source to the input, combine the F-type coax output into the bar's TV cabling, pick a channel on the LCD, and auto-scan the TVs. There is no network to configure and no box behind any screen β the existing coax feeds every TV.

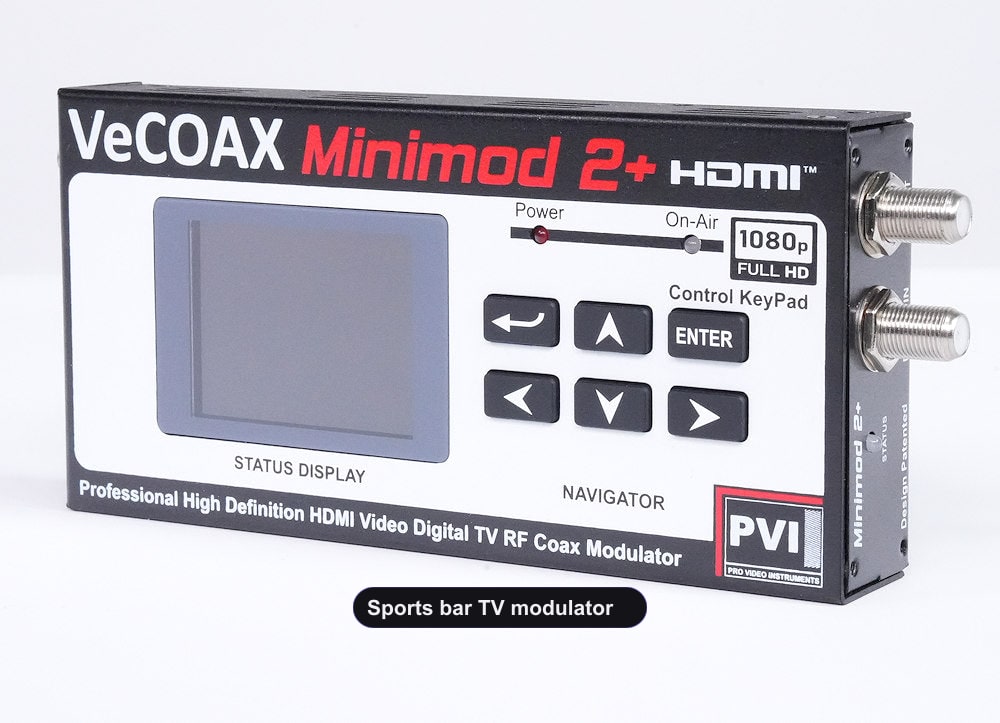

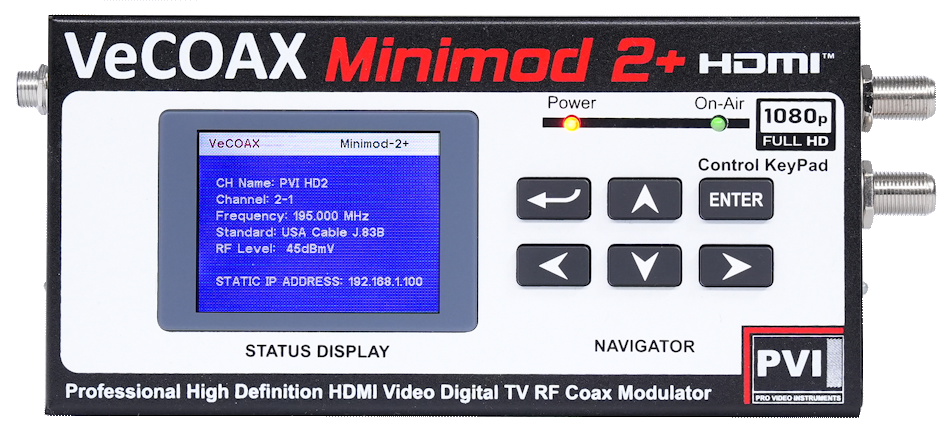

The MINIMOD 2+
A Sports Bar TV Modulator With Broadcast Quality
Palm-sized aluminum build, spurious-free modulation, and a front-panel LCD β the professional way to put one game on every screen. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ distributes the game the way networks distribute broadcasts: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to reach the farthest TV, a built-in color LCD for instant feed changes, and support for every worldwide TV standard. One small box turns any game source into a channel on every screen in the bar over existing coax.

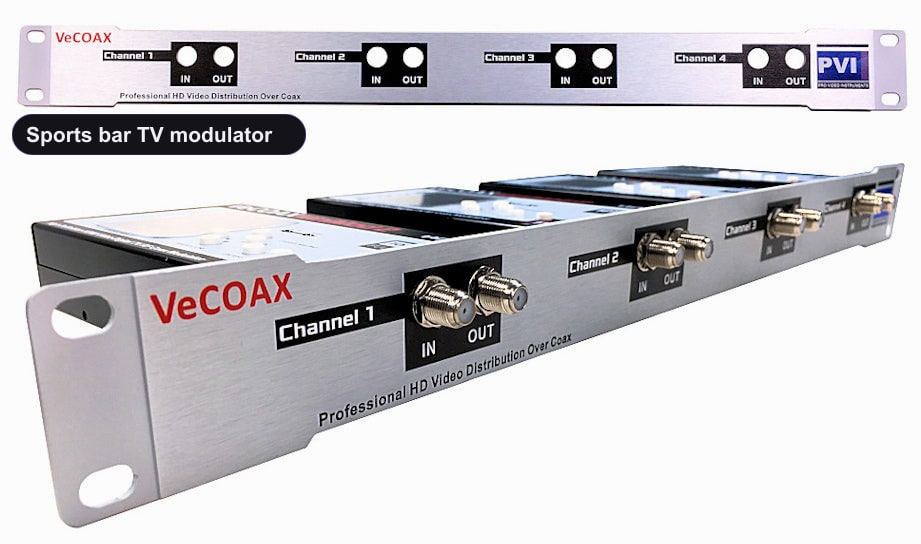

Rack Solutions

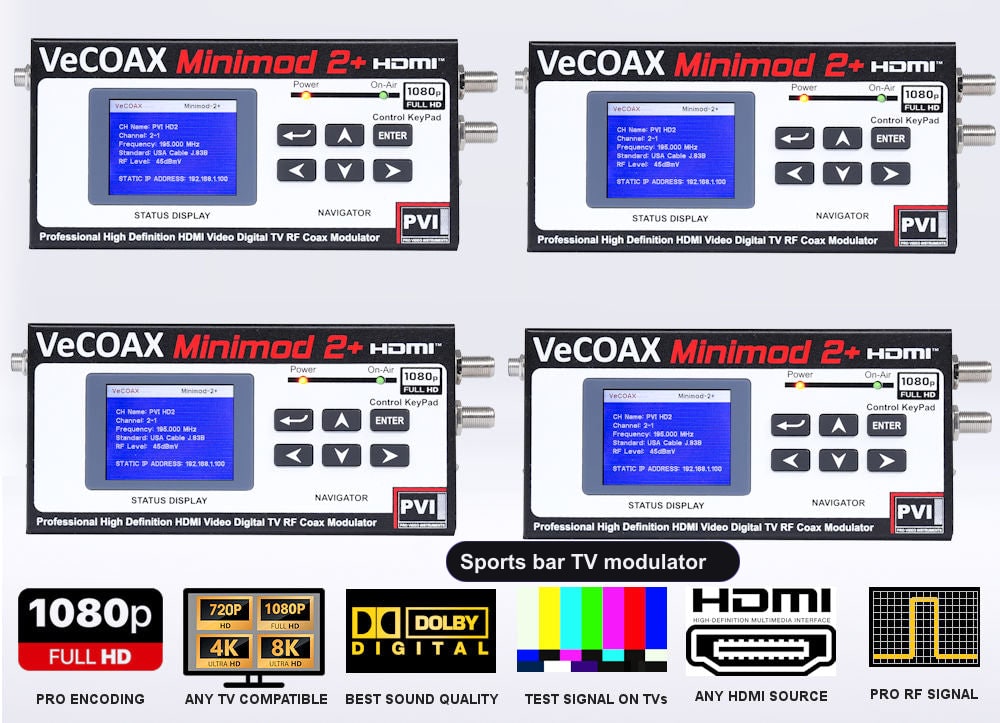

Show Four Games at Once in 1RU
Sunday ticket on every game? Mount up to four MINIMOD 2+ modulators in a single 1RU rack panel β four feeds, four channels, every screen its choice.
The optional 1RU rack panel holds up to four game-feed modulators in one rack space, with front-panel access and proper airflow. Combine their outputs and assign zones to different channels, so the patio watches one game while the bar watches another β all over the same coax.
$105.00$99.00Save $6.00
High Density

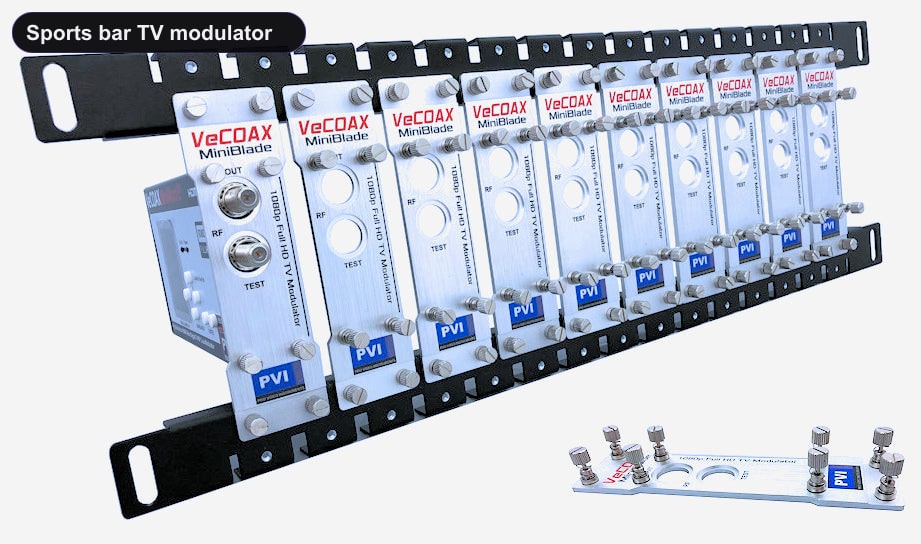

10+ Game Feeds with the MiniBlade Kit
For mega sports bars and stadiums, the VeCOAX MiniBlade packs 10 or more modulator units into a single rack β each fully independent so one feed can never take down the rest.
When you want every game on its own channel, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every game feed runs on its own, which is exactly what a packed game-day venue demands.
Compatibility
Every Screen Tunes the Game β HD, 4K, and 8K
The game channel is a standard digital signal, so any TV with a built-in tuner decodes it perfectly β from older HD sets to the newest 4K wall displays.
Because the MINIMOD 2+ outputs a standard digital channel, virtually every TV in the bar decodes it with its own tuner β no box behind the screen. Color space, frame rate, and audio sync are handled inside the modulator, so the game looks right on every brand and size you've mounted.
Features
Built for Packed-House Game Days
Every detail exists to put one game on every screen with broadcast stability and effortless feed changes.

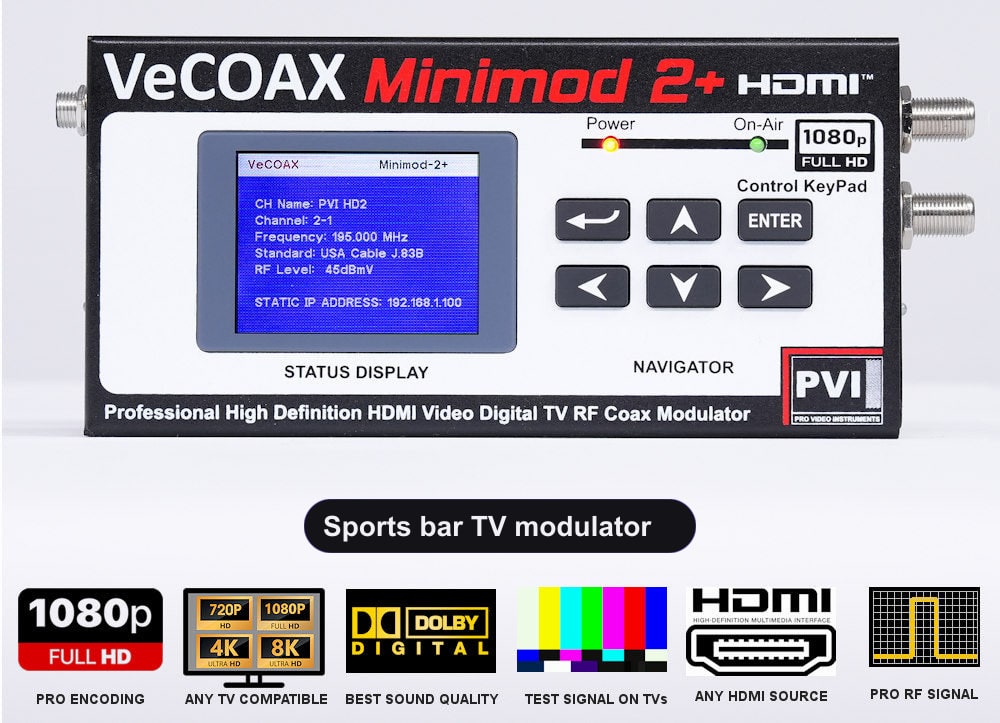

Front-Panel Color LCD
Set the game channel, modulation, and output level on the built-in display β no laptop.
One-Click Config Recall
Save and recall feed setups instantly β swap between game days in seconds.
Full Channel Customization
Tune frequency down to the Hz, choose any channel, name it, and shape every parameter.
1080p@60 Motion Encoding
Multi-layer motion estimation keeps fast game action crisp on the biggest screens.
MPEG-2 Broadcast Standard
Encodes in the same format sports networks use β universal TV compatibility.
+45 dBmV Output
Reaches the farthest TV and the patio through your splitters with no external amp.
MER >45 dB
Clean channel for instant lock and zero pixelation when the place is packed.
Full Digital DDS
Spurious-free output so the game channel stacks cleanly beside your cable lineup.
Secure Web Remote
Password-protected browser control to change feeds without leaving the bar.
Unlimited Screens
Put the game on 8 TVs or 80 β no per-screen cost, no per-TV box.
Built-In Test Pattern
Color bars appear when no source is connected, so you can verify the coax run.
HDMI Licensed + Full EDID
Fully HDMI licensed with exclusive EDID control for a guaranteed handshake with any feed.
Watch the Demo
See One Game Hit Every Screen in Real Time
From plugging in a single game source to watching it on every TV in the bar β the whole process in under five minutes.
Complete walkthrough: game source connection, channel assignment on the LCD, TV scan, and multi-game rack setups. Duration: 4 min 30 sec.
Applications
Where a Sports Bar TV Modulator Shines
πΊ
Sports Bars
One game on every screen β buy the PPV or league package once.
π
Game-Day Venues
Sunday ticket across the whole room with a feed per zone.
π½οΈ
Restaurants
Put the big match on every dining-room TV without extra boxes.
π±
Pool & Game Halls
Keep every table in view of the game on coax.
π»
Breweries & Taprooms
Show events on patio and indoor screens from one feed.
π£
Clubhouses
Tournaments and races on every clubhouse TV.
π€
Casinos
Race and fight feeds across the floor over existing coax.
π’
Break Rooms
Big-game viewing for staff lounges on the building's coax.
Why PVI
Why This Is the Best Sports Bar TV Modulator
Per-receiver PPV fees and per-screen boxes drain your margins. The MINIMOD 2+ lets you buy the game once and show it on every screen over existing coax β with broadcast quality.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓Buy the Game Once β Show on Every TV
✕PPV Charged per Receiver / per TV
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Staff Change Feeds Without a PC
✕Requires PC for Full Setup
✓No Box Behind Any TV
✕Matrix/IP Systems Need a Receiver per Screen
✓+45 dBmV β Reaches the Patio
✕Low Output β May Need External Amplifiers
✓4 Games in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓Spurious-Free DDS β Won't Disturb Lineup
✕Spurs Disturb Your Cable Channels
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β No Pixelation at Kickoff
✕Low MER β Pixelation on Far Screens
Specifications
Sports Bar TV Modulator β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2β83 ATSC mode | 2β158 J.83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |
| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |

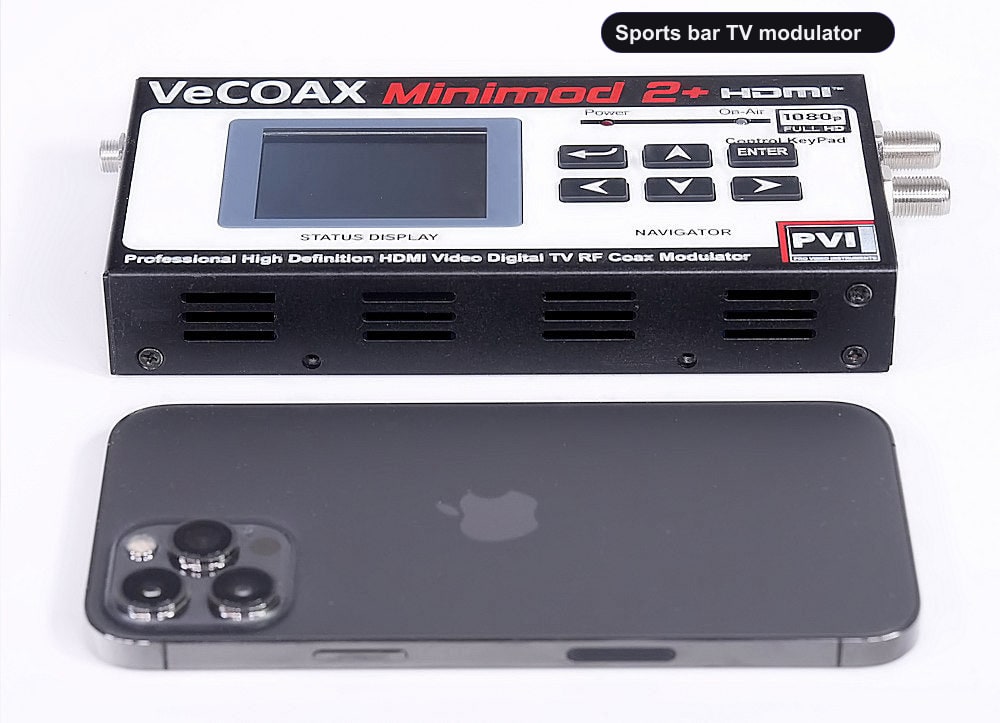

| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
Sports Bar TV Modulator - Frequently Asked Questions
What is a sports bar TV modulator?
A sports bar TV modulator is a device that turns an HDMI source into a real digital TV channel over coax. For the sports bar tv modulator keyword family, the VeCOAX MINIMOD 2+ handles putting one game, camera, or signage source on every bar TV and lets every connected TV scan the result like normal television.
How does a sports bar TV modulator work over coax?
For sports bar tv modulator, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use a sports bar TV modulator instead of HDMI cables?
Sports Bar TV Modulator distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why sports bar tv modulator is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this sports bar TV modulator?
Use sports receivers, media players, cameras, video switchers, and signage computers. For sports bar tv modulator installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the sports bar tv modulator channel?
Any TV with a compatible digital tuner can receive the sports bar tv modulator channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this sports bar TV modulator support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for sports bar tv modulator in hotels, CATV plants, commercial buildings, and private coax systems.
Does this sports bar TV modulator support ATSC antenna mode?
Yes. In ATSC mode, the same sports bar TV modulator creates an antenna-style digital TV channel. This helps sports bar tv modulator projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this sports bar TV modulator coexist with existing TV channels?
Yes. Assign the sports bar tv modulator output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one sports bar TV modulator feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For sports bar tv modulator, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can sports bar tv modulator travel over coax?
Sports Bar TV Modulator output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this sports bar TV modulator?
Yes. This is the main advantage of sports bar tv modulator: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this sports bar TV modulator?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes sports bar tv modulator setup fast even without a laptop.
Why is the color LCD important for sports bar tv modulator?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes sports bar TV distribution faster to commission than units that require software for basic setup.
Can I manage this sports bar TV modulator remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for sports bar tv modulator systems in equipment rooms.
What picture quality does this sports bar TV modulator deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the sports bar tv modulator channel stay sharp on every TV.
Does this sports bar TV modulator work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p sports bar tv modulator channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more sports bar tv modulator channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger sports bar tv modulator lineup.
Where is this sports bar TV modulator used most often?
This sports bar TV modulator is used in sports bars, restaurants, casinos, clubs, and entertainment venues. Typical sports bar tv modulator applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this sports bar TV modulator different from a HDMI splitter system?
A HDMI splitter system usually depends on short point-to-point wiring or limited outputs. A sports bar TV modulator creates a real tunable TV channel, so the existing coax system distributes the sports bar tv modulator source to every TV at building scale.
Is the MINIMOD 2+ good for professional sports bar tv modulator?
Yes. It is designed for 24/7 professional sports bar tv modulator with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this sports bar TV modulator HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional sports bar tv modulator system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this sports bar TV modulator?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable sports bar TV distribution and strong sports bar tv modulator performance.
Accessories
Complete Your Game-Day Head-End
Everything you need to combine, rack, and scale game feeds across the bar.

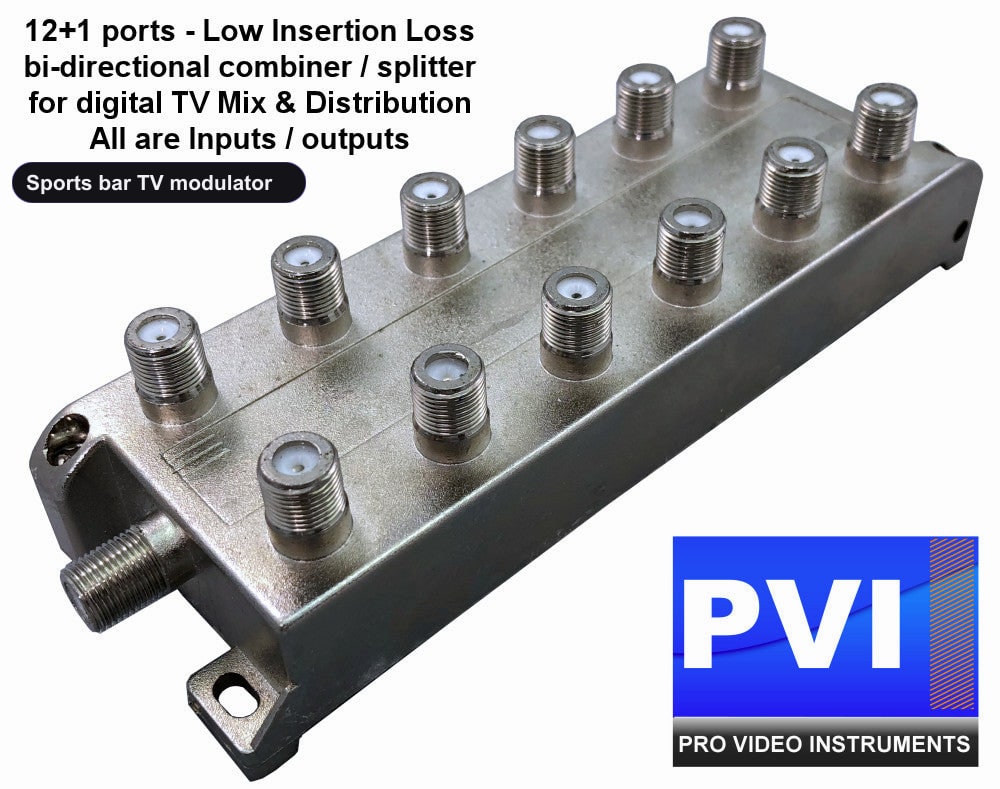

Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00
VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

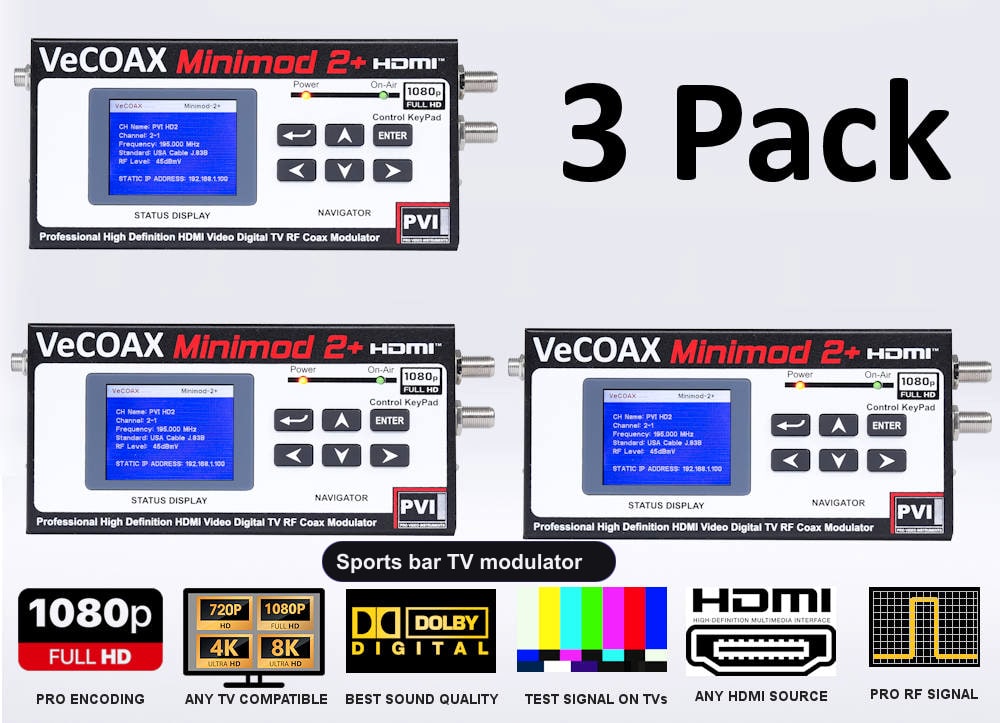

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00
MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Show more games at once with multi-unit bundles, or step up to 4K.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Put the Game on Every Screen?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
