A broadcast that drops out during the morning bell undermines the whole system. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it delivers a broadcast-grade channel: +45 dBmV output and MER above 45 dB, so every classroom TV from the front office to the gym locks instantly and stays artifact-free.
Recognition
The School TV Distribution Modulator Trusted Since 2017
When morning announcements and content must reach every classroom on campus, the VeCOAX MINIMOD 2+ is the school TV distribution modulator integrators specify β award-winning, US-built, proven on 50,000+ installations.

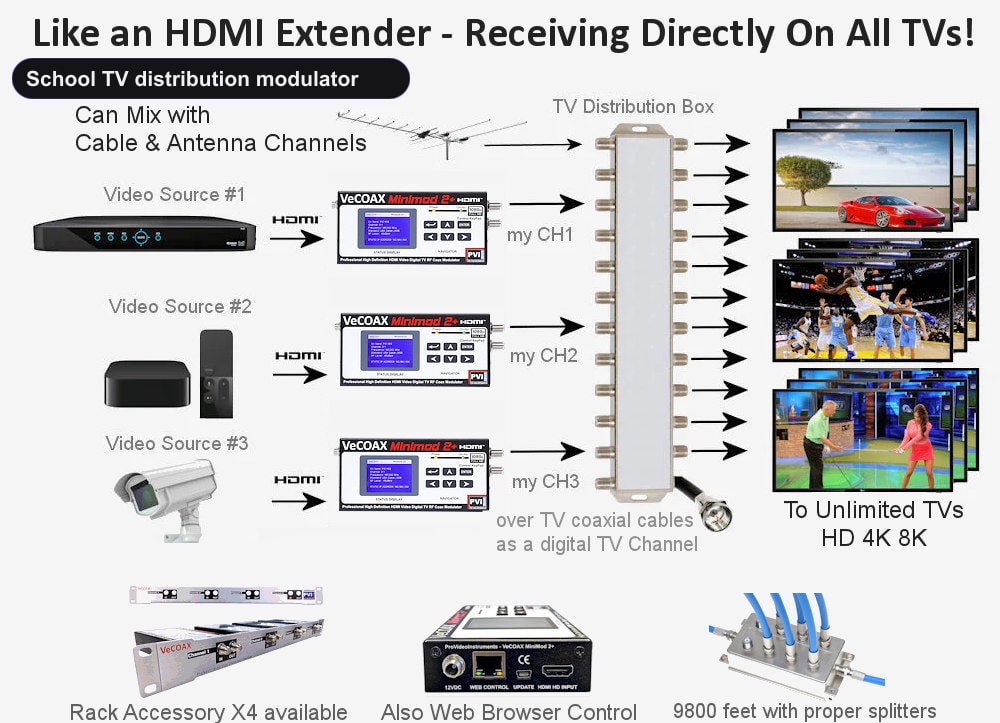

How a School TV Distribution Modulator Works
Studio Feed β An Announcement Channel in Every Classroom
A school TV distribution modulator turns your broadcast feed into a channel on the campus coax. Every classroom TV tunes it on a normal scan β no per-room box, no network congestion.

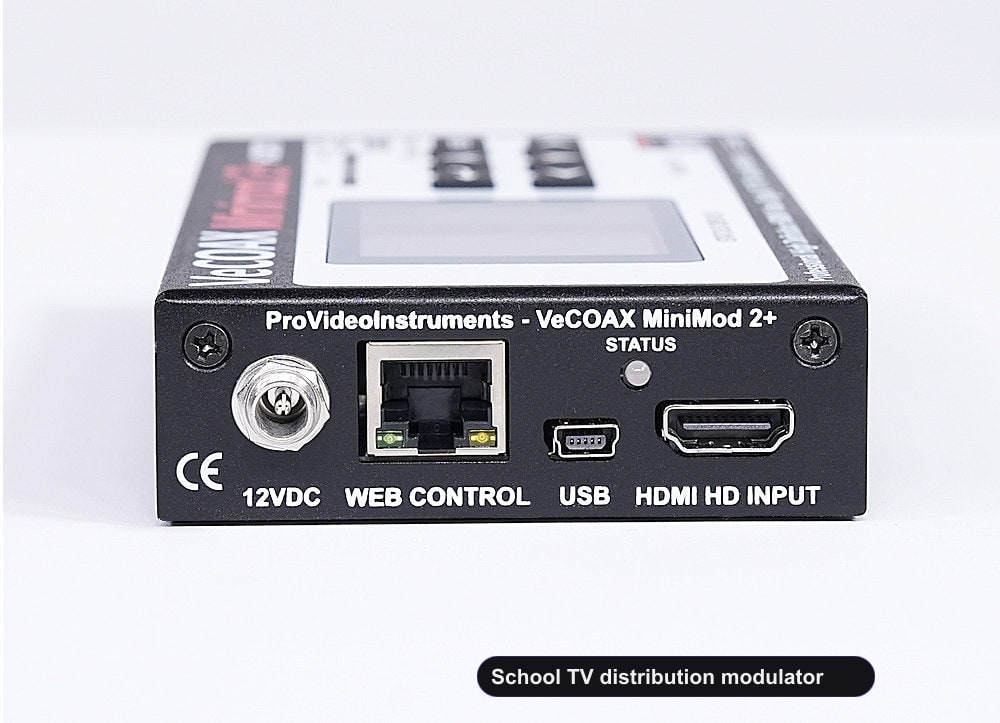

- Feed your source into the modulator β studio switcher, announcement camera, signage player, computer output
- Assign a channel number on the front-panel LCD β your broadcast becomes a TV channel

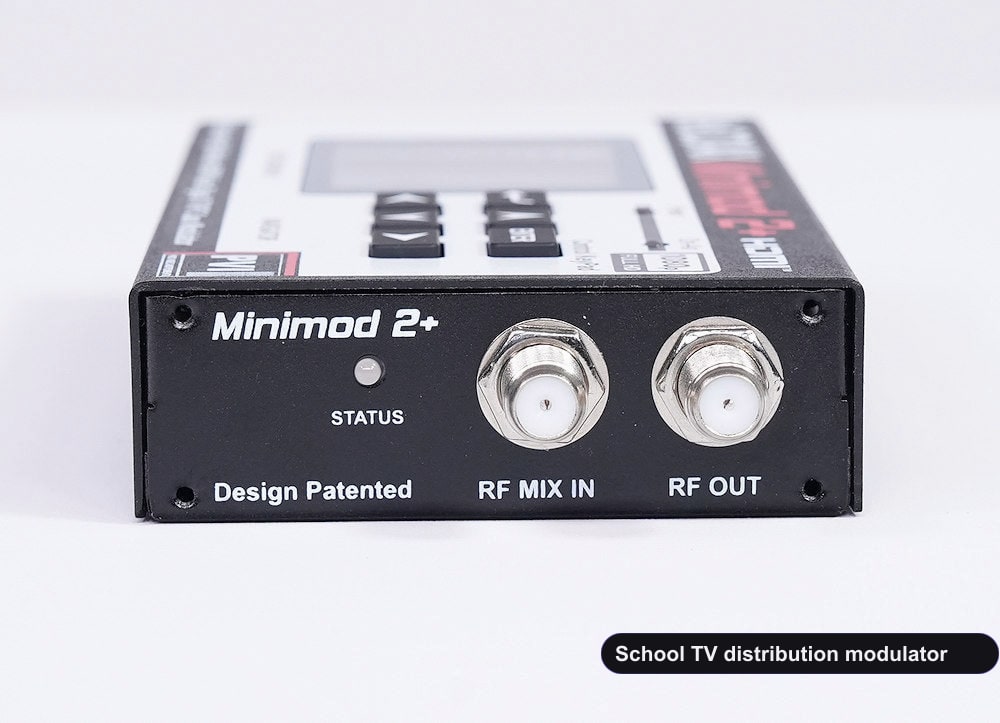

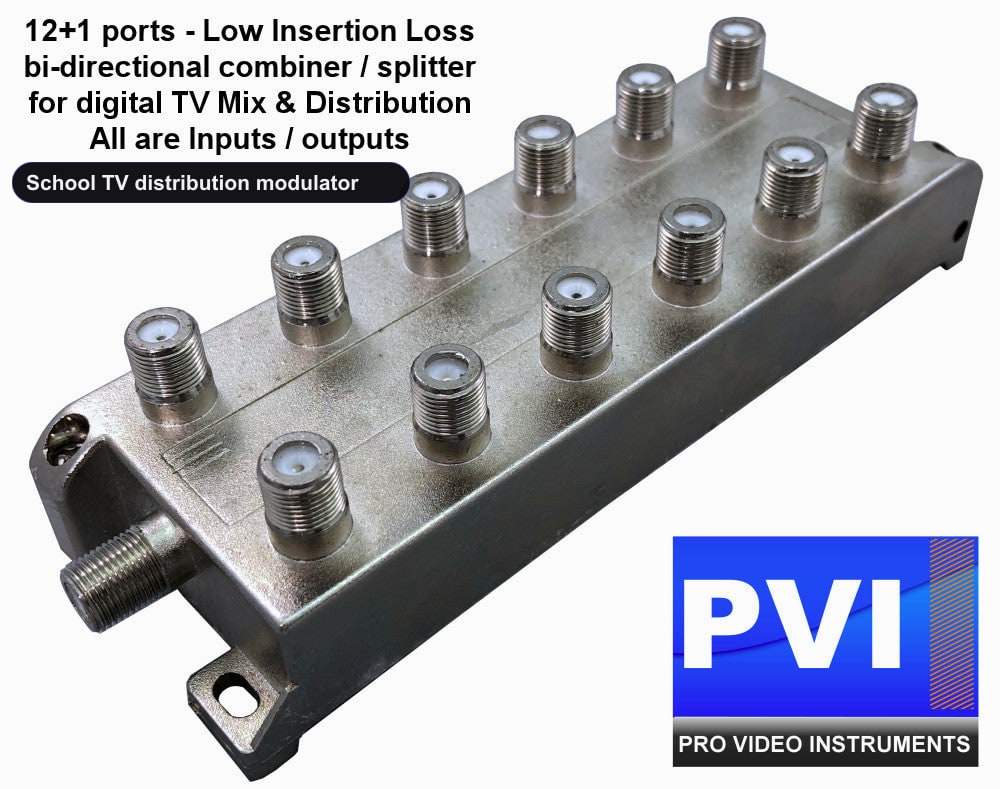

- Combine the coax output into the campus's existing TV cabling
- Every classroom TV tunes the channel on a normal scan, in full 1080p
- No streaming box per room, no new cabling pulled, no network bottleneck
- Add event, sports, and info channels by adding more modulators on the same coax

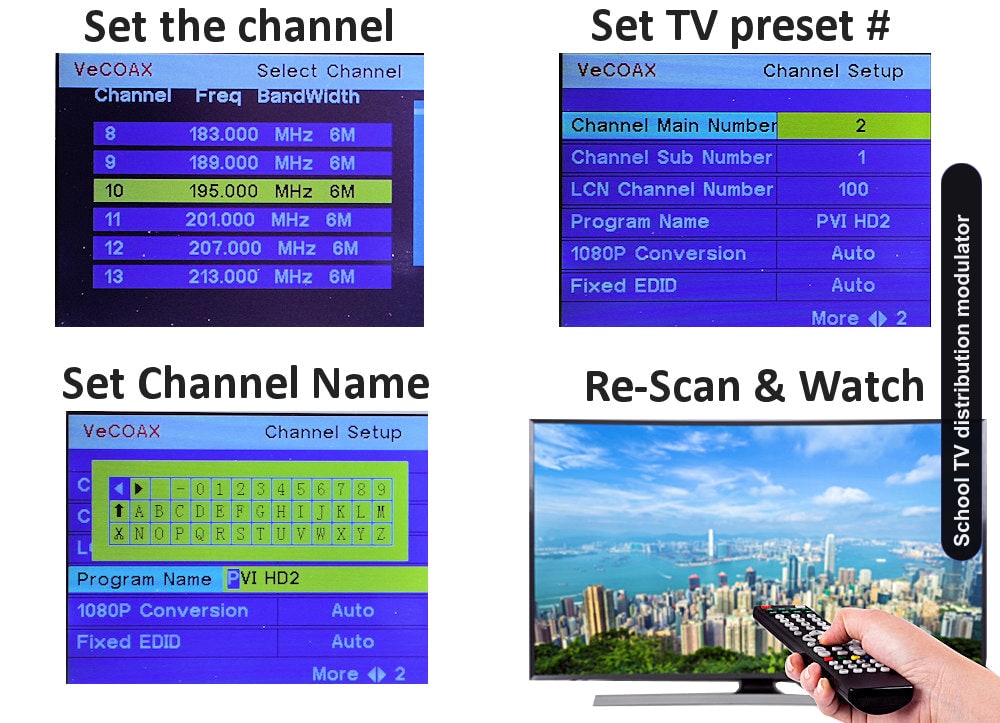

Setup
Broadcast to Every Classroom in Under a Minute. No Computer Required.

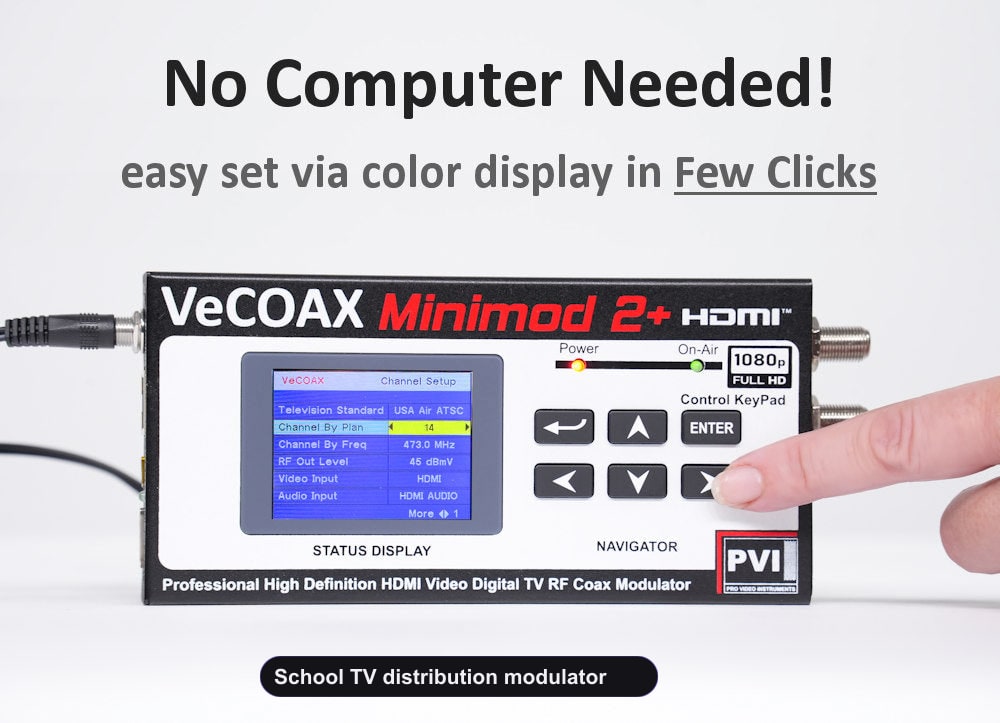

School AV programs need gear students and staff can run. The MINIMOD 2+ puts every setting β channel, modulation, output level β on a color LCD right on the box, set once and reliable every morning.
- Built-in color LCD shows the channel, frequency, and signal status at a glance Built for school tv distribution modulator installations.
- Match the campus standard β QAM or ATSC β right on the front panel
- No PC, no software, no app β set it once and student broadcasters run it daily
- Power on β pick a channel β combine onto coax β scan TVs β done Built for school tv distribution modulator installations.
Matches Your Campus
Works With Whatever Standard Your School TVs Tune

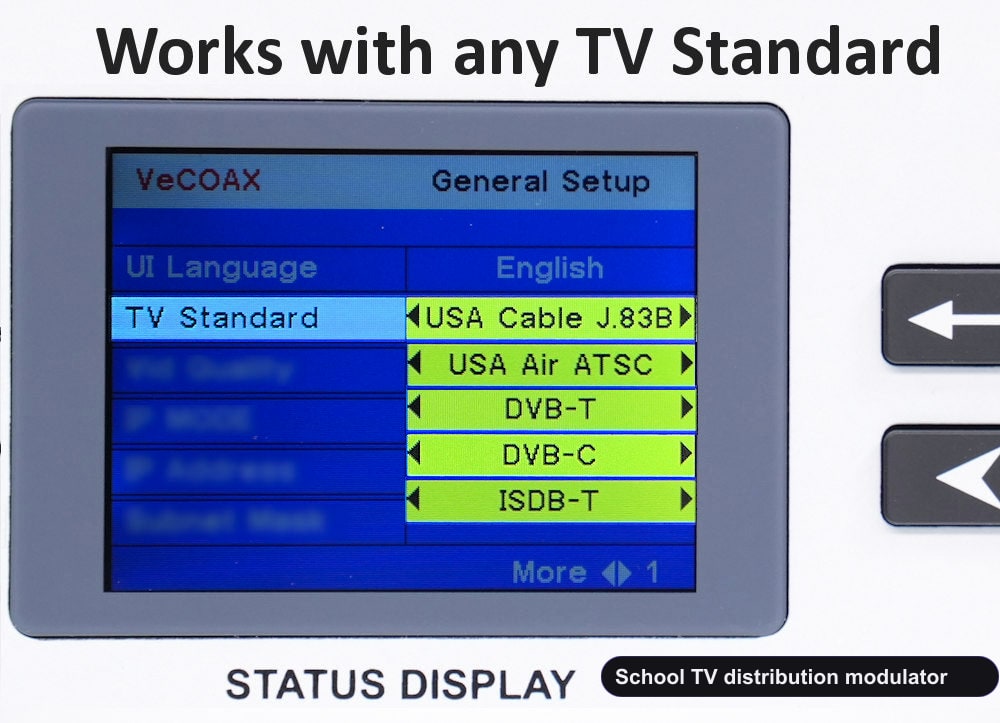

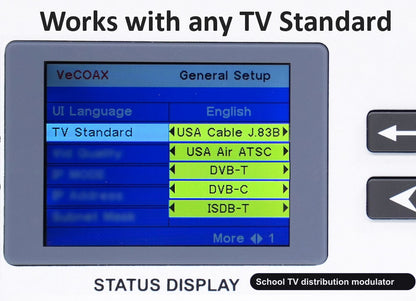

QAM for cable-mode TVs, ATSC for antenna-mode, plus DVB-T, DVB-C, and ISDB-T β selectable on the LCD. One modulator fits any school AV system.
Schools run a mix of TV setups depending on how each building was wired. The MINIMOD 2+ outputs every standard, so the announcement channel joins the existing campus lineup cleanly no matter the configuration.
Because it produces a true broadcast-standard channel, your broadcast behaves exactly like any professional station on every classroom TV.
Remote Control
Manage Campus Channels From the Studio

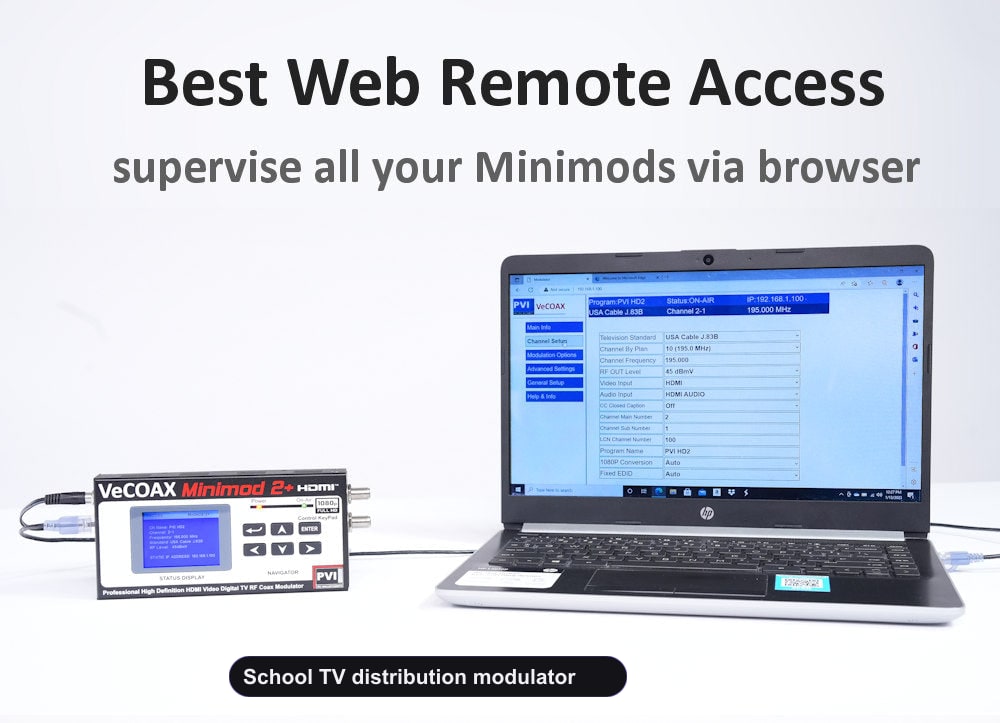

The front-panel LCD handles setup, but when modulators live in the AV closet you can also monitor and retune them remotely through the secure web interface. Built for school tv distribution modulator installations.
- Optional web interface for remote channel and level changes over the school LAN
- Manage a rack of broadcast modulators from the studio or IT office
- Works from PC, Mac, tablet, or phone β no app to install Built for school tv distribution modulator installations.
- Live status so staff know the announcement channel is on-air before first bell
Audio
Clear Announcement Audio in Every Classroom

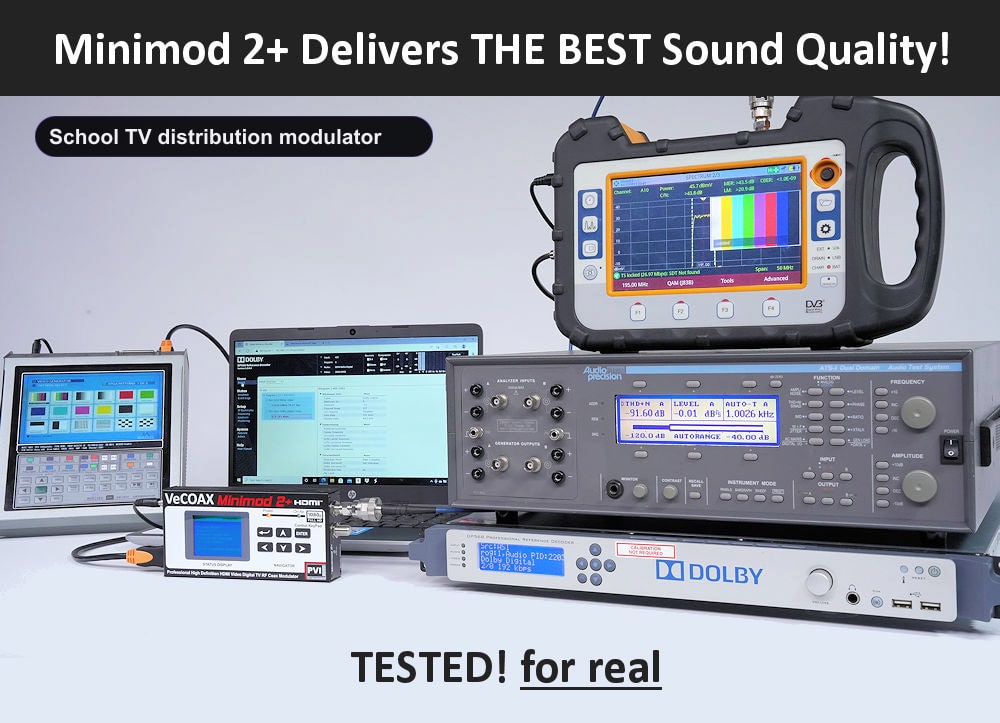

Morning announcements must be easy to hear. The MINIMOD 2+ encodes broadcast-grade Dolby Digital so audio arrives locked to picture in every classroom.
- Dolby Digital / LPCM audio on the announcement channel
- Tight lip-sync from studio to every classroom β clear for the morning broadcast
- Passes 5.1 surround from compatible HDMI sources Built for school tv distribution modulator installations.
- Clear narration and the pledge on every classroom TV

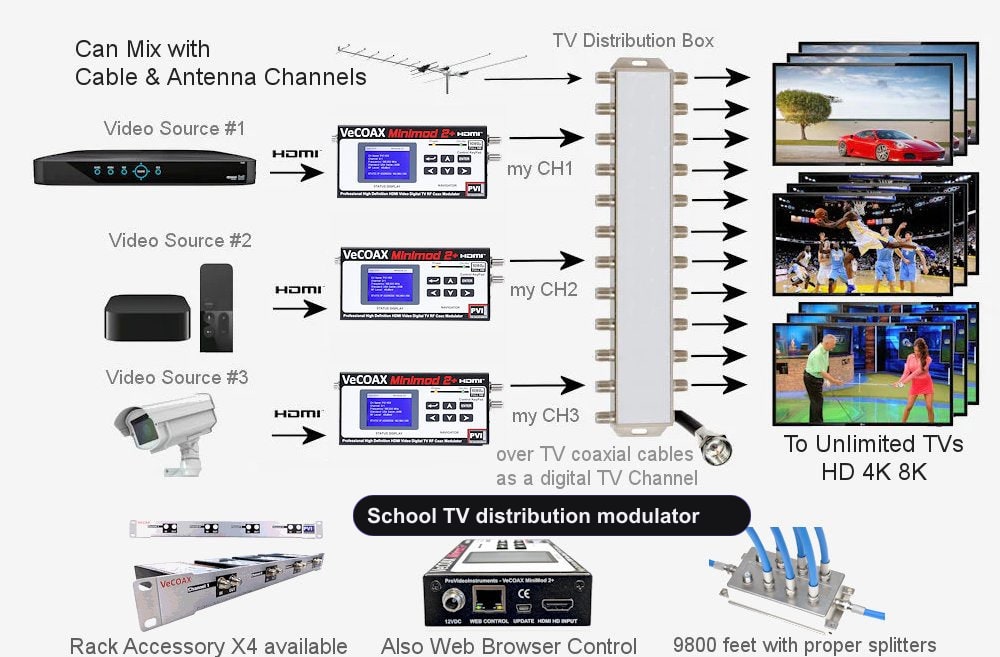

Installation
Three Connections. Done.
Studio feed in. Combine onto coax. Channel scan. Your broadcast reaches every classroom β in Full HD with synced audio.
A school TV distribution install with the MINIMOD 2+ takes minutes, not days. Connect your studio feed to the input, combine the F-type coax output into the campus's TV cabling, pick a channel on the LCD, and auto-scan a sample classroom. There is no network to configure and no box at each TV β the existing coax serves the whole campus.

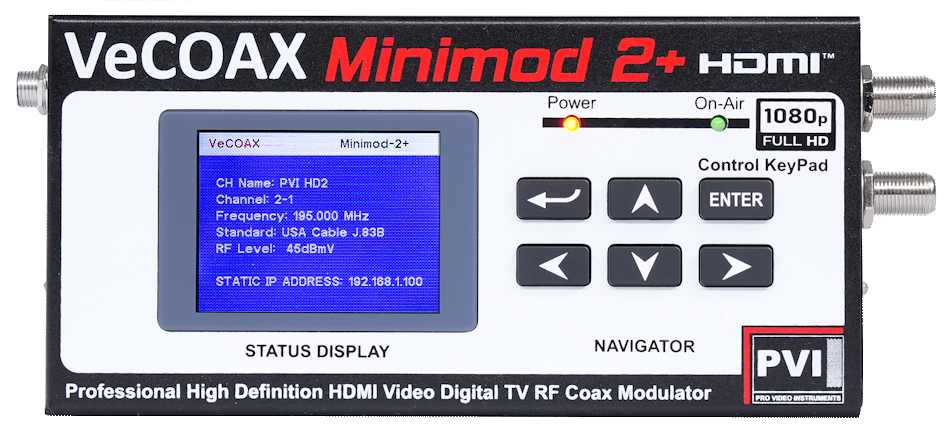

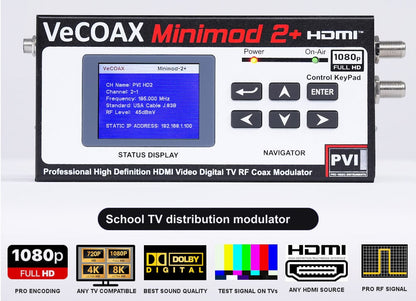

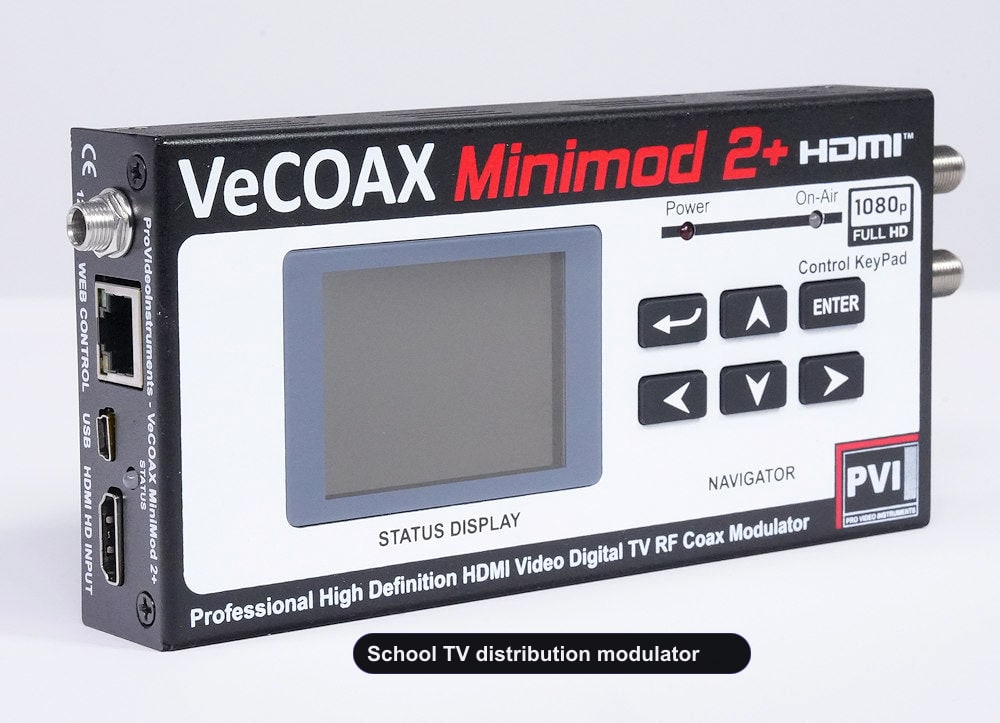

The MINIMOD 2+
A School TV Distribution Modulator With Broadcast Quality

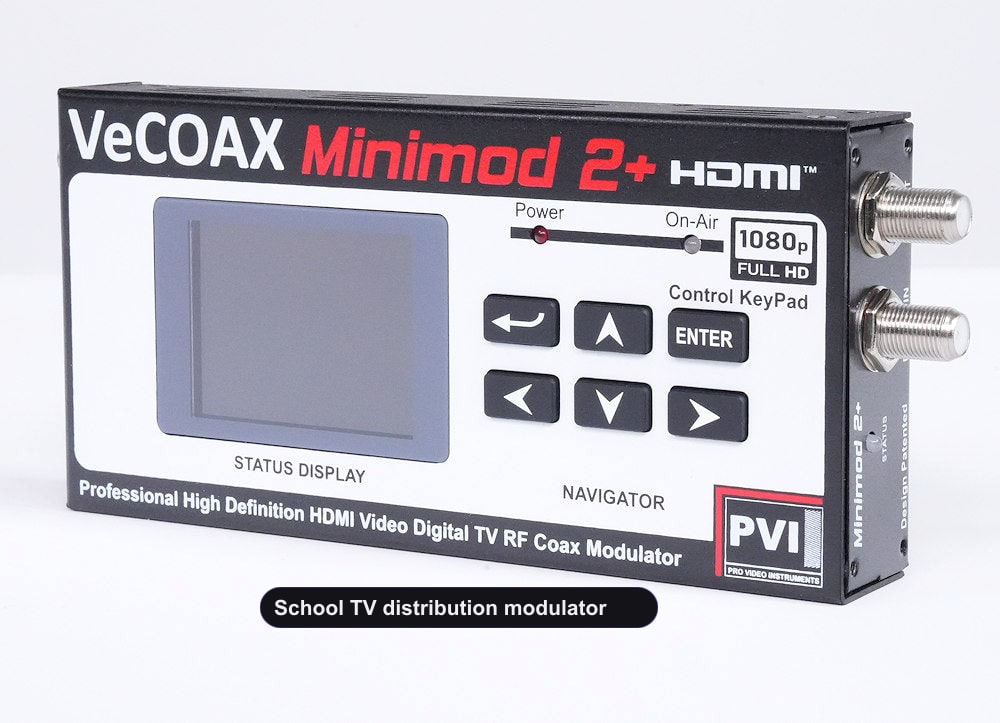

Palm-sized aluminum build, spurious-free modulation, and a front-panel LCD β the professional way to broadcast across the campus. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ creates campus channels the way broadcasters create stations: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to reach the farthest classroom, a built-in color LCD for set-once operation, and support for every worldwide TV standard. One small box turns your studio feed into a channel on every classroom TV over existing coax.

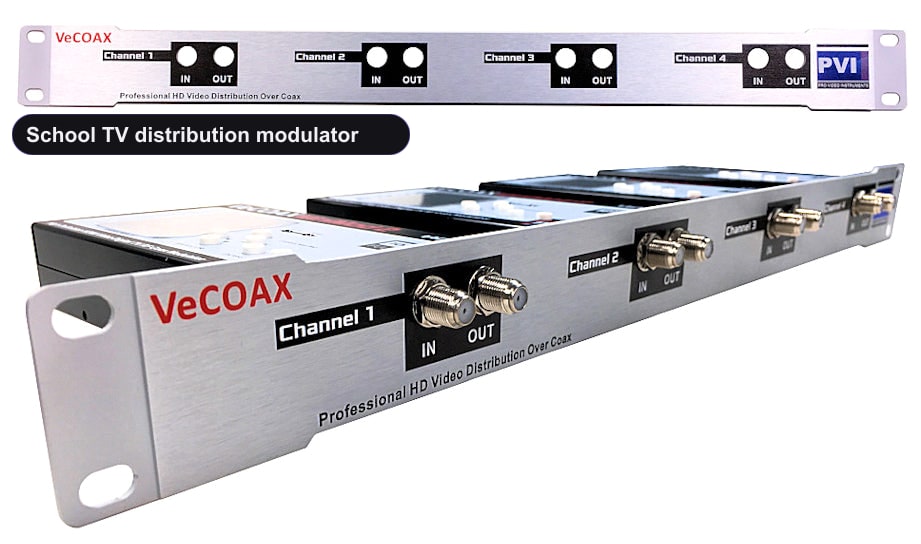

Rack Solutions
Run Announcements, Events, and Info in 1RU

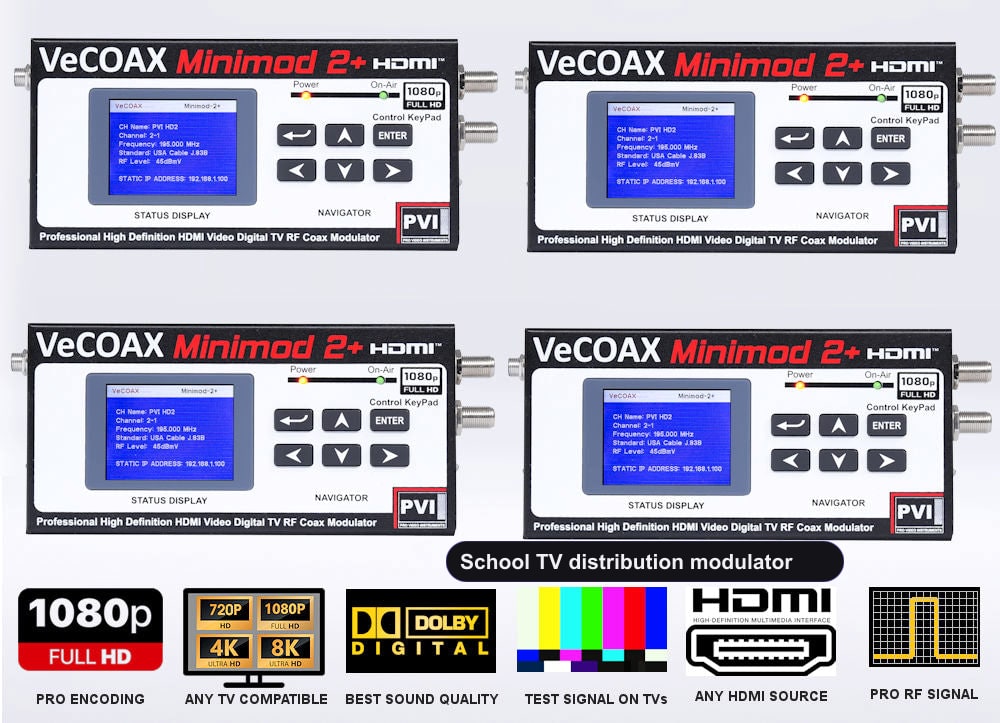

Need separate announcement, sports, and information channels? Mount up to four MINIMOD 2+ modulators in a single 1RU rack panel in the AV studio.
The optional 1RU rack panel holds up to four school modulators in one rack space, with front-panel access and proper airflow. Combine their outputs and assign rooms or wings to different channels β announcements campus-wide, sports in the gym, info in the cafeteria β all over the same coax.
$105.00$99.00Save $6.00
High Density

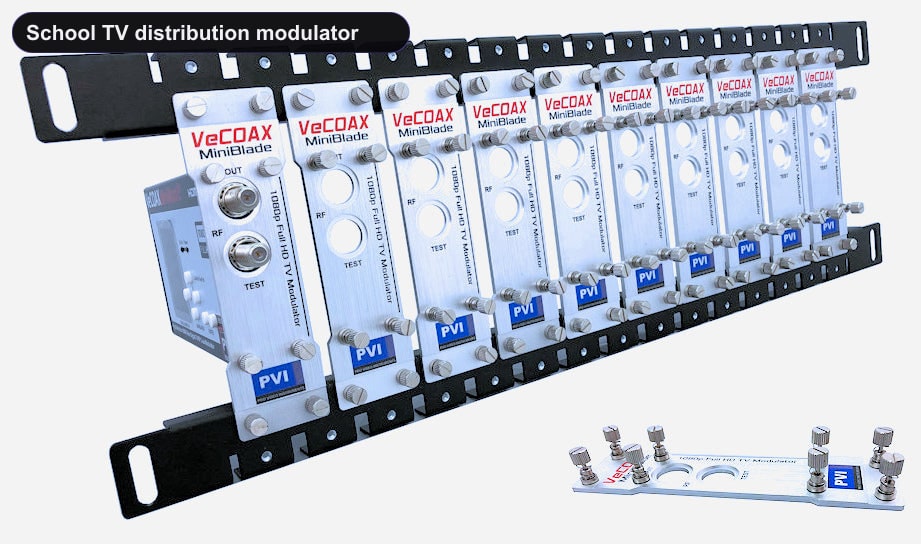

10+ Campus Channels with the MiniBlade Kit for School TV Distribution
For large districts and multi-building campuses, the VeCOAX MiniBlade packs 10 or more modulator units into a single rack β each fully independent so one channel can never take down the rest.
When a campus needs many channels at once, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every channel runs on its own, which is exactly what a busy school district demands.
Compatibility
Every Classroom TV Tunes Your Channel β HD, 4K, and 8K
Your channel is a standard digital signal, so any classroom TV with a built-in tuner decodes it perfectly β from older HD sets to the newest interactive displays.
Because the MINIMOD 2+ outputs a standard digital channel, virtually every classroom television decodes it with its own tuner β no box behind the screen. Color space, frame rate, and audio sync are handled inside the modulator, so the broadcast looks right on every brand the school has installed.
Features
Built for Reliable Daily Campus Broadcasts
Every detail exists to broadcast announcements and content to every classroom with broadcast stability and effortless setup.

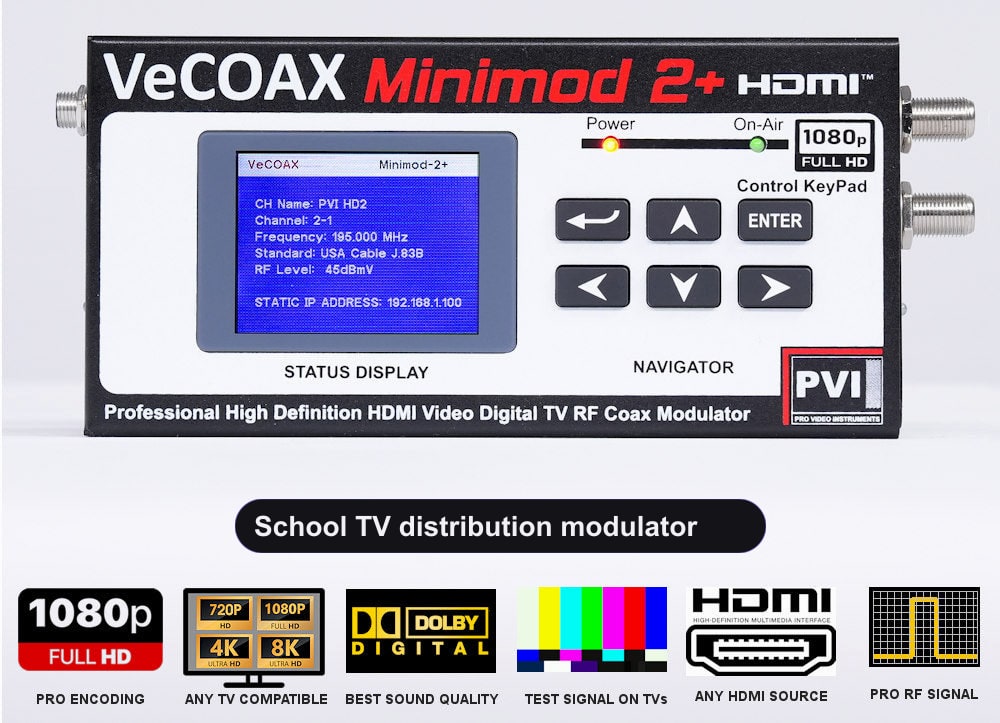

Front-Panel Color LCD
Set the channel, modulation, and output level on the built-in display β no laptop. Built for school tv distribution modulator installations.
One-Click Config Recall
Save and recall setups instantly β reliable, repeatable operation for student broadcasters.
Full Channel Customization
Tune frequency down to the Hz, choose any channel, name it, and shape every parameter. Built for school tv distribution modulator installations.
1080p@60 Motion Encoding
Multi-layer motion estimation keeps broadcasts and event video crisp on every screen.
MPEG-2 Broadcast Standard
Encodes in the same format broadcasters use β universal classroom-TV compatibility.
+45 dBmV Output
Reaches the farthest portable and the gym through your splitters with no external amp.
MER >45 dB
Clean channel for instant lock and zero pixelation in every classroom.
Full Digital DDS
Spurious-free output so the announcement channel stacks cleanly beside any existing channels.
Secure Web Remote
Password-protected browser control for managing channels from the studio.
Unlimited Classrooms
Reach 30 rooms or 300 across the campus β no per-room cost, no streaming box.
Built-In Test Pattern
Color bars appear when no source is connected, so staff can verify the coax run. Built for school tv distribution modulator installations.
HDMI Licensed + Full EDID
Fully HDMI licensed with exclusive EDID control for a guaranteed handshake with any source. Built for school tv distribution modulator installations.
Watch the Demo
See an Announcement Reach Every Classroom in Real Time
From plugging in the studio feed to watching it on every classroom TV β the whole process in under five minutes.
Complete walkthrough: studio feed connection, channel assignment on the LCD, classroom scan, and multi-channel rack setups. Duration: 4 min 30 sec.
Applications
Where a School TV Distribution Modulator Shines
π’
Morning Announcements
Broadcast the daily show to every classroom over coax.
π«
Live Events
Assemblies and pep rallies streamed to overflow rooms.
π
Sports & Gym
Game feeds and PE content on gymnasium screens.
π½οΈ
Cafeteria
Menus, news, and announcements on lunchroom TVs.
π
Media Center
Educational programming on library and lab screens.
π«
Front Office & Lobby
Visitor info and event boards on entrance screens.
π
Portables
Reach outbuildings and portables over the campus coax.
π
Higher Education
Campus-wide channels for colleges and universities.
Why PVI
Why This Is the Best School TV Distribution Modulator
IP streaming loads the school network and needs a box in every room. The MINIMOD 2+ broadcasts to every classroom over existing coax with no network congestion and broadcast quality.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓Reaches Every Classroom Over Existing Coax
✕Per-Room Streaming Boxes β Costly to Buy & Maintain
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Staff & Students Setup Without a PC
✕Requires PC for Full Setup
✓No Box Behind Any Classroom TV
✕IP Systems Need a Decoder per Room
✓+45 dBmV β Reaches Portables & Gym
✕Low Output β May Need External Amplifiers
✓4 Channels in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓No Network Congestion β Runs on Coax
✕IP Streaming Loads the School Network
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Perfect Every Morning
✕Low MER β Pixelation in Far Rooms
Specifications
School TV Distribution Modulator β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2β83 ATSC mode | 2β158 J.83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |
| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |

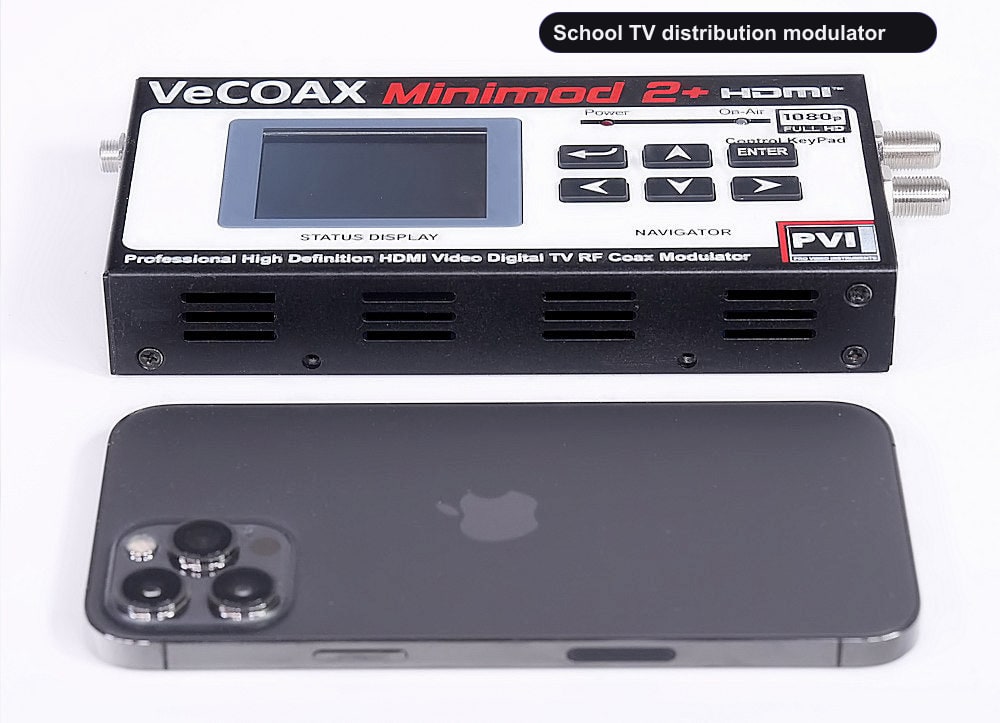

| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
School TV Distribution Modulator - Frequently Asked Questions
What is a school TV distribution modulator?
A school TV distribution modulator is a device that turns an HDMI source into a real digital TV channel over coax. For the school tv distribution keyword family, the VeCOAX MINIMOD 2+ handles broadcasting announcements, live events, signage, or classroom content across campus coax and lets every connected TV scan the result like normal television.
How does a school TV distribution modulator work over coax?
For school tv distribution, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use a school TV distribution modulator instead of HDMI cables?
School TV Distribution Modulator distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why school tv distribution is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this school TV distribution modulator?
Use announcement PCs, cameras, switchers, media players, and signage systems. For school tv distribution installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the school tv distribution channel?
Any TV with a compatible digital tuner can receive the school tv distribution channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this school TV distribution modulator support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for school tv distribution in hotels, CATV plants, commercial buildings, and private coax systems.
Does this school TV distribution modulator support ATSC antenna mode?
Yes. In ATSC mode, the same school TV distribution modulator creates an antenna-style digital TV channel. This helps school tv distribution projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this school TV distribution modulator coexist with existing TV channels?
Yes. Assign the school tv distribution output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one school TV distribution modulator feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For school tv distribution, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can school tv distribution travel over coax?
School TV Distribution Modulator output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this school TV distribution modulator?
Yes. This is the main advantage of school tv distribution: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this school TV distribution modulator?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes school tv distribution setup fast even without a laptop.
Why is the color LCD important for school tv distribution?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes school TV distribution faster to commission than units that require software for basic setup.
Can I manage this school TV distribution modulator remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for school tv distribution systems in equipment rooms.
What picture quality does this school TV distribution modulator deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the school tv distribution channel stay sharp on every TV.
Does this school TV distribution modulator work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p school tv distribution channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more school tv distribution channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger school tv distribution lineup.
Where is this school TV distribution modulator used most often?
This school TV distribution modulator is used in schools, universities, campuses, gyms, auditoriums, and training facilities. Typical school tv distribution applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this school TV distribution modulator different from a classroom streaming device?
A classroom streaming device usually depends on short point-to-point wiring or limited outputs. A school TV distribution modulator creates a real tunable TV channel, so the existing coax system distributes the school tv distribution source to every TV at building scale.
Is the MINIMOD 2+ good for professional school tv distribution?
Yes. It is designed for 24/7 professional school tv distribution with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this school TV distribution modulator HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional school tv distribution system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this school TV distribution modulator?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable school TV distribution and strong school tv distribution performance.
Accessories
Complete Your School Head-End
Everything you need to combine, rack, and scale broadcast channels across the campus.
Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

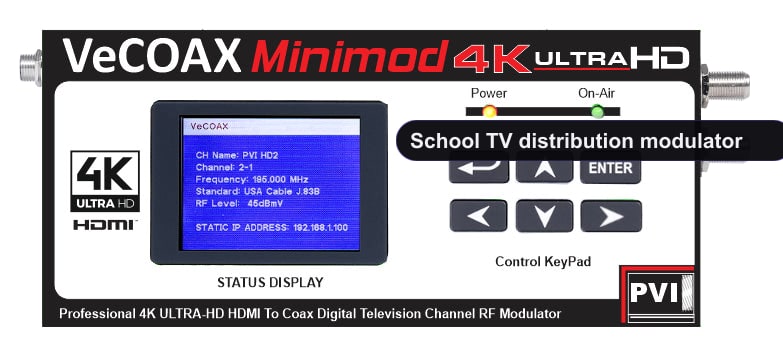

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

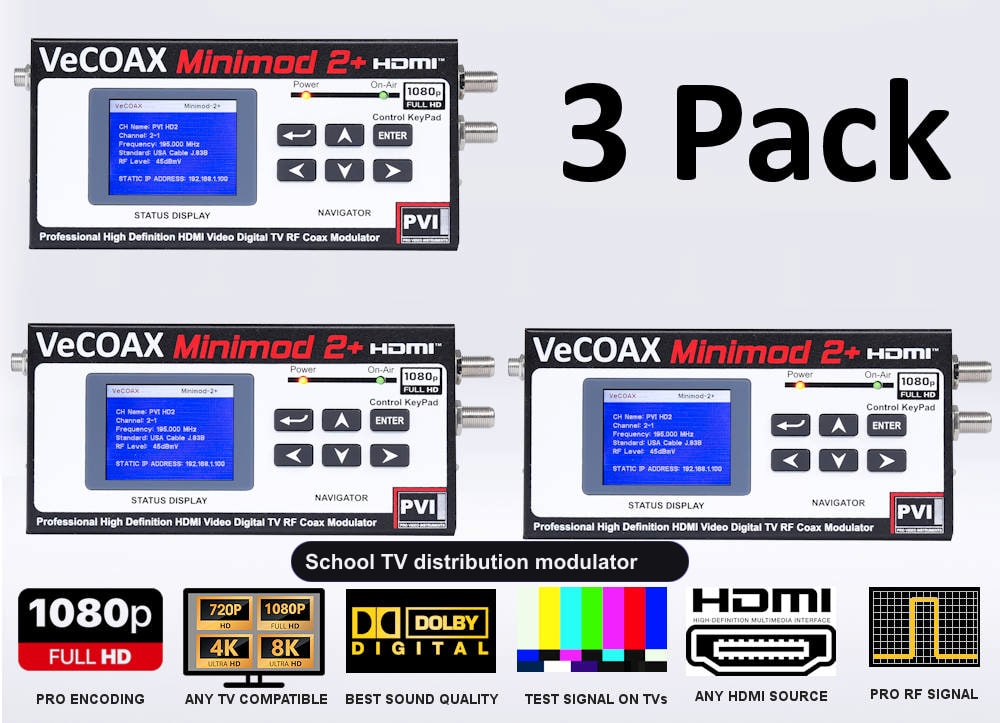

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00
MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Add more campus channels with multi-unit bundles, or step up to 4K.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Broadcast to Every Classroom on Campus?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
