A QAM modulator lives or dies on constellation cleanliness β a sloppy QAM signal won't lock or breaks up on long runs. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it produces a dense, broadcast-grade QAM channel: +45 dBmV output and MER above 45 dB, so TVs lock instantly and the picture stays perfect from headend to the farthest set.
Recognition
The QAM Modulator Integrators Have Trusted Since 2017
When a building runs on cable/QAM and you need a clean QAM channel every set tunes instantly, the VeCOAX MINIMOD 2+ is the QAM modulator professionals specify β award-winning, US-built, proven on 50,000+ installations.
How a QAM Modulator Works
HDMI In β A J.83B QAM Channel on Every TV

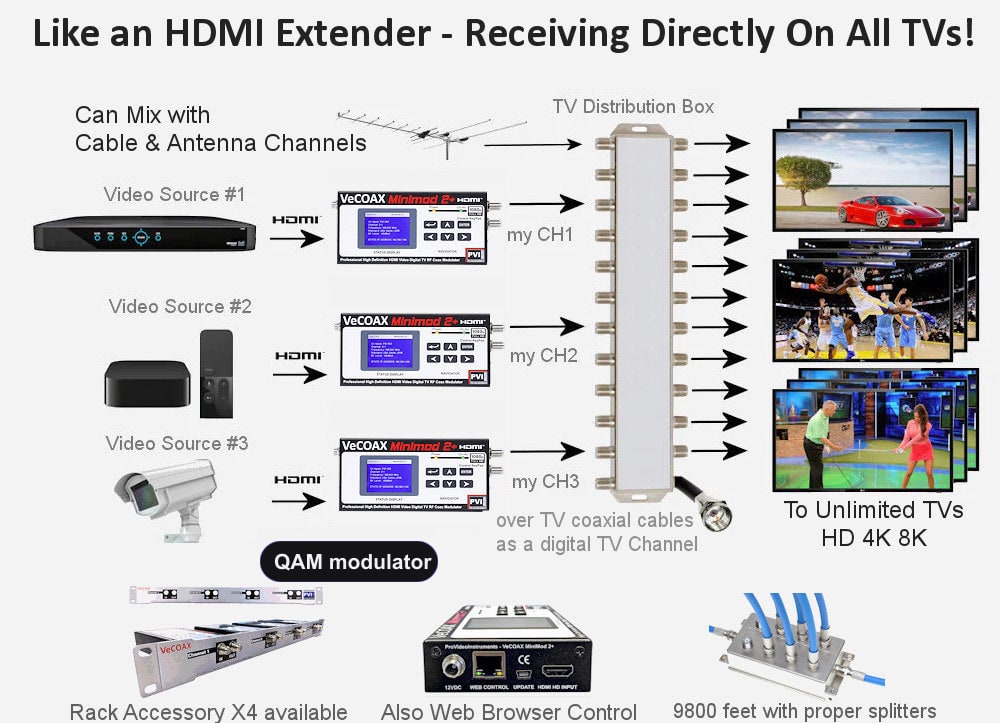

A QAM modulator maps your HDMI source onto a J.83B quadrature-amplitude carrier β the exact format cable systems use β so cable-ready TVs tune it natively with no set-top box.
- Connect any HDMI source β cable box, media player, camera, or signage PC
- Assign the QAM channel (2β158) on the LCD; the HDMI becomes a cable channel
- Feed the QAM carrier into the coax plant or a combiner alongside existing channels
- Auto-scan each cable-mode TV and the QAM channel locks in at 1080p
- No QAM tuner box per TV, no cable-company truck roll, no headend rebuild
- Add modulators on neighboring QAM channels for a complete cable lineup

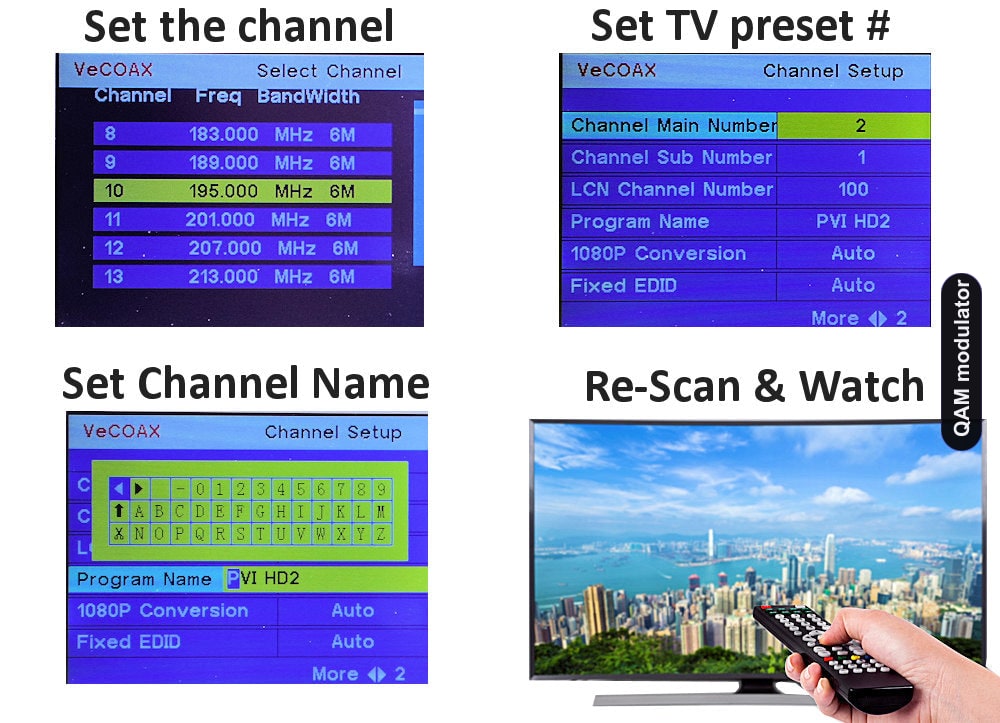

Setup

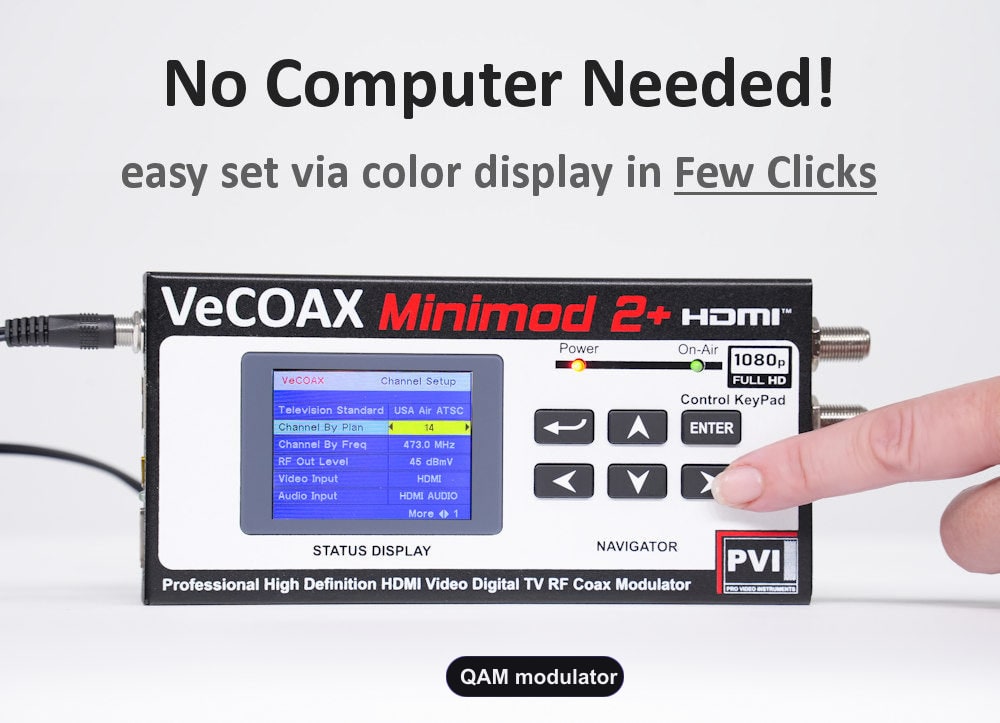

Put a QAM Channel on the Line in Under a Minute. No Computer Required.
Most QAM modulators hide channel mapping in a web console. Here the QAM channel, annex, symbol rate, and level are all on a color LCD β commission a cable channel without a laptop.
- The display shows the active QAM channel, frequency, and lock at all times
- Select the QAM annex and channel directly with the front-panel buttons
- Fully standalone β no console software, no serial dongle, no driver
- Power up β set the QAM channel β land coax β scan β on the cable lineup
Works on Your Existing Line
Your QAM Channel Sits Right Beside Your Cable Channels
QAM is the native language of cable plants β but flip to ATSC, DVB-C, or ISDB-T on the panel if a site needs it. The carrier blends straight into the existing channel map.
Because the modulator outputs a true J.83B QAM carrier, the HDMI source you mapped behaves like any operator channel. Cable-mode TVs list it among the QAM lineup after a scan β no set-top box, no headend re-engineering.

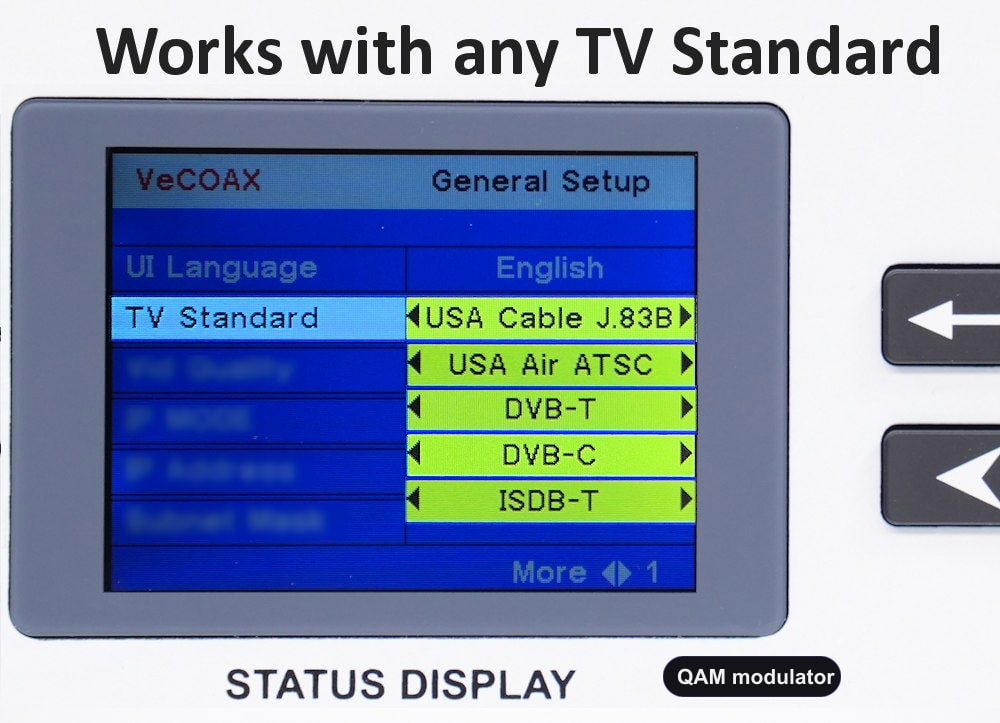

The same unit also produces ATSC, DVB-T/C, and ISDB-T carriers, so it serves North American QAM plants and worldwide systems alike β HD, 4K, or 8K.

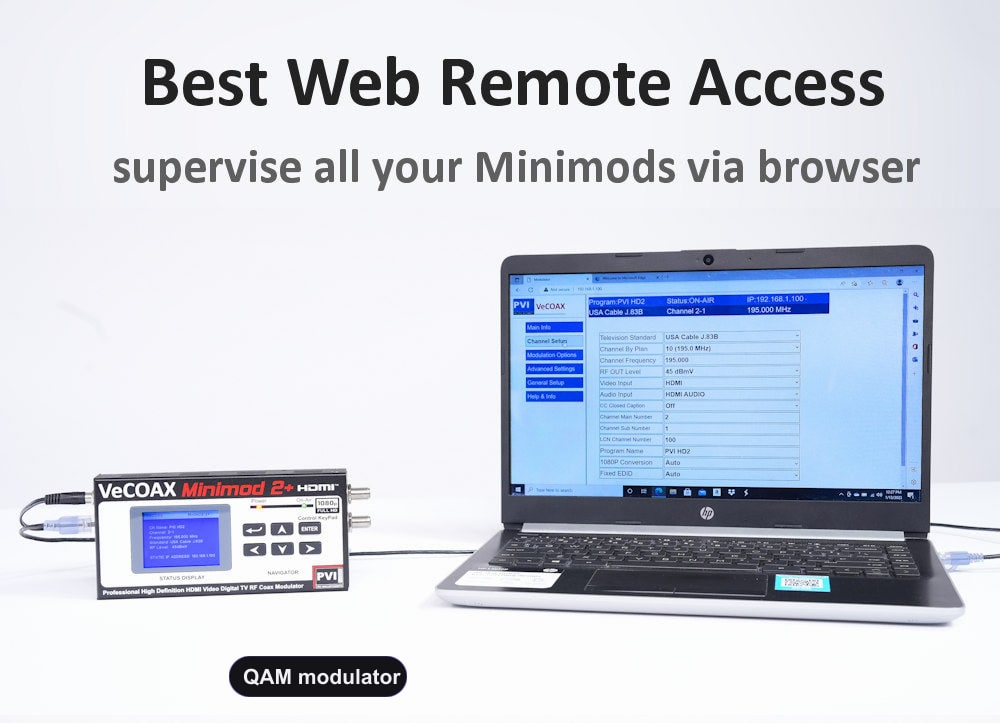

Remote Control
Manage Your QAM Modulators From Any Browser
The panel commissions the channel; the optional LAN page lets headend techs re-map QAM channels and watch carrier health from the rack without a site visit.
- Re-map the QAM channel and adjust level remotely over the network
- Manage a row of QAM modulators from one browser console
- Works on any computer or phone browser β no client to install
- Live carrier status confirms each QAM channel is locked and clean

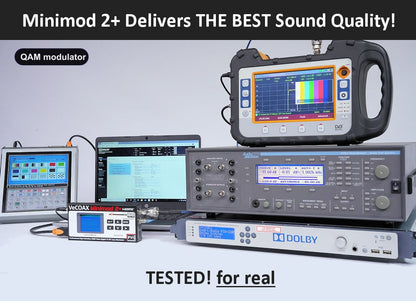

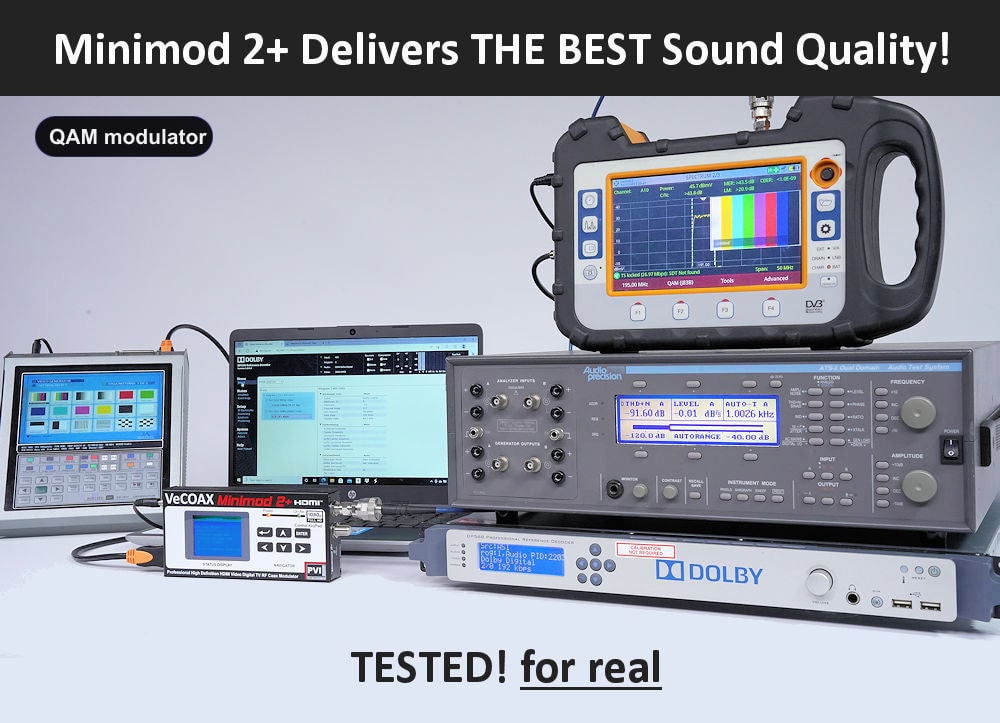

Audio
Your QAM Channel Carries Broadcast-Grade Audio
A QAM channel carries its audio in-band. The modulator multiplexes broadcast Dolby Digital into the QAM stream so sound reaches every cable-ready TV perfectly aligned.
- Dolby Digital / LPCM is multiplexed into the QAM transport stream
- Audio tracks the picture across every splitter and long coax leg β no drift
- Carries 5.1 surround intact from compatible HDMI sources
- Voice, music, and effects arrive clean on every cable-tuned set

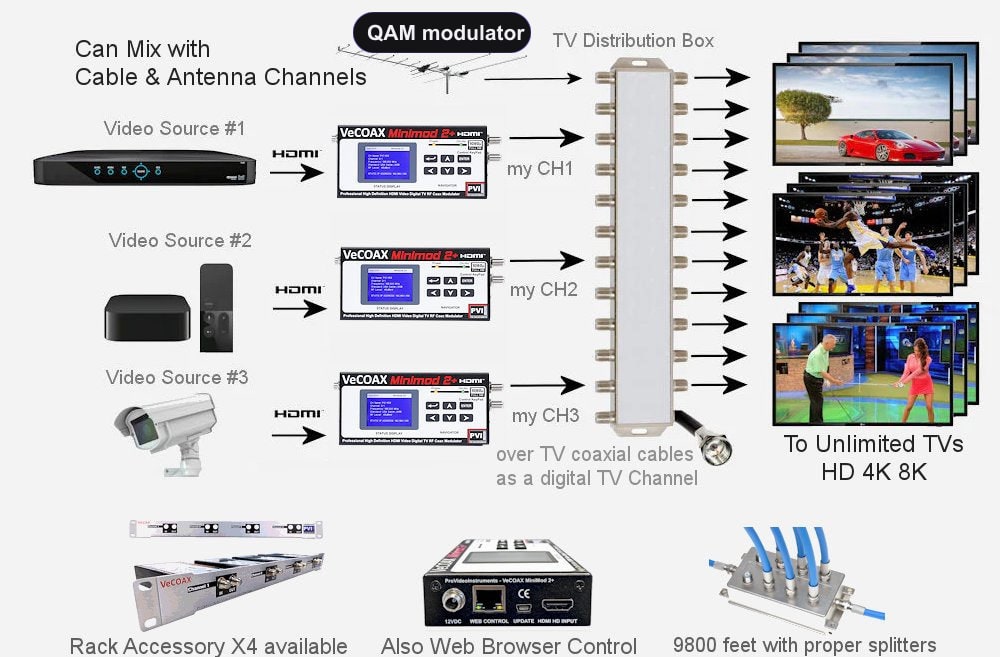

Installation
Three Connections. Done.
HDMI in. QAM carrier out. One scan. Your source joins the cable lineup on every TV in Full HD with synced audio.
Adding a QAM channel takes minutes: connect the HDMI source, feed the F-type QAM output into the cable distribution (or a passive combiner), assign a free QAM channel on the LCD, and rescan cable-mode TVs. No headend overhaul, no per-TV QAM boxes, no IT ticket β the coax plant carries the new channel.

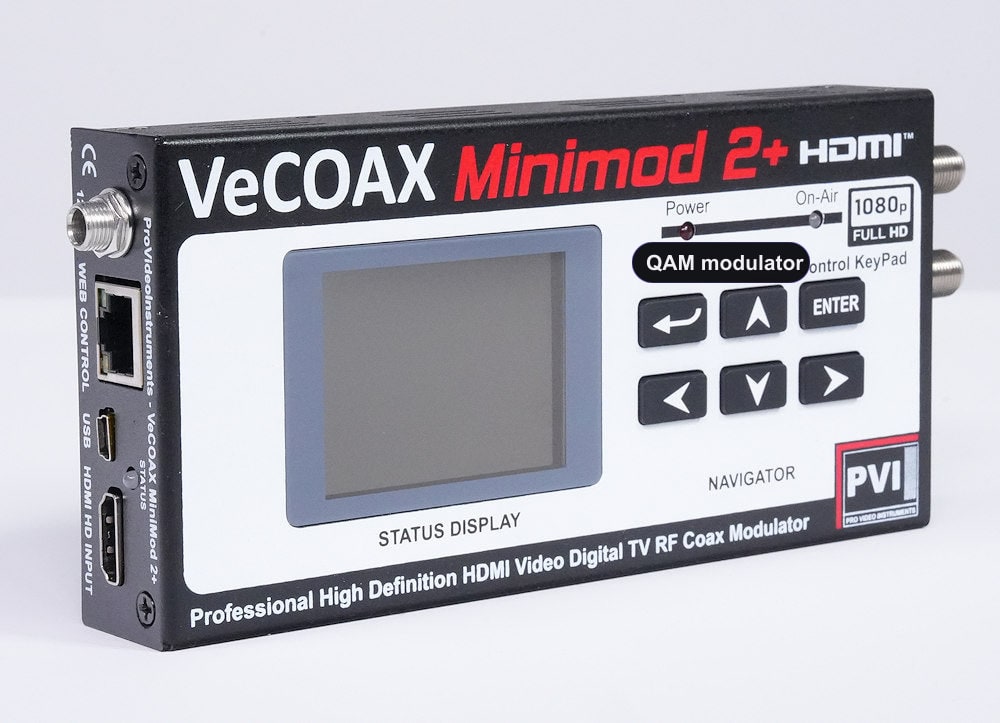

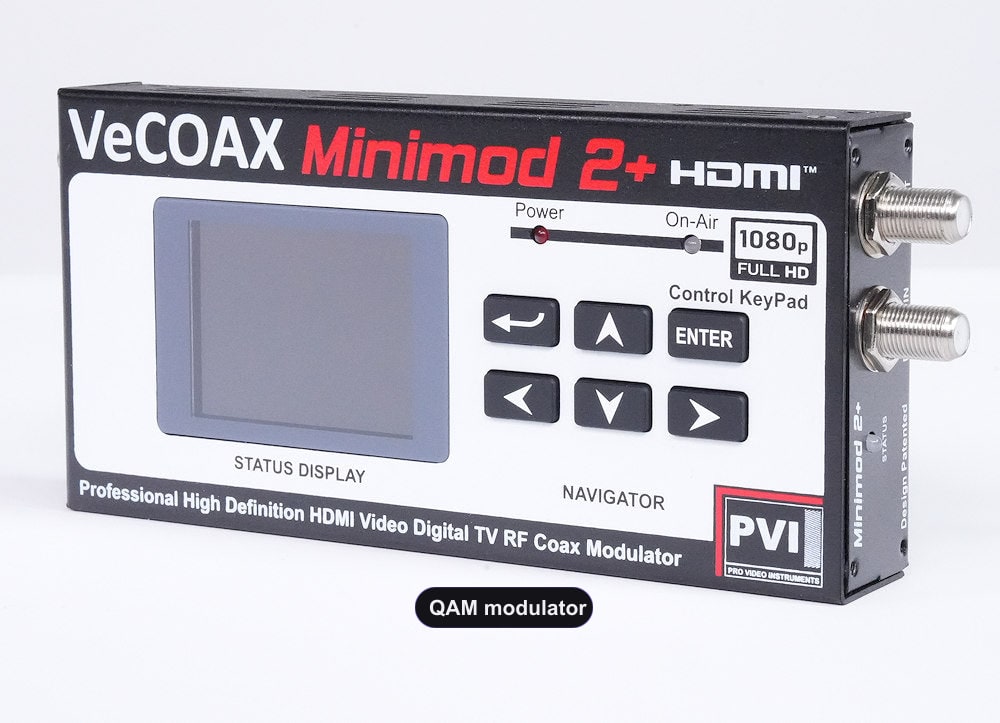

The MINIMOD 2+
A QAM Modulator With Broadcast-Headend Quality

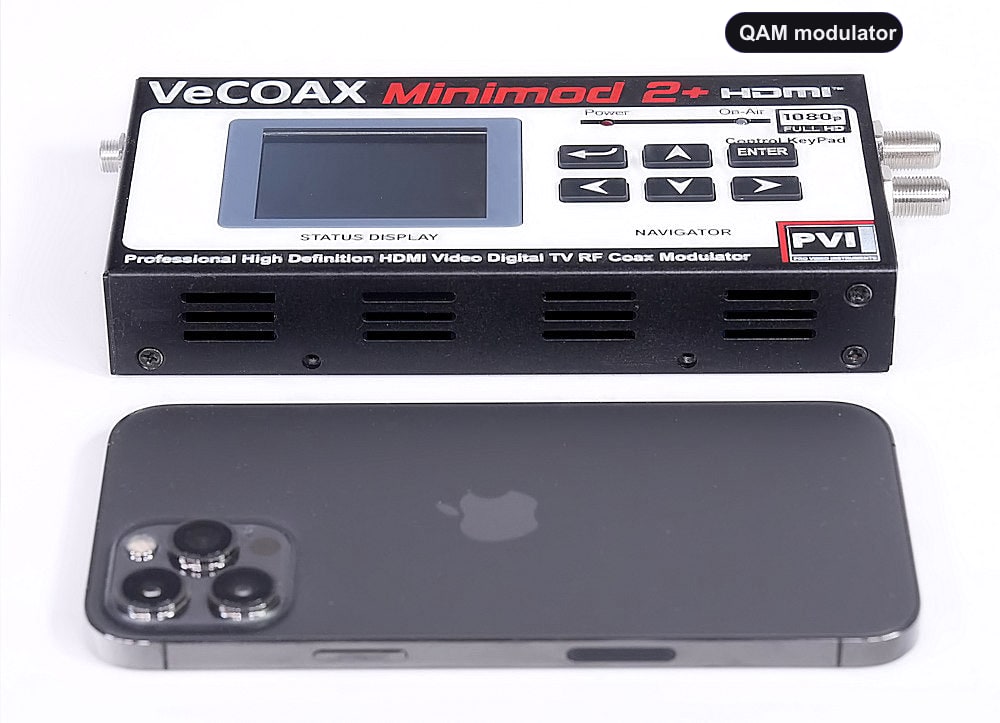

Palm-sized aluminum build, dense J.83B QAM modulation, and a front-panel LCD β the professional way to put a QAM channel on coax. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ produces QAM channels the way cable operators do it: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to drive long runs, a built-in color LCD for computer-free setup, and QAM channels 2β158 plus every other worldwide standard. One small box turns any HDMI device into a QAM cable channel that reaches unlimited TVs over existing coax.
Rack Solutions
Stack Multiple QAM Channels in 1RU

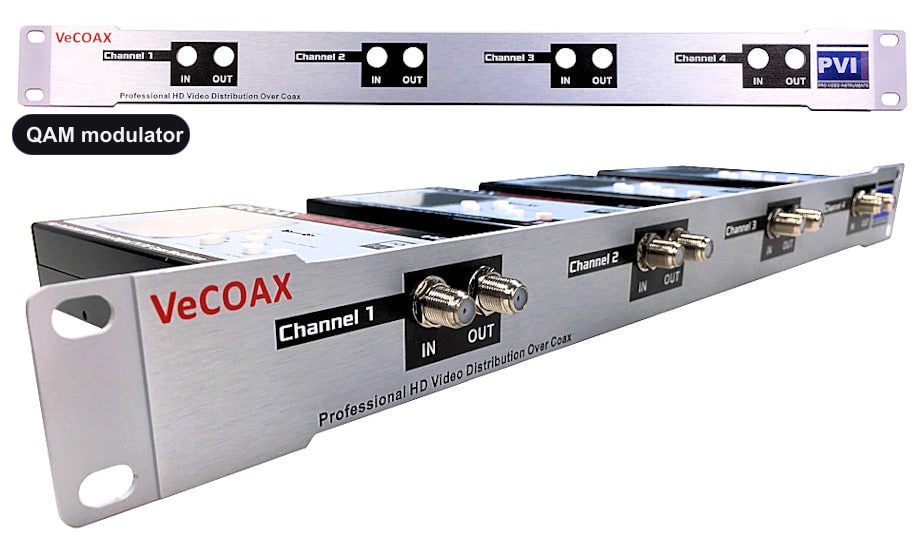

Need several QAM channels? Mount up to four MINIMOD 2+ QAM modulators in a single 1RU rack panel for a tidy, professional multi-channel headend.
The optional 1RU rack panel holds up to four QAM modulators in one rack space, with front-panel access and proper airflow. Combine their outputs with a passive combiner and you have a clean multi-channel QAM lineup riding a single coax β ideal for AV closets, server rooms, and broadcast facilities.
$105.00$99.00Save $6.00
High Density

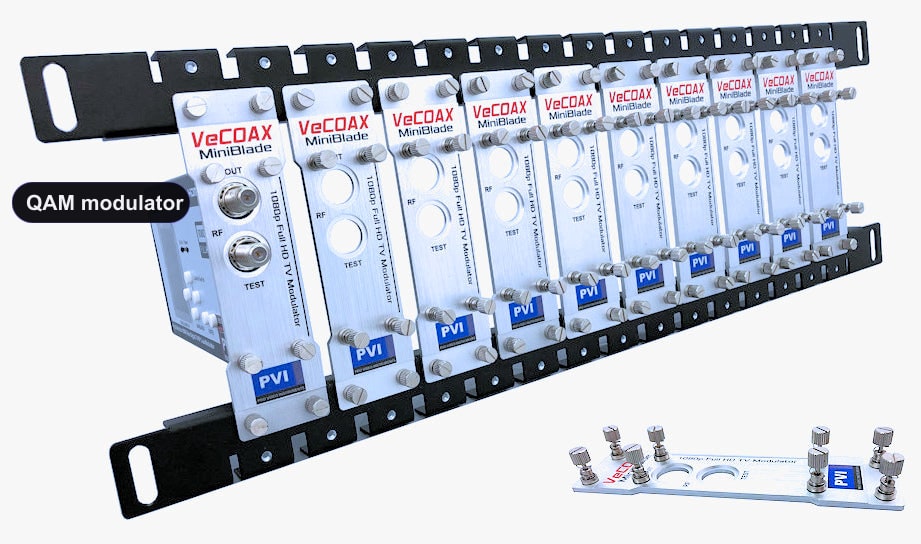

10+ QAM Channels with the MiniBlade Kit
For large QAM lineups, the VeCOAX MiniBlade system packs 10 or more modulator units into a single rack β each fully independent so one QAM channel can never take down the rest.
When you need many QAM channels at once, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every QAM channel runs on its own, which is exactly what 24/7 commercial systems demand.
Compatibility
Every Cable-Ready TV Tunes the QAM Channel β HD, 4K, and 8K
The J.83B QAM channel is a standard cable broadcast, so any cable-ready tuner decodes it β from an older HD set to a new 8K display.
Because the carrier is genuine QAM, compatibility is automatic on cable-mode TVs. The modulator finalizes color, frame rate, and audio sync internally, so the QAM channel renders correctly on every brand and resolution with no per-set setup.
Features
Built to Modulate QAM Flawlessly
Every detail exists to put your HDMI source on a J.83B QAM channel with instant TV lock and effortless setup.

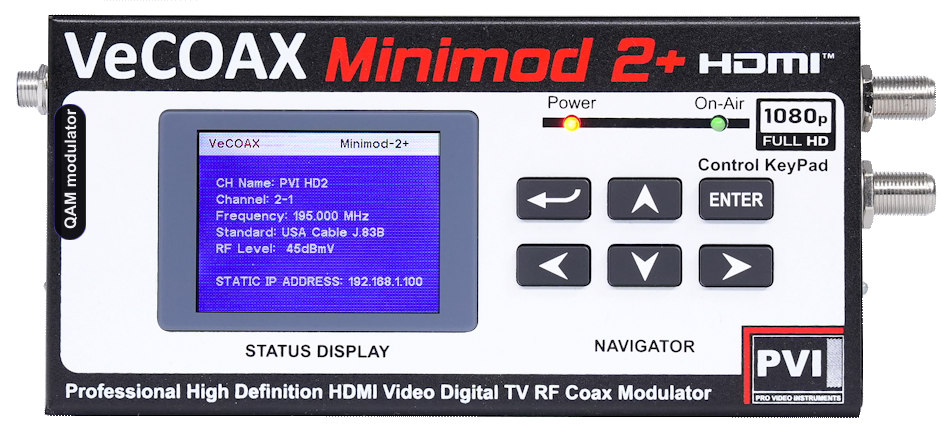

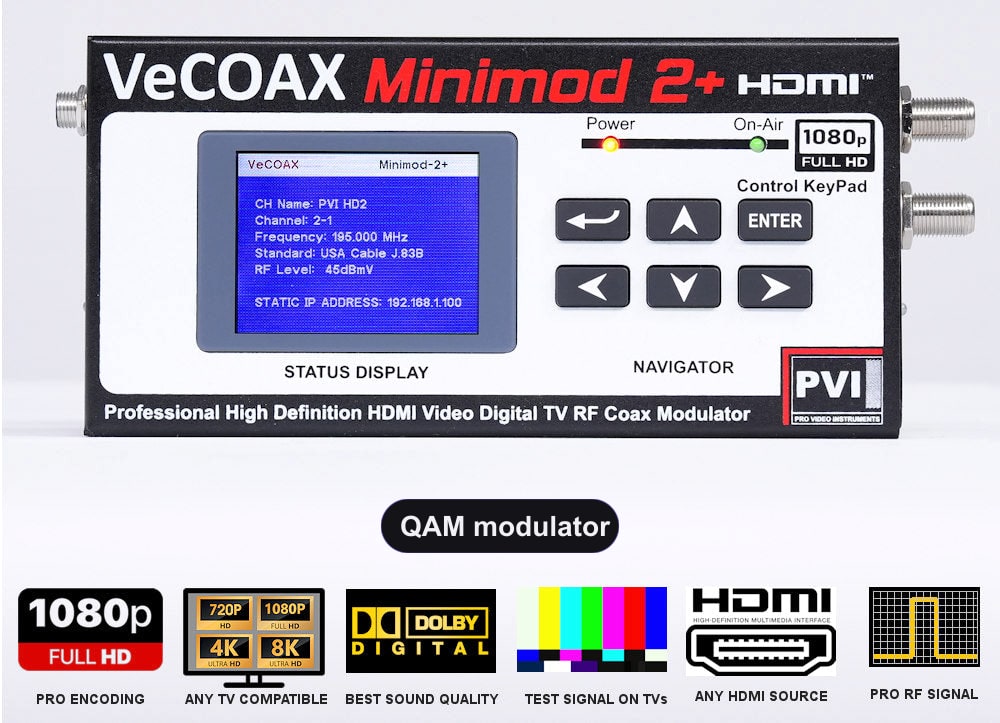

Front-Panel Color LCD
Set your QAM channel, frequency, and output level on the built-in display β no laptop, no web hunting.
One-Click Channel Recall
Save and recall the full QAM channel map in one tap when re-racking a unit.
QAM Channels 2β158
Place the QAM carrier to the hertz and label the channel for each cable lineup.
1080p@60 Motion Encoding
1080p60 motion encoding keeps live action crisp on the largest cable displays.
MPEG-2 Broadcast Standard
MPEG-2 over QAM is precisely what cable tuners expect for universal compatibility.
+45 dBmV Output
A +45 dBmV QAM carrier drives long cable plants and splitter trees with no amp.
MER >45 dB
MER beyond broadcast spec keeps the QAM channel pristine at the last drop.
Full Digital DDS
DDS synthesis stacks QAM carriers tightly with zero spurious bleed between channels.
Secure Web Remote
Secured browser control for QAM modulators living in headend racks.
Unlimited TVs
One QAM channel serves five cable TVs or five thousand at no per-set cost.
Built-In Test Pattern
A color-bar QAM carrier appears with no HDMI present to verify the cable run.

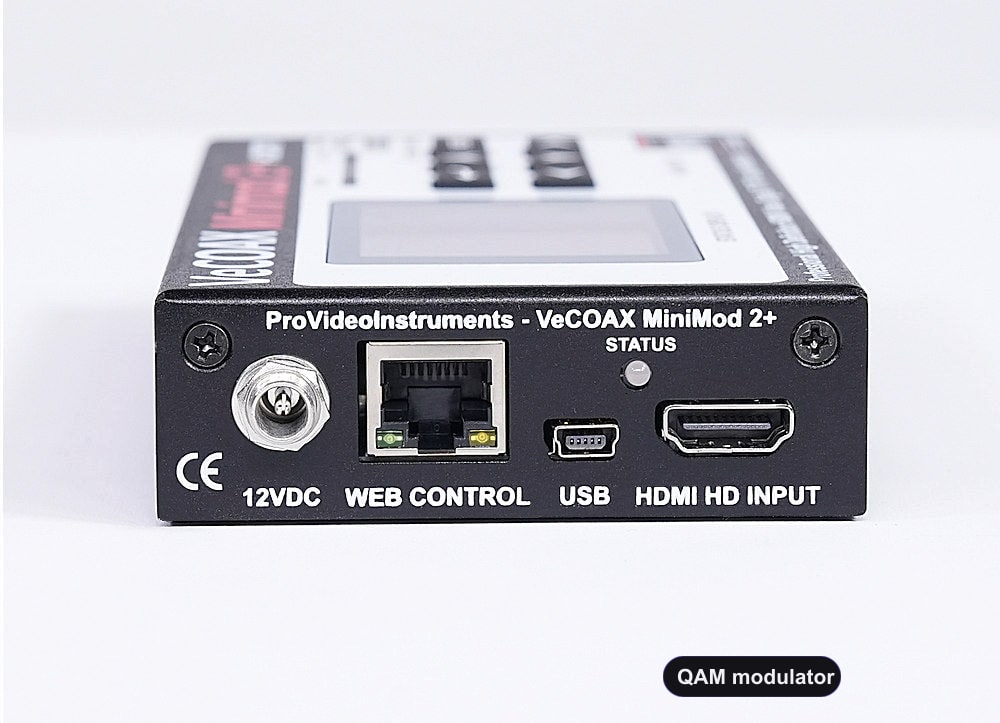

HDMI Licensed + Full EDID
HDMI-licensed input with full EDID control for a guaranteed source handshake.
Watch the Demo
See a QAM Channel Created Over Coax in Real Time
From wiring an HDMI source to tuning the new QAM channel on every cable TV β the whole process in under five minutes.
Full walkthrough: HDMI hookup, QAM channel assignment on the LCD, carrier distribution over coax, cable-TV scan, and stacking multiple QAM channels. Duration: 4 min 30 sec.
Applications
Where a QAM Modulator Shines
π¨
Hotels & Resorts
Insert an amenity QAM channel into the guest cable lineup in every room.
πΊ
Sports Bars
Add a game feed as a QAM channel every cable-tuned bar TV receives.
βͺ
Churches
Carry the worship camera as a QAM channel to overflow and lobby sets.
π₯
Hospitals
Insert patient-education QAM channels into the hospital cable plant.
π
Schools
Add a campus-announcement QAM channel to the existing cable lineup.
π’
Corporate
Insert dashboards as QAM channels for every conference-room cable TV.
π
Residential
Add one home QAM channel that every cable-ready TV in the house tunes.
π‘οΈ
Government
Deliver secure QAM channels on the facility cable plant.
Why PVI
Why This Is the Best QAM Modulator
Cheap QAM modulators wander off frequency and stack dirty carriers that pixelate neighbors. The MINIMOD 2+ holds a locked, broadcast-clean QAM channel across the whole cable plant.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓HDMI 2.0b Input β Top Quality
✕HDMI 1.4 β outdated handshake; may limit newer HDR sources
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Setup Without a Computer
✕Requires PC for Full Setup
✓Full QAM 2β158 + Dot-less Numbering
✕Limited QAM Channels
✓+45 dBmV Output β Long Coax Runs
✕Low Output β May Need External Amplifiers
✓4 QAM Modulators in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓QAM + ATSC + DVB + ISDB in One Box
✕QAM Only
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Instant QAM Lock
✕Low MER β Won't Lock or Drops on Long Coax
Specifications
QAM Modulator β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| QAM Channel Range | 2β158 J.83B QAM | also 2β83 ATSC | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |

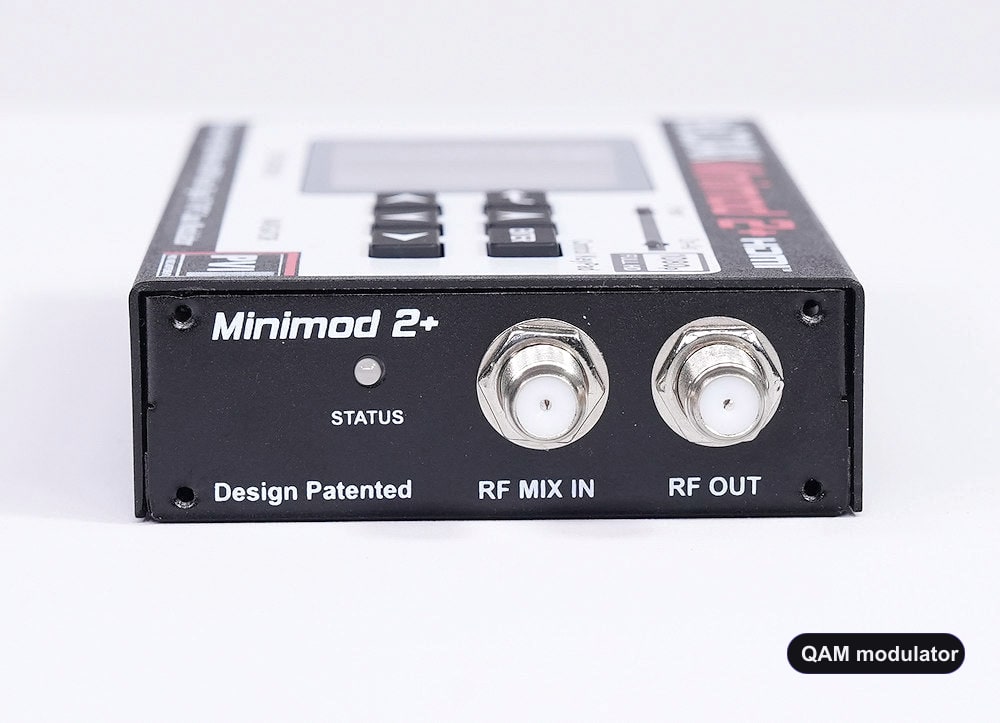

| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |
| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
QAM Modulator For HDMI - Frequently Asked Questions
What is a QAM modulator for HDMI?
A QAM modulator for HDMI is a device that turns an HDMI source into a real digital TV channel over coax. For the qam modulator keyword family, the VeCOAX MINIMOD 2+ handles creating a J.83B QAM cable-TV channel from an HDMI source and lets every connected TV scan the result like normal television.
How does a QAM modulator for HDMI work over coax?
For qam modulator, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use a QAM modulator for HDMI instead of HDMI cables?
QAM Modulator For HDMI distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why qam modulator is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this QAM modulator for HDMI?
Use HDMI set-top boxes, players, cameras, signage sources, and computers. For qam modulator installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the qam modulator channel?
Any TV with a compatible digital tuner can receive the qam modulator channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this QAM modulator for HDMI support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for qam modulator in hotels, CATV plants, commercial buildings, and private coax systems.
Does this QAM modulator for HDMI support ATSC antenna mode?
Yes. In ATSC mode, the same QAM modulator for HDMI creates an antenna-style digital TV channel. This helps qam modulator projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this QAM modulator for HDMI coexist with existing TV channels?
Yes. Assign the qam modulator output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one QAM modulator for HDMI feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For qam modulator, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can qam modulator travel over coax?
QAM Modulator For HDMI output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this QAM modulator for HDMI?
Yes. This is the main advantage of qam modulator: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this QAM modulator for HDMI?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes qam modulator setup fast even without a laptop.
Why is the color LCD important for qam modulator?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes QAM cable channel insertion faster to commission than units that require software for basic setup.
Can I manage this QAM modulator for HDMI remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for qam modulator systems in equipment rooms.
What picture quality does this QAM modulator for HDMI deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the qam modulator channel stay sharp on every TV.
Does this QAM modulator for HDMI work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p qam modulator channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more qam modulator channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger qam modulator lineup.
Where is this QAM modulator for HDMI used most often?
This QAM modulator for HDMI is used in cable-mode TV systems, hotels, headends, schools, and commercial coax plants. Typical qam modulator applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this QAM modulator for HDMI different from a basic QAM encoder?
A basic QAM encoder usually depends on short point-to-point wiring or limited outputs. A QAM modulator for HDMI creates a real tunable TV channel, so the existing coax system distributes the qam modulator source to every TV at building scale.
Is the MINIMOD 2+ good for professional qam modulator?
Yes. It is designed for 24/7 professional qam modulator with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this QAM modulator for HDMI HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional qam modulator system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this QAM modulator for HDMI?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable QAM cable channel insertion and strong qam modulator performance.
Accessories
Complete Your QAM Distribution System
Everything you need to combine, rack, and scale multiple QAM channels.

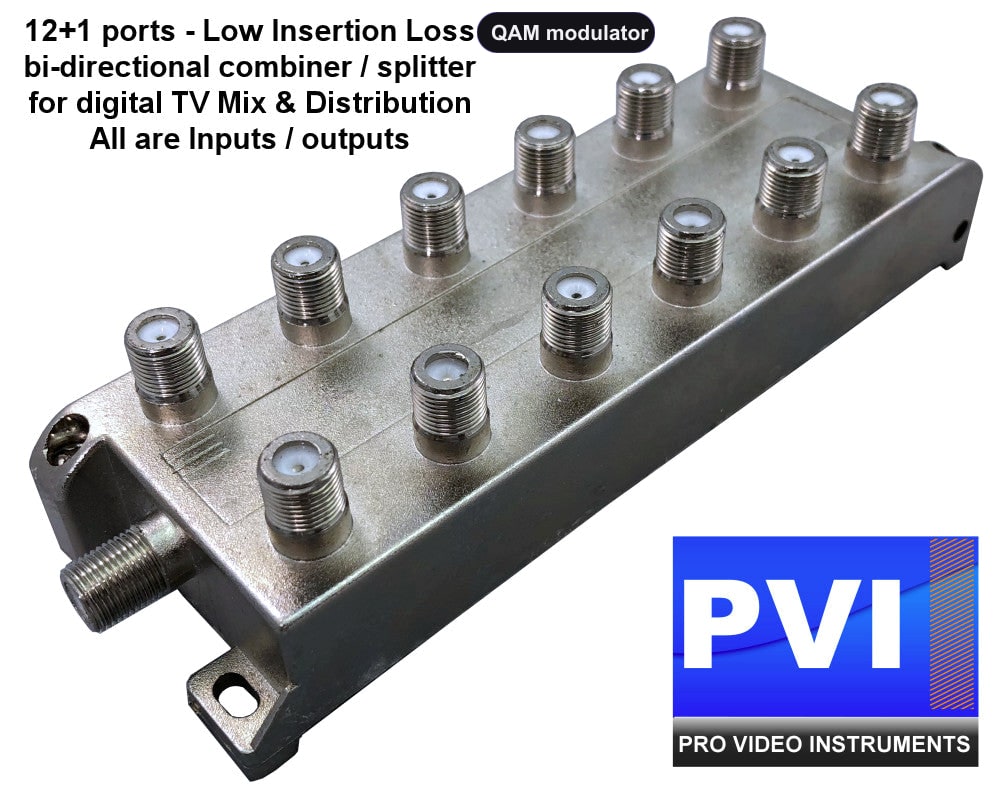

Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

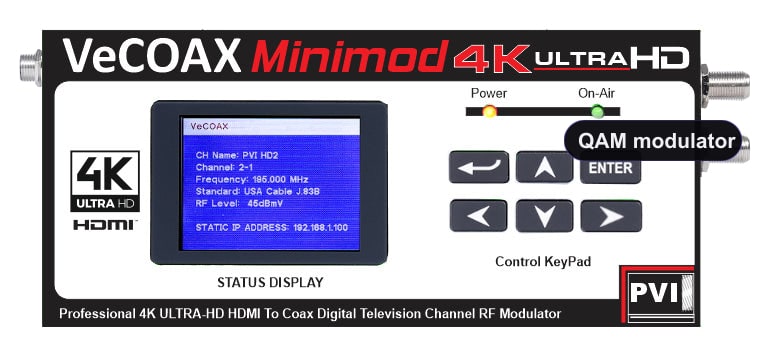

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

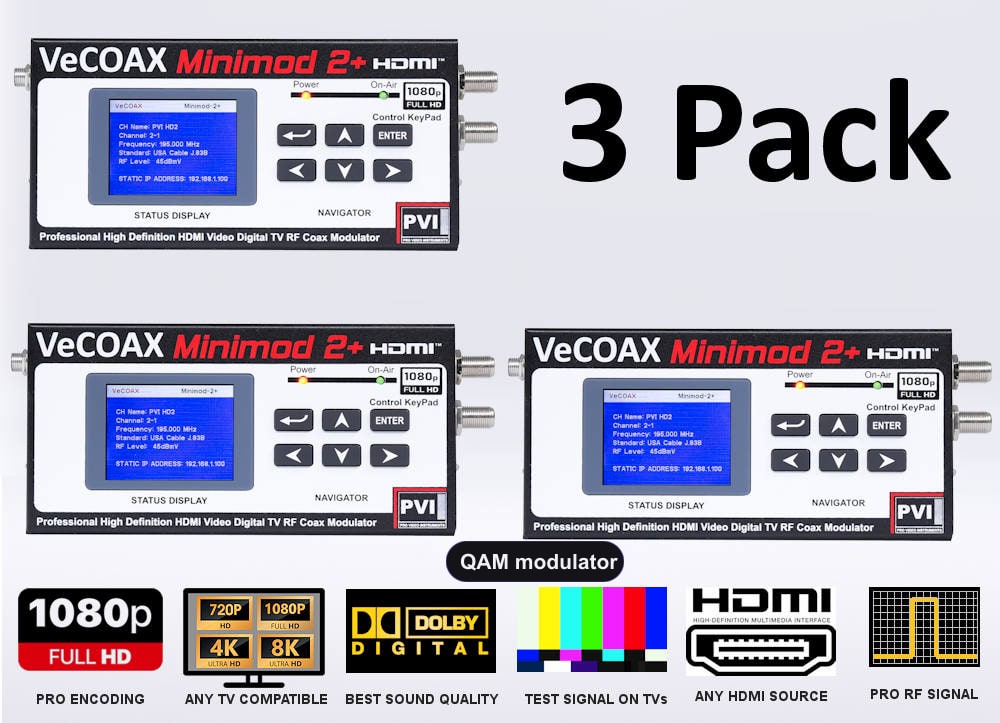

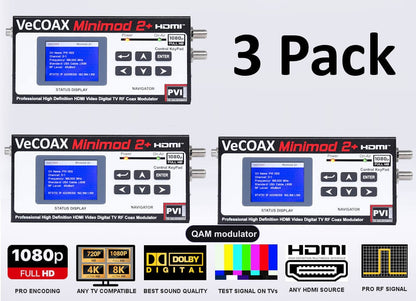

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00

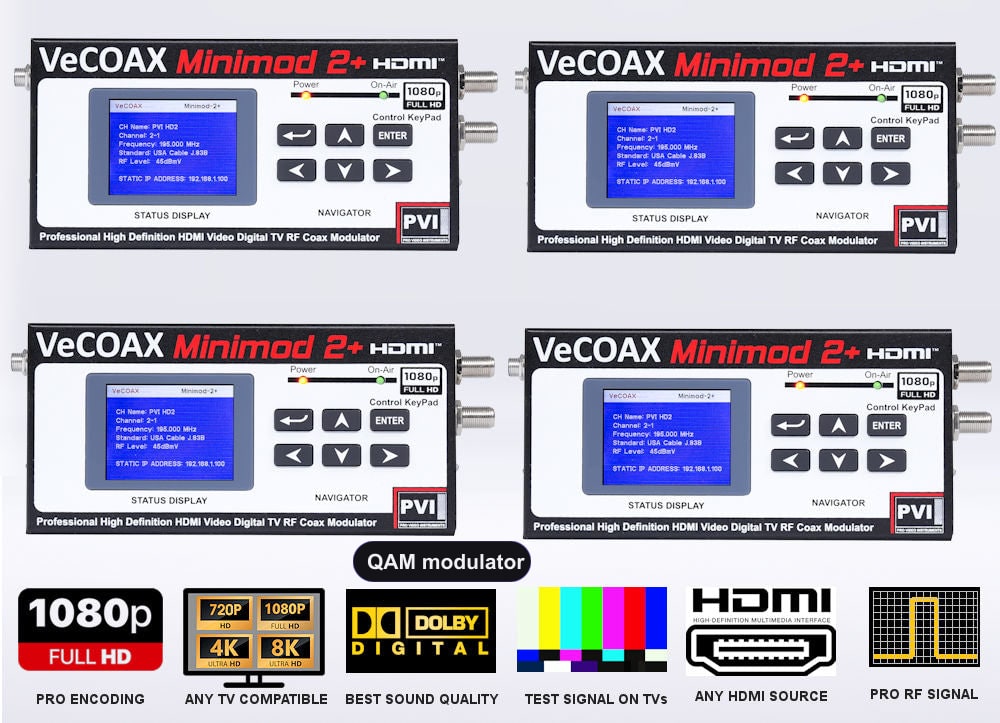

MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Add more QAM channels with multi-unit bundles, or step up to 4K over coax.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Put a QAM Channel on Every TV?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
