Converting an HDMI signal into a clean RF channel is harder than the cheap boxes admit: weak converters pixelate over long runs, drift out of lip-sync, or refuse to share a cable with existing channels. The MINIMOD 2+ solves all three. It earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show recognition because it converts HDMI to RF with broadcast-grade stability β +45 dBmV output and MER above 45 dB β so the picture stays perfect from the headend to the farthest television.
Recognition
The HDMI to RF Converter Professionals Specify
When you need to convert HDMI to RF and feed it to every TV in a building, the VeCOAX MINIMOD 2+ is the unit AV integrators reach for β award-winning, US-built, and proven on 50,000+ installations.
How HDMI to RF Conversion Works
One HDMI Source β A Real TV Channel on Every Outlet
An HDMI-to-RF converter takes the digital output of modern gear and turns it back into a tunable TV channel β the job old analog RF converters did for VCRs, now in broadcast-grade HD over coax.
- Connect any HDMI gadget β streaming stick, console, camera, or laptop
- Choose the output channel on the color LCD; the HDMI becomes a TV station
- Drop the converter's coax output into the wall jack or a combiner
- Scan once on each set and the converted channel appears in crisp 1080p
- No flaky HDMI extenders, no decoder at each TV, no streaming accounts to juggle
- Convert more devices by adding units and combining their coax outputs

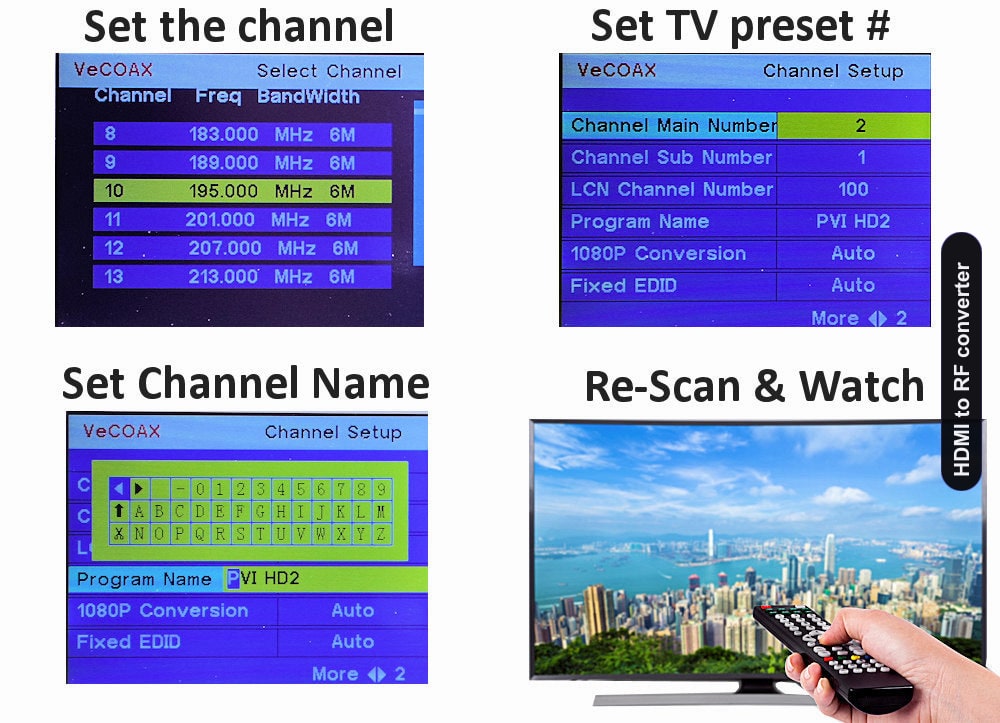

Setup

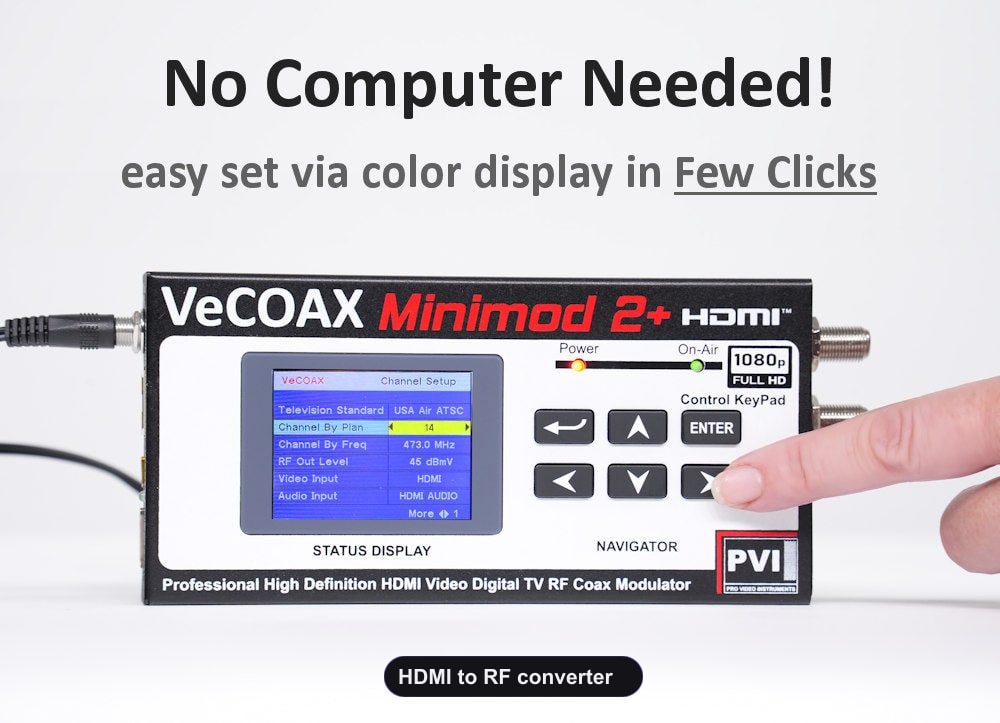

Convert HDMI to RF in Under a Minute. No Computer Required.
Old RF converters meant fiddly tuning knobs; cheap modern ones demand a laptop. This converter exposes channel, modulation, and level on a bright LCD so anyone can set it on the spot.
- The display surfaces channel, frequency, and converter status at a glance
- Toggle QAM or ATSC and lock the channel using only the front buttons
- Self-contained box β there is no app, utility, or driver to chase down
- Plug in β pick channel β attach coax β scan β your device is on TV
Works on Your Existing Line
Your Converted HDMI Channel Sits Beside Your Current Channels

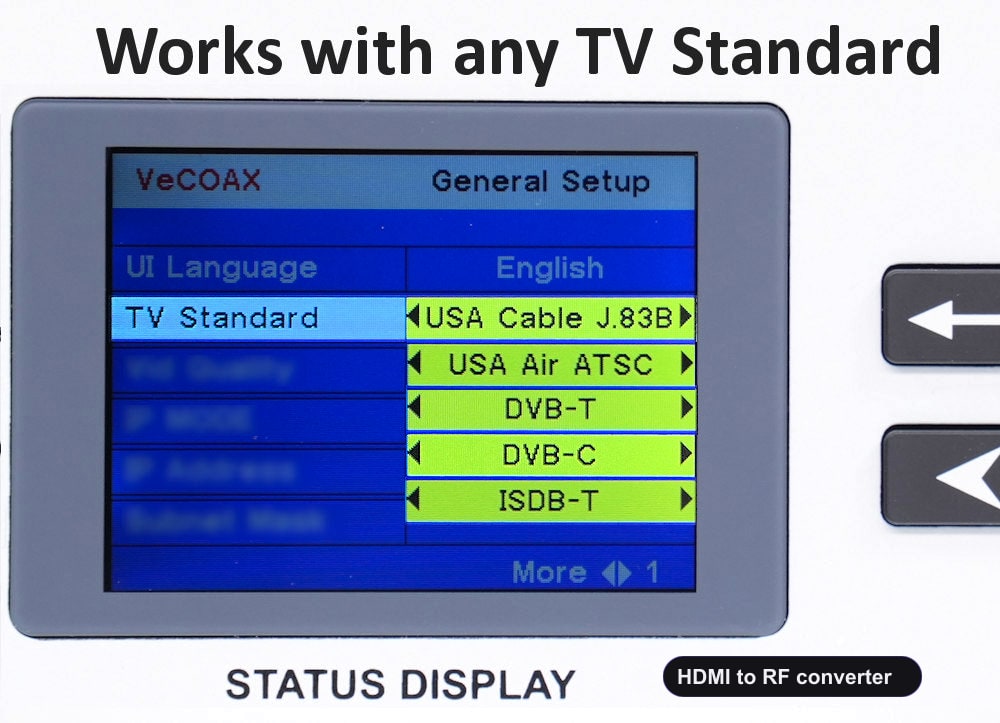

Convert to QAM for cable-mode TVs or ATSC for antenna-mode TVs β the converted channel joins whatever lineup the building already tunes.
The converter emits a genuine broadcast channel, so your once-HDMI source behaves like a real station. Cable-mode (QAM) sets list it among cable channels; antenna-mode (ATSC) sets add it to the air grid β flip standards on the panel anytime.
DVB-T/T2, DVB-C/C2, and ISDB-T are supported as well, so this one HDMI-to-RF converter fits any plant on the planet β HD, 4K, or 8K receivers.

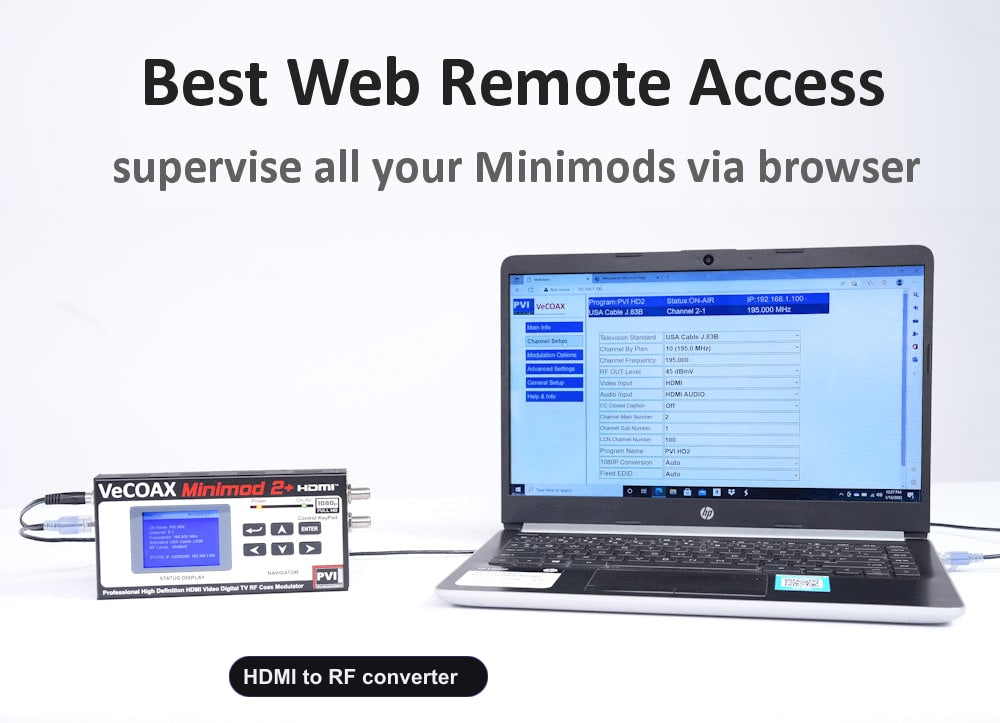

Remote Control
Adjust Your HDMI-to-RF Converter From Any Browser
The LCD does the install; the optional LAN page is there for converters living in equipment rooms, letting you change channels and watch status from the bench.
- Change the converted channel and output level remotely over the LAN
- Supervise a rack of HDMI-to-RF converters from one browser screen
- Open it on any computer or phone browser β zero software to install
- On-air indicators reassure you every converted channel is broadcasting

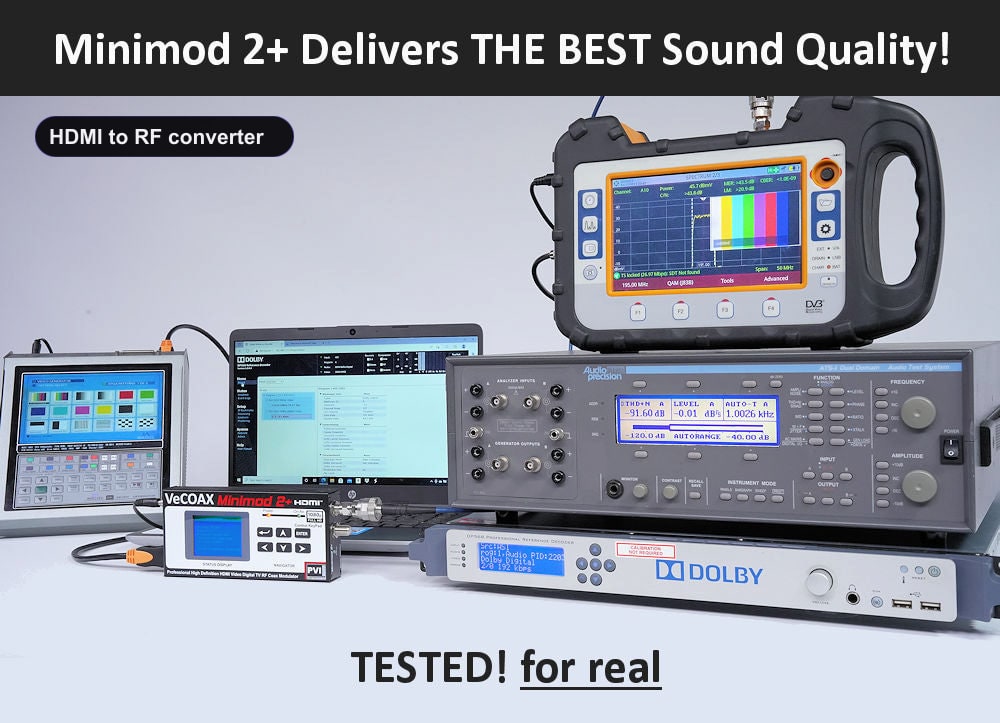

Audio
The Converter Carries HDMI Audio Over RF, Too
Converting HDMI to a TV channel keeps the sound intact β the converter wraps broadcast Dolby Digital around the picture so audio reaches every set perfectly synced.
- Dolby Digital / LPCM travels alongside the converted HDMI picture
- Sound stays glued to picture across long coax β no creeping lip-sync error
- Relays 5.1 surround untouched from surround-capable HDMI gear
- Speech, music, and effects come through clean on each television

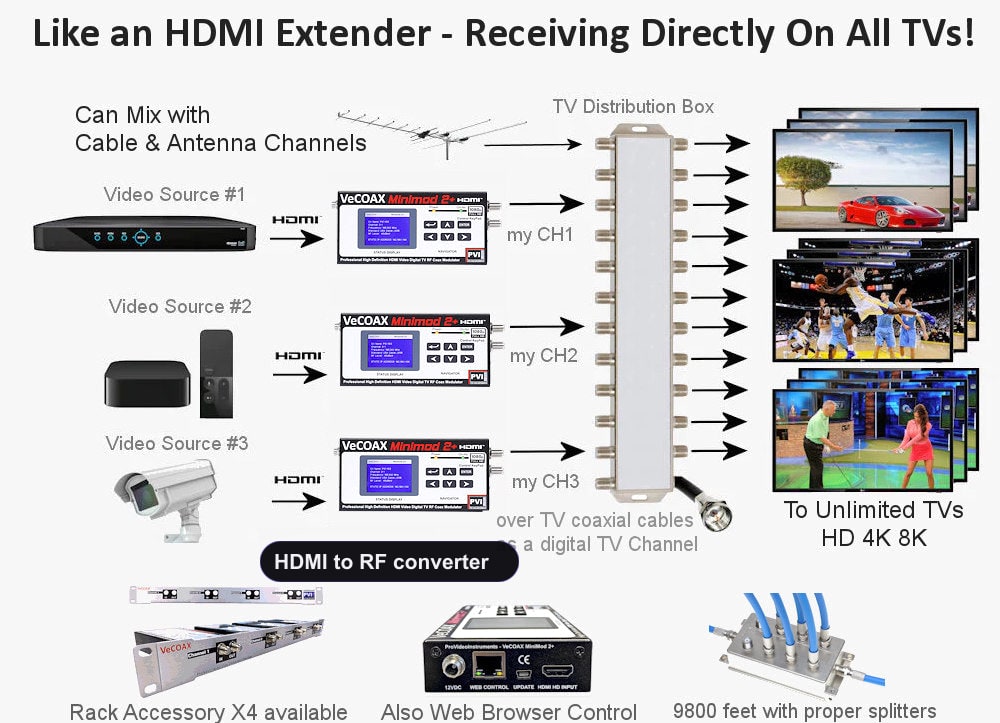

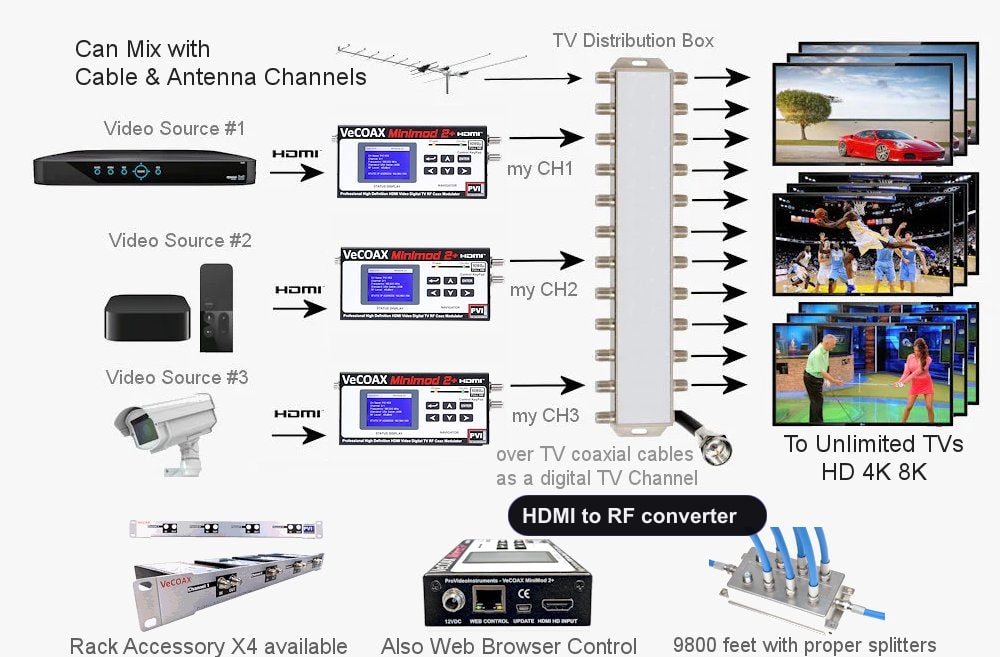

Installation
Three Connections. Done.
HDMI in. Coax out. One scan. The converted source is live on every TV in Full HD with matched sound.

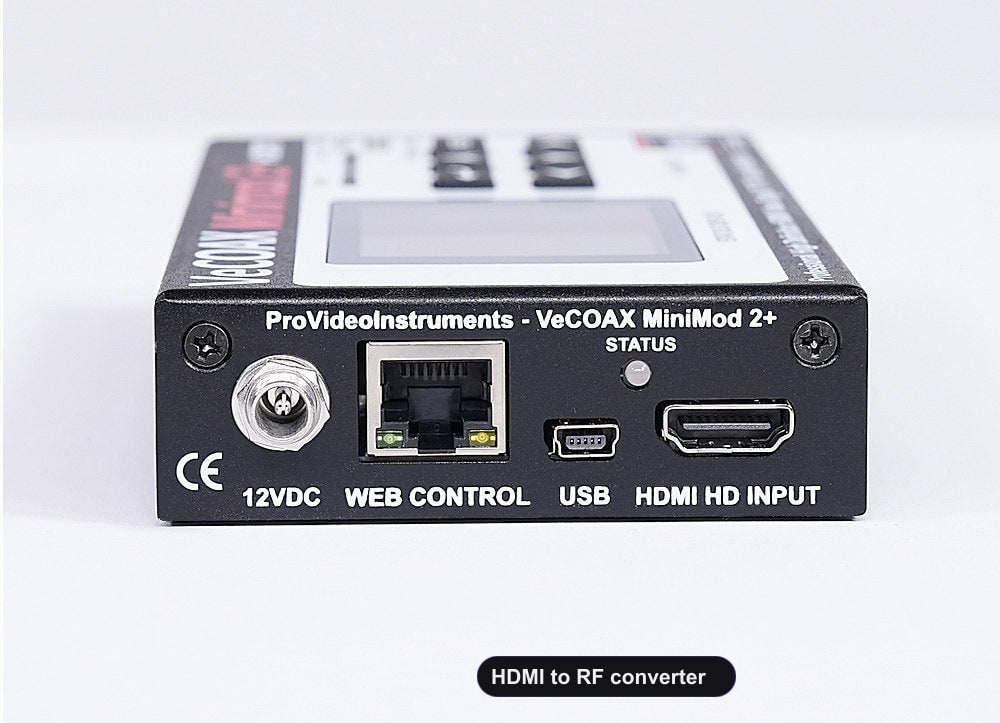

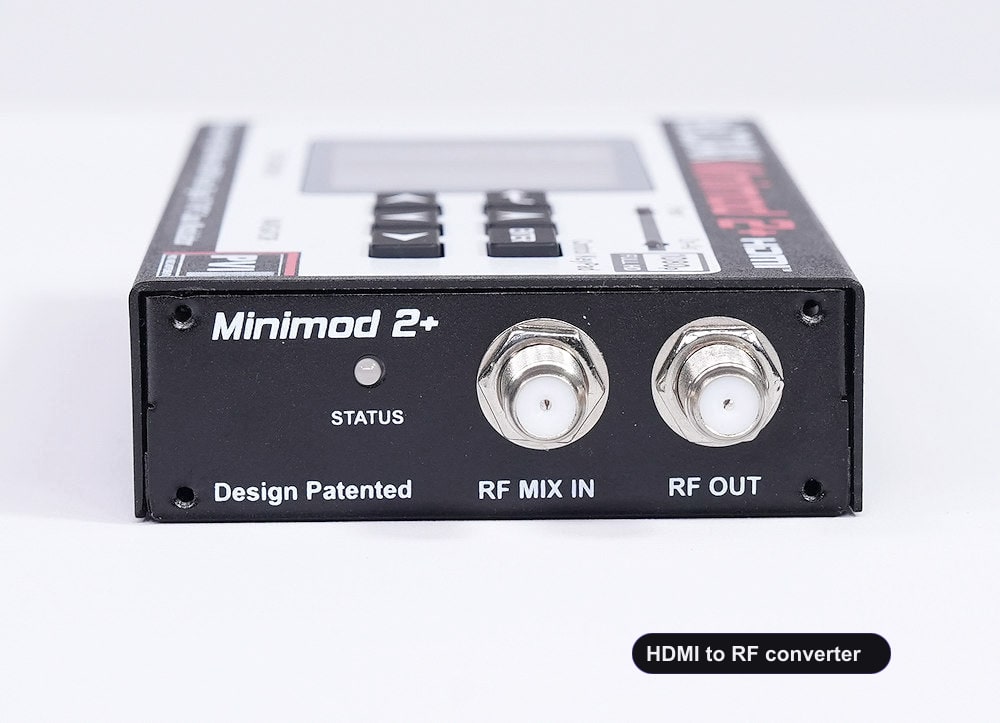

A converter install is quick: connect the HDMI device, feed the F-type coax output into the existing distribution (or a passive combiner when adding channels), select a channel on the LCD, and rescan. No network setup, no behind-the-TV decoders, no IT involvement β the in-wall coax does the distribution.

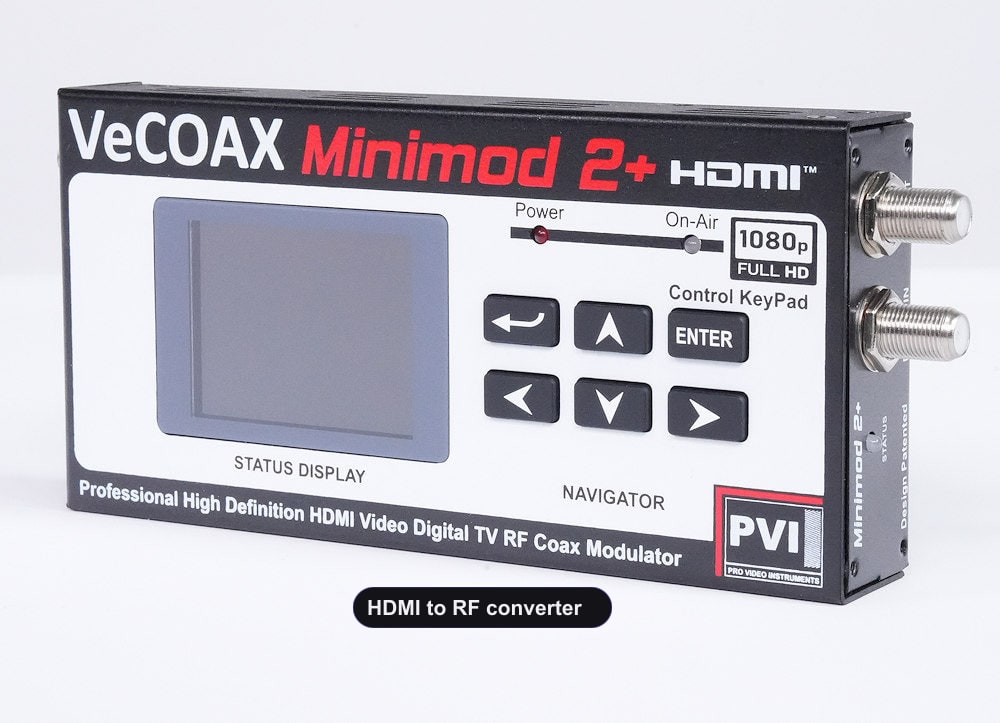

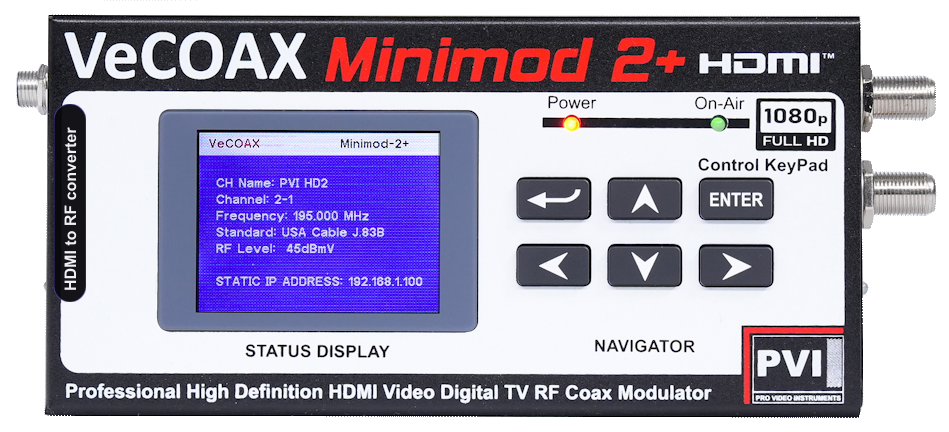

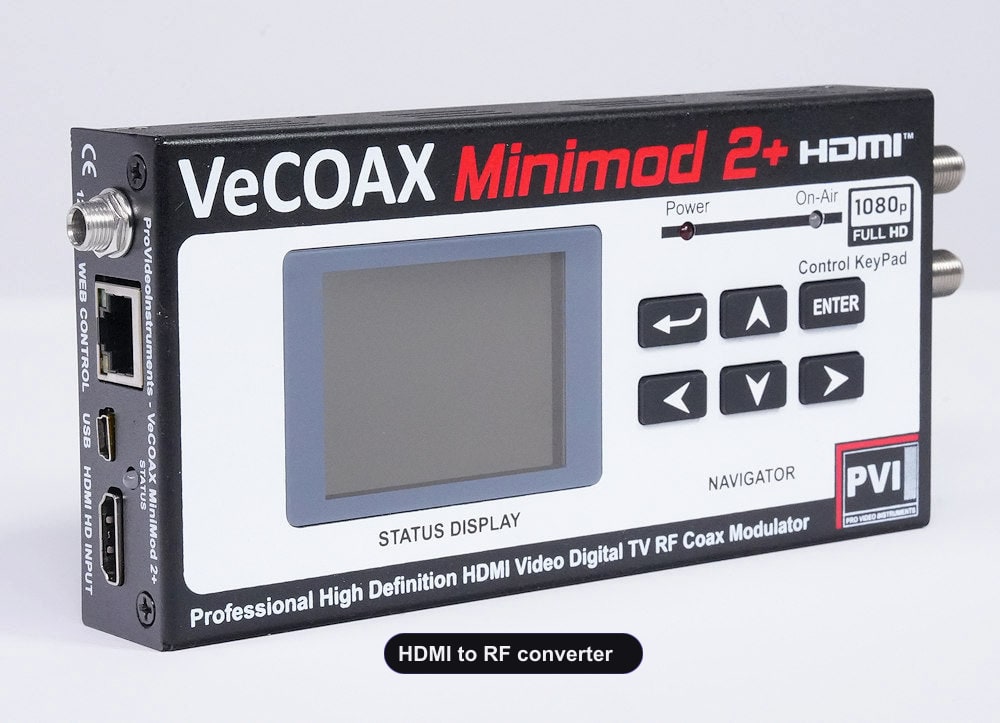

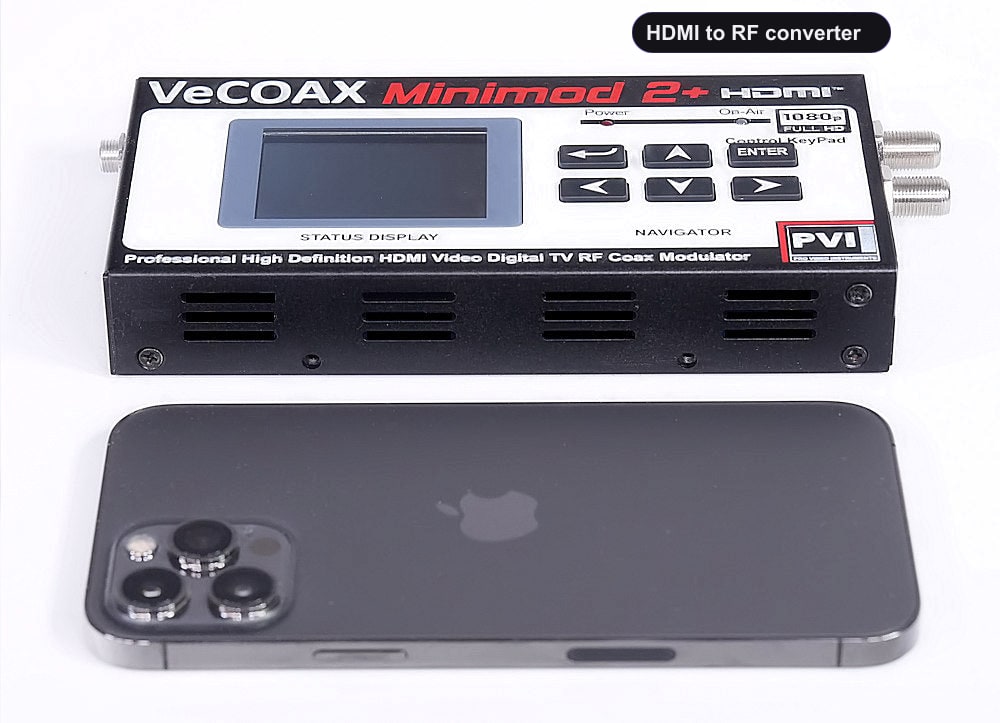

The MINIMOD 2+
The HDMI to RF Converter That Acts Like a Broadcast Headend
Palm-sized aluminum build, broadcast-grade conversion, and a front-panel LCD β the professional way to put any HDMI source on RF. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ converts HDMI to RF the way cable operators do it: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV RF output to drive long cable runs, a built-in color LCD for computer-free setup, and support for every worldwide TV standard. One small box turns any HDMI device into a channel that reaches unlimited TVs over the coax already in your walls.
Rack Solutions

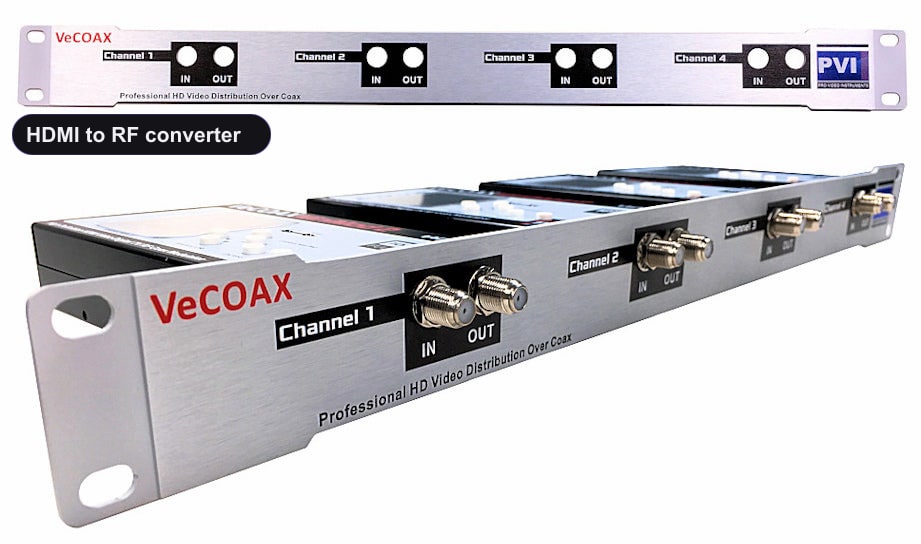

Stack Multiple HDMI-to-RF Channels in 1RU
Need several HDMI sources on RF? Mount up to four MINIMOD 2+ converters in a single 1RU rack panel for a tidy, professional multi-channel headend.
The optional 1RU rack panel holds up to four HDMI-to-RF converters in one rack space, with front-panel access and proper airflow. Combine their outputs with a passive combiner and you have a clean multi-channel lineup riding a single coax β ideal for AV closets, server rooms, and broadcast facilities.
$105.00$99.00Save $6.00

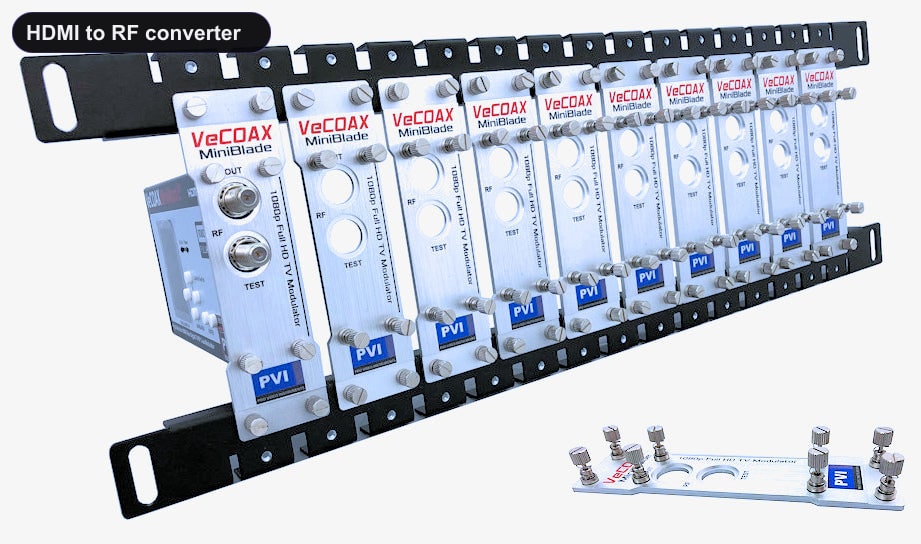

High Density
10+ HDMI-to-RF Channels with the MiniBlade Kit
For large lineups, the VeCOAX MiniBlade system packs 10 or more converter units into a single rack β each fully independent so one channel can never take down the rest. Built for hdmi to rf converter installations.
When you need to convert many HDMI sources to RF at once, the MiniBlade rack kit delivers maximum channel density with independent power per unit. There is no shared point of failure: every HDMI-to-RF channel runs on its own, which is exactly what 24/7 commercial systems demand.
Compatibility
Every TV Tunes the Converted Channel β HD, 4K, and 8K
The converted output is a standard digital broadcast, so any television demodulates it perfectly β from a ten-year-old HD set to a brand-new 8K panel.
Because the converter outputs to broadcast spec, no TV is ever incompatible. Color, frame rate, and audio timing are resolved inside the converter, so the channel looks correct on every brand and resolution with no per-set adjustment.
Features
Built to Convert HDMI to RF Flawlessly
Every detail exists to put your HDMI source on an RF channel with broadcast stability and effortless setup. Built for hdmi to rf converter installations.

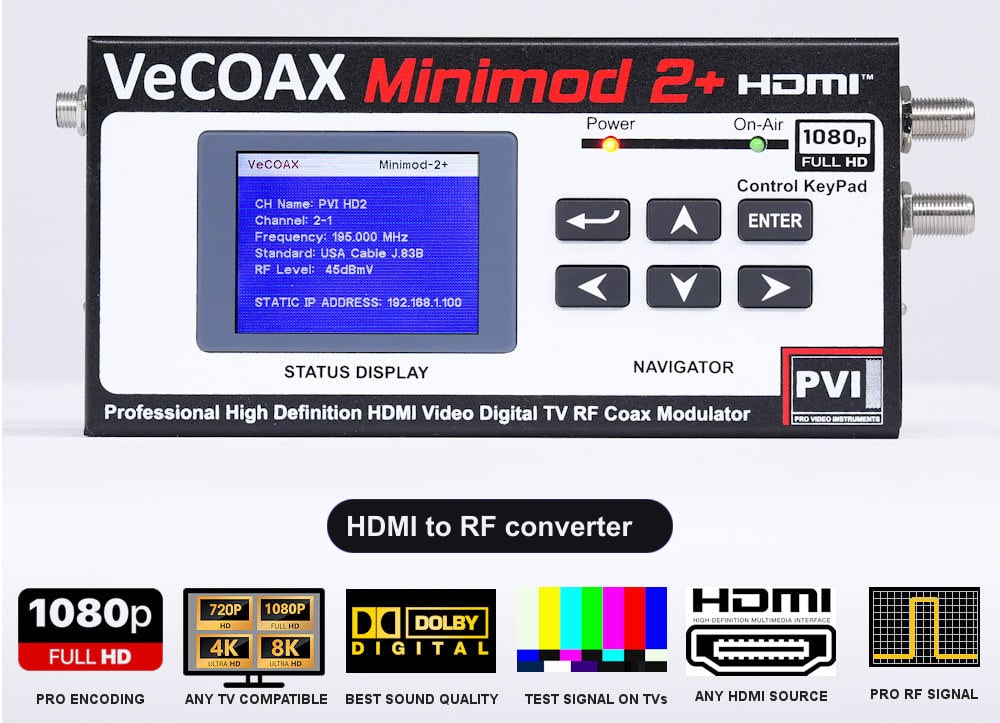

Front-Panel Color LCD
Set your HDMI-to-RF channel, modulation, and output level on the built-in display β no laptop, no web hunting.
One-Click Channel Recall
Bank and restore complete converter setups instantly to swap a unit in seconds.
Full Channel Customization
Trim the output frequency to the hertz and name the converted channel per job.
1080p@60 Motion Encoding
1080p60 encoding with motion estimation keeps converted action sharp on big screens.
MPEG-2 Broadcast Standard
MPEG-2 output matches what tuners expect, so every TV decodes the converted channel.
+45 dBmV Output
Hefty +45 dBmV drive lets one converter feed long runs and many splits with no amp.
MER >45 dB
High MER guarantees the converted channel looks flawless at the end of the cable.
Full Digital DDS
DDS synthesis lets converted channels sit side by side with no spurious bleed.
Secure Web Remote
Password-guarded browser control for converters parked in racks and closets.
Unlimited TVs
Send the converted channel to a handful of TVs or thousands at no per-set fee.
Built-In Test Pattern
Color bars broadcast when no HDMI is attached, verifying the coax path end to end.
HDMI Licensed + Full EDID
HDMI-licensed input with full EDID control for a dependable source handshake.
Watch the Demo
See HDMI Converted to RF in Real Time
From plugging in an HDMI device to seeing the converted channel on every coax TV β the entire process in under five minutes.
Full walkthrough: HDMI connection, channel choice on the LCD, coax distribution, TV scan, and racking multiple converters. Duration: 4 min 30 sec.
Applications
Where HDMI-to-RF Conversion Shines
π¨
Hotels & Resorts
Convert a welcome device to a coax channel on every guest-room TV.
πΊ
Sports Bars
Convert a streaming box to one channel shown across every bar screen.
βͺ
Churches
Convert the worship camera feed to a channel for overflow and lobby TVs.
π₯
Hospitals
Convert education devices to coax channels throughout the facility.
π
Schools
Convert an announcement source to a campus-wide coax channel.
π’
Corporate
Convert dashboards and all-hands feeds to channels for every meeting room.
π
Residential
Convert one home device to a channel on every television in the house.
π‘οΈ
Government
Convert secure sources to coax channels for facilities and operations.
Why PVI
Why This Is the Best HDMI to RF Converter
Bargain converters cut output power and signal purity β and the farthest TV shows it. The MINIMOD 2+ converts HDMI to a broadcast-clean channel that holds across the building.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓HDMI 2.0b Input β Top Quality
✕HDMI 1.4 β outdated handshake; may limit newer HDR sources
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Convert Without a Computer
✕Requires PC for Full Setup
✓Dot-less Channel Numbering Mode
✕Not Available
✓+45 dBmV Output β Long Coax Runs
✕Low Output β May Need External Amplifiers
✓4 Converters in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓Digital QAM/ATSC/DVB/ISDB Output
✕Old Analog NTSC β Grainy, One Channel
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Clean at the Far End
✕Low MER β Pixelation & Drops on Long Coax
Specifications
HDMI to RF Converter β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2β83 ATSC mode | 2β158 J83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |
| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |
| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
HDMI To RF Converter - Frequently Asked Questions
What is an HDMI to RF converter?
An HDMI to RF converter is a device that turns an HDMI source into a real digital TV channel over coax. For the hdmi to rf converter keyword family, the VeCOAX MINIMOD 2+ handles converting HDMI into a digital RF TV channel over coax and lets every connected TV scan the result like normal television.
How does an HDMI to RF converter work over coax?
For hdmi to rf converter, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use an HDMI to RF converter instead of HDMI cables?
HDMI To RF Converter distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why hdmi to rf converter is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this HDMI to RF converter?
Use streaming boxes, cable receivers, cameras, signage players, computers, and AV switchers. For hdmi to rf converter installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the hdmi to rf converter channel?
Any TV with a compatible digital tuner can receive the hdmi to rf converter channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this HDMI to RF converter support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for hdmi to rf converter in hotels, CATV plants, commercial buildings, and private coax systems.
Does this HDMI to RF converter support ATSC antenna mode?
Yes. In ATSC mode, the same HDMI to RF converter creates an antenna-style digital TV channel. This helps hdmi to rf converter projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this HDMI to RF converter coexist with existing TV channels?
Yes. Assign the hdmi to rf converter output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one HDMI to RF converter feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For hdmi to rf converter, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can hdmi to rf converter travel over coax?
HDMI To RF Converter output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this HDMI to RF converter?
Yes. This is the main advantage of hdmi to rf converter: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this HDMI to RF converter?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes hdmi to rf converter setup fast even without a laptop.
Why is the color LCD important for hdmi to rf converter?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes RF conversion faster to commission than units that require software for basic setup.
Can I manage this HDMI to RF converter remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for hdmi to rf converter systems in equipment rooms.
What picture quality does this HDMI to RF converter deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the hdmi to rf converter channel stay sharp on every TV.
Does this HDMI to RF converter work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p hdmi to rf converter channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more hdmi to rf converter channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger hdmi to rf converter lineup.
Where is this HDMI to RF converter used most often?
This HDMI to RF converter is used in buildings that need one source on many TVs without HDMI extenders. Typical hdmi to rf converter applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this HDMI to RF converter different from a HDMI extender?
A HDMI extender usually depends on short point-to-point wiring or limited outputs. A HDMI to RF converter creates a real tunable TV channel, so the existing coax system distributes the hdmi to rf converter source to every TV at building scale.
Is the MINIMOD 2+ good for professional hdmi to rf converter?
Yes. It is designed for 24/7 professional hdmi to rf converter with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this HDMI to RF converter HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional hdmi to rf converter system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this HDMI to RF converter?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable RF conversion and strong hdmi to rf converter performance.
Accessories
Complete Your HDMI-to-RF System
Everything you need to combine, rack, and scale multiple converted channels.

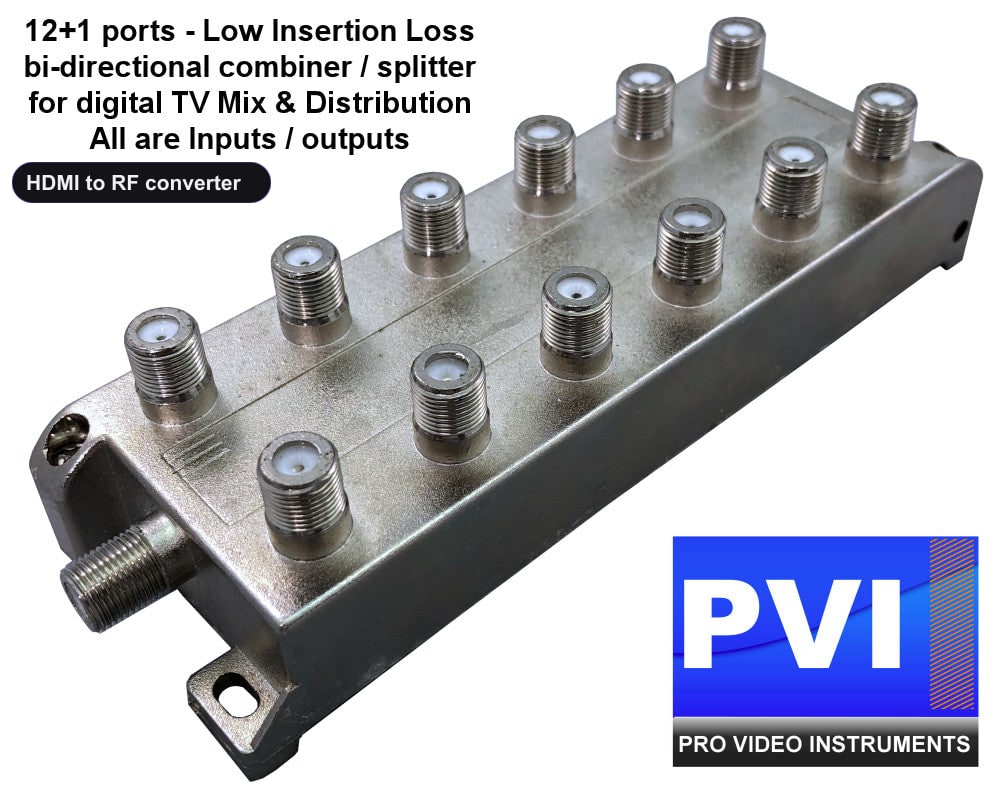

Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

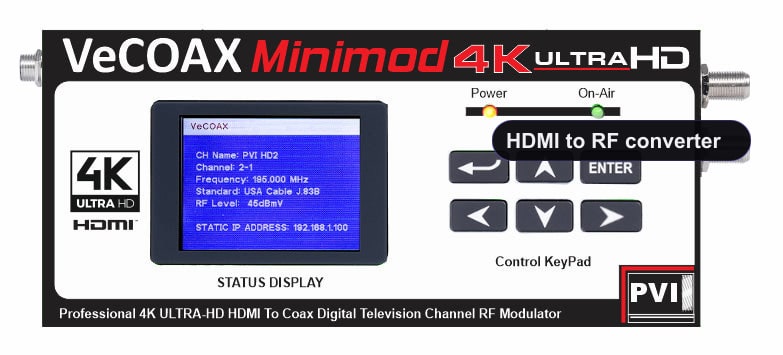

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

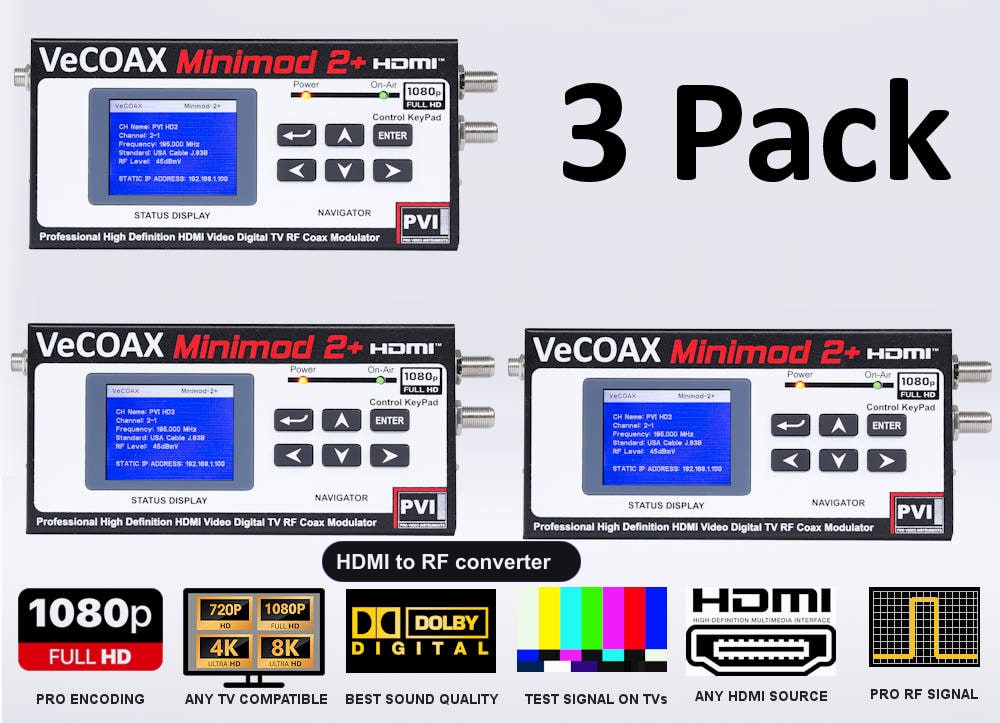

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00

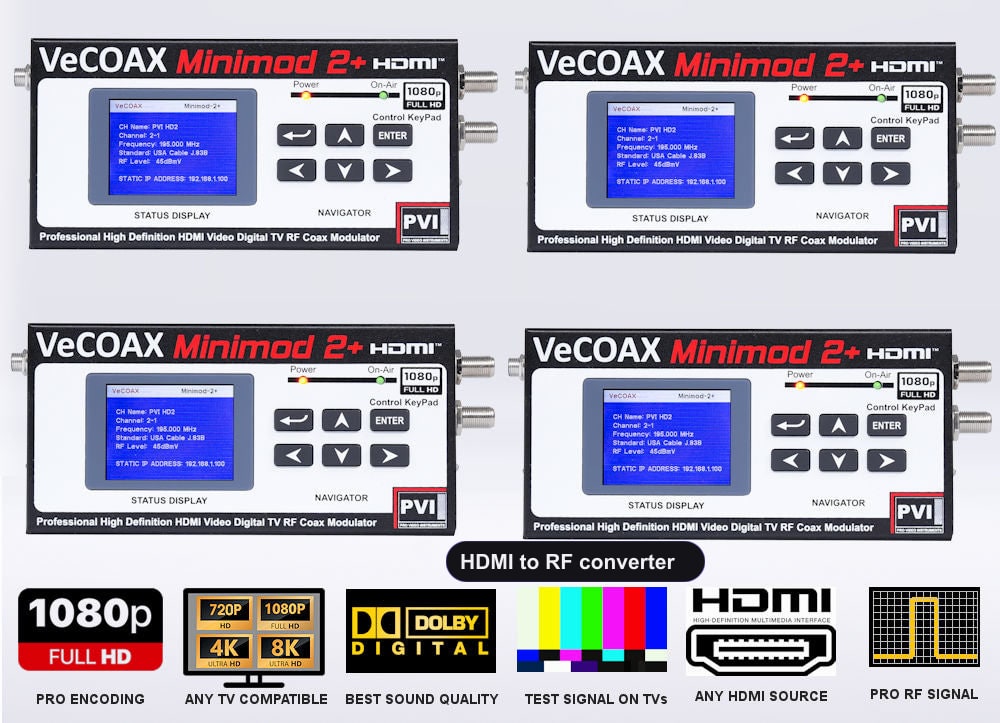

MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Convert more sources with multi-unit bundles, or step up to 4K HDMI-to-RF.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Put Your HDMI Source on Every TV?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
