A professional modulator has to lock cleanly on both QAM cable tuners and ATSC antenna tuners. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it delivers broadcast-grade output on every standard: +45 dBmV and MER above 45 dB, so TVs lock instantly whether you're feeding a QAM lineup or an ATSC lineup.
Recognition
The Professional QAM / ATSC Modulator Trusted Since 2017
When a job calls for QAM on one site and ATSC on the next, professionals carry one VeCOAX MINIMOD 2+ instead of two modulators — award-winning, US-built, proven on 50,000+ installations.

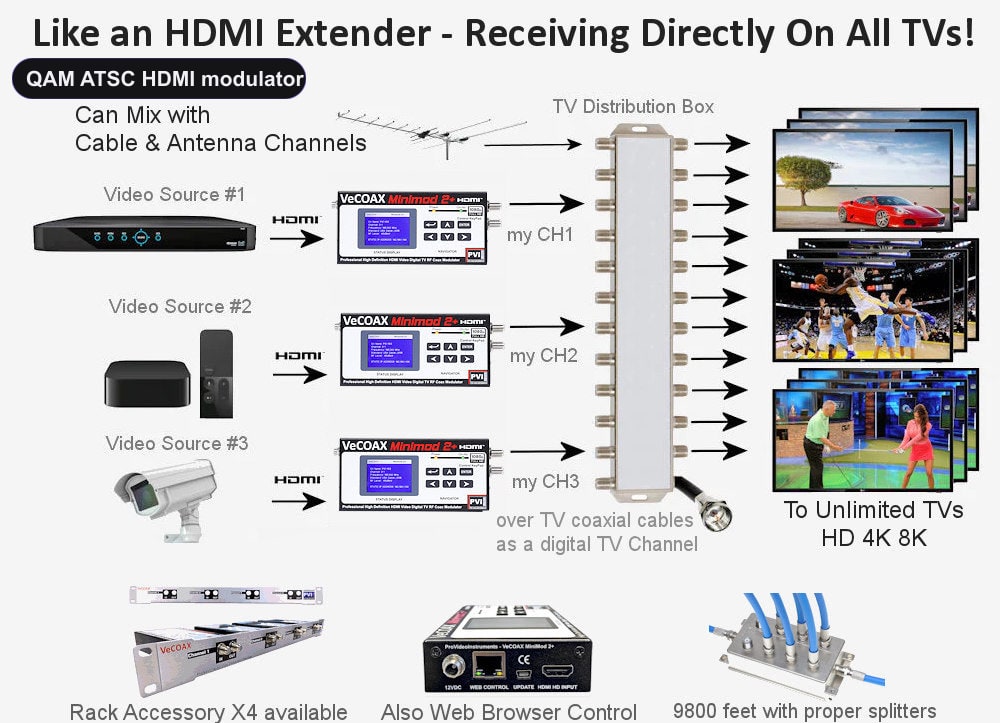

How a QAM / ATSC Modulator Works

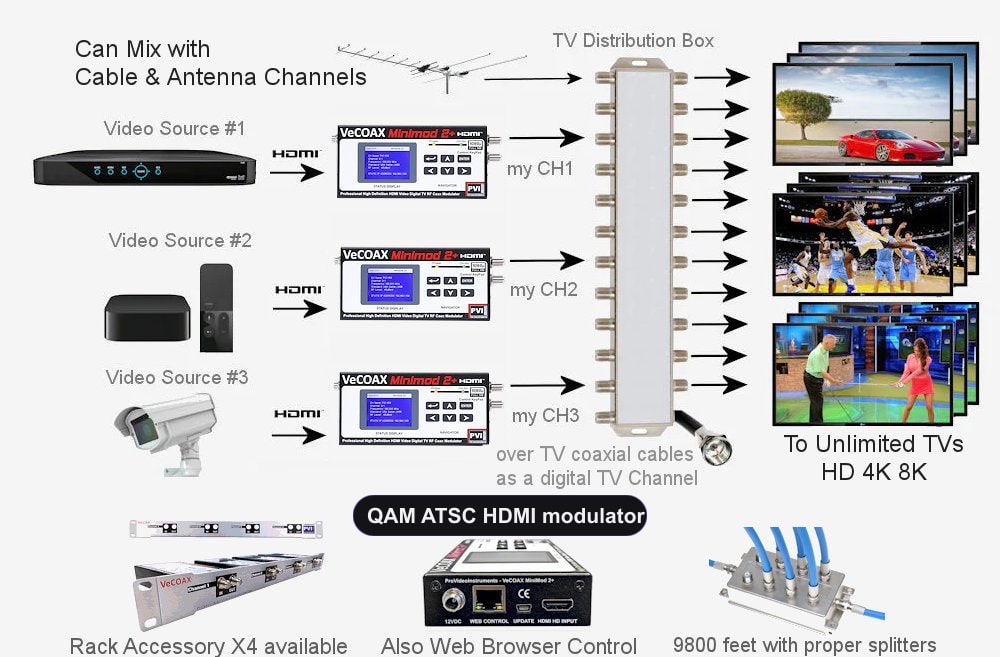

HDMI In → A QAM or ATSC Channel on Every TV
A professional QAM/ATSC modulator encodes your HDMI source and modulates it as either a QAM (cable) or ATSC (antenna) channel on your coax. Every TV finds it on a normal scan in the matching mode — no new HDMI runs, no network.

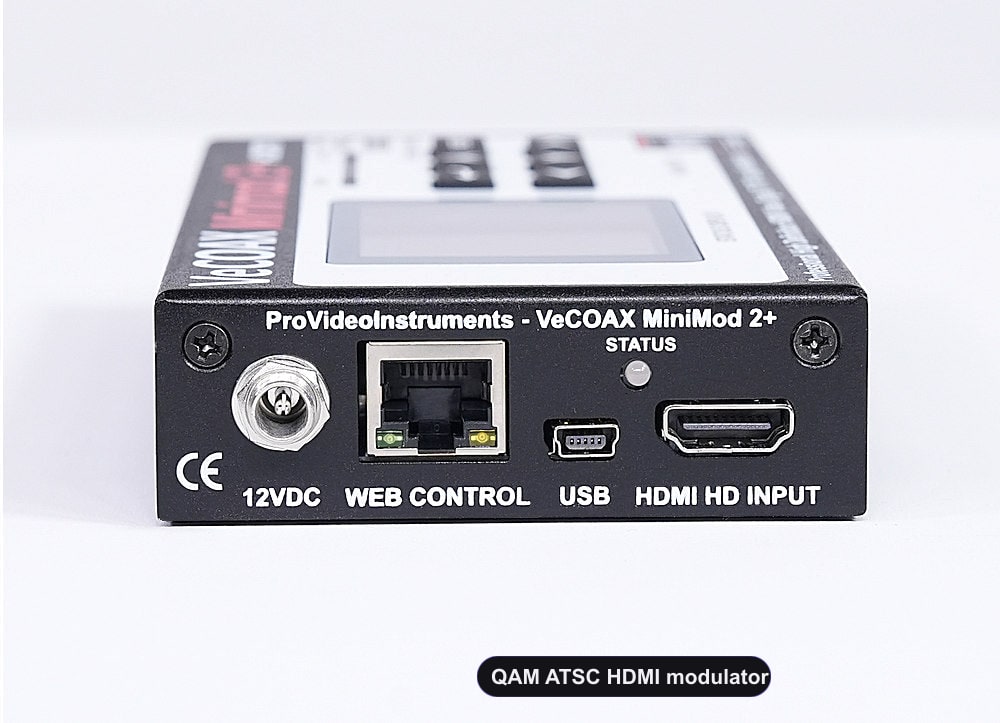

- Feed any HDMI source into the modulator — cable box, Apple TV, camera, signage player, laptop Built for qam atsc hdmi modulator installations.
- Choose QAM or ATSC on the LCD — then pick a channel number

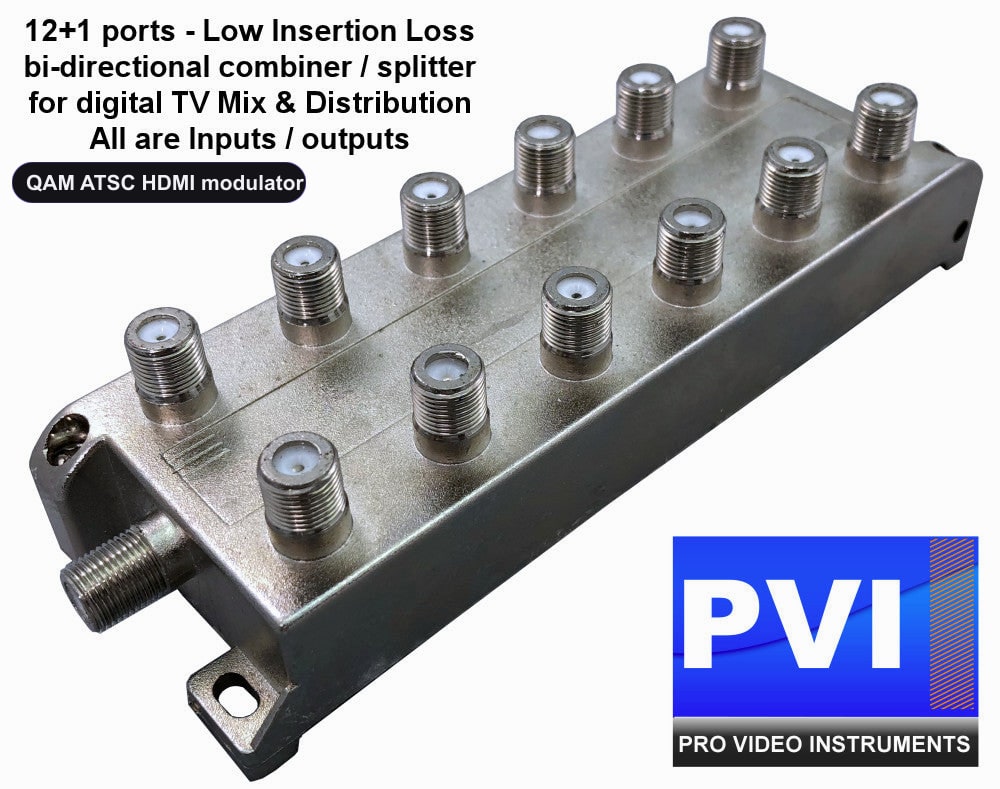

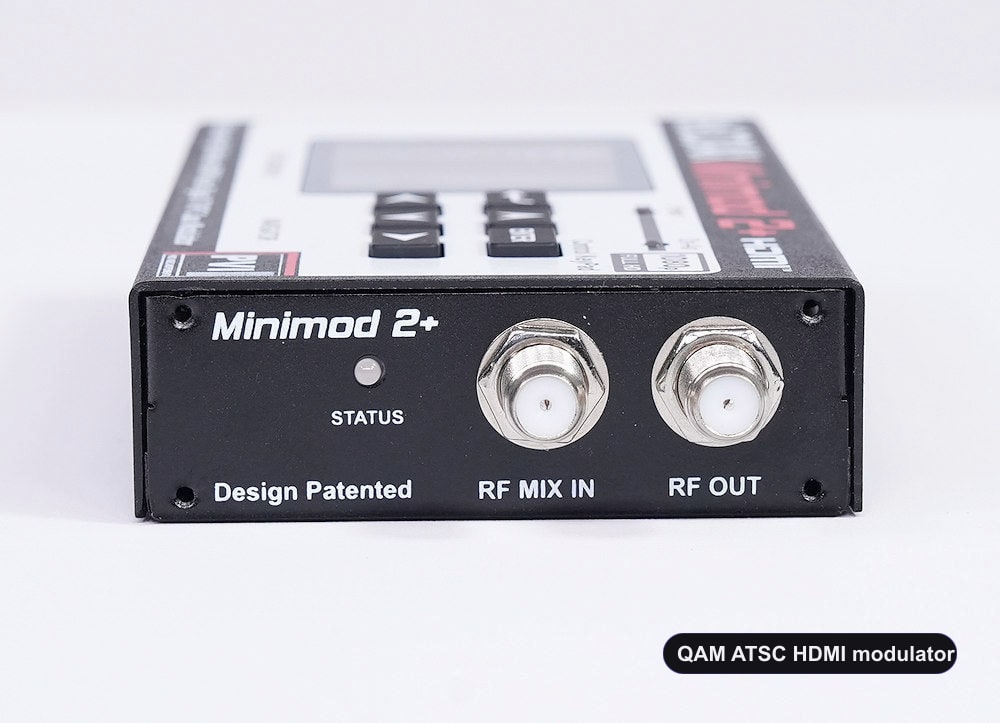

- Connect the coax output into your existing cabling or a combiner Built for qam atsc hdmi modulator installations.
- Auto-scan each TV in the matching mode — the channel appears in full 1080p
- No HDMI cable length limits, no splitters behind every screen, no streaming boxes Built for qam atsc hdmi modulator installations.
- Mix QAM and ATSC channels on the same coax with multiple modulators

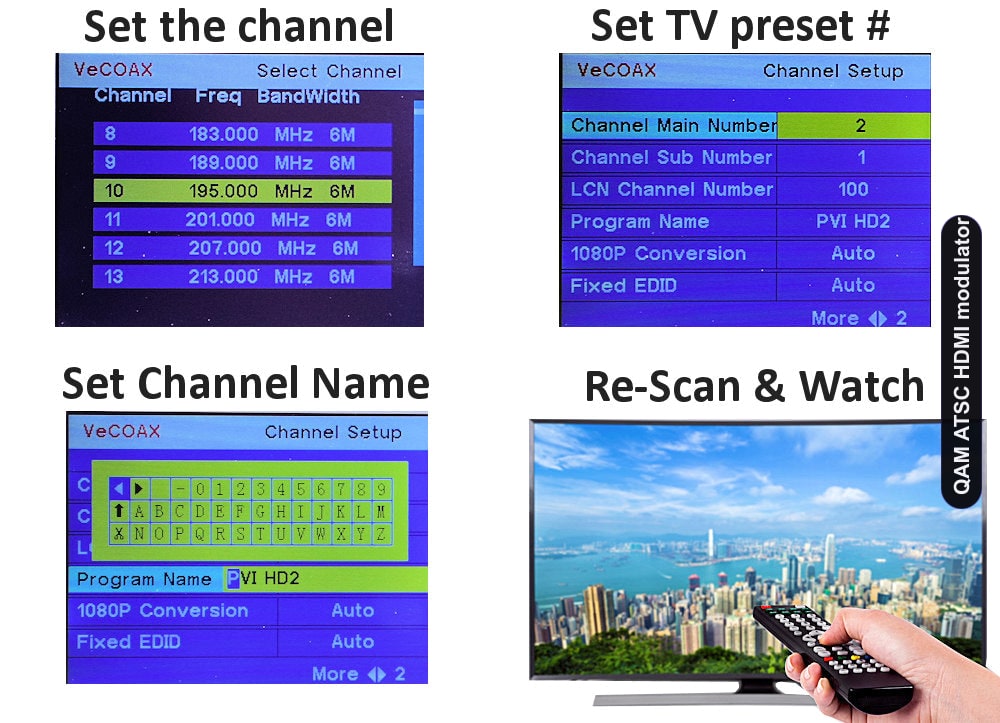

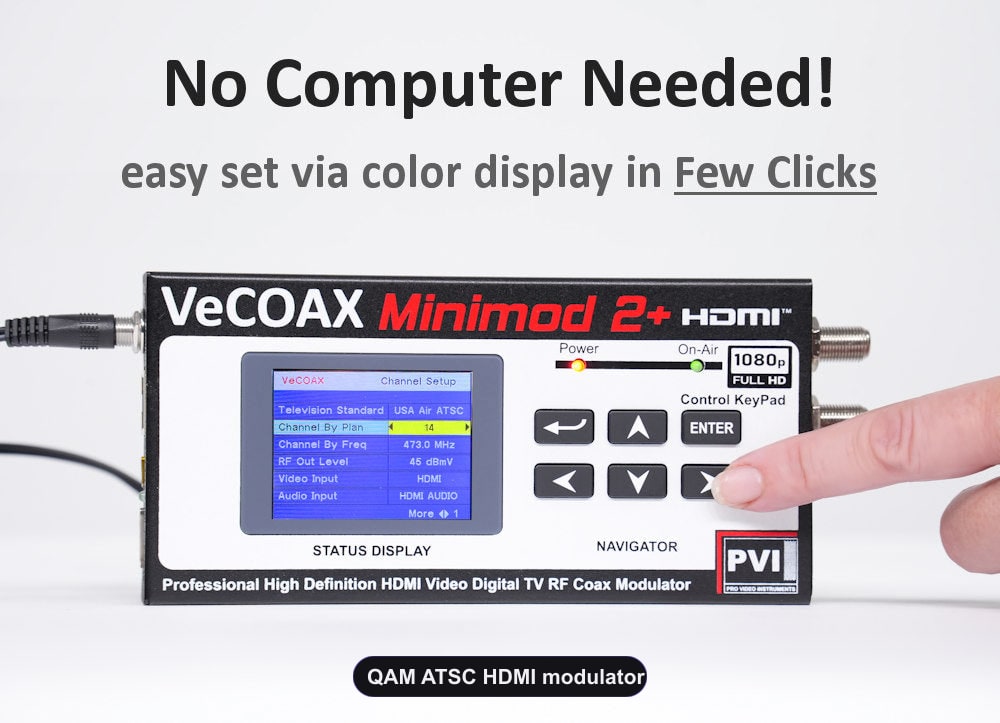

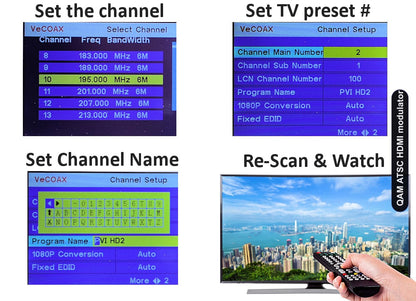

Setup
Switch Between QAM and ATSC in Seconds. No Computer Required.
Most professional modulators force you to plug into a laptop to change standards. The MINIMOD 2+ puts QAM, ATSC, channel, and output level on a high-resolution color LCD right on the box.

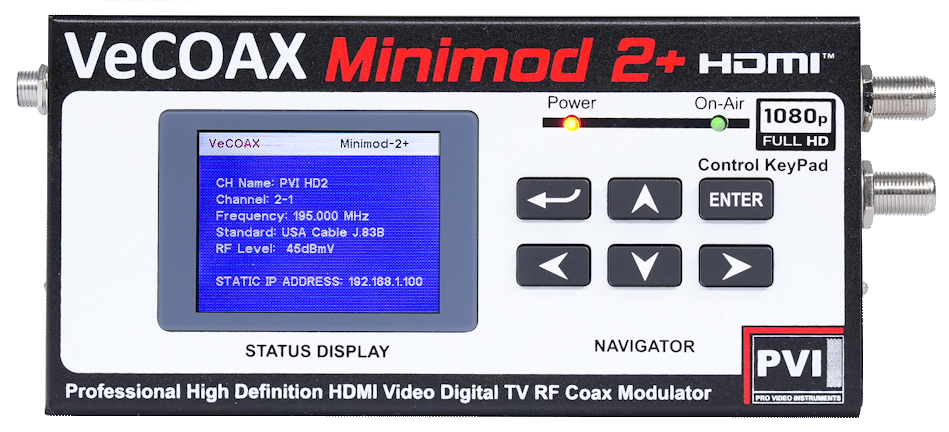

- Built-in color LCD shows standard, channel, frequency, and signal status at a glance
- Switch between QAM and ATSC right on the front panel — no firmware swap
- No PC, no software, no app — the modulator is fully self-contained
- Power on → choose QAM/ATSC → pick a channel → connect coax → scan TVs → done

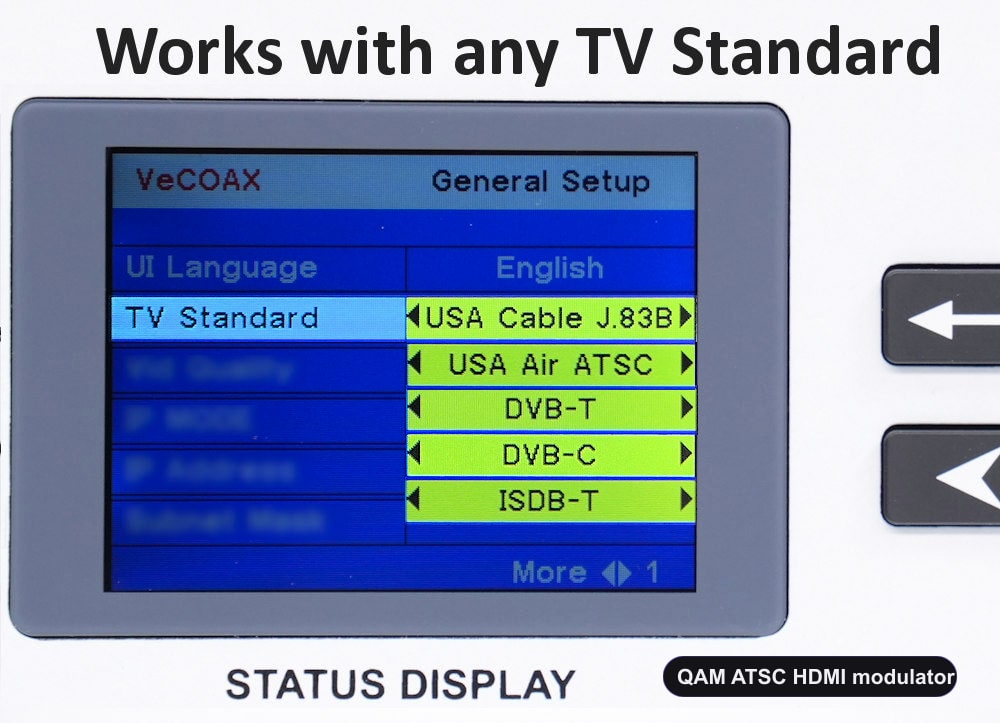

QAM, ATSC & Beyond
One Professional Modulator for QAM, ATSC and Every Standard
QAM for cable tuners, ATSC for antenna tuners, plus DVB-T, DVB-C, and ISDB-T for international systems — all selectable on the LCD. One box covers every job.
QAM and ATSC are the two North American digital standards — QAM for in-building cable systems, ATSC for over-the-air antenna systems. Rather than stock both, professionals carry the MINIMOD 2+ and select whichever the site needs on the LCD.
Travelling or working internationally? The same modulator switches to DVB-T, DVB-C, or ISDB-T — truly one box for any TV plant on earth, in HD, 4K, or 8K.

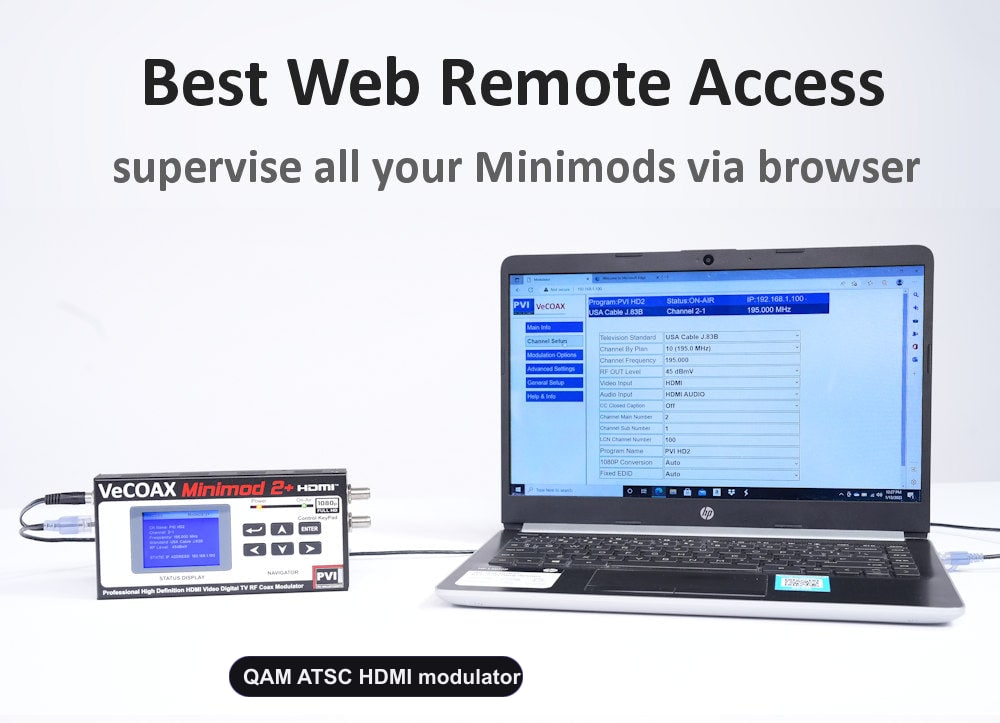

Remote Control
Manage QAM & ATSC Channels From Any Browser
The front-panel LCD handles setup, but when modulators live in a rack you can also monitor and retune them — and switch standards — remotely through the secure web interface.
- Optional web interface for remote standard, channel, and level changes over the LAN
- Manage a whole rack of QAM/ATSC modulators from one browser tab
- Works from PC, Mac, tablet, or phone — no app to install Built for qam atsc hdmi modulator installations.
- Live status and alerts so you know every channel is on-air Built for qam atsc hdmi modulator installations.

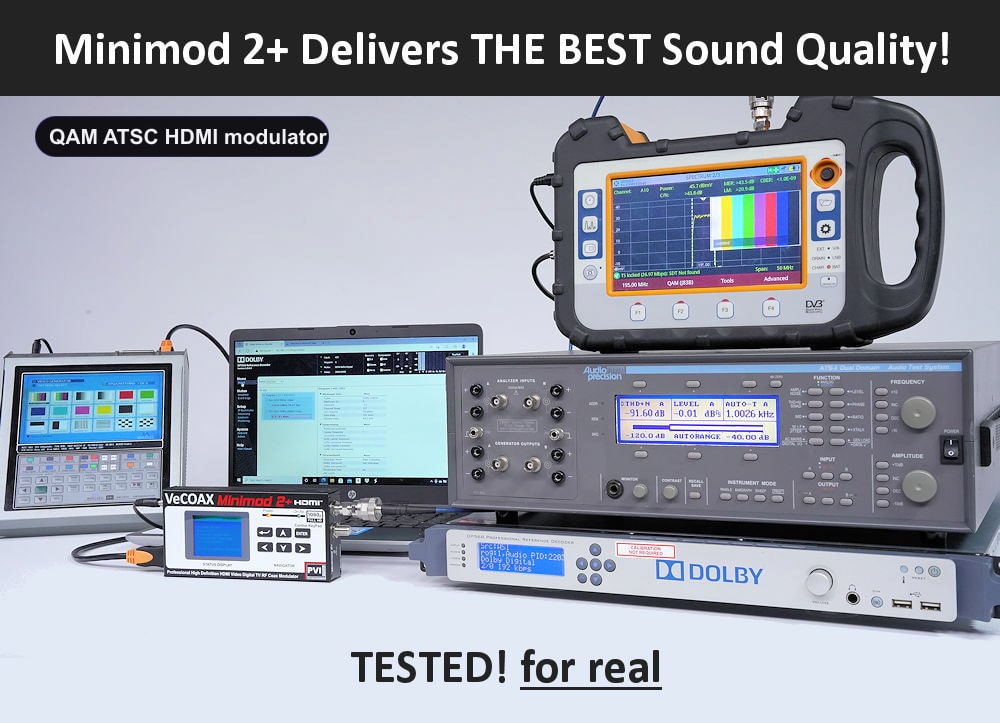

Audio
Broadcast-Grade Audio on Every Standard
Whether you output QAM or ATSC, the MINIMOD 2+ encodes broadcast-grade Dolby Digital so audio arrives locked to picture on every television.
- Dolby Digital / LPCM audio carried in both QAM and ATSC channels
- Tight lip-sync from input to every TV — no drift over long coax runs Built for qam atsc hdmi modulator installations.
- Passes 5.1 surround from compatible HDMI sources Built for qam atsc hdmi modulator installations.
- Clean voice, music, and effects on every screen Built for qam atsc hdmi modulator installations.
Installation
Three Connections. Done.
HDMI in. Coax out. Channel scan. Your source becomes a QAM or ATSC channel on every screen — in Full HD with synced audio.
A professional QAM/ATSC install with the MINIMOD 2+ takes minutes, not days. Connect the HDMI source, run the F-type coax output into your existing cabling, choose QAM or ATSC and a channel on the LCD, and auto-scan the TVs. No network to configure and no decoders behind screens — the coax does all the work.

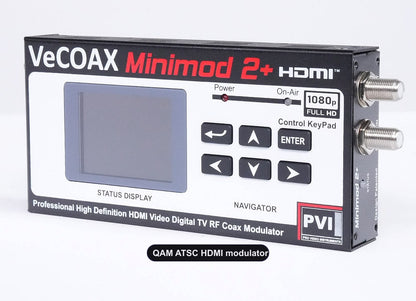

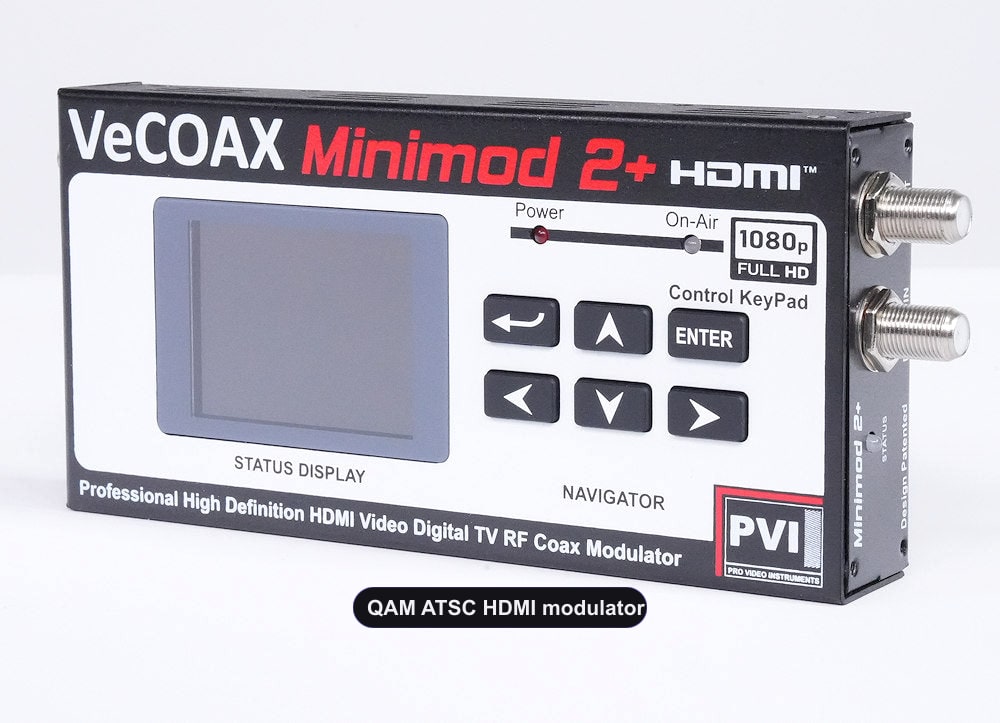

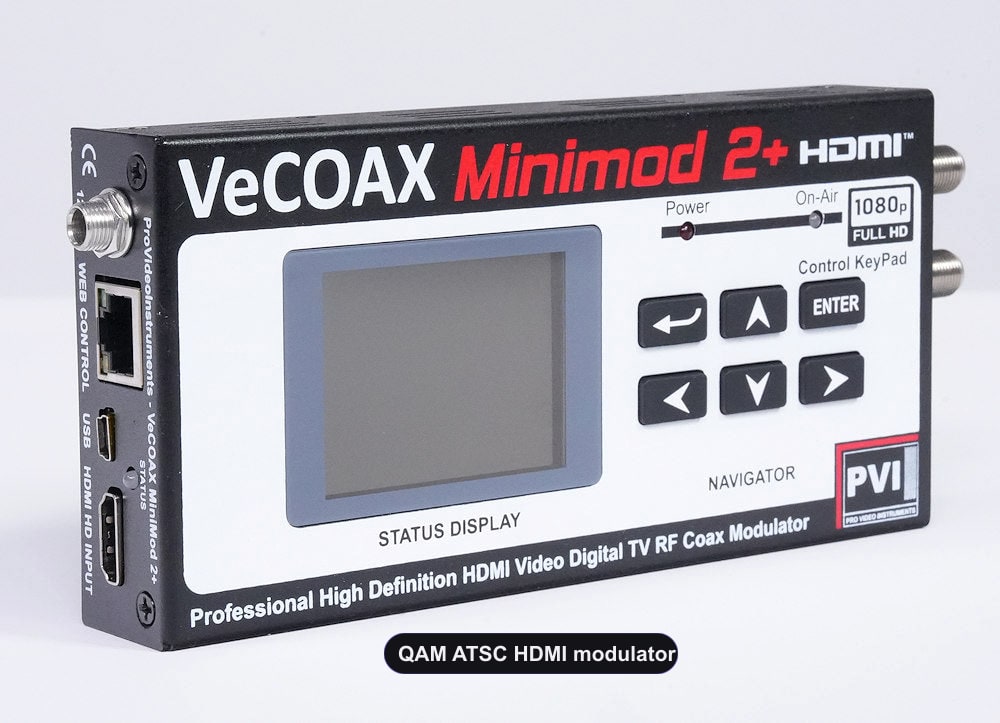

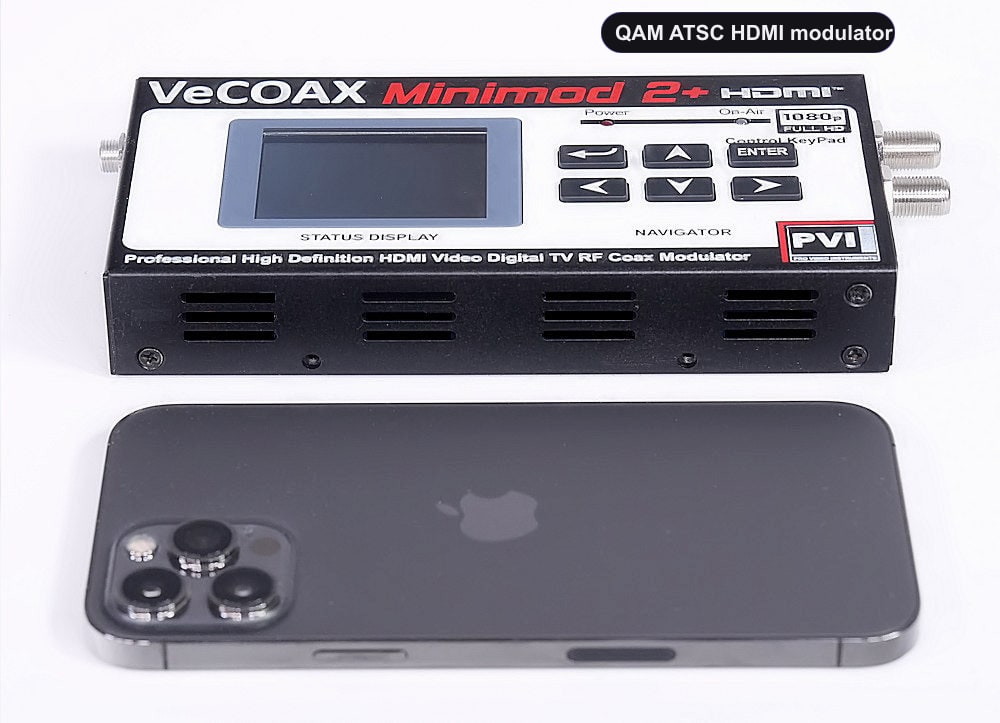

The MINIMOD 2+
A Professional QAM / ATSC Modulator With Headend Quality
Palm-sized aluminum build, spurious-free QAM and ATSC modulation, and a front-panel LCD — the professional way to deliver either standard. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ outputs QAM and ATSC the way broadcasters do: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to drive long coax and splitters, a built-in color LCD to switch standards without a computer, and support for every worldwide TV standard. One small box covers QAM cable jobs and ATSC antenna jobs alike.

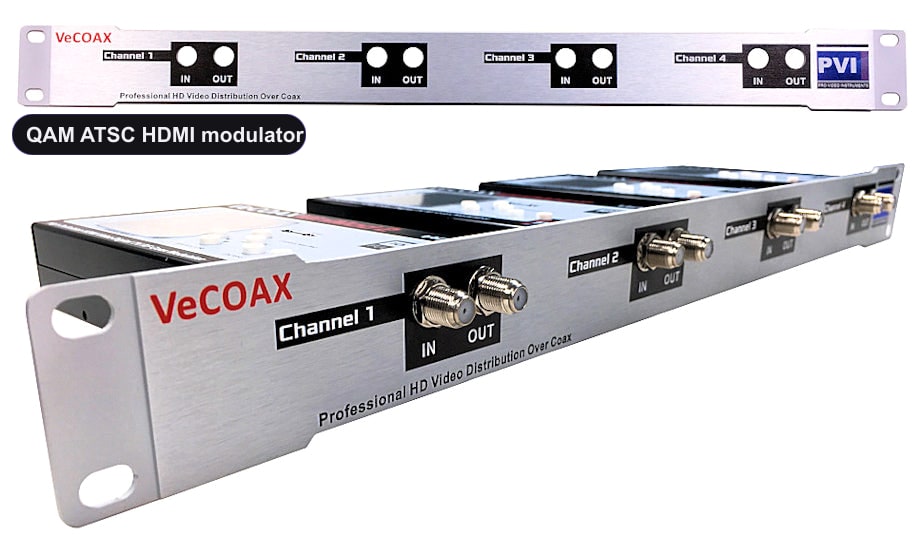

Rack Solutions
Build a Multi-Channel QAM / ATSC Headend in 1RU

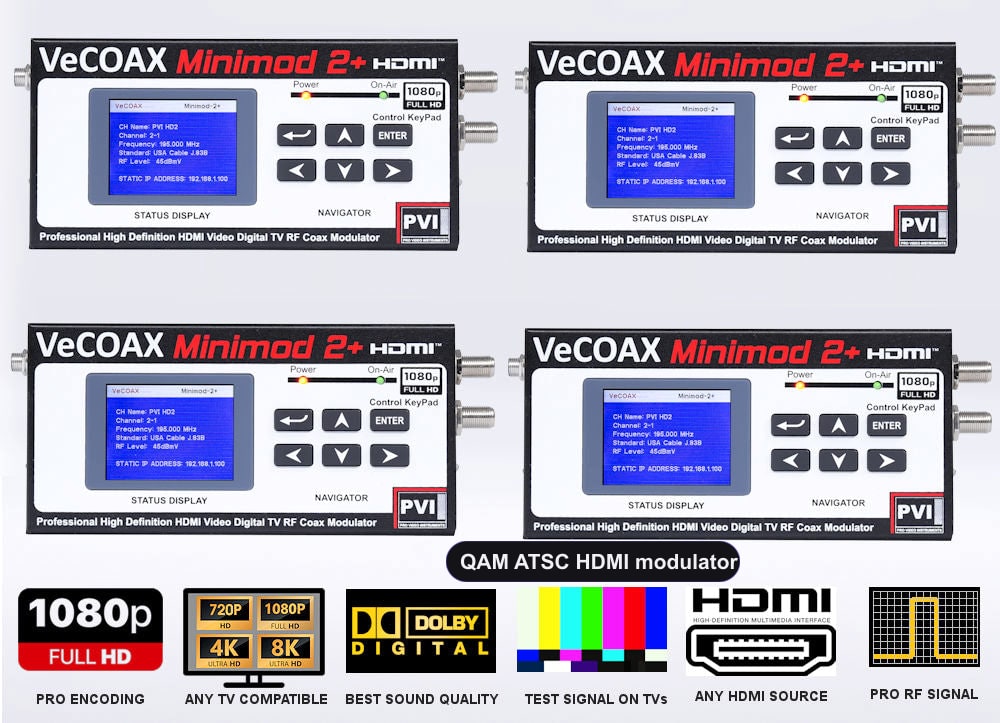

Need several channels? Mount up to four MINIMOD 2+ modulators in a single 1RU rack panel — mix QAM and ATSC channels in the same headend.
The optional 1RU rack panel holds up to four modulators in one rack space, with front-panel access and proper airflow. Set some to QAM and some to ATSC, combine their outputs, and you have a flexible professional headend — ideal for equipment closets, server rooms, and broadcast facilities.
$105.00$99.00Save $6.00

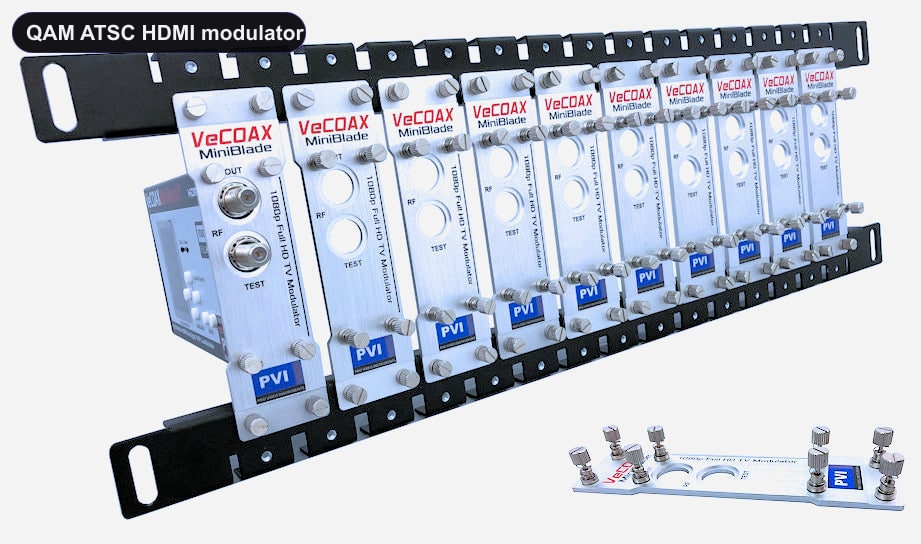

High Density
10+ QAM / ATSC Channels with the MiniBlade Kit
For large professional lineups, the VeCOAX MiniBlade system packs 10 or more modulator units into a single rack — each independent and individually set to QAM or ATSC.
When you need many channels at once across both standards, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every QAM and ATSC channel runs on its own, which is exactly what 24/7 professional systems demand.
Compatibility
Every TV Tunes Your QAM or ATSC Channel — HD, 4K, and 8K
QAM and ATSC are standard digital signals, so any TV with a digital tuner decodes them perfectly — from a decade-old HD set to the newest 8K display.
Because the MINIMOD 2+ outputs standards-compliant QAM and ATSC, virtually every modern television decodes its channels with the built-in tuner — QAM in Cable mode, ATSC in Antenna mode. Color space, frame rate, and audio sync are handled inside the modulator, so the picture looks right on every brand and resolution.
Features
Professional-Grade on Both Standards
Every detail exists to deliver clean, broadcast-grade QAM and ATSC channels with effortless standard switching and setup.

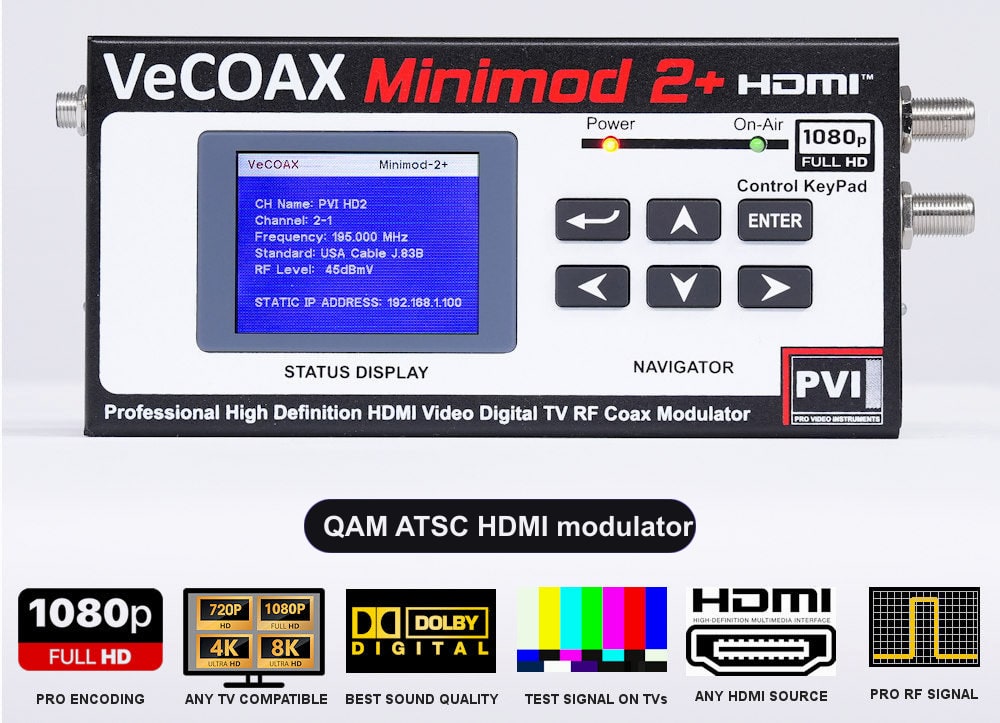

Front-Panel Color LCD
Switch QAM/ATSC, set channel and output level on the built-in display — no laptop.
One-Click Config Recall
Save and recall full QAM or ATSC configurations instantly — swap a modulator into service in seconds.
Full Channel Customization
Tune frequency down to the Hz, choose any QAM or ATSC channel, name it, and shape every parameter.
1080p@60 Motion Encoding
Multi-layer motion estimation keeps fast action crisp even on the largest screens. Built for qam atsc hdmi modulator installations.
MPEG-2 Broadcast Standard
Encodes in the same format cable and broadcast operators use — universal TV compatibility.
+45 dBmV Output
Professional output power drives long coax and splitters with no external amplifier. Built for qam atsc hdmi modulator installations.
MER >45 dB
Clean QAM and ATSC signals for instant lock and zero artifacts at the far end of the run.
Full Digital DDS
Spurious-free output so QAM and ATSC channels stack cleanly with no interference.
Secure Web Remote
Password-protected browser control for managing QAM/ATSC modulators in racks.
Unlimited TVs
Distribute your channel to 5 TVs or 5,000 — no per-screen cost. Built for qam atsc hdmi modulator installations.
Built-In Test Pattern
Color bars appear when no HDMI is connected, so you can verify the coax run end-to-end. Built for qam atsc hdmi modulator installations.
HDMI Licensed + Full EDID
Fully HDMI licensed with exclusive EDID control for guaranteed handshake with any source. Built for qam atsc hdmi modulator installations.
Watch the Demo
See QAM and ATSC Channels Created in Real Time
From plugging in an HDMI source to switching between QAM and ATSC and watching channels appear on every TV — the whole process in under five minutes.
Complete walkthrough: HDMI connection, QAM/ATSC selection on the LCD, channel scan, and multi-channel rack setups. Duration: 4 min 30 sec.
Applications
Where a Professional QAM / ATSC Modulator Shines
🏨
Hotels & Resorts
QAM channels to guest rooms over the property's coax system.
🍺
Sports Bars
Every game on its own QAM or ATSC channel across all screens.
⛪
Churches
Live services as channels to lobby and overflow rooms.
🏥
Hospitals
QAM education and wayfinding channels to in-room TVs.
🎓
Schools
Campus announcements as QAM or ATSC channels.
🏢
Corporate
Dashboards and town-halls as building-wide channels.
🏠
Residential
Turn any source into a house channel — QAM or ATSC.
🛡️
Government
Secure QAM/ATSC channels across facilities.
Why PVI
Why This Is the Best Professional QAM / ATSC Modulator
Most modulators lock you into one standard. The MINIMOD 2+ gives professionals QAM and ATSC in a single box, switchable on the LCD, with clean broadcast-grade output on both.
VeCOAX MINIMOD 2+
Competitors
✓$445 — Today's Deal
✕$469+
✓QAM + ATSC in One Box — Switch on the LCD
✕Separate Units or Firmware Swap Needed
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD — Setup Without a Computer
✕Requires PC for Full Setup
✓2–158 QAM + 2–83 ATSC + DVB + ISDB-T
✕Single Standard Only
✓+45 dBmV — Drives Long Coax Runs
✕Low Output — May Need External Amplifiers
✓4 Modulators in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import — support may vanish when the model changes
✓Spurious-Free DDS on Both Standards
✕Spurs Cause Pixelation on Adjacent Channels
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB — Instant Lock
✕Low MER — Pixelation & Drops on Long Coax
Specifications
Professional QAM / ATSC Modulator — Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources — also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input — up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54–990 MHz — selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2–158 J.83B QAM | 2–83 ATSC | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB — Broadcast Quality |
| Frequency Synthesis | Full Digital DDS — zero spurious & harmonics |
| RF Connector | F-Type Dual, 75Ω |
| Coaxial Cable Support | RG59 | RG6 (75Ω characteristic impedance) |
| RF Transmission Distance | ≤3,000 m (~9,800 ft) — extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 — network compatible |
| Power Input | AC 100V–240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10–90% RH (no condensation) |
| Storage Humidity | 5–95% RH (no condensation) |
| Unit Dimensions (L×W×H) | 6″ × 3″ (4.5″ with wall mount ears) × 1″ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (L×W×H) | 11″ × 6″ × 9.3″ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVI’s patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
Professional QAM ATSC HDMI Modulator - Frequently Asked Questions
What is a professional QAM ATSC HDMI modulator?
A professional QAM ATSC HDMI modulator is a device that turns an HDMI source into a real digital TV channel over coax. For the qam atsc modulator professional keyword family, the VeCOAX MINIMOD 2+ handles switching between QAM cable-mode and ATSC antenna-mode channel output and lets every connected TV scan the result like normal television.
How does a professional QAM ATSC HDMI modulator work over coax?
For qam atsc modulator professional, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use a professional QAM ATSC HDMI modulator instead of HDMI cables?
Professional QAM ATSC HDMI Modulator distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why qam atsc modulator professional is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this professional QAM ATSC HDMI modulator?
Use HDMI receivers, cameras, players, computers, and signage sources. For qam atsc modulator professional installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the qam atsc modulator professional channel?
Any TV with a compatible digital tuner can receive the qam atsc modulator professional channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this professional QAM ATSC HDMI modulator support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for qam atsc modulator professional in hotels, CATV plants, commercial buildings, and private coax systems.
Does this professional QAM ATSC HDMI modulator support ATSC antenna mode?
Yes. In ATSC mode, the same professional QAM ATSC HDMI modulator creates an antenna-style digital TV channel. This helps qam atsc modulator professional projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this professional QAM ATSC HDMI modulator coexist with existing TV channels?
Yes. Assign the qam atsc modulator professional output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one professional QAM ATSC HDMI modulator feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For qam atsc modulator professional, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can qam atsc modulator professional travel over coax?
Professional QAM ATSC HDMI Modulator output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this professional QAM ATSC HDMI modulator?
Yes. This is the main advantage of qam atsc modulator professional: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this professional QAM ATSC HDMI modulator?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes qam atsc modulator professional setup fast even without a laptop.
Why is the color LCD important for qam atsc modulator professional?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes QAM and ATSC HDMI modulation faster to commission than units that require software for basic setup.
Can I manage this professional QAM ATSC HDMI modulator remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for qam atsc modulator professional systems in equipment rooms.
What picture quality does this professional QAM ATSC HDMI modulator deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the qam atsc modulator professional channel stay sharp on every TV.
Does this professional QAM ATSC HDMI modulator work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p qam atsc modulator professional channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more qam atsc modulator professional channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger qam atsc modulator professional lineup.
Where is this professional QAM ATSC HDMI modulator used most often?
This professional QAM ATSC HDMI modulator is used in installers and facilities that need one professional modulator for both cable and antenna TV lineups. Typical qam atsc modulator professional applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this professional QAM ATSC HDMI modulator different from a single-standard modulator?
A single-standard modulator usually depends on short point-to-point wiring or limited outputs. A professional QAM ATSC HDMI modulator creates a real tunable TV channel, so the existing coax system distributes the qam atsc modulator professional source to every TV at building scale.
Is the MINIMOD 2+ good for professional qam atsc modulator professional?
Yes. It is designed for 24/7 professional qam atsc modulator professional with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this professional QAM ATSC HDMI modulator HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional qam atsc modulator professional system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this professional QAM ATSC HDMI modulator?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable QAM and ATSC HDMI modulation and strong qam atsc modulator professional performance.
Accessories
Complete Your QAM / ATSC Headend
Everything you need to combine, rack, and scale QAM and ATSC channels over coax.
Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional — use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

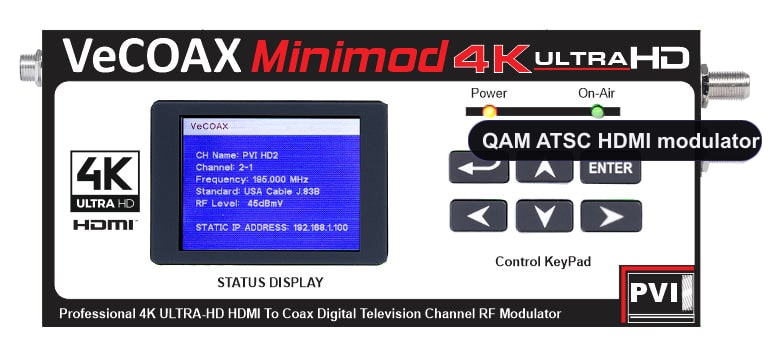

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

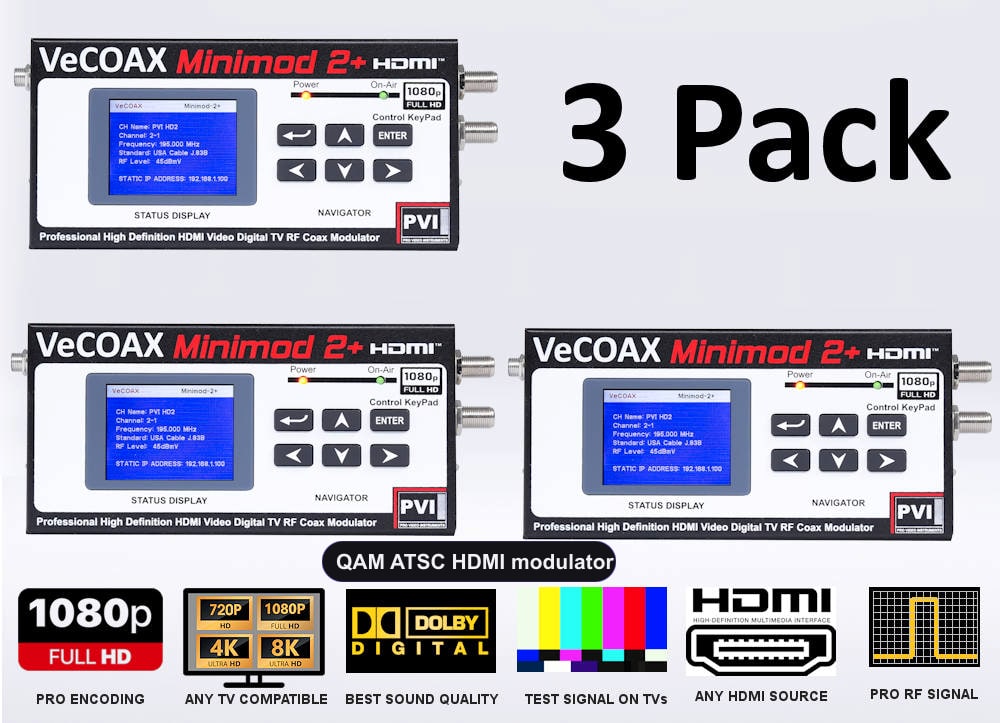

MINIMOD 2+ — 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators — three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00

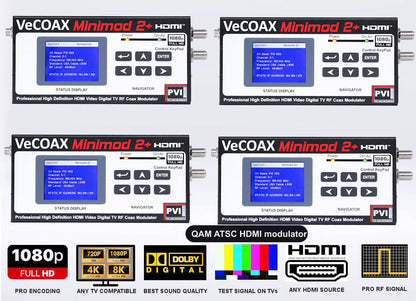

MINIMOD 2+ — 4-Pack Bundle
Four MINIMOD 2+ modulators — four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Add more QAM/ATSC channels with multi-unit bundles, or step up to 4K.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs — broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system — two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system — four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis — pre-combined channels with centralized LCD control display
From
$2,449.00
Ready for a Professional QAM / ATSC Modulator That Does Both?
$445.00$495.00
Save $50.00
Free shipping over $500 · 5-year warranty · Free unlimited tech support · Made in USA
