HDMI distribution over coax has to be clean and strong or distant TVs pixelate and drop. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it delivers a broadcast-grade channel: +45 dBmV output and MER above 45 dB, so every TV on the coax locks instantly and the picture stays perfect from the source to the farthest screen.
Recognition
The HDMI-Over-Coax Distribution System Trusted Since 2017
When HDMI cables and splitters can't reach, the VeCOAX MINIMOD 2+ distributes one HDMI source to unlimited TVs over coax β award-winning, US-built, proven on 50,000+ installations.

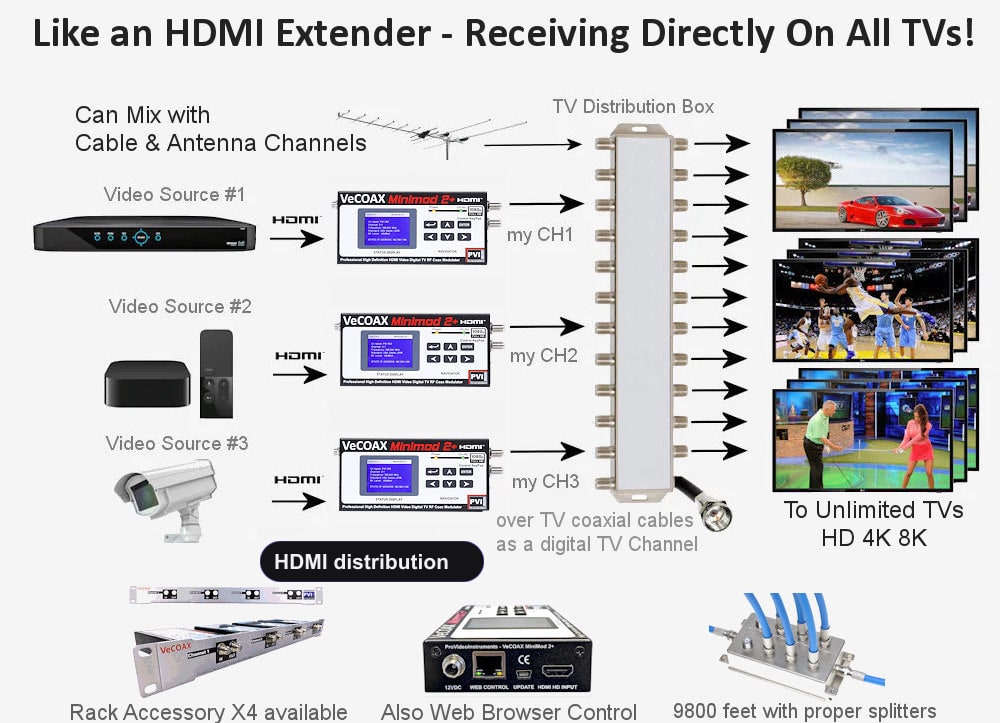

How HDMI Distribution Over Coax Works
One HDMI Source β Unlimited TVs Over Coax
HDMI distribution over coax sends one HDMI source to every television in the building on the coaxial cable already in the walls β a true distribution system, not a string of splitters.
- Connect the HDMI source you want distributed β box, player, camera, or PC
- Choose a distribution channel on the LCD; the HDMI rides the coax building-wide

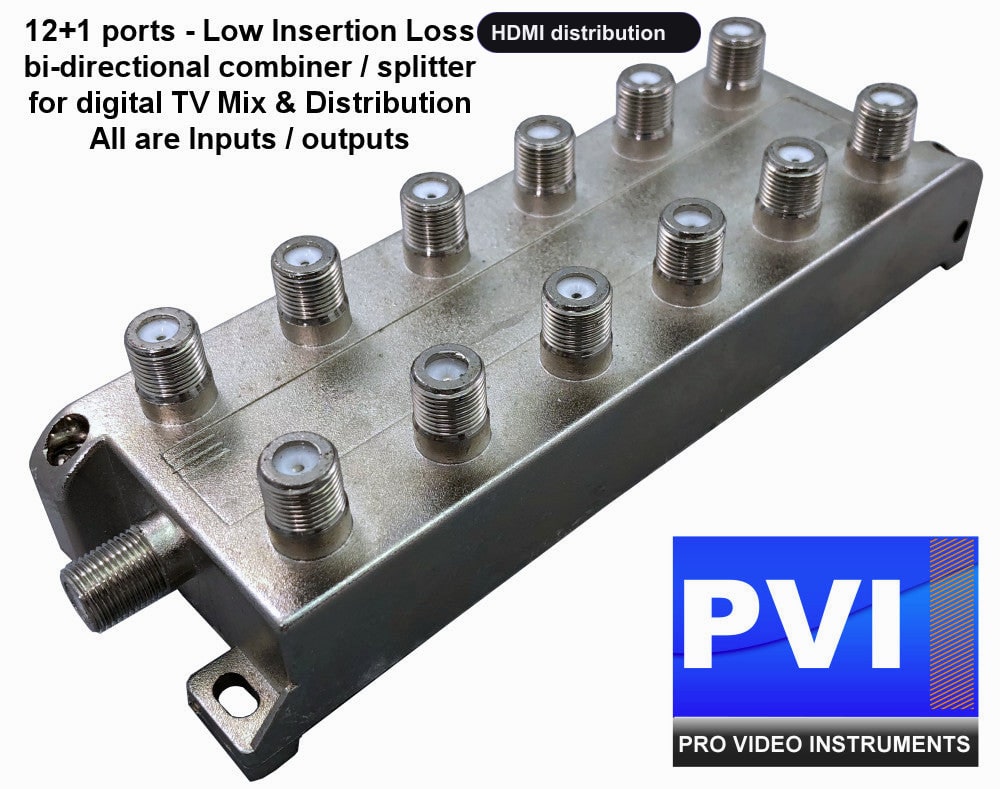

- Feed the output into the coax distribution backbone or a combiner
- Every TV on the coax picks up the distributed source on a scan in 1080p
- No HDMI extenders per TV, no matrix switch, no daisy-chained splitters
- Distribute more sources by adding modulators on additional channels
Setup

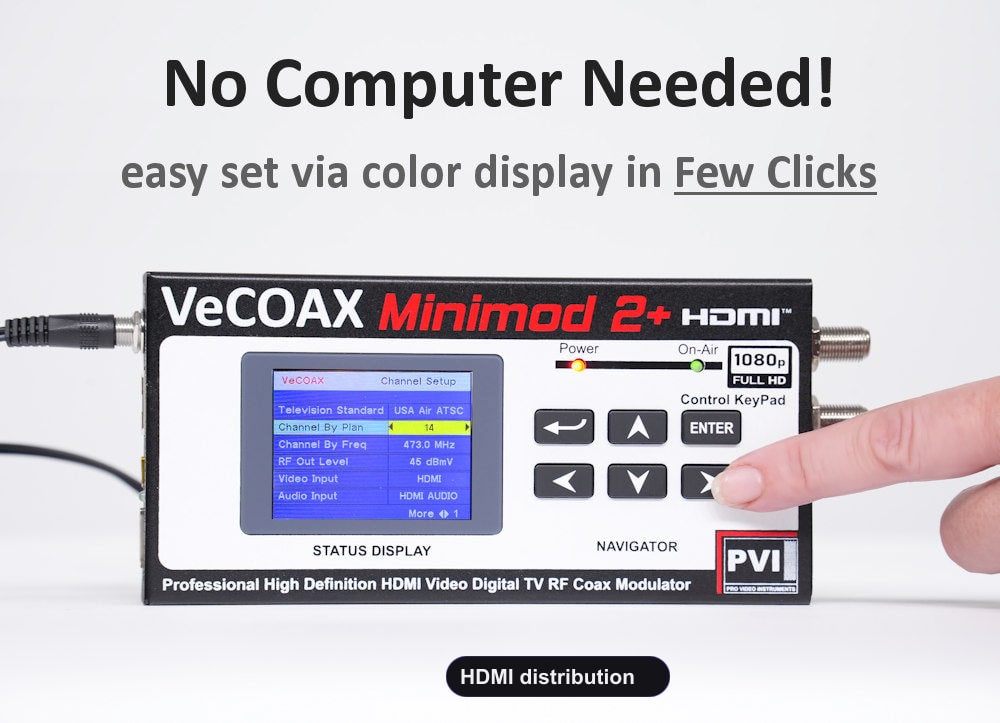

Distribute HDMI Over Coax in Under a Minute. No Computer Required.
HDMI distribution gear is usually configured from a laptop. The MINIMOD 2+ keeps the distribution channel, standard, and level on a color LCD so you light up a building without a computer.
- The display shows the distribution channel, frequency, and lock at all times
- Choose the standard and distribution channel right on the front buttons
- Self-contained β no distribution software, serial cable, or driver needed
- Power on β set the channel β feed the backbone β scan β distributed building-wide
Works on Every System

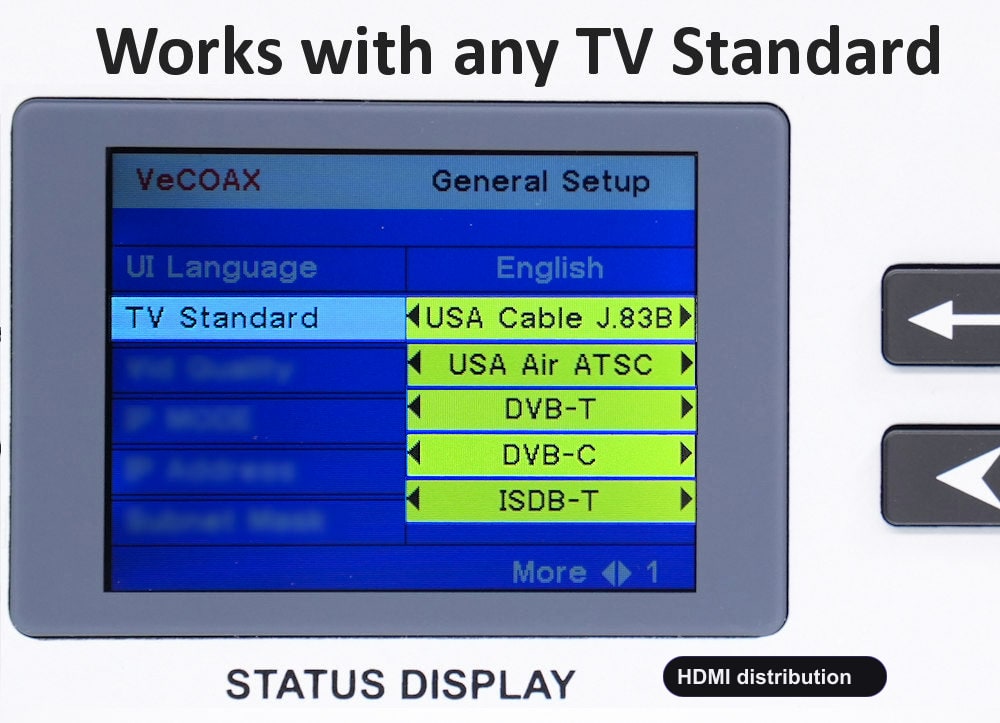

Distribute Over Coax in Any TV Standard
Distribute the channel as QAM for cable or ATSC for antenna β it rides the same coax backbone the building already uses for TV.
The modulator outputs a compliant broadcast channel, so the distributed source tunes like a real station on every set. Cable (QAM) TVs list it among cable channels; antenna (ATSC) TVs add it to the air grid β switch on the panel.
DVB-T/C and ISDB-T are supported too, so this distribution modulator fits any coaxial backbone worldwide β HD, 4K, or 8K.
Remote Control

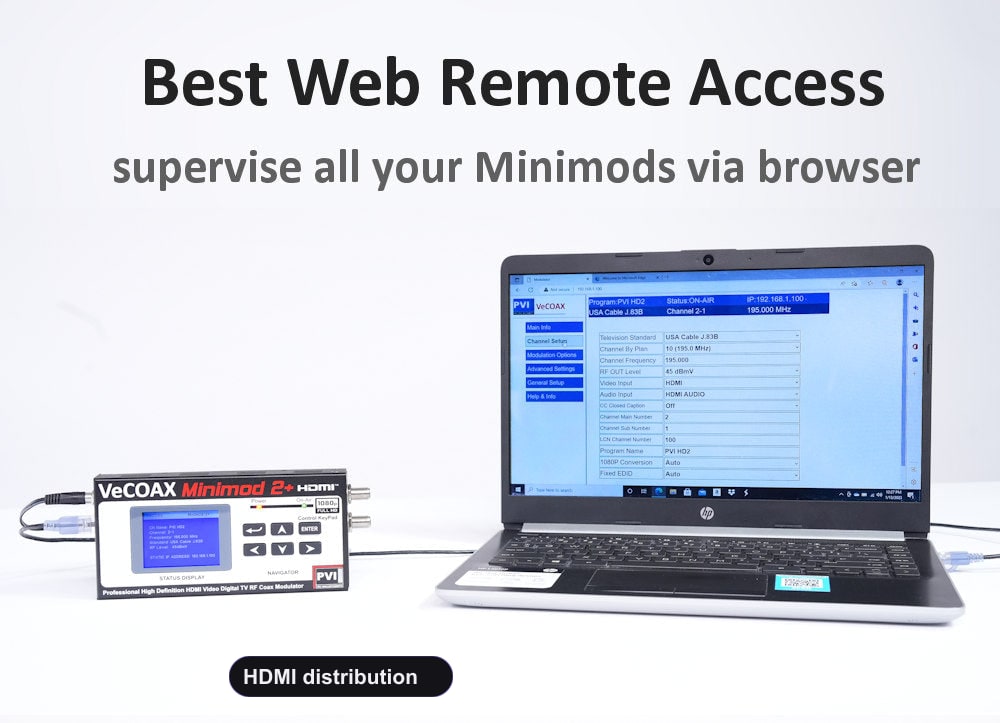

Manage Your Coax Distribution From Any Browser
The panel sets up distribution; the optional LAN page lets you retune the distributed channel and check levels from the bench when units sit in a rack.
- Retune the distributed channel and trim level remotely over the network
- Manage a rack of distribution modulators from one browser screen
- Opens in any computer or phone browser β no client to install
- Live status confirms the distributed channel is reaching every zone
Audio

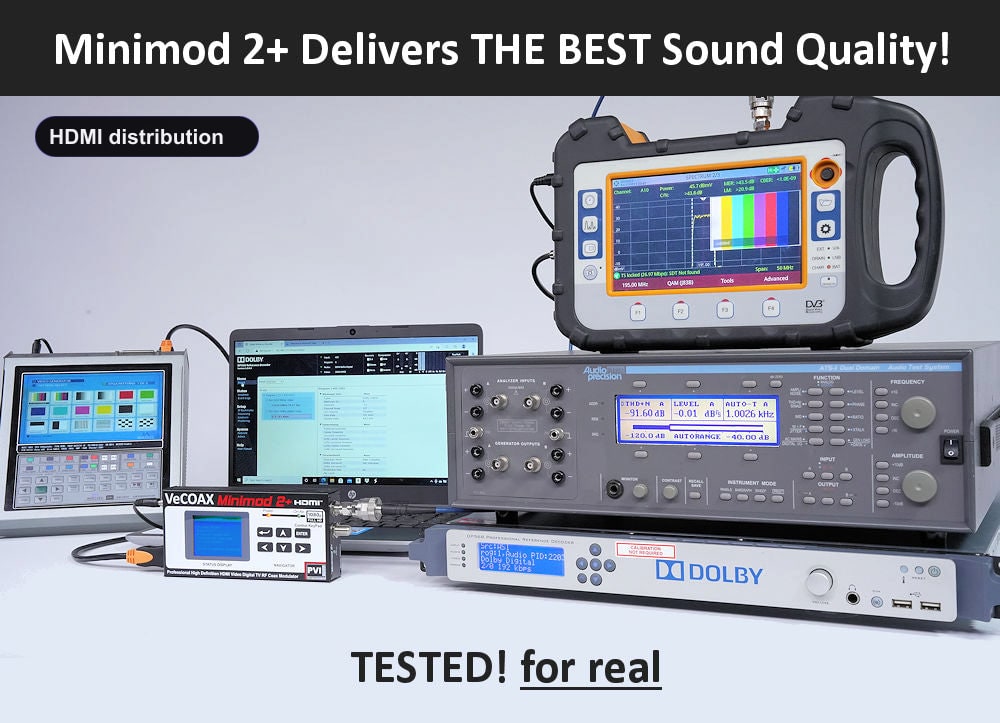

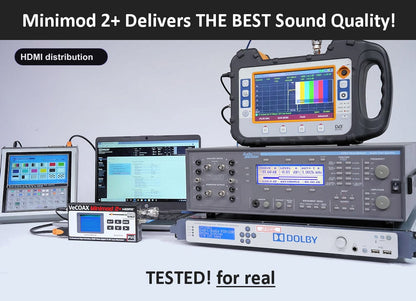

Distribute Broadcast-Grade Audio With Your Video
Distributed video carries its audio with it. The modulator embeds broadcast Dolby Digital so the distributed sound reaches every TV in the building perfectly synced.
- Dolby Digital / LPCM is distributed alongside the HDMI picture
- Audio stays locked to picture across every distribution leg β no drift
- Distributes 5.1 surround intact from compatible HDMI sources
- Clean sound on every distributed screen across the building

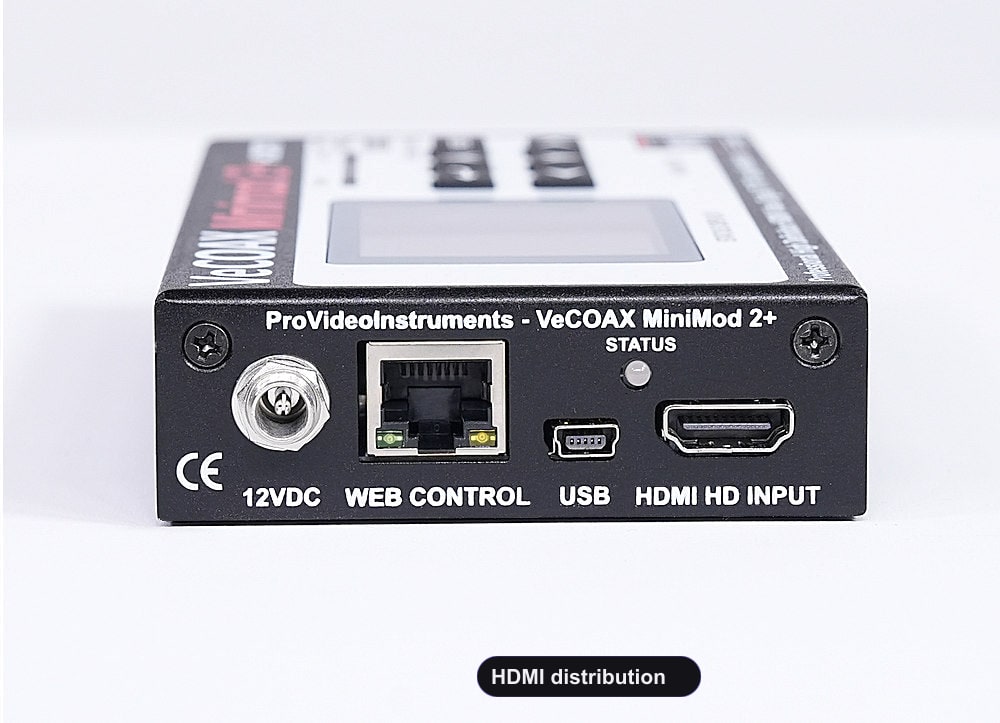

Installation

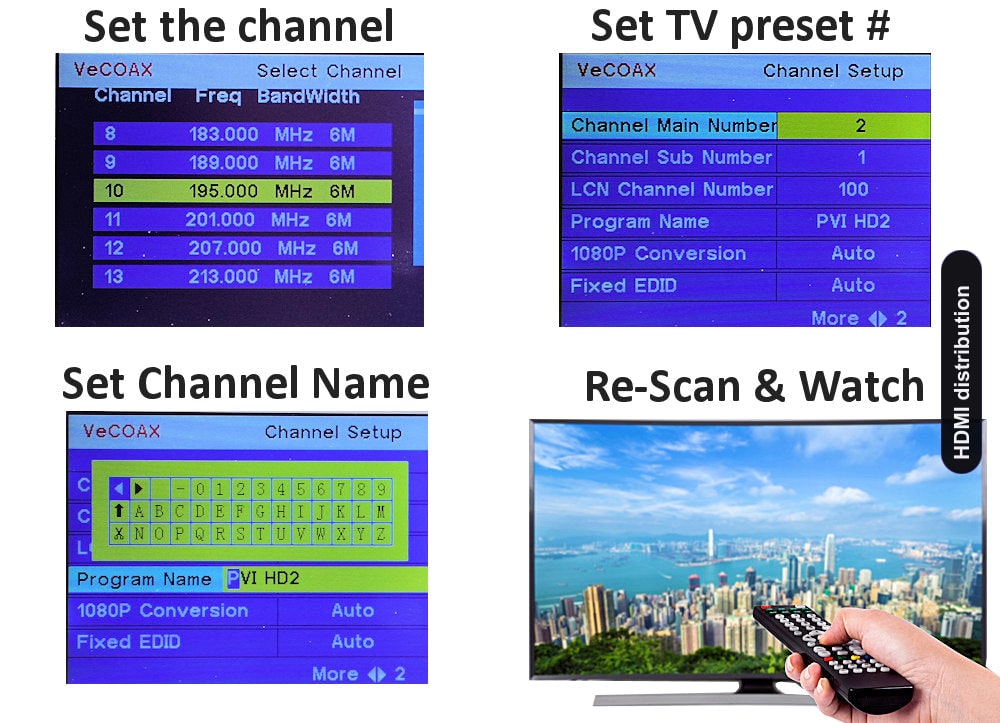

Three Connections. Done.

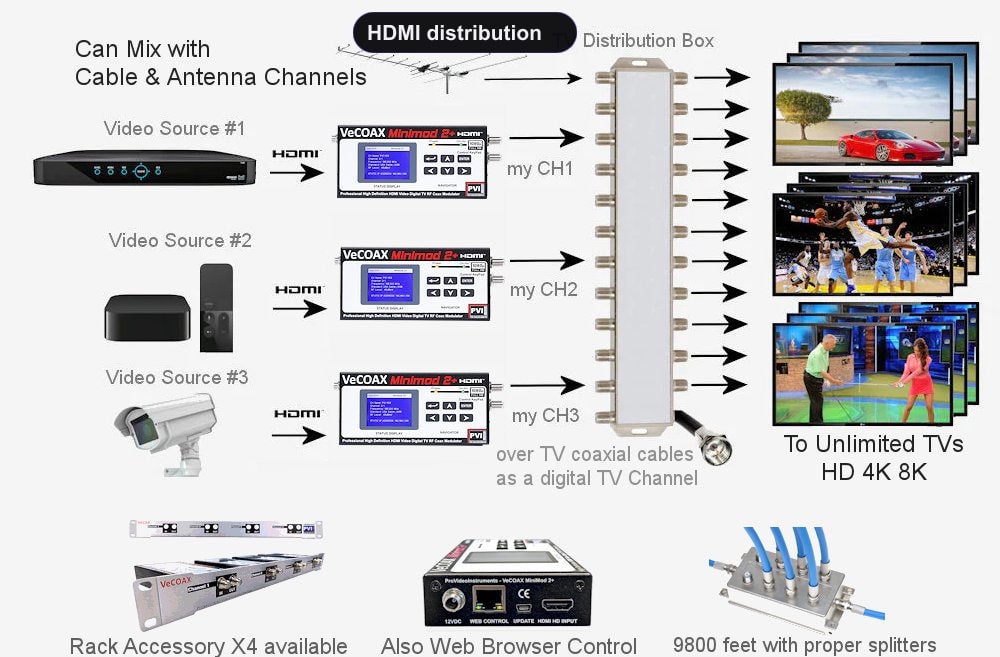

HDMI in. Distributed channel out. One scan. The source is distributed to every TV in the building in Full HD with synced audio.

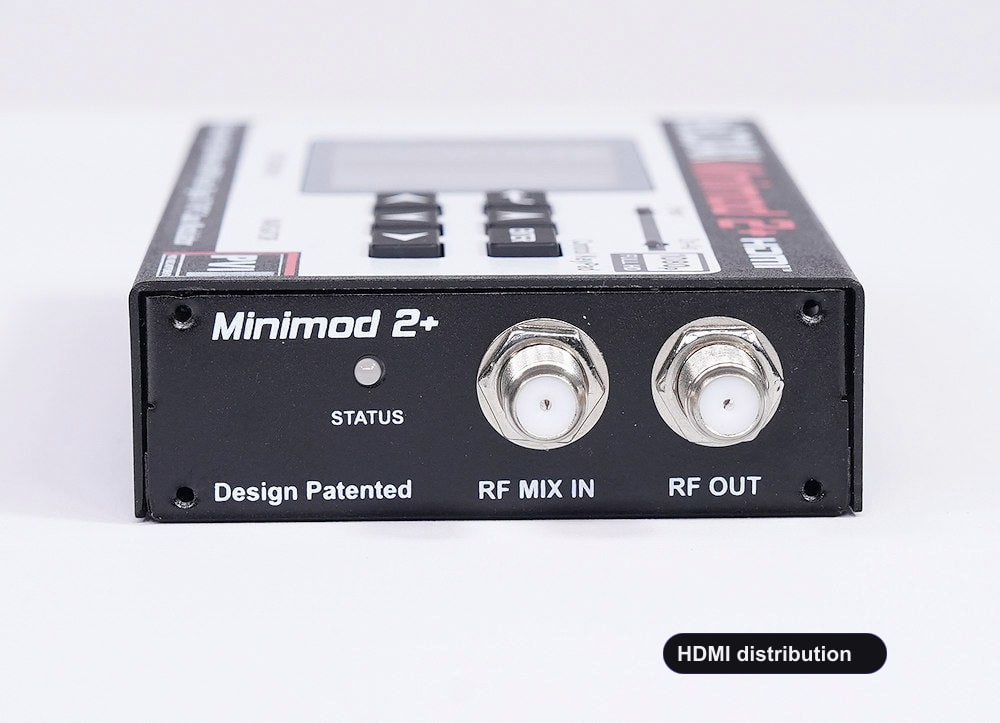

An HDMI distribution install is fast: connect the source, feed the F-type output into the coax backbone (or a passive combiner), set a channel on the LCD, and rescan every TV. No HDMI extenders, no matrix switch, no IT ticket β the in-wall coax distributes the source building-wide.

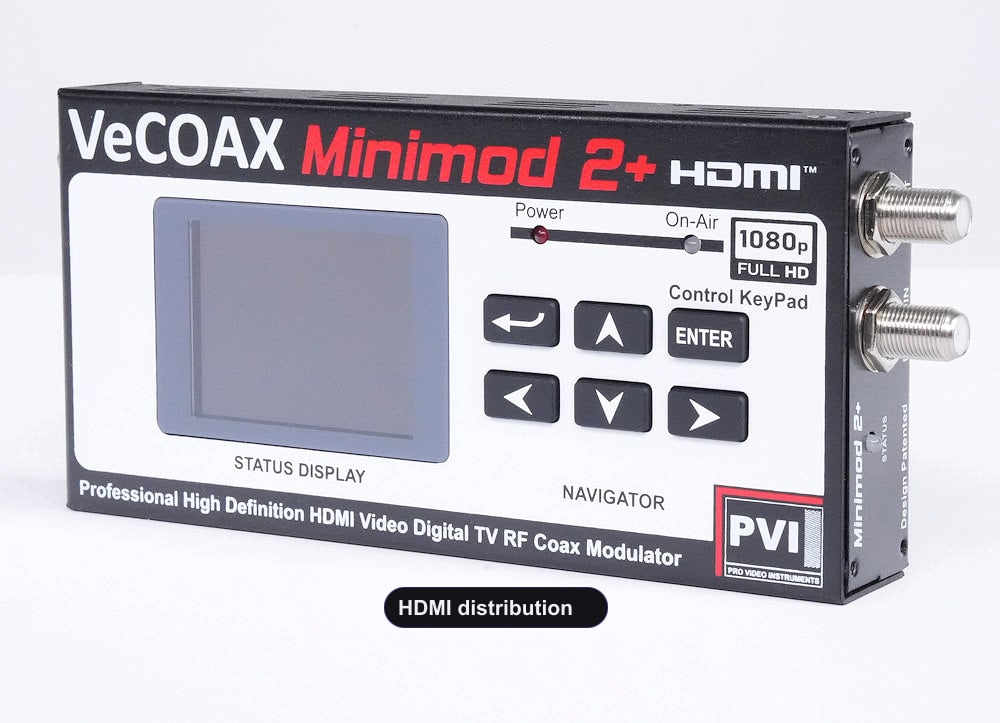

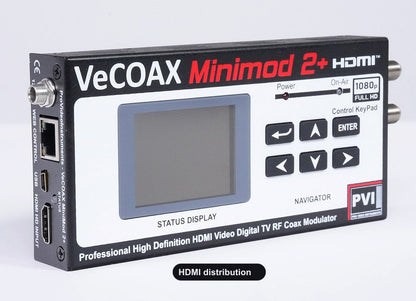

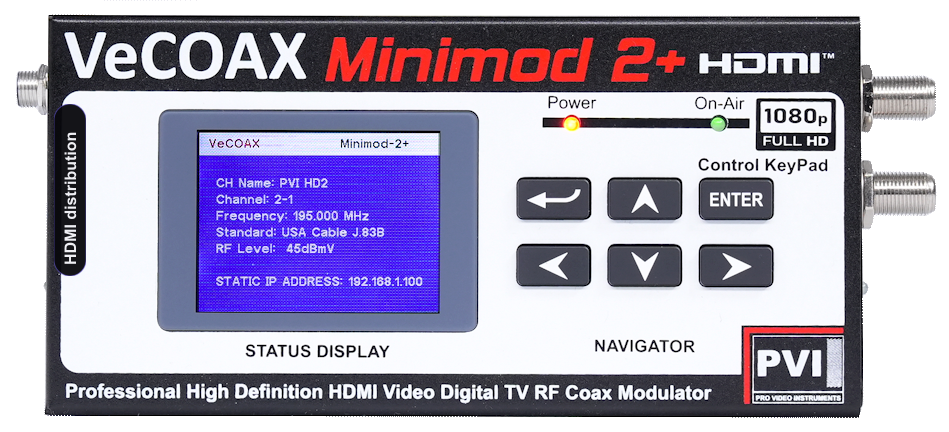

The MINIMOD 2+
HDMI-Over-Coax Distribution With Broadcast Quality

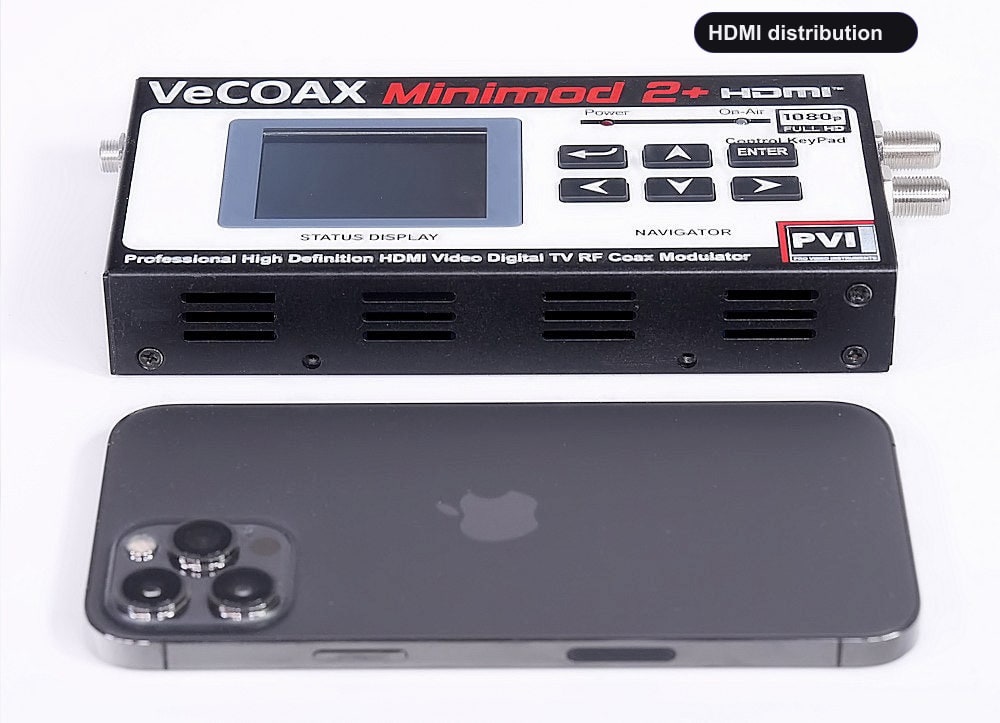

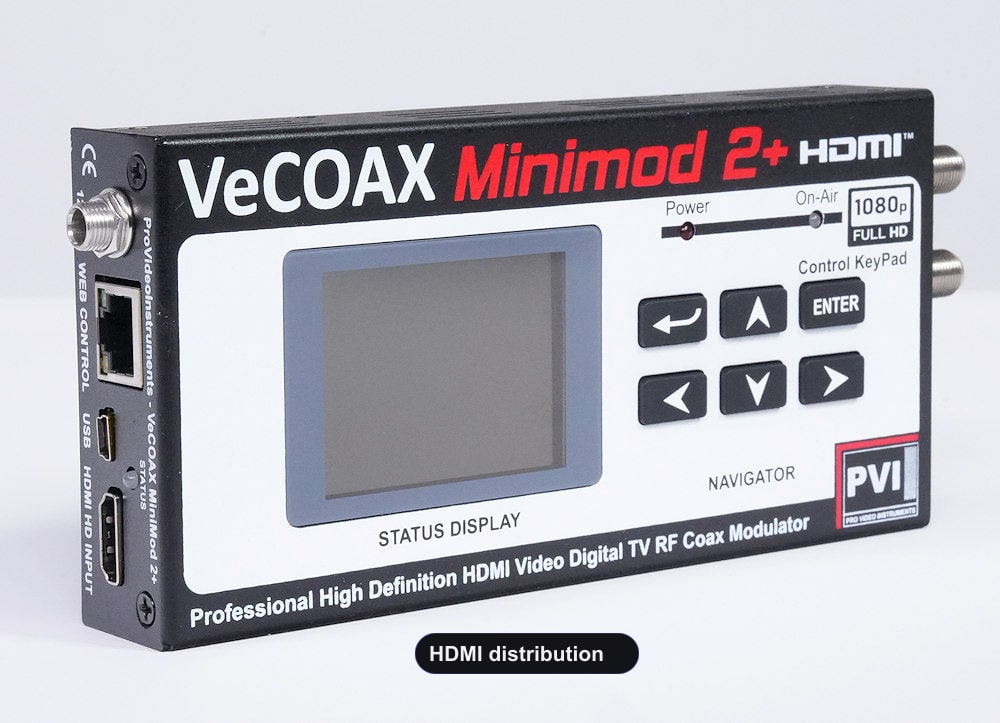

Palm-sized aluminum build, spurious-free modulation, and a front-panel LCD β the professional way to distribute HDMI to unlimited TVs over coax. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ distributes HDMI over coax the way broadcasters distribute channels: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to drive long coax and splitters, a built-in color LCD for computer-free setup, and support for every worldwide TV standard. One small box turns any HDMI device into a channel that reaches unlimited TVs over existing coaxial cable.
Rack Solutions

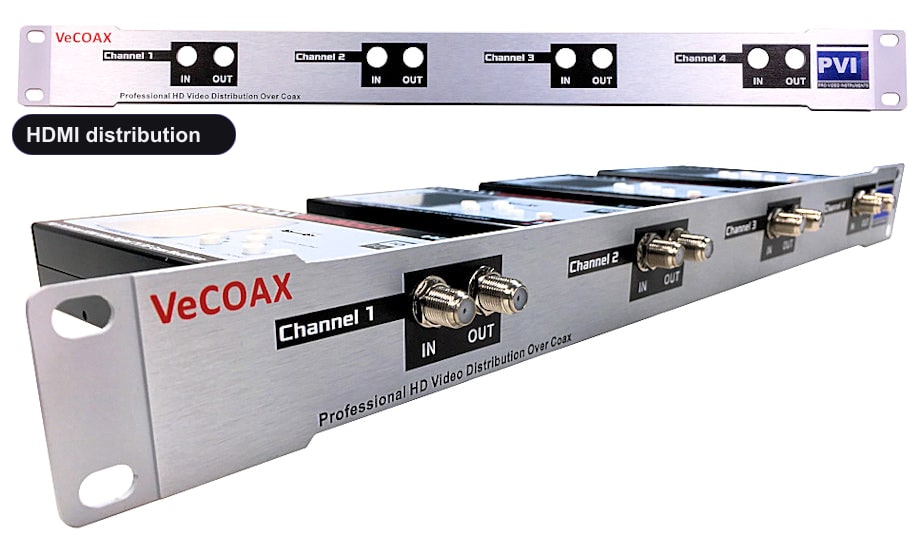

Distribute Multiple HDMI Sources in 1RU
Need to distribute several HDMI sources over the same coax? Mount up to four MINIMOD 2+ modulators in a single 1RU rack panel for a tidy, professional distribution headend.
The optional 1RU rack panel holds up to four modulators in one rack space, with front-panel access and proper airflow. Combine their outputs with a passive combiner and you distribute multiple HDMI sources as separate channels over one coax β ideal for equipment closets, server rooms, and broadcast facilities.
$105.00$99.00Save $6.00
High Density

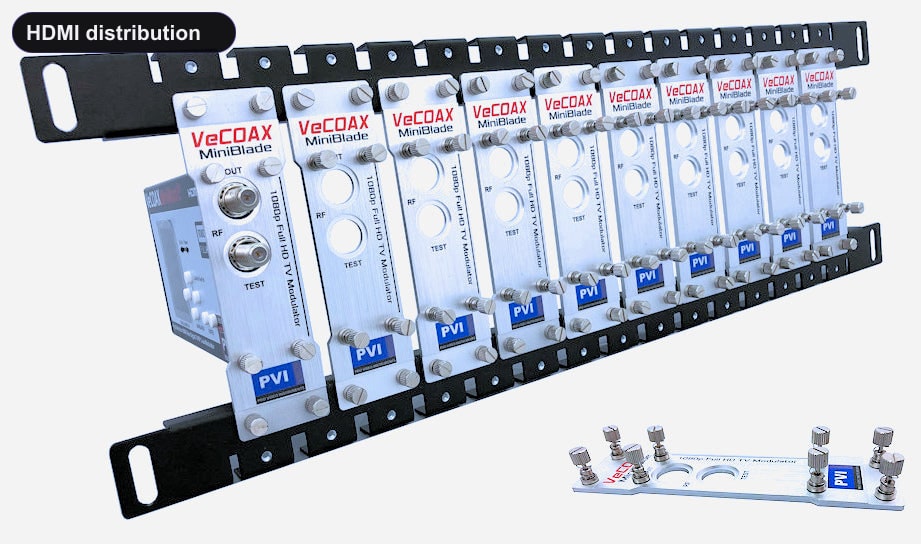

Distribute 10+ Sources with the MiniBlade Kit
For large distribution systems, the VeCOAX MiniBlade packs 10 or more modulator units into a single rack β each fully independent so one channel can never take down the rest.
When you need to distribute many HDMI sources over coax at once, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every distributed channel runs on its own, which is exactly what 24/7 systems demand.
Compatibility
Every TV in the Building Tunes the Distributed Channel β HD, 4K, and 8K
The distributed channel is a standard broadcast, so any TV tuner receives it β from an older HD set to a new 8K display.
Because the distributed channel follows broadcast spec, compatibility is automatic across the building. The modulator resolves color, frame rate, and audio sync internally, so the source renders correctly on every brand and resolution with no per-set setup.
Features
Built for Flawless HDMI Distribution Over Coax
Every detail exists to distribute one HDMI source to unlimited TVs with broadcast stability and effortless setup.

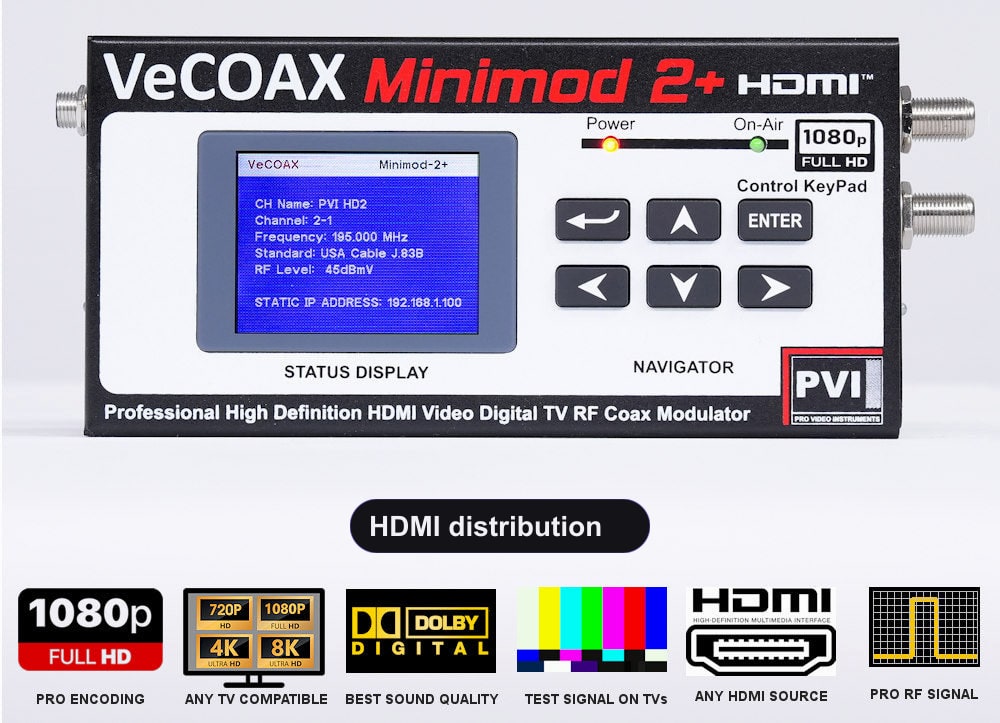

Front-Panel Color LCD
Set your distribution channel, modulation, and output level on the built-in display β no laptop.
One-Click Config Recall
Save and reload the distribution channel plan in one tap on a re-rack.
Full Channel Customization
Place the distributed carrier to the hertz and name the channel per zone.
1080p@60 Motion Encoding
1080p60 motion encoding keeps distributed action crisp on every screen.
MPEG-2 Broadcast Standard
MPEG-2 carriage means every TV on the distribution decodes the channel.
+45 dBmV Output
A +45 dBmV carrier distributes down long backbones and many splits with no amp.
MER >45 dB
High MER keeps the distributed channel artifact-free at the farthest zone.
Full Digital DDS
DDS synthesis distributes multiple channels with no spurious between carriers.
Secure Web Remote
Secured browser control for distribution modulators in racks and closets.
Unlimited TVs
Distribute one channel to five TVs or five thousand at no per-screen cost.
Built-In Test Pattern
A color-bar carrier appears with no HDMI present to verify the distribution run.
HDMI Licensed + Full EDID
HDMI-licensed input with full EDID control for a reliable source handshake. Built for hdmi distribution installations.
Watch the Demo
See HDMI Distributed to Every TV Over Coax
From wiring one HDMI source to distributing it to every TV over coax β the whole process in under five minutes.
Full walkthrough: HDMI hookup, distribution channel selection on the LCD, feeding the coax backbone, building-wide TV scan, and multi-channel distribution. Duration: 4 min 30 sec.
Applications
Where HDMI Distribution Over Coax Shines
π¨
Hotels & Resorts
Distribute one HDMI source to every guest-room TV over house coax.
πΊ
Sports Bars
Distribute one game feed to every screen in the bar over coax.
βͺ
Churches
Distribute the worship camera to overflow and lobby sets building-wide.
π₯
Hospitals
Distribute education sources to every screen across the hospital.
π
Schools
Distribute announcements to every TV on the campus coax backbone.
π’
Corporate
Distribute dashboards and town-halls to every conference room.
π
Residential
Distribute one HDMI source to every television in the home.
π‘οΈ
Government
Distribute secure sources to every screen over the facility coax.
Why PVI
Why This Is the Best Way to Distribute HDMI Over Coax
Splitter-based HDMI distribution falls apart past a few screens and a few hundred feet. The MINIMOD 2+ distributes a broadcast-clean channel to unlimited TVs across the whole building.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓Unlimited TVs Over Existing Coax
✕HDMI Splitter β 4 to 8 Screens Max, Short Runs
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Setup Without a Computer
✕Requires PC for Full Setup
✓No Receiver Box at Each TV
✕HDMI-over-IP Needs a Decoder per Screen
✓+45 dBmV β Reaches ~9,800 ft
✕HDMI Cable Limited to ~50 ft
✓4 Modulators in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓Spurious-Free DDS β Clean Distribution
✕Spurs Cause Pixelation on Adjacent Channels
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Perfect at the Far End
✕Low MER β Pixelation & Drops on Long Runs
Specifications
HDMI Distribution Over Coax β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2β83 ATSC mode | 2β158 J.83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |
| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |

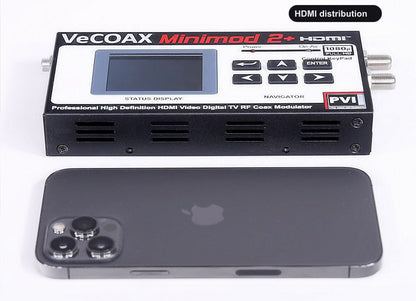

| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
HDMI Distribution Over Coax System - Frequently Asked Questions
What is an HDMI distribution over coax system?
An HDMI distribution over coax system is a device that turns an HDMI source into a real digital TV channel over coax. For the hdmi distribution keyword family, the VeCOAX MINIMOD 2+ handles sending one HDMI source to unlimited TVs over existing coax and lets every connected TV scan the result like normal television.
How does an HDMI distribution over coax system work over coax?
For hdmi distribution, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use an HDMI distribution over coax system instead of HDMI cables?
HDMI Distribution Over Coax System distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why hdmi distribution is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this HDMI distribution over coax system?
Use HDMI sources including cable boxes, players, cameras, computers, and signage players. For hdmi distribution installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the hdmi distribution channel?
Any TV with a compatible digital tuner can receive the hdmi distribution channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this HDMI distribution over coax system support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for hdmi distribution in hotels, CATV plants, commercial buildings, and private coax systems.
Does this HDMI distribution over coax system support ATSC antenna mode?
Yes. In ATSC mode, the same HDMI distribution over coax system creates an antenna-style digital TV channel. This helps hdmi distribution projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this HDMI distribution over coax system coexist with existing TV channels?
Yes. Assign the hdmi distribution output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one HDMI distribution over coax system feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For hdmi distribution, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can hdmi distribution travel over coax?
HDMI Distribution Over Coax System output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this HDMI distribution over coax system?
Yes. This is the main advantage of hdmi distribution: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this HDMI distribution over coax system?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes hdmi distribution setup fast even without a laptop.
Why is the color LCD important for hdmi distribution?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes HDMI-over-coax distribution faster to commission than units that require software for basic setup.
Can I manage this HDMI distribution over coax system remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for hdmi distribution systems in equipment rooms.
What picture quality does this HDMI distribution over coax system deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the hdmi distribution channel stay sharp on every TV.
Does this HDMI distribution over coax system work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p hdmi distribution channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more hdmi distribution channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger hdmi distribution lineup.
Where is this HDMI distribution over coax system used most often?
This HDMI distribution over coax system is used in sports bars, hotels, schools, churches, hospitals, offices, and homes. Typical hdmi distribution applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this HDMI distribution over coax system different from a HDMI matrix?
A HDMI matrix usually depends on short point-to-point wiring or limited outputs. A HDMI distribution over coax system creates a real tunable TV channel, so the existing coax system distributes the hdmi distribution source to every TV at building scale.
Is the MINIMOD 2+ good for professional hdmi distribution?
Yes. It is designed for 24/7 professional hdmi distribution with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this HDMI distribution over coax system HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional hdmi distribution system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this HDMI distribution over coax system?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable HDMI-over-coax distribution and strong hdmi distribution performance.
Accessories
Complete Your Coax Distribution System
Everything you need to combine, rack, and scale HDMI distribution over coax.
Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

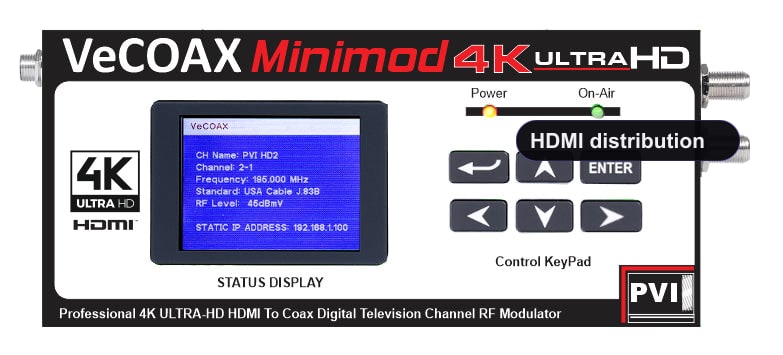

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

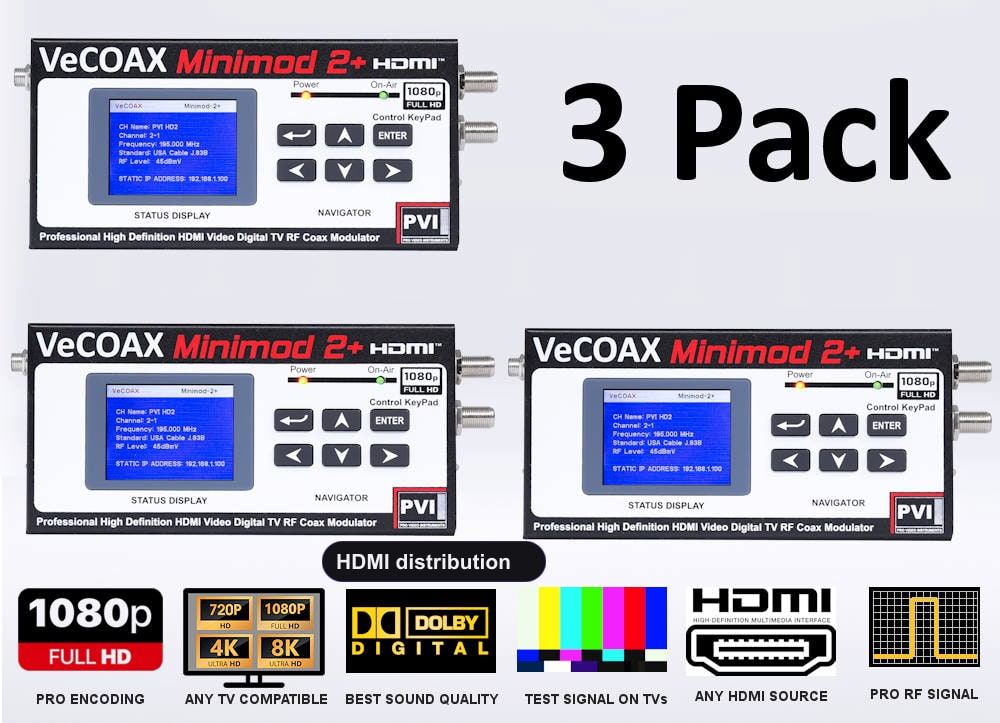

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00

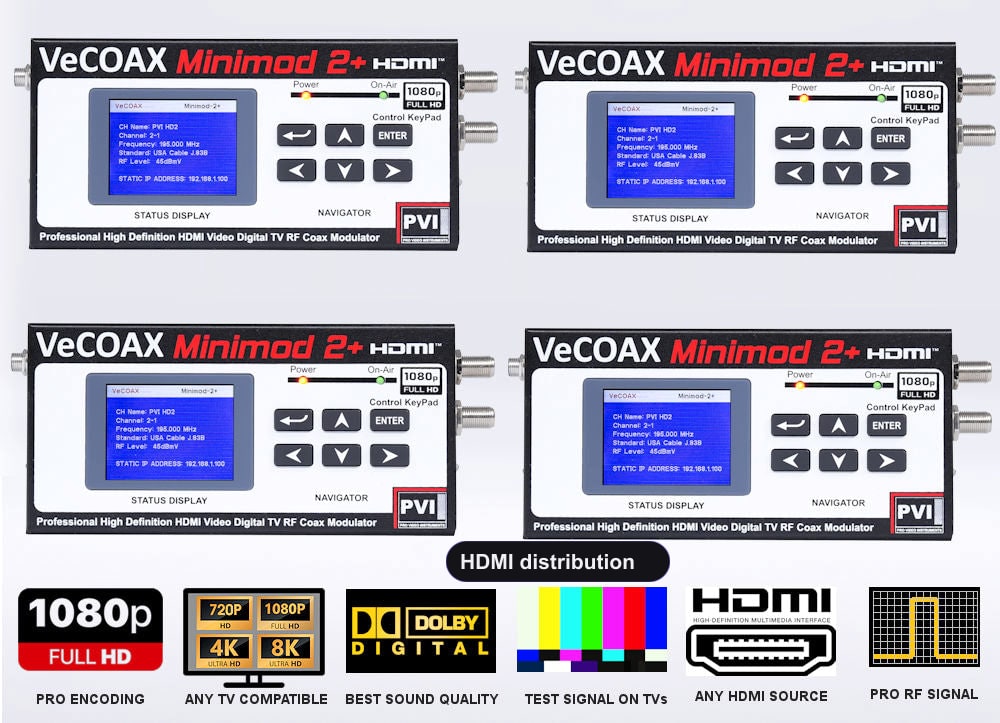

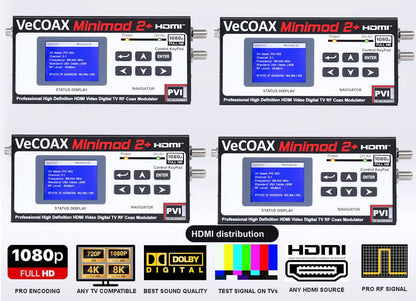

MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Distribute more sources with multi-unit bundles, or step up to 4K.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Distribute HDMI to Every TV Over Coax?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
