An overflow screen that lags the live service pulls people out of worship. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it delivers a broadcast-grade channel with hardware-locked sync: +45 dBmV output and MER above 45 dB, so every screen across the campus locks instantly and stays perfectly in time with the platform.
Recognition
The Church HDMI Modulator Ministries Have Trusted Since 2017
When the sanctuary fills and the message must reach every overflow room, the VeCOAX MINIMOD 2+ is the church HDMI modulator integrators specify β award-winning, US-built, proven on 50,000+ installations.

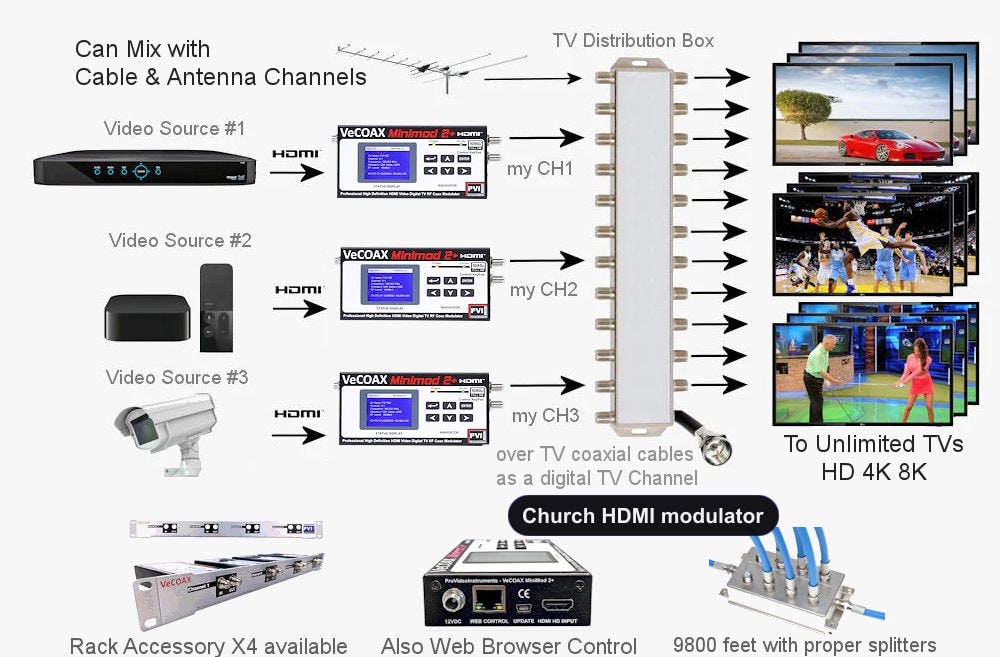

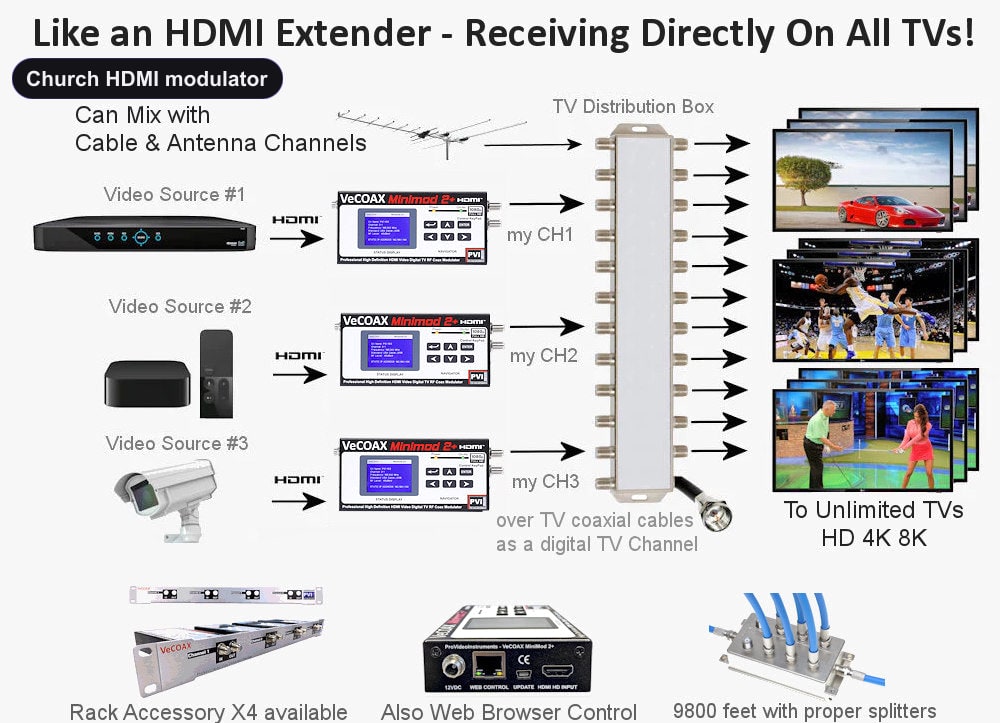

How a Church HDMI Modulator Works
Sanctuary Feed β Every Screen on Campus
A church HDMI modulator turns your live service feed into a channel on the building's coax. Every overflow TV tunes it on a normal scan β in real time, with no box behind any screen.
- Feed your service source into the modulator β video switcher, IMAG camera, ProPresenter output, projector feed
- Assign a channel number on the front-panel LCD β the live service becomes a TV channel
- Combine the coax output into the building's existing TV cabling
- Every screen in the foyer, fellowship hall, and cry room tunes the service in full 1080p
- No box behind every TV, no long HDMI runs, no rewiring the campus
- Add a kids' or translation feed by adding more modulators on the same coax

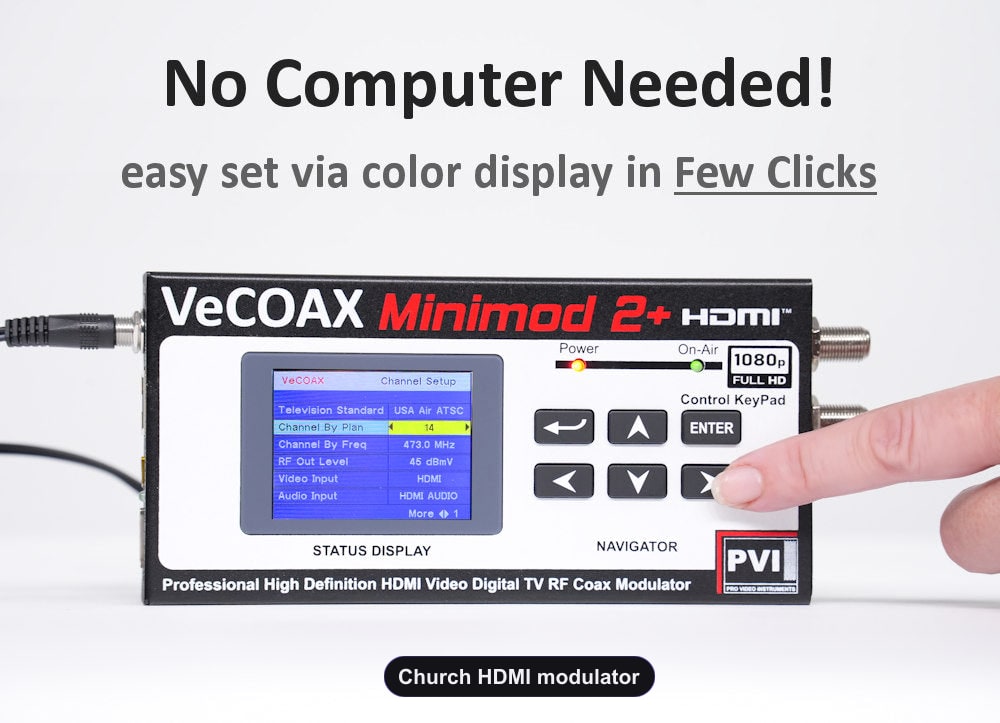

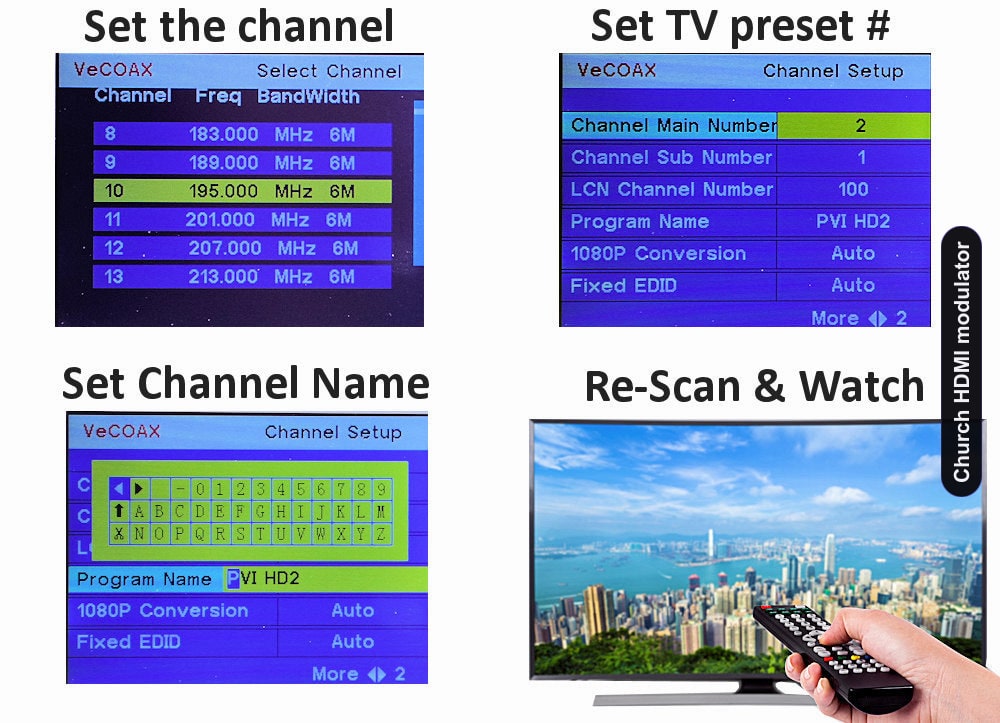

Setup
Send the Service to Every Room in Under a Minute. No Computer Required.
Volunteer tech teams need something foolproof. The MINIMOD 2+ puts every setting β channel, modulation, output level β on a color LCD right on the box, set once and it works week after week.
- Built-in color LCD shows the channel, frequency, and signal status at a glance Built for church hdmi modulator installations.
- Match your campus TV standard β QAM or ATSC β right on the front panel
- No PC, no software, no app β set it once and it runs every Sunday
- Power on β pick a channel β combine onto coax β scan TVs β done Built for church hdmi modulator installations.

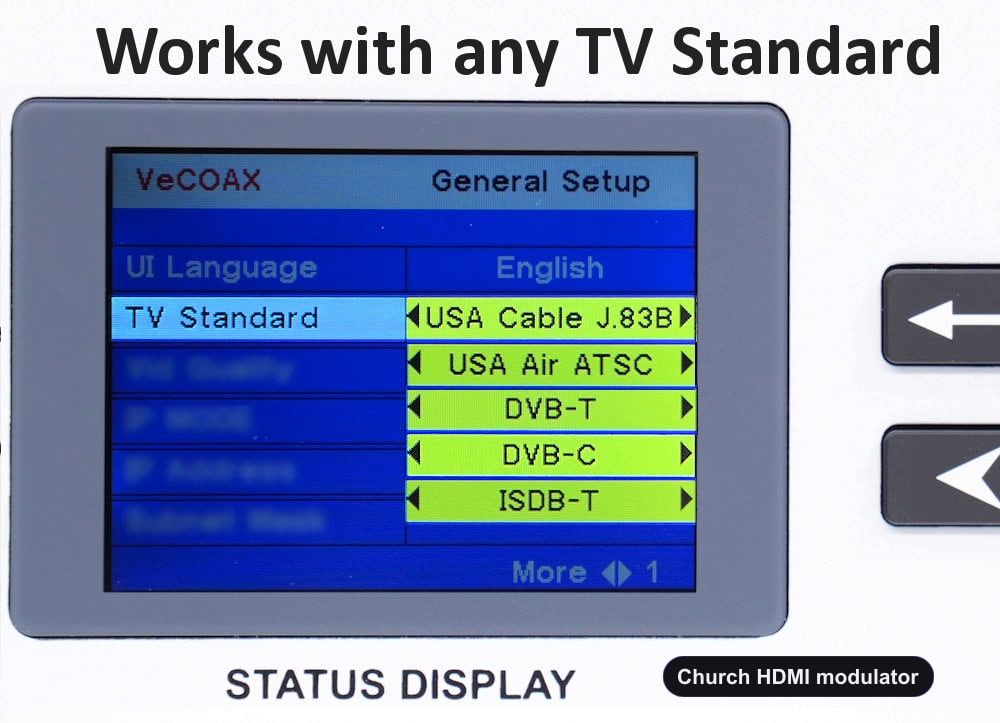

Matches Your Campus
Works With Whatever Standard Your Church TVs Tune
QAM for cable-mode TVs, ATSC for antenna-mode, plus DVB-T, DVB-C, and ISDB-T β selectable on the LCD. One modulator fits any church AV system.
Churches use a range of TV setups depending on how the building was wired. The MINIMOD 2+ outputs every standard, so the live-service channel joins the existing campus lineup cleanly no matter the configuration.
Because it produces a true broadcast-standard channel, the service behaves exactly like any professional broadcast on every screen in the building.

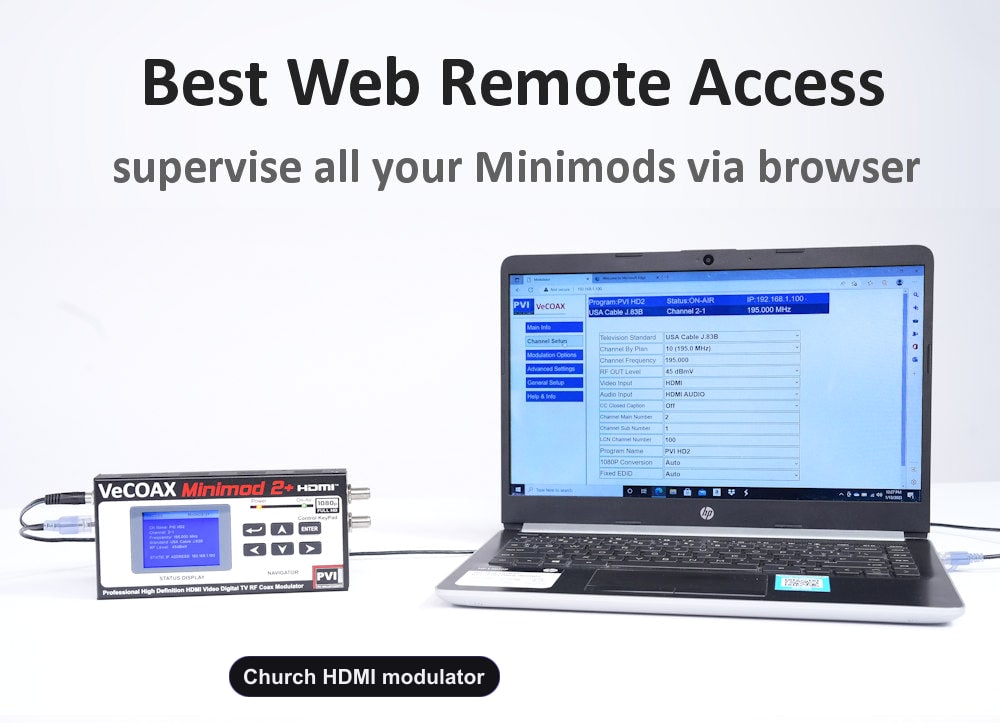

Remote Control
Manage the Service Channel From the Booth
The front-panel LCD handles setup, but when modulators live in the AV closet you can also monitor and retune them remotely through the secure web interface.
- Optional web interface for remote channel and level changes over the church LAN
- Manage a rack of service-feed modulators from the booth or AV office
- Works from PC, Mac, tablet, or phone β no app to install Built for church hdmi modulator installations.
- Live status so the team knows the service channel is on-air before doors open

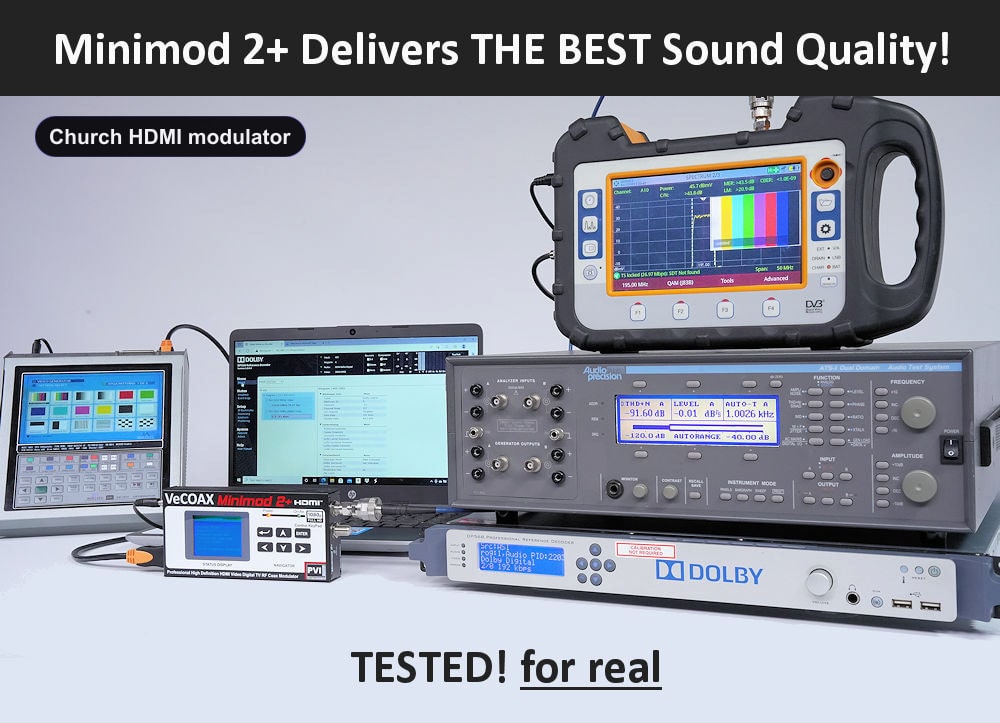

Audio
Worship Audio Locked to Picture in Every Room
An overflow feed must stay in time with the platform. The MINIMOD 2+ encodes broadcast-grade Dolby Digital with hardware-locked sync so audio arrives matched to picture across the campus.
- Dolby Digital / LPCM audio on the service channel
- Hardware-locked lip-sync β the message stays perfectly in time in every room
- Passes 5.1 surround from compatible HDMI sources Built for church hdmi modulator installations.
- Clear spoken word, worship music, and effects on every screen

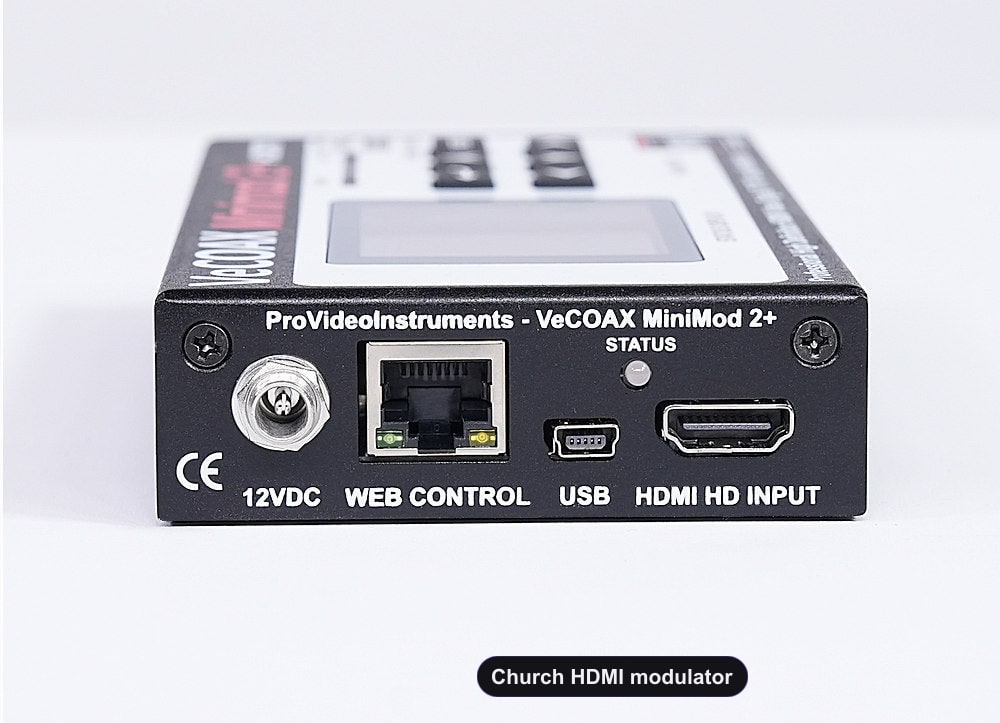

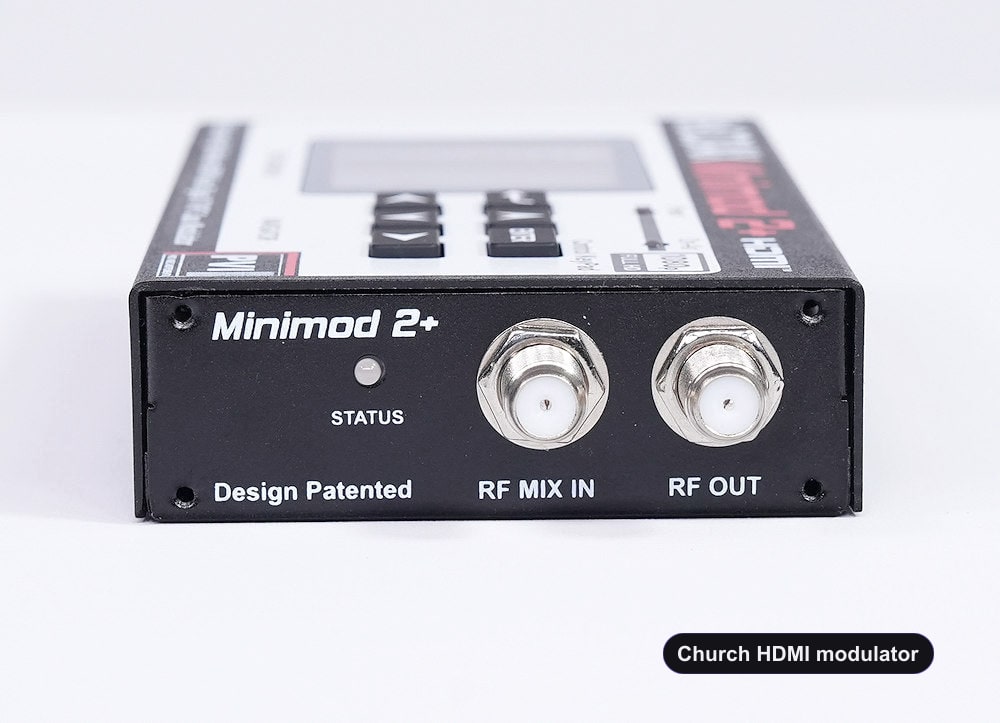

Installation
Three Connections. Done.
Service feed in. Combine onto coax. Channel scan. The live service reaches every screen β in Full HD with synced audio.
A church HDMI modulator install with the MINIMOD 2+ takes minutes, not days. Connect your service feed to the input, combine the F-type coax output into the building's TV cabling, pick a channel on the LCD, and auto-scan the overflow TVs. There is no network to configure and no box behind any screen β the existing coax serves the whole campus.

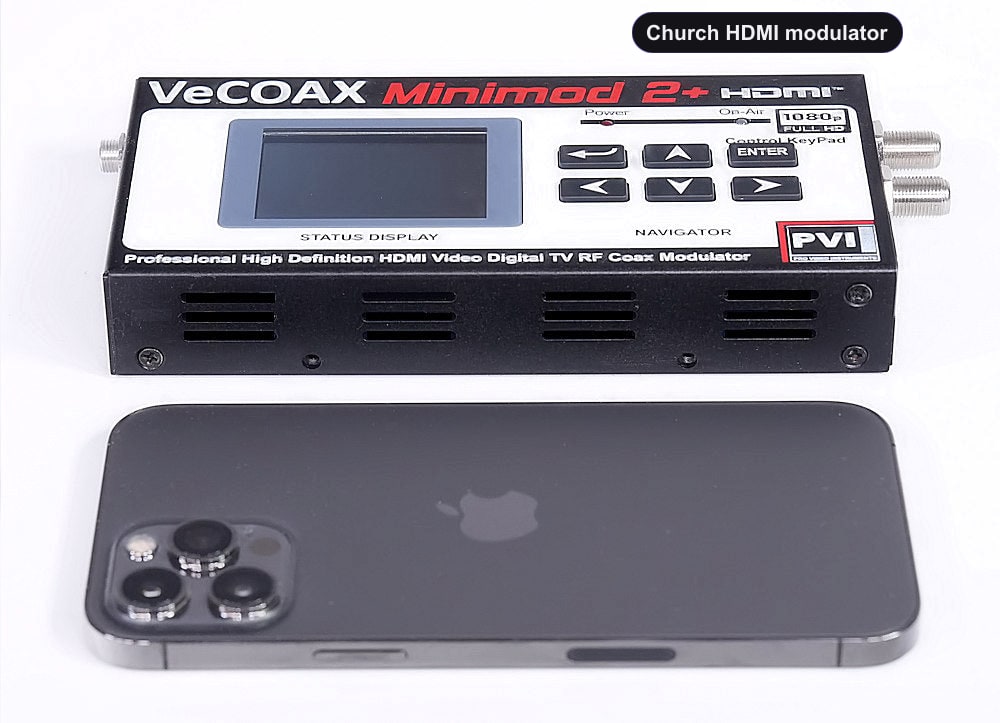

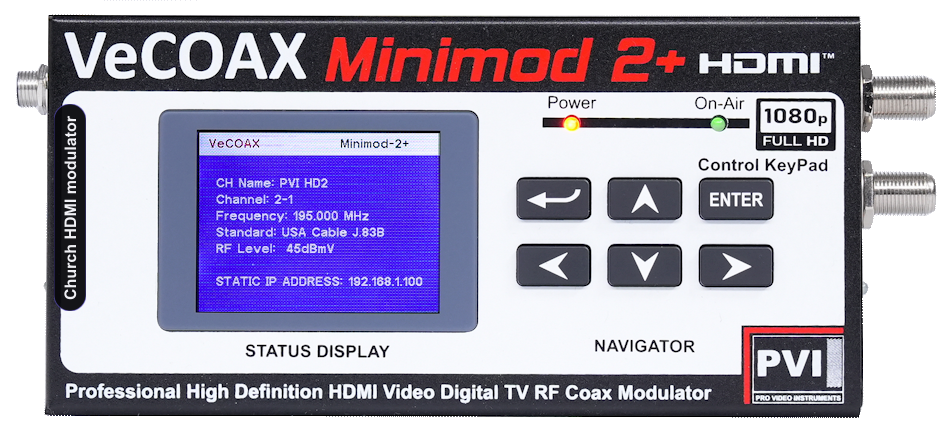

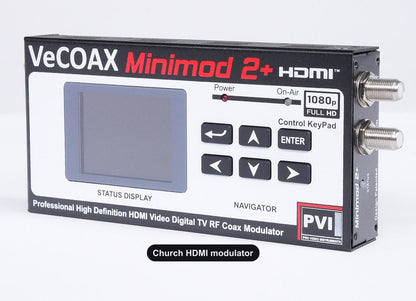

The MINIMOD 2+
A Church HDMI Modulator With Broadcast Quality

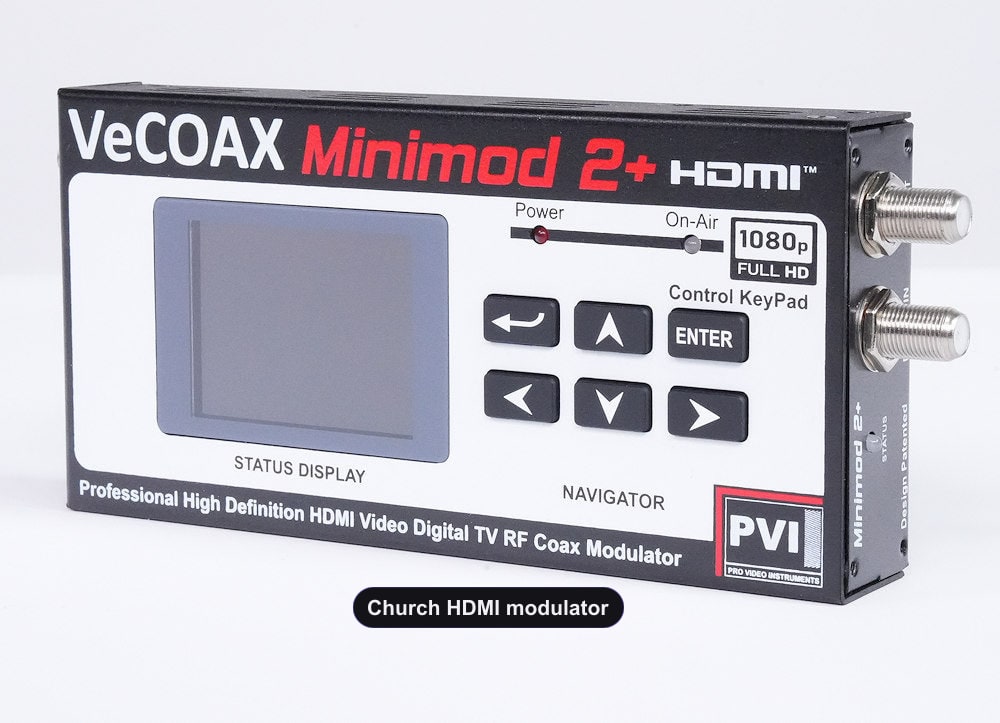

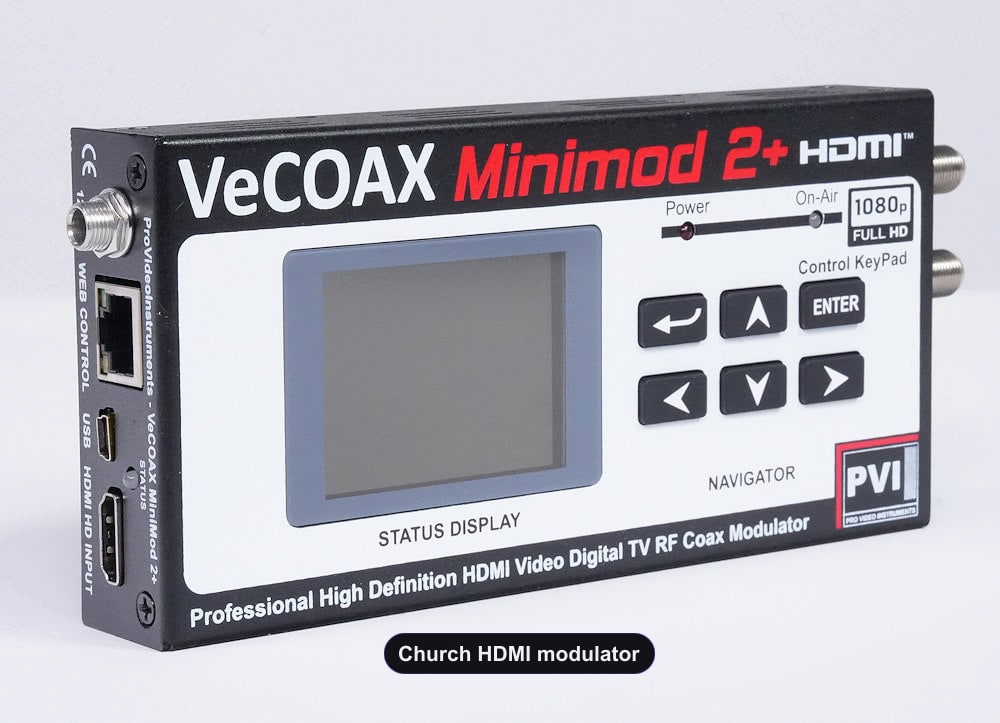

Palm-sized aluminum build, spurious-free modulation, and a front-panel LCD β the professional way to carry the live service across the campus. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ distributes the service the way broadcasters distribute live programs: full 1080p at 60fps MPEG-2 video, Dolby Digital audio with hardware-locked sync, +45 dBmV output to reach the farthest room, a built-in color LCD for set-once operation, and support for every worldwide TV standard. One small box turns your sanctuary feed into a channel on every screen over existing coax.

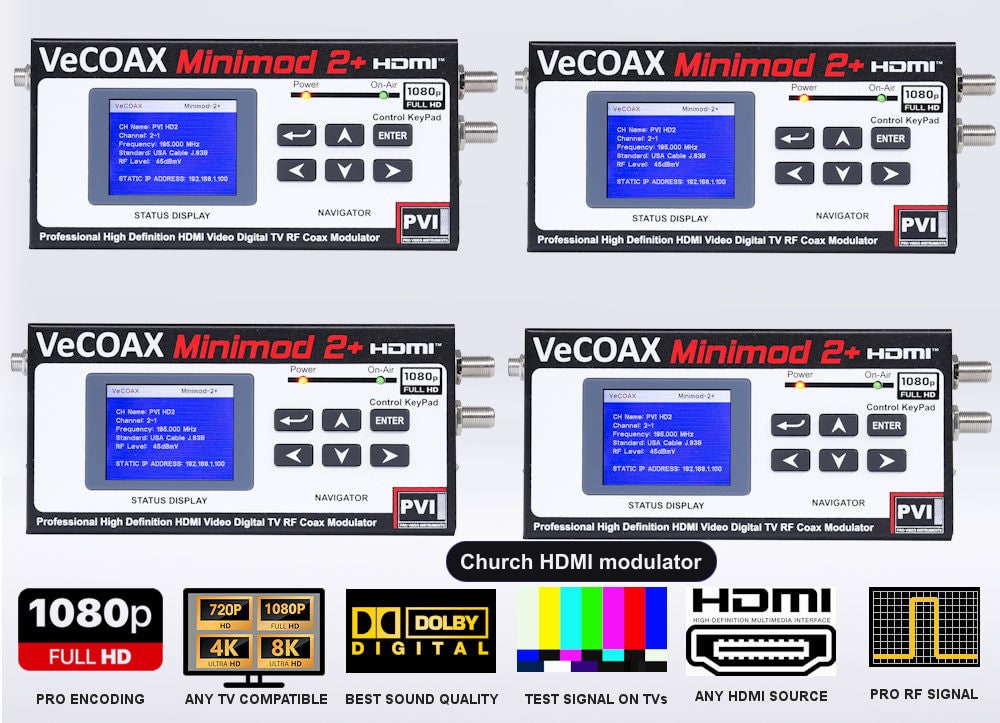

Rack Solutions

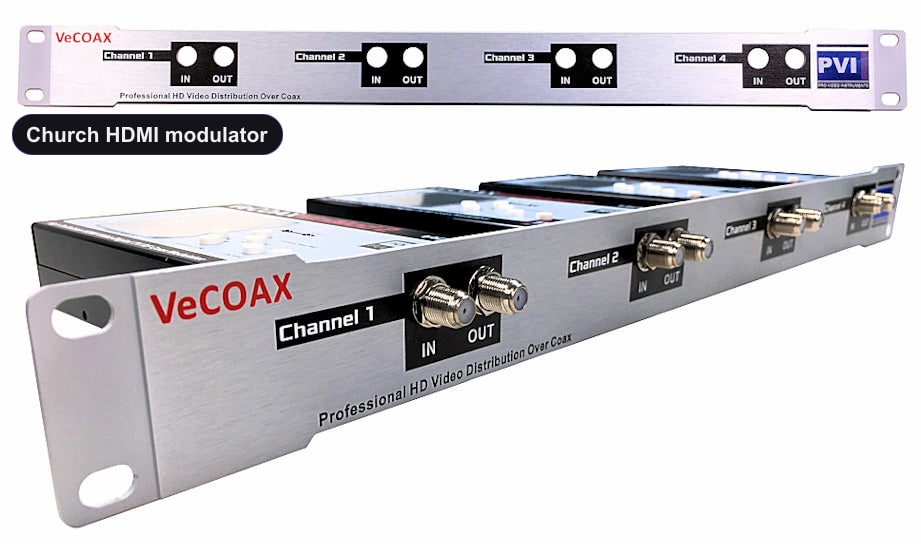

Run Service, Kids, and Translation Feeds in 1RU
Need the main service plus a children's feed and a translation channel? Mount up to four MINIMOD 2+ modulators in a single 1RU rack panel in the AV booth.
The optional 1RU rack panel holds up to four church modulators in one rack space, with front-panel access and proper airflow. Combine their outputs and assign rooms to different channels β main service in the fellowship hall, kids' content in the nursery, translation in another room β all over the same coax.
$105.00$99.00Save $6.00
High Density

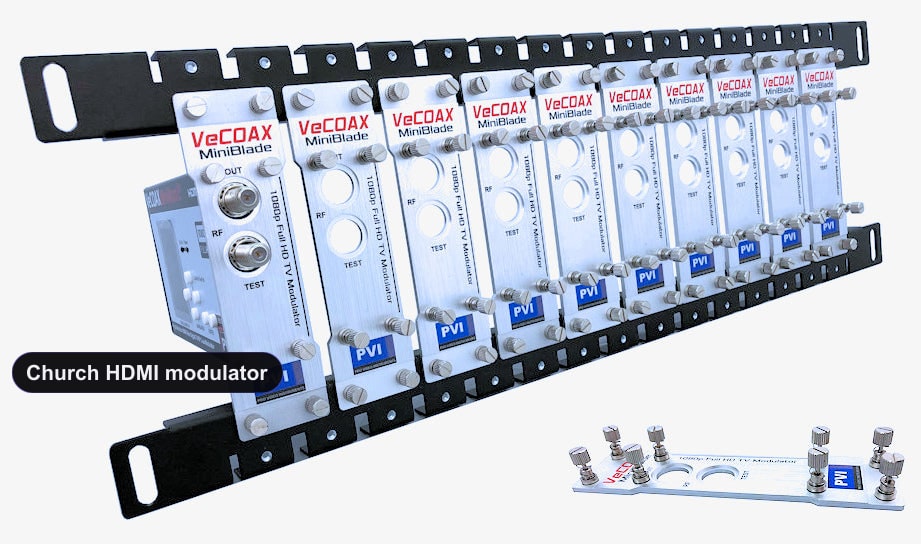

10+ Campus Channels with the MiniBlade Kit
For multi-building campuses, the VeCOAX MiniBlade packs 10 or more modulator units into a single rack β each fully independent so one channel can never take down the rest.
When a large campus needs many channels at once, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every channel runs on its own, which is exactly what a busy multi-service church demands.
Compatibility
Every Screen on Campus Tunes the Service β HD, 4K, and 8K
The service channel is a standard digital signal, so any TV with a built-in tuner decodes it perfectly β from older HD sets to the newest 4K displays in the lobby.
Because the MINIMOD 2+ outputs a standard digital channel, virtually every television on campus decodes it with its own tuner β no box behind the screen. Color space, frame rate, and audio sync are handled inside the modulator, so the service looks right on every brand the church has installed.
Features
Built for Reliable Sunday-Morning Distribution
Every detail exists to carry the live service to every room with broadcast stability, perfect sync, and effortless setup.

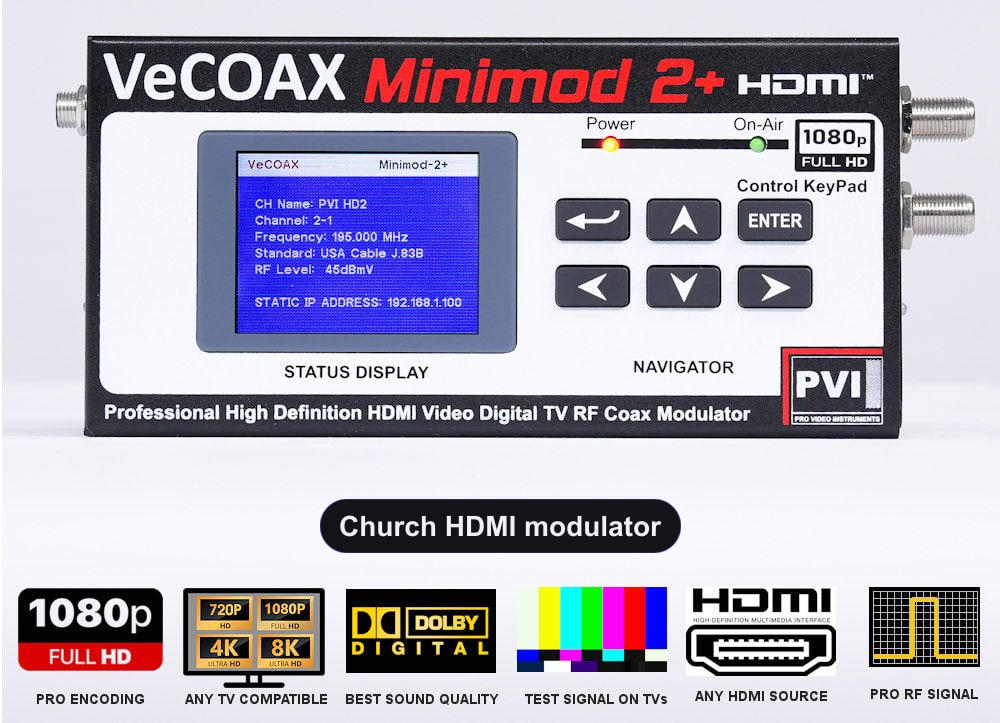

Front-Panel Color LCD
Set the service channel, modulation, and output level on the built-in display β no laptop.
One-Click Config Recall
Save and recall setups instantly β reliable, repeatable operation every service.
Full Channel Customization
Tune frequency down to the Hz, choose any channel, name it, and shape every parameter. Built for church hdmi modulator installations.
1080p@60 Motion Encoding
Multi-layer motion estimation keeps IMAG and worship visuals crisp on every screen.
MPEG-2 Broadcast Standard
Encodes in the same format broadcasters use β universal church-TV compatibility.
+45 dBmV Output
Reaches the farthest room and outbuilding through your splitters with no external amp.
MER >45 dB
Clean channel for instant lock and zero pixelation in every overflow space.
Full Digital DDS
Spurious-free output so the service channel stacks cleanly beside any existing channels.
Secure Web Remote
Password-protected browser control for managing channels from the AV booth.
Unlimited Screens
Reach 5 rooms or 50 across the campus β no per-screen cost, no per-TV box.
Built-In Test Pattern
Color bars appear when no source is connected, so the team can verify the coax run.
HDMI Licensed + Full EDID
Fully HDMI licensed with exclusive EDID control for a guaranteed handshake with any feed. Built for church hdmi modulator installations.
Watch the Demo
See the Live Service Reach Every Room in Real Time
From plugging in the sanctuary feed to watching it on every overflow screen β the whole process in under five minutes.
Complete walkthrough: service feed connection, channel assignment on the LCD, room scan, and multi-channel rack setups. Duration: 4 min 30 sec.
Applications
Where a Church HDMI Modulator Shines
βͺ
Overflow Rooms
Carry the live service to the fellowship hall when the sanctuary fills.
ποΈ
Lobby & Foyer
Greet arriving members with the live platform on lobby screens.
πΆ
Cry & Nursery Rooms
Parents follow the message in real time with their little ones.
π
Classrooms
Stream the service to Sunday-school and youth rooms.
β
Cafe & Welcome Center
Keep the service on screens in gathering areas.
π’
Multi-Building Campus
Reach outbuildings and annexes over the campus coax.
π
Translation Rooms
Run a translation or signed feed on a separate channel.
πΉ
Recording & Booth
Confidence monitors fed from the same broadcast channel.
Why PVI
Why This Is the Best Church HDMI Modulator
IP streaming adds delay and a decoder in every room. The MINIMOD 2+ carries the live service to every space over existing coax with zero delay and broadcast quality.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓Reaches Every Room Over Existing Coax
✕Per-Room Receivers β Costly to Buy & Maintain
✓Hardware-Locked Sync β Zero Delay
✕IP Streaming Adds Seconds of Latency
✓Color LCD β Volunteer Setup Without a PC
✕Requires PC for Full Setup
✓No Box Behind Any TV
✕IP Systems Need a Decoder per Room
✓+45 dBmV β Reaches Outbuildings
✕Low Output β May Need External Amplifiers
✓4 Channels in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓Spurious-Free DDS β Won't Disturb Lineup
✕Spurs Disturb Existing Channels
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Perfect in Every Room
✕Low MER β Pixelation in Far Rooms
Specifications
Church HDMI Modulator β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2β83 ATSC mode | 2β158 J.83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |
| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |
| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
Church HDMI Modulator - Frequently Asked Questions
What is a church HDMI modulator?
A church HDMI modulator is a device that turns an HDMI source into a real digital TV channel over coax. For the church hdmi modulator keyword family, the VeCOAX MINIMOD 2+ handles sending worship video to overflow, lobby, nursery, classroom, and office TVs and lets every connected TV scan the result like normal television.
How does a church HDMI modulator work over coax?
For church hdmi modulator, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use a church HDMI modulator instead of HDMI cables?
Church HDMI Modulator distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why church hdmi modulator is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this church HDMI modulator?
Use sanctuary cameras, switchers, presentation computers, receivers, and media players. For church hdmi modulator installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the church hdmi modulator channel?
Any TV with a compatible digital tuner can receive the church hdmi modulator channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this church HDMI modulator support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for church hdmi modulator in hotels, CATV plants, commercial buildings, and private coax systems.
Does this church HDMI modulator support ATSC antenna mode?
Yes. In ATSC mode, the same church HDMI modulator creates an antenna-style digital TV channel. This helps church hdmi modulator projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this church HDMI modulator coexist with existing TV channels?
Yes. Assign the church hdmi modulator output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one church HDMI modulator feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For church hdmi modulator, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can church hdmi modulator travel over coax?
Church HDMI Modulator output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this church HDMI modulator?
Yes. This is the main advantage of church hdmi modulator: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this church HDMI modulator?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes church hdmi modulator setup fast even without a laptop.
Why is the color LCD important for church hdmi modulator?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes church coax video distribution faster to commission than units that require software for basic setup.
Can I manage this church HDMI modulator remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for church hdmi modulator systems in equipment rooms.
What picture quality does this church HDMI modulator deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the church hdmi modulator channel stay sharp on every TV.
Does this church HDMI modulator work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p church hdmi modulator channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more church hdmi modulator channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger church hdmi modulator lineup.
Where is this church HDMI modulator used most often?
This church HDMI modulator is used in churches, ministries, chapels, and houses of worship. Typical church hdmi modulator applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this church HDMI modulator different from a streaming box at every TV?
A streaming box at every TV usually depends on short point-to-point wiring or limited outputs. A church HDMI modulator creates a real tunable TV channel, so the existing coax system distributes the church hdmi modulator source to every TV at building scale.
Is the MINIMOD 2+ good for professional church hdmi modulator?
Yes. It is designed for 24/7 professional church hdmi modulator with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this church HDMI modulator HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional church hdmi modulator system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this church HDMI modulator?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable church coax video distribution and strong church hdmi modulator performance.
Accessories
Complete Your Church Head-End
Everything you need to combine, rack, and scale service channels across the campus.

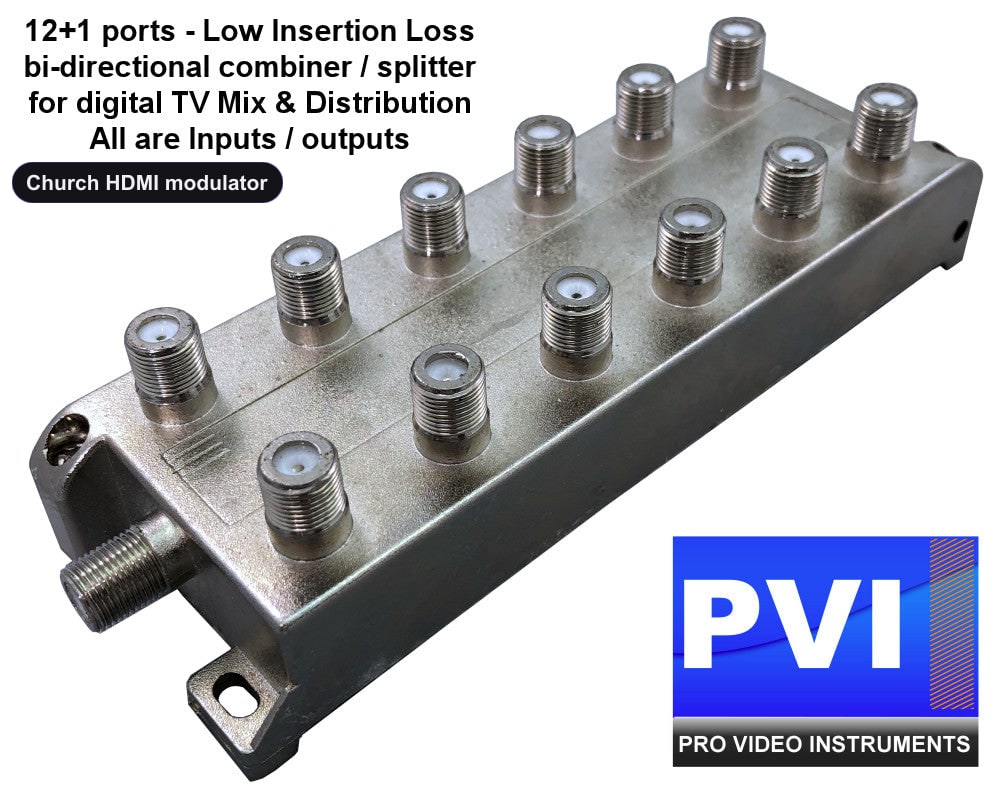

Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

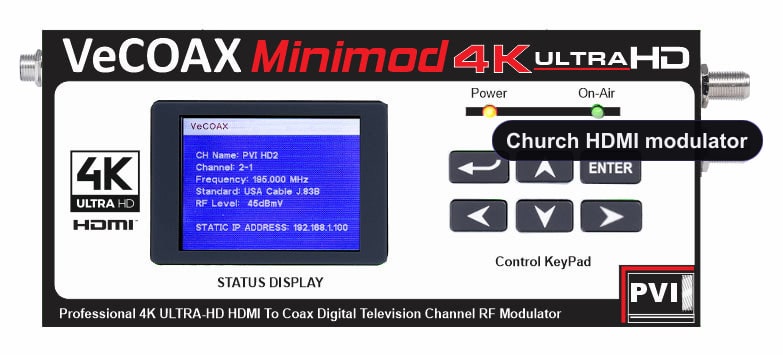

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

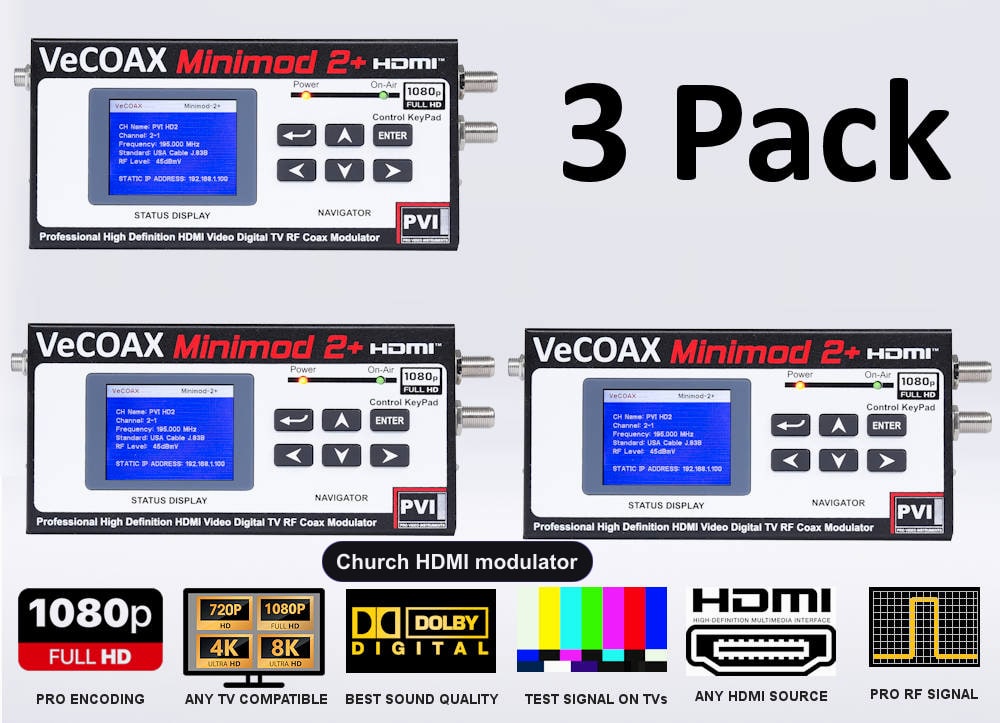

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00
MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Add more campus channels with multi-unit bundles, or step up to 4K.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Carry the Live Service to Every Room?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
