Injecting into a CATV plant is unforgiving β a dirty modulator bleeds into neighboring channels or fades across the system's splitters and amplifiers. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because its spurious-free DDS output and +45 dBmV drive let your channel join the lineup cleanly and reach every set at MER above 45 dB.
Recognition
The CATV Modulator Integrators Have Trusted Since 2017
When you need to add a channel to a live cable-TV system without disturbing the lineup, the VeCOAX MINIMOD 2+ is the CATV modulator professionals specify β award-winning, US-built, proven on 50,000+ installations.

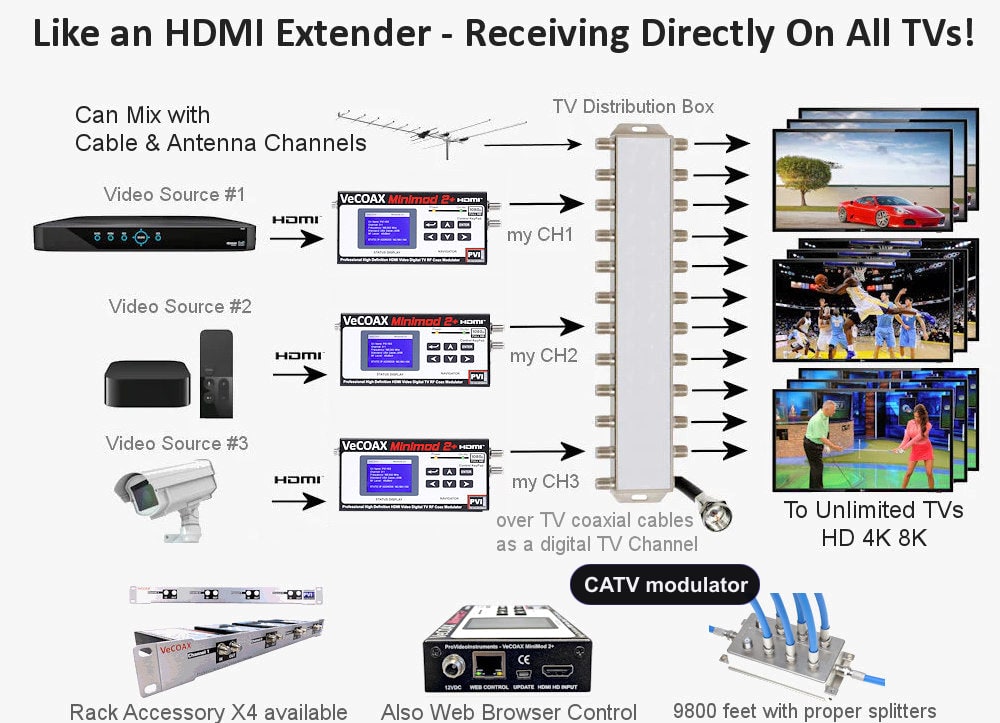

How a CATV Modulator Works
HDMI In β A New Channel in Your Cable Lineup
A CATV modulator injects an HDMI source straight into your cable-TV system as a clean QAM channel, so every cable-ready set on the plant tunes it alongside the existing lineup.
- Connect any HDMI source you want on the cable system β box, player, or camera
- Assign a free CATV channel on the LCD; the HDMI joins the cable lineup
- Inject the channel into the cable trunk through a combiner β no headend rebuild
- Cable-ready TVs find the new channel on the next scan in full 1080p
- No truck roll from the cable company, no set-top box at each subscriber TV
- Add modulators to inject more channels into the same cable plant

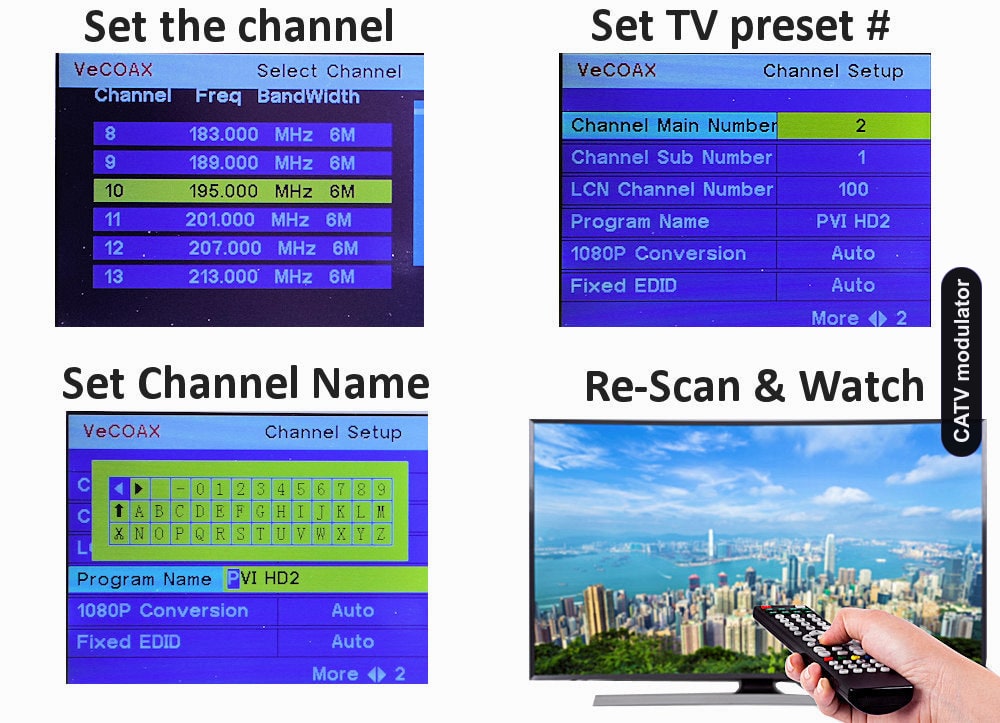

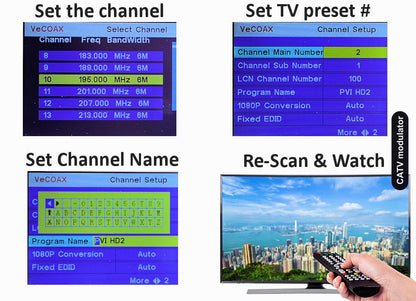

Setup

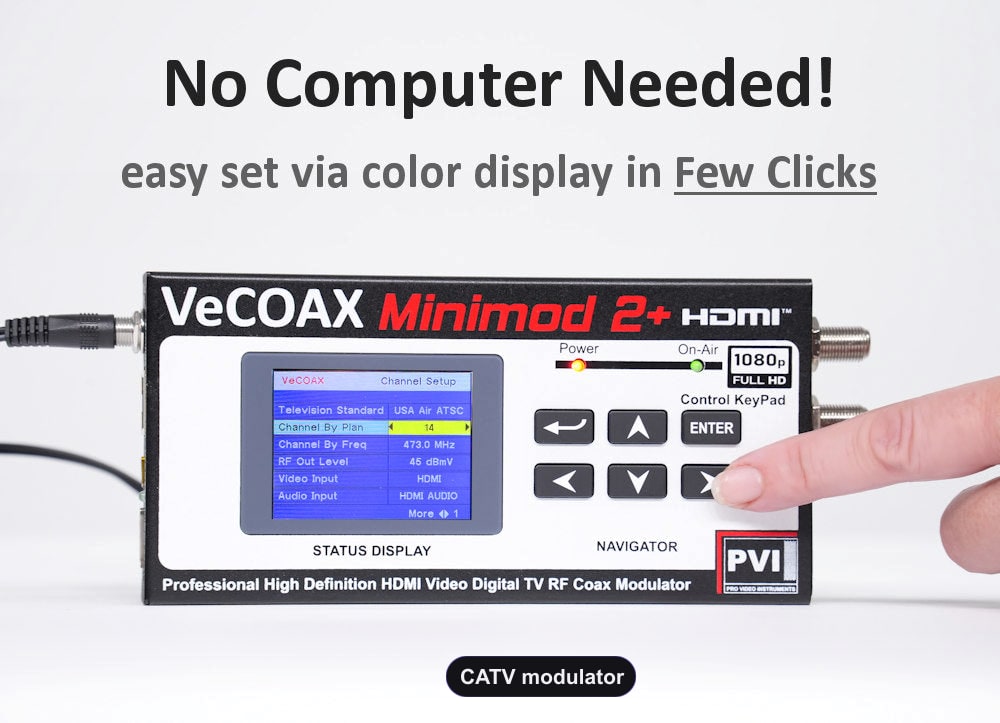

Add a Channel to Your Cable System in Under a Minute. No Computer Required.
Headend gear usually needs a console to add a channel. The MINIMOD 2+ keeps the CATV channel, QAM annex, and level on a color LCD so you grow the cable lineup without a laptop.

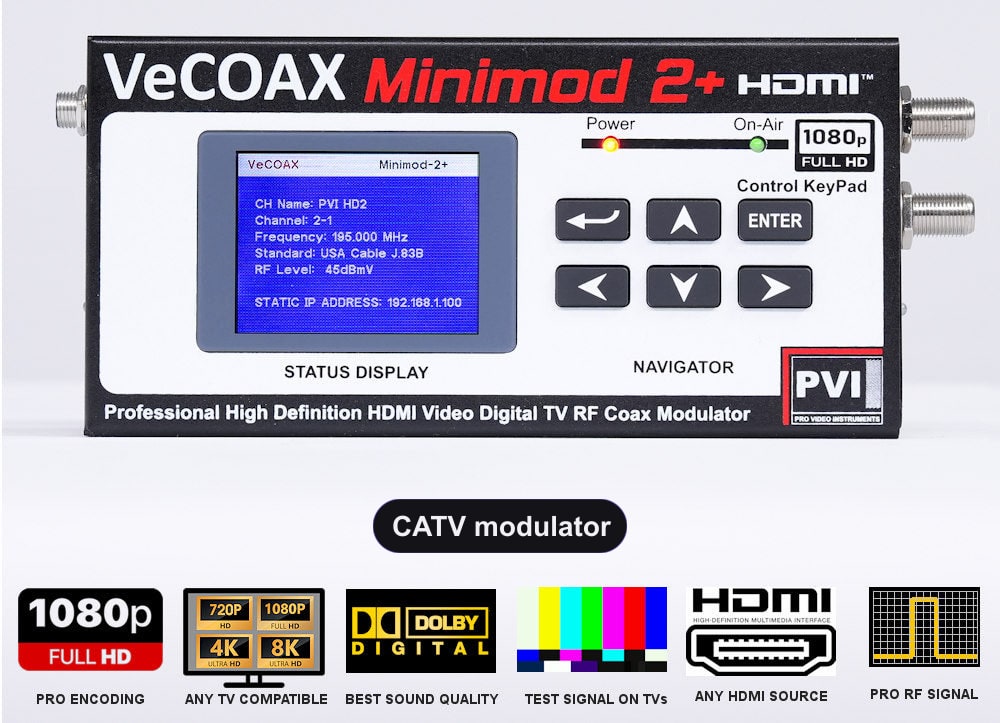

- The display shows the CATV channel, frequency, and carrier lock continuously
- Set the QAM annex and CATV channel straight on the front buttons
- Self-contained headend tool β no console app, serial cable, or driver
- Power on β set the CATV channel β combine into the trunk β scan β on the system
Works on Your Existing System
Your Channel Joins the Cable Lineup, Cleanly

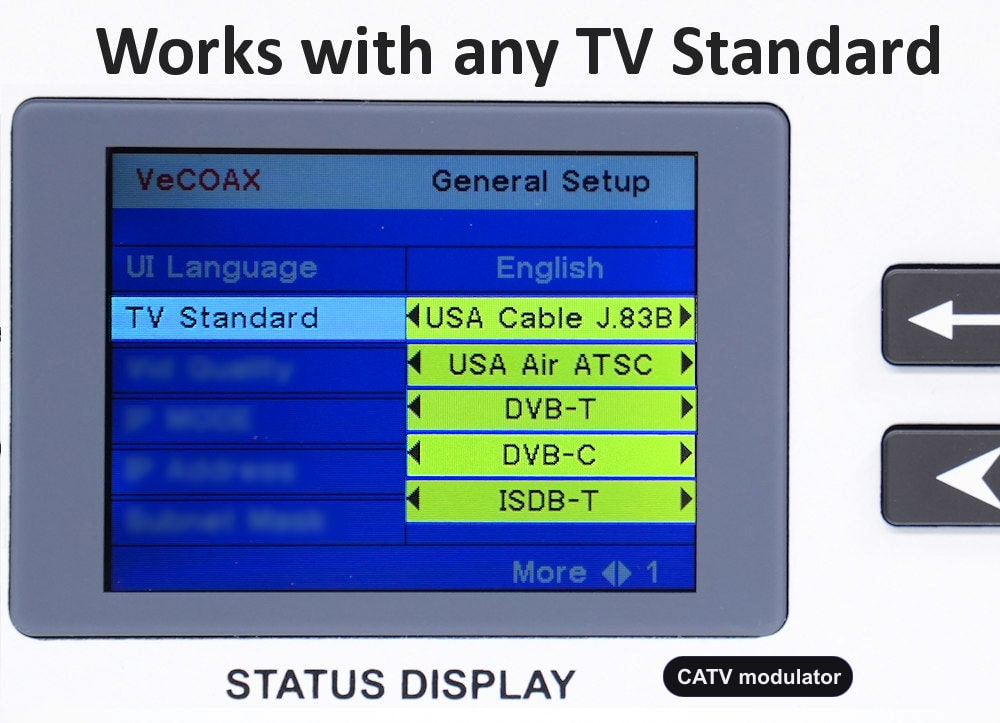

CATV systems speak QAM β but switch to ATSC, DVB-C, or ISDB-T on the panel for other plants. The injected channel blends into the lineup subscribers already tune.
Because the modulator outputs a true QAM carrier, the HDMI source you inject behaves like any operator channel. Cable-ready sets list it among the CATV lineup after a scan β no set-top box, no headend re-engineering.
The same unit also produces ATSC, DVB-T/C, and ISDB-T carriers, so it serves North American CATV plants and worldwide systems alike β HD, 4K, or 8K.

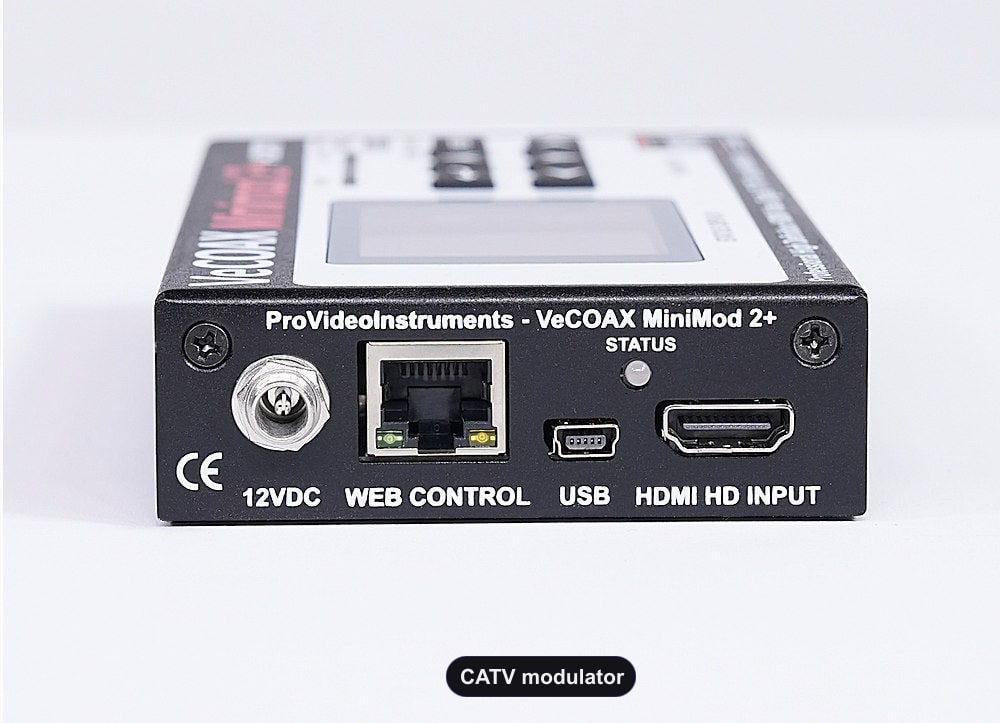

Remote Control

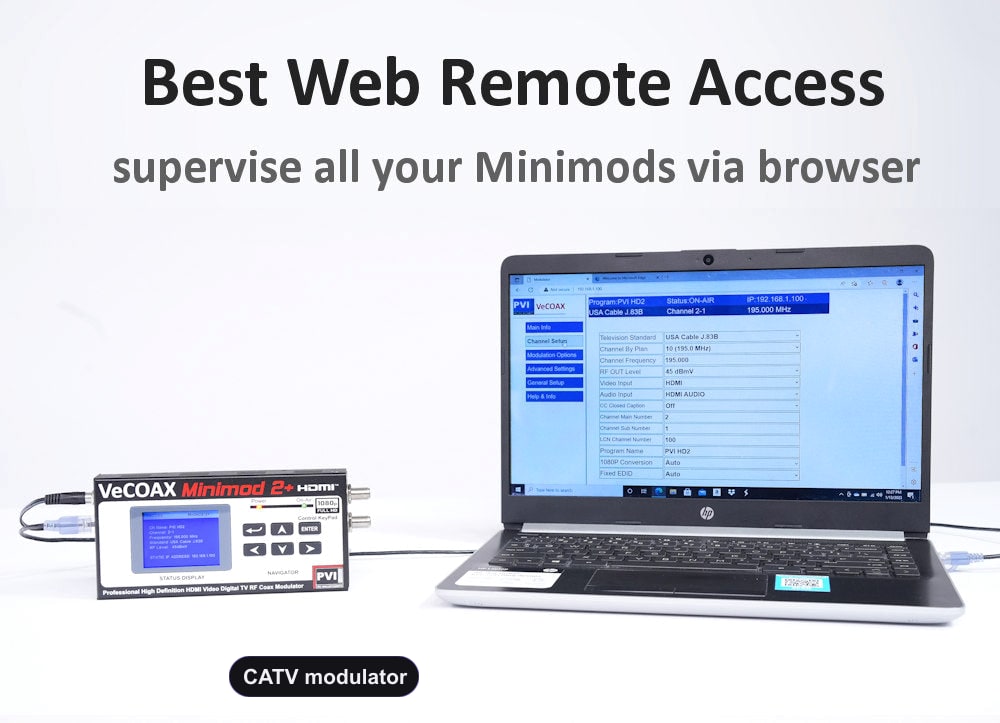

Manage Your CATV Headend From Any Browser
The panel adds the channel; the optional LAN page lets headend staff re-channel and watch carrier health from the office when units live in the rack.
- Re-channel the CATV carrier and trim level remotely over the network
- Oversee a headend rack of CATV modulators from one browser console
- Reachable from any office computer or phone browser β nothing to install
- Carrier-lock status confirms each injected CATV channel is clean
Audio

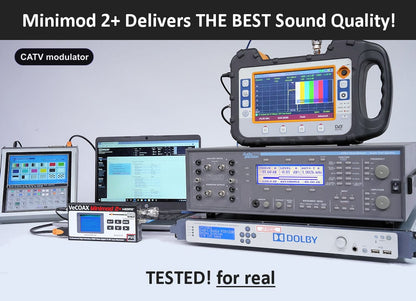

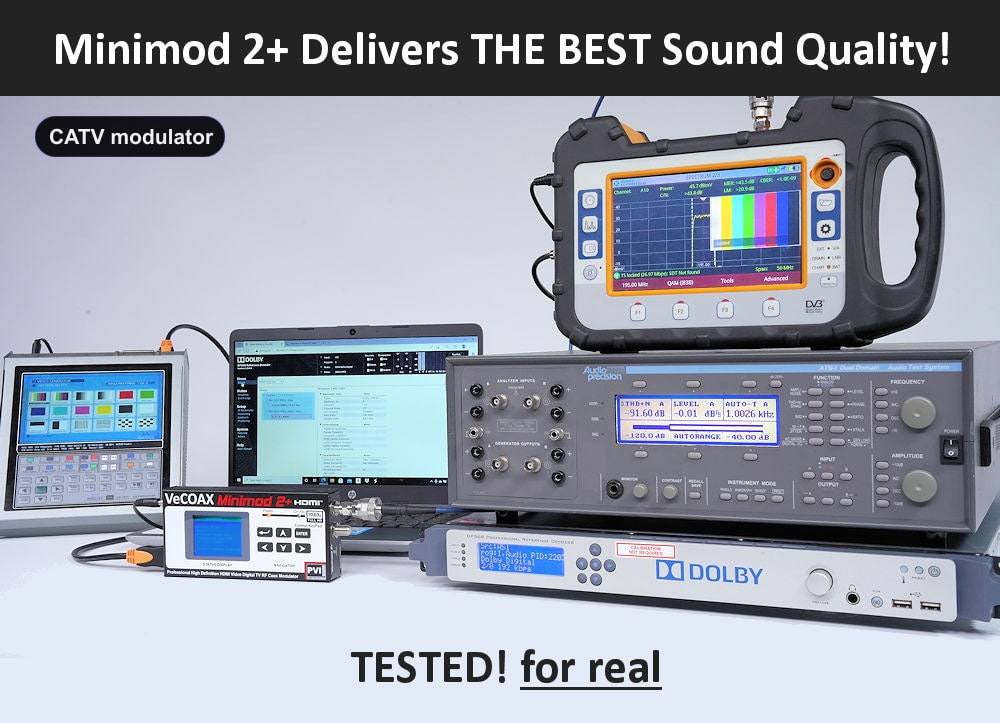

Your CATV Channel Carries Broadcast-Grade Audio
An injected CATV channel carries its audio in-band. The modulator multiplexes broadcast Dolby Digital so sound reaches every cable subscriber locked to the picture.
- Dolby Digital / LPCM is multiplexed into the injected CATV transport
- Audio tracks the picture across the whole cable plant β no lip-sync drift
- Carries 5.1 surround intact from compatible HDMI sources on the cable lineup
- Clean program sound on every cable-tuned subscriber set

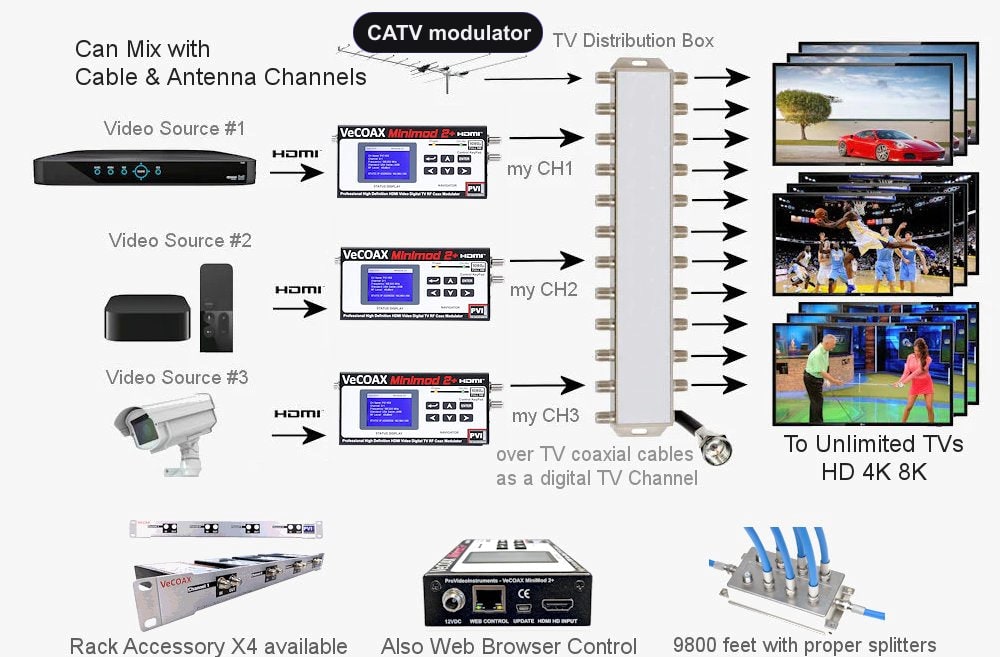

Installation
Three Connections. Done.

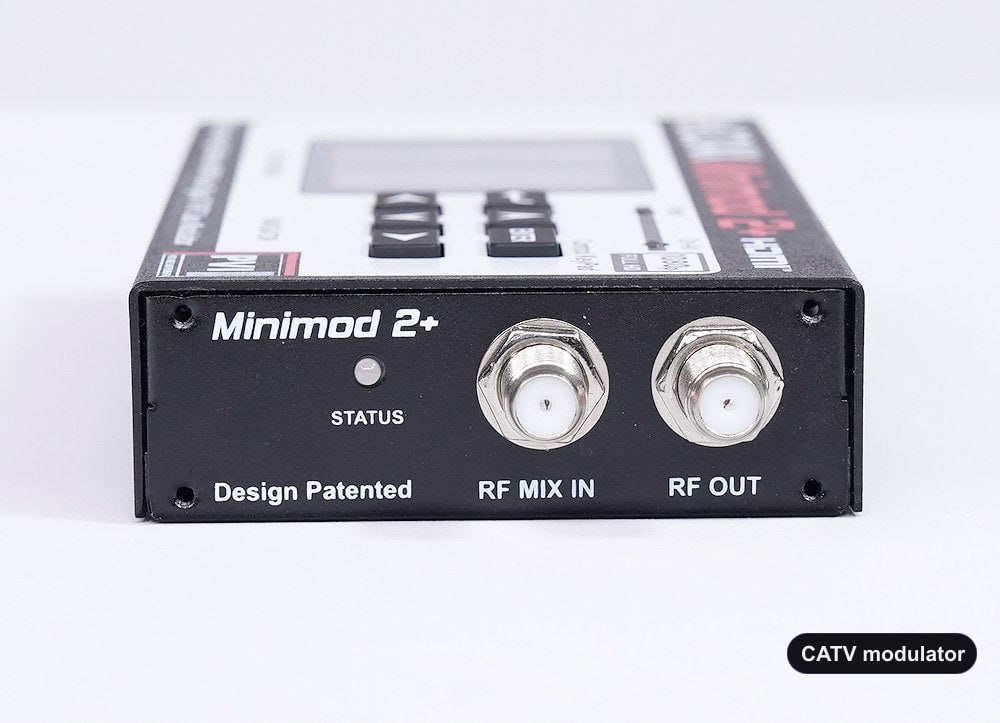

HDMI in. CATV carrier out. One scan. Your source is injected into the cable lineup on every subscriber TV in Full HD.
Injecting a CATV channel takes minutes: connect the HDMI source, combine the F-type QAM output into the cable trunk, assign a free channel on the LCD, and rescan cable-ready TVs. No headend overhaul, no per-subscriber boxes, no cable-company involvement β the existing plant carries the new channel.

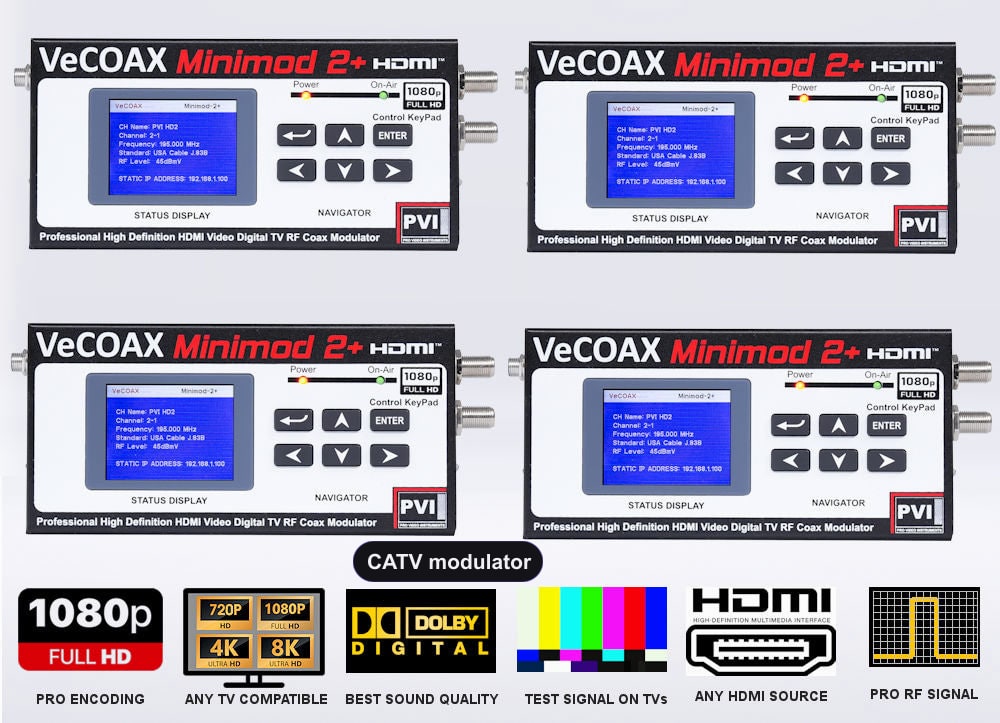

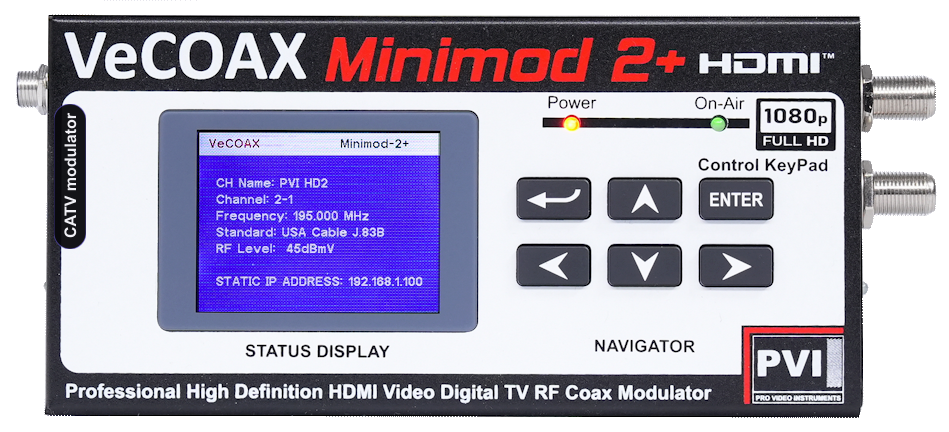

The MINIMOD 2+
A CATV Modulator With Broadcast-Headend Quality

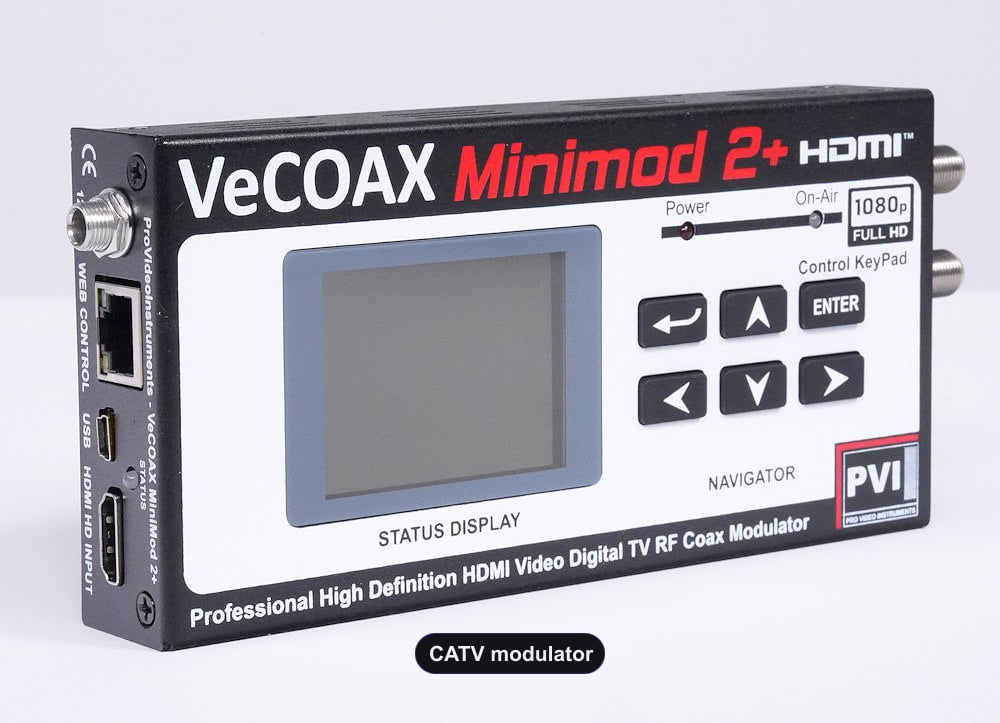

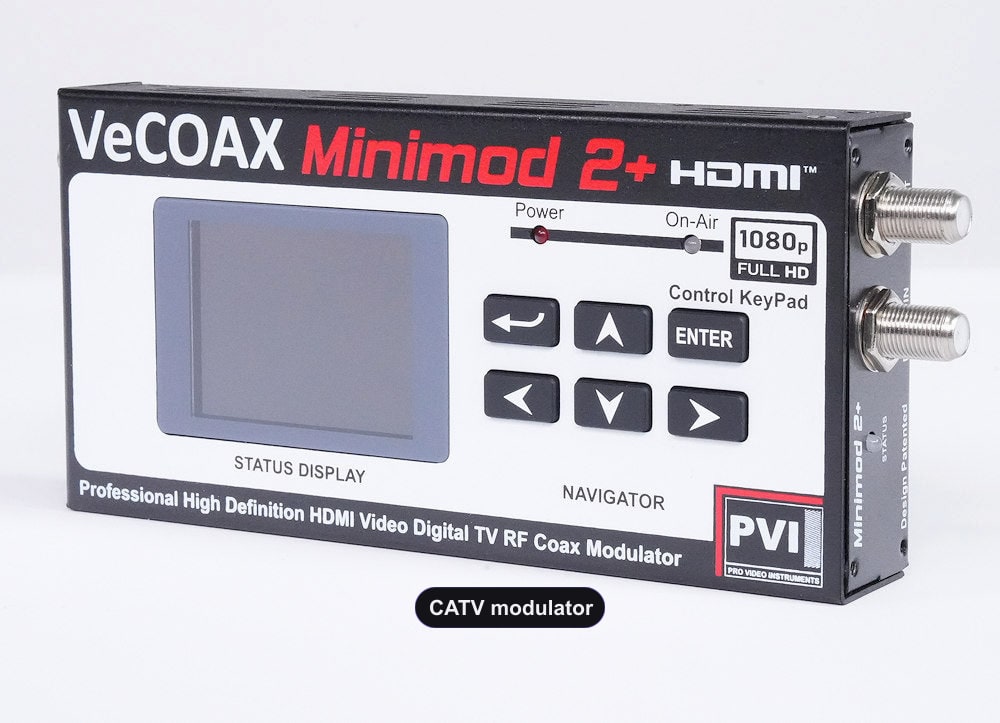

Palm-sized aluminum build, spurious-free QAM modulation, and a front-panel LCD β the professional way to add a channel to a cable system. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ injects into CATV the way operators do it: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to drive the system's splitters and amplifiers, a built-in color LCD for computer-free setup, and support for every worldwide TV standard. One small box turns any HDMI device into a cable channel that reaches unlimited TVs over existing CATV coax.
Rack Solutions

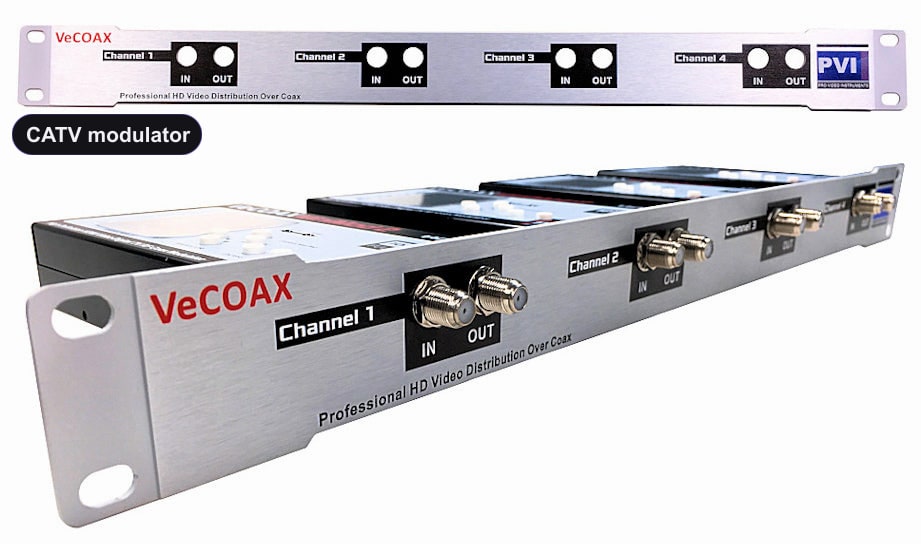

Build a Multi-Channel CATV Headend in 1RU
Need several channels in the lineup? Mount up to four MINIMOD 2+ CATV modulators in a single 1RU rack panel for a tidy, professional headend.
The optional 1RU rack panel holds up to four CATV modulators in one rack space, with front-panel access and proper airflow. Combine their outputs with a passive combiner and you have a clean multi-channel addition to your cable lineup β ideal for CATV closets, server rooms, and broadcast facilities.
$105.00$99.00Save $6.00

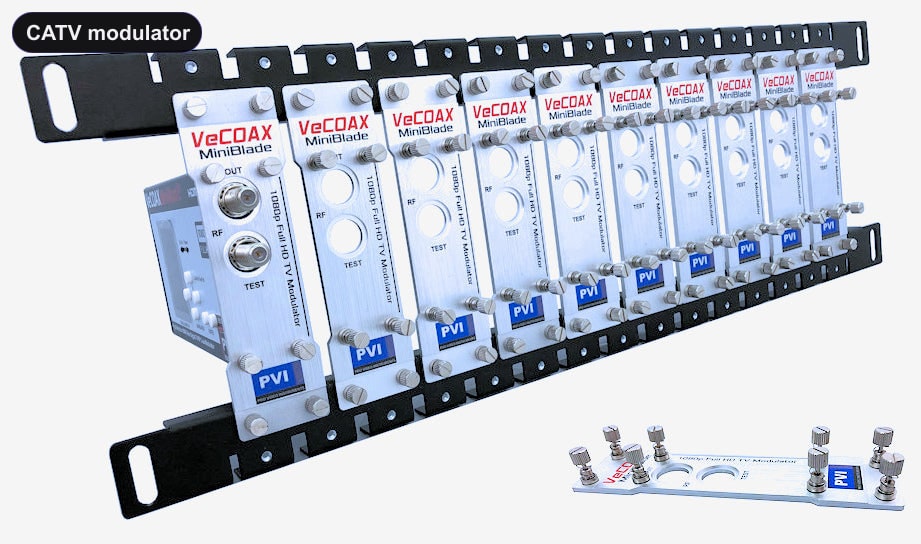

High Density
10+ CATV Channels with the MiniBlade Kit
For large additions to a cable lineup, the VeCOAX MiniBlade system packs 10 or more modulator units into a single rack β each fully independent so one channel can never take down the rest.
When you need to add many channels to a CATV system at once, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every channel runs on its own, which is exactly what 24/7 cable systems demand.
Compatibility
Every Cable-Ready TV Tunes the Injected CATV Channel β HD, 4K, and 8K
The injected channel is a standard QAM cable broadcast, so any cable-ready tuner decodes it β from an older HD set to a new 8K display.
Because the carrier is genuine CATV QAM, compatibility is automatic on cable-ready sets. The modulator finalizes color, frame rate, and audio sync internally, so the injected channel renders correctly on every brand and resolution with no per-set setup.
Features
Built to Inject into CATV Flawlessly
Every detail exists to add your HDMI source to a cable-TV lineup cleanly, with broadcast stability and effortless setup.
Front-Panel Color LCD
Set your CATV channel, modulation, and output level on the built-in display β no laptop.
One-Click Channel Recall
Save and recall the CATV channel map in one tap when servicing the headend rack.
Full Channel Customization
Place the CATV carrier to the hertz and label the injected channel per system.
1080p@60 Motion Encoding
1080p60 encoding keeps live action crisp on every cable subscriber's screen.
MPEG-2 Broadcast Standard
MPEG-2 over QAM matches existing cable channels for seamless tuner compatibility.
+45 dBmV Output
A +45 dBmV carrier injects cleanly into long cable trunks and splitter trees.
MER >45 dB
MER beyond broadcast spec keeps the injected channel pristine at the last drop.
Full Digital DDS
DDS synthesis injects carriers that never disturb adjacent cable channels.
Secure Web Remote
Secured browser control for CATV modulators living in the headend rack.
Unlimited TVs
One injected channel reaches five subscribers or five thousand at no per-set cost.
Built-In Test Pattern
A color-bar carrier appears with no HDMI present to verify the cable injection.
HDMI Licensed + Full EDID
HDMI-licensed input with full EDID control for a dependable source handshake. Built for catv modulator installations.
Watch the Demo
See a Channel Added to a Cable System in Real Time
From wiring an HDMI source to injecting it as a CATV channel every subscriber tunes β the whole process in under five minutes.
Full walkthrough: HDMI hookup, CATV channel assignment on the LCD, injection into the cable trunk, subscriber scan, and stacking multiple CATV channels. Duration: 4 min 30 sec.
Applications
Where a CATV Modulator Shines
π¨
Hotels & Resorts
Inject an amenity channel into the guest cable system in every room.
πΊ
Sports Bars
Inject a game feed into the bar's cable lineup for every screen.
βͺ
Churches
Inject the worship camera into the cable system for overflow and lobby sets.
π₯
Hospitals
Inject patient-education channels into the hospital cable plant.
π
Schools
Inject a campus-announcement channel into the existing cable lineup.
π’
Corporate
Inject dashboards into the cable system for every conference room.
π
Residential
Inject one home channel into the house cable wiring for every TV.
π‘οΈ
Government
Inject secure channels into the facility cable plant.
Why PVI
Why This Is the Best CATV Modulator
Cheap CATV modulators inject dirty carriers that pixelate the channels around them. The MINIMOD 2+ injects a locked, broadcast-clean QAM channel into the cable plant.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓HDMI 2.0b Input β Top Quality
✕HDMI 1.4 β outdated handshake; may limit newer HDR sources
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Setup Without a Computer
✕Requires PC for Full Setup
✓Dot-less Channel Numbering Mode
✕Not Available
✓+45 dBmV β Drives System Splitters & Amps
✕Low Output β May Need External Amplifiers
✓4 CATV Modulators in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓Spurious-Free DDS β Won't Disturb Lineup
✕Spurs Disturb Neighboring Channels
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Clean Across the System
✕Low MER β Pixelation & Drops on Long Coax
Specifications
CATV Modulator β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| Channel Range | 2β158 J.83B QAM (CATV) | 2β83 ATSC | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | QAM (Annex A/B/C), ATSC, DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |
| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |

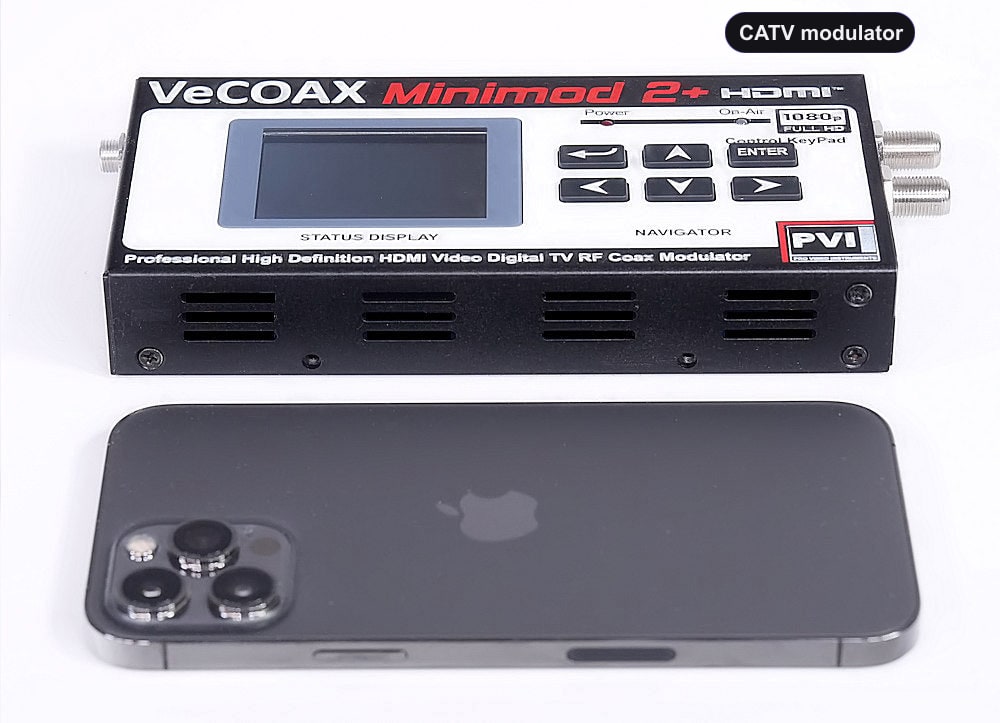

| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
CATV Modulator - Frequently Asked Questions
What is a CATV modulator?
A CATV modulator is a device that turns an HDMI source into a real digital TV channel over coax. For the catv modulator keyword family, the VeCOAX MINIMOD 2+ handles adding a private HDMI channel into a cable TV coax lineup and lets every connected TV scan the result like normal television.
How does a CATV modulator work over coax?
For catv modulator, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use a CATV modulator instead of HDMI cables?
CATV Modulator distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why catv modulator is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this CATV modulator?
Use HDMI receivers, media players, cameras, signage players, and local information sources. For catv modulator installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the catv modulator channel?
Any TV with a compatible digital tuner can receive the catv modulator channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this CATV modulator support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for catv modulator in hotels, CATV plants, commercial buildings, and private coax systems.
Does this CATV modulator support ATSC antenna mode?
Yes. In ATSC mode, the same CATV modulator creates an antenna-style digital TV channel. This helps catv modulator projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this CATV modulator coexist with existing TV channels?
Yes. Assign the catv modulator output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one CATV modulator feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For catv modulator, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can catv modulator travel over coax?
CATV Modulator output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this CATV modulator?
Yes. This is the main advantage of catv modulator: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this CATV modulator?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes catv modulator setup fast even without a laptop.
Why is the color LCD important for catv modulator?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes CATV channel insertion faster to commission than units that require software for basic setup.
Can I manage this CATV modulator remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for catv modulator systems in equipment rooms.
What picture quality does this CATV modulator deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the catv modulator channel stay sharp on every TV.
Does this CATV modulator work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p catv modulator channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more catv modulator channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger catv modulator lineup.
Where is this CATV modulator used most often?
This CATV modulator is used in CATV headends, hotels, campuses, healthcare, and commercial properties. Typical catv modulator applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this CATV modulator different from a consumer cable modulator?
A consumer cable modulator usually depends on short point-to-point wiring or limited outputs. A CATV modulator creates a real tunable TV channel, so the existing coax system distributes the catv modulator source to every TV at building scale.
Is the MINIMOD 2+ good for professional catv modulator?
Yes. It is designed for 24/7 professional catv modulator with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this CATV modulator HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional catv modulator system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this CATV modulator?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable CATV channel insertion and strong catv modulator performance.
Accessories
Complete Your CATV Headend
Everything you need to combine, rack, and scale channels in your cable system.

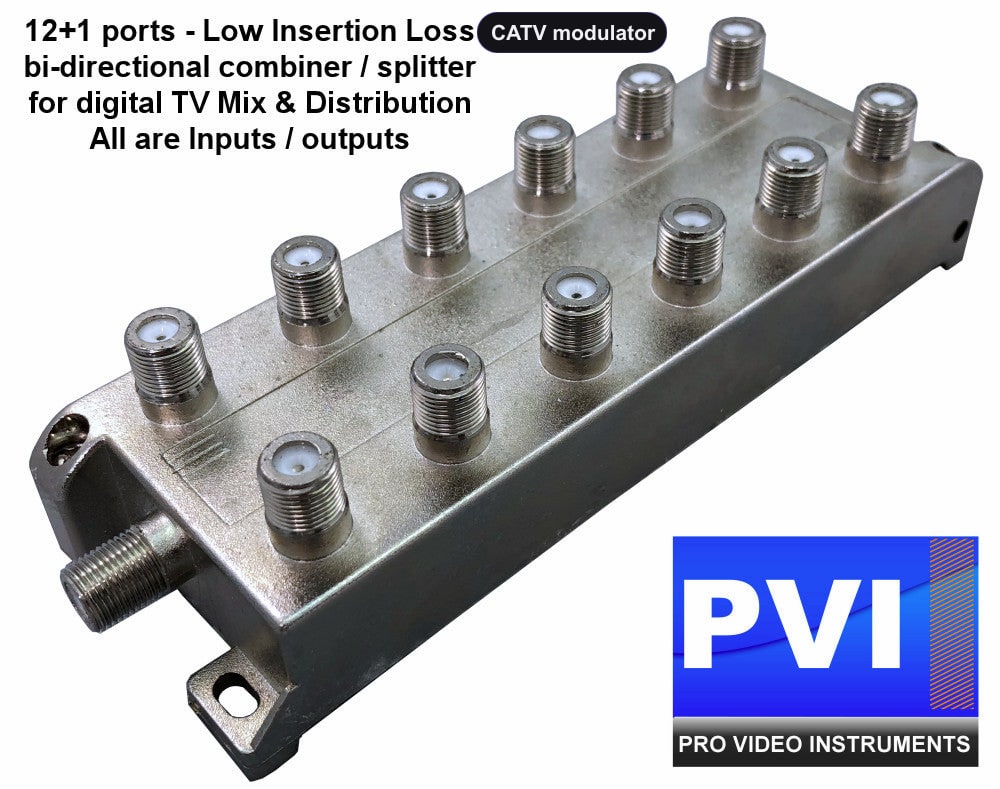

Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00

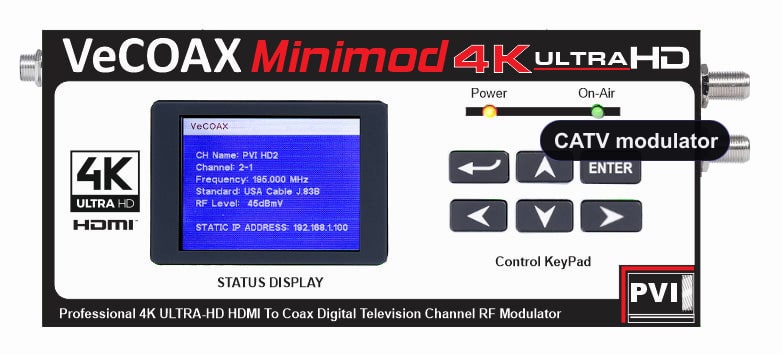

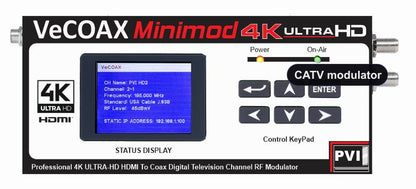

VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00

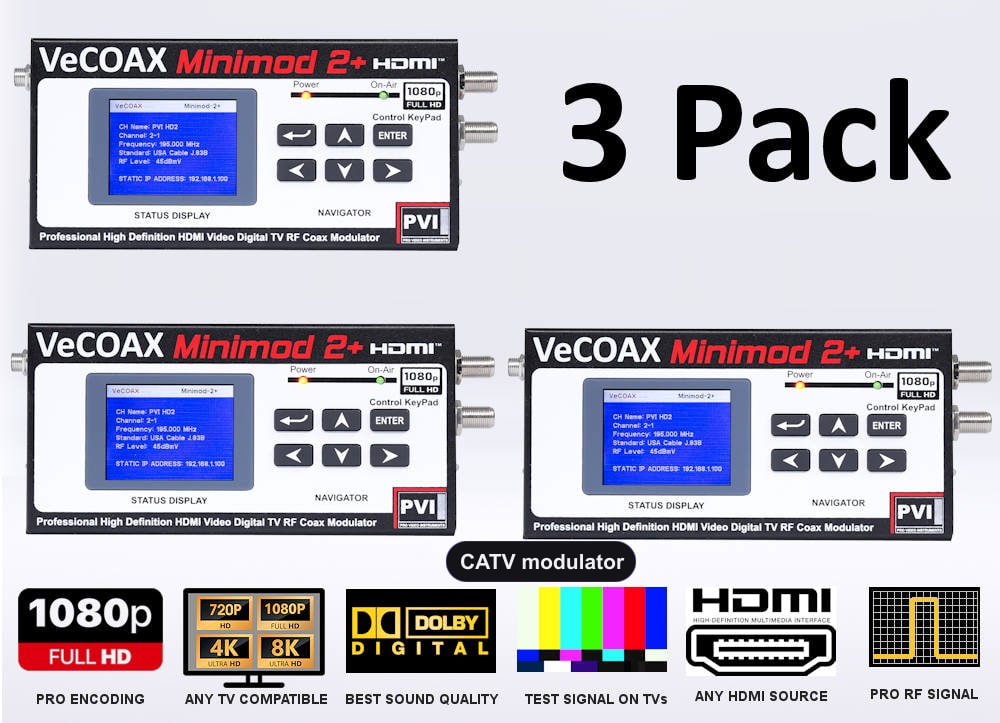

MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00
MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Add more channels to your cable system with multi-unit bundles, or step up to 4K.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Add Your Channel to the Cable System?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
