An ATSC modulator must produce a clean 8VSB signal or TVs won't lock on the antenna input. The MINIMOD 2+ earned NAB Product of the Year, CE Pro Best, and CEDIA Best of Show because it delivers a broadcast-grade ATSC channel: +45 dBmV output and MER above 45 dB, so over-the-air TVs lock instantly and the picture stays perfect from headend to the farthest set.
Recognition
The ATSC Modulator Integrators Have Trusted Since 2017
When TVs scan an antenna input and you need a clean 8VSB ATSC channel every set tunes, the VeCOAX MINIMOD 2+ is the ATSC modulator professionals specify β award-winning, US-built, proven on 50,000+ installations.
How an ATSC Modulator Works
HDMI In β An 8VSB ATSC Channel on Every TV
An ATSC modulator encodes your HDMI source as an 8VSB over-the-air channel β the format antenna TVs expect β so any set in Antenna mode tunes it after a scan, no box required.
- Connect any HDMI source β receiver, media player, camera, or laptop
- Assign the ATSC channel (2β83) on the LCD; the HDMI becomes an OTA station
- Feed the 8VSB carrier into the antenna distribution or a combiner
- Scan each antenna-mode TV and the ATSC channel locks at 1080p
- No broadcast license, no tower, no converter box behind any screen
- Add modulators on other ATSC channels to build a full over-the-air grid

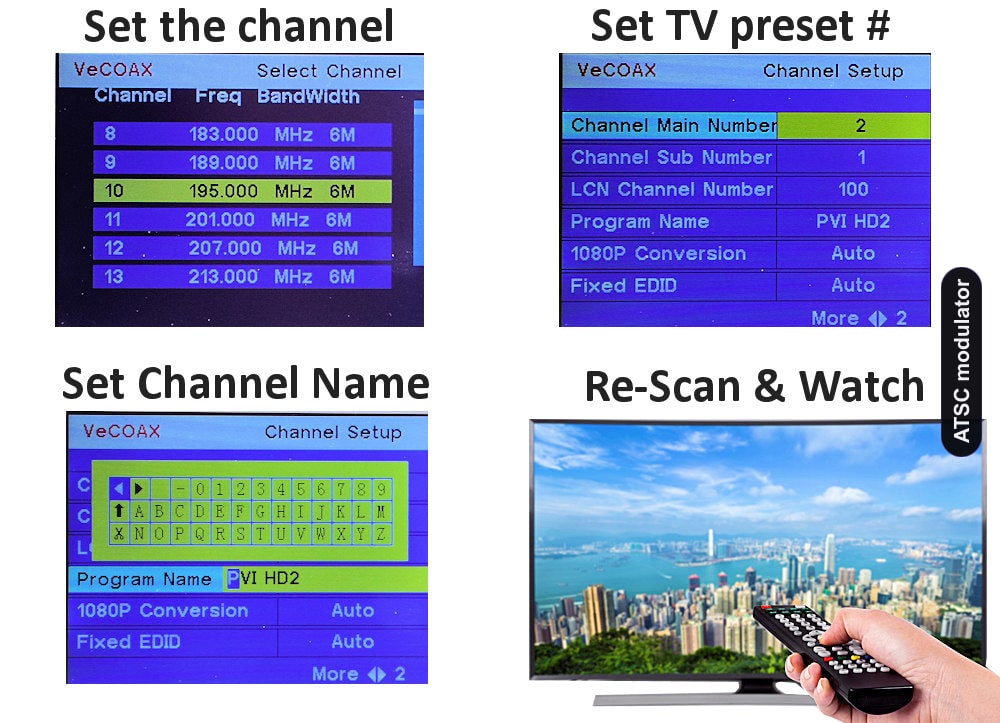

Setup

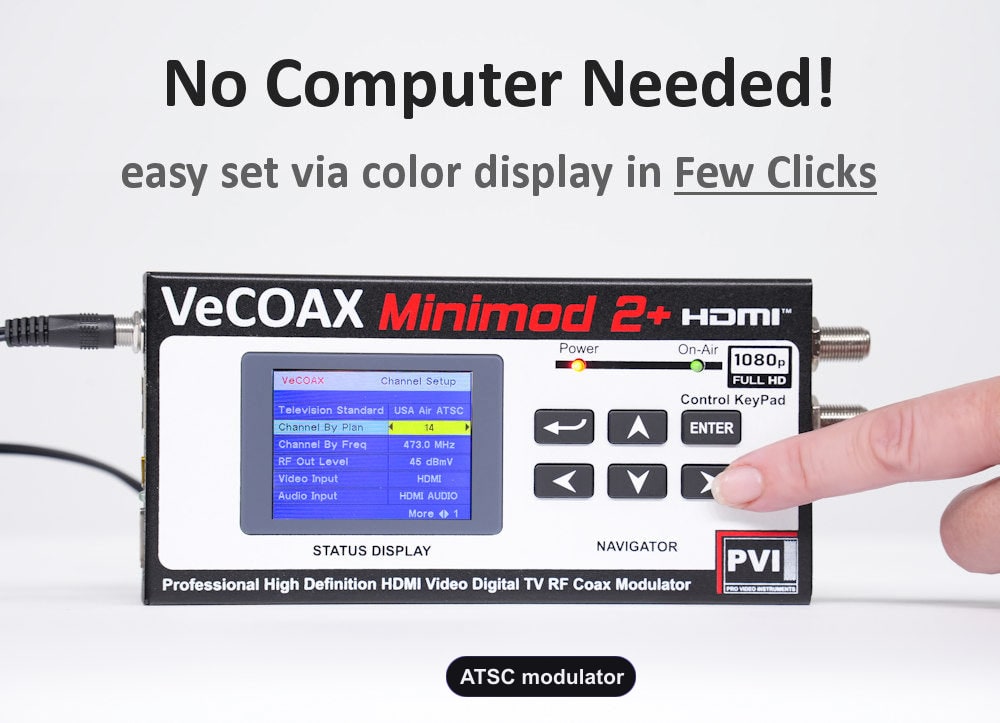

Put an ATSC Channel on the Line in Under a Minute. No Computer Required.
Other ATSC modulators force a console session to set the channel. Here the ATSC channel, 8VSB parameters, and output level live on a color LCD β launch an OTA channel without a computer.
- The display reports the active ATSC channel, frequency, and lock continuously
- Pick the ATSC channel straight from the front-panel buttons
- Completely standalone β no terminal app, serial cable, or driver needed
- Power on β set the ATSC channel β land coax β scan β on the air
Works on Your Existing Line
Your ATSC Channel Sits Beside Your Over-the-Air Channels
ATSC 8VSB is the over-the-air standard for North American antenna TVs β switch to QAM, DVB-T, or ISDB-T on the panel for other plants. The channel folds into the existing grid.
Because the modulator outputs a true 8VSB ATSC carrier, the HDMI source you encoded tunes like a local broadcaster. Antenna-mode TVs add it to the over-the-air grid after a scan β no converter box, no license, no tower.

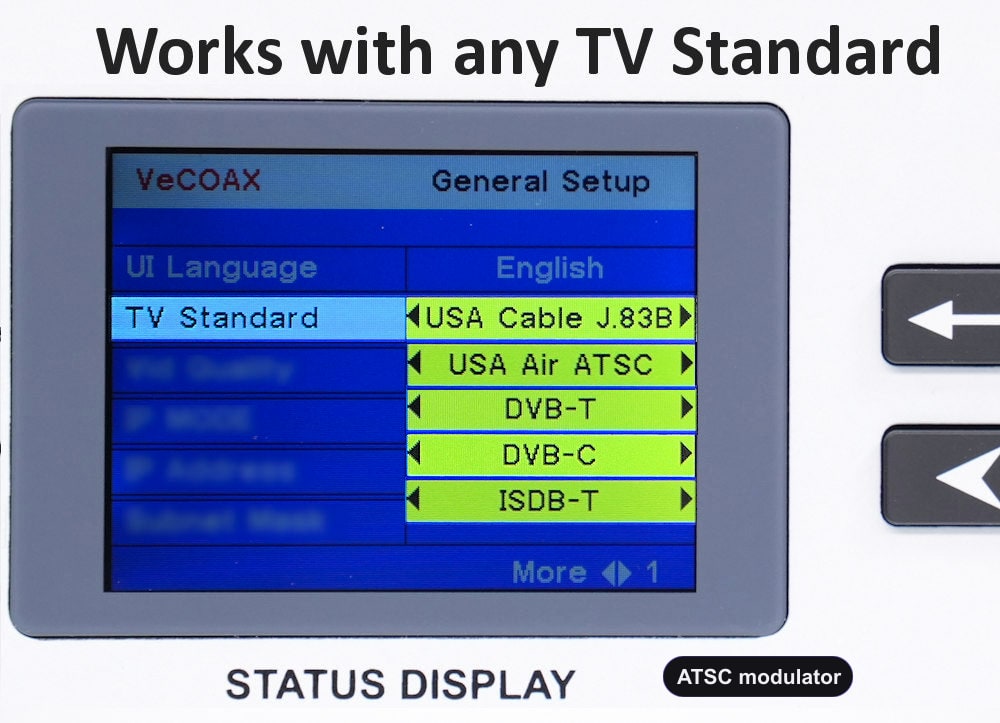

The same unit also produces QAM, DVB-T/C, and ISDB-T carriers, so it serves OTA plants and worldwide systems β HD, 4K, or 8K receivers.
Remote Control

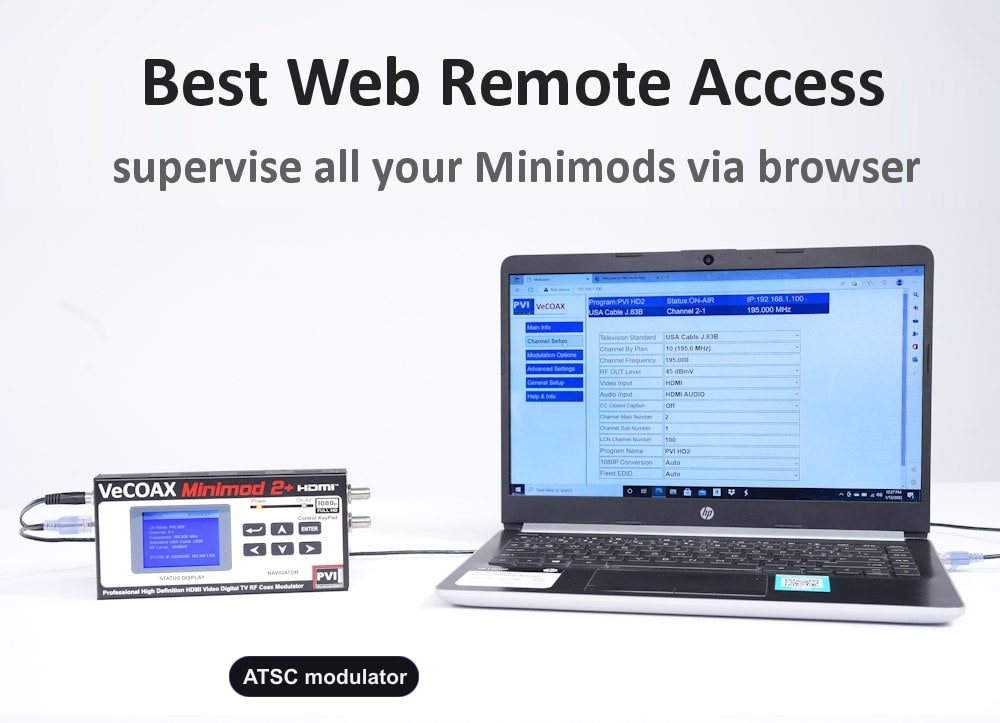

Manage Your ATSC Modulators From Any Browser
The panel launches the channel; the optional LAN page lets you re-assign ATSC channels and verify 8VSB lock from the bench when units sit in a rack.
- Re-assign the ATSC channel and tune output level remotely over the LAN
- Watch a bank of ATSC modulators from one browser dashboard
- Opens in any computer or phone browser β no software to load
- 8VSB lock indicators confirm every ATSC channel is radiating cleanly

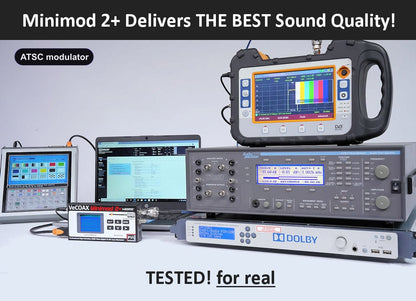

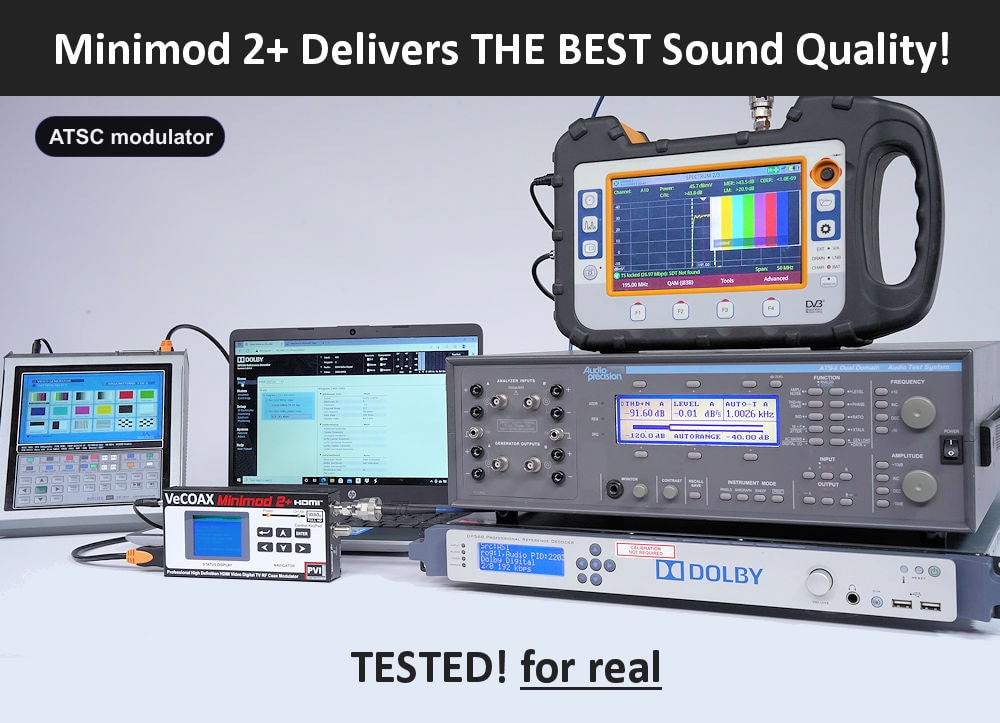

Audio
Your ATSC Channel Carries Broadcast-Grade Audio
ATSC carries AC-3 audio in its transport. The modulator embeds broadcast Dolby Digital so sound reaches every antenna-mode TV locked to the picture.
- Dolby Digital AC-3 / LPCM rides inside the 8VSB transport stream
- Audio stays locked to picture over long antenna runs β no sync slip
- Passes 5.1 surround intact from compatible HDMI sources
- Speech, music, and effects arrive clean on every OTA-tuned set
Installation

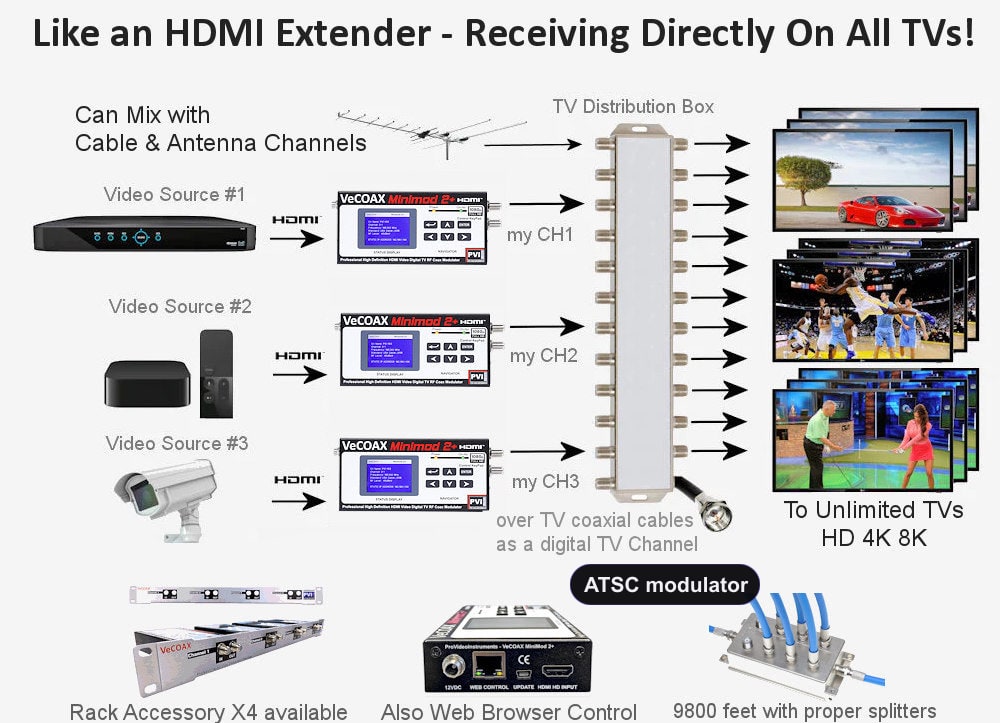

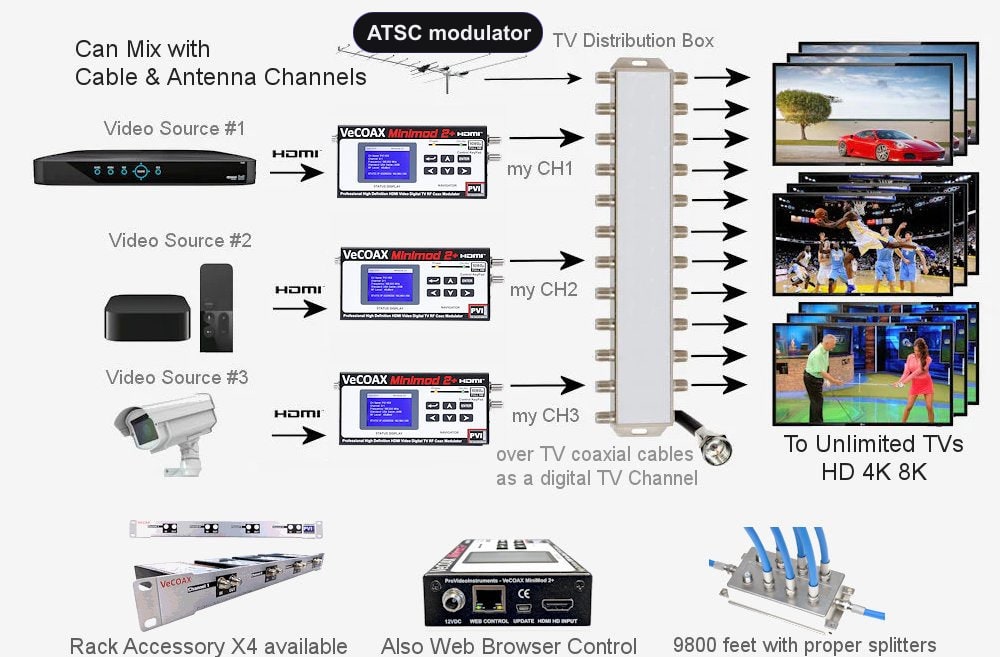

Three Connections. Done.
HDMI in. 8VSB carrier out. One scan. Your source joins the over-the-air grid on every TV in Full HD with synced audio.
Launching an ATSC channel takes minutes: connect the HDMI source, feed the F-type 8VSB output into the antenna distribution (or a passive combiner), assign a free ATSC channel on the LCD, and rescan antenna-mode TVs. No license, no tower, no per-TV box β the existing coax carries the OTA channel.

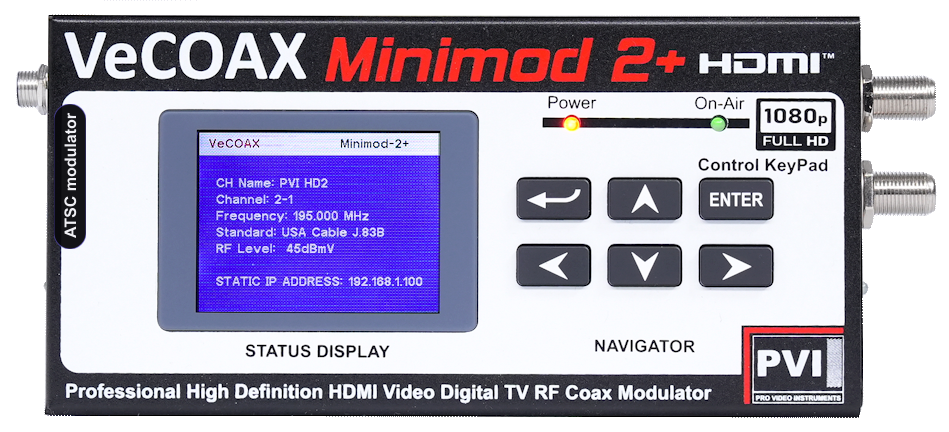

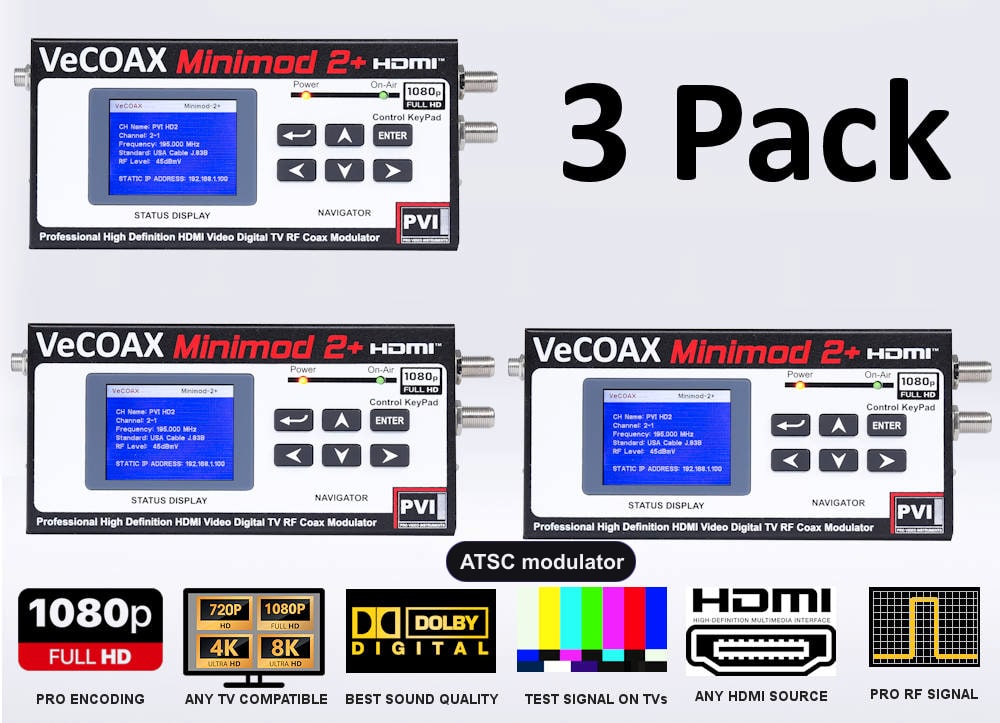

The MINIMOD 2+
An ATSC Modulator With Broadcast-Headend Quality

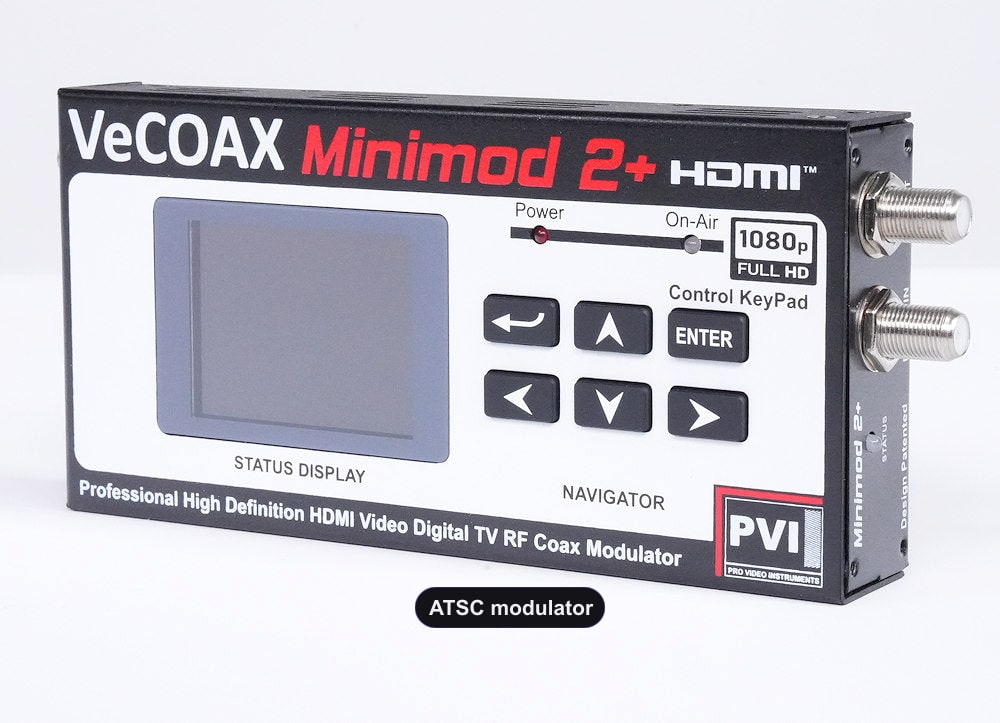

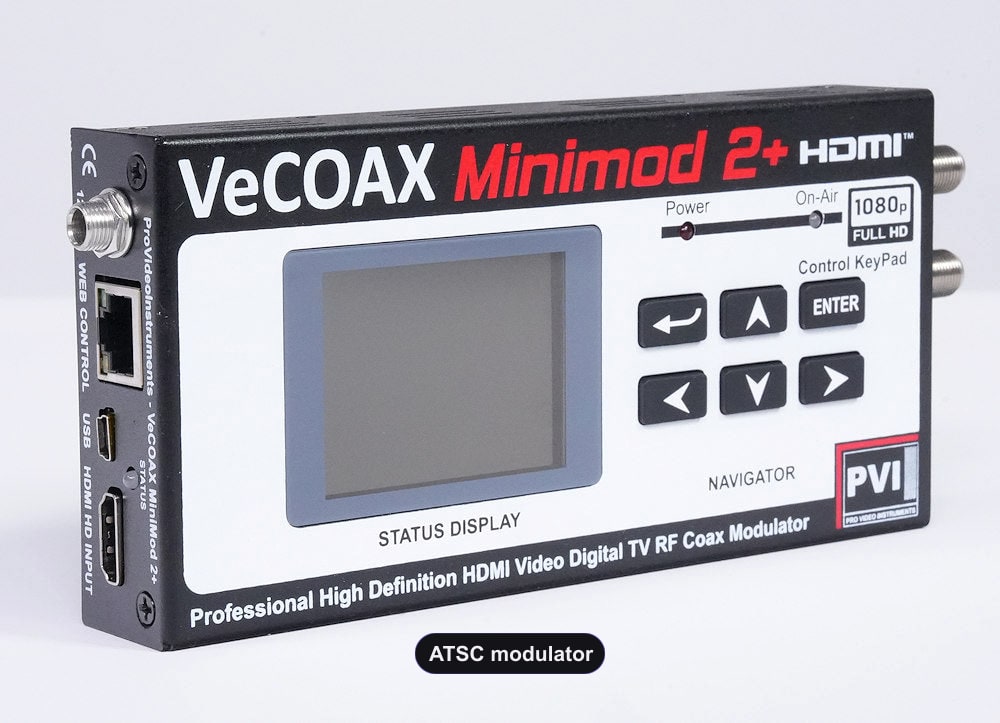

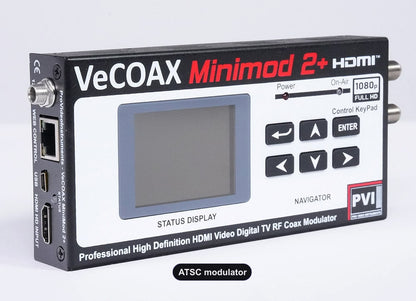

Palm-sized aluminum build, clean 8VSB ATSC modulation, and a front-panel LCD β the professional way to put an over-the-air channel on coax. Made in USA with a 5-year warranty.
The VeCOAX MINIMOD 2+ produces ATSC channels the way broadcasters do it: full 1080p at 60fps MPEG-2 video, Dolby Digital audio, +45 dBmV output to drive long runs, a built-in color LCD for computer-free setup, and ATSC channels 2β83 plus every other worldwide standard. One small box turns any HDMI device into an over-the-air channel that reaches unlimited TVs over existing coax.
Rack Solutions

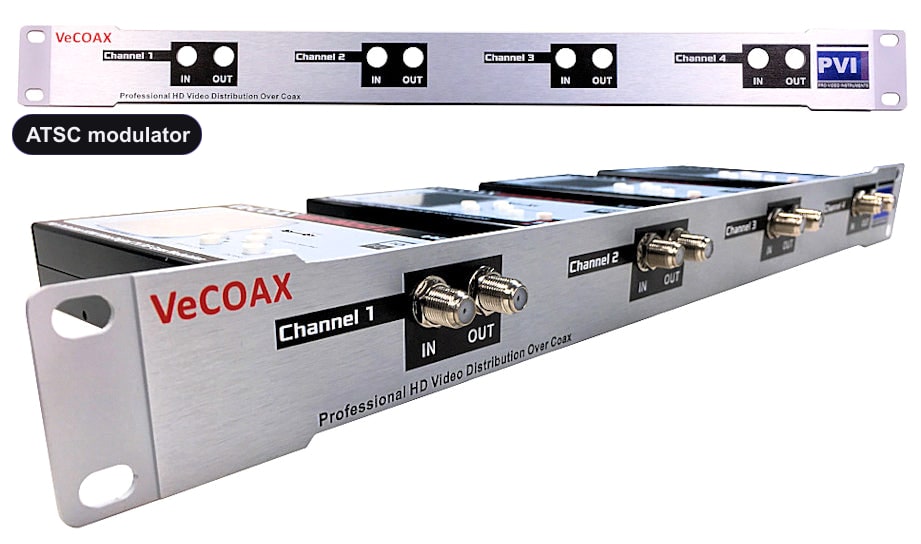

Stack Multiple ATSC Channels in 1RU
Need several ATSC channels? Mount up to four MINIMOD 2+ ATSC modulators in a single 1RU rack panel for a tidy, professional multi-channel headend.
The optional 1RU rack panel holds up to four ATSC modulators in one rack space, with front-panel access and proper airflow. Combine their outputs with a passive combiner and you have a clean multi-channel ATSC lineup riding a single coax β ideal for AV closets, server rooms, and broadcast facilities.
$105.00$99.00Save $6.00
High Density

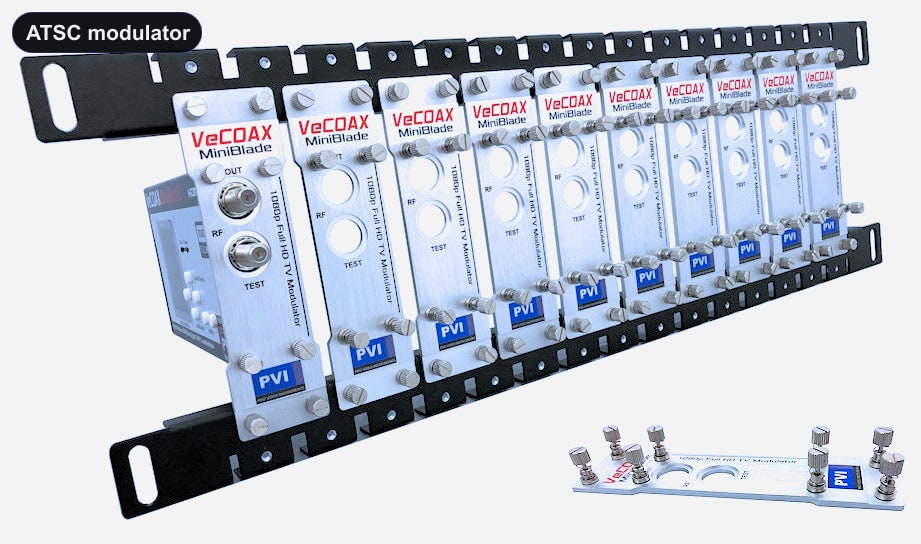

10+ ATSC Channels with the MiniBlade Kit
For large ATSC lineups, the VeCOAX MiniBlade system packs 10 or more modulator units into a single rack β each fully independent so one ATSC channel can never take down the rest.
When you need many ATSC channels at once, the MiniBlade rack kit delivers maximum density with independent power per unit. There is no shared point of failure: every ATSC channel runs on its own, which is exactly what 24/7 commercial systems demand.
Compatibility
Every Antenna-Mode TV Tunes the ATSC Channel β HD, 4K, and 8K
The 8VSB ATSC channel is a standard over-the-air broadcast, so any antenna tuner decodes it β from an older HD set to a new 8K display.
Because the carrier is genuine ATSC, antenna-mode compatibility is automatic. The modulator settles color, frame rate, and audio sync internally, so the ATSC channel renders correctly on every brand and resolution with no per-set setup.
Features
Built to Modulate ATSC Flawlessly
Every detail exists to put your HDMI source on an 8VSB ATSC channel with instant TV lock and effortless setup.

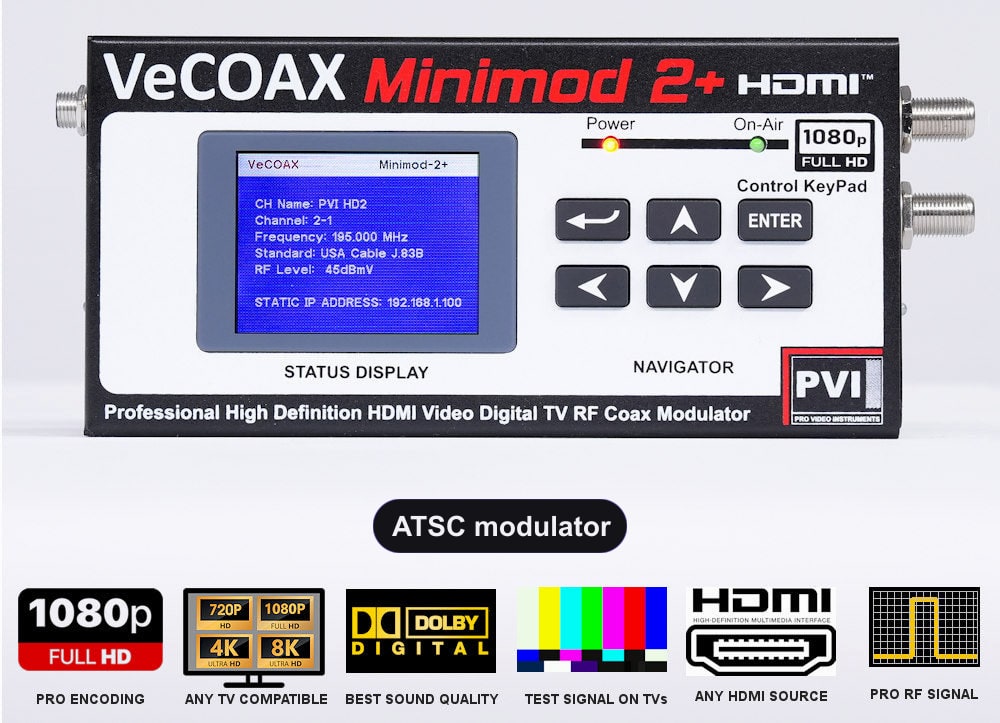

Front-Panel Color LCD
Set your ATSC channel, frequency, and output level on the built-in display β no laptop, no web hunting.
One-Click Channel Recall
Bank and recall the full ATSC channel plan instantly when re-racking a unit.
ATSC Channels 2β83
Set the 8VSB carrier to the hertz and name the ATSC channel for each site.
1080p@60 Motion Encoding
1080p60 motion encoding keeps fast OTA content sharp on big antenna-fed screens.
8VSB Broadcast Modulation
MPEG-2 inside ATSC is exactly what antenna tuners expect for universal decode.
+45 dBmV Output
A +45 dBmV 8VSB carrier drives long antenna distribution and splits with no amp.
MER >45 dB
MER above broadcast spec keeps the ATSC channel artifact-free at the last set.
Full Digital DDS
DDS synthesis places ATSC carriers cleanly with no spurious into adjacent channels.
Secure Web Remote
Locked browser control for ATSC modulators stationed in racks and closets.
Unlimited TVs
One ATSC channel reaches five antenna TVs or five thousand at no per-set cost.
Built-In Test Pattern
A color-bar 8VSB carrier appears with no HDMI present to confirm the coax run.

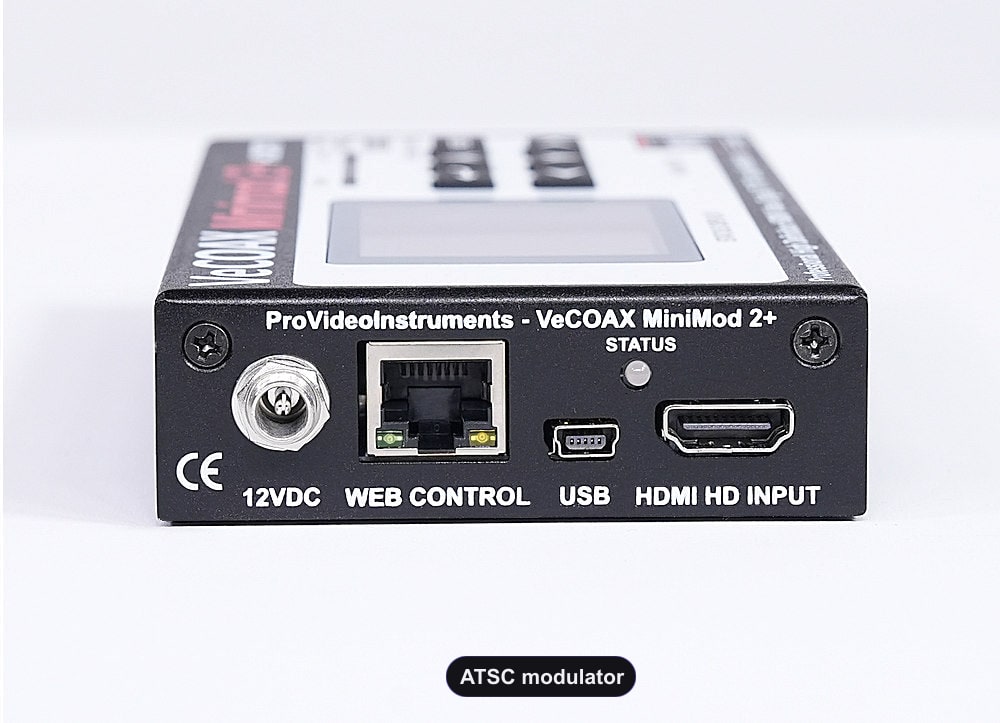

HDMI Licensed + Full EDID
HDMI-licensed input with full EDID control for a reliable source handshake.
Watch the Demo
See an ATSC Channel Created Over Coax in Real Time
From wiring an HDMI source to tuning the new ATSC channel on every antenna TV β the whole process in under five minutes.
Full walkthrough: HDMI hookup, ATSC channel assignment on the LCD, 8VSB distribution over coax, antenna-mode scan, and stacking multiple OTA channels. Duration: 4 min 30 sec.
Applications
Where an ATSC Modulator Shines
π¨
Hotels & Resorts
Add an amenity ATSC channel to the guest-room over-the-air lineup.
πΊ
Sports Bars
Broadcast a game feed as an ATSC channel every antenna-mode TV tunes.
βͺ
Churches
Carry the worship camera as an ATSC channel to overflow and lobby sets.
π₯
Hospitals
Add patient-education ATSC channels to the hospital antenna plant.
π
Schools
Broadcast a campus-announcement ATSC channel on the antenna grid.
π’
Corporate
Add dashboards as ATSC channels for every antenna-fed meeting room.
π
Residential
Add one home ATSC channel every antenna-mode TV in the house tunes.
π‘οΈ
Government
Deliver secure ATSC channels on the facility antenna distribution.
Why PVI
Why This Is the Best ATSC Modulator
Low-end ATSC modulators drift and emit dirty 8VSB that antenna tuners drop. The MINIMOD 2+ holds a locked, broadcast-clean ATSC channel across the whole plant.
VeCOAX MINIMOD 2+
Competitors
✓$445 β Today's Deal
✕$469+
✓HDMI 2.0b Input β Top Quality
✕HDMI 1.4 β outdated handshake; may limit newer HDR sources
✓1080p @ 60fps Encoding
✕30fps Encoding
✓Color LCD β Setup Without a Computer
✕Requires PC for Full Setup
✓Full ATSC 2β83 + Dot-less Numbering
✕Limited ATSC Channels
✓+45 dBmV Output β Long Coax Runs
✕Low Output β May Need External Amplifiers
✓4 ATSC Modulators in a Single 1RU Rack
✕Not Possible
✓5-Year Warranty
✕1-Year Warranty
✓Made in USA
✕Typically a rebranded import β support may vanish when the model changes
✓ATSC + QAM + DVB + ISDB in One Box
✕ATSC Only
✓Free Unlimited Tech Support
✕Limited Support
✓MER >45 dB β Instant 8VSB Lock
✕Low MER β Won't Lock or Drops on Long Coax
Specifications
ATSC Modulator β Technical Specifications
| Video Input | Compatible HDMI 2.0b / 2.1 for Latest HD / 4K Full Quality Sources β also compatible with legacy older HDMI versions (HDMI licensed, HDCP compliant) |
| Input Resolution | 1080p | 1080i | 720p | 576p | 576i | 480p | 480i @ 24/29.97/50/59.94/60fps |
| Video Encoding | MPEG-2 broadcast-standard encoding |
| Output Resolution | Same as input β up to 1080p Full HD |
| Audio Format | Dolby Digital Stereo LPCM |
| RF Frequency Range | 54β990 MHz β selectable down to the Hz steps |
| RF Channel Bandwidth | 6/7/8 MHz (model specific to broadcast format) |
| ATSC Channel Range | 2β83 ATSC (8VSB) | also 2β158 J.83B QAM | Full range for other standards | Channel or Frequency selectable |
| Modulation Standards | ATSC (8VSB), QAM (Annex A/B/C), DVB-T, DVB-C, ISDB-T |
| RF Output Power | -8 dBm | ~45 dBmV (adjustable) |
| MER (Modulation Error Ratio) | >45 dB β Broadcast Quality |
| Frequency Synthesis | Full Digital DDS β zero spurious & harmonics |

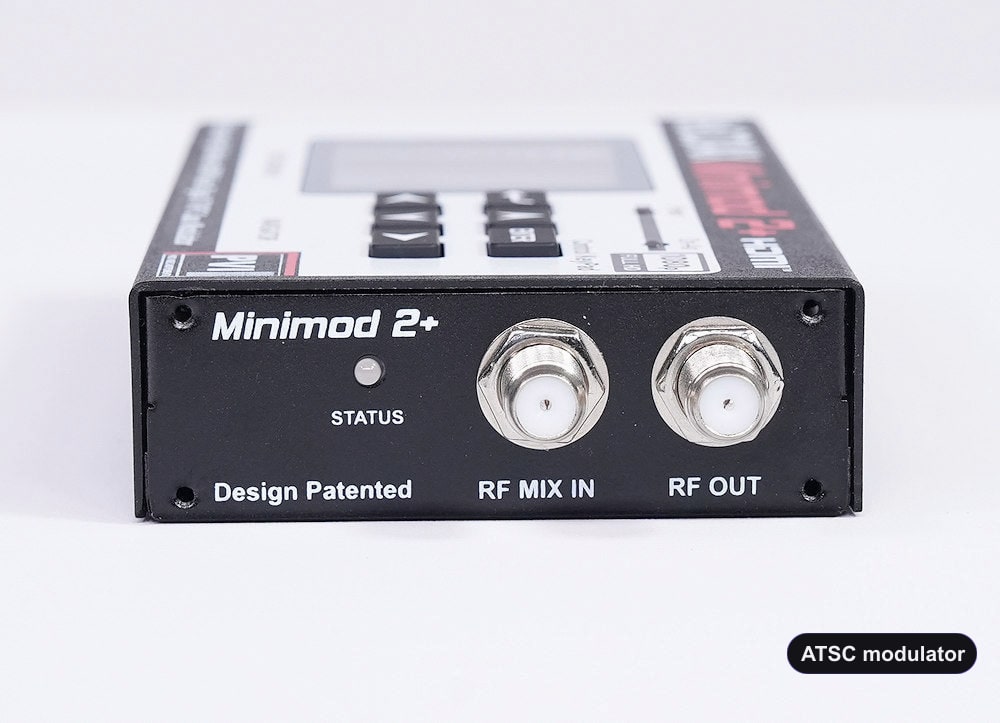

| RF Connector | F-Type Dual, 75Ξ© |
| Coaxial Cable Support | RG59 | RG6 (75Ξ© characteristic impedance) |
| RF Transmission Distance | β€3,000 m (~9,800 ft) β extendable with inline RF amplifiers |
| Display | Large high-resolution color LCD |
| Control | Front-panel buttons + Secure web browser remote (login-protected) |
| Network | 10/100/1000 Gigabit Ethernet RJ-45 β network compatible |
| Power Input | AC 100Vβ240V 50/60Hz, DC 12V/1A (adapter included) |
| Max Working Current | 850 mA @ 12V |
| Operating Temperature | -10Β°C to +45Β°C |
| Storage Temperature | -20Β°C to +60Β°C |
| Operating Humidity | 10β90% RH (no condensation) |
| Storage Humidity | 5β95% RH (no condensation) |

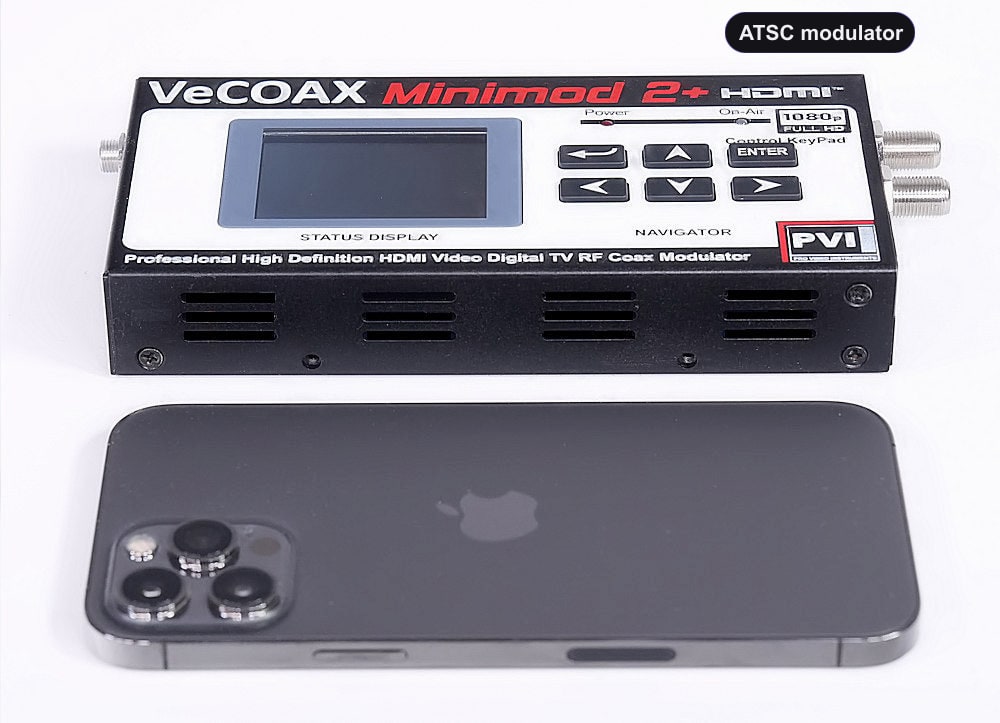

| Unit Dimensions (LΓWΓH) | 6β³ Γ 3β³ (4.5β³ with wall mount ears) Γ 1β³ |
| Unit Weight | 1 lb (0.45 kg) |
| Shipping Box (LΓWΓH) | 11β³ Γ 6β³ Γ 9.3β³ |
| Shipping Weight | 1 lb |
| Patent | Hardware, software, and display UI are PVIβs patent |
| Warranty | 5-Year Manufacturer Warranty |
| Origin | Designed & Made in USA |
FAQ
ATSC Modulator For HDMI - Frequently Asked Questions
What is an ATSC modulator for HDMI?
An ATSC modulator for HDMI is a device that turns an HDMI source into a real digital TV channel over coax. For the atsc modulator keyword family, the VeCOAX MINIMOD 2+ handles creating an ATSC antenna-mode HD channel from an HDMI source and lets every connected TV scan the result like normal television.
How does an ATSC modulator for HDMI work over coax?
For atsc modulator, the MINIMOD 2+ receives HDMI, encodes it as a 1080p digital television channel, and outputs it through the F-type coax connector. The coax network carries that channel to every TV without a box behind each screen.
Why use an ATSC modulator for HDMI instead of HDMI cables?
ATSC Modulator For HDMI distribution uses the coax already installed in the building, so distance and screen count are not limited like HDMI cable runs. This is why atsc modulator is better for whole-building TV distribution than point-to-point HDMI wiring.
Which sources work with this ATSC modulator for HDMI?
Use HDMI cameras, receivers, media players, computers, and signage systems. For atsc modulator installations, the HDMI input includes EDID control so common 720p, 1080i, and 1080p sources can be converted into a stable HD TV channel.
Which TVs can receive the atsc modulator channel?
Any TV with a compatible digital tuner can receive the atsc modulator channel after a normal scan. HD, 4K, and 8K televisions can tune the 1080p output because it is a standard digital TV broadcast format.
Does this ATSC modulator for HDMI support QAM cable mode?
Yes. In QAM mode, the MINIMOD 2+ creates a digital cable-TV channel that cable-mode TVs can scan. This is useful for atsc modulator in hotels, CATV plants, commercial buildings, and private coax systems.
Does this ATSC modulator for HDMI support ATSC antenna mode?
Yes. In ATSC mode, the same ATSC modulator for HDMI creates an antenna-style digital TV channel. This helps atsc modulator projects where TVs are set to antenna mode instead of cable/QAM mode.
Can this ATSC modulator for HDMI coexist with existing TV channels?
Yes. Assign the atsc modulator output to an open RF channel so it does not overlap existing cable, antenna, or other private modulator channels. Proper channel planning lets multiple channels share the same coax cleanly.
How many TVs can one ATSC modulator for HDMI feed?
One MINIMOD 2+ can feed a few TVs or thousands of TVs when the coax system is designed correctly. For atsc modulator, the +45 dBmV RF output gives strong launch power for splitters, taps, and long building runs.
How far can atsc modulator travel over coax?
ATSC Modulator For HDMI output can travel up to roughly 9,800 feet under proper RF conditions. Real distance depends on cable type, splitters, taps, amplifiers, and the signal level required at each TV.
Can I use existing coax with this ATSC modulator for HDMI?
Yes. This is the main advantage of atsc modulator: it reuses RG6 or RG59 coax already in the walls. You do not need to pull new HDMI cables to every display.
Do I need a computer to set up this ATSC modulator for HDMI?
No. Channel number, modulation standard, output settings, and basic configuration can be set from the built-in color LCD. This makes atsc modulator setup fast even without a laptop.
Why is the color LCD important for atsc modulator?
The front display lets installers confirm the active channel, standard, and operating status at the rack or TV closet. That makes ATSC 8VSB channel insertion faster to commission than units that require software for basic setup.
Can I manage this ATSC modulator for HDMI remotely?
Yes. The MINIMOD 2+ includes secure web browser control for checking status and adjusting settings from a computer, tablet, or phone on the local network, which is useful for atsc modulator systems in equipment rooms.
What picture quality does this ATSC modulator for HDMI deliver?
It delivers Full HD 1080p MPEG-2 video with Dolby Digital audio. Broadcast-grade MER performance and a clean RF synthesizer help the atsc modulator channel stay sharp on every TV.
Does this ATSC modulator for HDMI work with 4K and 8K TVs?
Yes. Modern 4K and 8K TVs can tune and display the 1080p atsc modulator channel just like any other HD broadcast channel. For true 4K channel output, use the VeCOAX MINIMOD 4K instead.
Can I add more atsc modulator channels later?
Yes. Each MINIMOD 2+ creates one channel. Add more units, set each one to a different RF channel, and combine them onto the same coax for a larger atsc modulator lineup.
Where is this ATSC modulator for HDMI used most often?
This ATSC modulator for HDMI is used in antenna-mode TV systems, campuses, venues, houses of worship, and public facilities. Typical atsc modulator applications include private TV channels, digital signage, camera feeds, welcome channels, training video, live events, and shared entertainment sources.
How is this ATSC modulator for HDMI different from a analog channel modulator?
A analog channel modulator usually depends on short point-to-point wiring or limited outputs. A ATSC modulator for HDMI creates a real tunable TV channel, so the existing coax system distributes the atsc modulator source to every TV at building scale.
Is the MINIMOD 2+ good for professional atsc modulator?
Yes. It is designed for 24/7 professional atsc modulator with +45 dBmV output, MER above 45 dB, selectable QAM/ATSC/DVB/ISDB standards, web control, and a compact metal chassis.
Is this ATSC modulator for HDMI HDCP compliant?
The HDMI input is licensed and includes EDID control for compatibility with standard HDMI sources. As with any professional atsc modulator system, the connected source content must allow the intended display and distribution use.
What warranty and support come with this ATSC modulator for HDMI?
The MINIMOD 2+ includes a 5-year manufacturer warranty and free lifetime technical support from Pro Video Instruments. It is designed and made in USA for dependable ATSC 8VSB channel insertion and strong atsc modulator performance.
Accessories
Complete Your ATSC Distribution System
Everything you need to combine, rack, and scale multiple ATSC channels.

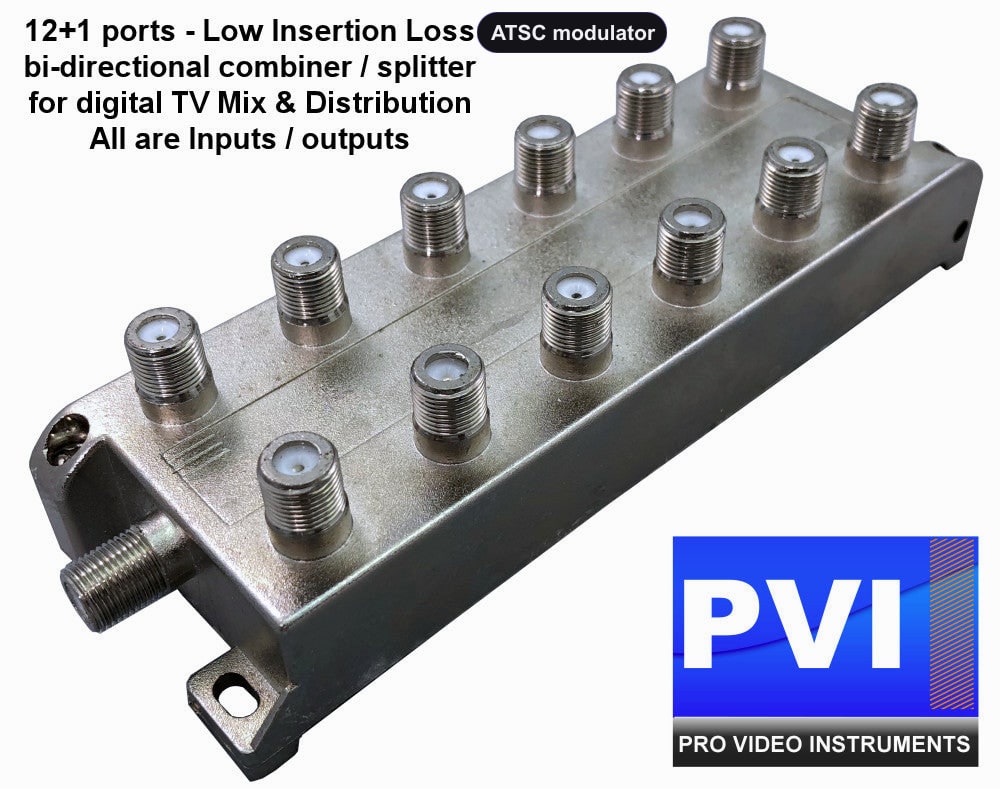

Coax Combiner / Splitter (13-Port)
Ultra-low-loss 13-port coaxial combiner optimized for HD/4K digital TV. Bidirectional β use as combiner or splitter.
$105.00$95.00
You save $10.00
1RU Rack Panel (4-Slot)
Professional 19-inch rack mount panel. Install up to 4 MINIMOD 2+ units in a single 1RU space.
$105.00$99.00
You save $6.00
VeCOAX MINIMOD-4K Ultra HD
Upgrade to full 4K HDR over coax. Mix and match with MINIMOD 2+ units on the same system.
$1,950.00$1,495.00
You save $455.00
MINIMOD 2+ β 3-Pack Bundle
Three award-winning MINIMOD 2+ modulators β three independent HD channels at a bundle price below three single units.
$1,485.00$1,299.00
You save $186.00
MINIMOD 2+ β 4-Pack Bundle
Four MINIMOD 2+ modulators β four HD channels at our best per-unit price. Perfect fit for a single 1RU rack panel.
$1,980.00$1,732.00
You save $248.00
VeCOAX MiniBlade (10-Unit Rack)
High-density blade kit for 10 MINIMOD units in a single 19-inch rack space. Maximum channel count.
From
$599.00
Bundles & Upgrades
You Might Also Like
Add more ATSC channels with multi-unit bundles, or step up to 4K over coax.
VeCOAX MICROMOD-3 SDI
3G-SDI + HDMI + closed captions + analog inputs β broadcast SDI source to coax
$1,295.00$995.00
You save $300.00
VeCOAX RACK-2 (2-Channel System)
Two-channel HDMI modulator system β two MINIMOD 2+ units in a 1RU rack mount
$1,095.00$995.00
You save $100.00
VeCOAX RACK-4 (4-Channel System)
Four-channel HDMI modulator system β four MINIMOD 2+ units in a 1RU rack mount
$2,085.00$1,830.00
You save $255.00
VeCOAX ULTRA+ (4 or 8 Channels)
Integrated modular chassis β pre-combined channels with centralized LCD control display
From
$2,449.00
Ready to Put an ATSC Channel on Every TV?
$445.00$495.00
Save $50.00
Free shipping over $500 Β· 5-year warranty Β· Free unlimited tech support Β· Made in USA
